2012 TOYOTA IQ child seat

TABLE OF CONTENTSIndex
2
iQ_WE_74014E
1-1. Key information
Keys ...................................... 36
1-2. Opening, closing and locking
the doors
Smart entry & start system ... 39
Wireless remote control ........ 62
Side doors............................. 72
Back door.............................. 75
1-3. Adjustable components
(seats, mirrors, steering
wheel)
Front seats ............................ 79
Rear seats ............................ 82
Seat belts .............................. 86
Steering wheel ...................... 91
Anti-glare inside rear
view mirror .......................... 92
Outside rear view mirrors...... 95
1-4. Opening and closing
the windows
Power windows ................... 100
1-5. Refueling
Opening the fuel tank cap ... 103
1-6. Theft deterrent system
Engine immobilizer
system .............................. 108
Double locking system ........ 117
Alarm .................................. 1191-7. Safety information
Correct driving posture ....... 122
SRS airbags ....................... 124
Child restraint systems ....... 137
Installing child restraints ..... 148
Airbag manual on-off
system.............................. 159
2-1. Driving procedures
Driving the vehicle .............. 164
Engine (ignition) switch
(vehicles without smart
entry & start system) ........ 176
Engine (ignition) switch
(vehicles with smart
entry & start system) ........ 179
Multidrive ............................ 185
Manual transmission .......... 189
Turn signal lever................. 193
Parking brake ..................... 194
Horn ................................... 196
2-2. Instrument cluster
Gauges and meters............ 197
Indicators and warning
lights................................. 199
Multi-information display .... 205
1Before driving
2When driving

9
iQ_WE_74014E
Anti-glare inside rear view mirror P. 92
SRS rear window curtain
shield airbag
 P. 124
SRS curtain shield
airbags
 P. 124
Sun visors* P. 293
Vanity mirrors P. 294
Seat belts P. 86
Interior light P. 287
Assist grips P. 298
*: NEVER use a rearward facing child restraint on a
seat protected by an ACTIVE AIRBAG in front of
it, DEATH or SERIOUS INJURY to the CHILD can
occur. (P. 157)
: If equipped

21
iQ_WE_74014E
Window lock switch P. 100
Inside door lock button P. 73
Bottle holders P. 289
Power window switches P. 100
Door lock switch P. 73
*: NEVER use a rearward facing child restraint on a
seat protected by an ACTIVE AIRBAG in front of
it, DEATH or SERIOUS INJURY to the CHILD can
occur. (P. 157)
: If equipped

1Before driving
35
iQ_WE_74014E
1-1. Key information
Keys.................................... 36
1-2. Opening, closing and locking
the doors
Smart entry & start
system .............................. 39
Wireless remote control ...... 62
Side doors .......................... 72
Back door ........................... 75
1-3. Adjustable components
(seats, mirrors, steering
wheel)
Front seats.......................... 79
Rear seats .......................... 82
Seat belts............................ 86
Steering wheel .................... 91
Anti-glare inside rear
view mirror ........................ 92
Outside rear view mirrors ... 95
1-4. Opening and closing
the windows
Power windows................. 1001-5. Refueling
Opening the fuel tank
cap .................................. 103
1-6. Theft deterrent system
Engine immobilizer
system ............................ 108
Double locking
system ............................ 117
Alarm ................................ 119
1-7. Safety information
Correct driving posture ..... 122
SRS airbags...................... 124
Child restraint systems ..... 137
Installing child restraints ... 148
Airbag manual on-off
system ............................ 159

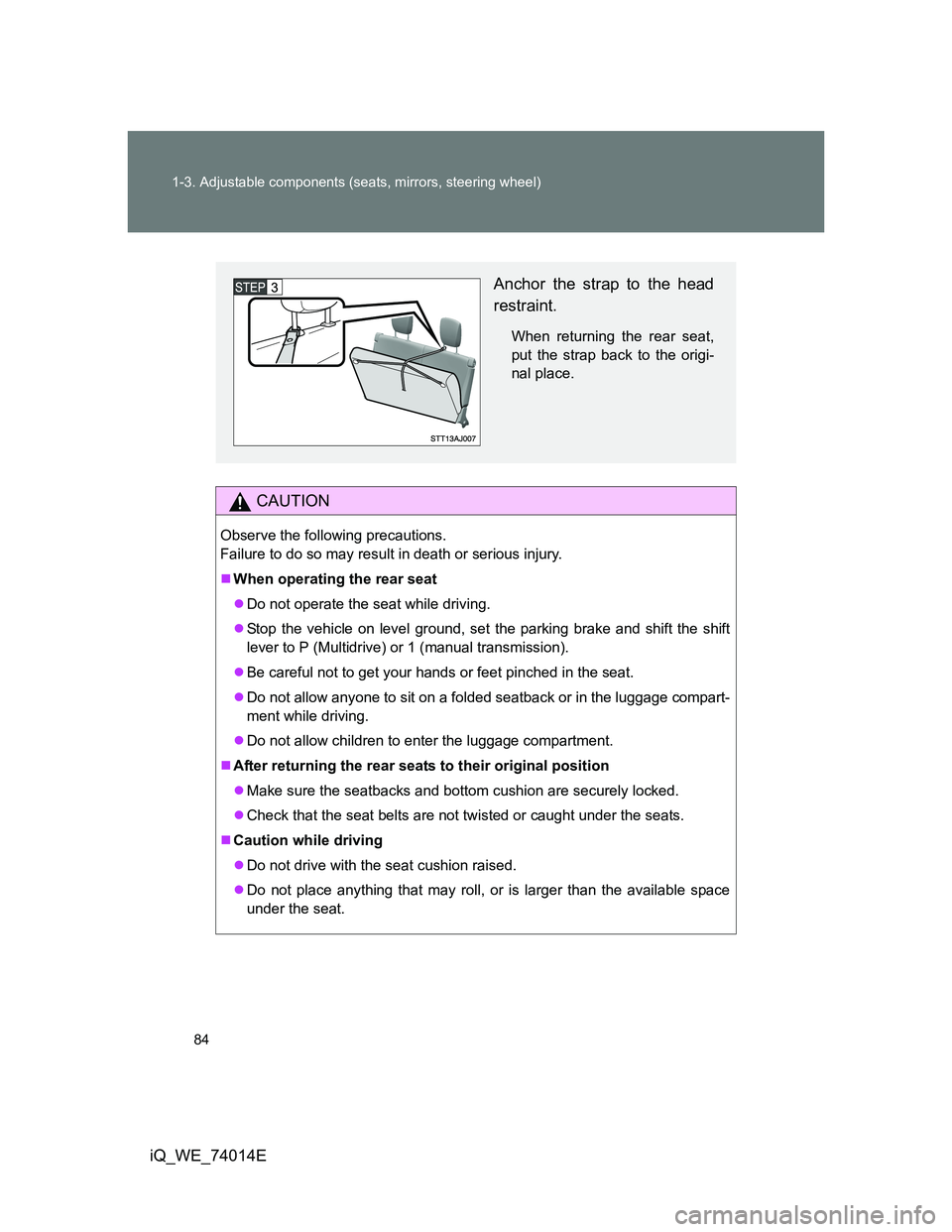

84 1-3. Adjustable components (seats, mirrors, steering wheel)
iQ_WE_74014E
CAUTION
Observe the following precautions.
Failure to do so may result in death or serious injury.
When operating the rear seat
Do not operate the seat while driving.
Stop the vehicle on level ground, set the parking brake and shift the shift
lever to P (Multidrive) or 1 (manual transmission).
Be careful not to get your hands or feet pinched in the seat.
Do not allow anyone to sit on a folded seatback or in the luggage compart-
ment while driving.
Do not allow children to enter the luggage compartment.
After returning the rear seats to their original position
Make sure the seatbacks and bottom cushion are securely locked.
Check that the seat belts are not twisted or caught under the seats.
Caution while driving
Do not drive with the seat cushion raised.
Do not place anything that may roll, or is larger than the available space
under the seat.
Anchor the strap to the head
restraint.
When returning the rear seat,
put the strap back to the origi-
nal place.

89 1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
iQ_WE_74014E
Child seat belt usage
The seat belts of your vehicle were principally designed for persons of adult
size.
Use a child restraint system appropriate for the child, until the child
becomes large enough to properly wear the vehicle’s seat belt. (P. 137)
When the child becomes large enough to properly wear the vehicle’s
seat belt, follow the instructions on P. 86 regarding seat belt usage.
Replacing the belt after the pretensioner has been activated
If the vehicle is involved in multiple collisions, the pretensioner will activate
for the first collision, but will not activate for the second or subsequent colli-
sions.
Seat belt regulations
If seat belt regulations exist in the country where you reside, please contact
any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional, for seat belt replacement or installation.
CAUTION
Observe the following precautions to reduce the risk of injury in the event of
sudden braking, sudden swerving or an accident.
Failing to do so may cause death or severe injury.
Wearing a seat belt
Ensure that all passengers wear a seat belt.
Always wear a seat belt properly.
Each seat belt should be used by one person only. Do not use a seat belt
for more than one person at once, including children.
Toyota recommends that children be seated in the rear seat and always
use a seat belt and/or an appropriate child restraint system.
Do not recline the seat any more than necessary to achieve a proper seat-
ing position. The seat belt is most effective when the occupants are sitting
up straight and well back in the seats.
Do not wear the shoulder belt under your arm.
Always wear your seat belt low and snug across your hips.

90 1-3. Adjustable components (seats, mirrors, steering wheel)
iQ_WE_74014E
CAUTION
When children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes
twisted around a child’s neck, it may lead to choking or other serious injuries
that could result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used
to cut the belt.
Seat belt pretensioners
If the pretensioner has activated, the SRS warning light will come on. In that
case, the seat belt cannot be used again and must be replaced at any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional.
Seat belt damage and wear
Do not damage the seat belts by allowing the belt, plate, or buckle to be
jammed in the door.
Inspect the seat belt system periodically. Check for cuts, fraying, and loose
parts. Do not use a damaged seat belt until it is replaced. Damaged seat
belt cannot protect an occupant from death or serious injury.
Ensure that the belt and tab are locked and the belt is not twisted.
If the seat belt does not function correctly, immediately contact any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional.
Replace the seat assembly, including the belts, if your vehicle has been
involved in a serious accident, even if there is no obvious damage.
Do not attempt to install, remove, modify, disassemble or dispose of the
seat belts. Have any necessary repairs carried out by any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional. Inappropriate handling of the pretensioner may prevent it from
operating properly resulting in death or serious injury.

133 1-7. Safety information
1
Before driving
iQ_WE_74014E
CAUTION
SRS airbag precautions
Improperly seated and/or restrained infants and children can be killed or
seriously injured by a deploying airbag. An infant or child who is too small
to use a seat belt should be properly secured using a child restraint sys-
tem. Toyota strongly recommends that all infants and children be placed in
the rear seats of the vehicle and properly restrained. The rear seats are
the safest for infants and children. (P. 137)
Do not sit on the edge of the seat or
lean against the dashboard.
Do not allow a child to stand in front of
the SRS front passenger airbag unit or
sit on the knees of a front passenger.
Do not drive the vehicle while the driver
or passenger has items resting on their
knees.
Vehicles without curtain shield airbags:
Do not lean against the front door.
Vehicles with curtain shield airbags: Do
not lean against the door, the roof side
rail or the front, side and rear pillars.
