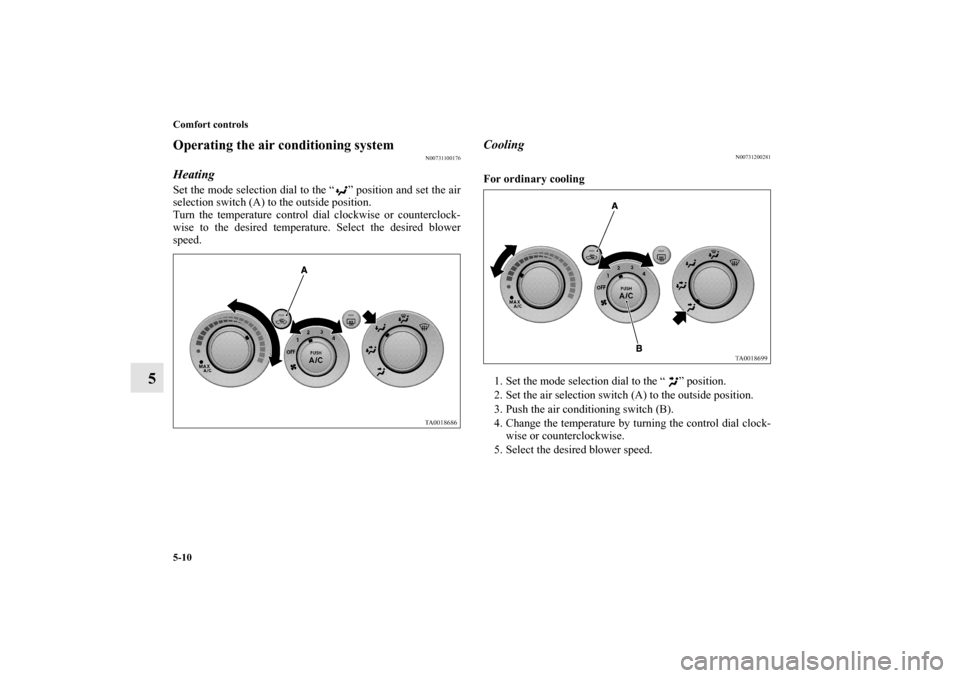

Operating the air conditioning system
N00731100176
Heating Set the mode selection dial to the “ ” position and set the air
selection switch (A) to the outside position.
Turn the temperature control dial clockwise or counterclock-
wise to the desired temperature. Select the desired blower
speed.
Cooling
N00731200281
For ordinary cooling

1. Set the mode selection dial to the “ ” position.
2. Set the air selection switch (A) to the outside position.
3. Push the air conditioning switch (B).
4. Change the temperature by turning the control dial clock-
wise or counterclockwise.
5. Select the desired blower speed.
BK0102600US.book 10 ページ ２００９年３月３０日　月曜日　午後２時２分

Comfort controls
5-11
5
NOTE
If the outside air is dusty or contaminated in some way, set
the air selection switch (A) to the recirculation position.
Let in some outside air from time to time for good ventila-
tion.

To cool the leg areas, set the mode selection dial to the
“ ” position.For quick cooling

1. Set the mode selection dial to the “ ” position.
2. Set the temperature control dial to the “MAX A/C” posi-
tion.
3. Set the blower to the maximum speed.
NOTE
When the temperature control dial is set to the “MAX
A/C” position, the air conditioning compressor will run
automatically and the light will come on. The recircula-
tion position will be selected automatically. In this case,
you cannot turn the air conditioning off or select the out-
side position.

When the temperature control dial is set to a position other
than “MAX A/C”, the air selection will automatically
change to outside air. The air conditioning compressor
will continue running.
BK0102600US.book 11 ページ ２００９年３月３０日　月曜日　午後２時２分

5-12 Comfort controls
5

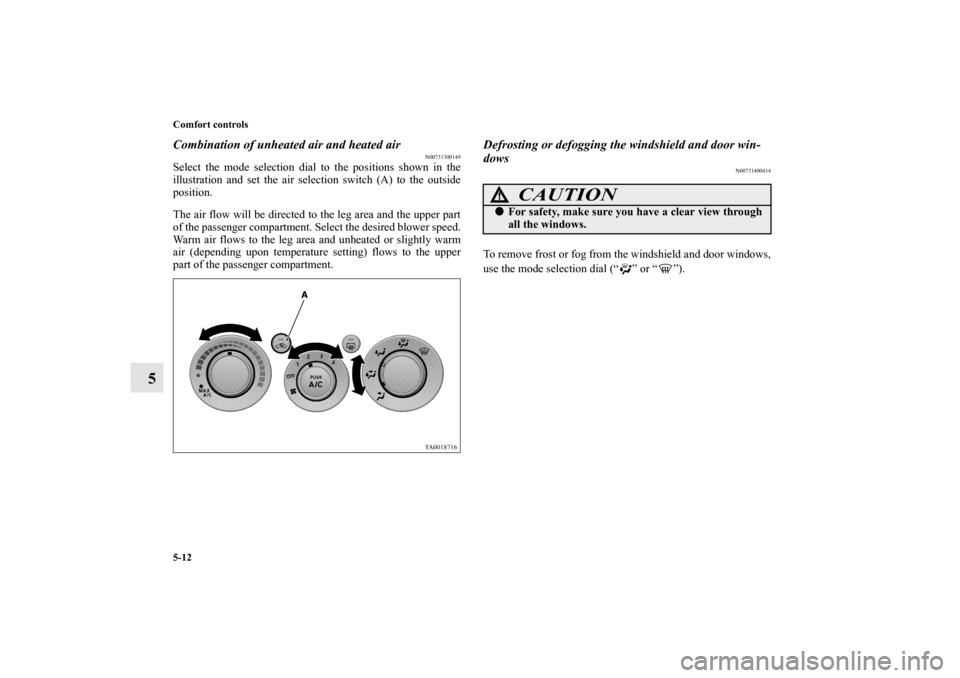

Combination of unheated air and heated air
N00731300149
Select the mode selection dial to the positions shown in the
illustration and set the air selection switch (A) to the outside
position.
The air flow will be directed to the leg area and the upper part
of the passenger compartment. Select the desired blower speed.
Warm air flows to the leg area and unheated or slightly warm
air (depending upon temperature setting) flows to the upper
part of the passenger compartment.
Defrosting or defogging the windshield and door win-
dows
N00731400414
To remove frost or fog from the windshield and door windows,
use the mode selection dial (“ ” or “ ”).
CAUTION
!
For safety, make sure you have a clear view through
all the windows.
BK0102600US.book 12 ページ ２００９年３月３０日　月曜日　午後２時２分

Comfort controls
5-13
5

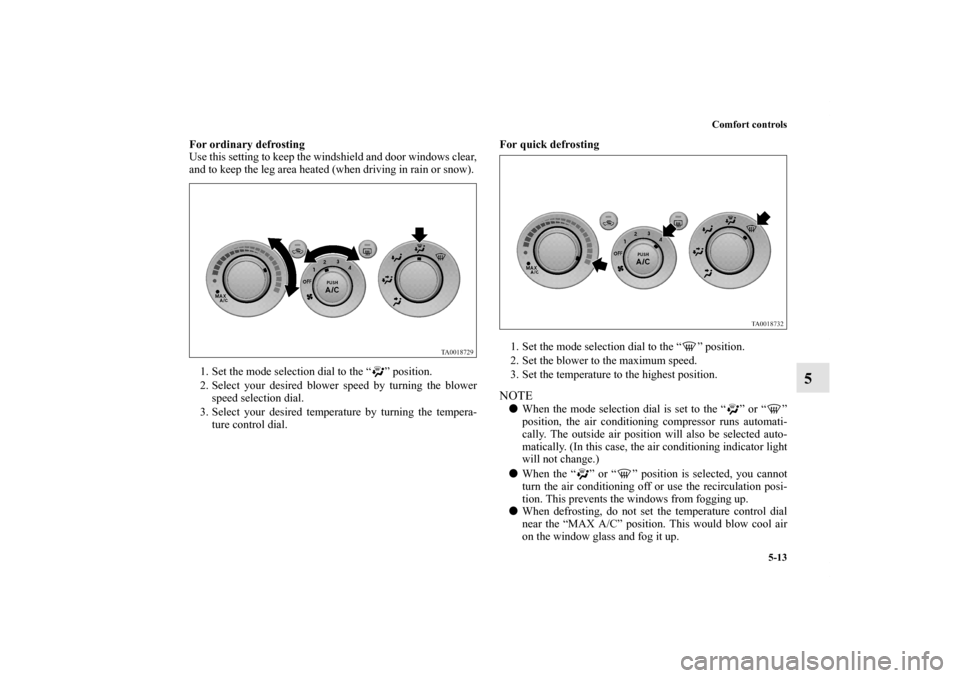

For ordinary defrosting
Use this setting to keep the windshield and door windows clear,
and to keep the leg area heated (when driving in rain or snow).
1. Set the mode selection dial to the “ ” position.
2. Select your desired blower speed by turning the blower
speed selection dial.
3. Select your desired temperature by turning the tempera-
ture control dial.For quick defrosting

1. Set the mode selection dial to the “ ” position.
2. Set the blower to the maximum speed.
3. Set the temperature to the highest position.
NOTE
When the mode selection dial is set to the “ ” or “ ”
position, the air conditioning compressor runs automati-
cally. The outside air position will also be selected auto-
matically. (In this case, the air conditioning indicator light
will not change.)

When the “ ” or “ ” position is selected, you cannot
turn the air conditioning off or use the recirculation posi-
tion. This prevents the windows from fogging up.

When defrosting, do not set the temperature control dial
near the “MAX A/C” position. This would blow cool air
on the window glass and fog it up.
BK0102600US.book 13 ページ ２００９年３月３０日　月曜日　午後２時２分

5-14 Comfort controls

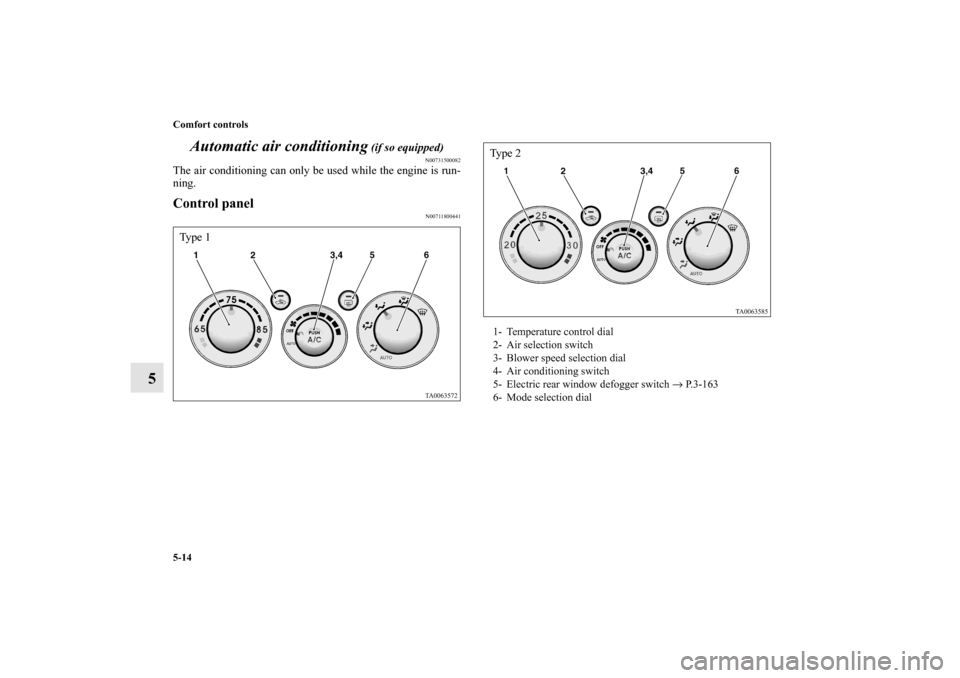

5Automatic air conditioning
(if so equipped)
N00731500082
The air conditioning can only be used while the engine is run-
ning.Control panel
N00711800441
Ty p e 1
1- Temperature control dial
2- Air selection switch
3- Blower speed selection dial
4- Air conditioning switch
5- Electric rear window defogger switch → P.3-163
6- Mode selection dialTy p e 2
BK0102600US.book 14 ページ ２００９年３月３０日　月曜日　午後２時２分

Comfort controls
5-15
5
NOTE
There is an interior air temperature sensor (A) in the illus-
trated position.
Never place anything over the sensor, since doing so will
prevent it from functioning properly.

The multi center display automatically switches to an air
conditioning display whenever an air conditioning control
is adjusted manually. The display automatically reverts to
its original display about 10 seconds after the adjustment
is made.
Blower speed selection dial
N00736900010
When the ignition key is in the ON position, select the blower
speed by turning the blower speed selection dial. The blower
speed will gradually increase as the dial is turned to the right.
When the blower speed selection dial is set to the “OFF” posi-
tion, all fan-driven airflow will stop.
BK0102600US.book 15 ページ ２００９年３月３０日　月曜日　午後２時２分

5-16 Comfort controls
5

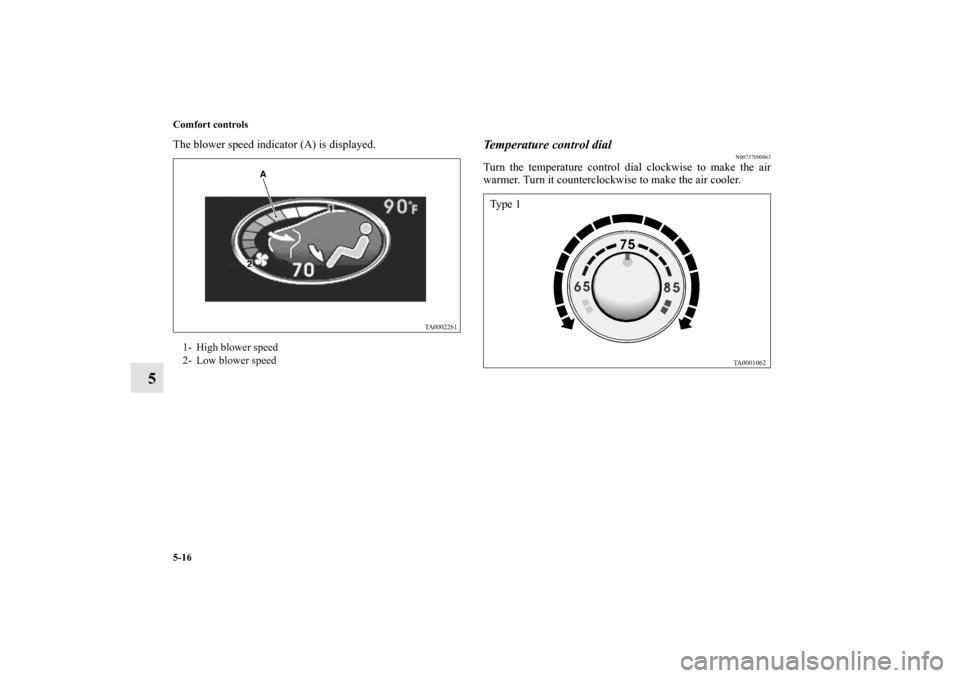

The blower speed indicator (A) is displayed.
Temperature control dial
N00737000063
Turn the temperature control dial clockwise to make the air
warmer. Turn it counterclockwise to make the air cooler.
1- High blower speed
2- Low blower speed
Ty p e 1
BK0102600US.book 16 ページ ２００９年３月３０日　月曜日　午後２時２分

Comfort controls
5-17
5

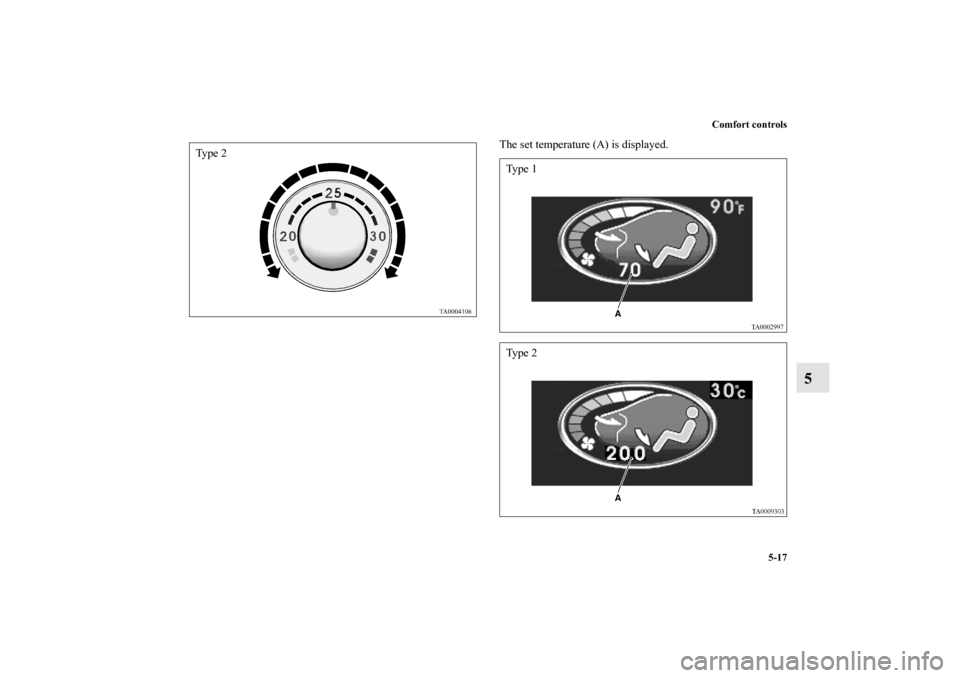

The set temperature (A) is displayed.
Ty p e 2
Ty p e 1Ty p e 2
