2010 MITSUBISHI ENDEAVOR Owners Manual

5-34 Comfort controls
5
Radio control panel and display
N00734900843
1- PWR (On-Off) switch
2- Memory select buttons
3- RADIO (AM/FM selection) button
4- SEEK (Up-seek) button
5- SEEK (Down-seek) button
6- SCAN button
7- TUNE/FOLDER switch
8- SCAN indicator
9- AM/FM (AM/FM1/FM2) indicator
10- Preset memory number display
11- ST (Stereo) indicator
12- Frequency display
BK0102600US.book 34 ページ ２００９年３月３０日　月曜日　午後２時２分

Comfort controls
5-35
5
To listen to the radio
N00735000825
1. Press the PWR switch (1) to turn the audio system on and
off. The system turns on in the last mode used.
2. Press the RADIO button (3) to select the desired band
(AM/FM1/FM2).
3. Press the SEEK button (4 or 5) to tune to a station, or
press one of the memory select buttons (2) to tune in to a
station memorized for that button.To tune the radioAutomatic tuning
1. After pressing the SEEK button (4 or 5), reception of the
selected station will begin.
2. Press the SCAN button (6). SCAN indicator (8) will come
on and the radio will tune consecutively to each available
station for about 5 seconds per station. If you want to stop
scanning, press the SCAN button again.
The frequency display of the current station blinks once
per second during SCAN.
Manual tuning
The frequency changes every time the TUNE/FOLDER switch
(7) is turned.
Turn the switch to select the desired station. To enter frequencies into the memoryAs many as 6 AM and 12 FM stations can be entered into the
memory.To store a frequency in the memory, follow these steps:
1. Press the SEEK button (4 or 5), or turn the
TUNE/FOLDER switch (7) to tune to the frequency you
wish to keep in the memory.
2. Press one of the memory select buttons (2) until it beeps.
The sound will be momentarily interrupted while the fre-
quency is being entered into the memory. The number of
the button matching the entry in the memory as well as the
frequency are displayed.
3. The preset memory setting is retrieved by pressing the
button and then releasing it within about 2 seconds.
NOTE
Disconnecting the battery cables erases all the radio sta-
tion settings stored in the memory.
BK0102600US.book 35 ページ ２００９年３月３０日　月曜日　午後２時２分

5-36 Comfort controls
5

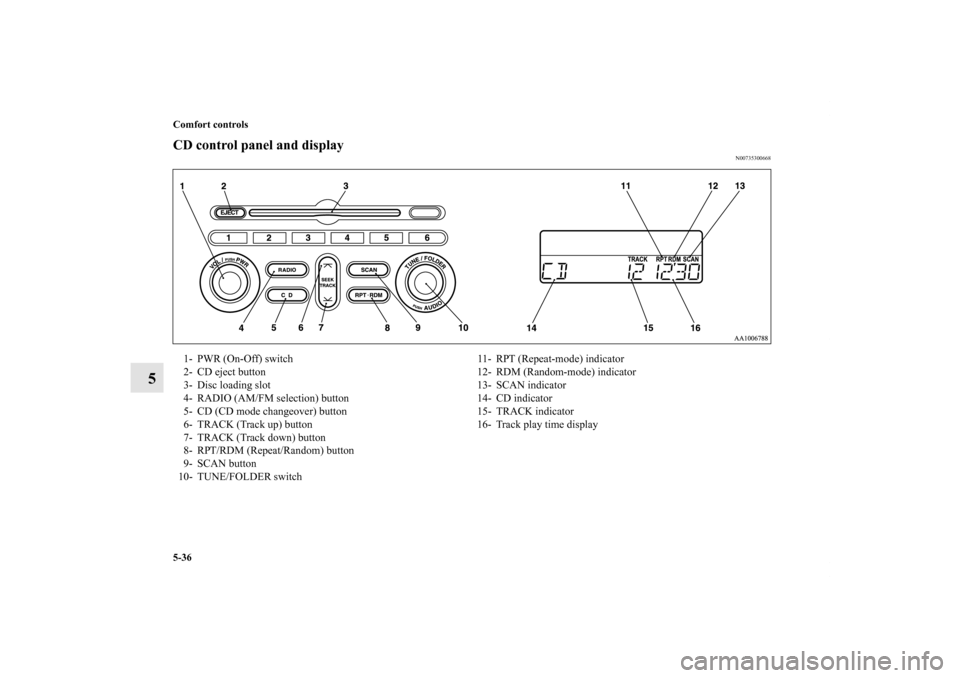

CD control panel and display
N00735300668
1- PWR (On-Off) switch 11- RPT (Repeat-mode) indicator
2- CD eject button 12- RDM (Random-mode) indicator
3- Disc loading slot 13- SCAN indicator
4- RADIO (AM/FM selection) button 14- CD indicator
5- CD (CD mode changeover) button 15- TRACK indicator
6- TRACK (Track up) button 16- Track play time display
7- TRACK (Track down) button
8- RPT/RDM (Repeat/Random) button
9- SCAN button
10- TUNE/FOLDER switch
BK0102600US.book 36 ページ ２００９年３月３０日　月曜日　午後２時２分

Comfort controls
5-37
5
To listen to a CD
N00735500976
1. Press the CD button (5) and the CD mode will be selected,
starting a playback.
2. To adjust the volume and tone, refer to “To adjust the vol-
ume” on page 5-31 and “To adjust the tone” on page 5-32.
3. To stop the CD, turn off the power by pressing the PWR
switch (1) or switch to the other mode by pressing the
RADIO button (4).NOTE
For information concerning the handling of the compact
discs, refer to “Handling of compact discs” on page 5-74.
To listen an MP3 CDThis player allows you to play MP3 (MPEG Audio Layer-3)
files recorded on CD-ROMs, CD-Rs (recordable CDs), and
CD-RWs (rewritable CDs) in ISO9660 Level 1/Level 2, Joliet,
and Romeo formats. Each disc may have a maximum of 16
trees, 100 folders, and 255 files per disc.
Push the CD button (5) if an MP3 CD is already in the slot.
The display shows “READING”, then playback will begin.
The folder number and the track number will appear on the dis-
play.
BK0102600US.book 37 ページ ２００９年３月３０日　月曜日　午後２時２分

5-38 Comfort controls
5
NOTE
While listening to a disc on which CD-DA (CD-Digital
Audio) and MP3 files have both been recorded, you can
switch between reading of the CD-DA and reading of the
MP3 files by pressing the CD button for 2 seconds or
longer (until you hear a beep).

With a disc that contains both CD-DA and MP3 files, the
CD-DA files are automatically played first.

The playback sound quality differs depending on the
encoding software and the bit rate. For details, refer to the
user manual of your encoding software.

Depending on file/folder configurations on a disc, it may
take some time before playback starts.

MP3 encode software and writing software are not sup-
plied to this unit.

You may encounter trouble in playing an MP3 recorded
with certain writing software or CD recorders (CD-R/RW
drivers).

If you record too many folders or files other than MP3
onto a disc, it may take some time before playback starts.

This unit does not record MP3 files.

For information concerning CD-Rs/RWs, refer to “Notes

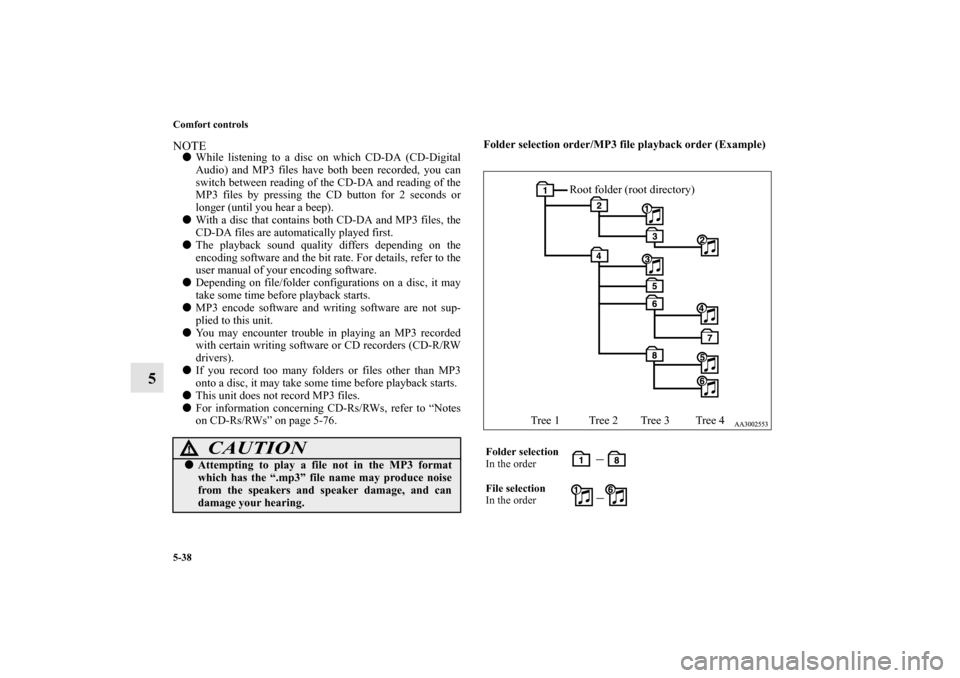

on CD-Rs/RWs” on page 5-76.Folder selection order/MP3 file playback order (Example)
CAUTION
!
Attempting to play a file not in the MP3 format
which has the “.mp3” file name may produce noise
from the speakers and speaker damage, and can
damage your hearing.
Folder selection
In the order
File selection
In the order
Root folder (root directory)
Tree 1 Tree 2 Tree 3 Tree 4
BK0102600US.book 38 ページ ２００９年３月３０日　月曜日　午後２時２分

Comfort controls
5-39
5

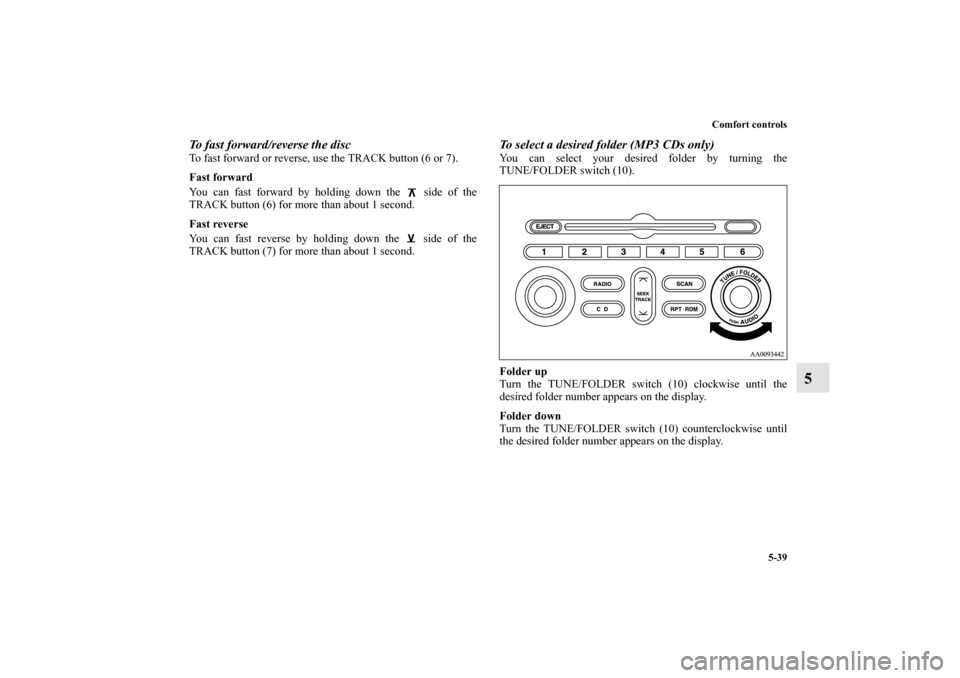

To fast forward/reverse the discTo fast forward or reverse, use the TRACK button (6 or 7).
Fast forward
You can fast forward by holding down the side of the
TRACK button (6) for more than about 1 second.
Fast reverse
You can fast reverse by holding down the side of the
TRACK button (7) for more than about 1 second.
To select a desired folder (MP3 CDs only)You can select your desired folder by turning the
TUNE/FOLDER switch (10).
Folder up
Turn the TUNE/FOLDER switch (10) clockwise until the
desired folder number appears on the display.
Folder down
Turn the TUNE/FOLDER switch (10) counterclockwise until
the desired folder number appears on the display.
BK0102600US.book 39 ページ ２００９年３月３０日　月曜日　午後２時２分

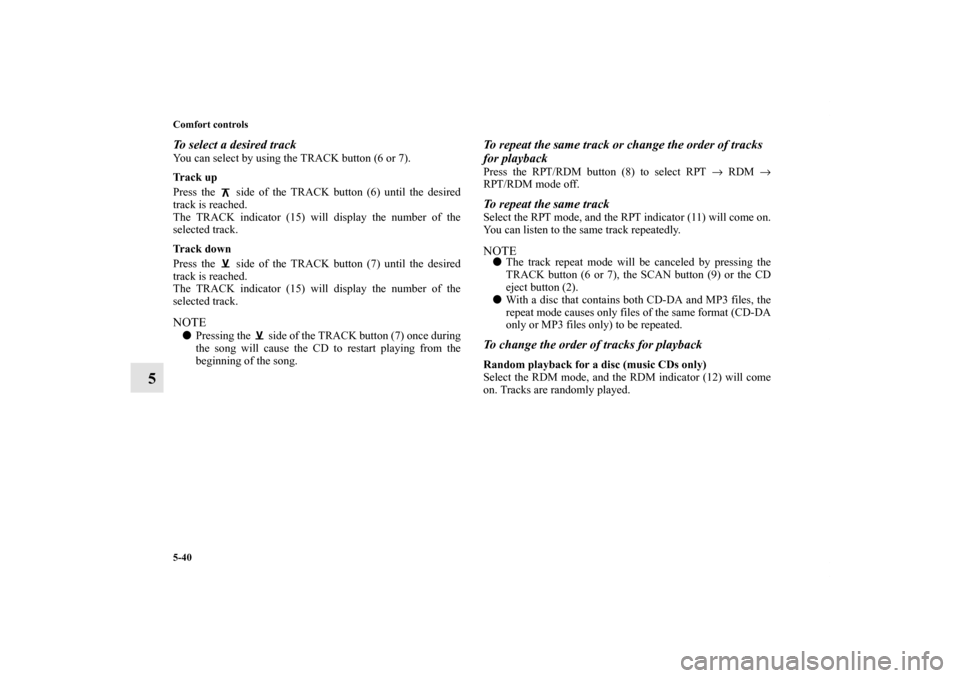

5-40 Comfort controls
5
To select a desired trackYou can select by using the TRACK button (6 or 7).
Track up
Press the side of the TRACK button (6) until the desired
track is reached.
The TRACK indicator (15) will display the number of the
selected track.
Track down
Press the side of the TRACK button (7) until the desired
track is reached.
The TRACK indicator (15) will display the number of the
selected track.NOTE
Pressing the side of the TRACK button (7) once during
the song will cause the CD to restart playing from the
beginning of the song.
To repeat the same track or change the order of tracks
for playback Press the RPT/RDM button (8) to select RPT → RDM →
RPT/RDM mode off.To repeat the same track Select the RPT mode, and the RPT indicator (11) will come on.
You can listen to the same track repeatedly. NOTE
The track repeat mode will be canceled by pressing the
TRACK button (6 or 7), the SCAN button (9) or the CD
eject button (2).

With a disc that contains both CD-DA and MP3 files, the
repeat mode causes only files of the same format (CD-DA
only or MP3 files only) to be repeated. To change the order of tracks for playbackRandom playback for a disc (music CDs only)
Select the RDM mode, and the RDM indicator (12) will come
on. Tracks are randomly played.
BK0102600US.book 40 ページ ２００９年３月３０日　月曜日　午後２時２分

Comfort controls
5-41
5

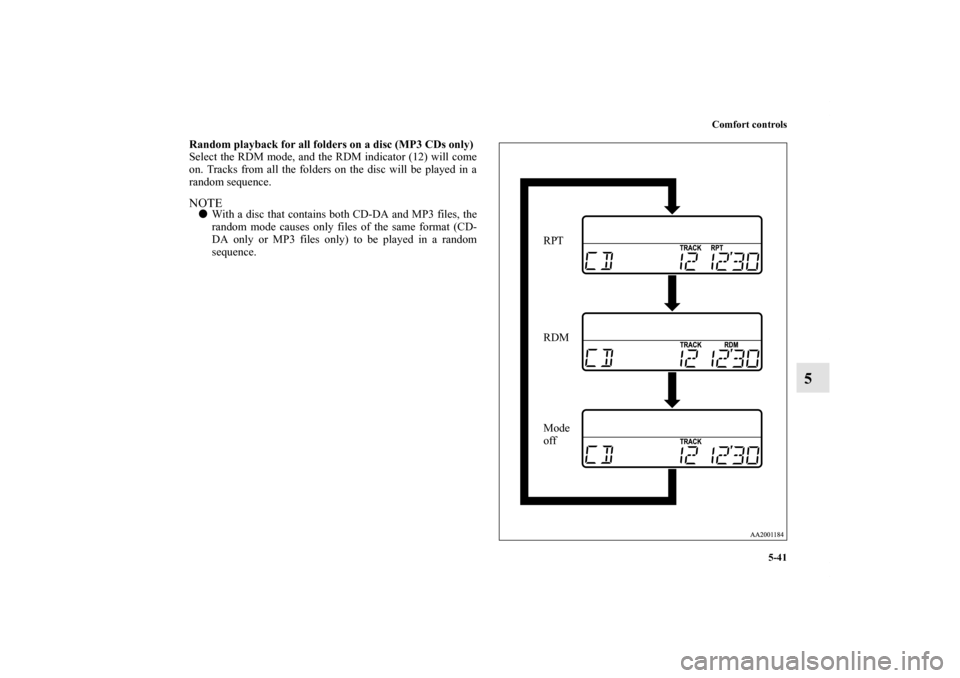

Random playback for all folders on a disc (MP3 CDs only)
Select the RDM mode, and the RDM indicator (12) will come
on. Tracks from all the folders on the disc will be played in a
random sequence.NOTE
With a disc that contains both CD-DA and MP3 files, the
random mode causes only files of the same format (CD-
DA only or MP3 files only) to be played in a random
sequence.
RPT
RDM
Mode
off
