3-40 Features and controls
3
NOTE
During the break-in period or immediately after recon-
necting the battery, your vehicle may not shift smoothly.
This does not indicate a problem in the transaxle. Shifting
will become smoother once the transaxle has been shifted
several times by the electronic control system.Selector lever operation
N00513800283

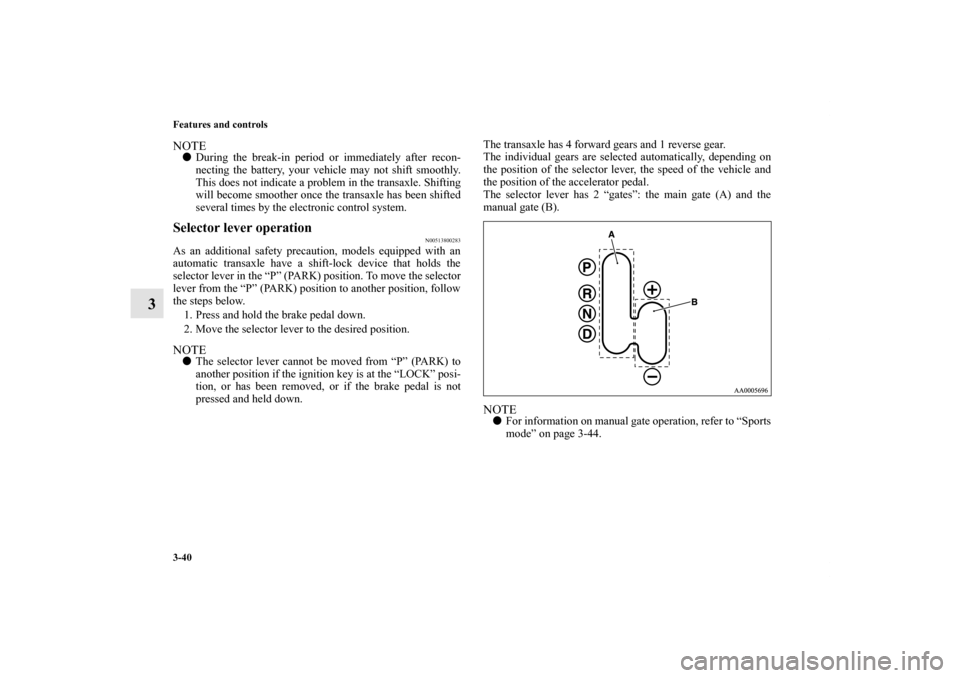

As an additional safety precaution, models equipped with an
automatic transaxle have a shift-lock device that holds the
selector lever in the “P” (PARK) position. To move the selector
lever from the “P” (PARK) position to another position, follow
the steps below.
1. Press and hold the brake pedal down.
2. Move the selector lever to the desired position.NOTE
The selector lever cannot be moved from “P” (PARK) to
another position if the ignition key is at the “LOCK” posi-
tion, or has been removed, or if the brake pedal is not
pressed and held down.The transaxle has 4 forward gears and 1 reverse gear.
The individual gears are selected automatically, depending on
the position of the selector lever, the speed of the vehicle and
the position of the accelerator pedal.
The selector lever has 2 “gates”: the main gate (A) and the
manual gate (B).
NOTE
For information on manual gate operation, refer to “Sports
mode” on page 3-44.
BK0102600US.book 40 ページ ２００９年３月３０日　月曜日　午後２時２分

Features and controls
3-41
3

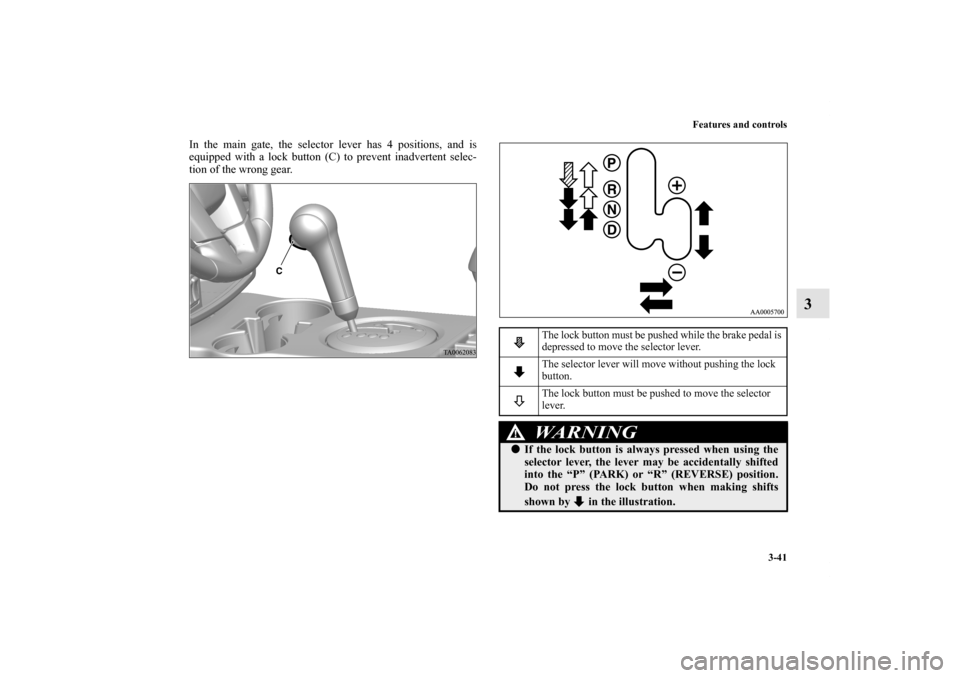

In the main gate, the selector lever has 4 positions, and is
equipped with a lock button (C) to prevent inadvertent selec-
tion of the wrong gear.
The lock button must be pushed while the brake pedal is
depressed to move the selector lever.
The selector lever will move without pushing the lock
button.
The lock button must be pushed to move the selector
lever. WA R N I N G
!
If the lock button is always pressed when using the
selector lever, the lever may be accidentally shifted
into the “P” (PARK) or “R” (REVERSE) position.
Do not press the lock button when making shifts
shown by in the illustration.
BK0102600US.book 41 ページ ２００９年３月３０日　月曜日　午後２時２分

3-42 Features and controls
3
NOTE
If the brake pedal is not depressed and held, the shift-lock
device activates to prevent the selector lever from being
moved from the “P” (PARK) position.

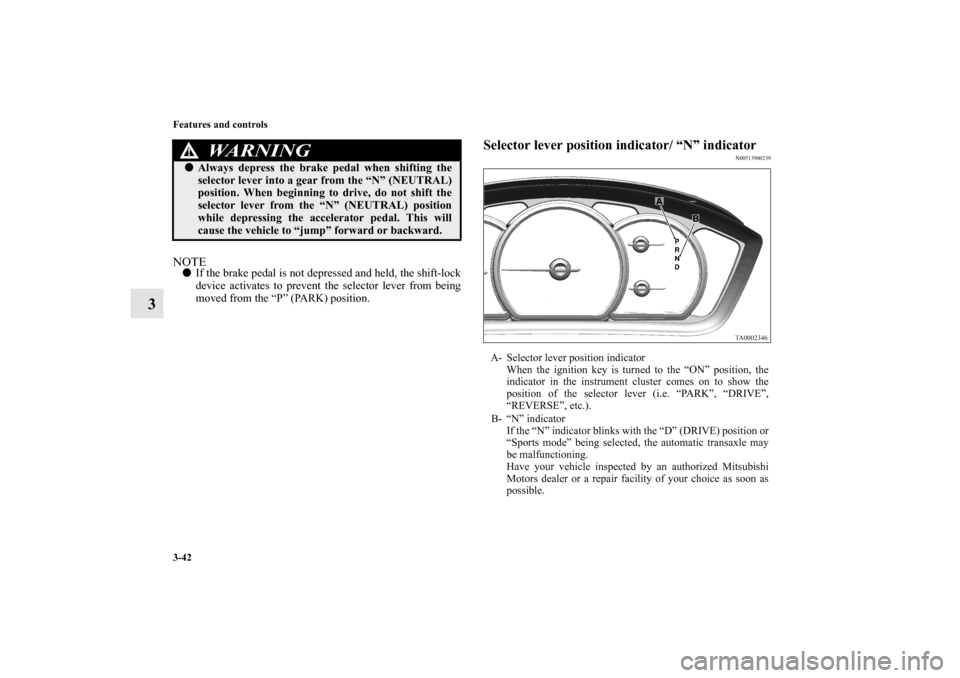

Selector lever position indicator/ “N” indicator
N00513900239

Always depress the brake pedal when shifting the
selector lever into a gear from the “N” (NEUTRAL)
position. When beginning to drive, do not shift the
selector lever from the “N” (NEUTRAL) position
while depressing the accelerator pedal. This will
cause the vehicle to “jump” forward or backward.
WA R N I N G
!
A- Selector lever position indicator
When the ignition key is turned to the “ON” position, the
indicator in the instrument cluster comes on to show the
position of the selector lever (i.e. “PARK”, “DRIVE”,
“REVERSE”, etc.).
B- “N” indicator
If the “N” indicator blinks with the “D” (DRIVE) position or
“Sports mode” being selected, the automatic transaxle may
be malfunctioning.
Have your vehicle inspected by an authorized Mitsubishi
Motors dealer or a repair facility of your choice as soon as
possible.
BK0102600US.book 42 ページ ２００９年３月３０日　月曜日　午後２時２分

Features and controls
3-43
3

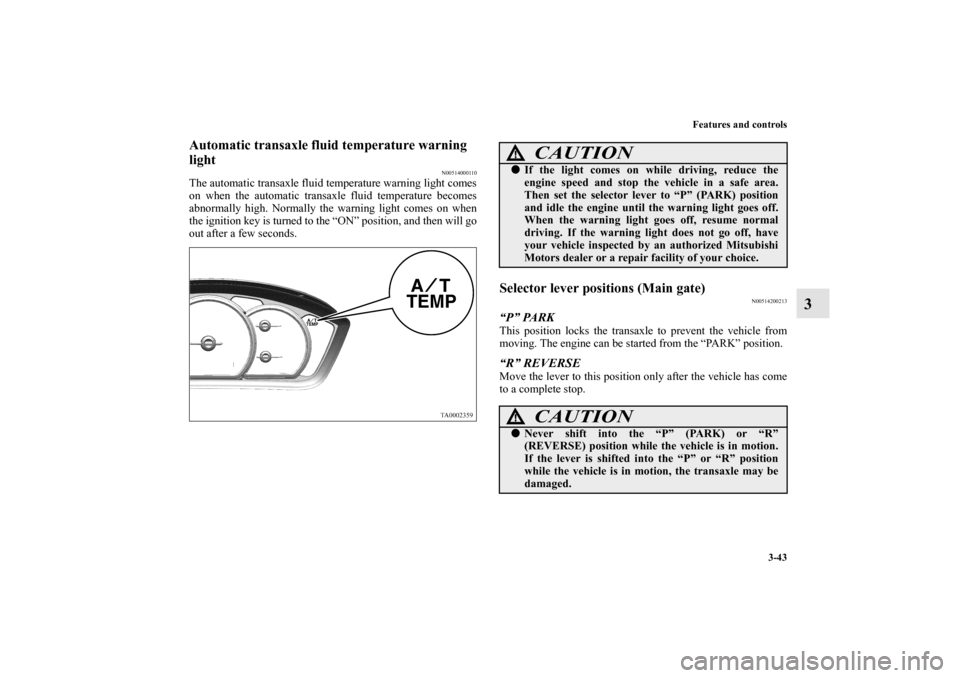

Automatic transaxle fluid temperature warning
light
N00514000110
The automatic transaxle fluid temperature warning light comes
on when the automatic transaxle fluid temperature becomes
abnormally high. Normally the warning light comes on when
the ignition key is turned to the “ON” position, and then will go
out after a few seconds.
Selector lever positions (Main gate)
N00514200213
“P” PARKThis position locks the transaxle to prevent the vehicle from
moving. The engine can be started from the “PARK” position.“R” REVERSEMove the lever to this position only after the vehicle has come
to a complete stop.
CAUTION
!
If the light comes on while driving, reduce the
engine speed and stop the vehicle in a safe area.
Then set the selector lever to “P” (PARK) position
and idle the engine until the warning light goes off.
When the warning light goes off, resume normal
driving. If the warning light does not go off, have
your vehicle inspected by an authorized Mitsubishi
Motors dealer or a repair facility of your choice.
CAUTION
!
Never shift into the “P” (PARK) or “R”
(REVERSE) position while the vehicle is in motion.
If the lever is shifted into the “P” or “R” position
while the vehicle is in motion, the transaxle may be
damaged.
BK0102600US.book 43 ページ ２００９年３月３０日　月曜日　午後２時２分

3-44 Features and controls
3
“N” NEUTRALAt this position, the transaxle is disengaged. It is the same as
the neutral position on a manual transaxle and should be used
when the vehicle is not moving for an extended length of time
during driving, such as in a traffic jam.“D” DRIVEThis position is used for most city and highway driving. Engine
shifting and braking are done automatically as needed, depend-
ing on road conditions.NOTE
For information on manual gate operation, please refer to
“Sports mode” on page 3-44.
Sports mode
N00514400172
Whether the vehicle is stationary or in motion, sports mode is
selected by pushing the selector lever from the “D” position
into the manual gate. To return to “D” range operation, push
the selector lever back into the main gate.
In sports mode, gear shifts can be made rapidly simply by mov-
ing the selector lever backward and forward. Sports mode
allows gear shifts with the accelerator pedal depressed.Manual gate+ (SHIFT UP)
Push the lever forward once to shift up one gear.
- (SHIFT DOWN)
Pull the lever backward once to shift down one gear.
WA R N I N G
!
Never move the selector lever to the “N” (NEU-
TRAL) position while driving since you could acci-
dentally slip it into the “P” (PARK) or “R”
(REVERSE) position, damaging the transaxle.
To prevent the vehicle from rolling when stopped on
a slope, the engine should be started in the “P”
(PARK) position, not in “N” (NEUTRAL).
Always keep your foot on the brake pedal when the
vehicle is in “N” (NEUTRAL), or when shifting into
or out of “N” (NEUTRAL), to prevent rolling.
SHIFT UP
SHIFT DOWN
BK0102600US.book 44 ページ ２００９年３月３０日　月曜日　午後２時２分

Features and controls
3-45
3
NOTE
In sports mode, only the 4 forward gears can be selected.
To reverse or park the vehicle, move the selector lever to
the “R” (REVERSE) or “P” (PARK) position in the main
gate.

To maintain the required levels of vehicle performance
and safety, the system may not execute certain gear shifts
when the selector lever is operated, such as 4th gear at low
speed.

In sports mode, downward shifts are made automatically
when the vehicle slows down. When the vehicle stops, 1st
gear is automatically selected.

When pulling away from a standstill on a slippery road,
push the selector lever forward to the + (SHIFT UP) posi-
tion. This causes the transaxle to select 2nd gear, which is
better for safe driving on slippery roads. Push the selector
lever to the - (SHIFT DOWN) side to shift back to 1st
gear.
Move the selector lever gently between the manual and
main gates and between positions in the manual gate.
Excessive force could damage the selector lever.

When sports mode is selected, the “D” indicator goes out.

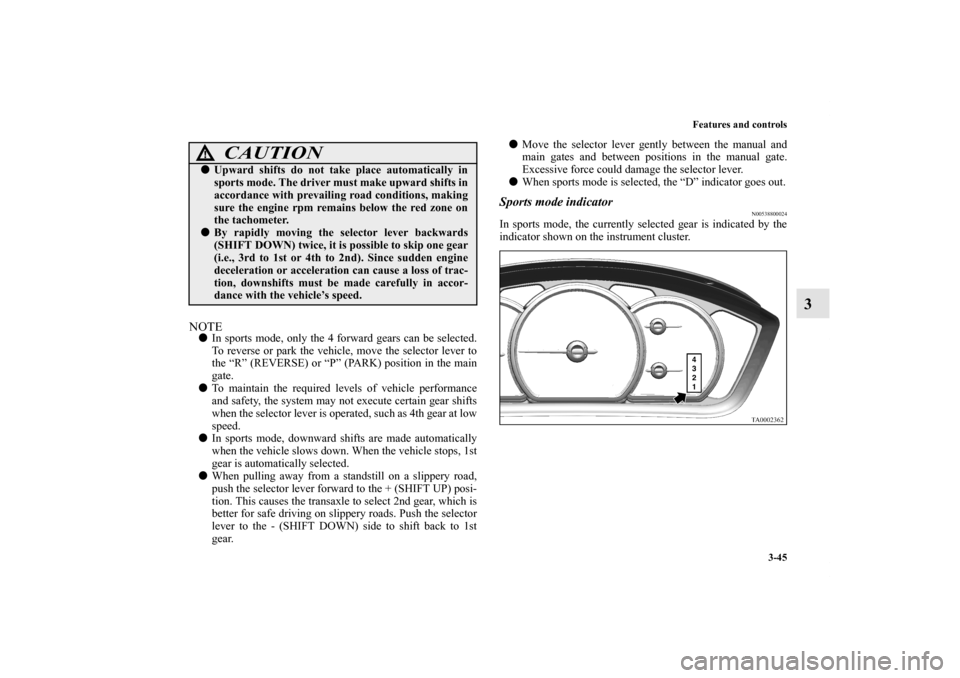

Sports mode indicator
N00538800024
In sports mode, the currently selected gear is indicated by the
indicator shown on the instrument cluster.
CAUTION
!
Upward shifts do not take place automatically in
sports mode. The driver must make upward shifts in
accordance with prevailing road conditions, making
sure the engine rpm remains below the red zone on
the tachometer.
By rapidly moving the selector lever backwards
(SHIFT DOWN) twice, it is possible to skip one gear
(i.e., 3rd to 1st or 4th to 2nd). Since sudden engine
deceleration or acceleration can cause a loss of trac-
tion, downshifts must be made carefully in accor-
dance with the vehicle’s speed.
BK0102600US.book 45 ページ ２００９年３月３０日　月曜日　午後２時２分

3-46 Features and controls
3
Operation of the automatic transaxle
N00514500229
Passing accelerationTo gain extra acceleration in “D” (DRIVE) position (when
passing another vehicle) push the accelerator to the floor. The
automatic transaxle will automatically downshift.NOTE
In sports mode, downshifts do not take place when the
accelerator is depressed all the way to the floor.WaitingFor short waiting periods, such as at traffic lights, the vehicle
can be left in gear and held stationary with the service brake.
For longer waiting periods with the engine running, the selec-
tor lever should be placed in the “N” (NEUTRAL) position.ParkingTo park the vehicle, first bring it to a complete stop, fully
engage the parking brake, and then move the selector lever to
the “P” (PARK) position.
CAUTION
!
Before selecting a gear with the engine running and
the vehicle stationary, fully depress the brake pedal
to prevent the vehicle from creeping.
The vehicle will begin to move as soon as the gear is
engaged, especially when the engine speed is high, at
fast idle or with the air conditioning operating, the
brakes should only be released when you are ready
to drive away.
Depress the brake pedal with the right foot at all
times.
Using the left foot could cause driver movement
delay in case of an emergency.
To prevent sudden acceleration, never run the
engine at high rpms when shifting from the “P”
(PARK) or “N” (NEUTRAL).
Operating the accelerator pedal while the other foot
is resting on the brake pedal will affect braking effi-
ciency and may cause premature wear of brake
pads.
Do not rev the engine with the brake pedal pressed.
This can damage the transaxle.
CAUTION
!
To avoid transaxle overheating, never try to keep
your vehicle stationary on a hill by using the acceler-
ator pedal. Always apply the parking brake and/or
service brake.
Unexpected acceleration may occur if the selector
lever is in a position other than “P” (PARK) or “N”
(NEUTRAL).
Prior to moving off after having stopped the vehicle,
make sure that the selector lever is in “D” (DRIVE)
position or “Sports mode” position.
BK0102600US.book 46 ページ ２００９年３月３０日　月曜日　午後２時２分

Features and controls
3-47
3
When the automatic transaxle makes no gear changeIf the transaxle does not change gears while driving, or your
vehicle does not pick up enough speed when starting on an
uphill slope, it may be that there is something unusual happen-
ing in the transaxle, causing a safety device to activate. Have
your vehicle checked at an authorized Mitsubishi Motors
dealer or a repair facility of your choice as soon as possible.
1. If your vehicle has difficulty moving uphill, shift the
selector lever into 2nd gear of the sports mode.
This method might not work depending on the type of
transaxle malfunction.
2. Once the vehicle is moving on a level road, move the
selector lever back to “D” (DRIVE).NOTE
When the “N” indicator in the instrument cluster blinks, it
means that there is an abnormal condition in the transaxle.
Refer to “Selector lever position indicator/“N” indicator”
on page 3-42.
Full-time all-wheel drive
(if so equipped)
N00517200025
Your vehicle has been designed primarily for use on pavement.
But its unique all-wheel drive system allows you to occasion-
ally travel on unpaved roads, to campgrounds, picnic sites, and
similar locations.
Not only does this ensure better handling on dry, paved roads
but also permits better traction when driving on slippery, wet or
snow-covered roads and when moving out of mud.
But it is not suitable for heavy off road use or towing in rough
conditions.
It is particularly important to note that full-time all-wheel drive
may not give sufficient hill climbing ability and engine braking
on steep slopes. You should try to avoid driving on steep slopes
with full-time all-wheel drive.
Also, you must exercise caution when driving on sand and mud
and when driving through water because sufficient traction
may not be available in certain circumstances.
Please avoid driving the vehicle through areas where the tires
may get stuck in deep sand or mud.
All-wheel drive operation requires special driving skills.
Carefully read the “All-wheel drive operation” section on page
3-48 and take care to drive safely.
BK0102600US.book 47 ページ ２００９年３月３０日　月曜日　午後２時２分
