2010 MITSUBISHI ENDEAVOR Owners Manual

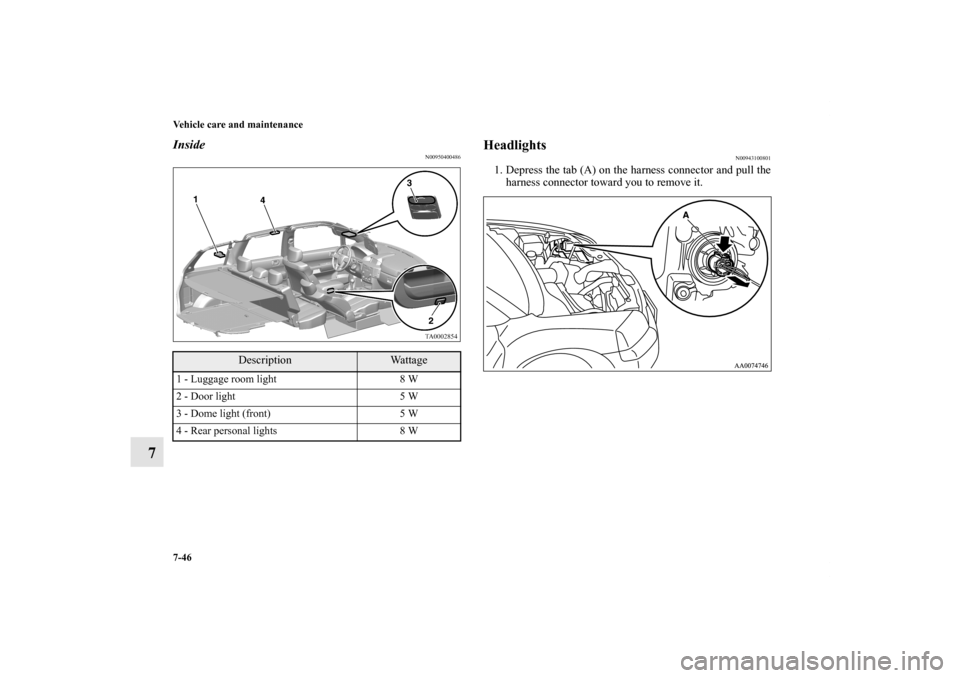

7-46 Vehicle care and maintenance
7
Inside
N00950400486
Headlights
N00943100801
1. Depress the tab (A) on the harness connector and pull the
harness connector toward you to remove it.
Description
Wattage
1 - Luggage room light 8 W
2 - Door light 5 W
3 - Dome light (front) 5 W
4 - Rear personal lights 8 WBK0102600US.book 46 ページ ２００９年３月３０日　月曜日　午後２時２分

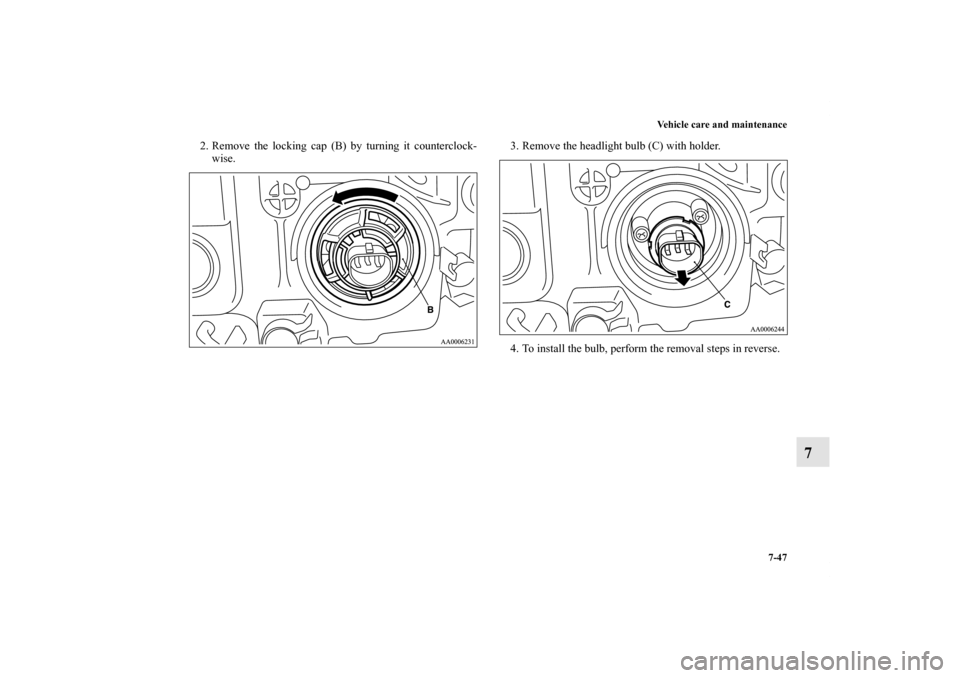

Vehicle care and maintenance
7-47
7
2. Remove the locking cap (B) by turning it counterclock-
wise.3. Remove the headlight bulb (C) with holder.
4. To install the bulb, perform the removal steps in reverse.
BK0102600US.book 47 ページ ２００９年３月３０日　月曜日　午後２時２分

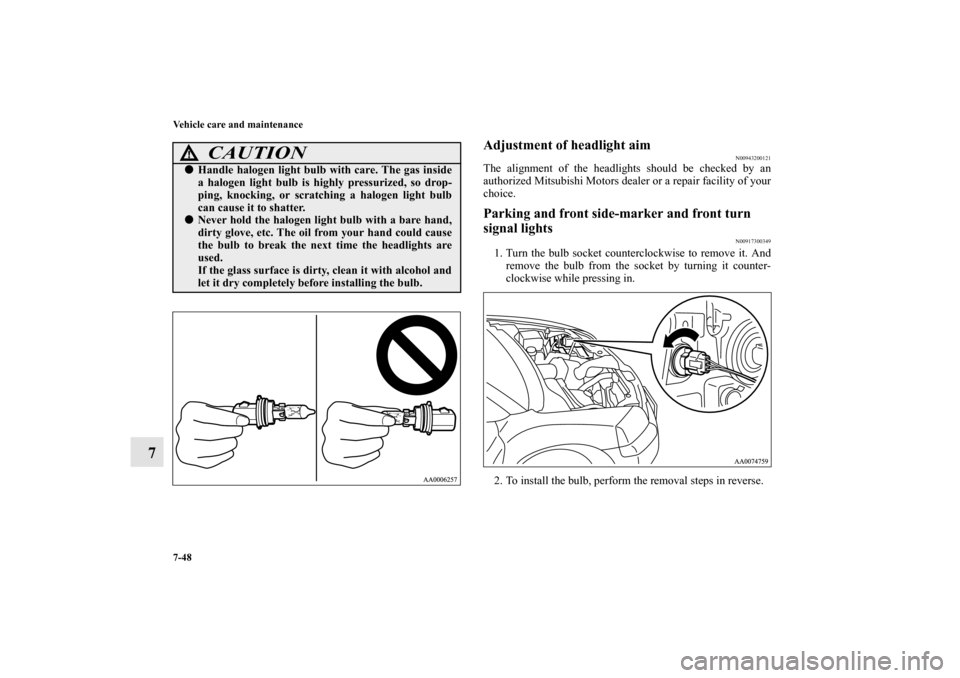

7-48 Vehicle care and maintenance
7
Adjustment of headlight aim
N00943200121
The alignment of the headlights should be checked by an
authorized Mitsubishi Motors dealer or a repair facility of your
choice.Parking and front side-marker and front turn
signal lights
N00917300349
1. Turn the bulb socket counterclockwise to remove it. And
remove the bulb from the socket by turning it counter-
clockwise while pressing in.
2. To install the bulb, perform the removal steps in reverse.
CAUTION
!
Handle halogen light bulb with care. The gas inside
a halogen light bulb is highly pressurized, so drop-
ping, knocking, or scratching a halogen light bulb
can cause it to shatter.
Never hold the halogen light bulb with a bare hand,
dirty glove, etc. The oil from your hand could cause
the bulb to break the next time the headlights are
used.
If the glass surface is dirty, clean it with alcohol and
let it dry completely before installing the bulb.
BK0102600US.book 48 ページ ２００９年３月３０日　月曜日　午後２時２分

Vehicle care and maintenance
7-49
7
Front fog lights
(if so equipped)
N00943600398
To r e m o v e1. Remove the six clips (A) by turning them counterclock-
wise or prying them, and remove the screw (B) by turning
it counterclockwise, then remove the cover (C).2. Depress the tab (D) on the harness connector and pull the
harness connector to downward to remove it.
BK0102600US.book 49 ページ ２００９年３月３０日　月曜日　午後２時２分

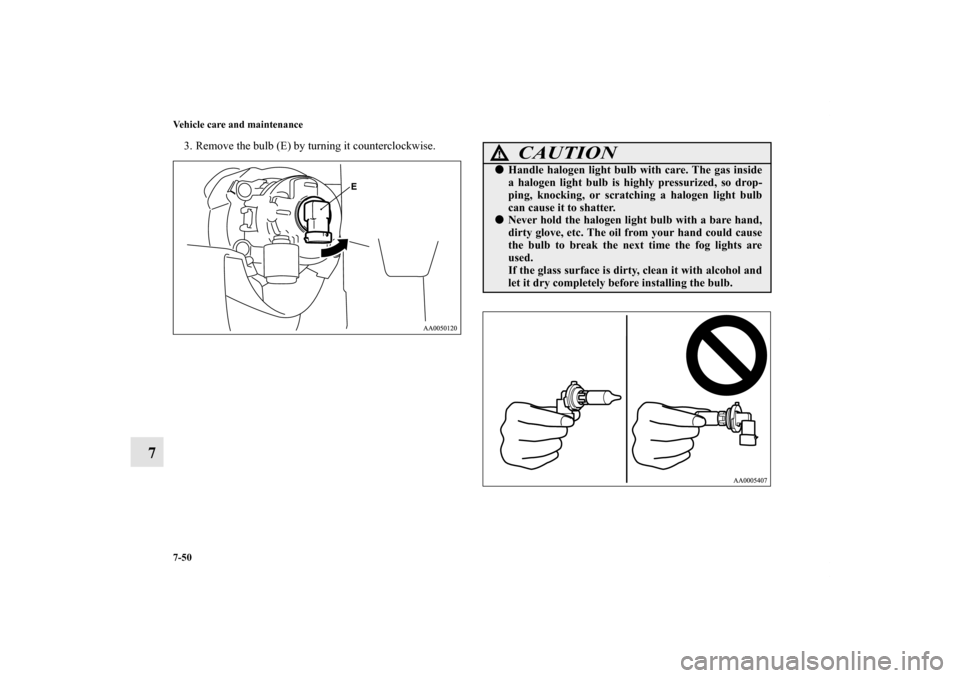

7-50 Vehicle care and maintenance
7
3. Remove the bulb (E) by turning it counterclockwise.
CAUTION
!
Handle halogen light bulb with care. The gas inside
a halogen light bulb is highly pressurized, so drop-
ping, knocking, or scratching a halogen light bulb
can cause it to shatter.
Never hold the halogen light bulb with a bare hand,
dirty glove, etc. The oil from your hand could cause
the bulb to break the next time the fog lights are
used.
If the glass surface is dirty, clean it with alcohol and
let it dry completely before installing the bulb.
BK0102600US.book 50 ページ ２００９年３月３０日　月曜日　午後２時２分

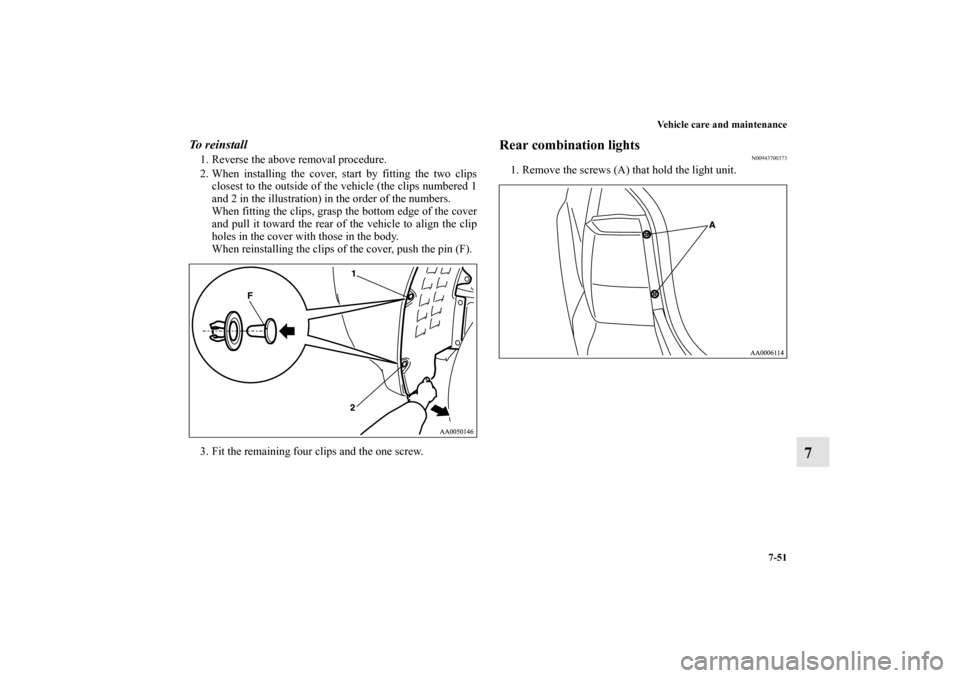

Vehicle care and maintenance
7-51
7
To reinstall1. Reverse the above removal procedure.
2. When installing the cover, start by fitting the two clips
closest to the outside of the vehicle (the clips numbered 1
and 2 in the illustration) in the order of the numbers.
When fitting the clips, grasp the bottom edge of the cover
and pull it toward the rear of the vehicle to align the clip
holes in the cover with those in the body.
When reinstalling the clips of the cover, push the pin (F).
3. Fit the remaining four clips and the one screw.
Rear combination lights
N00943700373
1. Remove the screws (A) that hold the light unit.
BK0102600US.book 51 ページ ２００９年３月３０日　月曜日　午後２時２分

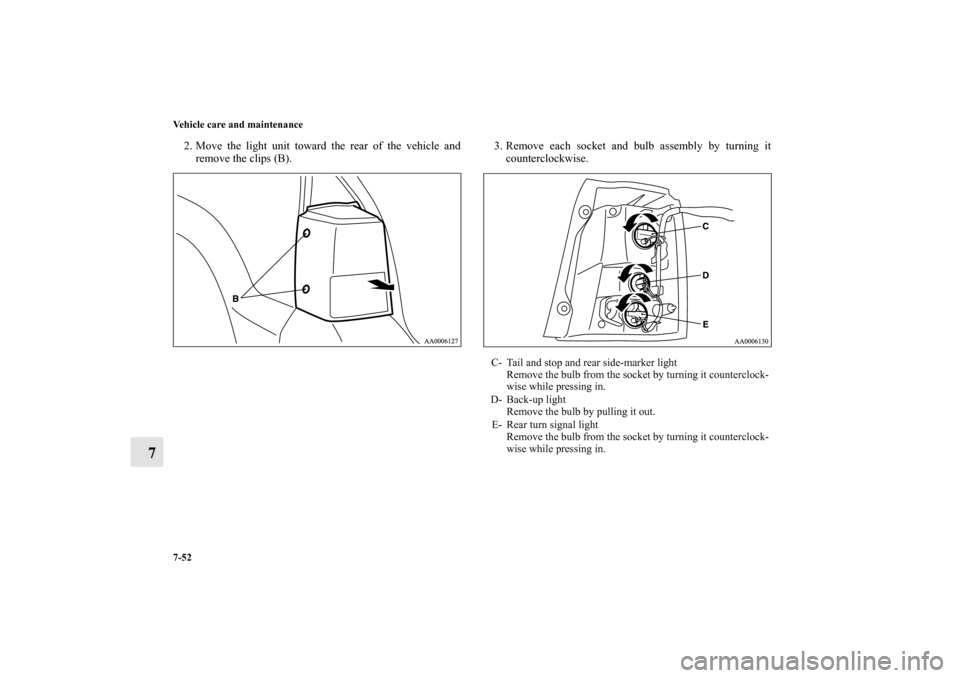

7-52 Vehicle care and maintenance
7
2. Move the light unit toward the rear of the vehicle and
remove the clips (B).3. Remove each socket and bulb assembly by turning it
counterclockwise.
C- Tail and stop and rear side-marker light
Remove the bulb from the socket by turning it counterclock-
wise while pressing in.
D- Back-up light
Remove the bulb by pulling it out.
E- Rear turn signal light
Remove the bulb from the socket by turning it counterclock-
wise while pressing in.
BK0102600US.book 52 ページ ２００９年３月３０日　月曜日　午後２時２分

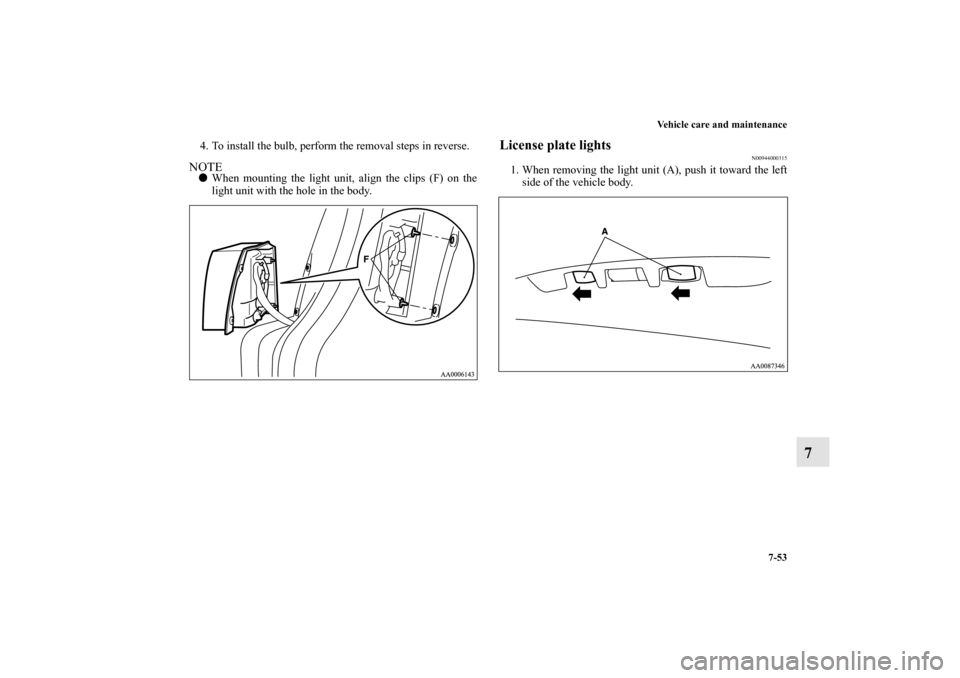

Vehicle care and maintenance
7-53
7
4. To install the bulb, perform the removal steps in reverse.NOTE
When mounting the light unit, align the clips (F) on the
light unit with the hole in the body.
License plate lights
N00944000315
1. When removing the light unit (A), push it toward the left
side of the vehicle body.
