2010 MITSUBISHI ENDEAVOR Owners Manual

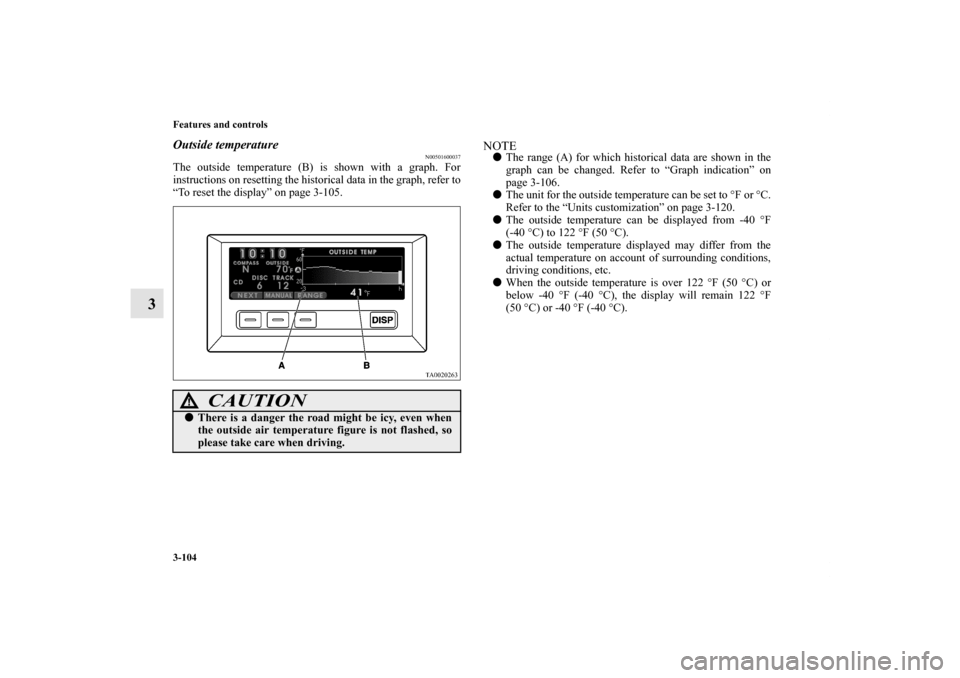

3-104 Features and controls
3
Outside temperature
N00501600037
The outside temperature (B) is shown with a graph. For
instructions on resetting the historical data in the graph, refer to
“To reset the display” on page 3-105.
NOTE
The range (A) for which historical data are shown in the
graph can be changed. Refer to “Graph indication” on
page 3-106.

The unit for the outside temperature can be set to °F or °C.
Refer to the “Units customization” on page 3-120.

The outside temperature can be displayed from -40 °F
(-40 °C) to 122 °F (50 °C).

The outside temperature displayed may differ from the
actual temperature on account of surrounding conditions,
driving conditions, etc.

When the outside temperature is over 122 °F (50 °C) or
below -40 °F (-40 °C), the display will remain 122 °F
(50°C) or -40 °F (-40 °C).
CAUTION
!
There is a danger the road might be icy, even when
the outside air temperature figure is not flashed, so
please take care when driving.
BK0102600US.book 104 ページ ２００９年３月３０日　月曜日　午後２時２分

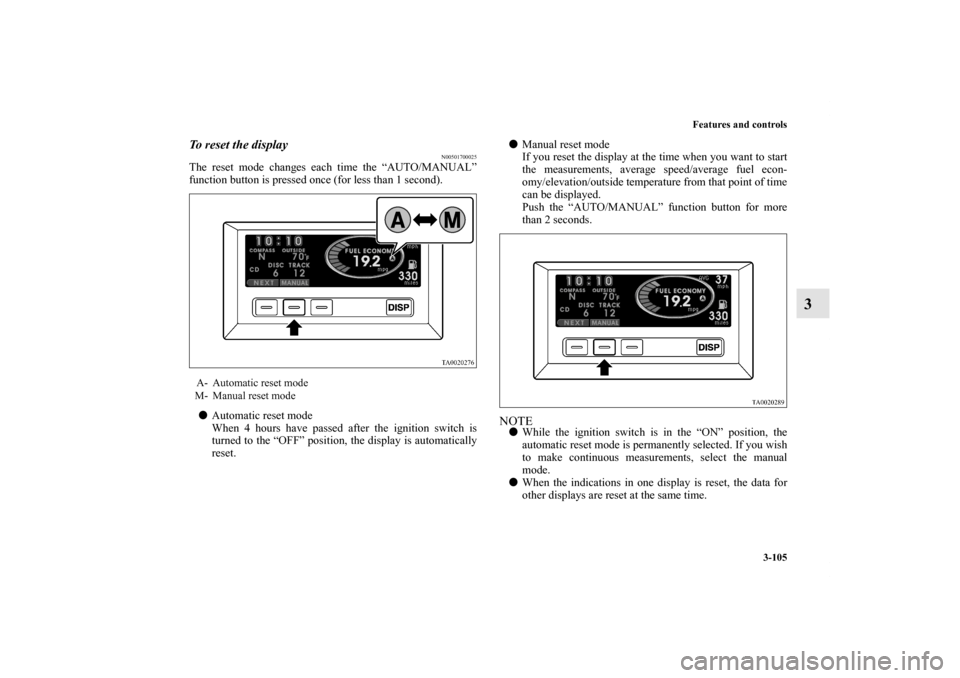

Features and controls
3-105
3
To reset the display
N00501700025
The reset mode changes each time the “AUTO/MANUAL”
function button is pressed once (for less than 1 second).

Automatic reset mode
When 4 hours have passed after the ignition switch is
turned to the “OFF” position, the display is automatically
reset.
Manual reset mode
If you reset the display at the time when you want to start
the measurements, average speed/average fuel econ-
omy/elevation/outside temperature from that point of time
can be displayed.
Push the “AUTO/MANUAL” function button for more
than 2 seconds.
NOTE
While the ignition switch is in the “ON” position, the
automatic reset mode is permanently selected. If you wish
to make continuous measurements, select the manual
mode.

When the indications in one display is reset, the data for
other displays are reset at the same time.
A- Automatic reset mode
M- Manual reset mode
BK0102600US.book 105 ページ ２００９年３月３０日　月曜日　午後２時２分

3-106 Features and controls
3
Graph indication
N00501800039
The average speed, average fuel economy, elevation, and out-
side temperature are each shown as a graph at the same time as
being shown numerically.
The range for which historical data are shown in the graphs
changes each time the “RANGE” function button is pressed
lightly.

-3 hours: The average value is added to the graph every 6
minutes. Data for a maximum of three hours are shown in
the graph.

-12 hours: The average value is added to the graph every
24 minutes. Data for a maximum of twelve hours are
shown in the graph.
NOTE
When the range for which historical data are shown is
changed for one graph, it also changes for the other
graphs.Display unit selection
N00501900027
When you want to select the other unit, pressing the function
button (A) for more than 3 seconds changes the unit as follows.
Mode
Unit
Driving range miles
→km
→milesAverage speed mph
→km/h
→mph
Average fuel economy mpg
→L/100km
→mpg
Elevation feet (ft)
→m
→feet (ft)
BK0102600US.book 106 ページ ２００９年３月３０日　月曜日　午後２時２分

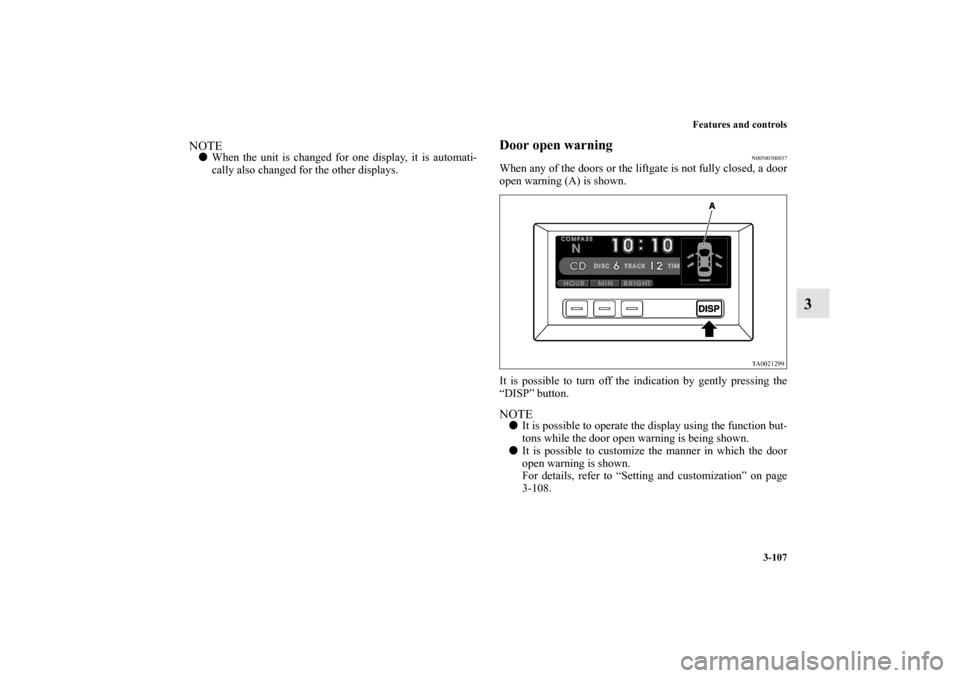

Features and controls
3-107
3
NOTE
When the unit is changed for one display, it is automati-
cally also changed for the other displays.
Door open warning
N00500300037
When any of the doors or the liftgate is not fully closed, a door
open warning (A) is shown.
It is possible to turn off the indication by gently pressing the
“DISP” button.NOTE
It is possible to operate the display using the function but-
tons while the door open warning is being shown.

It is possible to customize the manner in which the door
open warning is shown.
For details, refer to “Setting and customization” on page
3-108.
BK0102600US.book 107 ページ ２００９年３月３０日　月曜日　午後２時２分

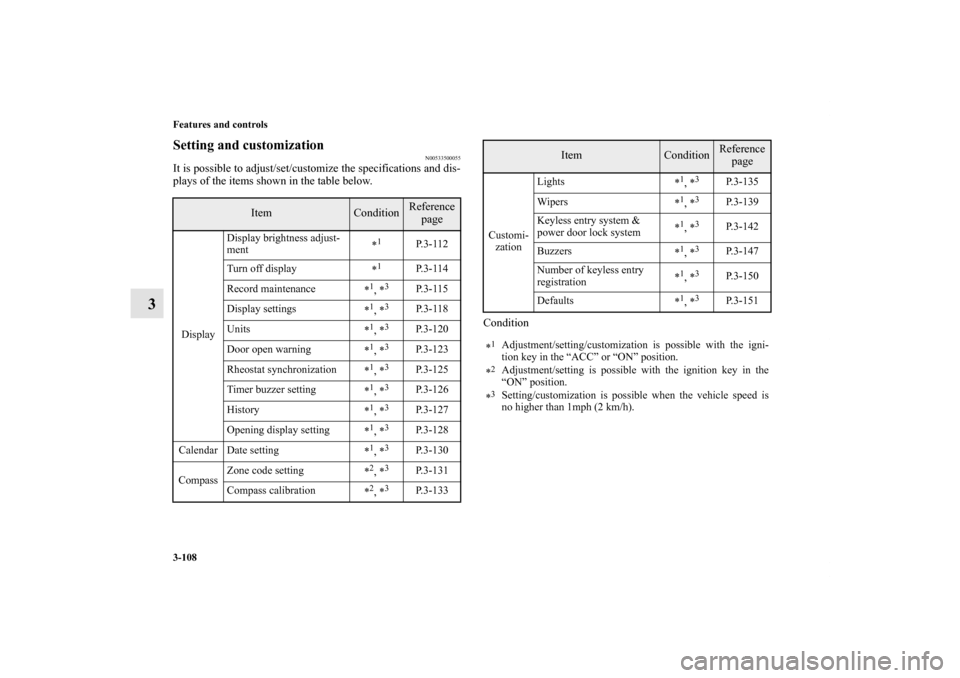

3-108 Features and controls
3
Setting and customization
N00533500055
It is possible to adjust/set/customize the specifications and dis-
plays of the items shown in the table below.
Condition
Item
Condition
Reference
page
DisplayDisplay brightness adjust-
ment*
1
P. 3 - 1 1 2
Turn off display
*
1
P. 3 - 1 1 4
Record maintenance
*
1, *3
P. 3 - 1 1 5
Display settings
*
1, *3
P. 3 - 1 1 8
Units
*
1, *3
P.3-120
Door open warning
*
1, *3
P.3-123
Rheostat synchronization
*
1, *3
P.3-125
Timer buzzer setting
*
1, *3
P.3-126
History
*
1, *3
P.3-127
Opening display setting
*
1, *3
P.3-128
Calendar Date setting
*
1, *3
P.3-130
CompassZone code setting
*
2, *3
P.3-131
Compass calibration
*
2, *3
P.3-133
Customi-
zationLights
*
1, *3
P.3-135
Wipers
*
1, *3
P.3-139
Keyless entry system &
power door lock system*
1, *3
P.3-142
Buzzers
*
1, *3
P.3-147
Number of keyless entry
registration*
1, *3
P.3-150
Defaults
*
1, *3
P.3-151
*
1Adjustment/setting/customization is possible with the igni-
tion key in the “ACC” or “ON” position.
*2Adjustment/setting is possible with the ignition key in the
“ON” position.
*3Setting/customization is possible when the vehicle speed is
no higher than 1mph (2 km/h).
Item
Condition
Reference
page
BK0102600US.book 108 ページ ２００９年３月３０日　月曜日　午後２時２分

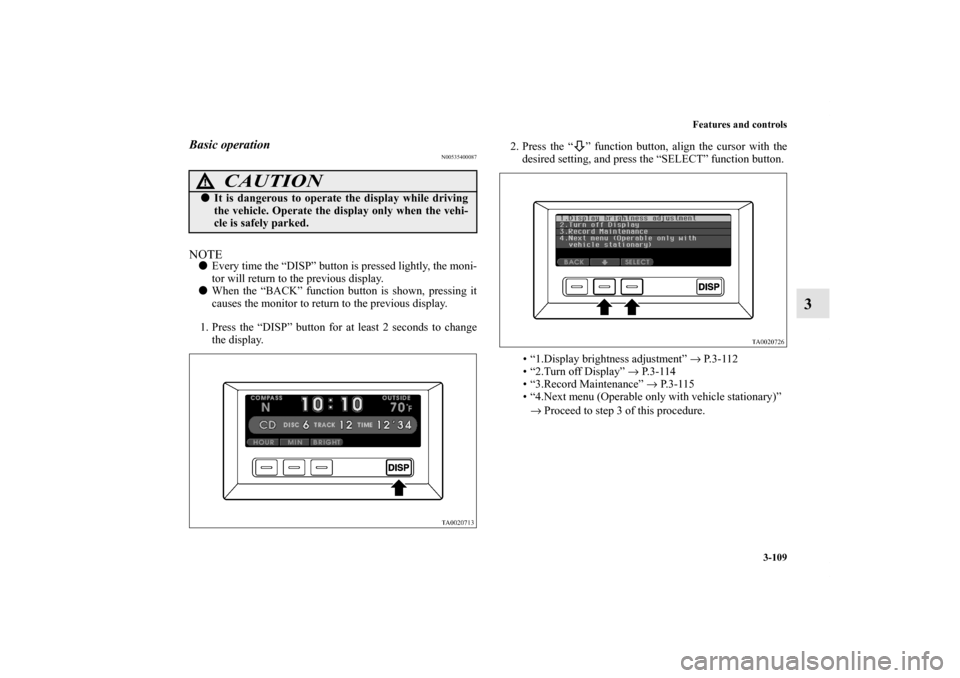

Features and controls
3-109
3
Basic operation
N00535400087
NOTE
Every time the “DISP” button is pressed lightly, the moni-
tor will return to the previous display.

When the “BACK” function button is shown, pressing it
causes the monitor to return to the previous display.
1. Press the “DISP” button for at least 2 seconds to change
the display.2. Press the “ ” function button, align the cursor with the
desired setting, and press the “SELECT” function button.
• “1.Display brightness adjustment” → P. 3 - 1 1 2
• “2.Turn off Display” → P. 3 - 1 1 4
• “3.Record Maintenance” → P. 3 - 1 1 5
• “4.Next menu (Operable only with vehicle stationary)”
→ Proceed to step 3 of this procedure.
CAUTION
!
It is dangerous to operate the display while driving
the vehicle. Operate the display only when the vehi-
cle is safely parked.
BK0102600US.book 109 ページ ２００９年３月３０日　月曜日　午後２時２分

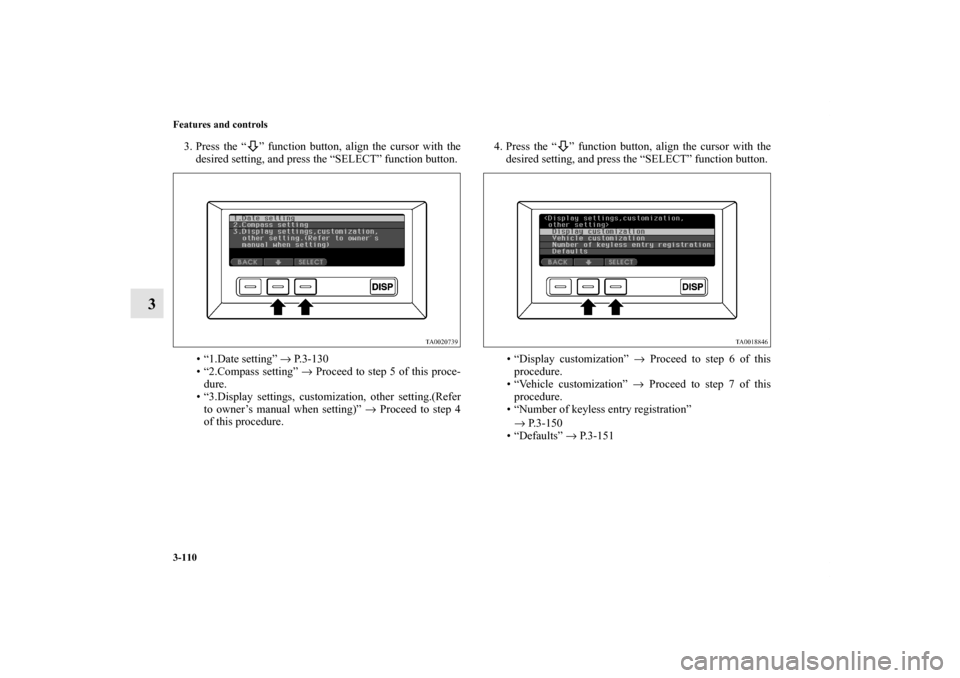

3-110 Features and controls
3
3. Press the “ ” function button, align the cursor with the
desired setting, and press the “SELECT” function button.
• “1.Date setting” → P. 3 - 1 3 0
• “2.Compass setting” → Proceed to step 5 of this proce-
dure.
• “3.Display settings, customization, other setting.(Refer
to owner’s manual when setting)” → Proceed to step 4
of this procedure.4. Press the “ ” function button, align the cursor with the
desired setting, and press the “SELECT” function button.
• “Display customization” → Proceed to step 6 of this
procedure.
• “Vehicle customization” → Proceed to step 7 of this
procedure.
• “Number of keyless entry registration”
→ P. 3 - 1 5 0
• “Defaults” → P.3-151
BK0102600US.book 110 ページ ２００９年３月３０日　月曜日　午後２時２分

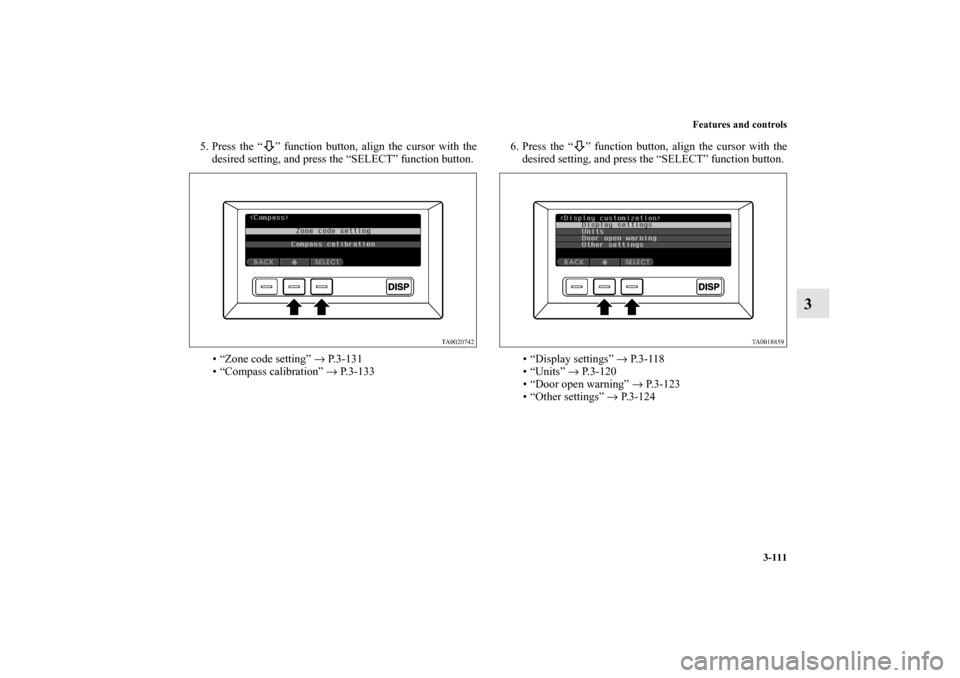

Features and controls
3-111
3
5. Press the “ ” function button, align the cursor with the
desired setting, and press the “SELECT” function button.
• “Zone code setting” → P. 3 - 1 3 1
• “Compass calibration” → P. 3 - 1 3 36. Press the “ ” function button, align the cursor with the
desired setting, and press the “SELECT” function button.
• “Display settings” → P. 3 - 1 1 8
• “Units” → P. 3 - 1 2 0
• “Door open warning” → P. 3 - 1 2 3
• “Other settings” → P.3-124
