6-18 For emergencies
6

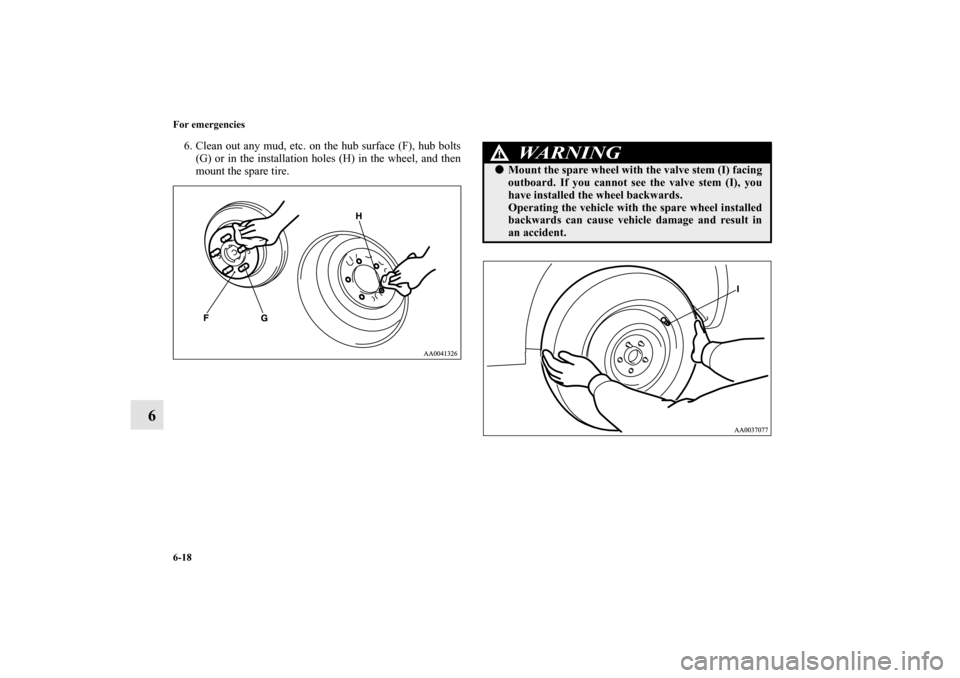

6. Clean out any mud, etc. on the hub surface (F), hub bolts
(G) or in the installation holes (H) in the wheel, and then
mount the spare tire.
WA R N I N G
!
Mount the spare wheel with the valve stem (I) facing
outboard. If you cannot see the valve stem (I), you
have installed the wheel backwards.
Operating the vehicle with the spare wheel installed
backwards can cause vehicle damage and result in
an accident.
BK0102600US.book 18 ページ ２００９年３月３０日　月曜日　午後２時２分

For emergencies
6-19
6

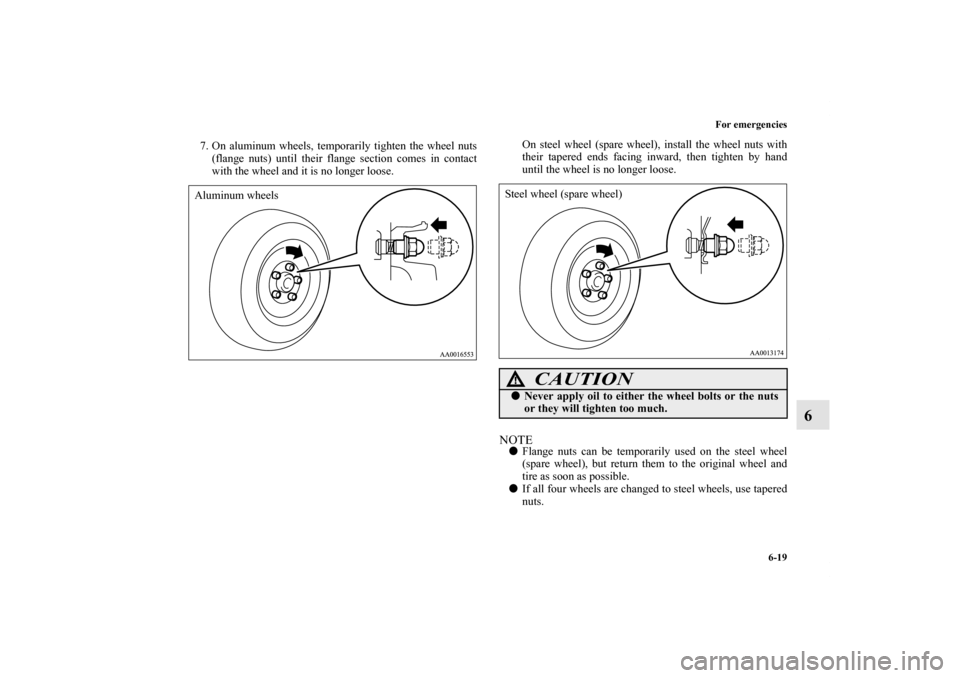

7. On aluminum wheels, temporarily tighten the wheel nuts
(flange nuts) until their flange section comes in contact
with the wheel and it is no longer loose.On steel wheel (spare wheel), install the wheel nuts with
their tapered ends facing inward, then tighten by hand
until the wheel is no longer loose.
NOTE
Flange nuts can be temporarily used on the steel wheel
(spare wheel), but return them to the original wheel and
tire as soon as possible.

If all four wheels are changed to steel wheels, use tapered
nuts.
Aluminum wheels
CAUTION
!
Never apply oil to either the wheel bolts or the nuts
or they will tighten too much.Steel wheel (spare wheel)
BK0102600US.book 19 ページ ２００９年３月３０日　月曜日　午後２時２分

6-20 For emergencies
6
8. Lower the vehicle slowly by rotating the wheel nut
wrench counterclockwise until the tire touches the
ground.9. Tighten the nuts in the order shown in the illustration until
each nut has been tightened to the torque listed here.
88 to 108 N•m (65 to 80 ft-lb)
10. Lower the jack all the way and remove it.
CAUTION
!
Never use your foot or a pipe extension to apply
added force to the wheel nut wrench when tighten-
ing the wheel nuts. If you do so, you can over-tighten
the wheel nuts and damage the wheel, wheel nuts
and hub bolts.
BK0102600US.book 20 ページ ２００９年３月３０日　月曜日　午後２時２分

For emergencies
6-21
6
11. Check the tire inflation pressure. The recommended tire
pressure for your vehicle is listed on the tire and loading
information placard attached to the driver’s door sill as
shown in the illustration. Refer to “Tire inflation pres-
sures” on page 7-24.A- Vehicles sold in U.S.A. and Canada
B- Vehicles sold in Canada
CAUTION
!
While the spare tire is stowed, the inflation pressure
should be checked at least once a month to assure
that it remains at the recommended inflation pres-
sure. See the tire and loading information placard
attached to the driver’s door sill. Refer to “Tire and
loading information placard” on page 9-3.
Driving with an improperly inflated tire can cause
an accident. If you have no choice but to drive with
an under-inflated tire, keep your speed down and
avoid sudden steering or braking, if possible. Inflate
the tire to the correct pressure as soon as possible.
Refer to “Tire inflation pressures” on page 7-24.
If your vehicle is equipped with the 17-inch-steel
spare tire or compact spare tire, it should only be
used temporarily. When the spare tire is used, the
tire pressure monitoring system will not work prop-
erly. See an authorized Mitsubishi Motors dealer as
soon as possible to replace or repair the original tire.
After changing the tire and driving the vehicle about
620 miles (1,000 km), retighten the wheel nuts to
make sure that they have not come loose.
If the steering wheel vibrates when driving after
changing the tire, have the tire checked for balance
at an authorized Mitsubishi Motors dealer or a
repair facility of your choice.
Do not mix one type of tire with another or use a dif-
ferent size from the one listed. This would cause
early wear and poor handling.
BK0102600US.book 21 ページ ２００９年３月３０日　月曜日　午後２時２分

6-22 For emergencies
6
To install the flat tire or spare tire
N00849900057
Tighten the clamp (A) firmly with your fingers by turning it
clockwise until the tire cannot move.
To store the jack, bar and wheel nut wrench
N00850000029
Reverse the removing procedure when storing the jack, bar and
wheel nut wrench.
Refer to “Tools and jack” on page 6-7.
BK0102600US.book 22 ページ ２００９年３月３０日　月曜日　午後２時２分

For emergencies
6-23

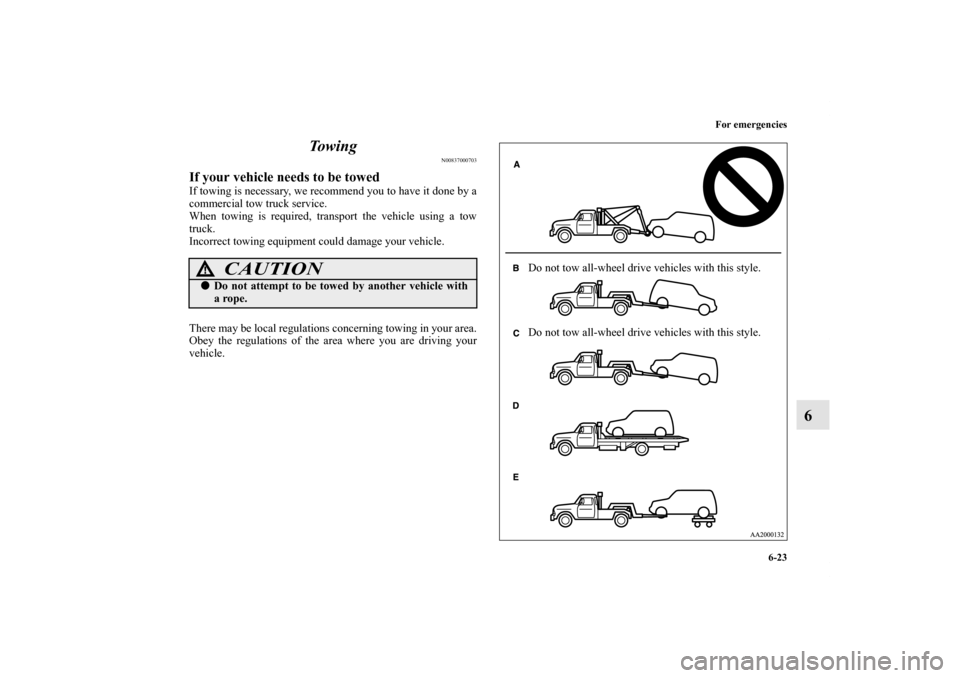

6 To w i n g
N00837000703
If your vehicle needs to be towedIf towing is necessary, we recommend you to have it done by a
commercial tow truck service.
When towing is required, transport the vehicle using a tow
truck.
Incorrect towing equipment could damage your vehicle.
There may be local regulations concerning towing in your area.
Obey the regulations of the area where you are driving your
vehicle.
CAUTION
!
Do not attempt to be towed by another vehicle with
a rope.
Do not tow all-wheel drive vehicles with this style.
Do not tow all-wheel drive vehicles with this style.
BK0102600US.book 23 ページ ２００９年３月３０日　月曜日　午後２時２分

6-24 For emergencies
6

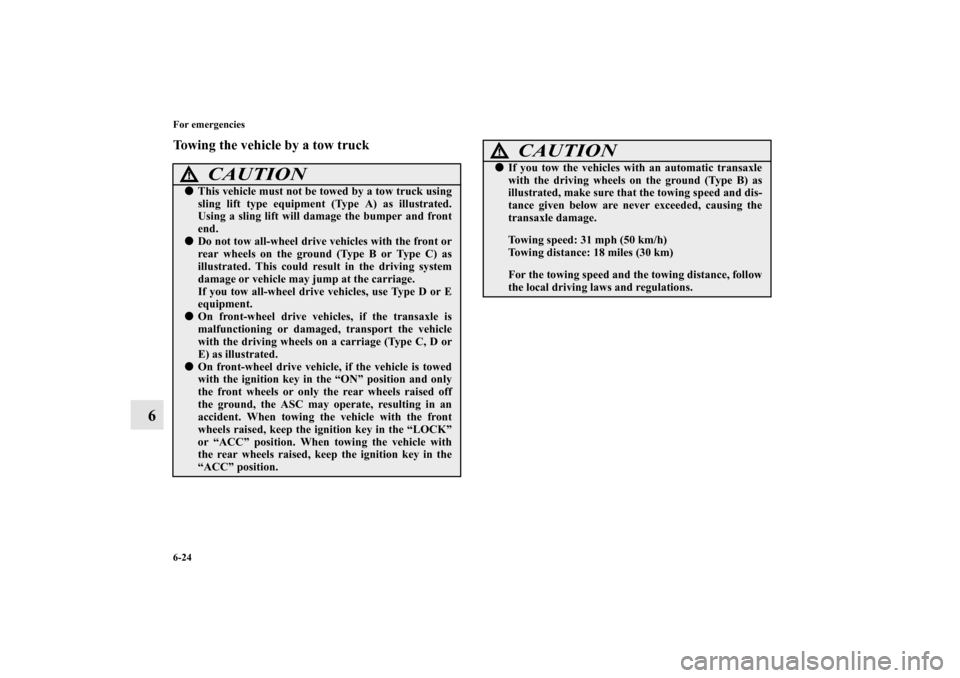

Towing the vehicle by a tow truck
CAUTION
!
This vehicle must not be towed by a tow truck using
sling lift type equipment (Type A) as illustrated.
Using a sling lift will damage the bumper and front
end.
Do not tow all-wheel drive vehicles with the front or
rear wheels on the ground (Type B or Type C) as
illustrated. This could result in the driving system
damage or vehicle may jump at the carriage.
If you tow all-wheel drive vehicles, use Type D or E
equipment.
On front-wheel drive vehicles, if the transaxle is
malfunctioning or damaged, transport the vehicle
with the driving wheels on a carriage (Type C, D or
E) as illustrated.
On front-wheel drive vehicle, if the vehicle is towed
with the ignition key in the “ON” position and only
the front wheels or only the rear wheels raised off
the ground, the ASC may operate, resulting in an
accident. When towing the vehicle with the front
wheels raised, keep the ignition key in the “LOCK”
or “ACC” position. When towing the vehicle with
the rear wheels raised, keep the ignition key in the
“ACC” position.

If you tow the vehicles with an automatic transaxle
with the driving wheels on the ground (Type B) as
illustrated, make sure that the towing speed and dis-
tance given below are never exceeded, causing the
transaxle damage.
Towing speed: 31 mph (50 km/h)
Towing distance: 18 miles (30 km)
For the towing speed and the towing distance, follow
the local driving laws and regulations.
CAUTION
!
BK0102600US.book 24 ページ ２００９年３月３０日　月曜日　午後２時２分

For emergencies
6-25
6

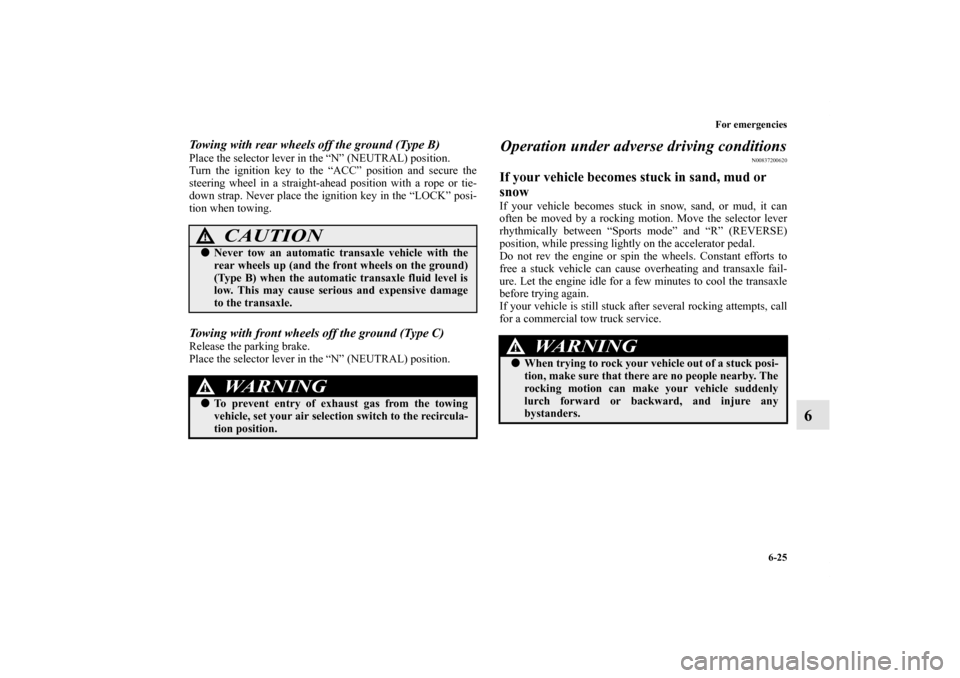

Towing with rear wheels off the ground (Type B)Place the selector lever in the “N” (NEUTRAL) position.
Turn the ignition key to the “ACC” position and secure the
steering wheel in a straight-ahead position with a rope or tie-
down strap. Never place the ignition key in the “LOCK” posi-
tion when towing.Towing with front wheels off the ground (Type C)Release the parking brake.
Place the selector lever in the “N” (NEUTRAL) position.
Operation under adverse driving conditions
N00837200620
If your vehicle becomes stuck in sand, mud or
snow If your vehicle becomes stuck in snow, sand, or mud, it can
often be moved by a rocking motion. Move the selector lever
rhythmically between “Sports mode” and “R” (REVERSE)
position, while pressing lightly on the accelerator pedal.
Do not rev the engine or spin the wheels. Constant efforts to
free a stuck vehicle can cause overheating and transaxle fail-
ure. Let the engine idle for a few minutes to cool the transaxle
before trying again.
If your vehicle is still stuck after several rocking attempts, call
for a commercial tow truck service.
CAUTION
!
Never tow an automatic transaxle vehicle with the
rear wheels up (and the front wheels on the ground)
(Type B) when the automatic transaxle fluid level is
low. This may cause serious and expensive damage
to the transaxle.
WA R N I N G
!
To prevent entry of exhaust gas from the towing
vehicle, set your air selection switch to the recircula-
tion position.
WA R N I N G
!
When trying to rock your vehicle out of a stuck posi-
tion, make sure that there are no people nearby. The
rocking motion can make your vehicle suddenly
lurch forward or backward, and injure any
bystanders.
