2010 MITSUBISHI ENDEAVOR Owners Manual

3-128 Features and controls
3

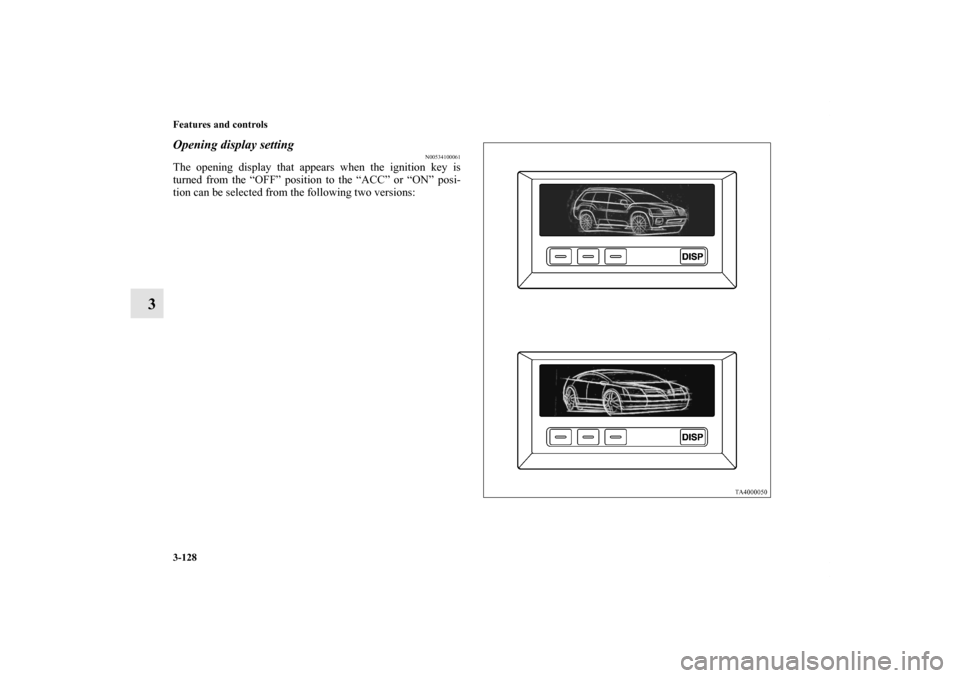

Opening display setting
N00534100061
The opening display that appears when the ignition key is
turned from the “OFF” position to the “ACC” or “ON” posi-
tion can be selected from the following two versions:BK0102600US.book 128 ページ ２００９年３月３０日　月曜日　午後２時２分

Features and controls
3-129
3

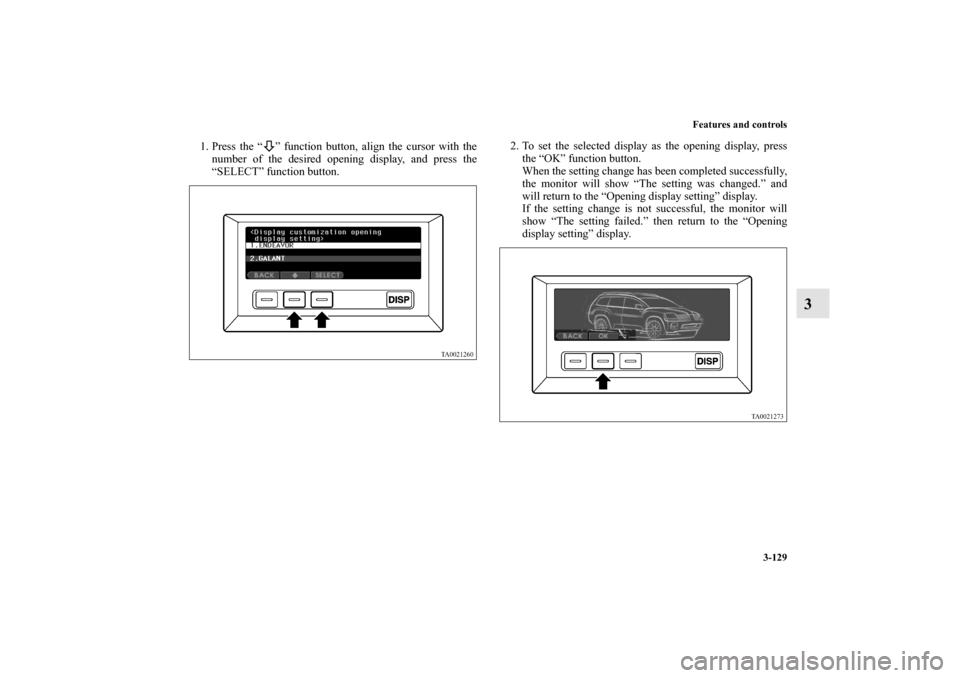

1. Press the “ ” function button, align the cursor with the
number of the desired opening display, and press the
“SELECT” function button.2. To set the selected display as the opening display, press
the “OK” function button.
When the setting change has been completed successfully,
the monitor will show “The setting was changed.” and
will return to the “Opening display setting” display.
If the setting change is not successful, the monitor will
show “The setting failed.” then return to the “Opening
display setting” display.
BK0102600US.book 129 ページ ２００９年３月３０日　月曜日　午後２時２分

3-130 Features and controls
3
NOTE
For vehicles with satellite radio, if the ignition switch is
turned “OFF” while the display is showing an indication
other than the audio display, the SIRIUS™ logo will not
appear when the ignition switch is next turned “ON”. If
you wish to have the SIRIUS logo shown in the display
again, switch to the audio display and then turn the igni-
tion switch to the “OFF” position.
“SIRIUS”, the SIRIUS dog logo and channel names and logos
are trademarks of SIRIUS Satellite Radio, Inc.
Date setting
N00534200075
1. Display “Date setting” on the monitor in accordance with
“Basic operation” (see page 3-109), align the cursor with
it, and press the “SELECT” function button.
BK0102600US.book 130 ページ ２００９年３月３０日　月曜日　午後２時２分

Features and controls
3-131
3

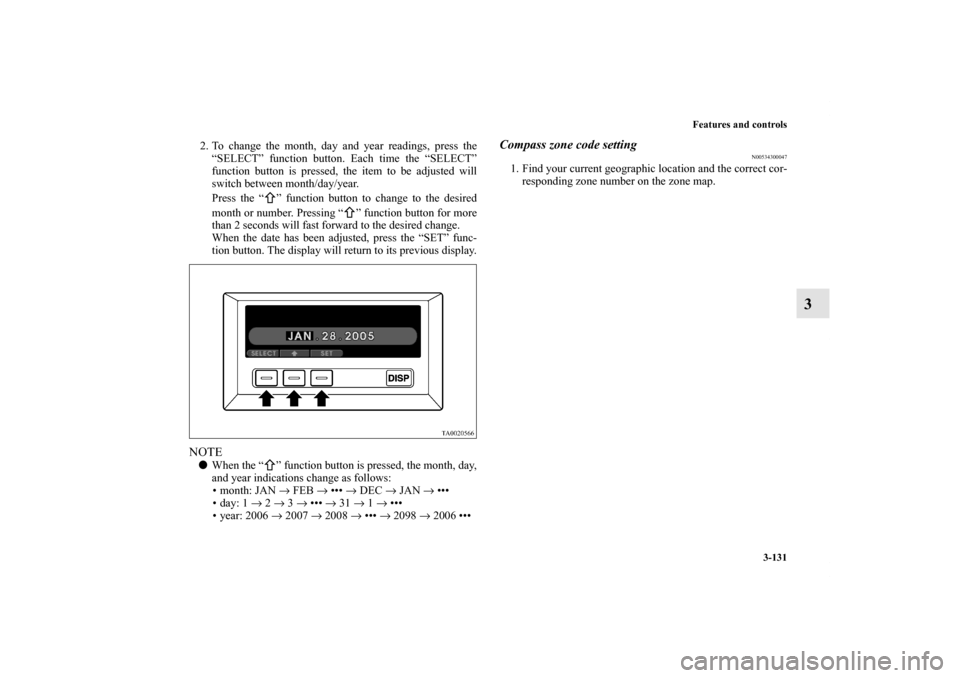

2. To change the month, day and year readings, press the
“SELECT” function button. Each time the “SELECT”
function button is pressed, the item to be adjusted will
switch between month/day/year.
Press the “ ” function button to change to the desired
month or number. Pressing “ ” function button for more
than 2 seconds will fast forward to the desired change.
When the date has been adjusted, press the “SET” func-
tion button. The display will return to its previous display.NOTE
When the “ ” function button is pressed, the month, day,
and year indications change as follows:
• month: JAN → FEB → ••• → DEC → JAN → •••
•day: 1 → 2 → 3 → ••• → 31 → 1 → •••
• year: 2006 → 2007 → 2008 → ••• → 2098 → 2006 •••
Compass zone code setting
N00534300047

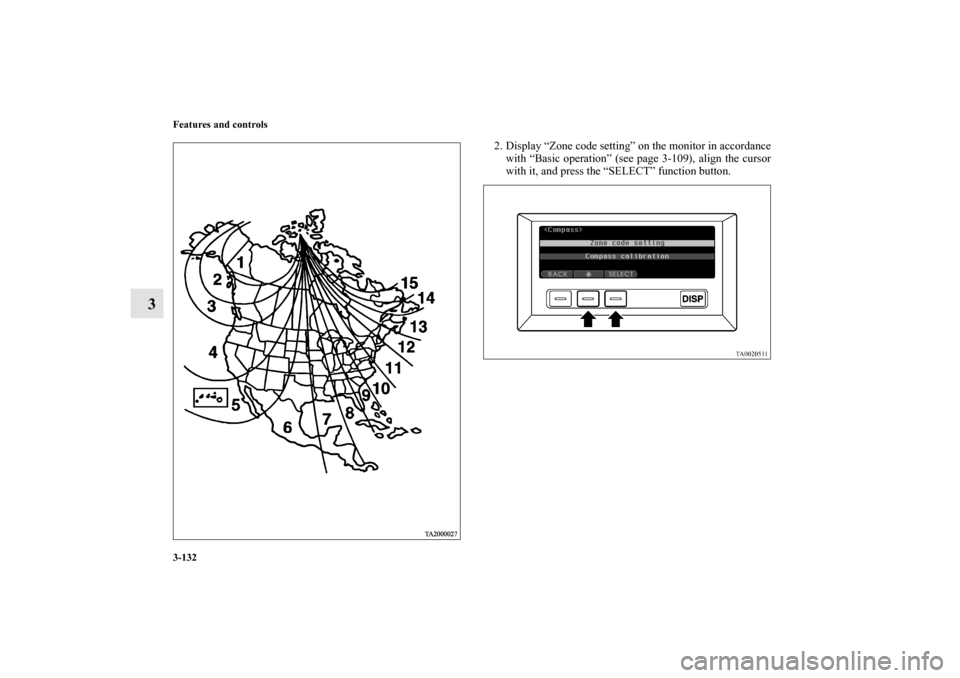

1. Find your current geographic location and the correct cor-
responding zone number on the zone map.
BK0102600US.book 131 ページ ２００９年３月３０日　月曜日　午後２時２分

3-132 Features and controls
3
2. Display “Zone code setting” on the monitor in accordance
with “Basic operation” (see page 3-109), align the cursor
with it, and press the “SELECT” function button.
BK0102600US.book 132 ページ ２００９年３月３０日　月曜日　午後２時２分

Features and controls
3-133
3

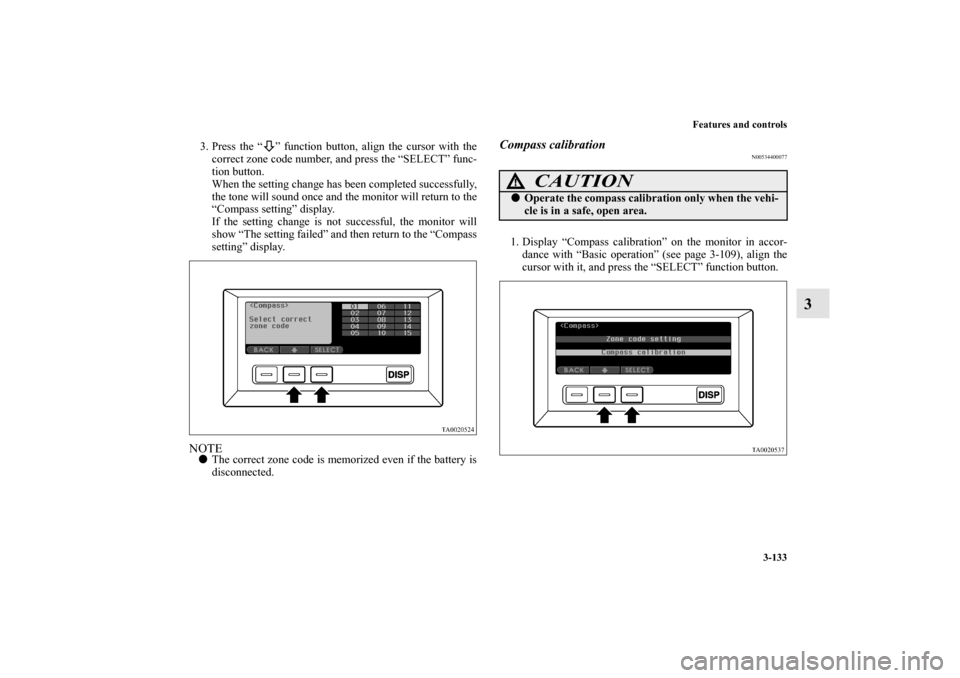

3. Press the “ ” function button, align the cursor with the
correct zone code number, and press the “SELECT” func-
tion button.
When the setting change has been completed successfully,
the tone will sound once and the monitor will return to the
“Compass setting” display.
If the setting change is not successful, the monitor will
show “The setting failed” and then return to the “Compass
setting” display.NOTE
The correct zone code is memorized even if the battery is
disconnected.
Compass calibration
N00534400077
1. Display “Compass calibration” on the monitor in accor-
dance with “Basic operation” (see page 3-109), align the
cursor with it, and press the “SELECT” function button.
CAUTION
!
Operate the compass calibration only when the vehi-
cle is in a safe, open area.
BK0102600US.book 133 ページ ２００９年３月３０日　月曜日　午後２時２分

3-134 Features and controls
3

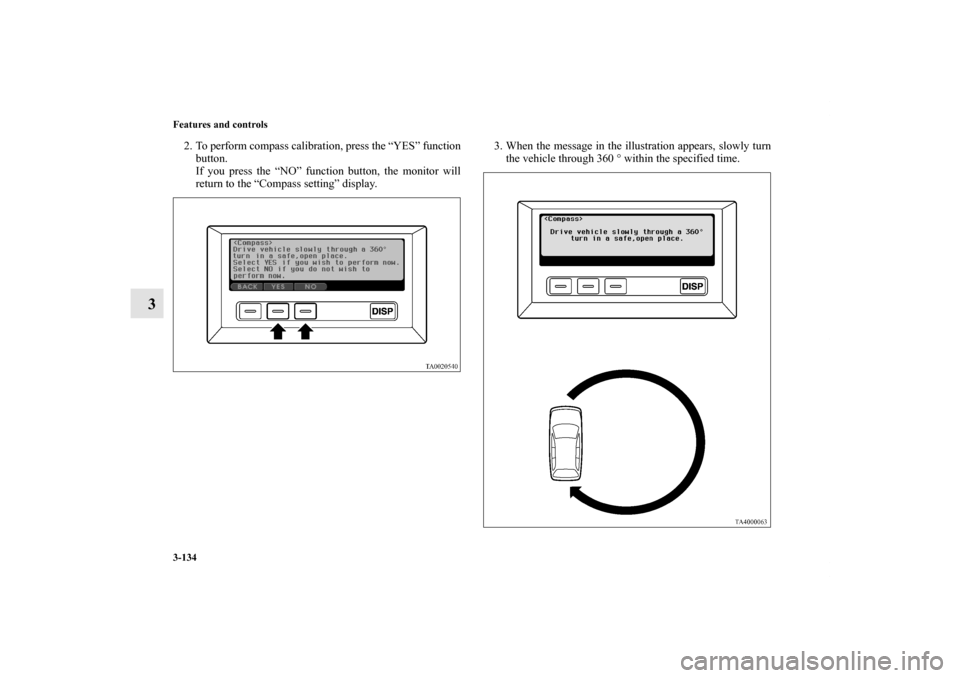

2. To perform compass calibration, press the “YES” function
button.
If you press the “NO” function button, the monitor will
return to the “Compass setting” display.3. When the message in the illustration appears, slowly turn
the vehicle through 360 ° within the specified time.
BK0102600US.book 134 ページ ２００９年３月３０日　月曜日　午後２時２分

Features and controls
3-135
3

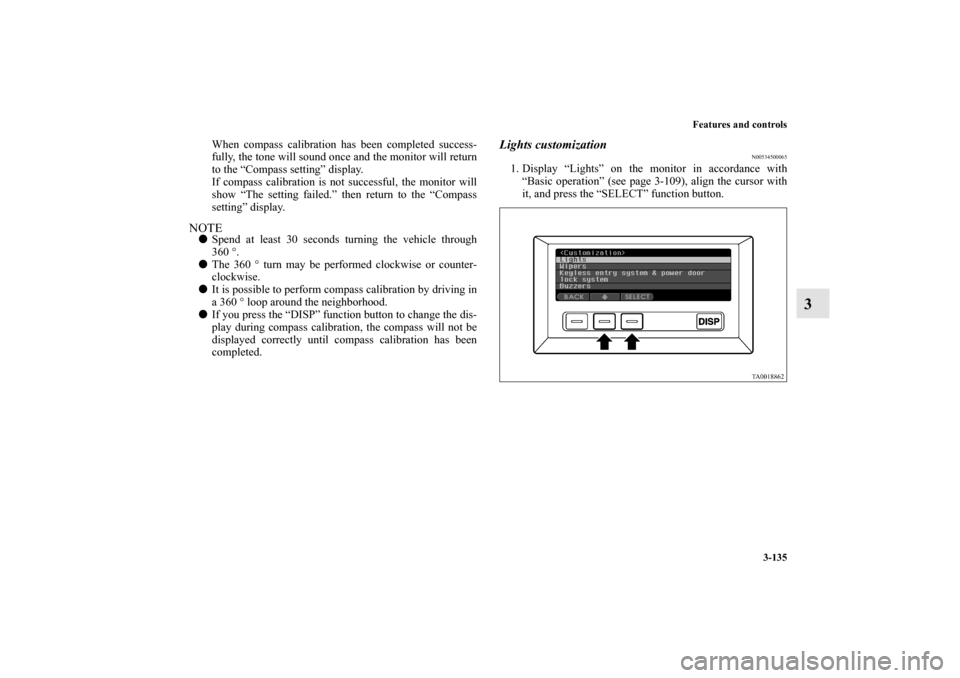

When compass calibration has been completed success-
fully, the tone will sound once and the monitor will return
to the “Compass setting” display.
If compass calibration is not successful, the monitor will
show “The setting failed.” then return to the “Compass
setting” display.
NOTE
Spend at least 30 seconds turning the vehicle through
360°.

The 360 ° turn may be performed clockwise or counter-
clockwise.

It is possible to perform compass calibration by driving in
a 360 ° loop around the neighborhood.

If you press the “DISP” function button to change the dis-
play during compass calibration, the compass will not be
displayed correctly until compass calibration has been
completed.
Lights customization
N00534500065
1. Display “Lights” on the monitor in accordance with
“Basic operation” (see page 3-109), align the cursor with
it, and press the “SELECT” function button.
BK0102600US.book 135 ページ ２００９年３月３０日　月曜日　午後２時２分
