2010 MITSUBISHI ENDEAVOR Owners Manual

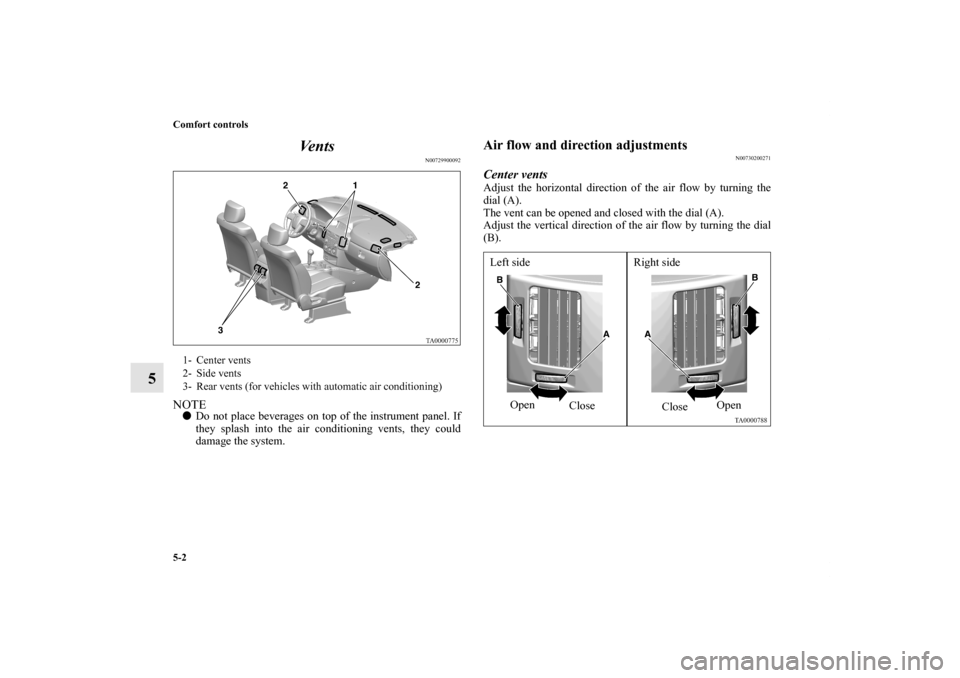

5-2 Comfort controls
5Ve n t s
N00729900092
NOTE
Do not place beverages on top of the instrument panel. If
they splash into the air conditioning vents, they could
damage the system.
Air flow and direction adjustments
N00730200271
Center ventsAdjust the horizontal direction of the air flow by turning the
dial (A).
The vent can be opened and closed with the dial (A).
Adjust the vertical direction of the air flow by turning the dial
(B).
1- Center vents
2- Side vents
3- Rear vents (for vehicles with automatic air conditioning)
Left side Right side
Open
CloseOpen
Close
BK0102600US.book 2 ページ ２００９年３月３０日　月曜日　午後２時２分

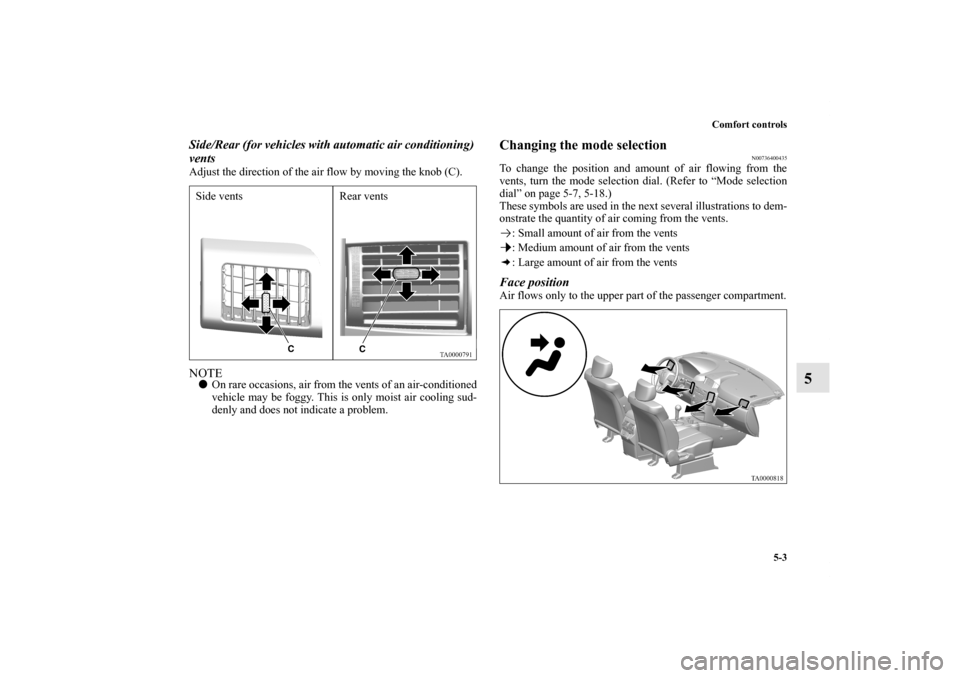

Comfort controls
5-3
5
Side/Rear (for vehicles with automatic air conditioning)
ventsAdjust the direction of the air flow by moving the knob (C).NOTE
On rare occasions, air from the vents of an air-conditioned
vehicle may be foggy. This is only moist air cooling sud-
denly and does not indicate a problem.
Changing the mode selection
N00736400435
To change the position and amount of air flowing from the
vents, turn the mode selection dial. (Refer to “Mode selection
dial” on page 5-7, 5-18.)
These symbols are used in the next several illustrations to dem-
onstrate the quantity of air coming from the vents.
: Small amount of air from the vents
: Medium amount of air from the vents
: Large amount of air from the vents Face position Air flows only to the upper part of the passenger compartment.
Side vents Rear vents
BK0102600US.book 3 ページ ２００９年３月３０日　月曜日　午後２時２分

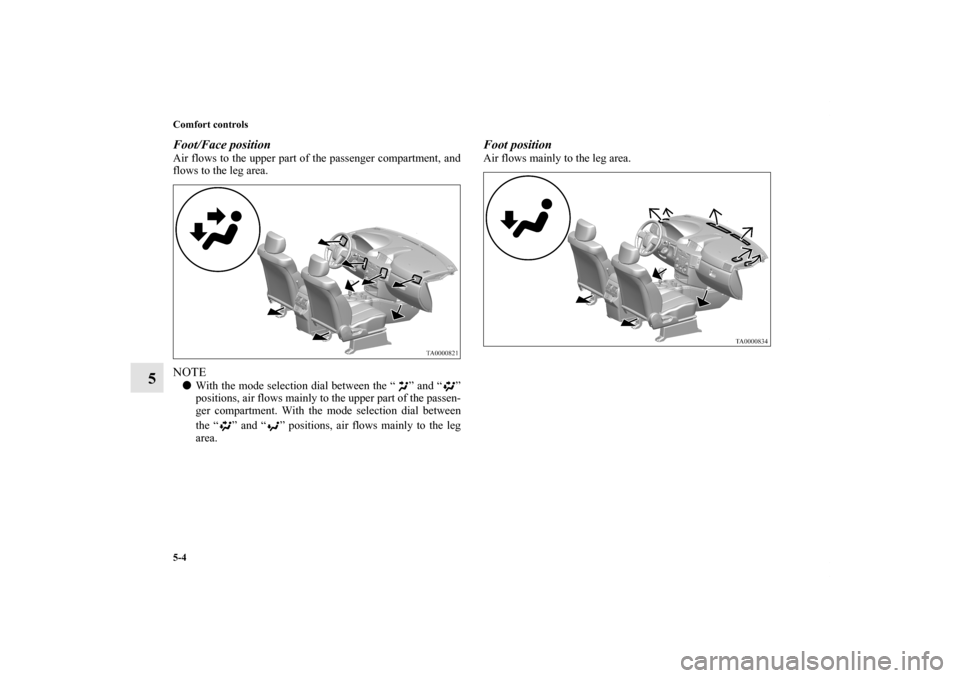

5-4 Comfort controls
5
Foot/Face position Air flows to the upper part of the passenger compartment, and
flows to the leg area. NOTE
With the mode selection dial between the “ ” and “ ”
positions, air flows mainly to the upper part of the passen-
ger compartment. With the mode selection dial between
the “ ” and “ ” positions, air flows mainly to the leg
area.
Foot position Air flows mainly to the leg area.
BK0102600US.book 4 ページ ２００９年３月３０日　月曜日　午後２時２分

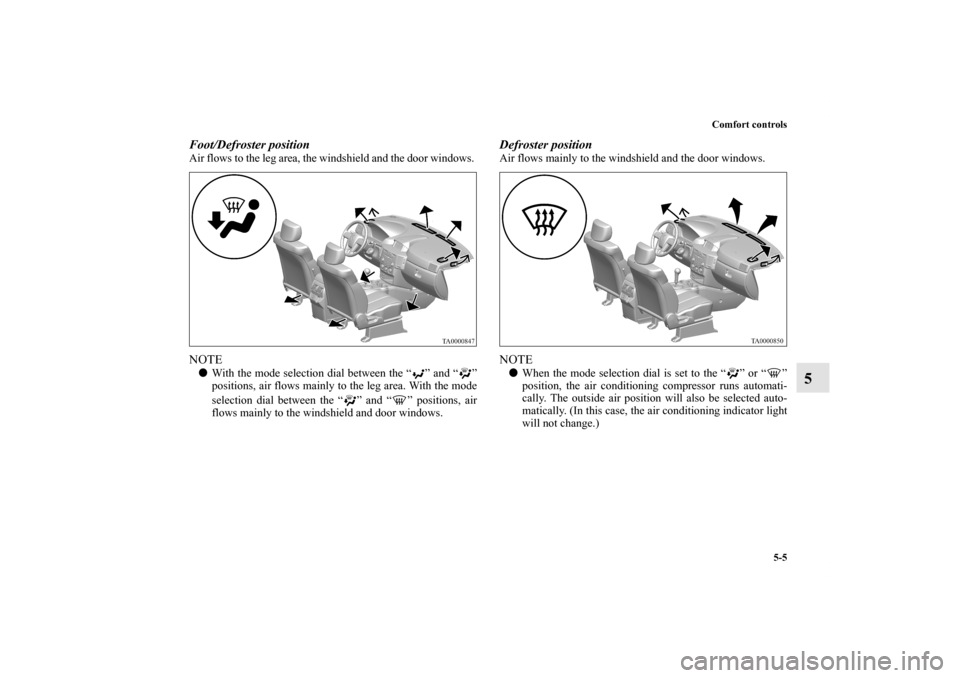

Comfort controls
5-5
5
Foot/Defroster position Air flows to the leg area, the windshield and the door windows. NOTE
With the mode selection dial between the “ ” and “ ”
positions, air flows mainly to the leg area. With the mode
selection dial between the “ ” and “ ” positions, air
flows mainly to the windshield and door windows.
Defroster position Air flows mainly to the windshield and the door windows.NOTE
When the mode selection dial is set to the “ ” or “ ”
position, the air conditioning compressor runs automati-
cally. The outside air position will also be selected auto-
matically. (In this case, the air conditioning indicator light
will not change.)
BK0102600US.book 5 ページ ２００９年３月３０日　月曜日　午後２時２分

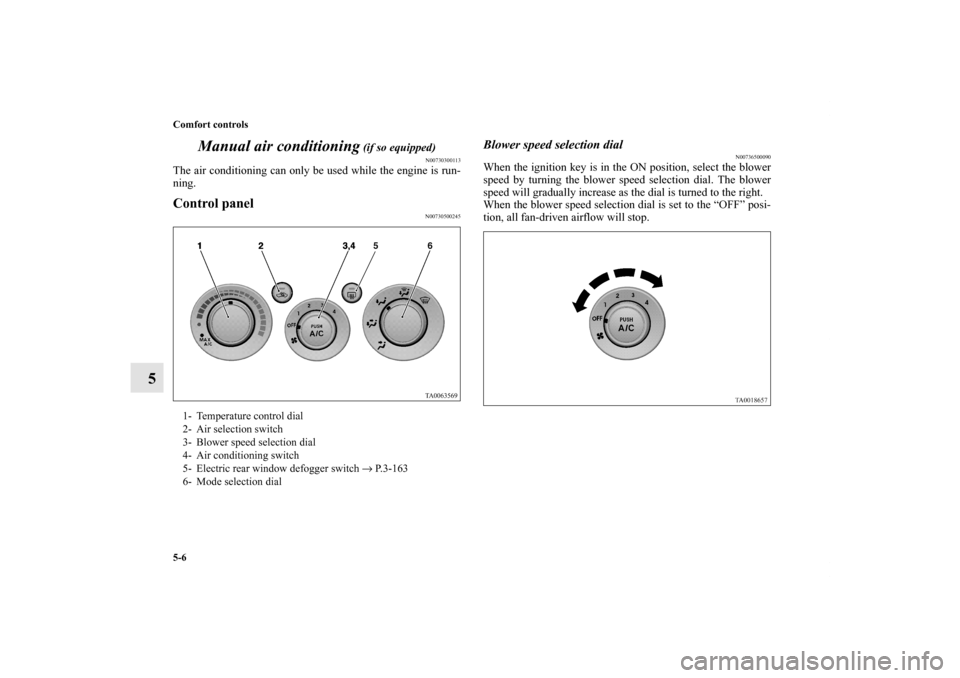

5-6 Comfort controls
5Manual air conditioning
(if so equipped)
N00730300113
The air conditioning can only be used while the engine is run-
ning.Control panel
N00730500245
Blower speed selection dial
N00736500090
When the ignition key is in the ON position, select the blower
speed by turning the blower speed selection dial. The blower
speed will gradually increase as the dial is turned to the right.
When the blower speed selection dial is set to the “OFF” posi-
tion, all fan-driven airflow will stop.
1- Temperature control dial
2- Air selection switch
3- Blower speed selection dial
4- Air conditioning switch
5- Electric rear window defogger switch → P.3-163
6- Mode selection dial
BK0102600US.book 6 ページ ２００９年３月３０日　月曜日　午後２時２分

Comfort controls
5-7
5
Temperature control dial
N00736600147
Turn the temperature control dial clockwise to make the air
warmer. Turn it counterclockwise to make the air cooler. NOTE
While the engine coolant temperature is low, the tempera-
ture of the air from the heater will be cool/cold until the
engine warms up, even if you have selected warm air with
the dial.

For instructions on how to use the “MAX A/C” position
(A), see “For quick cooling” on page 5-10.
Mode selection dial
N00736700148
To change the position and amount of air flowing from the
vents, turn the mode selection dial. (Refer to “Changing the
mode selection” on page 5-3.)
BK0102600US.book 7 ページ ２００９年３月３０日　月曜日　午後２時２分

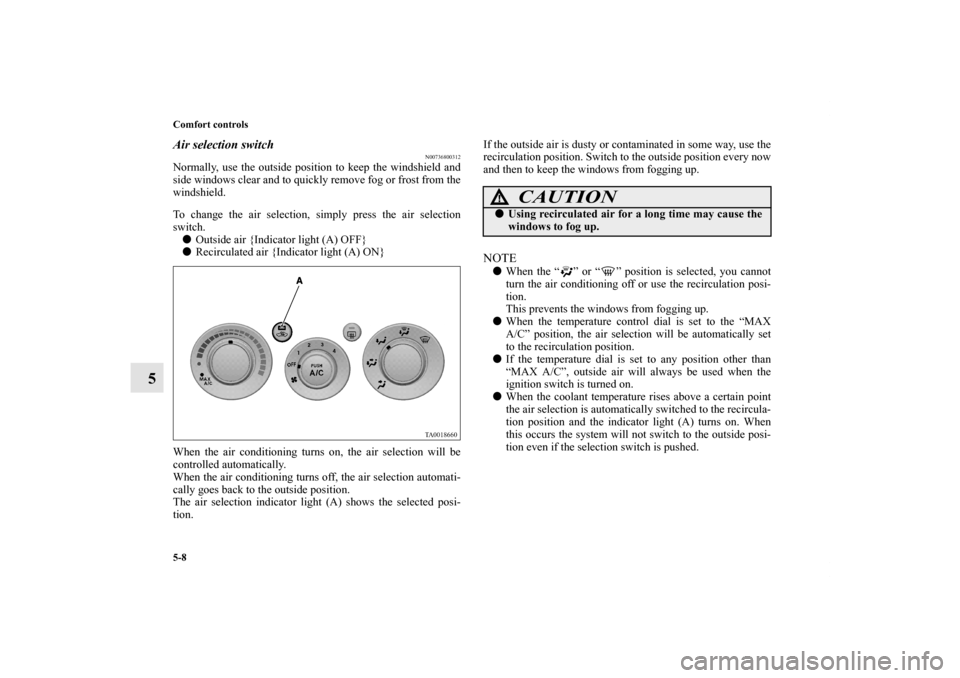

5-8 Comfort controls
5
Air selection switch
N00736800312
Normally, use the outside position to keep the windshield and
side windows clear and to quickly remove fog or frost from the
windshield.
To change the air selection, simply press the air selection
switch.

Outside air {Indicator light (A) OFF}

Recirculated air {Indicator light (A) ON}
When the air conditioning turns on, the air selection will be
controlled automatically.
When the air conditioning turns off, the air selection automati-
cally goes back to the outside position.
The air selection indicator light (A) shows the selected posi-
tion.If the outside air is dusty or contaminated in some way, use the
recirculation position. Switch to the outside position every now
and then to keep the windows from fogging up.
NOTE
When the “ ” or “ ” position is selected, you cannot
turn the air conditioning off or use the recirculation posi-
tion.
This prevents the windows from fogging up.

When the temperature control dial is set to the “MAX
A/C” position, the air selection will be automatically set
to the recirculation position.

If the temperature dial is set to any position other than
“MAX A/C”, outside air will always be used when the
ignition switch is turned on.

When the coolant temperature rises above a certain point
the air selection is automatically switched to the recircula-
tion position and the indicator light (A) turns on. When
this occurs the system will not switch to the outside posi-
tion even if the selection switch is pushed.
CAUTION
!
Using recirculated air for a long time may cause the
windows to fog up.
BK0102600US.book 8 ページ ２００９年３月３０日　月曜日　午後２時２分

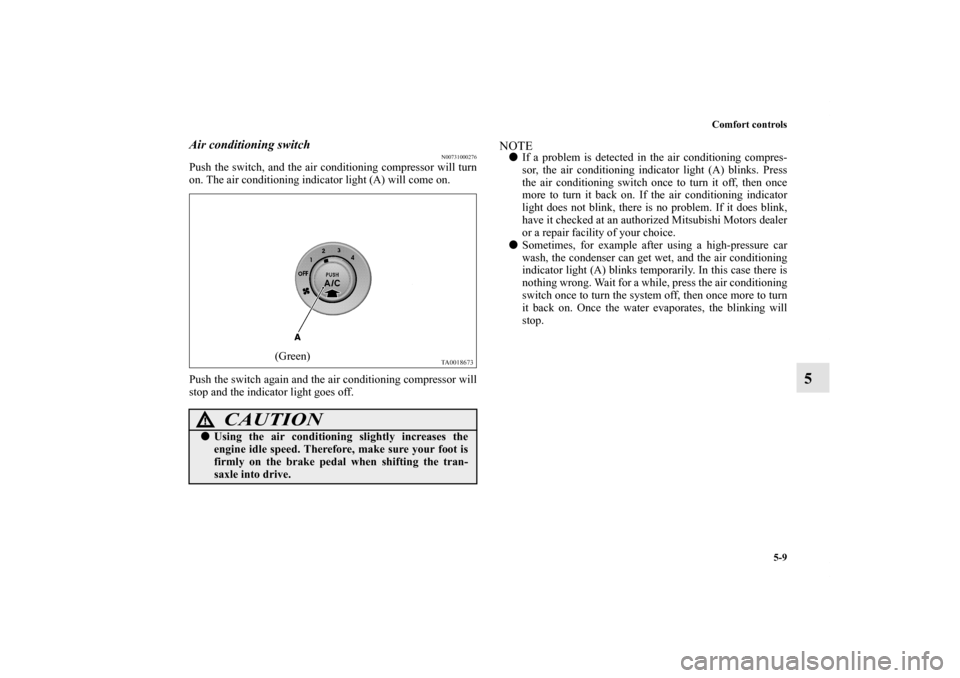

Comfort controls
5-9
5
Air conditioning switch
N00731000276
Push the switch, and the air conditioning compressor will turn
on. The air conditioning indicator light (A) will come on.
Push the switch again and the air conditioning compressor will
stop and the indicator light goes off.
NOTE
If a problem is detected in the air conditioning compres-
sor, the air conditioning indicator light (A) blinks. Press
the air conditioning switch once to turn it off, then once
more to turn it back on. If the air conditioning indicator
light does not blink, there is no problem. If it does blink,
have it checked at an authorized Mitsubishi Motors dealer
or a repair facility of your choice.

Sometimes, for example after using a high-pressure car
wash, the condenser can get wet, and the air conditioning
indicator light (A) blinks temporarily. In this case there is
nothing wrong. Wait for a while, press the air conditioning
switch once to turn the system off, then once more to turn
it back on. Once the water evaporates, the blinking will
stop.
CAUTION
!
Using the air conditioning slightly increases the
engine idle speed. Therefore, make sure your foot is
firmly on the brake pedal when shifting the tran-
saxle into drive.
(Green)
