2010 MITSUBISHI ENDEAVOR Owners Manual

3-144 Features and controls
3
1. Press the “ ” function button, align the cursor with the
desired setting, and press the “SELECT” function button.
• A:The turn signal lights blink when the doors and the
liftgate are locked or unlocked.
• B:The turn signal lights blink only when the doors and
the liftgate are locked.
• C:The turn signal lights blink only when the doors and
the liftgate are unlocked.
• D:The turn signal lights do not blink.NOTE
The initial (default) setting is “A”.2. The monitor will show “The setting is progressing” while
the setting change is in progress.
When the setting change has been completed successfully,
a tone will sound once and the monitor will return to the
“Keyless entry system confirmation by turn signal lights”
display.
If the setting change is not successful, the monitor will
show “The setting failed.” then return to the “Keyless
entry system confirmation by turn signal lights” display.
BK0102600US.book 144 ページ ２００９年３月３０日　月曜日　午後２時２分

Features and controls
3-145
3

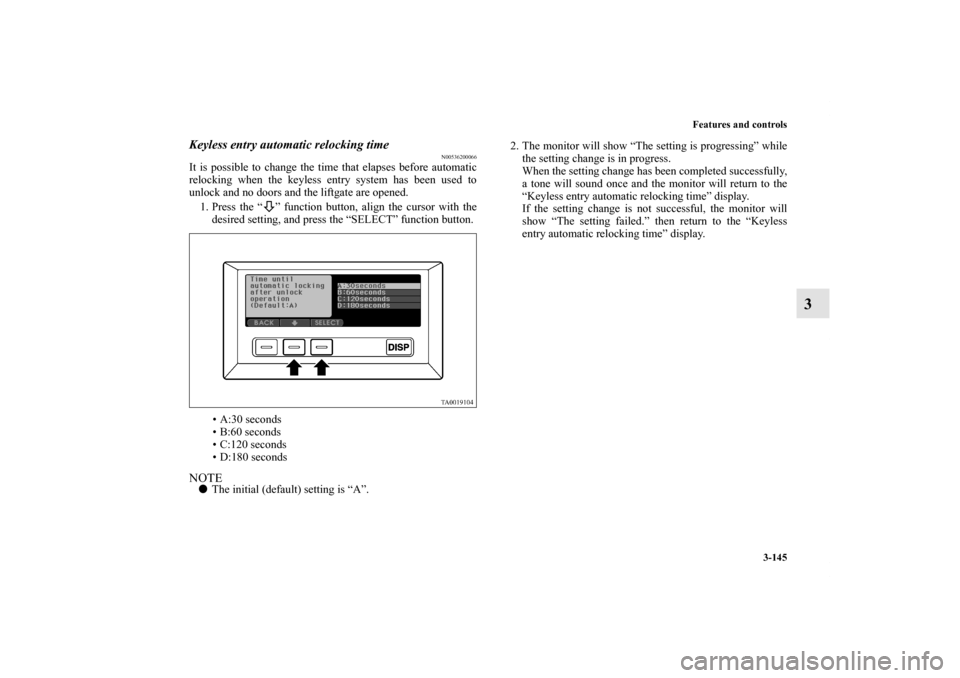

Keyless entry automatic relocking time
N00536200066
It is possible to change the time that elapses before automatic
relocking when the keyless entry system has been used to
unlock and no doors and the liftgate are opened.
1. Press the “ ” function button, align the cursor with the
desired setting, and press the “SELECT” function button.
• A:30 seconds
• B:60 seconds
• C:120 seconds
• D:180 secondsNOTE
The initial (default) setting is “A”.2. The monitor will show “The setting is progressing” while
the setting change is in progress.
When the setting change has been completed successfully,
a tone will sound once and the monitor will return to the
“Keyless entry automatic relocking time” display.
If the setting change is not successful, the monitor will
show “The setting failed.” then return to the “Keyless
entry automatic relocking time” display.
BK0102600US.book 145 ページ ２００９年３月３０日　月曜日　午後２時２分

3-146 Features and controls
3

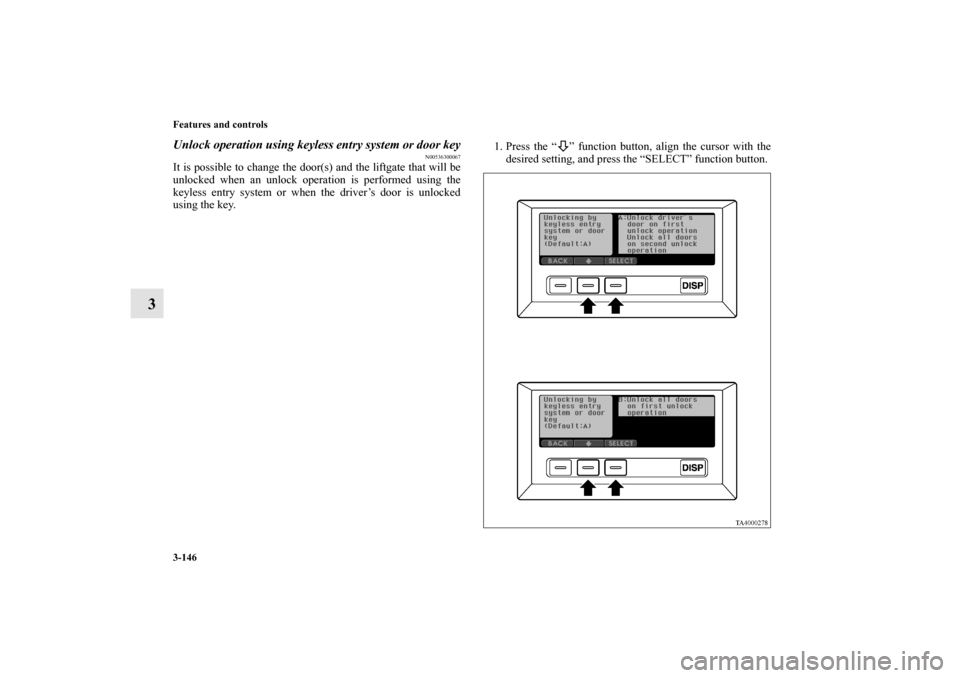

Unlock operation using keyless entry system or door key
N00536300067
It is possible to change the door(s) and the liftgate that will be
unlocked when an unlock operation is performed using the
keyless entry system or when the driver’s door is unlocked
using the key.1. Press the “ ” function button, align the cursor with the
desired setting, and press the “SELECT” function button.BK0102600US.book 146 ページ ２００９年３月３０日　月曜日　午後２時２分

Features and controls
3-147
3
• A:A single unlock operation unlocks only the driver’s
door.
Two unlock operations unlock all of the doors and the
liftgate.
• B:A single unlock operation unlocks all of the doors and
the liftgate.
NOTE
The initial (default) setting is “A”.
2. The monitor will show “The setting is progressing” while
the setting change is in progress.
When the setting change has been completed successfully,
a tone will sound once and the monitor will return to the
“Unlock operation using keyless entry system or door
key” display.
If the setting change is not successful, the monitor will
show “The setting failed.” then return to the “Unlock
operation using keyless entry system or door key” display.
Buzzers customization
N00534900056
1. Display “Buzzers” on the monitor in accordance with
“Basic operation” (see page 3-109), align the cursor with
it, and press the “SELECT” function button.
BK0102600US.book 147 ページ ２００９年３月３０日　月曜日　午後２時２分

3-148 Features and controls
3

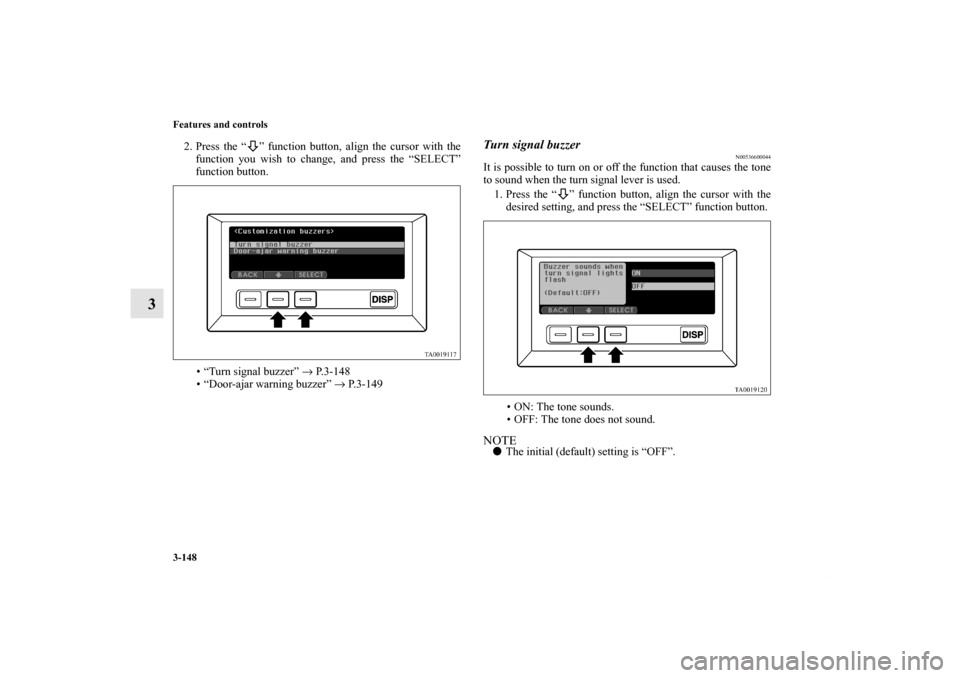

2. Press the “ ” function button, align the cursor with the
function you wish to change, and press the “SELECT”
function button.
• “Turn signal buzzer” → P. 3 - 1 4 8
• “Door-ajar warning buzzer” → P. 3 - 1 4 9
Turn signal buzzer
N00536600044
It is possible to turn on or off the function that causes the tone
to sound when the turn signal lever is used.
1. Press the “ ” function button, align the cursor with the
desired setting, and press the “SELECT” function button.
• ON: The tone sounds.
• OFF: The tone does not sound.NOTE
The initial (default) setting is “OFF”.
BK0102600US.book 148 ページ ２００９年３月３０日　月曜日　午後２時２分

Features and controls
3-149
3
2. The monitor will show “The setting is progressing” while
the setting change is in progress.
When the setting change has been completed successfully,
a tone will sound once and the monitor will return to the
“Turn signal buzzer” display.
If the setting change is not successful, the monitor will
show “The setting failed.” then return to the “Turn signal
buzzer” display.
Door-ajar warning buzzer
N00536700090
It is possible to change the setting for the door-ajar warning
buzzer.
1. Press the “ ” function button, align the cursor with the
desired setting, and press the “SELECT” function button.
• ON: If the vehicle reaches a speed of more than 5 mph
(8 km/h) with any door or the liftgate or ajar, the tone
sounds and the door-ajar warning light flashes 4 times
then comes on steadily.
• OFF: Even if the vehicle reaches a speed of more than
5 mph (8 km/h) with any door or the liftgate or ajar, the
tone does not sound. Also, the door-ajar warning light
does not flash. (It comes on steadily.)NOTE
The initial (default) setting is “ON”.
BK0102600US.book 149 ページ ２００９年３月３０日　月曜日　午後２時２分

3-150 Features and controls
3
2. The monitor will show “The setting is progressing” while
the setting change is in progress.
When the setting change has been completed successfully,
the tone will sound once and the monitor will return to the
“Door-ajar warning buzzer” display.
If the setting change is not successful, the monitor will
show “The setting failed.” then return to the “Door-ajar
warning buzzer” display.

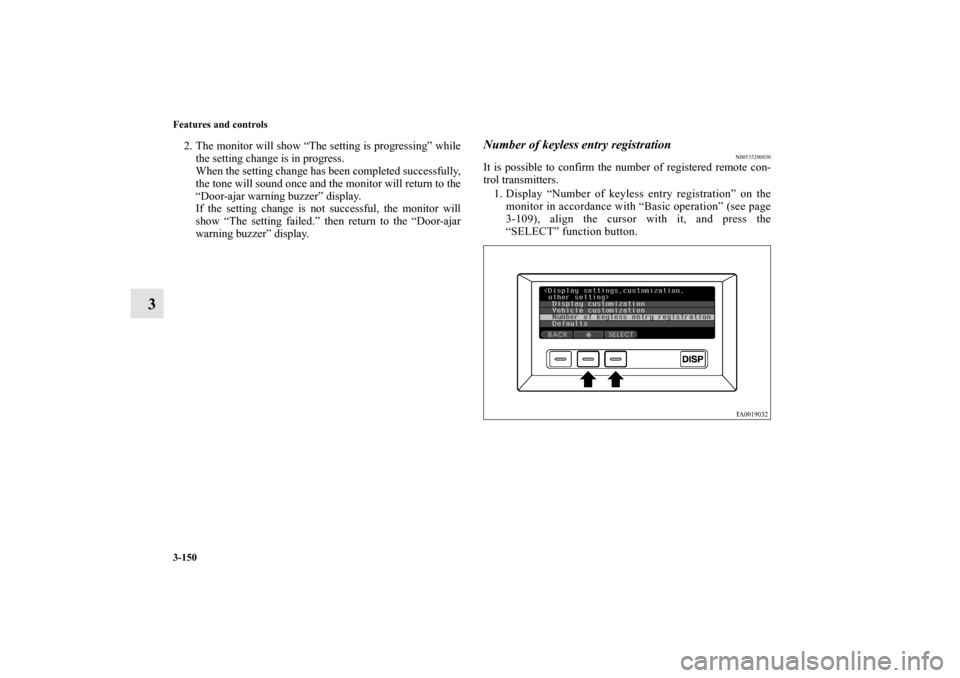

Number of keyless entry registration
N00535200030
It is possible to confirm the number of registered remote con-
trol transmitters.
1. Display “Number of keyless entry registration” on the
monitor in accordance with “Basic operation” (see page
3-109), align the cursor with it, and press the
“SELECT” function button.
BK0102600US.book 150 ページ ２００９年３月３０日　月曜日　午後２時２分

Features and controls
3-151
3

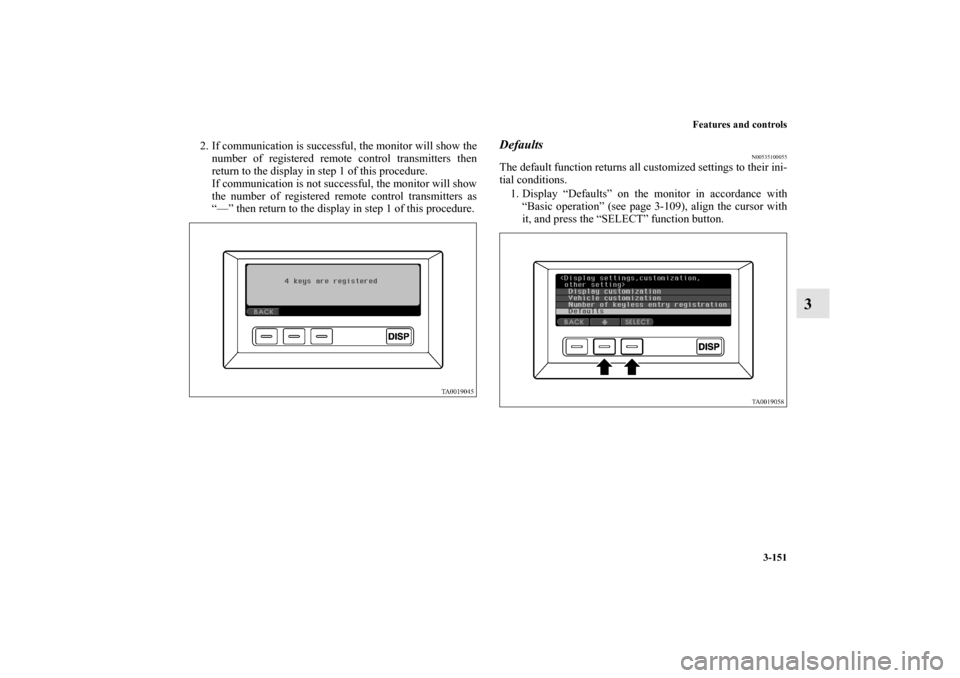

2. If communication is successful, the monitor will show the
number of registered remote control transmitters then
return to the display in step 1 of this procedure.
If communication is not successful, the monitor will show
the number of registered remote control transmitters as
“—” then return to the display in step 1 of this procedure.
Defaults
N00535100055
The default function returns all customized settings to their ini-
tial conditions.
1. Display “Defaults” on the monitor in accordance with
“Basic operation” (see page 3-109), align the cursor with
it, and press the “SELECT” function button.
BK0102600US.book 151 ページ ２００９年３月３０日　月曜日　午後２時２分
