2010 MITSUBISHI ENDEAVOR Owners Manual

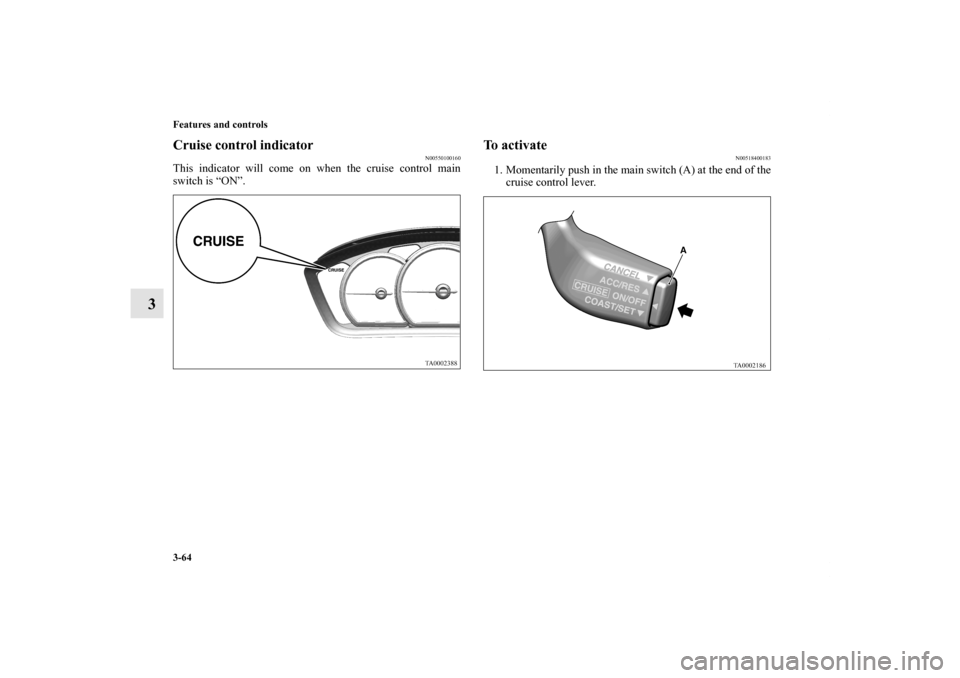

3-64 Features and controls
3
Cruise control indicator
N00550100160
This indicator will come on when the cruise control main
switch is “ON”.
To activate
N00518400183
1. Momentarily push in the main switch (A) at the end of the
cruise control lever.
BK0102600US.book 64 ページ ２００９年３月３０日　月曜日　午後２時２分

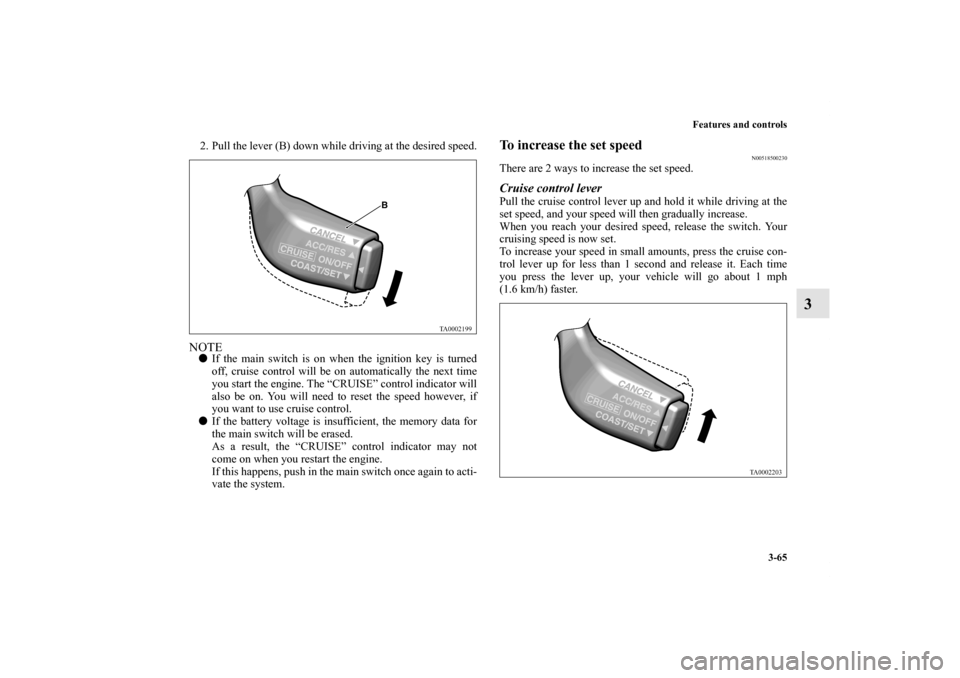

Features and controls
3-65
3
2. Pull the lever (B) down while driving at the desired speed.NOTE
If the main switch is on when the ignition key is turned
off, cruise control will be on automatically the next time
you start the engine. The “CRUISE” control indicator will
also be on. You will need to reset the speed however, if
you want to use cruise control.

If the battery voltage is insufficient, the memory data for
the main switch will be erased.
As a result, the “CRUISE” control indicator may not
come on when you restart the engine.
If this happens, push in the main switch once again to acti-
vate the system.
To increase the set speed
N00518500230
There are 2 ways to increase the set speed.Cruise control lever Pull the cruise control lever up and hold it while driving at the
set speed, and your speed will then gradually increase.
When you reach your desired speed, release the switch. Your
cruising speed is now set.
To increase your speed in small amounts, press the cruise con-
trol lever up for less than 1 second and release it. Each time
you press the lever up, your vehicle will go about 1 mph
(1.6 km/h) faster.
BK0102600US.book 65 ページ ２００９年３月３０日　月曜日　午後２時２分

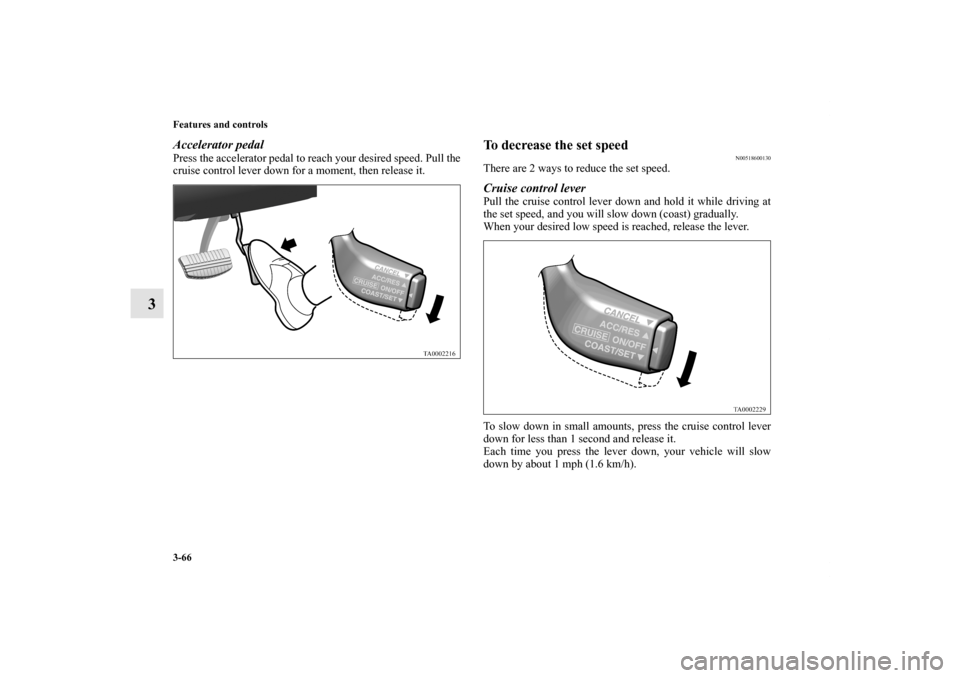

3-66 Features and controls
3
Accelerator pedalPress the accelerator pedal to reach your desired speed. Pull the
cruise control lever down for a moment, then release it.
To decrease the set speed
N00518600130
There are 2 ways to reduce the set speed.Cruise control leverPull the cruise control lever down and hold it while driving at
the set speed, and you will slow down (coast) gradually.
When your desired low speed is reached, release the lever.
To slow down in small amounts, press the cruise control lever
down for less than 1 second and release it.
Each time you press the lever down, your vehicle will slow
down by about 1 mph (1.6 km/h).
BK0102600US.book 66 ページ ２００９年３月３０日　月曜日　午後２時２分

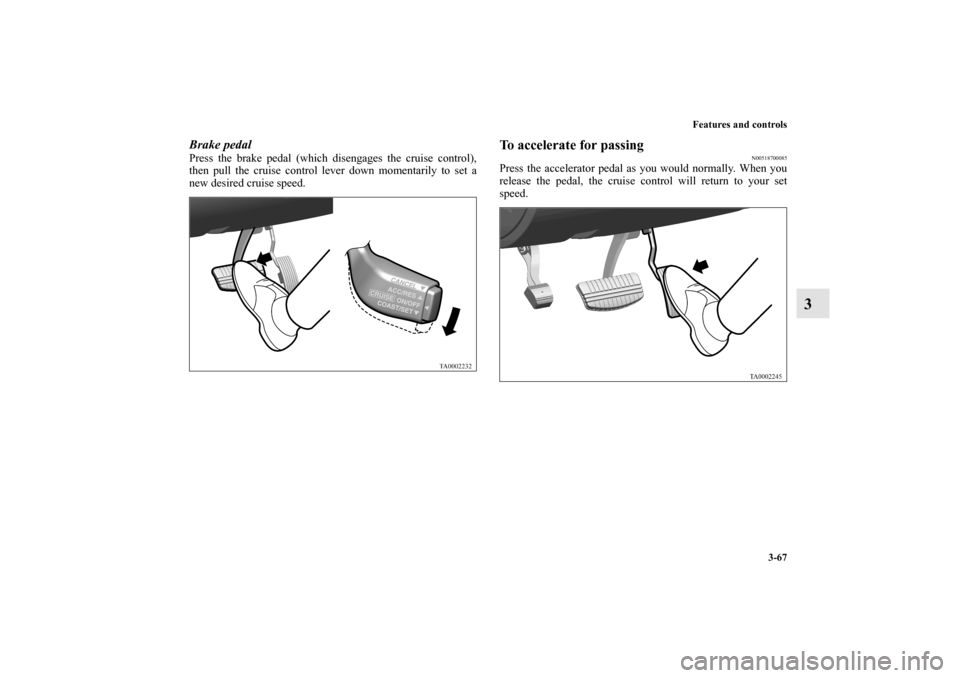

Features and controls
3-67
3
Brake pedalPress the brake pedal (which disengages the cruise control),
then pull the cruise control lever down momentarily to set a
new desired cruise speed.
To accelerate for passing
N00518700085
Press the accelerator pedal as you would normally. When you
release the pedal, the cruise control will return to your set
speed.
BK0102600US.book 67 ページ ２００９年３月３０日　月曜日　午後２時２分

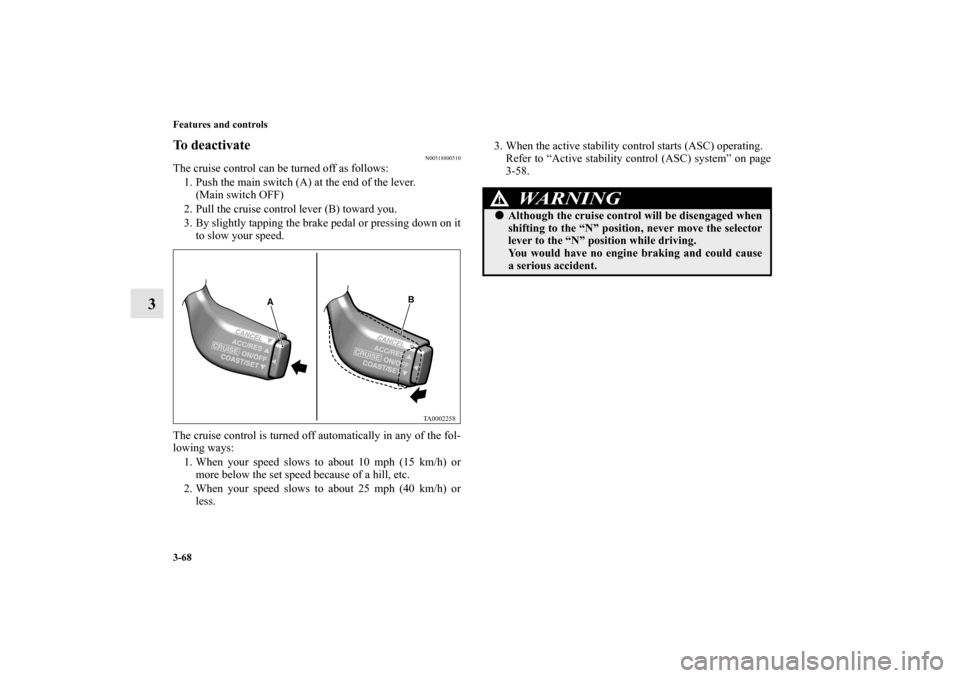

3-68 Features and controls
3
To deactivate
N00518800510
The cruise control can be turned off as follows:
1. Push the main switch (A) at the end of the lever.
(Main switch OFF)
2. Pull the cruise control lever (B) toward you.
3. By slightly tapping the brake pedal or pressing down on it
to slow your speed.
The cruise control is turned off automatically in any of the fol-
lowing ways:
1. When your speed slows to about 10 mph (15 km/h) or
more below the set speed because of a hill, etc.
2. When your speed slows to about 25 mph (40 km/h) or
less.3. When the active stability control starts (ASC) operating.
Refer to “Active stability control (ASC) system” on page
3-58.
WA R N I N G
!
Although the cruise control will be disengaged when
shifting to the “N” position, never move the selector
lever to the “N” position while driving.
You would have no engine braking and could cause
a serious accident.
BK0102600US.book 68 ページ ２００９年３月３０日　月曜日　午後２時２分

Features and controls
3-69
3
To resume the set speed
N00518900188
If the speed memory has not been erased, resume the previ-
ously set speed by pulling the cruise control lever up while
driving at a speed of about 25 mph (40 km/h) or higher.
Under either of the following conditions, however, using the
switch does not allow you to resume the previously set speed.
In these situations, repeat the speed setting procedure:

The ignition key is turned OFF.

The main switch is turned OFF.
Tire pressure monitoring system
N00530200266
The tire pressure monitoring system uses tire inflation pressure
sensors (A) on the wheels to monitor the tire inflation pres-
sures. The system only indicates when a tire is significantly
under-inflated.
WA R N I N G
!
The 17-inch steel spare tire and compact spare tire
do not have a tire inflation pressure sensor.
When the 17-inch steel spare tire or compact spare
tire is used, the tire pressure monitoring system will
not work properly.
See an authorized Mitsubishi Motors dealer as soon
as possible to replace or repair the original tire.
In case of 18-inch
aluminum spare tire
BK0102600US.book 69 ページ ２００９年３月３０日　月曜日　午後２時２分

3-70 Features and controls
3
NOTE
The tire pressure monitoring system is not a substitute for
regularly checking tire inflation pressures.
Be sure to check the tire inflation pressures as described in
“Tires” on page 7-20.
The tire inflation pressure sensor (A) is installed in the
illustrated location.
• On vehicles with Type 1 sensor which has the metallic
air valve (B), replace grommet (C) with a new one when
the tire is replaced.
• On vehicles with Type 2 sensor which has the rubber air
valve (D), replace rubber valve (D) and screw (E) with
new ones when the tire is replaced.
For details, please contact your authorized Mitsubishi
Motors dealer.
Ty p e 1
Ty p e 2
BK0102600US.book 70 ページ ２００９年３月３０日　月曜日　午後２時２分

Features and controls
3-71
3
Tire pressure monitoring system warning light
N00554800064
When the ignition key is turned to the “ON” position, this light
normally illuminates and goes off a few seconds later. If one or
more of the vehicle tires is significantly under-inflated, how-
ever, this light will remain illuminated while the key is in the
“ON” position.
Refer to “If the warning light illuminates while driving” on
page 3-73 and take the necessary measures.NOTE
Tire pressure monitoring system doesn’t monitor the spare
tire in luggage room, even if the tire inflation pressure
sensor is equipped.

Tire pressure monitoring system monitors the 18-inch alu-
minum spare tire when it is used.
CAUTION
!
If the tire pressure monitoring system warning light
does not illuminate when the ignition key is turned
to the “ON” position, it means that the tire pressure
monitoring system is not working properly. Have
the system inspected by an authorized Mitsubishi
Motors dealer.
In such situations, a malfunctioning of the system
may be preventing the monitoring of the tire pres-
sure. Avoid sudden braking, sharp turning and
high-speed driving.

If a malfunction is detected in the tire pressure mon-
itoring system, the tire pressure monitoring system
warning light will blink for approximately 1 minute
and then remain continuously illuminated. The
warning light will issue further warnings each time
the engine is restarted as long as the malfunction
exists.
Check to see whether the warning light goes off after
few minutes of driving.
If it then goes off during driving, there is no prob-
lem.
However, if the warning light does not go off, or if it
blinks again when the engine is restarted, have the
vehicle inspected by an authorized Mitsubishi
Motors dealer.
In such situations, a malfunctioning of the system
may be preventing the monitoring of the tire pres-
sure. For safety reasons, when the warning light
appears while driving, avoid sudden braking, sharp
turning and high-speed driving.
CAUTION
!
