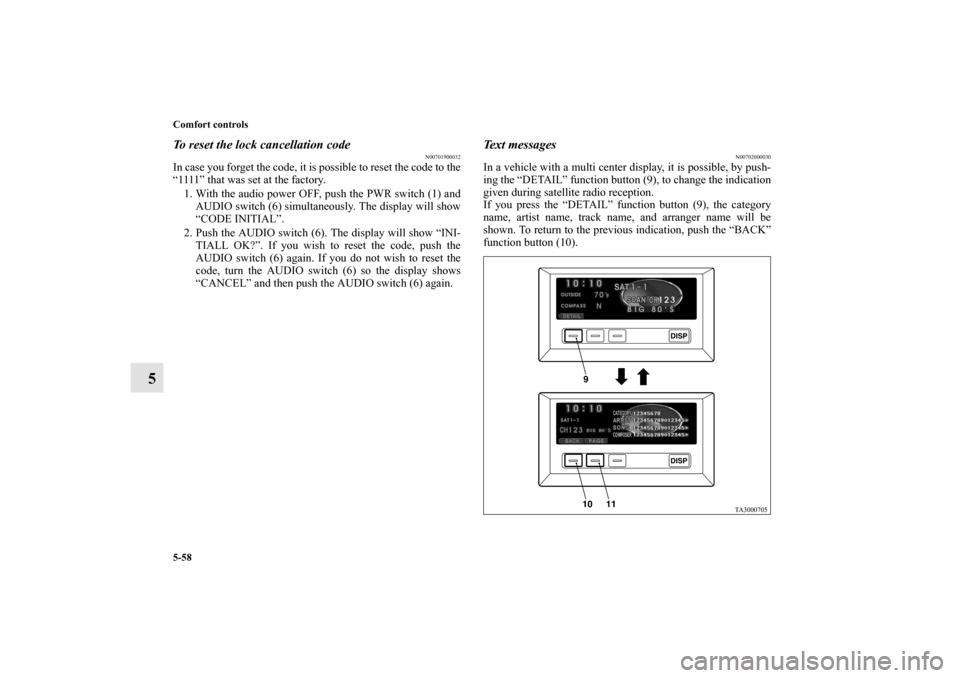

2010 MITSUBISHI ENDEAVOR Owners Manual

5-58 Comfort controls
5
To reset the lock cancellation code
N00701900032
In case you forget the code, it is possible to reset the code to the
“1111” that was set at the factory.
1. With the audio power OFF, push the PWR switch (1) and
AUDIO switch (6) simultaneously. The display will show
“CODE INITIAL”.
2. Push the AUDIO switch (6). The display will show “INI-
TIALL OK?”. If you wish to reset the code, push the
AUDIO switch (6) again. If you do not wish to reset the
code, turn the AUDIO switch (6) so the display shows
“CANCEL” and then push the AUDIO switch (6) again.
Text messages
N00702000030
In a vehicle with a multi center display, it is possible, by push-
ing the “DETAIL” function button (9), to change the indication
given during satellite radio reception.
If you press the “DETAIL” function button (9), the category
name, artist name, track name, and arranger name will be
shown. To return to the previous indication, push the “BACK”
function button (10).
BK0102600US.book 58 ページ ２００９年３月３０日　月曜日　午後２時２分

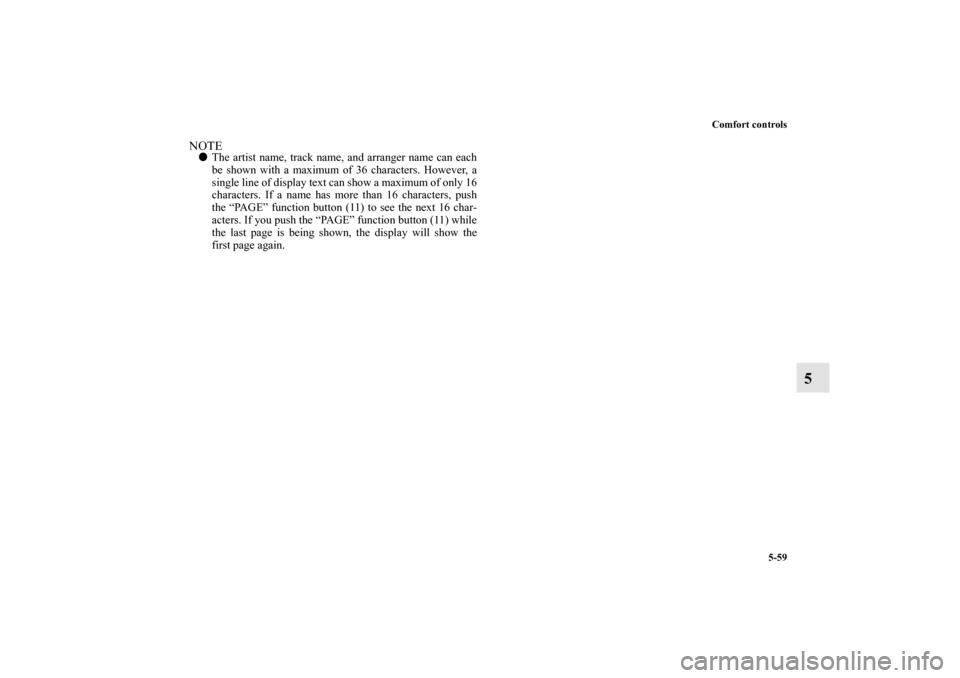

Comfort controls
5-59
5
NOTE
The artist name, track name, and arranger name can each
be shown with a maximum of 36 characters. However, a
single line of display text can show a maximum of only 16
characters. If a name has more than 16 characters, push
the “PAGE” function button (11) to see the next 16 char-
acters. If you push the “PAGE” function button (11) while
the last page is being shown, the display will show the
first page again.
BK0102600US.book 59 ページ ２００９年３月３０日　月曜日　午後２時２分

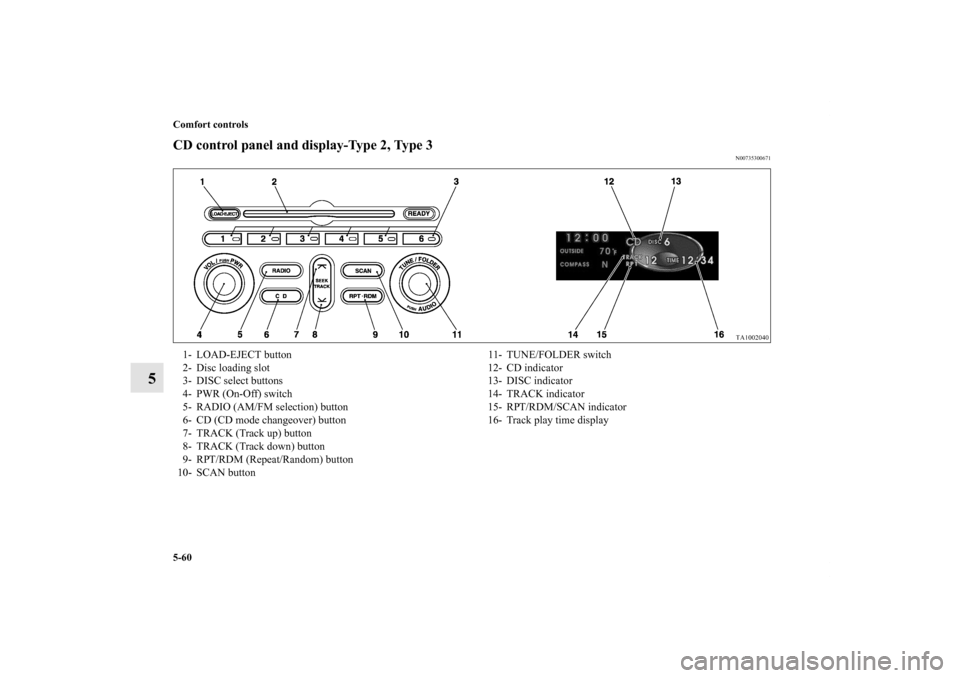

5-60 Comfort controls
5
CD control panel and display-Type 2, Type 3
N00735300671
1- LOAD-EJECT button
2- Disc loading slot
3- DISC select buttons
4- PWR (On-Off) switch
5- RADIO (AM/FM selection) button
6- CD (CD mode changeover) button
7- TRACK (Track up) button
8- TRACK (Track down) button
9- RPT/RDM (Repeat/Random) button
10- SCAN button11- TUNE/FOLDER switch
12- CD indicator
13- DISC indicator
14- TRACK indicator
15- RPT/RDM/SCAN indicator
16- Track play time display
BK0102600US.book 60 ページ ２００９年３月３０日　月曜日　午後２時２分

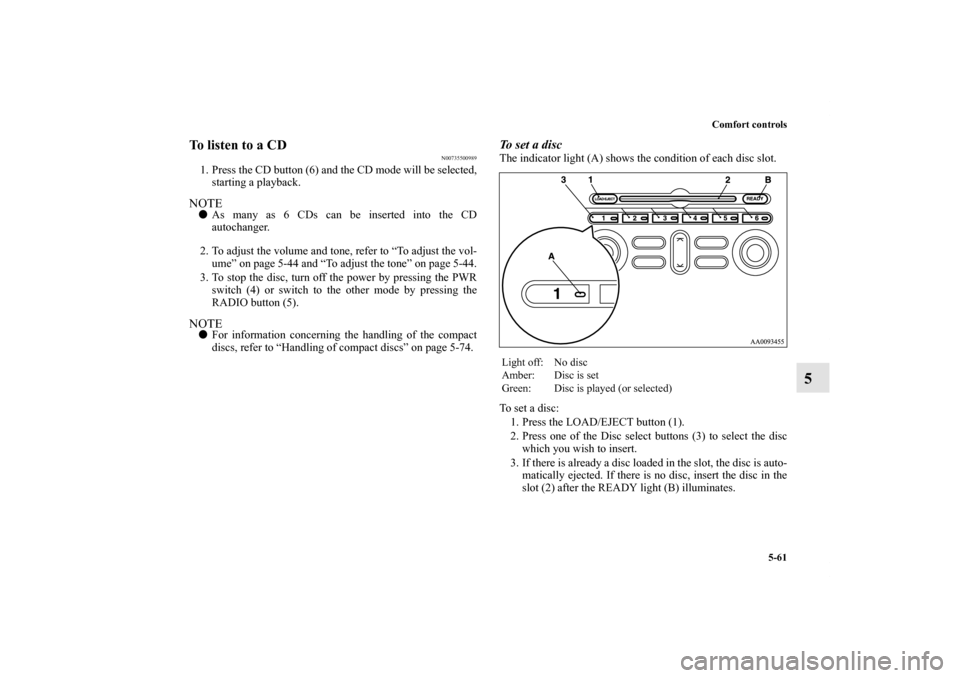

Comfort controls
5-61
5
To listen to a CD
N00735500989
1. Press the CD button (6) and the CD mode will be selected,
starting a playback.NOTE
As many as 6 CDs can be inserted into the CD
autochanger.
2. To adjust the volume and tone, refer to “To adjust the vol-
ume” on page 5-44 and “To adjust the tone” on page 5-44.
3. To stop the disc, turn off the power by pressing the PWR
switch (4) or switch to the other mode by pressing the
RADIO button (5).NOTE
For information concerning the handling of the compact
discs, refer to “Handling of compact discs” on page 5-74.
To s e t a d i s cThe indicator light (A) shows the condition of each disc slot.
To set a disc:
1. Press the LOAD/EJECT button (1).
2. Press one of the Disc select buttons (3) to select the disc
which you wish to insert.
3. If there is already a disc loaded in the slot, the disc is auto-
matically ejected. If there is no disc, insert the disc in the
slot (2) after the READY light (B) illuminates.Light off: No disc
Amber: Disc is set
Green: Disc is played (or selected)
BK0102600US.book 61 ページ ２００９年３月３０日　月曜日　午後２時２分

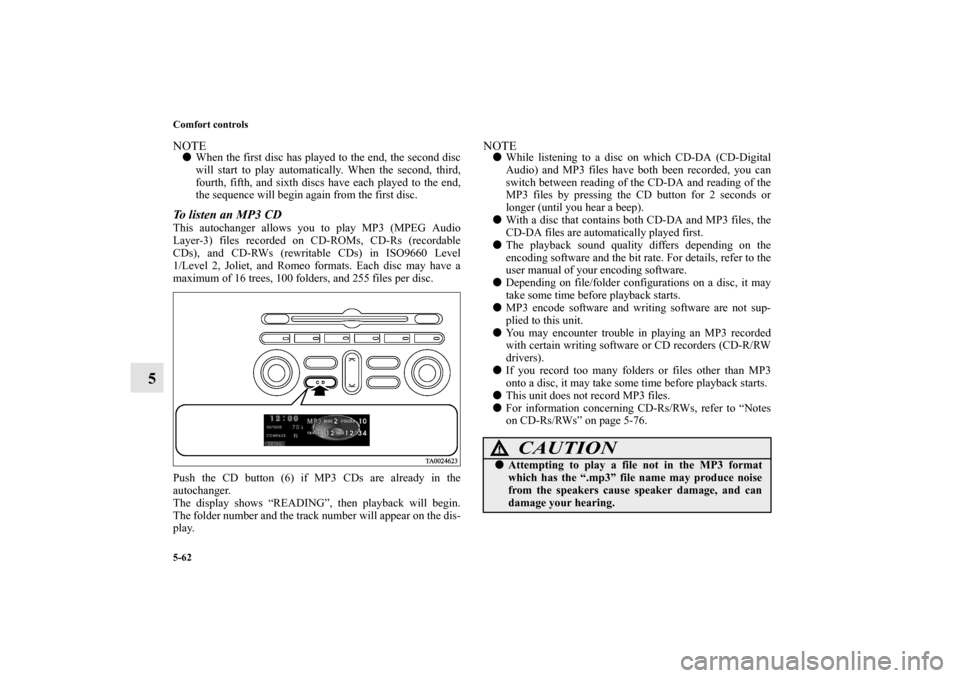

5-62 Comfort controls
5
NOTE
When the first disc has played to the end, the second disc
will start to play automatically. When the second, third,
fourth, fifth, and sixth discs have each played to the end,
the sequence will begin again from the first disc.To listen an MP3 CDThis autochanger allows you to play MP3 (MPEG Audio
Layer-3) files recorded on CD-ROMs, CD-Rs (recordable
CDs), and CD-RWs (rewritable CDs) in ISO9660 Level
1/Level 2, Joliet, and Romeo formats. Each disc may have a
maximum of 16 trees, 100 folders, and 255 files per disc.
Push the CD button (6) if MP3 CDs are already in the
autochanger.
The display shows “READING”, then playback will begin.
The folder number and the track number will appear on the dis-
play.
NOTE
While listening to a disc on which CD-DA (CD-Digital
Audio) and MP3 files have both been recorded, you can
switch between reading of the CD-DA and reading of the
MP3 files by pressing the CD button for 2 seconds or
longer (until you hear a beep).

With a disc that contains both CD-DA and MP3 files, the
CD-DA files are automatically played first.

The playback sound quality differs depending on the
encoding software and the bit rate. For details, refer to the
user manual of your encoding software.

Depending on file/folder configurations on a disc, it may
take some time before playback starts.

MP3 encode software and writing software are not sup-
plied to this unit.

You may encounter trouble in playing an MP3 recorded
with certain writing software or CD recorders (CD-R/RW
drivers).

If you record too many folders or files other than MP3
onto a disc, it may take some time before playback starts.

This unit does not record MP3 files.

For information concerning CD-Rs/RWs, refer to “Notes
on CD-Rs/RWs” on page 5-76.
CAUTION
!
Attempting to play a file not in the MP3 format
which has the “.mp3” file name may produce noise
from the speakers cause speaker damage, and can
damage your hearing.
BK0102600US.book 62 ページ ２００９年３月３０日　月曜日　午後２時２分

Comfort controls
5-63
5
Folder selection order/MP3 file playback order (Example)

To fast forward/reverse the discTo fast forward or reverse, use the TRACK button (7 or 8).
Fast forward
You can fast forward by holding down the side of the
TRACK button (7) for more than about 1 second.
Fast reverse
You can fast reverse by holding down the side of the
TRACK button (8) for more than about 1 second.
Folder selection
In the order
File selection
In the order
Root folder (root directory)
Tree 1 Tree 2 Tree 3 Tree 4
BK0102600US.book 63 ページ ２００９年３月３０日　月曜日　午後２時２分

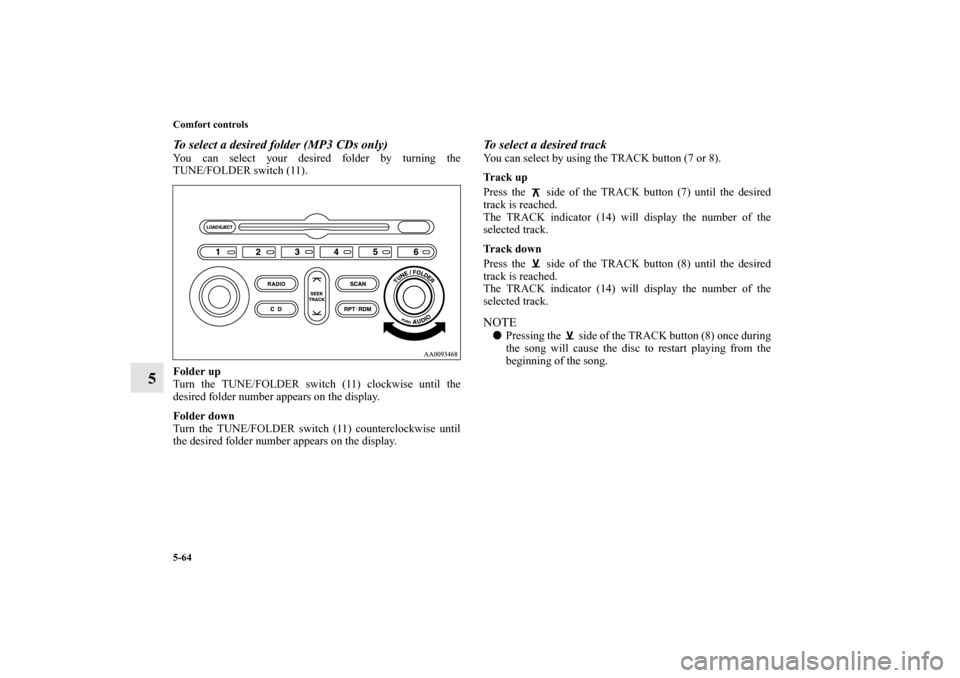

5-64 Comfort controls
5
To select a desired folder (MP3 CDs only)You can select your desired folder by turning the
TUNE/FOLDER switch (11).
Folder up
Turn the TUNE/FOLDER switch (11) clockwise until the
desired folder number appears on the display.
Folder down
Turn the TUNE/FOLDER switch (11) counterclockwise until
the desired folder number appears on the display.
To select a desired trackYou can select by using the TRACK button (7 or 8).
Track up
Press the side of the TRACK button (7) until the desired
track is reached.
The TRACK indicator (14) will display the number of the
selected track.
Track down
Press the side of the TRACK button (8) until the desired
track is reached.
The TRACK indicator (14) will display the number of the
selected track.NOTE
Pressing the side of the TRACK button (8) once during
the song will cause the disc to restart playing from the
beginning of the song.
BK0102600US.book 64 ページ ２００９年３月３０日　月曜日　午後２時２分

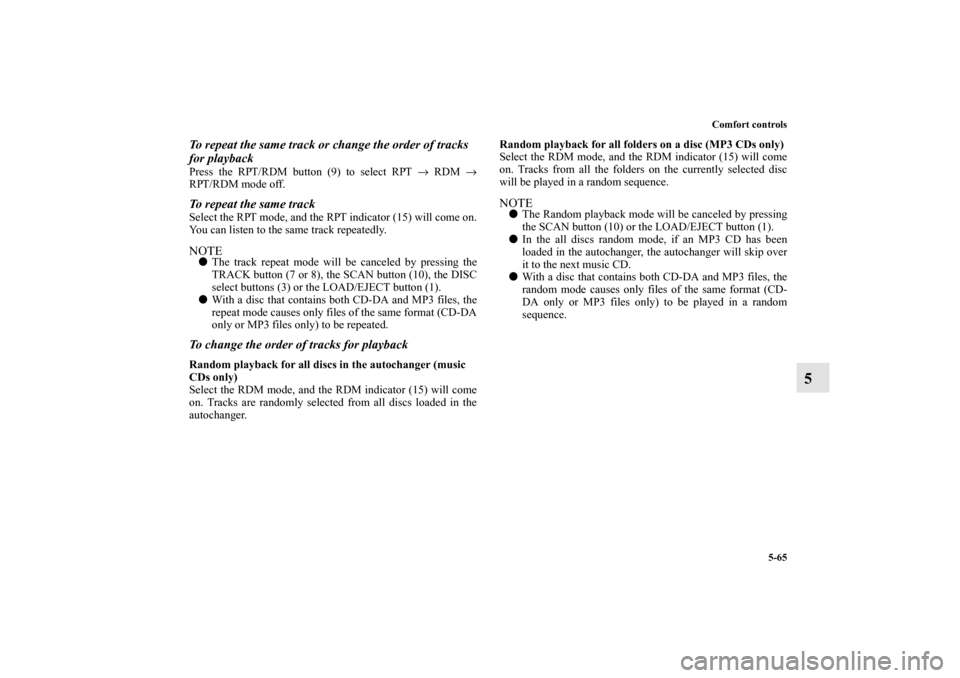

Comfort controls
5-65
5
To repeat the same track or change the order of tracks
for playbackPress the RPT/RDM button (9) to select RPT → RDM →
RPT/RDM mode off.To repeat the same trackSelect the RPT mode, and the RPT indicator (15) will come on.
You can listen to the same track repeatedly. NOTE
The track repeat mode will be canceled by pressing the
TRACK button (7 or 8), the SCAN button (10), the DISC
select buttons (3) or the LOAD/EJECT button (1).

With a disc that contains both CD-DA and MP3 files, the
repeat mode causes only files of the same format (CD-DA
only or MP3 files only) to be repeated. To change the order of tracks for playbackRandom playback for all discs in the autochanger (music
CDs only)
Select the RDM mode, and the RDM indicator (15) will come
on. Tracks are randomly selected from all discs loaded in the
autochanger.Random playback for all folders on a disc (MP3 CDs only)
Select the RDM mode, and the RDM indicator (15) will come
on. Tracks from all the folders on the currently selected disc
will be played in a random sequence.
NOTE
The Random playback mode will be canceled by pressing
the SCAN button (10) or the LOAD/EJECT button (1).

In the all discs random mode, if an MP3 CD has been
loaded in the autochanger, the autochanger will skip over
it to the next music CD.

With a disc that contains both CD-DA and MP3 files, the
random mode causes only files of the same format (CD-
DA only or MP3 files only) to be played in a random
sequence.
BK0102600US.book 65 ページ ２００９年３月３０日　月曜日　午後２時２分
