2010 MITSUBISHI ENDEAVOR Owners Manual

3-32 Features and controls
3Outside rearview mirrors
N00512200020
Adjust the outside rearview mirrors only after making any seat
adjustments so you have a clear view to the rear of the vehicle.
To adjust the mirror positionThe outside rearview mirrors can be adjusted when the ignition
key is in the “ON” or “ACC” position.
Move the lever (A) to the same side as the mirror you wish to
adjust.
Press the switch (B) to adjust the mirror position. NOTE
After adjusting, return the lever to the “•” (off) position.
WA R N I N G
!
Do not attempt to adjust the outside rearview mir-
rors while driving. This can be dangerous.
Be sure to adjust the mirrors before driving.
Your passenger’s side mirror is convex. The objects
you see in the mirror will look smaller and farther
away than they appear in a regular flat mirror.
Do not use this mirror to estimate the distance of
vehicles following you when changing lanes.
L- Left outside mirror adjustment
R- Right outside mirror adjustment
1- Up
2- Down
3- Right
4- Left
BK0102600US.book 32 ページ ２００９年３月３０日　月曜日　午後２時２分

Features and controls
3-33
3
To fold the mirrorThe outside mirror can be folded in toward the side window to
prevent damage when parking in tight locations.
Heated mirror
(if so equipped)
N00549300058
When the rear window defogger switch is pressed, the outside
rearview mirrors are defogged or defrosted. Current will flow
through the heater element inside the mirrors, thus clearing
away frost or condensation.
The indicator light (C) will illuminate while the defogger is on.
The heater will be turned off automatically in about 17 min-
utes.
BK0102600US.book 33 ページ ２００９年３月３０日　月曜日　午後２時２分

3-34 Features and controls

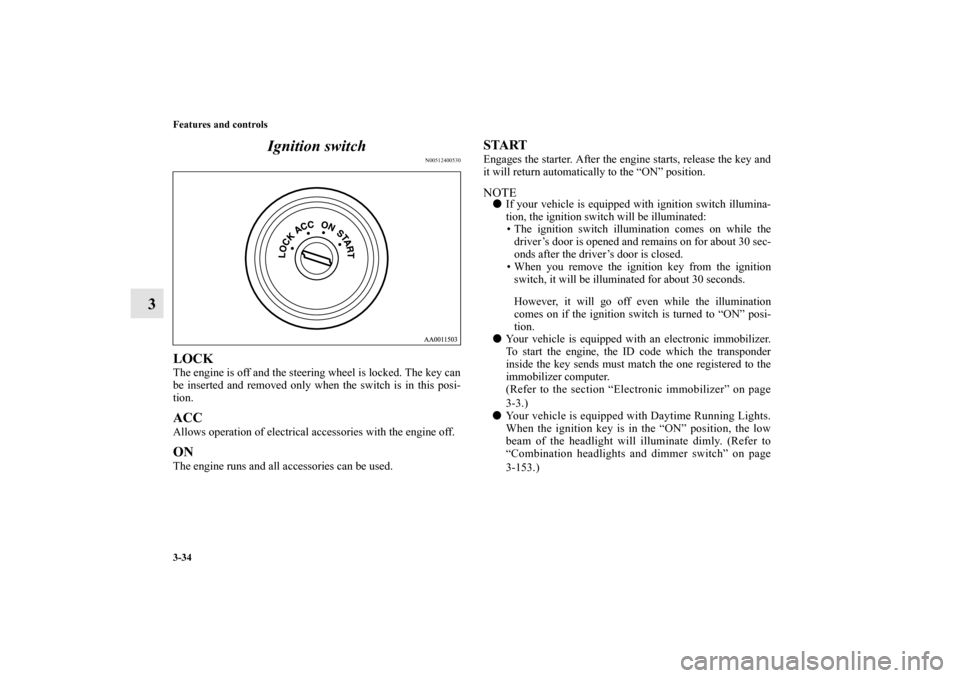

3Ignition switch
N00512400530
LOCKThe engine is off and the steering wheel is locked. The key can
be inserted and removed only when the switch is in this posi-
tion. ACCAllows operation of electrical accessories with the engine off. ON The engine runs and all accessories can be used.
START Engages the starter. After the engine starts, release the key and
it will return automatically to the “ON” position.NOTE
If your vehicle is equipped with ignition switch illumina-
tion, the ignition switch will be illuminated:
• The ignition switch illumination comes on while the
driver’s door is opened and remains on for about 30 sec-
onds after the driver’s door is closed.
• When you remove the ignition key from the ignition
switch, it will be illuminated for about 30 seconds.
However, it will go off even while the illumination
comes on if the ignition switch is turned to “ON” posi-
tion.

Your vehicle is equipped with an electronic immobilizer.
To start the engine, the ID code which the transponder
inside the key sends must match the one registered to the
immobilizer computer.
(Refer to the section “Electronic immobilizer” on page
3-3.)

Your vehicle is equipped with Daytime Running Lights.
When the ignition key is in the “ON” position, the low
beam of the headlight will illuminate dimly. (Refer to
“Combination headlights and dimmer switch” on page
3-153.)
BK0102600US.book 34 ページ ２００９年３月３０日　月曜日　午後２時２分

Features and controls
3-35
3
To remove the key
N00550900012
First set the selector lever to the “P” (PARK) position, and then
turn the key to the “LOCK” position and remove it.NOTE
The key cannot be removed unless the selector lever is set
in the “P” (PARK) position.
Key reminder buzzer
N00551000065
If the driver’s door is opened while the ignition key is in the
“LOCK” or “ACC” position, a tone will sound.
CAUTION
!
If the engine is turned off while driving, the power
brake booster will stop functioning and braking effi-
ciency will be reduced. Also, the power steering sys-
tem will not function and it will require greater
effort to manually steer the vehicle.

Do not leave the key in the “ON” position for a long
time when the engine is not running. This will cause
the battery to run down.
Do not turn the key to the “START” position when
the engine is running. It will damage the starter
motor.
CAUTION
!
BK0102600US.book 35 ページ ２００９年３月３０日　月曜日　午後２時２分

3-36 Features and controls

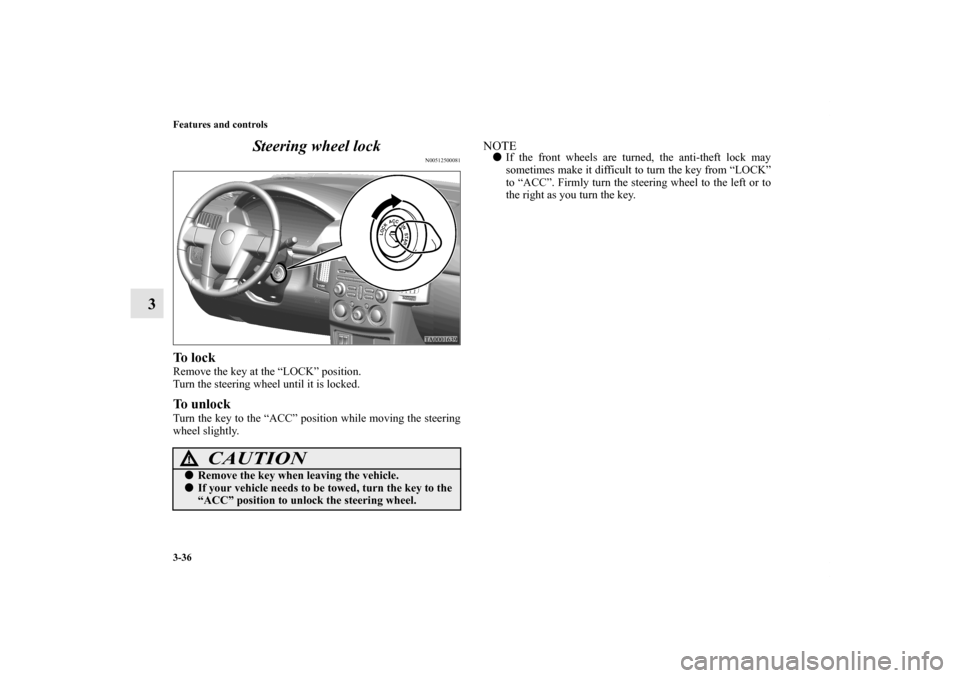

3Steering wheel lock
N00512500081
To l o c kRemove the key at the “LOCK” position.
Turn the steering wheel until it is locked.To unlockTurn the key to the “ACC” position while moving the steering
wheel slightly.
NOTE
If the front wheels are turned, the anti-theft lock may
sometimes make it difficult to turn the key from “LOCK”
to “ACC”. Firmly turn the steering wheel to the left or to
the right as you turn the key.
CAUTION
!
Remove the key when leaving the vehicle.
If your vehicle needs to be towed, turn the key to the
“ACC” position to unlock the steering wheel.
BK0102600US.book 36 ページ ２００９年３月３０日　月曜日　午後２時２分

Features and controls
3-37

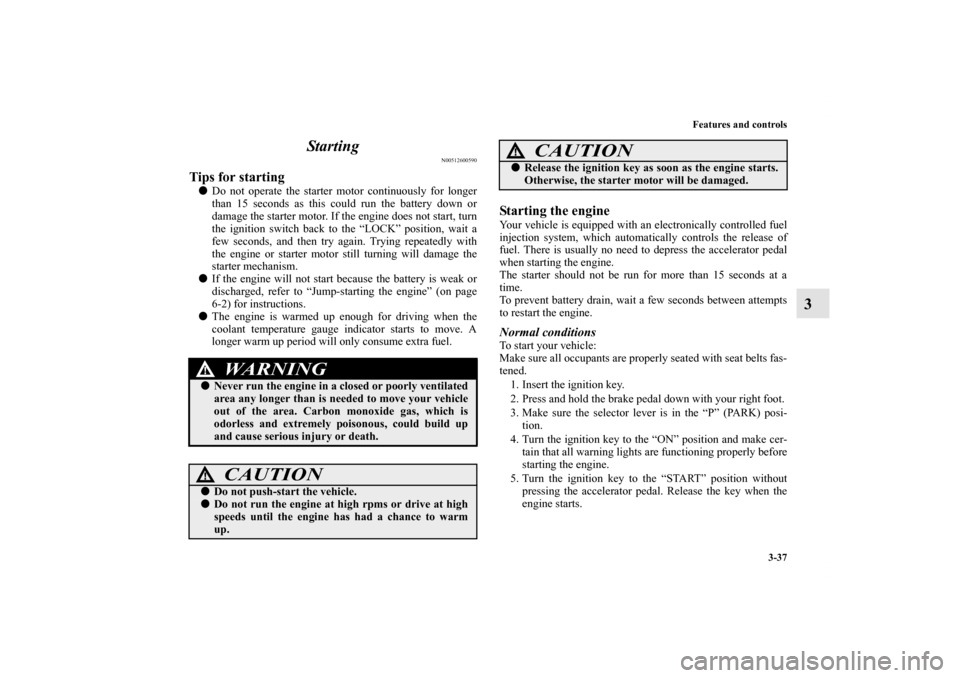

3 Starting
N00512600590
Tips for starting
Do not operate the starter motor continuously for longer
than 15 seconds as this could run the battery down or
damage the starter motor. If the engine does not start, turn
the ignition switch back to the “LOCK” position, wait a
few seconds, and then try again. Trying repeatedly with
the engine or starter motor still turning will damage the
starter mechanism.

If the engine will not start because the battery is weak or
discharged, refer to “Jump-starting the engine” (on page
6-2) for instructions.

The engine is warmed up enough for driving when the
coolant temperature gauge indicator starts to move. A
longer warm up period will only consume extra fuel.
Starting the engineYour vehicle is equipped with an electronically controlled fuel
injection system, which automatically controls the release of
fuel. There is usually no need to depress the accelerator pedal
when starting the engine.
The starter should not be run for more than 15 seconds at a
time.
To prevent battery drain, wait a few seconds between attempts
to restart the engine. Normal conditionsTo start your vehicle:
Make sure all occupants are properly seated with seat belts fas-
tened.
1. Insert the ignition key.
2. Press and hold the brake pedal down with your right foot.
3. Make sure the selector lever is in the “P” (PARK) posi-
tion.
4. Turn the ignition key to the “ON” position and make cer-
tain that all warning lights are functioning properly before
starting the engine.
5. Turn the ignition key to the “START” position without
pressing the accelerator pedal. Release the key when the
engine starts.
WA R N I N G
!
Never run the engine in a closed or poorly ventilated
area any longer than is needed to move your vehicle
out of the area. Carbon monoxide gas, which is
odorless and extremely poisonous, could build up
and cause serious injury or death.
CAUTION
!
Do not push-start the vehicle.
Do not run the engine at high rpms or drive at high
speeds until the engine has had a chance to warm
up.

Release the ignition key as soon as the engine starts.
Otherwise, the starter motor will be damaged.
CAUTION
!
BK0102600US.book 37 ページ ２００９年３月３０日　月曜日　午後２時２分

3-38 Features and controls
3

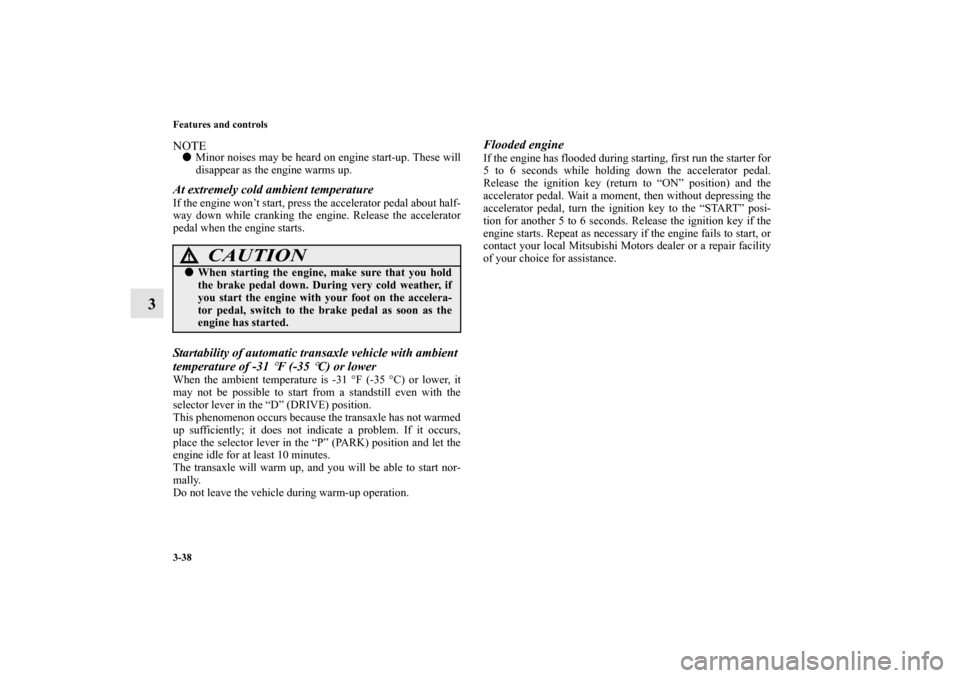

NOTE
Minor noises may be heard on engine start-up. These will
disappear as the engine warms up. At extremely cold ambient temperatureIf the engine won’t start, press the accelerator pedal about half-
way down while cranking the engine. Release the accelerator
pedal when the engine starts. Startability of automatic transaxle vehicle with ambient
temperature of -31
°F (-35
°C) or lower
When the ambient temperature is -31 °F (-35 °C) or lower, it
may not be possible to start from a standstill even with the
selector lever in the “D” (DRIVE) position.
This phenomenon occurs because the transaxle has not warmed
up sufficiently; it does not indicate a problem. If it occurs,
place the selector lever in the “P” (PARK) position and let the
engine idle for at least 10 minutes.
The transaxle will warm up, and you will be able to start nor-
mally.
Do not leave the vehicle during warm-up operation.
Flooded engineIf the engine has flooded during starting, first run the starter for
5 to 6 seconds while holding down the accelerator pedal.
Release the ignition key (return to “ON” position) and the
accelerator pedal. Wait a moment, then without depressing the
accelerator pedal, turn the ignition key to the “START” posi-
tion for another 5 to 6 seconds. Release the ignition key if the
engine starts. Repeat as necessary if the engine fails to start, or
contact your local Mitsubishi Motors dealer or a repair facility
of your choice for assistance.
CAUTION
!
When starting the engine, make sure that you hold
the brake pedal down. During very cold weather, if
you start the engine with your foot on the accelera-
tor pedal, switch to the brake pedal as soon as the
engine has started.
BK0102600US.book 38 ページ ２００９年３月３０日　月曜日　午後２時２分

Features and controls
3-39
3 Engine block heater
(if so equipped)
N00551100079
The engine block heater warms the engine coolant to promote
engine startability in extremely cold weather. It also shortens
the engine’s warmup time, thus promoting fuel economy.To use the engine block heater1. Stop the engine.
2. The plug for the engine block heater is located in the front
bumper opening on the driver’s side. Open the cover (A)
and insert the plug in a grounded 110 V AC outlet.
Automatic transaxle
N00513200131
Designed for the most efficient control and equipped with self-
adapting capabilities, the electronically controlled transaxle
used in your vehicle selects the most favorable gear for each
type of driving and road condition.DRIVING UPHILLThe transaxle may not shift to a higher gear if the computer
determines your current speed would be affected.
For smoother operation, the transaxle may not shift if you
release the throttle while climbing a steep hill. This is normal
because the computer controls the shifting. After reaching the
top of the hill, your normal gear shift function will resume.DRIVING DOWNHILLWhen traveling down steep grades and using the brakes, the
computer may automatically select a lower gear. This helps
engine braking efforts, reducing your need to use the brakes.
WA R N I N G
!
To prevent electrical shock, do not use the engine
block heater with an ungrounded electrical system
or two-pronged adapter.
CAUTION
!
The electronically controlled transaxle system is
strictly intended to provide supplementary func-
tions. When driving downhill under certain condi-
tions, when the automatic transaxle is cold
immediately after starting, no automatic downshift
may be made. The driver should move the selector
lever to shift down to a lower gear (3rd gear or 2nd
gear), which will permit the engine to begin braking.
