2010 MITSUBISHI ENDEAVOR Owners Manual

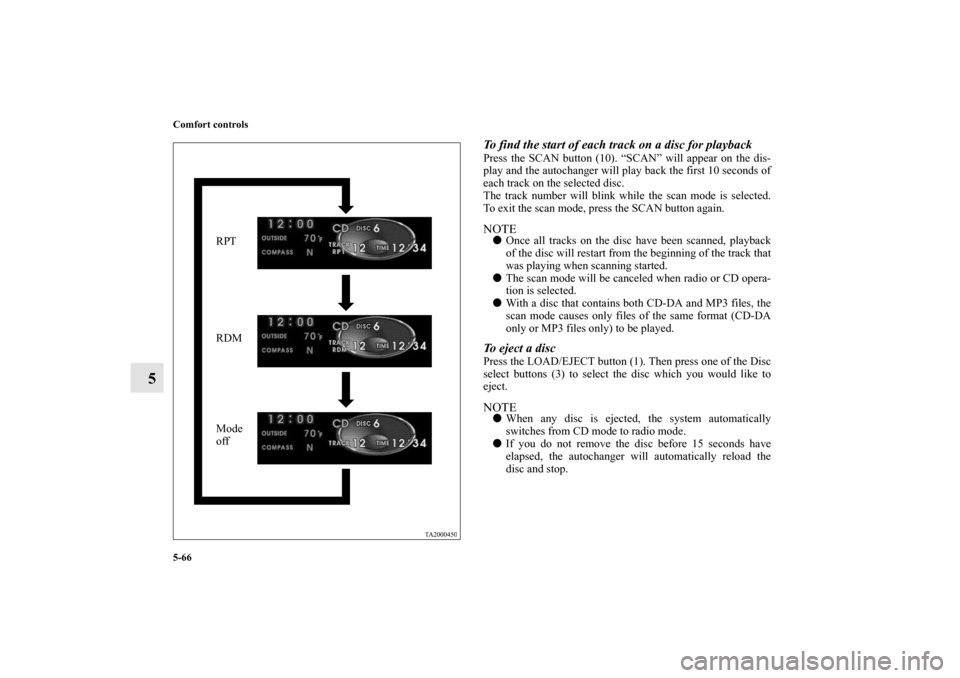

5-66 Comfort controls
5
To find the start of each track on a disc for playbackPress the SCAN button (10). “SCAN” will appear on the dis-
play and the autochanger will play back the first 10 seconds of
each track on the selected disc.
The track number will blink while the scan mode is selected.
To exit the scan mode, press the SCAN button again.NOTE
Once all tracks on the disc have been scanned, playback
of the disc will restart from the beginning of the track that
was playing when scanning started.

The scan mode will be canceled when radio or CD opera-
tion is selected.

With a disc that contains both CD-DA and MP3 files, the
scan mode causes only files of the same format (CD-DA
only or MP3 files only) to be played.To eject a discPress the LOAD/EJECT button (1). Then press one of the Disc
select buttons (3) to select the disc which you would like to
eject.NOTE
When any disc is ejected, the system automatically
switches from CD mode to radio mode.

If you do not remove the disc before 15 seconds have
elapsed, the autochanger will automatically reload the
disc and stop.
RPT
RDM
Mode
off
BK0102600US.book 66 ページ ２００９年３月３０日　月曜日　午後２時２分

Comfort controls
5-67
5

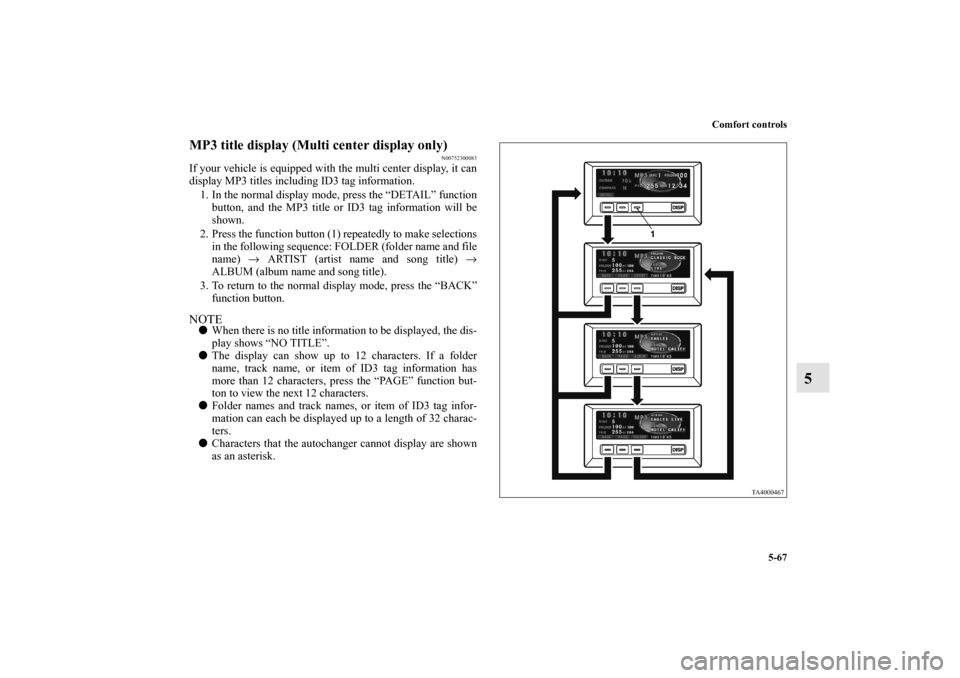

MP3 title display (Multi center display only)
N00752300083
If your vehicle is equipped with the multi center display, it can
display MP3 titles including ID3 tag information.
1. In the normal display mode, press the “DETAIL” function
button, and the MP3 title or ID3 tag information will be
shown.
2. Press the function button (1) repeatedly to make selections
in the following sequence: FOLDER (folder name and file
name) → ARTIST (artist name and song title) →
ALBUM (album name and song title).
3. To return to the normal display mode, press the “BACK”
function button.NOTE
When there is no title information to be displayed, the dis-
play shows “NO TITLE”.

The display can show up to 12 characters. If a folder
name, track name, or item of ID3 tag information has
more than 12 characters, press the “PAGE” function but-
ton to view the next 12 characters.

Folder names and track names, or item of ID3 tag infor-
mation can each be displayed up to a length of 32 charac-
ters.

Characters that the autochanger cannot display are shown
as an asterisk.
BK0102600US.book 67 ページ ２００９年３月３０日　月曜日　午後２時２分

5-68 Comfort controls
5Steering wheel remote control switch
(if so
equipped)N00714800338
The remote control switches are located on the rear surface of
the steering wheel. Reach behind the wheel to access the
switches.
These switches can be used when the ignition switch is in the
“ON” or “ACC” position.
NOTE
Do not push two or more of the steering wheel remote
control switches at the same time.To turn on the powerPWR ON/OFF button — 4When the power is off, press this button to turn the power on.
To turn the power off, press this button for 2 seconds or longer.To adjust the volumeVolume up button — 2The volume will increase when this button is pressed.Volume down button — 6The volume will decrease when this button is pressed.To listen to the audio systemSelect the desired mode by lightly pressing the Mode change
button (4).
The mode switches between the radio and CD with each push
of the button.To listen to the radioTo select AM/FM/SAT modeMode change button — 4
Select the desired band by pressing this button.
The order is: AM → FM1 → FM2 → (SAT1 → SAT2 → SAT3
→ SAT4) → CD → AM.
1- Seek up/Track up/Fast-forward button
2- Volume up button
3- Preset change/Folder up/Disc up button
4- PWR (ON/OFF)/Mode change button
5- Seek down/Track down/Fast-reverse button
6- Volume down button
BK0102600US.book 68 ページ ２００９年３月３０日　月曜日　午後２時２分

Comfort controls
5-69
5

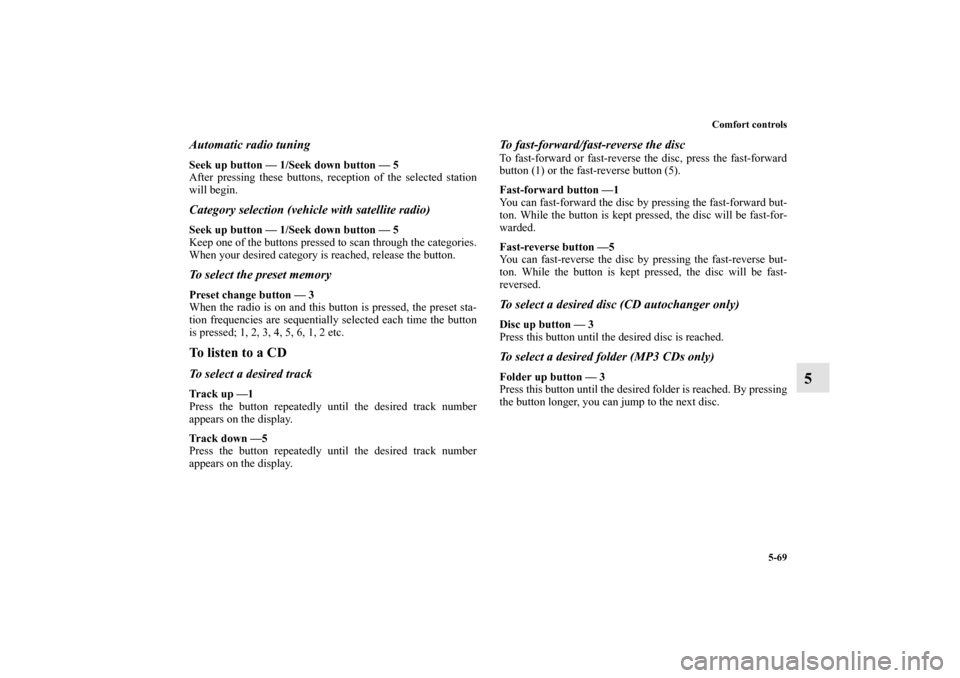

Automatic radio tuningSeek up button — 1/Seek down button — 5
After pressing these buttons, reception of the selected station
will begin.Category selection (vehicle with satellite radio)Seek up button — 1/Seek down button — 5
Keep one of the buttons pressed to scan through the categories.
When your desired category is reached, release the button.To select the preset memoryPreset change button — 3
When the radio is on and this button is pressed, the preset sta-
tion frequencies are sequentially selected each time the button
is pressed; 1, 2, 3, 4, 5, 6, 1, 2 etc.To listen to a CDTo select a desired trackTr a c k u p — 1
Press the button repeatedly until the desired track number
appears on the display.
Tr a c k d o w n — 5
Press the button repeatedly until the desired track number
appears on the display.
To fast-forward/fast-reverse the discTo fast-forward or fast-reverse the disc, press the fast-forward
button (1) or the fast-reverse button (5).
Fast-forward button —1
You can fast-forward the disc by pressing the fast-forward but-
ton. While the button is kept pressed, the disc will be fast-for-
warded.
Fast-reverse button —5
You can fast-reverse the disc by pressing the fast-reverse but-
ton. While the button is kept pressed, the disc will be fast-
reversed.To select a desired disc (CD autochanger only)Disc up button — 3
Press this button until the desired disc is reached.To select a desired folder (MP3 CDs only)Folder up button — 3
Press this button until the desired folder is reached. By pressing
the button longer, you can jump to the next disc.
BK0102600US.book 69 ページ ２００９年３月３０日　月曜日　午後２時２分

5-70 Comfort controls

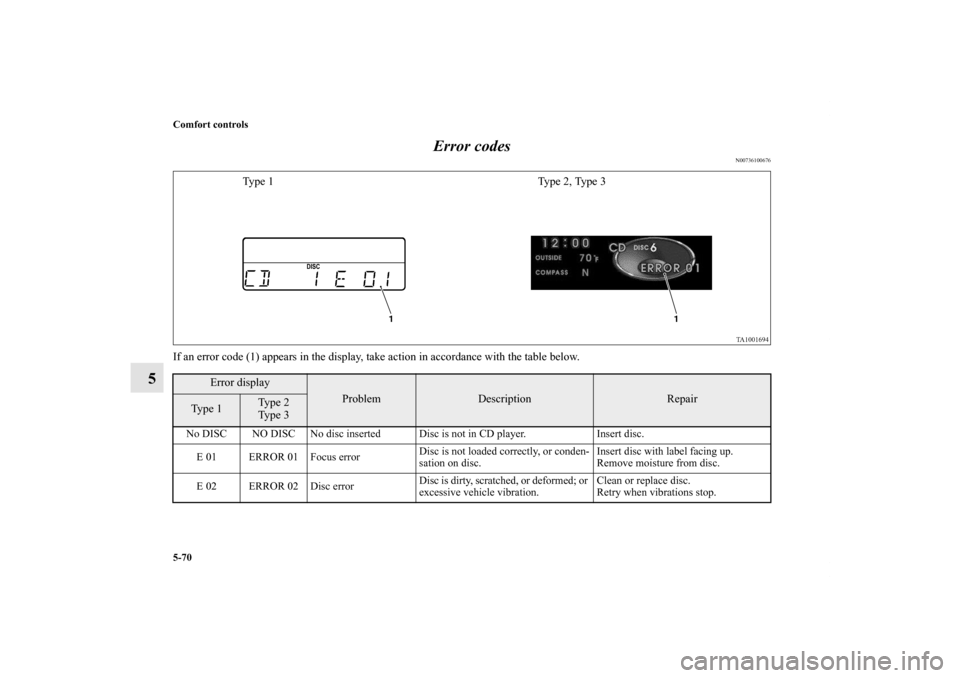

5Error codes
N00736100676
If an error code (1) appears in the display, take action in accordance with the table below.
Error display
Problem
Description
Repair
Type 1
Type 2
Type 3
No DISC NO DISC No disc inserted Disc is not in CD player. Insert disc.
E 01 ERROR 01 Focus errorDisc is not loaded correctly, or conden-
sation on disc.Insert disc with label facing up.
Remove moisture from disc.
E 02 ERROR 02 Disc errorDisc is dirty, scratched, or deformed; or
excessive vehicle vibration.Clean or replace disc.
Retry when vibrations stop.
Type 1 Type 2, Type 3
BK0102600US.book 70 ページ ２００９年３月３０日　月曜日　午後２時２分

Comfort controls
5-71
5

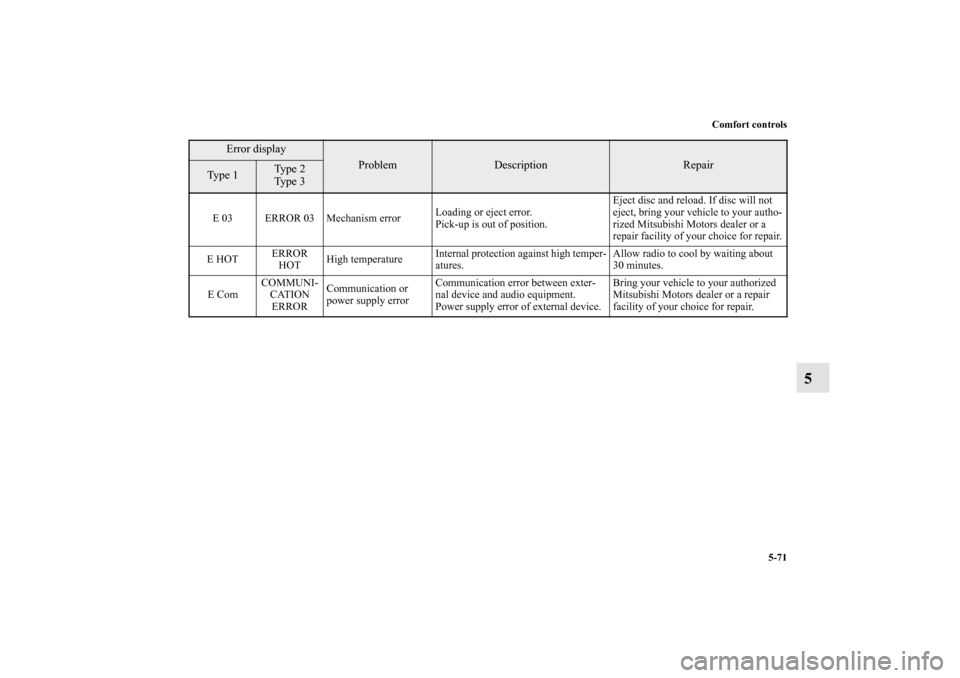

E 03 ERROR 03 Mechanism errorLoading or eject error.
Pick-up is out of position.Eject disc and reload. If disc will not
eject, bring your vehicle to your autho-
rized Mitsubishi Motors dealer or a
repair facility of your choice for repair.
E HOTERROR
HOTHigh temperatureInternal protection against high temper-
atures.Allow radio to cool by waiting about
30 minutes.
E ComCOMMUNI-
CATION
ERRORCommunication or
power supply errorCommunication error between exter-
nal device and audio equipment.
Power supply error of external device.Bring your vehicle to your authorized
Mitsubishi Motors dealer or a repair
facility of your choice for repair.
Error display
Problem
Description
Repair
Type 1
Ty p e 2
Ty p e 3
BK0102600US.book 71 ページ ２００９年３月３０日　月曜日　午後２時２分

5-72 Comfort controls

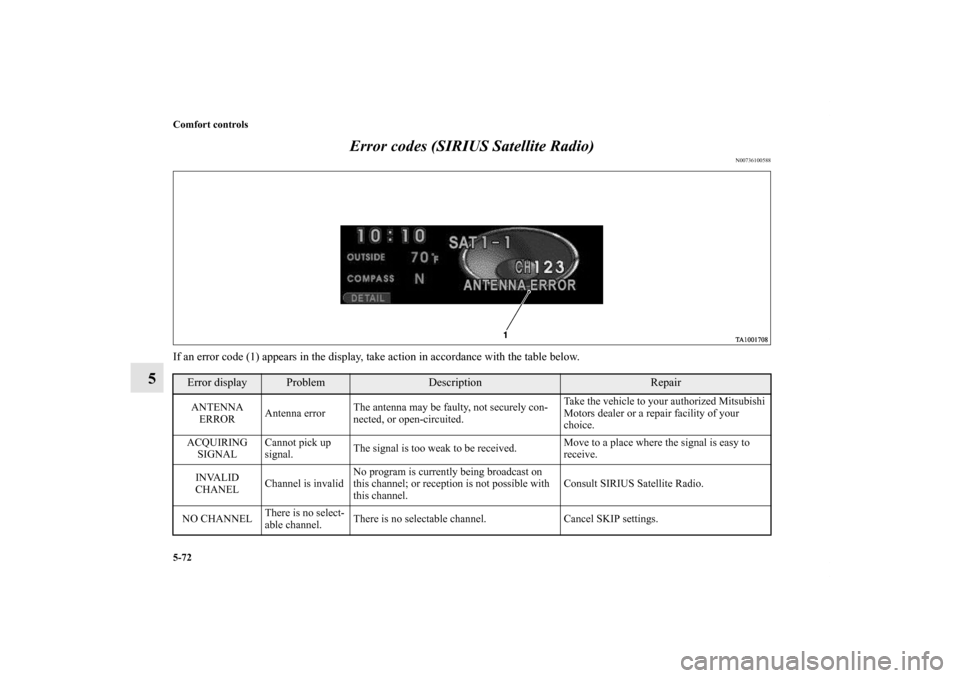

5Error codes (SIRIUS Satellite Radio)
N00736100588
If an error code (1) appears in the display, take action in accordance with the table below.
Error display
Problem
Description
Repair
ANTENNA
ERRORAntenna errorThe antenna may be faulty, not securely con-
nected, or open-circuited.Take the vehicle to your authorized Mitsubishi
Motors dealer or a repair facility of your
choice.
ACQUIRING
SIGNALCannot pick up
signal.The signal is too weak to be received.Move to a place where the signal is easy to
receive.
INVALID
CHANELChannel is invalidNo program is currently being broadcast on
this channel; or reception is not possible with
this channel.Consult SIRIUS Satellite Radio.
NO CHANNELThere is no select-
able channel.There is no selectable channel. Cancel SKIP settings.
BK0102600US.book 72 ページ ２００９年３月３０日　月曜日　午後２時２分

Comfort controls
5-73
5

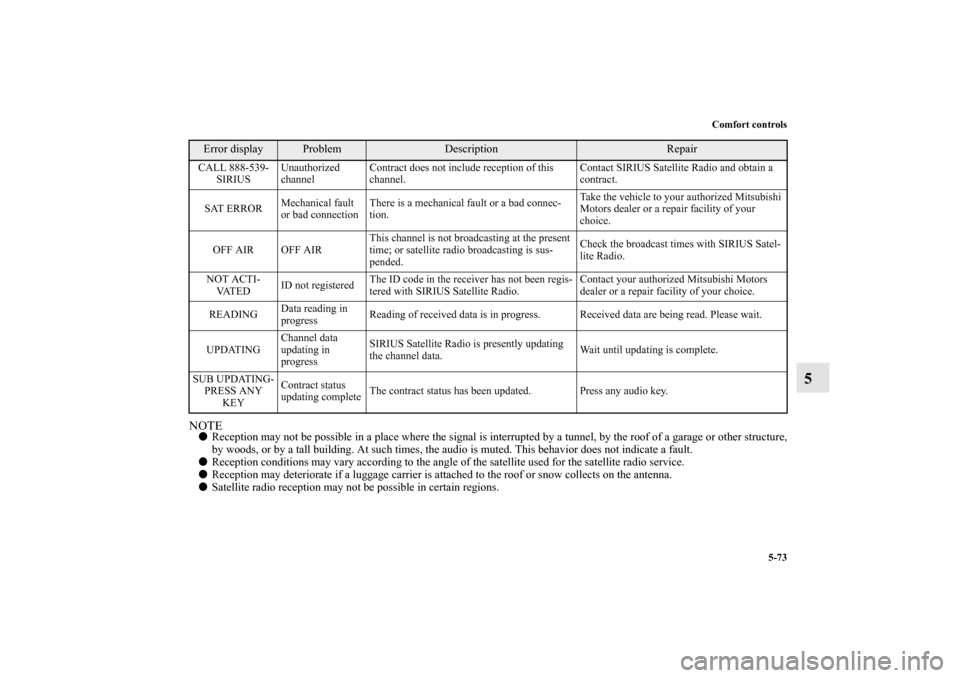

NOTE
Reception may not be possible in a place where the signal is interrupted by a tunnel, by the roof of a garage or other structure,
by woods, or by a tall building. At such times, the audio is muted. This behavior does not indicate a fault.

Reception conditions may vary according to the angle of the satellite used for the satellite radio service.

Reception may deteriorate if a luggage carrier is attached to the roof or snow collects on the antenna.

Satellite radio reception may not be possible in certain regions.CALL 888-539-
SIRIUSUnauthorized
channelContract does not include reception of this
channel.Contact SIRIUS Satellite Radio and obtain a
contract.
SAT ERRORMechanical fault
or bad connectionThere is a mechanical fault or a bad connec-
tion.Take the vehicle to your authorized Mitsubishi
Motors dealer or a repair facility of your
choice.
OFF AIR OFF AIRThis channel is not broadcasting at the present
time; or satellite radio broadcasting is sus-
pended.Check the broadcast times with SIRIUS Satel-
lite Radio.
NOT ACTI-
VAT E DID not registeredThe ID code in the receiver has not been regis-
tered with SIRIUS Satellite Radio.Contact your authorized Mitsubishi Motors
dealer or a repair facility of your choice.
READINGData reading in
progressReading of received data is in progress. Received data are being read. Please wait.
UPDATINGChannel data
updating in
progressSIRIUS Satellite Radio is presently updating
the channel data.Wait until updating is complete.
SUB UPDATING-
PRESS ANY
KEYContract status
updating completeThe contract status has been updated. Press any audio key.Error display
Problem
Description
Repair
