2008 MERCEDES-BENZ R350 Owner's Manual

296 Controls in detail
Loading
Folding third-row seats
Completely lower the head restraints of
the third-row seats.

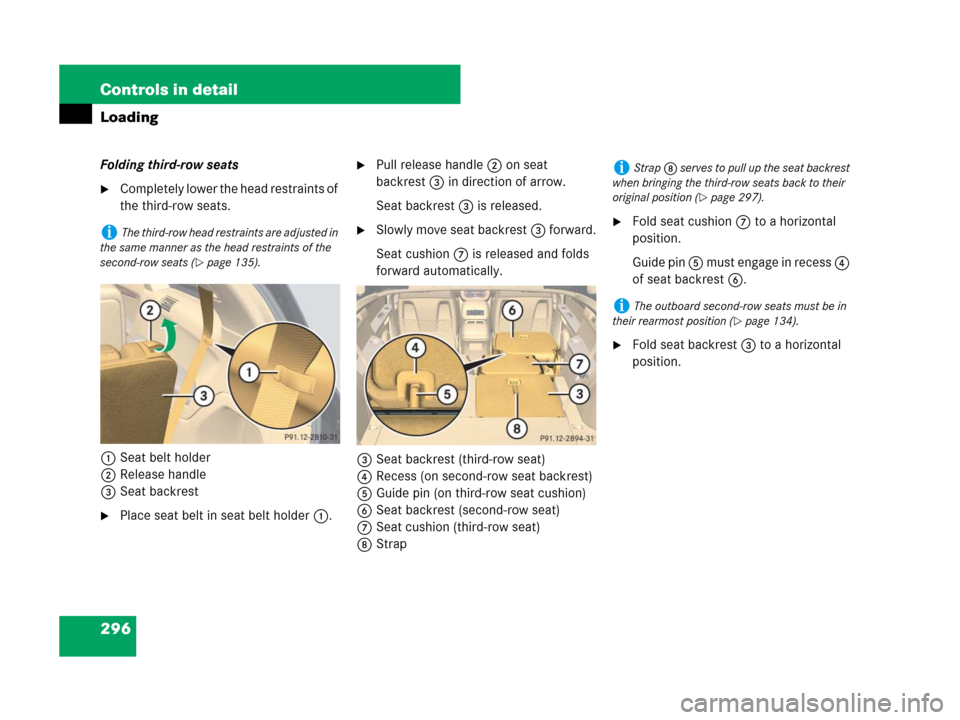

1Seat belt holder
2Release handle
3Seat backrest
Place seat belt in seat belt holder 1.
Pull release handle 2 on seat
backrest3 in direction of arrow.
Seat backrest 3 is released.
Slowly move seat backrest 3 forward.
Seat cushion 7 is released and folds
forward automatically.
3Seat backrest (third-row seat)
4Recess (on second-row seat backrest)
5Guide pin (on third-row seat cushion)
6Seat backrest (second-row seat)
7Seat cushion (third-row seat)
8StrapFold seat cushion 7 to a horizontal
position.
Guide pin 5 must engage in recess 4
of seat backrest 6.
Fold seat backrest 3 to a horizontal
position.
iThe third-row head restraints are adjusted in
the same manner as the head restraints of the
second-row seats (
page 135).
iStrap 8 serves to pull up the seat backrest
when bringing the third-row seats back to their
original position (
page 297).
iThe outboard second-row seats must be in
their rearmost position (
page 134).

297 Controls in detail
Loading
Returning seats to their original posi-
tion
Third-row seats
Reach into strap 8 (page 296) and
pull seat backrest 3 (
page 296) into
a vertical position.
Pull release handle 2 (page 296)
and adjust seat backrest 3
(
page 296) to the desired position.
Move seat cushion 7 (page 296) to
a vertical position.
Fold seat cushion 7 (page 296)
towards the seat backrest until it
audibly engages.Outboard second-row seats
Pull release lever 3 past the
resistance point as far as it will go
(
page 295) and move up the seat
backrest to an angle of approximately
45 degrees.
Install the head restraint (page 137).
Adjust the seat backrest to the desired
position (
page 134).
Check whether the seat is properly
locked, see “Lock status indicators
(outboard second-row seats)”
(
page 298).
Adjust the seat fore or aft to the
desired position (
page 134).

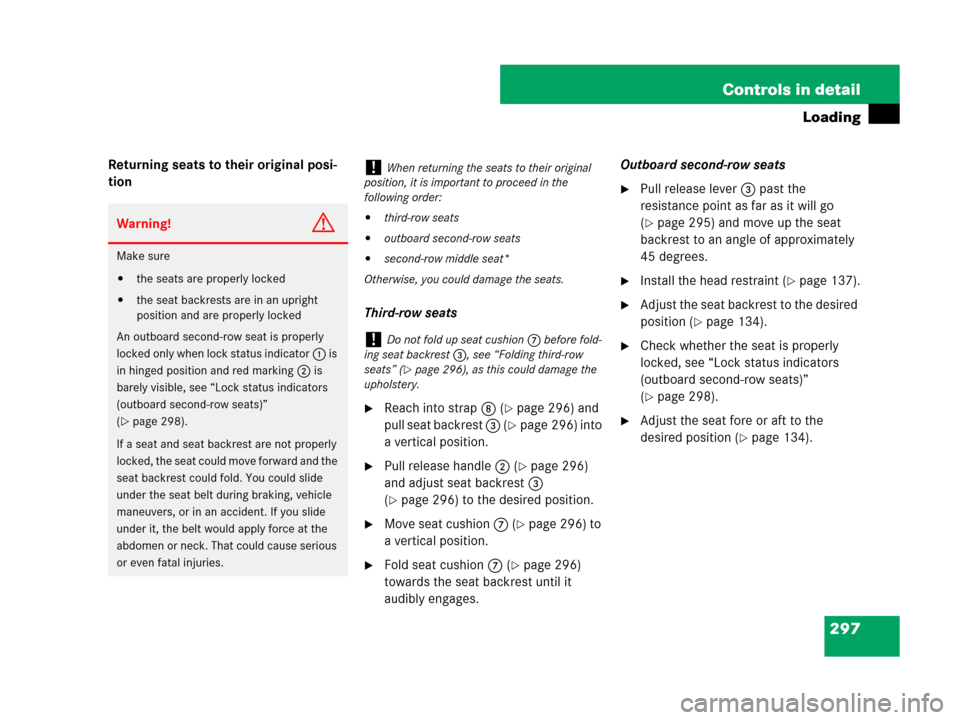

Warning!G
Make sure

the seats are properly locked

the seat backrests are in an upright
position and are properly locked
An outboard second-row seat is properly
locked only when lock status indicator 1 is
in hinged position and red marking 2 is
barely visible, see “Lock status indicators
(outboard second-row seats)”
(
page 298).
If a seat and seat backrest are not properly
locked, the seat could move forward and the
seat backrest could fold. You could slide
under the seat belt during braking, vehicle
maneuvers, or in an accident. If you slide
under it, the belt would apply force at the
abdomen or neck. That could cause serious
or even fatal injuries.
!When returning the seats to their original
position, it is important to proceed in the
following order:

third-row seats

outboard second-row seats

second-row middle seat*
Otherwise, you could damage the seats.
!Do not fold up seat cushion 7 before fold-
ing seat backrest 3, see “Folding third-row
seats” (
page 296), as this could damage the
upholstery.

298 Controls in detail
Loading
Lock status indicators
(outboard second-row seats)
Outboard second-row seat unlocked

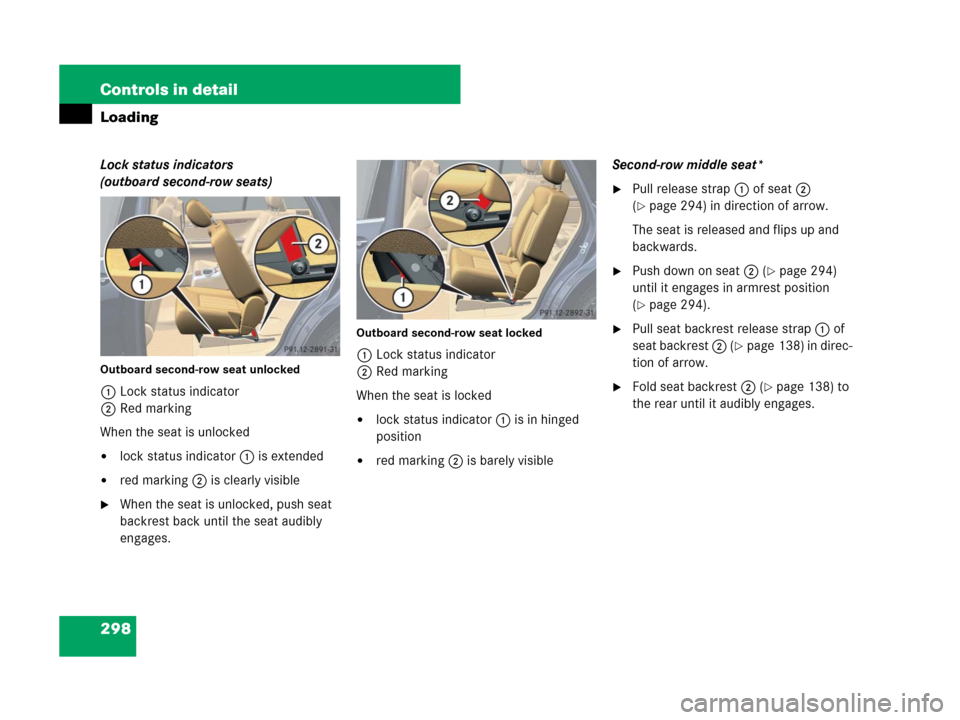

1Lock status indicator
2Red marking
When the seat is unlocked

lock status indicator 1 is extended

red marking 2 is clearly visible
When the seat is unlocked, push seat
backrest back until the seat audibly
engages.
Outboard second-row seat locked
1Lock status indicator
2Red marking
When the seat is locked

lock status indicator 1 is in hinged
position

red marking 2 is barely visibleSecond-row middle seat*
Pull release strap 1 of seat 2
(
page 294) in direction of arrow.
The seat is released and flips up and
backwards.
Push down on seat 2 (page 294)
until it engages in armrest position
(
page 294).
Pull seat backrest release strap 1 of
seat backrest 2 (
page 138) in direc-
tion of arrow.
Fold seat backrest 2 (page 138) to
the rear until it audibly engages.

299 Controls in detail
Loading
Cargo compartment cover blind
The cargo compartment cover blind can be
installed behind the third-row seats or the
second-row seats.
Blind installed behind third-row seats

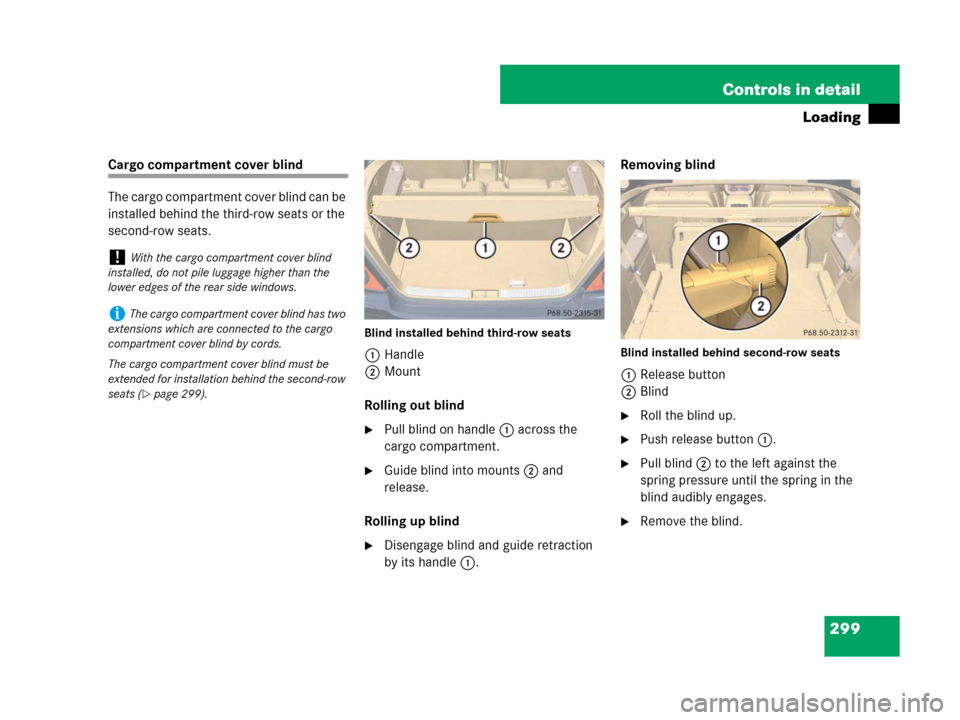

1Handle
2Mount
Rolling out blind
Pull blind on handle1 across the
cargo compartment.
Guide blind into mounts2 and
release.
Rolling up blind
Disengage blind and guide retraction
by its handle1.Removing blind
Blind installed behind second-row seats
1Release button
2Blind
Roll the blind up.
Push release button1.
Pull blind 2 to the left against the
spring pressure until the spring in the
blind audibly engages.
Remove the blind.
!With the cargo compartment cover blind
installed, do not pile luggage higher than the
lower edges of the rear side windows.
iThe cargo compartment cover blind has two
extensions which are connected to the cargo
compartment cover blind by cords.
The cargo compartment cover blind must be
extended for installation behind the second-row
seats (
page 299).

300 Controls in detail
Loading
Installing blind
For installation behind second-row
seats, install the blind extensions
(
page 300).
Remove the covers from the mounts in
side trim.
Press on cover at its lower edge as
indicated by arrow.
The mount cover’s upper edge flips
up.
Remove mount cover by pulling
its upper edge out of side trim in
direction of arrow.
Place left side of blind 2 (page 299)
in left mount.
Position right side of blind 2
(
page 299) over right mount.
Press release button1 (page 299)
and guide blind 2 (
page 299) into
mount.
Extending blind1Blind
2Extension
3Guidings
4Guide pins
Position extension 2 over blind 1.
Guide pins 4 must point directly at
guidings 3.
Turn extension2 and blind 1 in op-
posite directions as indicated by the ar-
rows.
Guide pins 4 must engage in
guidings3.
!For installation behind third-row seats,
the blind extensions must not be installed.
Otherwise, the blind could be damaged.
iTo avoid loss of the mount covers, keep
them in a safe place while not in use, e.g. the
glove box.
iThe cargo compartment cover blind has two
extensions which are connected to the cargo
compartment cover blind by cords.
The cargo compartment cover blind must be
extended for installation behind the second-row
seats.

301 Controls in detail
Loading
When not in use, you can attach the cover
blind extensions to the cover blind.
5Extension guide rail
6Mounting
With the cargo compartment cover
installed behind third-row seats, insert
extension guide rail 5 into
mounting6.
Push extension into mounting6 as far
as it will go.

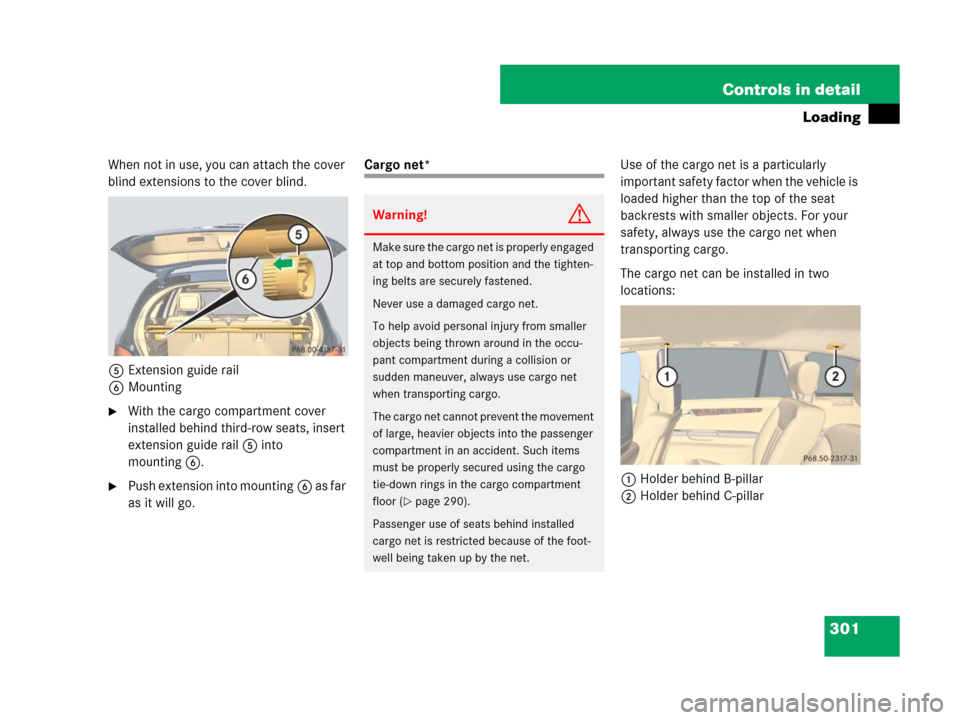

Cargo net*Use of the cargo net is a particularly
important safety factor when the vehicle is
loaded higher than the top of the seat
backrests with smaller objects. For your
safety, always use the cargo net when
transporting cargo.
The cargo net can be installed in two
locations:
1Holder behind B-pillar
2Holder behind C-pillar
Warning!G
Make sure the cargo net is properly engaged
at top and bottom position and the tighten-
ing belts are securely fastened.
Never use a damaged cargo net.
To help avoid personal injury from smaller
objects being thrown around in the occu-
pant compartment during a collision or
sudden maneuver, always use cargo net
when transporting cargo.
The cargo net cannot prevent the movement
of large, heavier objects into the passenger
compartment in an accident. Such items
must be properly secured using the cargo
tie-down rings in the cargo compartment
floor (
page 290).
Passenger use of seats behind installed
cargo net is restricted because of the foot-
well being taken up by the net.

302 Controls in detail
Loading

With the cargo compartment expanded
in part (
page 292), use holders
behind C-pillars 2 and the cargo
tie-down rings in the third-row footwell
(
page 291).

With the cargo compartment fully
expanded (
page 293), use holders
behind B-pillars 1 and the cargo
tie-down rings in the second-row
footwell (
page 291).
Open the hook and loop fasteners on
the cargo net package.
Roll out the cargo net.
Unfold the cargo net.
The cargo net bars must audibly
engage.Installing the cargo net
Cargo net installed behind the B-pillar

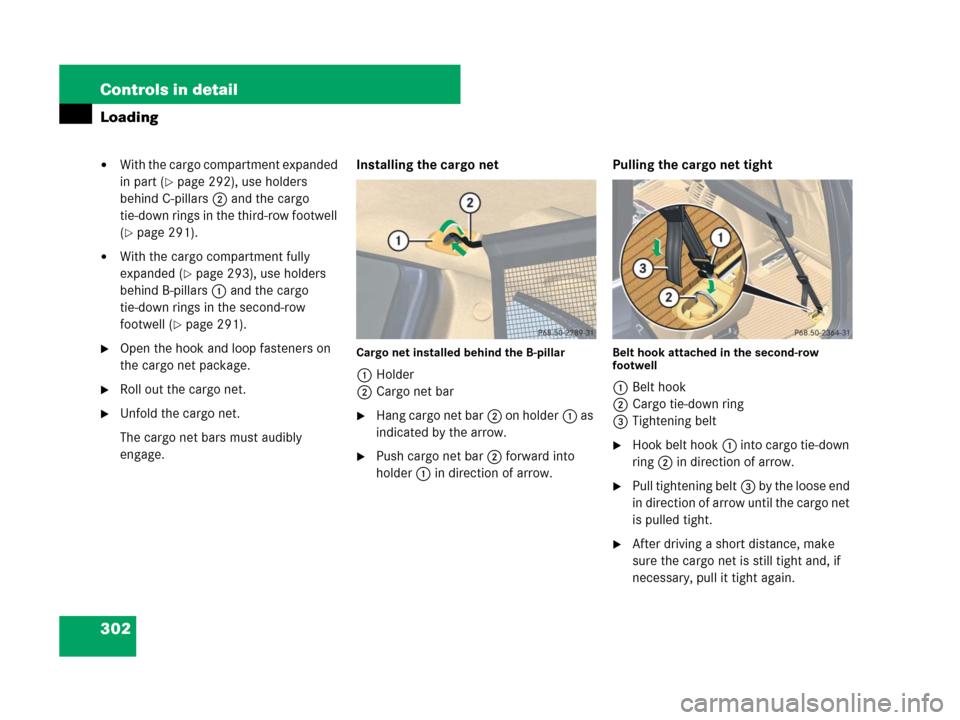

1Holder
2Cargo net bar
Hang cargo net bar2 on holder1 as
indicated by the arrow.
Push cargo net bar2 forward into
holder1 in direction of arrow.Pulling the cargo net tight
Belt hook attached in the second-row
footwell

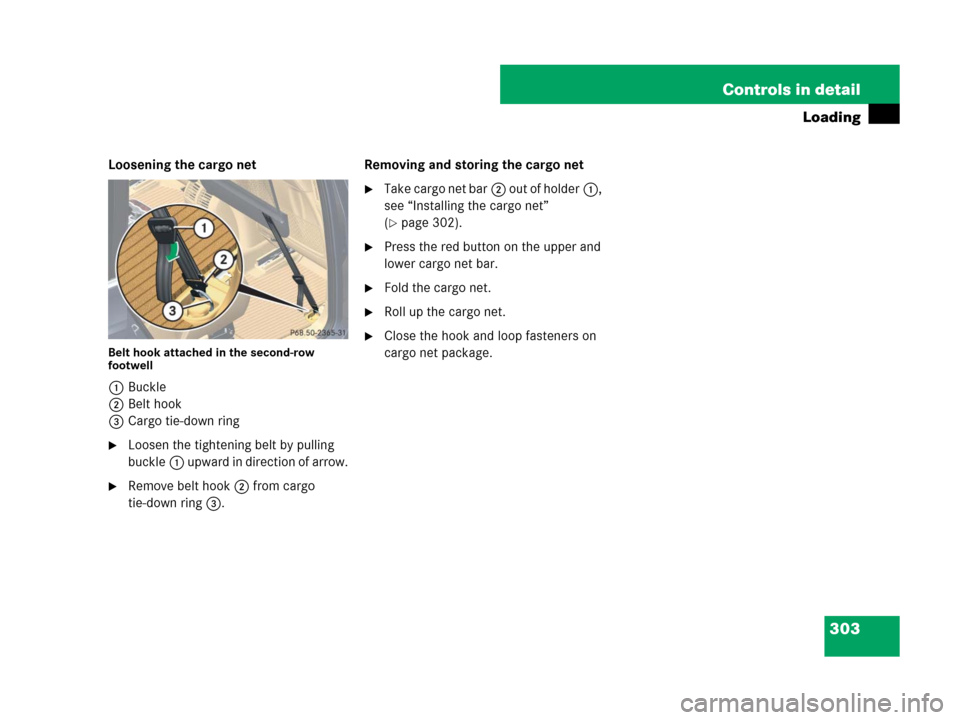

1Belt hook
2Cargo tie-down ring
3Tightening belt
Hook belt hook1 into cargo tie-down
ring2 in direction of arrow.
Pull tightening belt3 by the loose end
in direction of arrow until the cargo net
is pulled tight.
After driving a short distance, make
sure the cargo net is still tight and, if
necessary, pull it tight again.

303 Controls in detail
Loading
Loosening the cargo net
Belt hook attached in the second-row
footwell
1Buckle
2Belt hook
3Cargo tie-down ring
Loosen the tightening belt by pulling
buckle1 upward in direction of arrow.
Remove belt hook2 from cargo
tie-down ring3.Removing and storing the cargo net
Take cargo net bar2 out of holder1,
see “Installing the cargo net”
(
page 302).
Press the red button on the upper and
lower cargo net bar.
Fold the cargo net.
Roll up the cargo net.
Close the hook and loop fasteners on
cargo net package.
