2008 MERCEDES-BENZ R350 Owner's Manual

336 Controls in detail
Useful features
Infrared reflecting windshield*
1Infrared transparent areas
Your vehicle is equipped with infrared
reflecting glass, which reduces the amount
of radiated heat entering the vehicle
interior through the windows.
The infrared reflecting glass also prevents
the transmission of signals through the
glass by in-vehicle electronic devices, e.g.
electronic toll collection devices.
To allow the use of these devices in the
vehicle, infrared transparent areas are
placed in the windshield.

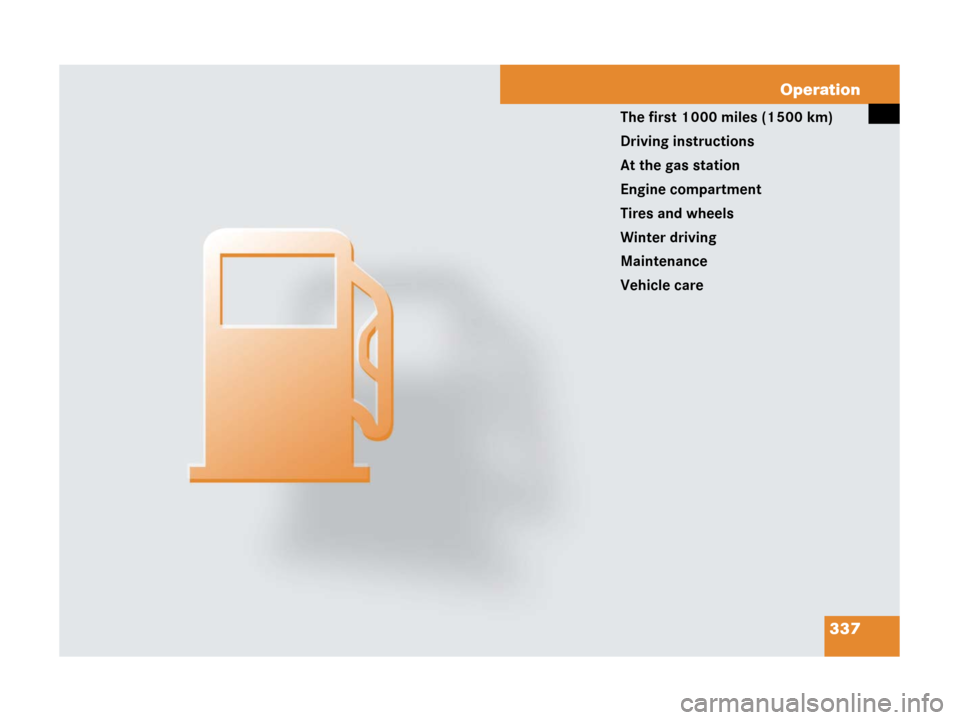

337 Operation
The first 1 000 miles (1 500 km)
Driving instructions
At the gas station
Engine compartment
Tires and wheels
Winter driving
Maintenance
Vehicle care

338 Operation
In the “Operation” section you will find
detailed information on operating, main-
taining and caring for your vehicle.
The first 1 000 miles (1 500 km)
The more cautiously you treat your vehicle
during the break-in period, the more satis-
fied you will be with its performance later
on.

Drive your vehicle during the first
1 000 miles (1 500 km) at varying but
moderate vehicle and engine speeds.

During this period, avoid heavy loads
(full throttle driving) and excessive
engine speeds (no more than
2/3 of
maximum rpm in each gear).

Shift gears in a timely manner.

Avoid accelerating by kick-down.

Do not attempt to slow the vehicle
down by shifting to a lower gear using
the gear selector lever.

Select gear3, 2 or1 (page 199) only
when driving at moderate speeds (for
hill driving).

SelectCas the preferred shift
program (
page 200) for the first
1 000 miles (1 500 km).After 1 000 miles (1 500 km) you may
gradually increase vehicle and engine
speeds to the permissible maximum.
All of the above instructions, as may apply
to your vehicle type, also apply when
driving the first 1 000 miles (1 500 km) af-
ter the engine, the transfer case, the front
differential or the rear differential has been
replaced.
iAlways obey applicable speed limits.

339 Operation
Driving instructions
Driving instructions
Drive sensibly – save fuel
Fuel consumption, to a great extent,
depends on driving habits and operating
conditions.
To save fuel you should:

Keep tires at the recommended
inflation pressures.

Remove unnecessary loads.

Remove carriers when not in use.

Allow engine to warm up under low
load use.

Avoid frequent acceleration and
deceleration.

Have all maintenance work performed
at the intervals specified in the
Maintenance Booklet and as required
by the Maintenance System. Contact
an authorized Mercedes-Benz Light
Truck Center.
Fuel consumption is also increased by
driving in cold weather, in stop-and-go
traffic, on short trips and in hilly area.
Drinking and drivingPedals
Warning!G
Drinking and driving and/or taking drugs
and driving are a very dangerous combina-
tion. Even a small amount of alcohol or
drugs can affect your reflexes, perceptions
and judgment.
The possibility of a serious or even fatal
accident are greatly increased when you
drink or take drugs and drive.
Do not drink or take drugs and drive or allow
anyone to drive who has been drinking or
taking drugs.
Warning!G
Make sure that absolutely no objects are ob-
structing the pedal’s range of movement.
Keep the driver’s footwell clear of all obsta-
cles. If there are any floormats or carpets in
the footwell, make sure the pedals still have
sufficient clearance.
During sudden driving or braking maneu-
vers, the objects could get caught between
the pedals. You could then no longer brake
or accelerate. This could lead to accidents
and injury.

340 Operation
Driving instructions
Power assistanceBrakes
Warning!G
With the engine not running, there is no
power assistance for the brake and steering
systems. In this case, it is important to keep
in mind that a considerably higher degree of
effort is necessary to brake and steer the ve-
hicle.
Warning!G
After driving in heavy rain for some time
without applying the brakes or through wa-
ter deep enough to wet brake components,
the first braking action may be somewhat
reduced and increased pedal pressure may
be necessary to obtain expected braking
effect. Maintain a safe distance from
vehicles in front.
Resting your foot on the brake pedal will
cause excessive and premature wear of the
brake pads.
It can also result in the brakes overheating,
thereby significantly reducing their effec-
tiveness. It may not be possible to stop the
vehicle in sufficient time to avoid an
accident.
!Because the ESP® operates automatically,
the engine and ignition must be shut off
(SmartKey in starter switch position0 or1 or
KEYLESS-GO* start/stop button in
position0or1) when the vehicle is being towed
with one axle raised.
Active braking action through the ESP
® may
otherwise seriously damage the brake system
which is not covered by the Mercedes-Benz
Limited Warranty
!Vehicles with 4MATIC must not be towed
with one axle raised.
!Vehicles with 4MATIC:
Operational or performance test must only be
conducted on a two-axle dynamometer. If such
tests are necessary, contact an authorized
Mercedes-Benz Light Truck Center. You could
otherwise seriously damage the brake system or
the transfer case which is not covered by the
Mercedes-Benz Limited Warranty.

341 Operation
Driving instructions
To help prevent brake disk corrosion after
driving on wet road surfaces (particularly
salted roads), it is advisable to brake the
vehicle with considerable force prior to
parking. The heat generated serves to dry
the brakes.
If your brake system is normally only
subjected to moderate loads, you should
occasionally test the effectiveness of the
brakes by applying above-normal braking
pressure at higher speeds. This will also
enhance the grip of the brake pads.Refer to the description of the Brake Assist
System (BAS) (
page 101).
Brake pad wear or a leak in the system may
be the reason for low brake fluid level in
the reservoir.
The brake fluid level in the reservoir may
be too low if the brake warning lamp
in the instrument cluster comes on and an
acoustic warning sounds although the
parking brake is released (
page 415).
Observe additional messages in the multi-
function display that may appear
(
page 447).
Have the brake system inspected
immediately. Contact an authorized
Mercedes-Benz Light Truck Center.All checks and service work on the brake
system should be carried out by qualified
technicians only. Contact an authorized
Mercedes-Benz Light Truck Center.
Only install brake pads and brake fluid
recommended by Mercedes-Benz.
!Vehicles with 4MATIC:
Because the ESP® operates automatically, the
engine and ignition must be shut off (SmartKey
in starter switch position0 or1 or KEYLESS-GO*
start/stop button in position0or1) when test-
ing the parking brake on a brake test dynamom-
eter and such testing should be no longer than
10 seconds.
Active braking action through the ESP
® may
otherwise seriously damage the brake system
which is not covered by the Mercedes-Benz
Limited Warranty.
Warning!G
Make sure not to endanger any other road
users when carrying out these braking
maneuvers.
Warning!G
If other than recommended brake pads are
installed, or other than recommended brake
fluid is used, the braking properties of the
vehicle can be degraded to an extent that
safe braking is substantially impaired. This
could result in an accident.

342 Operation
Driving instructions
After hard braking, it is advisable to drive
on for some time, rather than immediately
park, so that the air stream will cool down
the brakes faster.Parking brake
When driving on wet roads or dirt covered
surfaces, road salt and/or dirt can get into
the parking brake. To prevent corrosion
and a reduction in the braking power of the
parking brake, observe the following:
From time to time, lightly engage the
parking brake before driving off.
Drive a distance of approximately
110 yds (100 m) at a maximum speed
of 12 mph (20 km/h)
Driving off
Apply the brakes to test them briefly after
driving off. Perform this procedure only
when the road is clear of other traffic.
Warm up the engine smoothly. Do not
place full load on the engine until the oper-
ating temperature has been reached.!When driving down long and steep grades,
relieve the load on the brakes by shifting into a
lower gear to use the engine’s braking power.
This helps prevent overheating of the brakes and
reduces brake pad wear.
When using the engine’s braking power, a drive
wheel may not spin for an extended period of
time, e.g. on slippery road surfaces. This may
cause serious damage to the drivetrain which is
not covered by the Mercedes-Benz Limited
Warranty.
Warning!G
While performing this procedure, please as-
sure that the vehicle is stopped before ap-
plying the parking brake. Otherwise the rear
wheels could lock up. You could lose control
of the vehicle and cause an accident. In ad-
dition, the vehicle’s brake lights do not light
up when the parking brake is engaged.
Make sure not to endanger any other road
users when you engage the parking brake.
!When driving off on a slippery surface, do
not allow a drive wheel to spin for an extended
period with the ESP
® switched off. Doing so may
cause serious damage to the drivetrain which is
not covered by the Mercedes-Benz Limited
Warranty.
!Simultaneously depressing the accelerator
pedal and applying the brakes reduces engine
performance and causes premature brake and
drivetrain wear.

343 Operation
Driving instructions
ParkingTires
Warning!G
Do not park this vehicle in areas where com-
bustible materials such as grass, hay or
leaves can come into contact with the hot
exhaust system, as these materials could be
ignited and cause a vehicle fire.
To reduce the risk of personal injury or dam-
age to the vehicle drivetrain as a result of
vehicle movement, before turning off the en-
gine and leaving the vehicle always:

Keep right foot on brake pedal.

Firmly depress parking brake pedal.

Shift the automatic transmission to
positionP.

Slowly release brake pedal.

When parked on an incline, turn front
wheel towards the road curb.

Turn the SmartKey in the starter switch
to position0 and remove the SmartKey
from the starter switch, or press the
start/stop button (vehicles with
KEYLESS-GO*).

Take the SmartKey or the SmartKey with
KEYLESS-GO* and lock vehicle when
leaving.
Warning!G
If you feel a sudden significant vibration or
ride disturbance, or you suspect that possi-
ble damage to your vehicle has occurred,
you should turn on the hazard warning
flashers, carefully slow down, and drive with
caution to an area which is a safe distance
from the road.
Inspect the tires and the vehicle underbody
for possible damage. If the vehicle or tires
appear unsafe, have the vehicle towed to
the nearest Mercedes-Benz Light Truck
Center or tire dealer for repairs.
