2008 MERCEDES-BENZ R350 Owner's Manual

160 Controls in detail
Control system

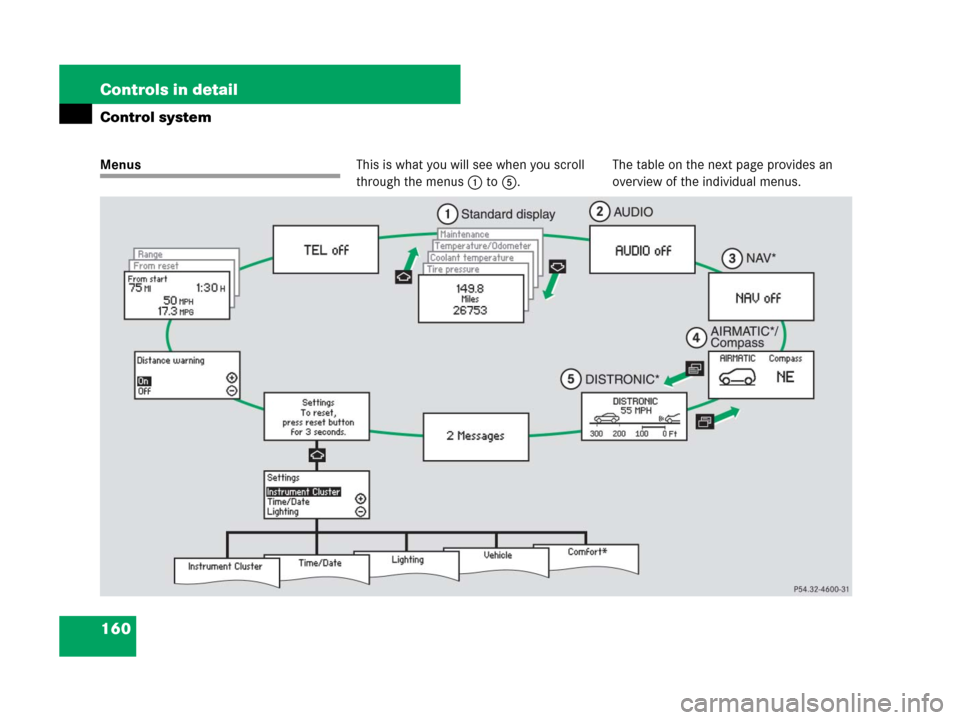

MenusThis is what you will see when you scroll
through the menus1 to5.The table on the next page provides an
overview of the individual menus.

161 Controls in detail
Control system
Menus, submenus and functions
Menu1Menu2Menu3Menu4Menu5
Standard displayAUDIONAV*AIRMATIC*/CompassDISTRONIC*
(page 164)(page 165)(page 167)(page 168)(page 262)
Commands/submenus
Trip- and main odometerSelecting radio stationRoute guidance
instructions, current
direction traveledAIRMATIC*Status and settings
Checking tire inflation
pressureSelecting satellite radio
station*Compass
Checking coolant
temperatureOperating CD player
Calling up digital
speedometer or outside
temperature
Calling up maintenance
service indicator
iThe headings used in the menus table are
designed to facilitate navigation within thesystem and are not necessarily identical to those
shown in the control system displays. The first function displayed in each menu will automati-
cally show you which part of the system you are
in.

162 Controls in detail
Control system

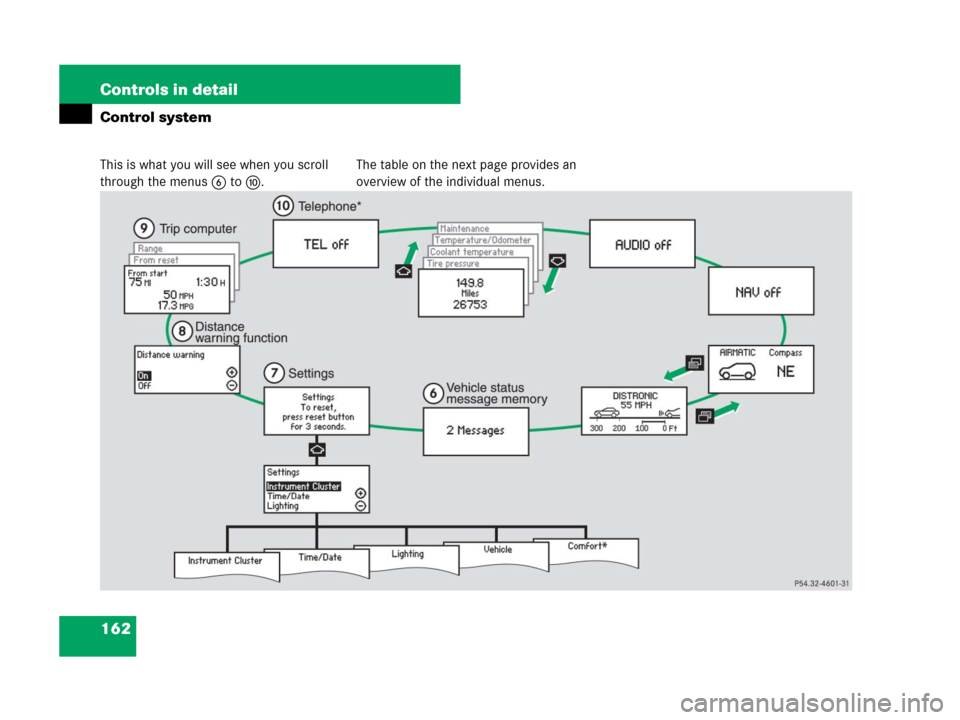

This is what you will see when you scroll
through the menus6 toa.The table on the next page provides an
overview of the individual menus.

163 Controls in detail
Control system
Menus, submenus and functions
Menu6Menu7Menu8Menu9Menua
Vehicle status message
memory1
1The vehicle status message memory menu is only displayed if there is a message stored.
SettingsDistance warning
function*Trip computerTelephone*
(page 169)(page 170)(page 185)(page 185)(page 187)
Commands/submenus
Calling up malfunction mes-
sages, warning messages,
and system status
messages stored in memoryResetting to factory settingsDistance warning
function* on/offFuel consumption statistics
since startLoading phone
book
Instrument cluster submenuFuel consumption statistics
since the last resetSearching for
name in phone
book
Time/Date submenuResetting fuel consumption
statistics
Lighting submenuDistance to empty
Vehicle submenu
Comfort submenu*
iThe headings used in the menus table are
designed to facilitate navigation within thesystem and are not necessarily identical to those
shown in the control system displays. The first function displayed in each menu will automati-
cally show you which part of the system you are
in.

164 Controls in detail
Control system
Standard display menu
In the standard display, the main odometer
and the trip odometer appear in the multi-
function display.
1Trip odometer
2Main odometer
If you see another display, press
buttonè orÿ repeatedly until
the standard display appears.
Press buttonkorj to select
the functions in the standard display
menu.The following functions are available:Checking coolant temperature
Press buttonk orj repeatedly
until the coolant temperature appears
in the multifunction display.
FunctionPage
Checking tire inflation pressure373
Checking coolant temperature164
Calling up digital speedometer or
outside temperature165
Calling up maintenance service
indicator402
Warning!G

Driving when your engine is overheated
can cause some fluids which may have
leaked into the engine compartment to
catch fire. You could be seriously
burned.

Steam from an overheated engine can
cause serious burns which can occur
just by opening the hood. Stay away
from the engine if you see or hear steam
coming from it.
Stop the vehicle in a safe location away from
other traffic. Turn off the engine, get out of
the vehicle and do not stand near the vehicle
until the engine has cooled down.

165 Controls in detail
Control system
Calling up digital speedometer or
outside temperature
Press buttonk orj repeatedly
until the digital speedometer or the
outside temperature appears in the
multifunction display.
Digital speedometer
Outside temperature
AUDIO menu
The functions in the
AUDIO menu operate
the audio equipment which you currently
have turned on.
If no audio equipment is currently turned
on, the message
AUDIO off appears in the
multifunction display.
The following functions are available:!Excessive coolant temperature triggers
a warning message in the multifunction
display (
page 448).
The engine should not be operated with a
coolant temperature above 248°F (120°C).
Doing so may cause serious engine damage
which is not covered by the Mercedes-Benz
Limited Warranty.
iDuring severe operating conditions, e.g.
stop-and-go city traffic, the coolant temperature
may rise close to 248°F (120°C).iYou can select whether the digital speed-
ometer or the outside temperature is to be
displayed.
You can change the setting in the submenu
Instrument Cluster via the function Status
Line Display
, see “Selecting display (digital
speedometer or outside temperature) for status
indicator” (
page 175).
FunctionPage
Selecting radio station166
Selecting satellite radio station*166
Operating CD player167

166 Controls in detail
Control system
Selecting radio station
Turn on the COMAND system and
select radio. Refer to separate
COMAND system operating instruc-
tions.
Press buttonè orÿ repeatedly
until the currently tuned station
appears in the multifunction display.
1Waveband setting or stored memory
position (
FM0 through FM9)
2Station frequency
Press buttonk orj repeatedly
until the desired station is found.
The station search depends on the
selected setting in the
Vehicle
submenu of the control system
(
page 182). Pressing buttonkorj will
either start a frequency scan or select
the next stored radio station.
Selecting satellite radio station*
The satellite radio is treated as a radio
application.
Select satellite radio with the
corresponding soft key on the
COMAND system.
1SAT mode or stored memory position
(
SAT0 through SAT9)
2Channel name or number
Press buttonk orj repeatedly
until the desired channel is found.
iYou can only store new stations using the
corresponding feature on the radio. Refer to
separate COMAND system operating
instructions. You can also operate the radio in
the usual manner.
iAdditional optional satellite radio equipment
and a subscription to satellite radio service
provider are required for satellite radio opera-
tion. Contact an authorized Mercedes-Benz
Light Truck Center for details and availability for
your vehicle.
For more information, refer to separate
COMAND system operating instructions.

167 Controls in detail
Control system
Operating the CD player
Selecting CD track
Turn on the COMAND system and
select CD. Refer to separate COMAND
system operating instructions.
Press buttonè orÿ repeatedly
until the settings for the CD currently
being played appear in the multifunc-
tion display.
1Current CD (for CD changer*)
2Current track
Press buttonk orj repeatedly
until the desired track is selected.Selecting MP3-CD track
Turn on the COMAND system and
select MP3. Refer to separate
COMAND system operating
instructions.
Press buttonè orÿ repeatedly
until the settings for the MP3-CD cur-
rently being played appear in the multi-
function display.
1MP3 mode
2Current track
Press buttonk orj repeatedly
until the desired track is selected.
NAV menu*
The
NAV menu contains the functions
needed to operate your navigation system.
Press buttonè orÿ repeatedly
until the message
NAV appears in the
multifunction display.
The message shown in the multifunction
display depends on the status of the navi-
gation system:

With the COMAND system switched
off, the message
NAV off appears in
the multifunction display.

With the COMAND system switched on
but route guidance not activated, the
direction of travel and, if applicable, the
name of the street currently traveled
on appear in the multifunction display.
iVehicles with CD changer*: To select a CD
from the magazine, press a number on the
COMAND system key pad located in the center
console.
