376 Operation
Tires and wheels
If you wish to confirm activation:
Press buttonæ.
The following message will appear in
the multifunction display:
Run Flat Indicator
Restarted
After a certain “learning phase”, the Run
Flat Indicator checks the set pressure
values for all four tires.
If you wish to cancel activation:
Press buttonç.
or
Wait until the message
Restart
Run Flat Indicator?
disappears.Checking tire pressure electronically
with the Tire Pressure Monitoring
System (TPMS), (USA only)
The TPMS only functions on wheels that
are equipped with the proper electronic
sensors. It monitors the tire inflation pres-
sure, as selected by the driver, in all four
tires. A warning is issued to alert you to a
decrease in pressure in one or more of the
tires.
iThe Tire Pressure Monitoring System
(TPMS) is equipped with a combination low tire
pressure/TPMS malfunction telltale in the
instrument cluster (
page 26). Depending on
how the telltale illuminates, it indicates a low tire
pressure condition or a malfunction in the TPMS
system itself:

If the telltale illuminates continuously, one
or more of your tires is significantly underin-
flated. There is no malfunction in the TPMS.

If the telltale flashes for 60 seconds and
then stays illuminated, the TPMS system
itself is not operating properly.
iThis device complies with Part 15 of the
FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interfer-
ence, and
(2) this device must accept any interference
received, including interference that may
cause undesired operation.
Any unauthorized modification to this device
could void the user’s authority to operate the
equipment.

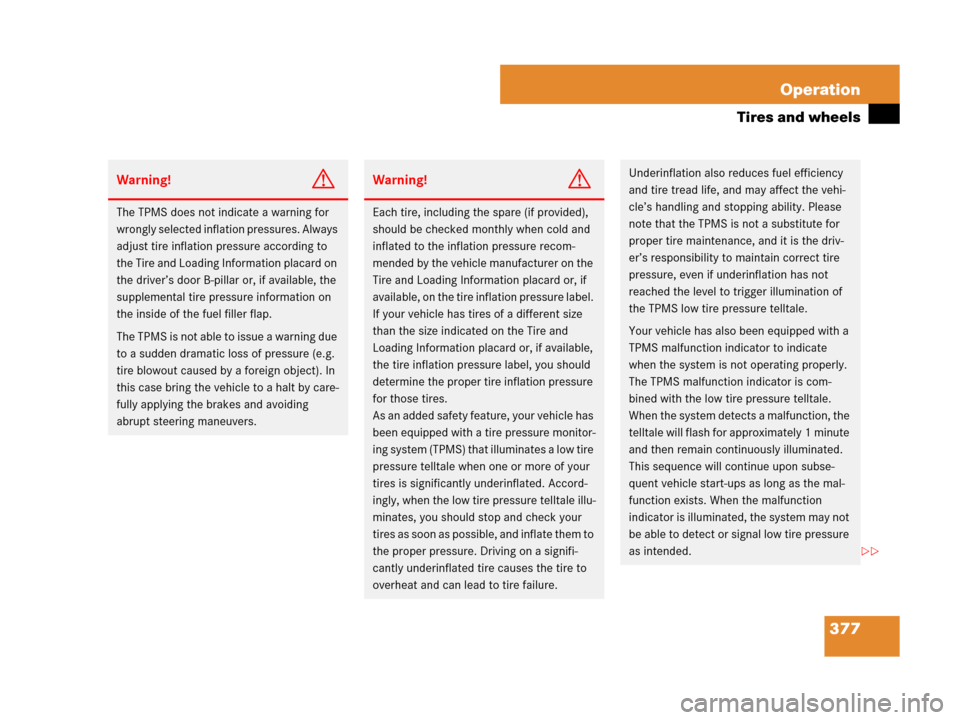

377 Operation
Tires and wheels
Warning!G
The TPMS does not indicate a warning for
wrongly selected inflation pressures. Always
adjust tire inflation pressure according to
the Tire and Loading Information placard on
the driver’s door B-pillar or, if available, the
supplemental tire pressure information on
the inside of the fuel filler flap.
The TPMS is not able to issue a warning due
to a sudden dramatic loss of pressure (e.g.
tire blowout caused by a foreign object). In
this case bring the vehicle to a halt by care-
fully applying the brakes and avoiding
abrupt steering maneuvers.
Warning!G
Each tire, including the spare (if provided),
should be checked monthly when cold and
inflated to the inflation pressure recom-
mended by the vehicle manufacturer on the
Tire and Loading Information placard or, if
available, on the tire inflation pressure label.
If your vehicle has tires of a different size
than the size indicated on the Tire and
Loading Information placard or, if available,
the tire inflation pressure label, you should
determine the proper tire inflation pressure
for those tires.
As an added safety feature, your vehicle has
been equipped with a tire pressure monitor-
ing system (TPMS) that illuminates a low tire
pressure telltale when one or more of your
tires is significantly underinflated. Accord-
ingly, when the low tire pressure telltale illu-
minates, you should stop and check your
tires as soon as possible, and inflate them to
the proper pressure. Driving on a signifi-
cantly underinflated tire causes the tire to
overheat and can lead to tire failure.
Underinflation also reduces fuel efficiency
and tire tread life, and may affect the vehi-
cle’s handling and stopping ability. Please
note that the TPMS is not a substitute for
proper tire maintenance, and it is the driv-
er’s responsibility to maintain correct tire
pressure, even if underinflation has not
reached the level to trigger illumination of
the TPMS low tire pressure telltale.
Your vehicle has also been equipped with a
TPMS malfunction indicator to indicate
when the system is not operating properly.
The TPMS malfunction indicator is com-
bined with the low tire pressure telltale.
When the system detects a malfunction, the
telltale will flash for approximately 1 minute
and then remain continuously illuminated.
This sequence will continue upon subse-
quent vehicle start-ups as long as the mal-
function exists. When the malfunction
indicator is illuminated, the system may not
be able to detect or signal low tire pressure
as intended.


378 Operation
Tires and wheels
Tire inflation pressure warnings
If the system detects a significant loss of
tire inflation pressure in one or more than
one tire, a message appears in the multi-
function display.
Example illustration
In addition, a warning signal sounds.Restarting the TPMS
The TPMS must be restarted when you
have adjusted the tire inflation pressure to
a new level (e.g. because of different load
or driving conditions). The TPMS is then
recalibrated to the current tire inflation
pressures.
Using the Tire and Loading Information
placard on the driver’s door B-pillar
(
page 366) or, if available, the
supplemental tire inflation pressure
information on the inside of the fuel
filler flap (
page 352), make sure the
tire inflation pressure of all four tires is
correct.
TPMS malfunctions may occur for a variety
of reasons, including the installation of
replacement or alternate tires or wheels on
the vehicle that prevent the TPMS from
functioning properly. Always check the
TPMS malfunction telltale after replacing
one or more tires or wheels on your vehicle
to ensure that the replacement or alternate
tires and wheels allow the TPMS to continue
to function properly.
iIf a condition causing the TPMS to malfunc-
tion develops, it may take up to 10 minutes
for the system to signal a malfunction using
the TPMS telltale flashing and illumination
sequence.
The telltale extinguishes after a few minutes
driving if the malfunction has been corrected.
iOperating radio transmission equipment
(e.g. wireless headsets, two-way radios) in or
near the vehicle could cause the TPMS to mal-
function.
Warning!G
It is the driver’s responsibility to calibrate
the TPMS on the recommended cold infla-
tion pressure. Underinflated tires affect the
ability to steer or brake the vehicle. You
might loose control over the vehicle.


379 Operation
Tires and wheels
Switch on the ignition (page 39).
Press buttonè orÿ on the
multifunction steering wheel repeat-
edly until the standard display menu
appears in the multifunction
display (
page 164).
Press buttonj or k repeatedly
the following message appears in the
multifunction display:
Tire Pressure Monitor
Active
Menu: R-Button
Press the reset button (page 154).
The following message will appear in
the multifunction display:
Restart tire
pressure monitor?
Press button æ.
The following message will appear in
the multifunction display:
Tire Pressure Monitor
Restarted
After driving a few minutes the current
tire inflation pressure values are
accepted as reference pressures and
then monitored.
If you wish to cancel activation:
Press button ç.Checking tire pressure electronically
with the Advanced Tire Pressure Moni-
toring System (Advanced TPMS)*,
(Canada only)
The TPMS only functions on wheels that
are equipped with the proper electronic
sensors. It monitors the tire inflation pres-
sure, as selected by the driver, in all four
tires. A warning is issued to alert you to a
decrease in pressure in one or more of the
tires.
Tire pressure inquiries are made using the
multifunction display. The present inflation
pressures are displayed only after a few
minutes’ travel time.
iRestart the TPMS after adjusting the tire in-
flation pressure to the inflation pressure recom-
mended for the vehicle operating condition. Tire
pressure should only be adjusted on cold tires.
Observe the recommended tire inflation pres-
sure on the Tire and Loading Information placard
on the driver’s door B-pillar (
page 366).
Some vehicles may have supplemental tire infla-
tion pressure information for driving at high
speeds (
page 372) or for vehicle loads less
than the maximum loaded vehicle condition
(
page 372). If such information is provided, it
can be found on the inside of the fuel filler flap.
iThis device complies with RSS-210 of
Industry Canada. Operation is subject to the
following two conditions:
(1) This device may not cause interference, and
(2) this device must accept any interference
received, including interference that may
cause undesired operation of the device.
Any unauthorized modification to this device
could void the user’s authority to operate the
equipment.

380 Operation
Tires and wheels
Switch on the ignition (page 39).
Press buttonj or kon the mul-
tifunction steering wheel until the cur-
rent inflation pressures for each tire
appear in the multifunction display.
iPossible differences between the readings
of a tire pressure gauge of an air hose, e.g. gas
station equipment, and the vehicle’s control
system can occur. Usually the readings issued by
the control system are more precise.
iWhen the vehicle has been parked for longer
than 20 minutes, the message
Tire pressure
displayed after driving for a few
minutes.
appears in the multifunction display.
Warning!G
It is the driver’s responsibility to calibrate
the TPMS on the recommended cold infla-
tion pressure. Underinflated tires affect the
ability to steer or brake the vehicle. You
might lose control over the vehicle.
iWith a spare wheel mounted, the system
may still indicate the tire inflation pressure of
the removed road wheel for some minutes. If
this happens, keep in mind that the indicated
value where the spare wheel is mounted does
not reflect the actual spare tire inflation pres-
sure.
Warning!G
The TPMS does not indicate a warning for
wrongly selected inflation pressures. Always
adjust tire inflation pressure according to
the Tire and Loading Information placard on
the driver’s door B-pillar or, if available, the
supplemental tire inflation pressure infor-
mation on the inside of the fuel filler flap.
The TPMS is not able to issue a warning due
to a sudden dramatic loss of pressure (e.g.
tire blowout caused by a foreign object). In
this case bring the vehicle to a halt by care-
fully applying the brakes and avoiding
abrupt steering maneuvers.

381 Operation
Tires and wheels
Tire inflation pressure warnings
If the system detects a significant loss of
tire inflation pressure in one or more than
one tire, a message appears in the multi-
function display.
Example illustration
The respective tire is indicated by a red
rectangle. In addition, a warning signal
sounds.
Restarting Advanced TPMS*
The TPMS usually recognizes new refer-
ence values automatically, for example
when you have

adjusted the tire inflation pressure

changed wheels or tires

mounted new wheels or tires
Warning!G
Each tire, including the spare (if provided),
should be checked monthly when cold and
inflated to the inflation pressure recom-
mended by the vehicle manufacturer on the
Tire and Loading Information placard or the
tire inflation pressure label. If your vehicle
has tires of a different size than the size in-
dicated on the Tire and Loading Information
placard or the tire inflation pressure label,
you should determine the proper tire infla-
tion pressure for those tires.
As an added safety feature, your vehicle has
been equipped with a tire pressure monitor-
ing system (TPMS) that illuminates a low tire
pressure telltale when one or more of your
tires are significantly underinflated. Accord-
ingly, when the low tire pressure telltale illu-
minates, you should stop and check your
tires as soon as possible. Driving on a signif-
icantly underinflated tire causes the tire to
overheat and can lead to tire failure.
Underinflation also reduces fuel efficiency
and tire tread life, and may effect the vehi-
cle’s handling and stopping ability. Please
note that the TPMS is not a substitute for
proper tire maintenance, and it is the driv-
er’s responsibility to maintain correct tire
pressure, even if underinflation has not
reached the level to trigger illumination of
the TPMS low tire pressure telltale.
iOperating radio transmission equipment
(e.g. wireless headsets, two-way radios) in or
near the vehicle could cause the TPMS to
malfunction.

382 Operation
Tires and wheels
If you want to set new reference values
manually:
Using the Tire and Loading Information
placard on the driver’s door B-pillar
(
page 366) or, if available, the sup-
plemental tire inflation pressure
information on the inside of the fuel
filler flap (
page 352), make sure the
tire inflation pressure of all four tires is
correct.
Press buttonè orÿ on the mul-
tifunction steering wheel repeatedly
until the standard display menu
appears in the multifunction display
(
page 164).
Press buttonj or krepeatedly
the current inflation pressures for each
tire appear in the display or the follow-
ing message appears in the display:
Tire pressure
displayed after
driving for
a few minutes
.
Press the reset button (page 154).
The following message will appear in
the multifunction display:
Restart tire
pressure monitor?
Warning!G
It is the driver’s responsibility to calibrate
the TPMS on the recommended cold infla-
tion pressure. Underinflated tires affect the
ability to steer or brake the vehicle. You
might lose control over the vehicle.
iRestart the TPMS after adjusting the tire in-
flation pressure to the inflation pressure recom-
mended for the vehicle operating condition. Tire
pressure should only be adjusted on cold tires.
Observe the recommended tire inflation pres-
sure on the Tire and Loading Information placard
on the driver’s door B-pillar (
page 366).
Some vehicles may have supplemental tire infla-
tion pressure information for driving at high
speeds (
page 372) or for vehicle loads less
than the maximum loaded vehicle condition
(
page 372). If such information is provided, it
can be found on the inside of the fuel filler flap.

383 Operation
Tires and wheels
Press button æ.
The following message will appear in
the multifunction display:
Tire Pressure Monitor
Restarted
After driving a few minutes the system
verifies that the current tire inflation
pressures are within the system’s
specified range. Afterwards the current
tire inflation pressures are accepted as
reference pressures and then moni-
tored.
If you wish to cancel activation:
Press button ç.Potential problems associated with
underinflated and overinflated tires
Underinflated tires
Underinflated tires can:

cause excessive and uneven tire wear

adversely affect fuel economy

lead to tire failure from being
overheated

adversely affect handling
characteristicsOverinflated tires
Overinflated tires can:

adversely affect handling
characteristics

cause uneven tire wear

be more prone to damage from road
hazards

adversely affect ride comfort

increase stopping distance
Warning!G
Follow recommended tire inflation
pressures.
Do not underinflate tires. Underinflated tires
wear excessively and/or unevenly,
adversely affect handling and fuel economy,
and are more likely to fail from being
overheated.
Warning!G
Follow recommended tire inflation
pressures.
Do not overinflate tires. Overinflated tires
can adversely affect handling and ride
comfort, wear unevenly, increase stopping
distance, and result in sudden deflation
(blowout) because they are more likely to
become punctured or damaged by road
debris, potholes etc.
