208 Controls in detail
Climate control

209 Controls in detail
Climate control

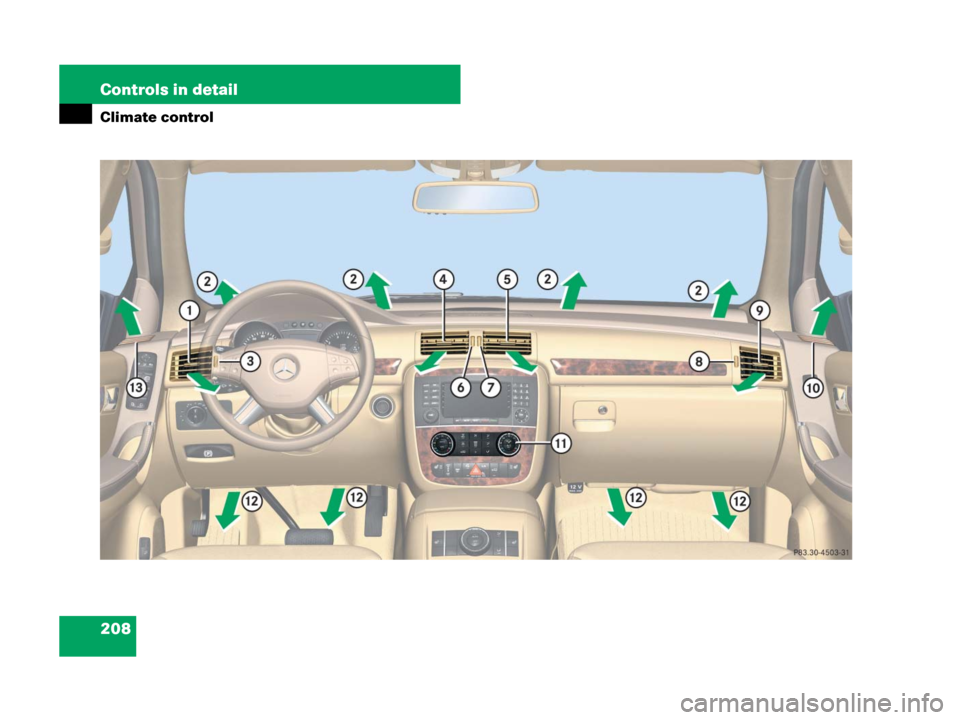

1Left side air vent, adjustable
2Windshield air vents
3Thumbwheel for air volume control
for left side and door air vent
4Left center air vent, adjustable
5Right center air vent, adjustable
6Thumbwheel for air volume control
for left center air vent
7Thumbwheel for air volume control
for right center air vent
8Thumbwheel for air volume control
for right side and door air vent
9Right side air vent, adjustable
aFront passenger door air vent, fixed
bClimate control panel
cFootwell air vents
dDriver’s door air vent, fixed
iFor draft-free ventilation, move the sliders
for center air vents and side air vents to the
middle position.

210 Controls in detail
Climate control
1Temperature control, left
2Air distribution and air volume
(automatic, manual)
3Front defroster
4Increasing air volume
5Air distribution (directs air through
the windshield and side air vents)
6Rear climate control* on/off
Air supply for rear passenger
compartment on/off
:USA only
7Temperature control, right
8AC cooling on/off
Residual heat/ventilation
9Air distribution (directs air through
center and side air vents)
aAir distribution (directs air through
the footwells and side air vents)
bAir volume display
cDecreasing air volume
dRear window defroster
eAir recirculation
fInterior temperature sensor
gClimate control on/off

211 Controls in detail
Climate control
The climate control is operational when-
ever the engine is running. You can oper-
ate the climate control system in either the
automatic or manual mode. The system
cools or heats the interior depending on
the selected interior temperature and the
current outside temperature.Nearly all dust particles, pollutants and
odors are filtered out before outside air en-
ters the passenger compartment through
the air distribution system.
The air conditioning will not engage (no
cooling) if the A/C mode is deactivated
(
page 219).

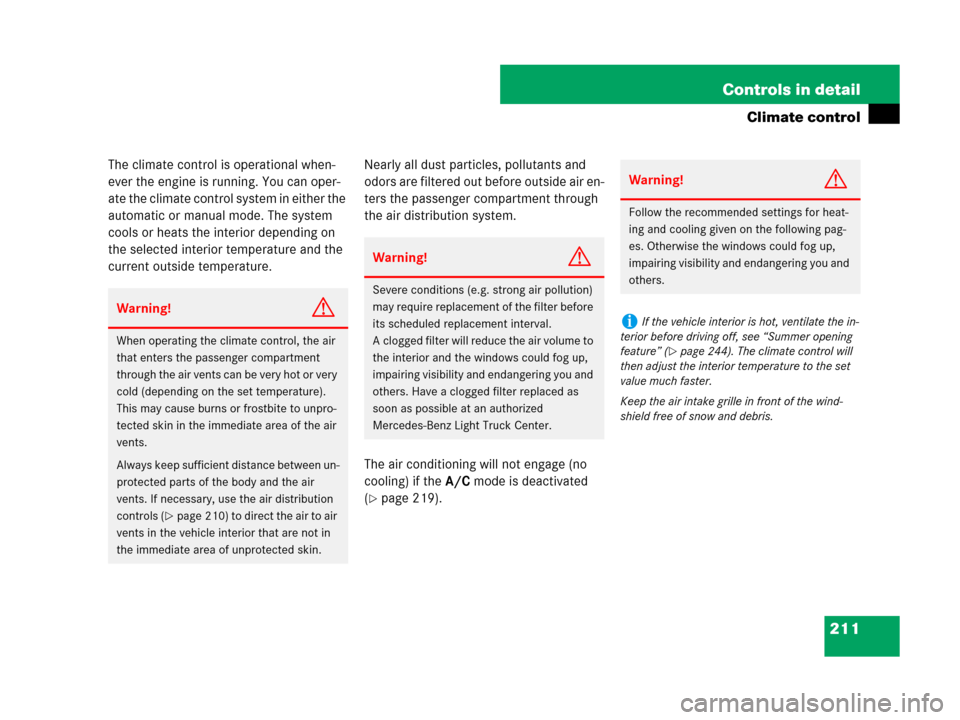

Warning!G
When operating the climate control, the air
that enters the passenger compartment
through the air vents can be very hot or very
cold (depending on the set temperature).
This may cause burns or frostbite to unpro-
tected skin in the immediate area of the air
vents.
Always keep sufficient distance between un-
protected parts of the body and the air
vents. If necessary, use the air distribution
controls (
page 210) to direct the air to air
vents in the vehicle interior that are not in
the immediate area of unprotected skin.
Warning!G
Severe conditions (e.g. strong air pollution)
may require replacement of the filter before
its scheduled replacement interval.
A clogged filter will reduce the air volume to
the interior and the windows could fog up,
impairing visibility and endangering you and
others. Have a clogged filter replaced as
soon as possible at an authorized
Mercedes-Benz Light Truck Center.
Warning!G
Follow the recommended settings for heat-
ing and cooling given on the following pag-
es. Otherwise the windows could fog up,
impairing visibility and endangering you and
others.
iIf the vehicle interior is hot, ventilate the in-
terior before driving off, see “Summer opening
feature” (
page 244). The climate control will
then adjust the interior temperature to the set
value much faster.
Keep the air intake grille in front of the wind-
shield free of snow and debris.

212 Controls in detail
Climate control
Deactivating the climate control
system
Deactivating
Press button´ (page 210).
The indicator lamp on the button
comes on.Reactivating
Press buttonU (page 210).
Operating the climate control system
in automatic modeActivating
Press buttonU (page 210) while
the engine is running.
The indicator lamp on the button
comes on. The air volume and air distri-
bution are adjusted automatically.
Use temperature controls1 and7
(
page 210) to separately adjust the
air temperature on each side of the
passenger compartment.
The interior air temperature is adjusted
automatically.

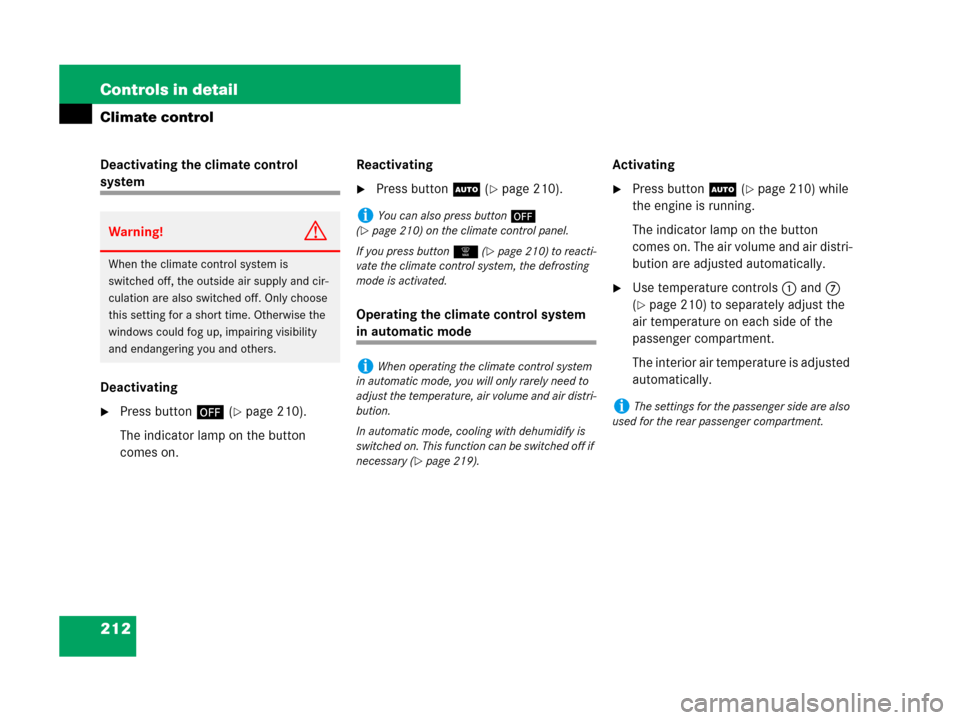

Warning!G
When the climate control system is
switched off, the outside air supply and cir-
culation are also switched off. Only choose
this setting for a short time. Otherwise the
windows could fog up, impairing visibility
and endangering you and others.
iYou can also press button´
(
page 210) on the climate control panel.
If you press button| (
page 210) to reacti-
vate the climate control system, the defrosting
mode is activated.
iWhen operating the climate control system
in automatic mode, you will only rarely need to
adjust the temperature, air volume and air distri-
bution.
In automatic mode, cooling with dehumidify is
switched on. This function can be switched off if
necessary (
page 219).
iThe settings for the passenger side are also
used for the rear passenger compartment.

213 Controls in detail
Climate control
Deactivating
Press button
orQ
(
page 210).
The indicator lamp on buttonU
goes out. The automatic operation of
air volume switches off. The selected
blower speed is shown in the air
volume displayb (
page 210).
or
Press air distribution button 5,9,
ora (
page 210).
The indicator lamp on buttonU
goes out. The automatic operation of
air distribution switches off.
Setting the temperature
Use temperature controls1 and7
(
page 210) to separately adjust the air
temperature on each side of the passenger
compartment. You should raise or lower
the temperature setting in small incre-
ments, preferably starting at 72°F (22°C).
The climate control will adjust to the set
temperature as fast as possible.
Increasing
Turn temperature control1and/or
7 (
page 210) slightly clockwise.
The climate control system will corre-
spondingly adjust the interior air
temperature.
Decreasing
Turn temperature control1 and/or
7 (
page 210) slightly counterclock-
wise.
The climate control system will corre-
spondingly adjust the interior air
temperature.
Adjusting air distribution
Press air distribution button5,9, ora
(
page 210) to adjust the air distribution.
The following symbols are found on the
buttons:
Press the desired air distribution
button5,9, ora (
page 210).
The indicator lamp on buttonU
goes out.
SymbolFunction
aDirects air through the center
and side air vents
ZDirects air to the windshield
and side air vents
YDirects air to the footwells and
side air vents

214 Controls in detail
Climate control
Adjusting air volume
Five blower speeds are available.
Press button
to decrease or
buttonQ to increase air volume
(
page 210) to the desired level.
The indicator lamp on buttonU
(
page 210) goes out. The automatic
operation of air volume switches off.
The selected blower speed is
shown in the air volume display b
(
page 210).
Adjusting air volume for the center and
side air vents
Opening the center air vents
Turn thumbwheels 6 and 7
(
page 208) upward.
The corresponding center air vents on
the left and right are open.Closing the center air vents
Turn thumbwheels 6 and 7
(
page 208) downward.
The corresponding center air vents on
the left and right are closed.
Opening the side air vents
Turn thumbwheels 3 and 8
(
page 208) upward.
The corresponding side air vents on the
left and right are open.
Closing the side air vents
Turn thumbwheels 3 and 8
(
page 208) downward.
The corresponding side air vents on the
left and right are closed.
Front defroster
You can use this setting to defrost the
windshield, for example if it is iced up. You
can also use it to defog the windshield and
door windows.
Activating
Press button| (page 210).
The indicator lamp on the button
comes on.
iKeep this setting selected only until the
windshield or the door windows are clear again.

215 Controls in detail
Climate control
The climate control switches to the follow-
ing functions automatically:

most efficient blower speed and
heating power, depending on outside
temperature

air flows onto the windshield and the
front door windows (side air vents must
be open)

the air conditioning compressor
switches on at outside temperatures
above approximately 41°F (5°C) for
air-dryingAdjustments
You can adjust the air volume and the tem-
perature when the front defroster is
switched on. The air flow will remain on the
windshield and front door windows.
Press button
to decrease or
buttonQ to increase air volume
(
page 210) to the desired level.
The air volume decreases/increases to
the next lower/higher blower speed
and heating switches to the tempera-
ture that was set before the front de-
froster was switched on.
The indicator lamp on button|
goes out. The indicator lamp on
button9 comes on.
or
Turn temperature
control1and/or7 (
page 210)
slightly in any direction.Heating switches to the temperature
that was set before the front defroster
was switched on.
The indicator lamp on button|
goes out. The indicator lamp on
button9 comes on.
iThe air conditioning compressor remains on
even if the indicator lamp in button| goes
out. This helps to prevent the windshield from
fogging.
