2008 MERCEDES-BENZ R350 Owner's Manual

64 Getting started
Parking and locking
You have now completed your first drive.
You have properly stopped and parked
your vehicle. End your drive as follows.
Warning!G
With the engine not running, there is no
power assistance for the brake and the
steering system. In this case, it is important
to keep in mind that a considerably higher
degree of effort is necessary to brake and
steer the vehicle.
Warning!G
Do not park this vehicle in areas where com-
bustible materials such as grass, hay or
leaves can come into contact with the hot
exhaust system, as these materials could be
ignited and cause a vehicle fire.
To reduce the risk of personal injury as a
result of vehicle movement, before turning
off the engine and leaving the vehicle
always:

Keep right foot on brake pedal.

Firmly depress parking brake pedal.

Shift the automatic transmission to
positionP.

Slowly release brake pedal.

When parked on an incline, turn front
wheel towards the road curb.

Turn the SmartKey in the starter switch
to position0 and remove the SmartKey
from the starter switch, or press the
start/stop button (vehicles with
KEYLESS-GO*).

Take the SmartKey or the SmartKey with
KEYLESS-GO* and lock vehicle when
leaving.

65 Getting started
Parking and locking
Parking brake
1Parking brake pedal
Step firmly on parking brake pedal1.When the engine is running, the warn-
ing lamp; (USA only) or3
(Canada only) in the instrument cluster
comes on.
Switching off headlamps
Turn the exterior lamp switch toM.
For more information, see “Lighting”
(
page 143).
Warning!G
Engaging the parking brake while the vehicle
is in motion can cause the rear wheels to
lock up. You could lose control of the vehicle
and cause an accident. In addition, the
vehicle’s brake lights do not light up when
the parking brake is engaged.Warning!G
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you and
lock the vehicle. Do not leave children
unattended in the vehicle, or with access
to an unlocked vehicle. Children could
release the parking brake and/or shift the
automatic transmission out of positionP,
either of which could result in an accident
and/or serious personal injury.
Warning!G
Getting out of your vehicle with the auto-
matic transmission not fully engaged in
positionP is dangerous. Also, when parked
on an incline, positionP alone may not
prevent your vehicle from moving, possibly
hitting people or objects.
Always set the parking brake in addition to
shifting to positionP (
page 192).
When parked on an incline, also turn front
wheel towards the road curb.

66 Getting started
Parking and locking
Turning off the engine
Shift the automatic transmission to
positionP (
page 192).
Apply the parking brake (page 65).Turning off with the SmartKey
Turn the SmartKey in the starter switch
to position0 (
page 40).
Remove the SmartKey from the starter
switch.
The immobilizer is activated.Turning off with KEYLESS-GO*
Press the KEYLESS-GO start/stop
button (
page 41) to turn off the
engine.
With the driver’s door closed, the
starter switch is now in position1. With
the driver’s door opened, the starter
switch is set to position0, same as
SmartKey removed from starter switch
(
page 39).
iIf the engine cannot be turned off as
described, see “Emergency engine shut-down”
(
page 520).
Warning!G
Do not turn off the engine before the vehicle
has come to a complete stop. With the
engine not running, there is no power assis-
tance for the brake and steering systems. In
this case, it is important to keep in mind that
a considerably higher degree of effort is
necessary to brake and steer the vehicle.
iAlways set the parking brake in addition to
shifting to positionP (
page 192).
When parked on an incline, also turn front wheel
towards the road curb.
!Observe instructions when taking the
vehicle through an automatic conveyor type
car wash (
page 406).
!If you turn off the engine using the
SmartKey and

remove the SmartKey from the starter
switch
or

open a front door
the automatic transmission will shift to park
positionP automatically.
Keep in mind that turning off the engine with the
SmartKey alone only will automatically shift the
automatic transmission to neutral positionN.
iIn an emergency you can turn off the engine
while driving by pressing and holding the
KEYLESS-GO start/stop button for
approximately 3 seconds.
!If you turn off the engine using the
KEYLESS-GO start/stop button and open a front
door, the automatic transmission will shift to
park positionP automatically.
Keep in mind that turning off the engine using
the KEYLESS-GO start/stop button alone only
will automatically shift the automatic transmis-
sion to neutral positionN.

67 Getting started
Parking and locking
If you have started the engine with the
KEYLESS-GO start/stop button and
cannot turn it off as described above:
Remove the KEYLESS-GO start/stop
button from the starter switch.
Insert the SmartKey with KEYLESS-GO
into the starter switch.
The engine turns off. The starter switch
is in position0 (
page 40).
Releasing seat belts
Press the seat belt release button
(
page 51).
Allow the retractor to completely
rewind the seat belt by guiding the
latch plate.
Locking
!Make sure the seat belt retracts fully so that
the seat belt and/or latch plate cannot get
caught or pinched in the door or in the seat
mechanism. This can damage the seat belt and
impair the effectiveness of the seat belt, and/or
cause damage to the door and/or door trim
panel. Such damage is not covered by the
Mercedes-Benz Limited Warranty.
Damaged seat belts must be replaced.
Contact an authorized Mercedes-Benz Light
Truck Center.
Warning!G
To prevent possible personal injury, always
keep hands and fingers away from the door
openings when closing the doors.
Be especially careful when small children
are around.
Before closing doors, make sure there is no
possibility of someone getting caught in a
door during closing.
Warning!G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take the
SmartKey with KEYLESS-GO* with you, and
lock your vehicle. Do not leave children
unattended in the vehicle, or with access to
an unlocked vehicle. A child’s unsupervised
access to a vehicle could result in an
accident and/or serious personal injury.

68 Getting started
Parking and locking
Exit the vehicle and close all doors and
the tailgate.
Locking with the SmartKey
Press button‹on the SmartKey
(
page 38).
With the tailgate and all doors closed,
the turn signal lamps flash three times.
The locking knobs on the doors move
down. The anti-theft alarm system is
armed.
For more information, see “Locking and
unlocking” (
page 110).Locking with KEYLESS-GO*
1Lock button on the outside door handle
Press lock button1 on an outside
door handle.
With the tailgate and all doors closed,
the turn signal lamps flash three times.
The locking knobs on the doors move
down. The anti-theft alarm system is
armed.
For more information, see “Locking and
unlocking” (
page 110).
iIf you hear a warning signal you have
forgotten to switch off the exterior lamps before
opening the driver’s door.
In addition the message
Switch Off Lights
appears in the multifunction display.
Switch off the headlamps.
!Failure to switch off the headlamps when
leaving the vehicle may result in a discharged
battery.

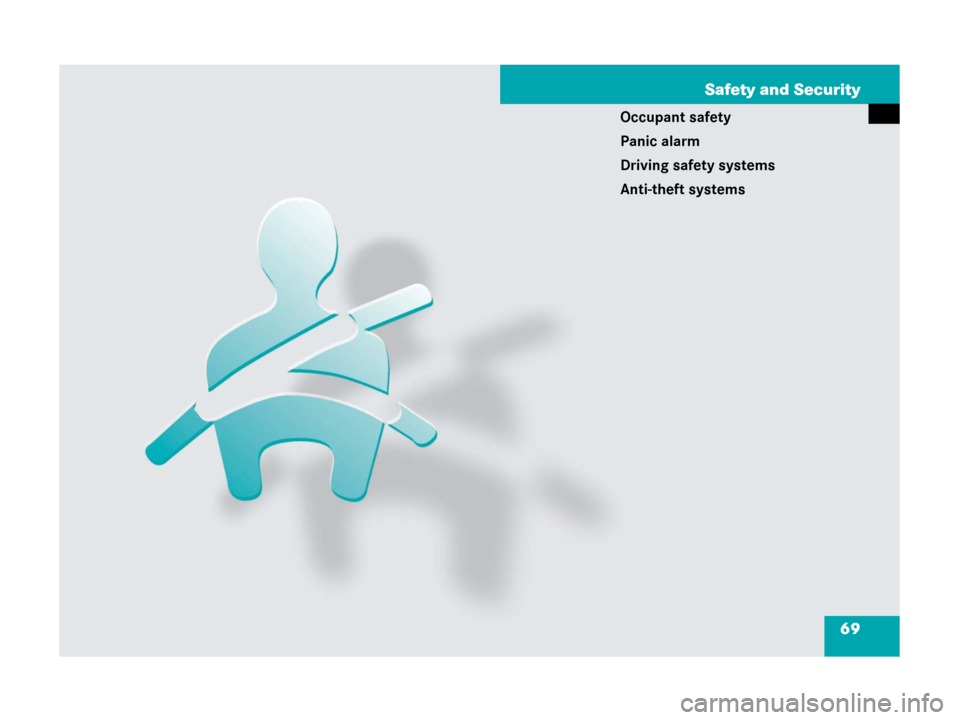

69 Safety and Security
Occupant safety
Panic alarm
Driving safety systems
Anti-theft systems

70 Safety and Security
Occupant safety
In this section you will learn the most
important facts about the restraint
systems of the vehicle.
The restraint systems are

Seat belts (page 82)

Child restraints (page 92)

Lower Anchors and Tethers for
CH
ildren (LATCH) (page 91)
Additional protection provide

Supplemental Restraint System (SRS)
with

Air bags (page 72)

Air bag control unit (with crash
sensors)

Emergency Tensioning Device
(ETD) for seat belts (
page 85)

Active head restraints (page 86)Air bag system components with

Front passenger front air bag off
indicator lamp (
page 81)

Front passenger seat with Occupant
C
lassification System (OCS)
(
page 77)
Although independent systems, their
protective functions work in conjunction
with each other.The SRS system conducts a self-test when
the ignition is switched on and in regular
intervals while the engine is running. This
facilitates early detection of malfunctions.
The 1indicator lamp in the instrument
cluster (
page 26) comes on when the
ignition is switched on and goes out no
later than a few seconds after the engine
was started.
The SRS components are in operational
readiness if the 1indicator lamp is not
lit when the engine is running.
A malfunction in the system has been
detected if the 1indicator lamp:

fails to go out no later than approxi-
mately 4 seconds after the engine was
started

does not come on at all

comes on after the engine was started
or while driving
iFor information on infants and children
traveling with you in the vehicle and restraint
systems for infants and children, see “Children
in the vehicle” (
page 87).

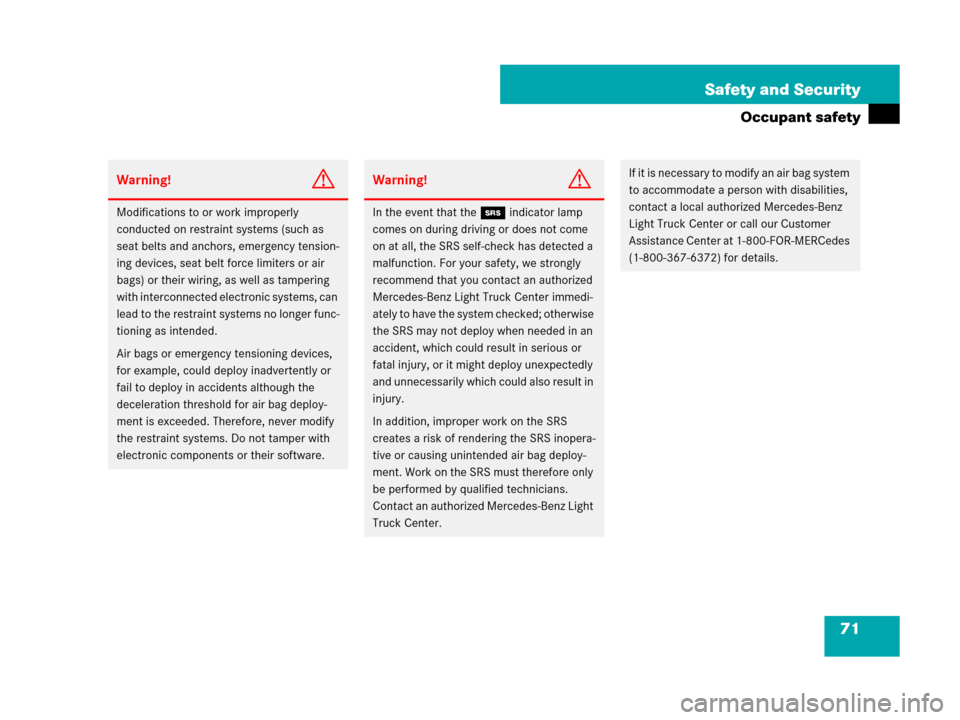

71 Safety and Security
Occupant safety
Warning!G
Modifications to or work improperly
conducted on restraint systems (such as
seat belts and anchors, emergency tension-
ing devices, seat belt force limiters or air
bags) or their wiring, as well as tampering
with interconnected electronic systems, can
lead to the restraint systems no longer func-
tioning as intended.
Air bags or emergency tensioning devices,
for example, could deploy inadvertently or
fail to deploy in accidents although the
deceleration threshold for air bag deploy-
ment is exceeded. Therefore, never modify
the restraint systems. Do not tamper with
electronic components or their software.
Warning!G
In the event that the 1indicator lamp
comes on during driving or does not come
on at all, the SRS self-check has detected a
malfunction. For your safety, we strongly
recommend that you contact an authorized
Mercedes-Benz Light Truck Center immedi-
ately to have the system checked; otherwise
the SRS may not deploy when needed in an
accident, which could result in serious or
fatal injury, or it might deploy unexpectedly
and unnecessarily which could also result in
injury.
In addition, improper work on the SRS
creates a risk of rendering the SRS inopera-
tive or causing unintended air bag deploy-
ment. Work on the SRS must therefore only
be performed by qualified technicians.
Contact an authorized Mercedes-Benz Light
Truck Center.
If it is necessary to modify an air bag system
to accommodate a person with disabilities,
contact a local authorized Mercedes-Benz
Light Truck Center or call our Customer
Assistance Center at 1-800-FOR-MERCedes
(1-800-367-6372) for details.
