2008 MERCEDES-BENZ R350 Owner's Manual

104 Safety and Security
Driving safety systems
Switching off the ESP®
To improve the vehicle’s traction, switch
off the ESP® in driving situations where it
would be advantageous to have the drive
wheels spin and thus cut into surfaces for
better grip such as:

when driving with snow chains

in deep snow

in sand or gravelWhen you switch off the ESP
®

the ESP® does not stabilize the vehicle

the engine output is not limited, which
allows the drive wheels to spin and
thus cut into surfaces for better grip

the Electronic Traction System will still
apply the brake to a spinning wheel

the ESP® continues to operate when
you are braking

you cannot activate the cruise control
or the Distronic* system

the cruise control or the Distronic*
system switch off if currently activatedThe ESP
® switch is located on the upper
part of the center console.
1ESP
® switch
With the engine running, press ESP®
switch1.
The ESP
®warning lampv in the in-
strument cluster comes on.
The ESP
® is deactivated.
Warning!G
The ESP® should not be switched off during
normal driving other than in the circum-
stances described below. Disabling of the
system will reduce vehicle stability in stan-
dard driving maneuvers.
Do not switch off the ESP
® when a spare
wheel is mounted.
Warning!G
Switch on the ESP® immediately if the afore-
mentioned circumstances do not apply any-
more. Otherwise the ESP
® will not stabilize
the vehicle when it is starting to skid or a
wheel is spinning.
iWhen the ESP® is switched off and one or
more drive wheels are spinning, the ESP® warn-
ing lamp v in the instrument cluster flashes.
However, the ESP
® will then not stabilize the
vehicle.

105 Safety and Security
Driving safety systems
Switching on the ESP®
Press ESP® switch1.
The ESP
® warning lampv in the
instrument cluster goes out.
You are now again in normal driving
mode with the ESP
® switched on.
For more information, see the “Practical
hints” section (
page 414).
EBP
The EBP enhances braking effectiveness
by allowing the rear brakes to supply a
greater proportion of the braking effort
without a loss of vehicle stability.
For more information, see the “Practical
hints” section (
page 416) and
(
page 446).
Warning!G
When the ESP® warning lampv is
illuminated continuously, the ESP® is
switched off or is not operational due to a
malfunction.
Adapt your speed and driving to the prevail-
ing road conditions and to the non-operating
status of the ESP
®.
!Avoid spinning of a drive wheel for an
extended period of time with the ESP® switched
off. This may cause serious damage to the
drivetrain which is not covered by the
Mercedes-Benz Limited Warranty.
Warning!G
If the EBP is malfunctioning, the brake sys-
tem is still functioning. However, the rear
wheels may lock during hard braking, caus-
ing you to lose control over the vehicle and
possibly causing an accident. Adjust your
driving style to the non-operating status of
the EBP.

106 Safety and Security
Anti-theft systems
Immobilizer
The immobilizer prevents unauthorized
persons from starting your vehicle.
Activating
With the SmartKey
Remove the SmartKey from the starter
switch.
With KEYLESS-GO*
Press the KEYLESS-GO start/stop
button (
page 41) once.
The engine is turned off.
Open the driver’s door.Deactivating
With the SmartKey
Turn the SmartKey in the starter switch
to position2 (
page 39).
With KEYLESS-GO*
Switch on the ignition (page 39).
Anti-theft alarm system
Once the alarm system has been armed, a
visual and audible alarm is triggered when
someone opens

a door

the tailgate

the hood
The alarm will stay on, even if the activat-
ing element (a door, for example) is imme-
diately closed.
The alarm system will also be triggered
when

the vehicle is opened with the mechan-
ical key, see “Unlocking the vehicle”
(
page 474)

a door is opened from the inside, see
“Opening the doors from the inside”
(
page 118)
iStarting the engine will also deactivate the
immobilizer.
In case the engine cannot be started (yet the
vehicle’s battery is charged), the system is not
operational. Contact an authorized
Mercedes-Benz Light Truck Center or call
1-800-FOR-MERCedes (in the USA), or
1-800-387-0100 (in Canada).

107 Safety and Security
Anti-theft systems
Arming the alarm system
The alarm system indicator lamp is located
to the lower left of the hazard warning
flasher.
1Alarm system indicator lamp
Lock the vehicle with the SmartKey or
with KEYLESS-GO* (
page 67).
The turn signal lamps flash three times
to indicate that the vehicle is locked.
Alarm system indicator lamp 1 starts
flashing.
Disarming the alarm system
Unlock the vehicle with the SmartKey
or with KEYLESS-GO* (
page 38).
The turn signal lamps flash once to
indicate that the vehicle is disarmed.
Alarm system indicator lamp 1 goes
out.Canceling the alarm
With the SmartKey
Insert the SmartKey in the starter
switch.
or
Press theŒ or ‹button on the
SmartKey.
With KEYLESS-GO*
Grasp an outside door handle.
The SmartKey with KEYLESS-GO must
be within 3 ft (1 m) of the vehicle.
or
Press the KEYLESS-GO start/stop
button (
page 41).
The SmartKey with KEYLESS-GO must
be inside the vehicle.
iIf the alarm stays on for more than
30 seconds, a call to the Response Center is
initiated automatically by the Tele Aid* system
(
page 322) provided that the Tele Aid* service
was subscribed to and properly activated, and
that necessary cellular service and GPS cover-
age are available.
iIf the turn signal lamps do not flash three
times, one of the following elements may not be
properly closed:

a door

the tailgate
Close the respective element and lock the
vehicle again.
iThe alarm system will rearm automatically
again after approximately 40 seconds if neither a
door nor the tailgate is opened.

108

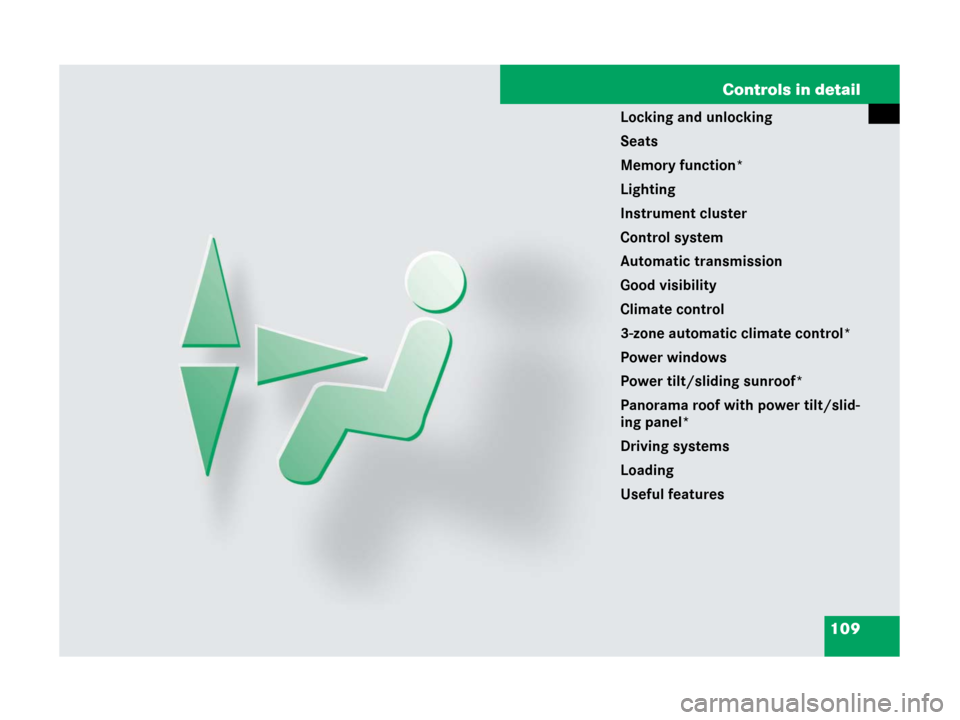

109 Controls in detail
Locking and unlocking
Seats
Memory function*
Lighting
Instrument cluster
Control system
Automatic transmission
Good visibility
Climate control
3-zone automatic climate control*
Power windows
Power tilt/sliding sunroof*
Panorama roof with power tilt/slid-
ing panel*
Driving systems
Loading
Useful features

110 Controls in detail
In the “Controls in detail” section you will
find detailed information on how to oper-
ate the equipment installed in your vehicle.
If you are already familiar with the basic
functions of your vehicle, this section will
be of particular interest to you.
To quickly familiarize yourself with the ba-
sic functions of the vehicle, refer to the
“Getting started” section of this manual.
The corresponding page numbers are
given at the beginning of each segment.
Locking and unlocking
For more information on locking and un-
locking, see the “Getting started” section
(
page 38) and (page 67).
SmartKey
Your vehicle comes supplied with two
SmartKeys, each with remote control and
a removable mechanical key.
The SmartKey provides an extended oper-
ating range. To prevent theft, however, it is
advisable to only unlock the vehicle when
you are in close proximity to it.
The SmartKey centrally locks and unlocks:

the doors

the tailgate

the fuel filler flap
SmartKey with remote control
1‹Lock button
2ŠUnlock button* for tailgate
3Locking tab for mechanical key
4ŒUnlock button
5Battery check lamp
6ÂPanic button (
page 98)

111 Controls in detail
Locking and unlocking
Warning!G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. It is possible
for children to open a locked door from the
inside, which could result in an accident
and/or serious personal injury.
!To prevent possible malfunction, avoid ex-
posing the SmartKey to high levels of electro-
magnetic radiation.
iUSA only:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful
interference, and
(2) this device must accept any interference
received, including interference that may
cause undesired operation.
Any unauthorized modification to this device
could void the user’s authority to operate the
equipment.
iCanada only:
This device complies with RSS-210 of Industry
Canada. Operation is subject to the following
two conditions:
(1) This device may not cause interference, and
(2) this device must accept any interference
received, including interference that may
cause undesired operation of the device.
Any unauthorized modification to this device
could void the user’s authority to operate the
equipment.
iYou can also open and close

the door windows

the hinged quarter windows*

the tilt/sliding sunroof*

the tilt/sliding panel*
using the SmartKey, see “Summer opening
feature” (
page 244) and “Convenience clos-
ing feature” (
page 245).
!If you cannot lock or unlock the vehicle with
the SmartKey, the batteries in the SmartKey are
discharged, the SmartKey is malfunctioning, or
the vehicle battery is drained.

Check the batteries in the SmartKey and
replace them if necessary (
page 479).

Use the mechanical key to unlock the
driver’s door (
page 474).

Lock the vehicle as described in the
“Practical hints” section (
page 475).

Have the vehicle battery and the vehicle
battery connections checked (
page 503).
If the SmartKey is malfunctioning, contact
Roadside Assistance or an authorized
Mercedes-Benz Light Truck Center.
