2008 MERCEDES-BENZ R350 Owner's Manual

48 Getting started
Adjusting
Make sure that

you can reach the steering wheel with
your arms slightly bent at the elbows

you can move your legs freely

all displays (including malfunction and
indicator lamps) on the instrument
cluster are clearly visible
The steering wheel adjustment stalk is
located on the lower left of the steering
column.1Adjusting steering wheel, in or out
2Adjusting steering wheel, up or down
Adjusting steering wheel in or out
Move stalk forward or back in direction
of arrow1.
Adjusting steering wheel up or down
Move stalk up or down in direction of
arrow2.
Mirrors
Adjust the interior and exterior rear view
mirrors before driving so that you have
a good view of the road and traffic
conditions.
Interior rear view mirror
Manually adjust the interior rear view
mirror.
For more information, see “Rear view
mirrors” (
page 203).
Exterior rear view mirrors
iThe memory function* (page 141) lets
you store the settings for the steering wheel
together with the settings for seat positions and
the exterior rear view mirrors.
Warning!G
Exercise care when using the
passenger-side exterior rear view mirror.
The mirror surface is convex (outwardly
curved surface for a wider field of view).
Objects in mirror are closer than they ap-
pear. Check your interior rear view mirror or
glance over your shoulder before changing
lanes.

49 Getting started
Adjusting
The buttons are located on the driver’s
door control panel.
1Driver’s side exterior rear view mirror
button
2Adjustment button
3Passenger-side exterior rear view
mirror button
Switch on the ignition (page 39).
Press button1 for the driver’s side
exterior rear view mirror or
button3for the passenger-side
exterior rear view mirror.
The indicator lamp on the respective
button comes on for approximately
15 seconds.
Push adjustment button2up, down,
left, or right according to the desired
setting.
For more information, see “Rear view
mirrors” (
page 203).
iIf you do not make adjustments to the
selected exterior rear view mirror within
15 seconds, the indicator lamp goes out. You will
then have to select the desired exterior rear view
mirror again before any adjustments can be
made. Adjustments can only be made with the
indicator lamp for the respective exterior rear
view mirror button illuminated.
!If an exterior rear view mirror was forcibly
pushed forward (hit from the rear) or forcibly
pushed rearward (hit from the front), reposition
it by applying firm pressure until it snaps into
place. The mirror housing is then properly
positioned and you can adjust the mirror in the
usual manner.
!Vehicles with power folding exterior rear
view mirrors*:
If an exterior rear view mirror housing is forcibly
pushed forward (hit from the rear) or forcibly
pushed rearward (hit from the front) press fold
button1 (
page 205) to fold mirrors in, then
press fold button1 (
page 205) again to fold
mirrors out. Do not force mirrors by hand as this
may damage the adjustment mechanism.
The mirror housing is then properly positioned
and you can adjust the mirror in the usual man-
ner.
Please make sure both rear view mirrors are
folded out before driving off.
iThe memory function* (page 141) lets
you store the settings for the exterior rear view
mirrors together with the setting for the steering
wheel and the seat positions.
At low ambient temperatures, the exterior rear
view mirrors will be heated automatically.

50 Getting started
Driving

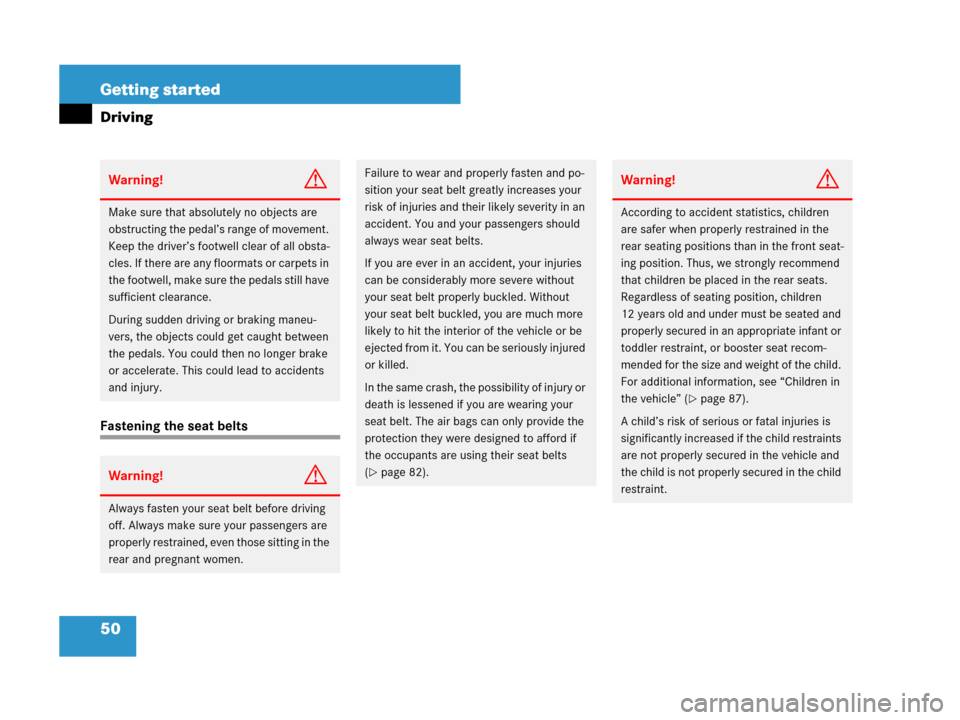

Fastening the seat belts
Warning!G
Make sure that absolutely no objects are
obstructing the pedal’s range of movement.
Keep the driver’s footwell clear of all obsta-
cles. If there are any floormats or carpets in
the footwell, make sure the pedals still have
sufficient clearance.
During sudden driving or braking maneu-
vers, the objects could get caught between
the pedals. You could then no longer brake
or accelerate. This could lead to accidents
and injury.
Warning!G
Always fasten your seat belt before driving
off. Always make sure your passengers are
properly restrained, even those sitting in the
rear and pregnant women.
Failure to wear and properly fasten and po-
sition your seat belt greatly increases your
risk of injuries and their likely severity in an
accident. You and your passengers should
always wear seat belts.
If you are ever in an accident, your injuries
can be considerably more severe without
your seat belt properly buckled. Without
your seat belt buckled, you are much more
likely to hit the interior of the vehicle or be
ejected from it. You can be seriously injured
or killed.
In the same crash, the possibility of injury or
death is lessened if you are wearing your
seat belt. The air bags can only provide the
protection they were designed to afford if
the occupants are using their seat belts
(
page 82).
Warning!G
According to accident statistics, children
are safer when properly restrained in the
rear seating positions than in the front seat-
ing position. Thus, we strongly recommend
that children be placed in the rear seats.
Regardless of seating position, children
12 years old and under must be seated and
properly secured in an appropriate infant or
toddler restraint, or booster seat recom-
mended for the size and weight of the child.
For additional information, see “Children in
the vehicle” (
page 87).
A child’s risk of serious or fatal injuries is
significantly increased if the child restraints
are not properly secured in the vehicle and
the child is not properly secured in the child
restraint.

51 Getting started
Driving

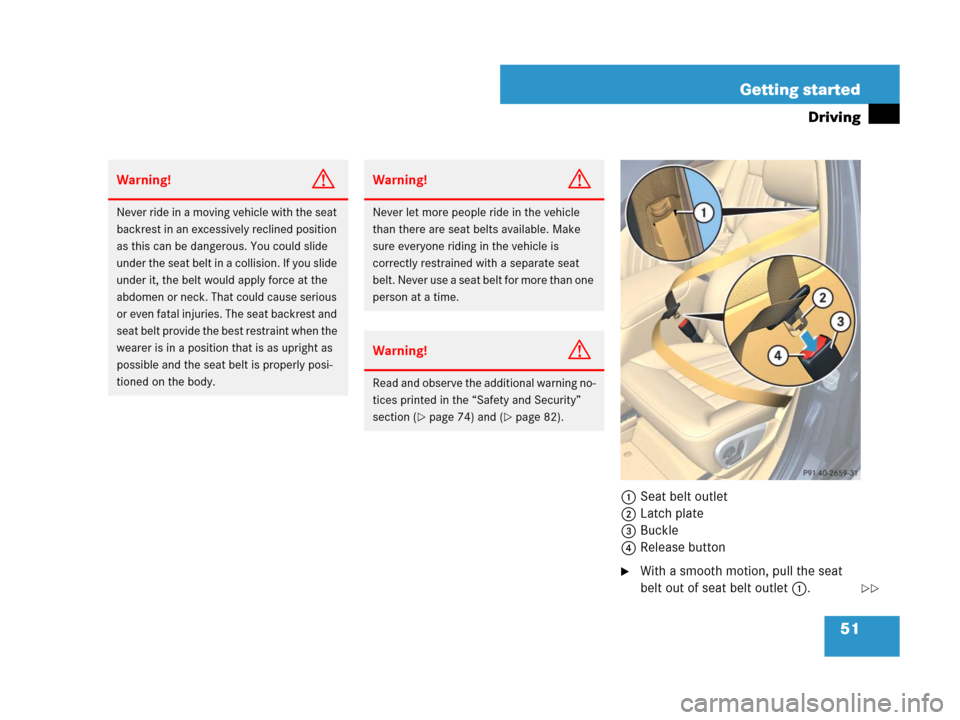

1Seat belt outlet
2Latch plate
3Buckle
4Release button
With a smooth motion, pull the seat
belt out of seat belt outlet1.
Warning!G
Never ride in a moving vehicle with the seat
backrest in an excessively reclined position
as this can be dangerous. You could slide
under the seat belt in a collision. If you slide
under it, the belt would apply force at the
abdomen or neck. That could cause serious
or even fatal injuries. The seat backrest and
seat belt provide the best restraint when the
wearer is in a position that is as upright as
possible and the seat belt is properly posi-
tioned on the body.
Warning!G
Never let more people ride in the vehicle
than there are seat belts available. Make
sure everyone riding in the vehicle is
correctly restrained with a separate seat
belt. Never use a seat belt for more than one
person at a time.
Warning!G
Read and observe the additional warning no-
tices printed in the “Safety and Security”
section (
page 74) and (page 82).


52 Getting started
Driving
Place the shoulder portion of the seat
belt across the top of your shoulder
and the lap portion across your hips.
Push latch plate2 into buckle3
(
page 51) until it clicks.
If necessary, tighten the lap portion of
the seat belt to a snug fit by pulling
shoulder portion up.
Seat belt height adjustment
1Release button
Press release button1 and move the
seat belt height adjuster upward or
downward.Proper use of seat belts

Do not twist the seat belt when fasten-
ing.

Adjust seat belt so that the shoulder
portion is located as close as possible
to the middle of the shoulder (it should
not touch the neck). Never pass the
shoulder portion of the seat belt under
your arm. For this purpose, you can
adjust the height of the seat belt outlet
(
page 52).

Position the lap belt as low as possible
on your hips (over hip joint) and not
across the abdomen.

Place the seat backrest in a position
that is as upright as possible.

Never use a seat belt for more than one
person at a time.

Do not fasten a seat belt around a per-
son and another object at the same
time. When using a seat belt to secure
infant or toddler restraints or children
in booster seats, always follow the
child seat manufacturer’s instructions.

Check your seat belt periodically
during travel to make sure that it is
properly positioned.

Make sure the seat belt is always fitted
snugly. Take special care of this when
wearing loose clothing.
Warning!G
Do not pass seat belts over sharp edges.
They could tear.
Do not allow the seat belt to get caught in
the door or in the seat adjustment mecha-
nism. This could damage the seat belt.
Never attempt to make modifications to
seat belts. This could impair the effective-
ness of the belts.
Do not bleach or dye seat belts as this may
severely weaken them. In a crash, they may
not be able to provide adequate protection.
Damaged seat belts or seat belts that were
highly stressed in an accident must be
replaced. Contact an authorized
Mercedes-Benz Light Truck Center.


53 Getting started
Driving
Starting the engine Automatic transmission
Gearshift pattern for automatic
transmission
PPark position
RReverse gear
NNeutral
DDrive position
For information on how to operate the
gear selector lever, see “Automatic
transmission” (
page 190).Starting with the SmartKey
For information on turning off the engine
with the SmartKey, see “Turning off the en-
gine” (
page 66).
Gasoline engine:
Make sure the automatic transmission
is set toP.
The transmission position indicator in
the multifunction display should be
on
P.
Do not depress the accelerator.
Turn the SmartKey in the starter switch
to position3 (
page 40) and hold until
the engine starts.
Warning!G
Inhalation of exhaust gas is hazardous to
your health. All exhaust gas contains carbon
monoxide (CO), and inhaling it can cause
unconsciousness and possible death.
Do not run the engine in confined areas
(such as a garage) which are not properly
ventilated. If you think that exhaust gas
fumes are entering the vehicle while driving,
have the cause determined and corrected
immediately. If you must drive under these
conditions, drive only with at least one
window fully open.
iYou can also use the “touch-start” function.
Turn the SmartKey to position3 and release it
again immediately. The engine then starts auto-
matically.

54 Getting started
Driving
Diesel engine:
Make sure the automatic transmission
is set toP.
The transmission position indicator in
the multifunction display should be
on
P.
Do not depress the accelerator.
Turn the SmartKey in the starter switch
to position2 (
page 40).
Preglow indicator lampqin the
instrument cluster comes on.
As soon as preglow indicator
lampq goes out, turn the SmartKey
in the starter switch to position3
(
page 40) and release it.
The engine starts automatically.Starting with KEYLESS-GO*
You can start your vehicle without the
SmartKey in the starter switch using the
KEYLESS-GO start/stop button in the
starter switch.
The SmartKey with KEYLESS-GO must be
located in the vehicle.
KEYLESS-GO start/stop button
1USA only
2Canada only
Make sure the KEYLESS-GO start/stop
button is inserted in the starter
switch (
page 41).
For information on turning off the engine
with KEYLESS-GO, see “Turning off with
KEYLESS-GO*” (
page 66).
iIf the engine is at operating temperature,
preglow indicator lampqmay not stay on
and you can start the engine without preglowing.
Warning!G
As long as the SmartKey with KEYLESS-GO
is in your vehicle, the vehicle can be started.
Therefore, never leave children unattended
in the vehicle, as they could otherwise
accidentally start the engine.
When leaving the vehicle, always take the
SmartKey with KEYLESS-GO with you and
lock the vehicle. Do not leave children
unattended in the vehicle, or with access to
an unlocked vehicle.
iIf you wish to start the engine using the
SmartKey instead of the KEYLESS-GO feature,
remove the KEYLESS-GO start/stop button from
the starter switch (
page 41).

55 Getting started
Driving
Gasoline engine
Make sure the automatic transmission
is set toP.
The transmission position indicator in
the multifunction display should be
on
P.
Depress the brake pedal during the
starting procedure.
Do not depress the accelerator.
Press the KEYLESS-GO start/stop
button once.
The engine starts if the SmartKey with
KEYLESS-GO is in the vehicle.Diesel engine
Make sure the automatic transmission
is set toP.
The transmission position indicator in
the multifunction display should be
on
P.
Depress the brake pedal during the
starting procedure.
Do not depress the accelerator.
Press the KEYLESS-GO start/stop
button once.
The engine preglows and starts if the
SmartKey with KEYLESS-GO is in the
vehicle.Starting difficulties
If the engine does not start as described,
carry out the following steps:
If you are starting the engine with the
SmartKey, turn SmartKey in starter
switch to position0 and repeat starting
procedure.
If you are starting the engine with
KEYLESS-GO*: Close any doors that
may be open to allow for better
detection of the SmartKey with
KEYLESS-GO.
or
Remove KEYLESS-GO start/stop
button from starter switch.
Start the engine with the SmartKey as
radio signals from another source may
be interfering with the SmartKey with
KEYLESS-GO*.iIf the engine is at operating temperature,
the time the engine needs to preglow is reduced.
