2008 MERCEDES-BENZ R350 Owner's Manual

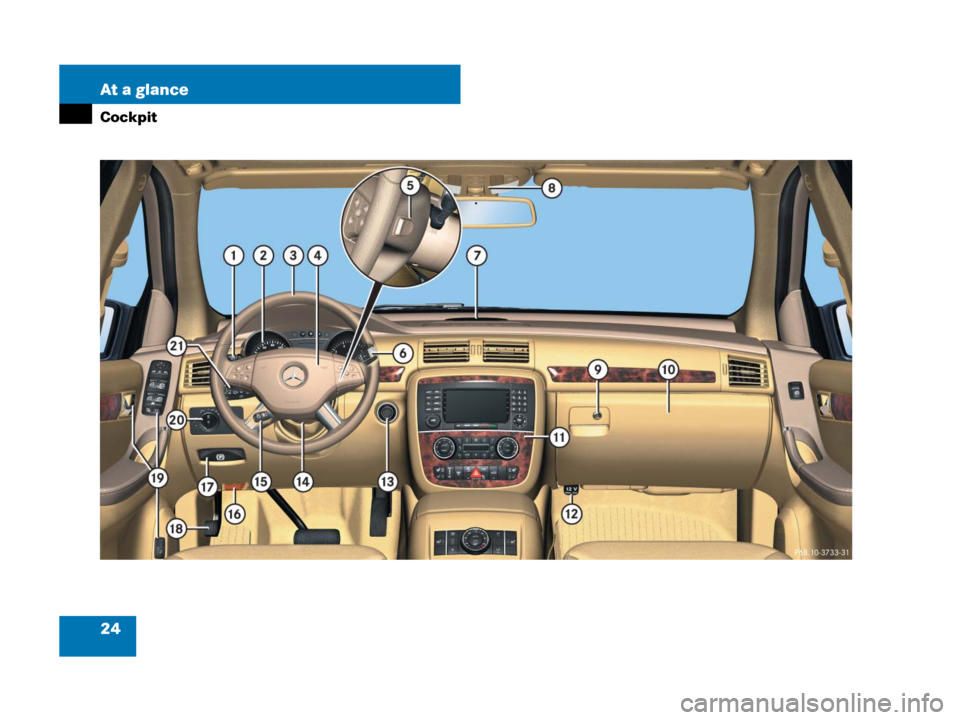

24 At a glance
Cockpit

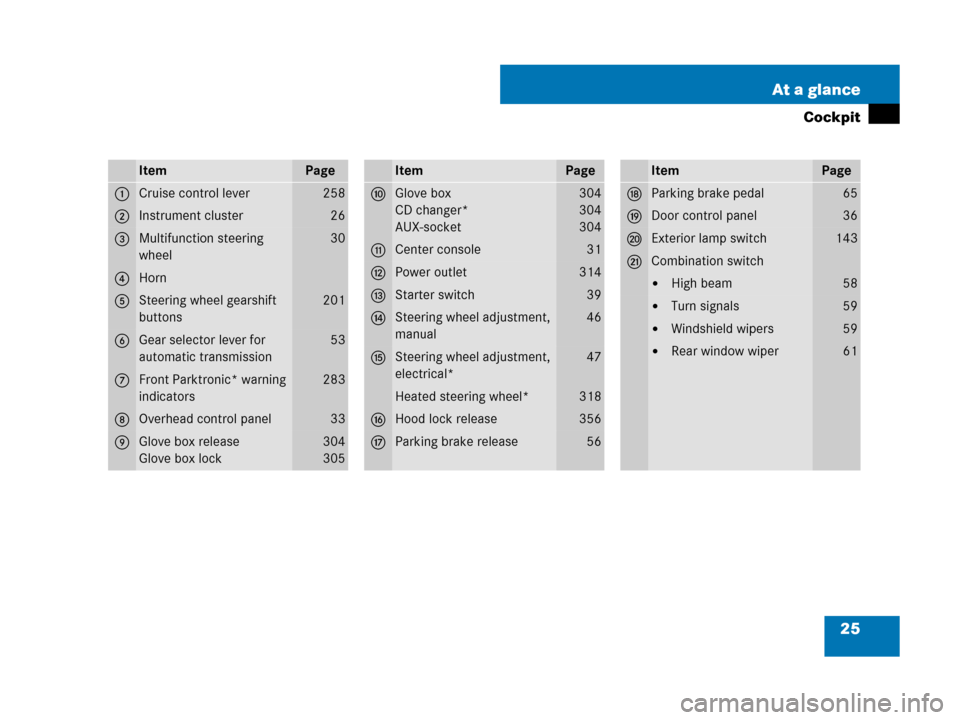

25 At a glance
Cockpit
ItemPage
1Cruise control lever258
2Instrument cluster26
3Multifunction steering
wheel30
4Horn
5Steering wheel gearshift
buttons201
6Gear selector lever for
automatic transmission53
7Front Parktronic* warning
indicators283
8Overhead control panel33
9Glove box release
Glove box lock304
305
ItemPage
aGlove box
CD changer*
AUX-socket304
304
304
bCenter console31
cPower outlet314
dStarter switch39
eSteering wheel adjustment,
manual46
fSteering wheel adjustment,
electrical*47
Heated steering wheel*318
gHood lock release356
hParking brake release56
ItemPage
jParking brake pedal65
kDoor control panel36
lExterior lamp switch143
mCombination switch

High beam58

Turn signals59

Windshield wipers59

Rear window wiper61

26 At a glance
Instrument cluster

27 At a glance
Instrument cluster
ItemPage
1LLeft turn signal
indicator lamp
2To dim instrument cluster
illumination154
3Reset button for:

Resetting trip odometer

Resetting all settings
155
171
4To brighten instrument
cluster illumination154
5KRight turn signal
indicator lamp
6Clock176
ItemPage
7Speedometer with:
-Antilock Brake
System (ABS)
indicator lamp414
’Variable speed limiter
indicator lamp1
lDistance warning
lamp2262,
414
1Lamp without function. It illuminates when the
ignition is on. It should go out when the engine is
running.
2Vehicles without Distronic*: Warning lamp without
function. It illuminates when the ignition is on.
It should go out when the engine is running.
ItemPage
;Brake warning lamp,
USA only415
3Brake warning lamp,
Canada only415
vElectronic Stability
Program (ESP®)
warning lamp
419
HCombination low tire
pressure/TPMS
malfunction telltale,
USA only422
Low tire pressure
telltale*, Canada only422

28 At a glance
Instrument cluster

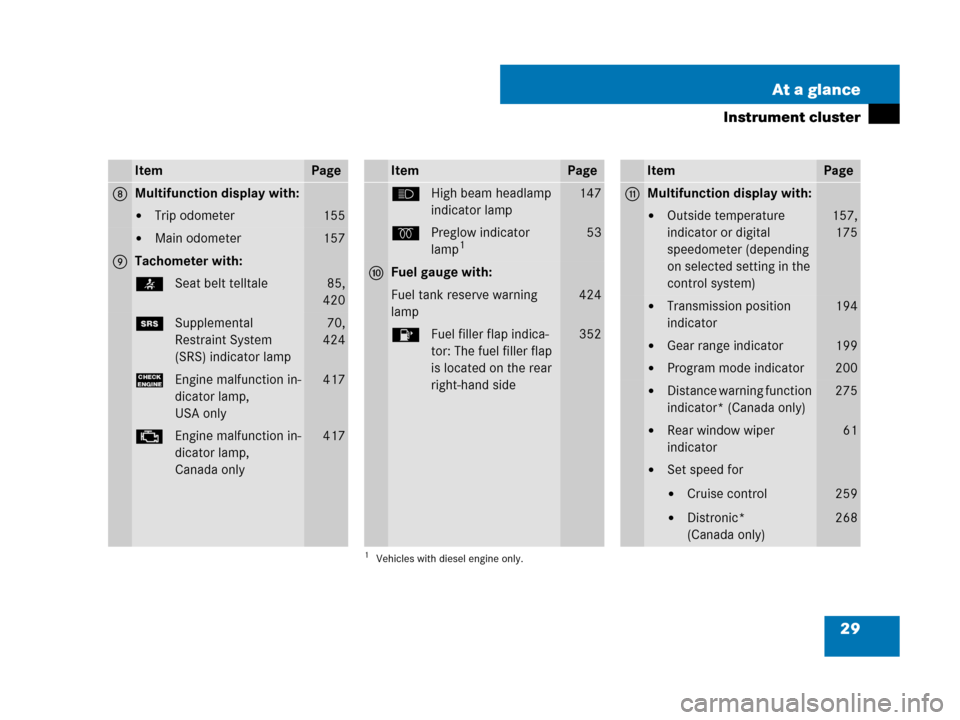

29 At a glance
Instrument cluster
ItemPage
8Multifunction display with:

Trip odometer155

Main odometer157
9Tachometer with:
420
1Supplemental
Restraint System
(SRS) indicator lamp70,
424
?Engine malfunction in-
dicator lamp,
USA only417
±Engine malfunction in-
dicator lamp,
Canada only417
ItemPage
AHigh beam headlamp
indicator lamp147
qPreglow indicator
lamp153
aFuel gauge with:
Fuel tank reserve warning
lamp424
4Fuel filler flap indica-
tor: The fuel filler flap
is located on the rear
right-hand side352
1Vehicles with diesel engine only.
ItemPage
bMultifunction display with:

Outside temperature
indicator or digital
speedometer (depending
on selected setting in the
control system)157,
175

Transmission position
indicator194

Gear range indicator199

Program mode indicator200

Distance warning function
indicator* (Canada only)275

Rear window wiper
indicator61

Set speed for

Cruise control

Distronic*
(Canada only)
259
268

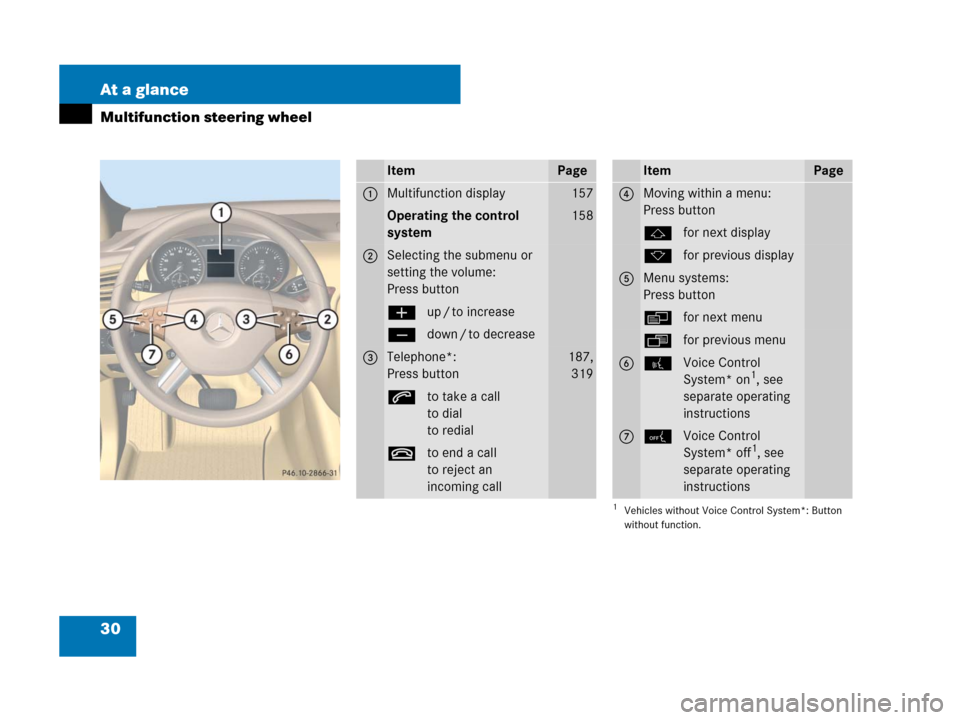

30 At a glance
Multifunction steering wheel
ItemPage
1Multifunction display157
Operating the control
system158
2Selecting the submenu or
setting the volume:
Press button
æup / to increase
çdown / to decrease
3Telephone*:
Press button187,
319
sto take a call
to dial
to redial
tto end a call
to reject an
incoming call
ItemPage
4Moving within a menu:
Press button
jfor next display
kfor previous display
5Menu systems:
Press button
èfor next menu
ÿfor previous menu
6! Voice Control
System* on1, see
separate operating
instructions
70 Voice Control
System* off1, see
separate operating
instructions
1Vehicles without Voice Control System*: Button
without function.

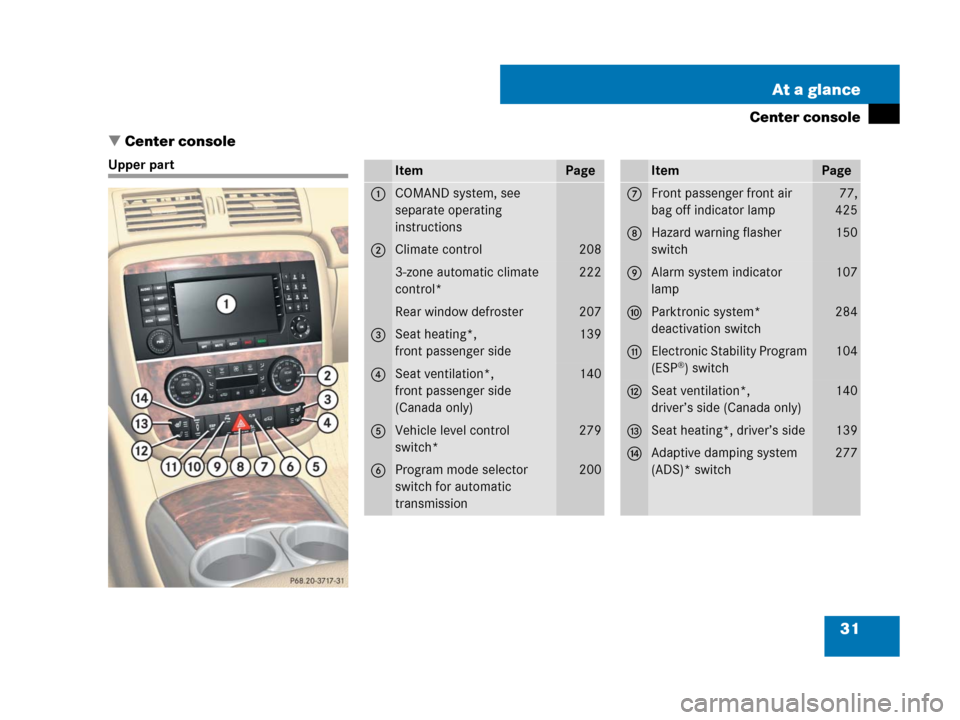

31 At a glance
Center console
Center console
Upper partItemPage
1COMAND system, see
separate operating
instructions
2Climate control208
3-zone automatic climate
control*222
Rear window defroster207
3Seat heating*,
front passenger side139
4Seat ventilation*,
front passenger side
(Canada only)140
5Vehicle level control
switch*279
6Program mode selector
switch for automatic
transmission200
ItemPage
7Front passenger front air
bag off indicator lamp 77,
425
8Hazard warning flasher
switch150
9Alarm system indicator
lamp107
aParktronic system*
deactivation switch284
bElectronic Stability Program
(ESP®) switch
104
cSeat ventilation*,
driver’s side (Canada only)140
dSeat heating*, driver’s side139
eAdaptive damping system
(ADS)* switch277
