FUEL FILLER LID OPENER
BL-57
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 November2007 350Z
3. CHECK FUEL LID OPEN OUTPUT SIGNAL
Check voltage between BCM connector and ground.
OK or NG
OK >> GO TO 4.
NG >> Replace BCM. Refer to BCS-17, "
Removal and Installation of BCM" .
4. CHECK FUEL LID OPENER ACTUATOR CIRCUIT
1. Disconnect BCM connector and fuel lid opener actuator connector.
2. Check continuity between BCM harness connector B83 terminal
70 and fuel lid opener actuator harness connector T19 terminal
1.
3. Check continuity between fuel lid opener actuator harness con-
nector T19 terminal 1 and ground.
OK or NG
OK >> GO TO 5.
NG >> Repair harness or connector.
5. CHECK FUEL LID OPENER ACTUATOR GROUND CIRCUIT
Check continuity between fuel lid opener actuator harness connector
T19 terminal 2 and ground.
OK or NG
OK >> Replace fuel lid opener actuator.
NG >> Repair harness or connector.
ConnectorTerminal
(Wire color)
ConditionVoltage [V]
(Approx.)
(+) (–)
B83 70 (W/L) GroundFuel lid opener switch
ONBattery voltage
(for 0.5s)
Fuel lid opener switch
OFF0
PIIB1264E
70 (W/L) - 1 (W/L) : Continuity should exist.
1 (W/L) - ground : Continuity should not exist.
PIIB1265E
2 (B) - ground : Continuity should exist.
PIIA8090E

BL-58
FUEL FILLER LID OPENER
Revision: 2006 November2007 350Z

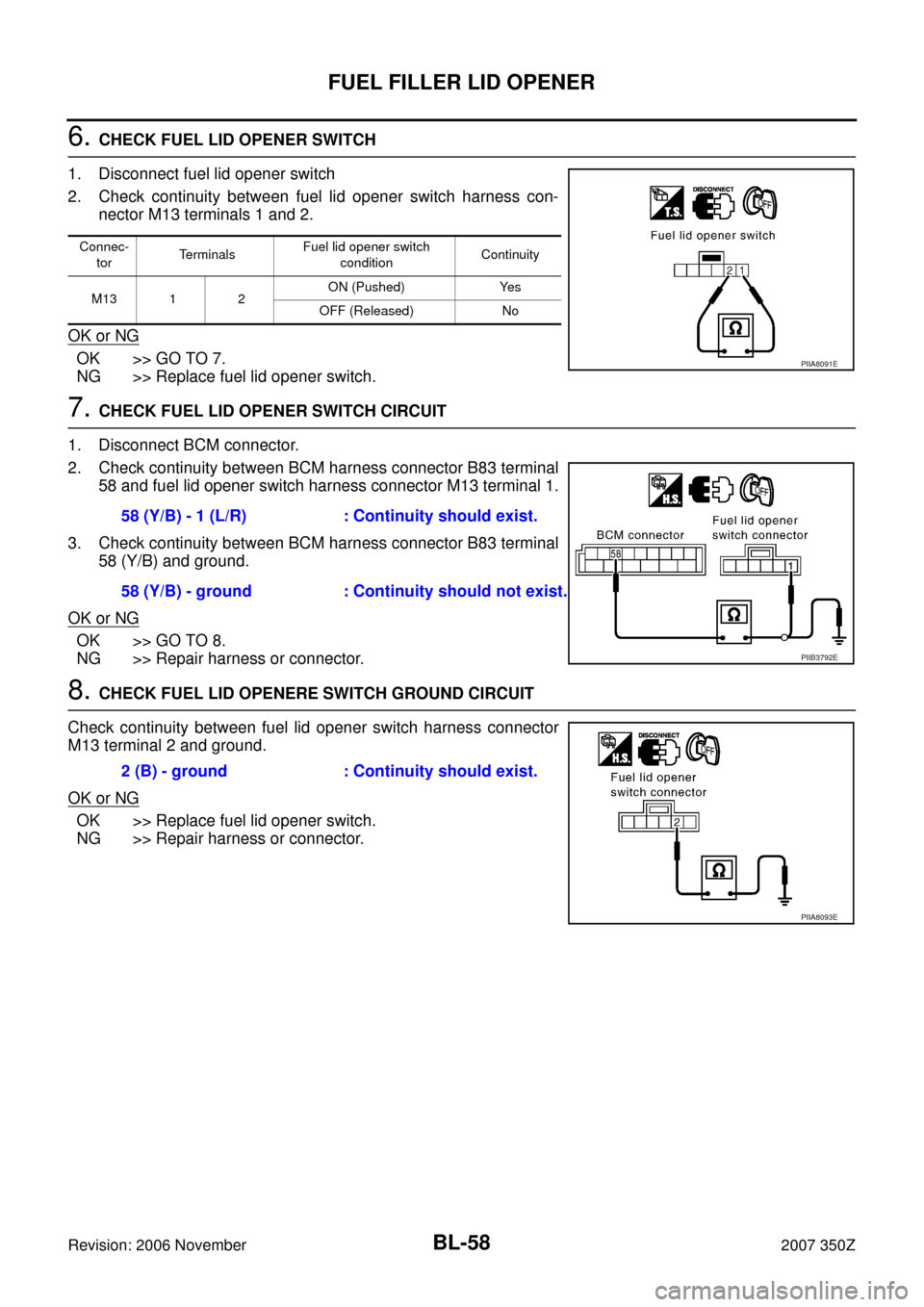

6. CHECK FUEL LID OPENER SWITCH
1. Disconnect fuel lid opener switch
2. Check continuity between fuel lid opener switch harness con-
nector M13 terminals 1 and 2.
OK or NG
OK >> GO TO 7.
NG >> Replace fuel lid opener switch.
7. CHECK FUEL LID OPENER SWITCH CIRCUIT
1. Disconnect BCM connector.
2. Check continuity between BCM harness connector B83 terminal
58 and fuel lid opener switch harness connector M13 terminal 1.
3. Check continuity between BCM harness connector B83 terminal
58 (Y/B) and ground.
OK or NG
OK >> GO TO 8.
NG >> Repair harness or connector.
8. CHECK FUEL LID OPENERE SWITCH GROUND CIRCUIT
Check continuity between fuel lid opener switch harness connector
M13 terminal 2 and ground.
OK or NG
OK >> Replace fuel lid opener switch.
NG >> Repair harness or connector.
Connec-
torTerminalsFuel lid opener switch
conditionContinuity
M13 1 2ON (Pushed) Yes
OFF (Released) No
PIIA8091E
58 (Y/B) - 1 (L/R) : Continuity should exist.
58 (Y/B) - ground : Continuity should not exist.
PIIB3792E
2 (B) - ground : Continuity should exist.
PIIA8093E

REMOTE KEYLESS ENTRY SYSTEM
BL-59
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 November2007 350Z
REMOTE KEYLESS ENTRY SYSTEMPFP:28596
Component Parts and Harness Connector LocationNIS00014
FOR COUPE
PIIB7456E

BL-60
REMOTE KEYLESS ENTRY SYSTEM
Revision: 2006 November2007 350Z
FOR ROADSTER
PIIB9172E

REMOTE KEYLESS ENTRY SYSTEM
BL-61
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 November2007 350Z
System DescriptionNIS00015
INPUTS
Power is supplied at all times

through 40A fusible link (letter F , located in the fuse and fusible link box)

to BCM terminal 55,

through 10A fuse [No.18, located in the fuse block (J/B)]

to BCM terminal 42,

through 10A fuse [No. 21, located in the fuse block (J/B)]

to key switch terminal 2.
When the ignition switch is ON or START position, power is supplied

through 10A fuse [No.1, located in the fuse block (J/B)]

to BCM terminal 38.
When the ignition switch is ACC or ON position, power is supplied

through 10A fuse [No. 6, located in the fuse block (J/B)]

to BCM terminal 11.
Ground is supplied

to BCM terminal 52

through body grounds M30 and M66.
When the driver side door switch is ON (door is OPEN), ground is supplied

to BCM terminal 62

through driver side door switch terminal 1 and

through driver door switch case ground.
When the passenger side door switch is ON (door is OPEN), ground is supplied

to BCM terminal 12

through passenger side door switch terminal 1 and

through passenger side door switch case ground.
When the back door switch (For coupe models) is ON (door is OPEN), ground is supplied

to BCM terminal 58

through the back door switch terminals 1 and 3 and

through body grounds B5, B6, D105 and T14.
When the trunk lid lock assembly (trunk room lamp switch) (For roadster models) is ON (trunk is OPEN),
ground is supplied

to BCM terminal 57

through the trunk room lamp switch terminals 3 and 1 and

through body grounds B5,B6 and T14.
When the key switch is ON (key is inserted in ignition key cylinder), power is supplied

through key switch terminals 2 and 1

to BCM terminal 37.
Key fob signal is inputted to remote keyless entry receiver (the antenna of the system is built in remote keyless
entry receiver).
Remote keyless entry receiver sends keyfob signal

to BCM terminal 20

from remote keyless entry receiver terminal 2.
The remote keyless entry system controls operation of the

power door lock

hazard and horn reminder

auto door lock

interior lamp and step lamp

panic alarm

BL-62
REMOTE KEYLESS ENTRY SYSTEM
Revision: 2006 November2007 350Z

back door opener (For coupe)

trunk lid opener (For roadster)

keyless power window down (open)
OPERATION PROCEDURE
Power Door Lock Operation
BCM receives a LOCK signal from key fob. BCM locks all doors receiving of LOCK signal from key fob.
When an UNLOCK signal is sent from key fob once, driver's door will be unlocked.
Then, if an UNLOCK signal is sent from key fob again within 5 seconds, all other doors will be unlocked.
Hazard Reminder
When the doors are locked or unlocked by key fob, power is supplied to hazard warning lamp and it flashes as
follows

LOCK operation: C mode (flash twice) or S mode (flash twice)

UNLOCK operation: C mode (flash once) or S mode (does not flash)
Horn Reminder
BCM output to IPDM E/R for horn reminder signal as DATA LINE (CAN H line and CAN L line).
The horn reminder has C mode (horn chirp mode) and S mode (non-horn chirp mode).
Operating function of hazard and horn reminder
Hazard and horn reminder does not operate if any door switch is ON (any door is OPEN).
How to change hazard and horn reminder mode
With CONSULT-III
Hazard and horn reminder can be changed using “WORK SUPPORT” mode in “MULTI ANSWER BACK SET”.
Refer to BL-73, "
Work Support" .
Without CONSULT-III
When LOCK and UNLOCK signals are sent from the key fob for more than 2 seconds at the same time, the
hazard and horn reminder mode is changed and hazard warning lamp flashes and horn sounds as follows:
Auto Door Lock Operation
Auto lock function signal is sent for operation when any of the following signals are not sent within 1 minute
after the unlock signal is sent from the key fob:

when door switch is turned ON for open.

when the key switch is turned ON.

when the lock signal is sent from the key fob.
Auto door lock mode can be changed using “WORK SUPPORT” mode in “AUTO LOCK SET”.
Refer to BL-73, "
Work Support" .
C mode S mode
Remote controller
operationLock Unlock Lock Unlock
Hazard warning lamp
flashTwice Once Twice —
Horn sound Once — — —
SEL153WA

REMOTE KEYLESS ENTRY SYSTEM
BL-63
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 November2007 350Z
Interior Lamp and Step Lamp Operation
When the following conditions come:

condition of interior lamp switch is DOOR position;

door switch OFF (when all the doors are closed);
Remote keyless entry system turns on interior lamp (for 30 seconds) with input of UNLOCK signal from key
fob.
For detailed description, refer to LT- 1 3 0 , "
MAP LAMP TIMER OPERATION" .
Panic Alarm Operation
When key switch is OFF (when ignition key is not inserted in key cylinder), BCM turns on and off horn and
headlamp intermittently with input of PANIC ALARM signal from key fob.
The alarm automatically turns off after 25 seconds or when BCM receives any signal from key fob.
For detailed description, refer to BL-128, "
PANIC ALARM OPERATION" .
Back Door Operation/For Coupe
When a BACK DOOR OPEN signal is sent with key OFF (ignition key removed from key cylinder) from key
fob, power is supplied through BCM terminal 19.
When power and ground are supplied, back door opener actuator opens back door.
Trunk Opener Operation/For Roadster
When a TRUNK OPEN signal is sent with key OFF (ignition key removed from key cylinder) from key fob,
power is supplied through BCM terminal 19.
When power and ground are supplied, trunk lid opener actuator opens trunk.
Keyless Power Window Down (open) Operation
When key fob unlock switch is turned ON with ignition switch OFF, and key fob unlock switch is detected to be
on continuously for 3 seconds, the driver's door and passenger's door power windows are simultaneously
opened.
Power window is operated to open and the operation continues as long as the key fob unlock switch is
pressed.
CAN Communication System DescriptionNIS00016
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
CAN Communication UnitNIS00017
Refer to LAN-4, "CAN Communication System"

BL-64
REMOTE KEYLESS ENTRY SYSTEM
Revision: 2006 November2007 350Z
Schematic NIS00018
TIWT2193E
