VEHICLE SECURITY (THEFT WARNING) SYSTEM
BL-145
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 November2007 350Z

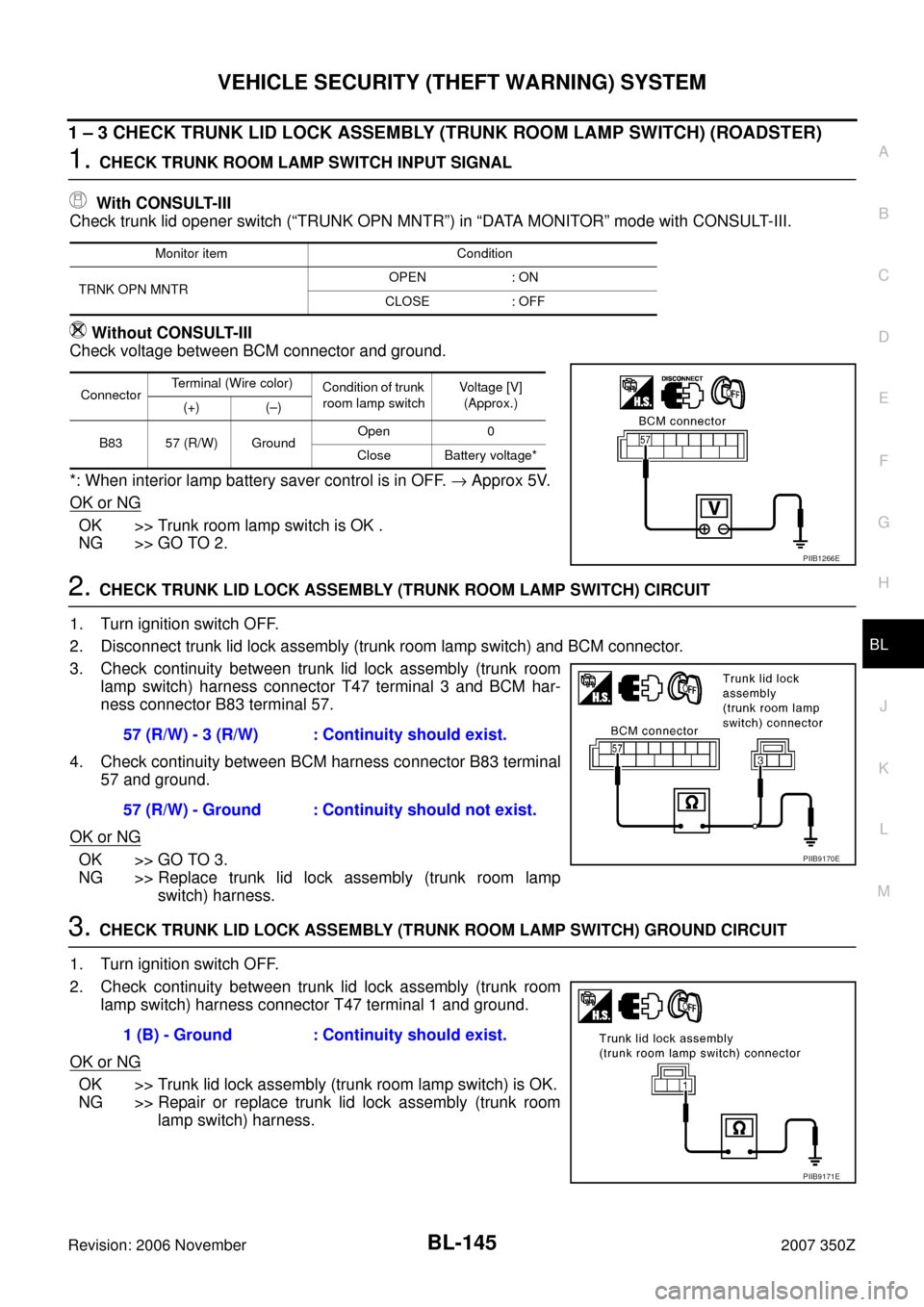

1 – 3 CHECK TRUNK LID LOCK ASSEMBLY (TRUNK ROOM LAMP SWITCH) (ROADSTER)
1. CHECK TRUNK ROOM LAMP SWITCH INPUT SIGNAL
With CONSULT-III
Check trunk lid opener switch (“TRUNK OPN MNTR”) in “DATA MONITOR” mode with CONSULT-III.
Without CONSULT-III
Check voltage between BCM connector and ground.
*: When interior lamp battery saver control is in OFF. → Approx 5V.
OK or NG
OK >> Trunk room lamp switch is OK .
NG >> GO TO 2.
2. CHECK TRUNK LID LOCK ASSEMBLY (TRUNK ROOM LAMP SWITCH) CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect trunk lid lock assembly (trunk room lamp switch) and BCM connector.
3. Check continuity between trunk lid lock assembly (trunk room
lamp switch) harness connector T47 terminal 3 and BCM har-
ness connector B83 terminal 57.
4. Check continuity between BCM harness connector B83 terminal
57 and ground.
OK or NG
OK >> GO TO 3.
NG >> Replace trunk lid lock assembly (trunk room lamp
switch) harness.
3. CHECK TRUNK LID LOCK ASSEMBLY (TRUNK ROOM LAMP SWITCH) GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Check continuity between trunk lid lock assembly (trunk room
lamp switch) harness connector T47 terminal 1 and ground.
OK or NG
OK >> Trunk lid lock assembly (trunk room lamp switch) is OK.
NG >> Repair or replace trunk lid lock assembly (trunk room
lamp switch) harness.
Monitor item Condition
TRNK OPN MNTROPEN : ON
CLOSE : OFF
ConnectorTerminal (Wire color)
Condition of trunk
room lamp switchVoltage [V]
(Approx.)
(+) (–)
B83 57 (R/W) GroundOpen 0
Close Battery voltage*
PIIB1266E
57 (R/W) - 3 (R/W) : Continuity should exist.
57 (R/W) - Ground : Continuity should not exist.
PIIB9170E
1 (B) - Ground : Continuity should exist.
PIIB9171E

BL-146
VEHICLE SECURITY (THEFT WARNING) SYSTEM
Revision: 2006 November2007 350Z
Diagnostic Procedure 2NIS00036
CHECK SECURITY INDICATOR LAMP
1. SECURITY INDICATOR LAMP ACTIVE TEST
With CONSULT-III
Check “THEFT IND” in “ACTIVE TEST” mode with CONSULT-III.
Without CONSULT-III
1. Disconnect BCM connector.
2. Check voltage between BCM connector M90 terminal 23 and
ground.
OK or NG
OK >> Security indicator lamp is OK.
NG >> GO TO 2.
2. CHECK POWER SUPPLY CIRCUIT FOR SECURITY INDICATOR LAMP
1. Disconnect security indicator lamp connector.
2. Check voltage between security indicator lamp connector M34 terminal 1 and ground.
OK or NG
OK >> GO TO 3.
NG >> Check the following.

10A fuse [No. 19, located in fuse block (J/B)]

Harness for open or short between security indicator
lamp and fuse
3. CHECK SECURITY INDICATOR LAMP CIRCUIT
1. Check continuity between BCM harness connector M90 terminal
23 and security indicator lamp harness connector M34 terminal
2.
2. Check continuity between BCM harness connector M90 terminal
23 and ground.
OK or NG
OK >> Check indicator lamp condition.
NG >> Repair harness or connector.Perform operation shown on display.
Indicator lamp should illuminate.
23 (G/OR) - Ground : Battery voltage
PIIA9850E
1 (R/W) - Ground : Battery voltage
PIIA2491E
23 (G/OR) - 2 (G/OR) : Continuity should exist.
23 (G/OR) - Ground : Continuity should not exist.
PIIB7462E

VEHICLE SECURITY (THEFT WARNING) SYSTEM
BL-147
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 November2007 350Z
Diagnostic Procedure 3NIS00037
CHECK DOOR KEY CYLINDER SWITCH
1. CHECK DOOR KEY CYLINDER SWITCH DRIVER SIDE OPERATION
Do doors lock/unlock when using the key?
YES or NO
YES >> Door key cylinder switch operation is OK.
NO >> Check door key cylinder switch circuit. Refer to BL-47, "
Check Door Key Cylinder Switch" .

BL-148
VEHICLE SECURITY (THEFT WARNING) SYSTEM
Revision: 2006 November2007 350Z
Diagnostic Procedure 4NIS00038
CHECK VEHICLE SECURITY HORN ALARM
First perform the “SELF-DIAG RESULTS” of “BCM” with CONSULT-III, then perform the trouble diag-
nosis of malfunction system indicated in “SELF-DIAG RESULTS” of “BCM”. Refer to BCS-16, "
CAN
Communication Inspection Using CONSULT-III (Self-Diagnosis)" .
1. CHECK HORN OPERATION
Check if horn sounds with horn switch.
Does horn operate?
YES >> GO TO 2.
NO >> Check horn circuit. Refer to WW-53, "
HORN" .
2. CHECK IPDM E/R INPUT SIGNAL
Check voltage between IPDM E/R connector E9 terminal 51 and ground.
OK or NG
OK >> Replace IPDM E/R.
NG >> GO TO 3.
3. CHECK HORN RERAY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R and horn relay connector.
3. Check continuity between IPDM E/R harness connector E9 terminal 51 and horn relay harness connector
E21 terminal 1.
OK or NG
OK >> Horn circuit is OK.
NG >> Repair or replace harness.
Diagnostic Procedure 5NIS00039
CHECK VEHICLE SECURITY HEADLAMP ALARM
1. CHECK HEAD LAMP OPERATION
Does headlamp come on when turning lighting switch “ON”?
YES or NO
YES >> Headlamp alarm circuit is OK.
NO >> Check headlamp system. Refer to,,, LT- 3 2 , "
HEADLAMP (FOR CANADA) - DAYTIME LIGHT
SYSTEM -"LT- 5 , "HEADLAMP (FOR USA)" . 51 (G/B) – Ground : Battery voltage.
PIIA6403E
1 (G/B) - 51(G/B) : Continuity should exist.
PIIA6404E

VEHICLE SECURITY (THEFT WARNING) SYSTEM
BL-149
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 November2007 350Z
Diagnostic Procedure 6NIS0003A
CHECK DOOR LOCK AND UNLOCK SWITCH
1. CHECK DOOR LOCK AND UNLOCK SWITCH INPUT SIGNAL
Does doors lock/unlock when using power window main switch (door lock and unlock switch) or power window
sub-switch (door lock and unlock switch)?
YES or NO?
YES >> Door lock and unlock switch is OK.
NO >> Refer to BL-42, "
Check Door Lock and Unlock Switch" .

BL-150
NVIS (NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS)
Revision: 2006 November2007 350Z
NVIS (NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS)PFP:25386
Component Parts and Harness Connector LocationNIS0003B
NOTE:
If customer reports a “No start” condition, request ALL KEYS to be brought to an NISSAN dealer in
case of a NVIS (NATS) malfunction.
PIIB7461E

NVIS (NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS)
BL-151
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 November2007 350Z
System DescriptionNIS0003C
NVIS (Nissan Vehicle Immobilizer System-NATS) has the following immobilizer functions:

Since only NVIS (NATS) ignition keys, whose ID Nos. have been registered into the ECM and BCM, allow
the engine to run, a vehicle operation without a key registered in NVIS (NATS) is prevented by NVIS
(NATS).
That is to say, NVIS (NATS) will immobilize the engine if someone tries to start it without the registered
key of NVIS (NATS).

All of the originally supplied ignition key IDs (except for card plate key) have been registered in NVIS
(NATS).
If requested by the vehicle owner, a maximum of five key IDs can be registered into the NVIS (NATS)
components.

The security indicator blinks when the ignition switch is in “OFF” or “ACC” position. Therefore, NVIS
(NATS) warns outsiders that the vehicle is equipped with the anti-theft system.

When NVIS (NATS) detects trouble, the security indicator lamp lights up while ignition key is in the “ON”
position.

NVIS (NATS) trouble diagnoses, system initialization and additional registration of other NVIS (NATS)
ignition key IDs must be carried out using CONSULT-III hardware and CONSULT-III NVIS (NATS) soft-
ware.
When NVIS (NATS) initialization has been completed, the ID of the inserted ignition key is automatically
registered in NVIS (NATS). Then, if necessary, additional registration of other NVIS (NATS) ignition key
IDs can be carried out.
Regarding the procedures of NVIS (NATS) initialization and NVIS (NATS) ignition key ID registration, refer
to CONSULT-III Operation Manual NATS-IVIS/NVIS.

When servicing a malfunction of the NVIS (NATS) (indicated by lighting up of Security Indicator
Lamp) or registering another NVIS (NATS) ignition key ID No., it may be necessary to re-register
original key identification. Therefore, be sure to receive ALL KEYS from vehicle owner.

BL-152
NVIS (NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS)
Revision: 2006 November2007 350Z
System CompositionNIS0003D
The immobilizer function of the NVIS (NATS) consists of the following:

NATS ignition key

NATS antenna amp. located in the ignition key cylinder

BCM

Engine control module (ECM)

Security indicator
NOTE:
The communication between ECM and BCM uses the CAN communication system.
ECM Re-communicating FunctionNIS0003E
Performing following procedure can automatically perform re-communication of ECM and BCM, but only
when the ECM has been replaced with a new one (*1).
*1: New one means a virgin ECM which has never been energized on-board.
(In this step, initialization procedure by CONSULT-III is not necessary)
NOTE:

When registering new Key IDs or replacing the ECM other than brand new, refer to CONSULT-III
Operation Manual NATS-IVIS/NVIS.

If multiple keys are attached to the key holder, separate them before work.

Distinguish keys with unregistered key ID from those with registered ID.
1. Install ECM.
2. Using a registered key (*2), turn ignition switch to “ON”.
*2: To perform this step, use the key (except for card plate key) that has been used before performing
ECM replacement.
3. Maintain ignition switch in “ON” position for at least 5 seconds.
4. Turn ignition switch to “OFF”.
5. Start engine.
If engine can be started, procedure is completed.
If engine cannot be started, refer to CONSULT-III Operation Manual NATS-IVIS/NVIS and initialize control
unit.
PIIA1121E
