2007 NISSAN 350Z Body, Lock And Security System Workshop Manual

BODY REPAIR
BL-201
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 November2007 350Z

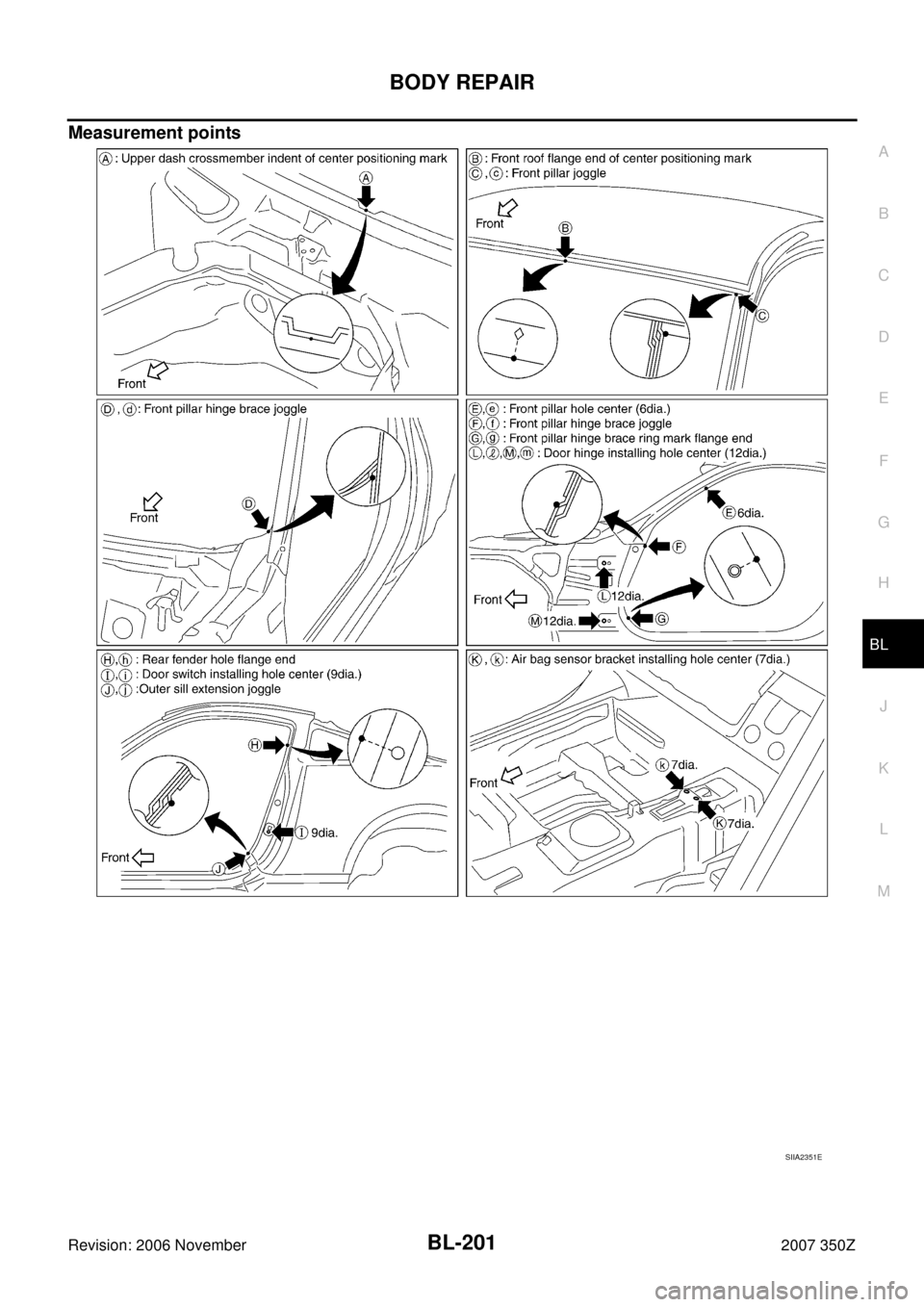

Measurement points
SIIA2351E

BL-202
BODY REPAIR
Revision: 2006 November2007 350Z

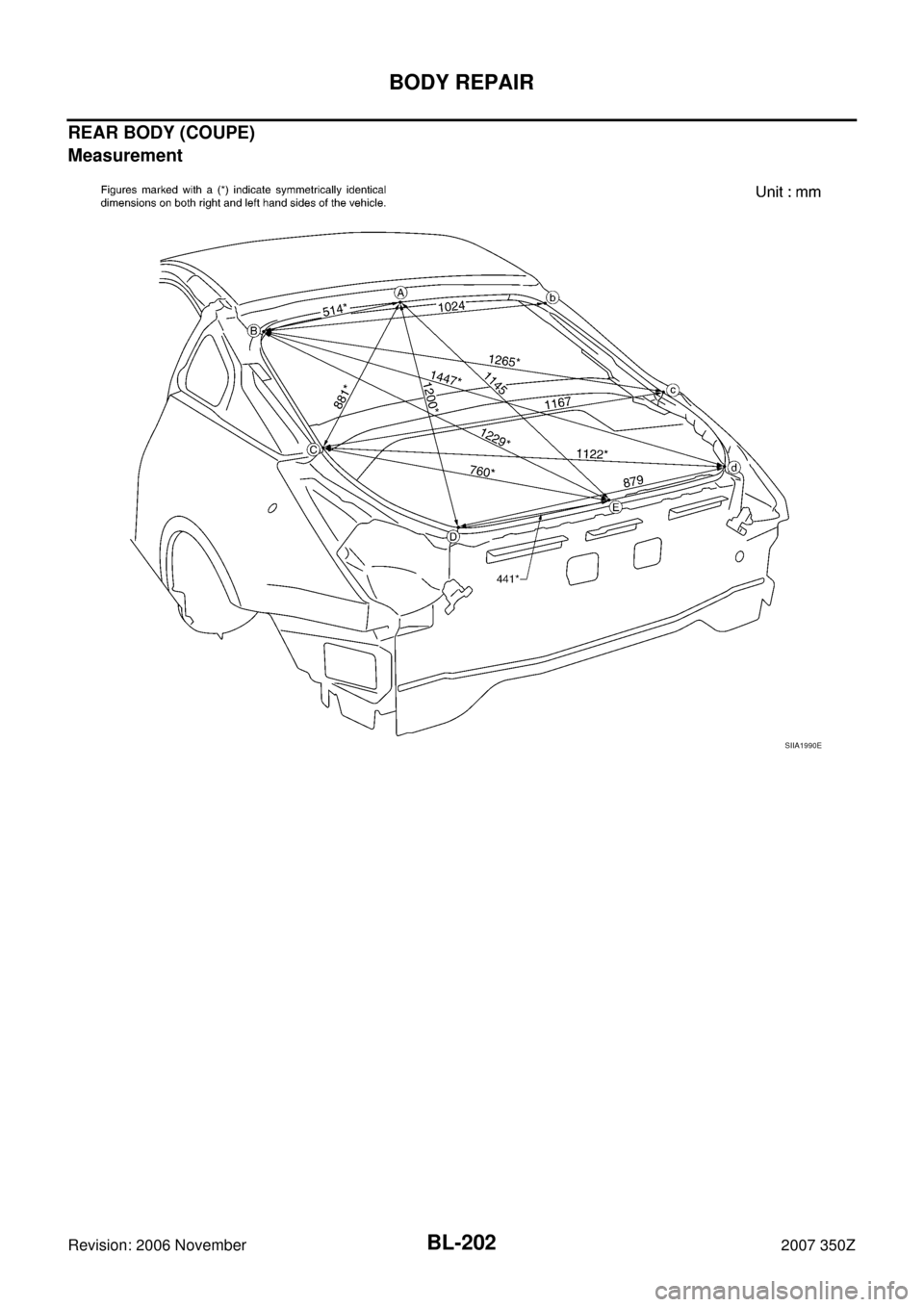

REAR BODY (COUPE)
Measurement
SIIA1990E

BODY REPAIR
BL-203
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 November2007 350Z

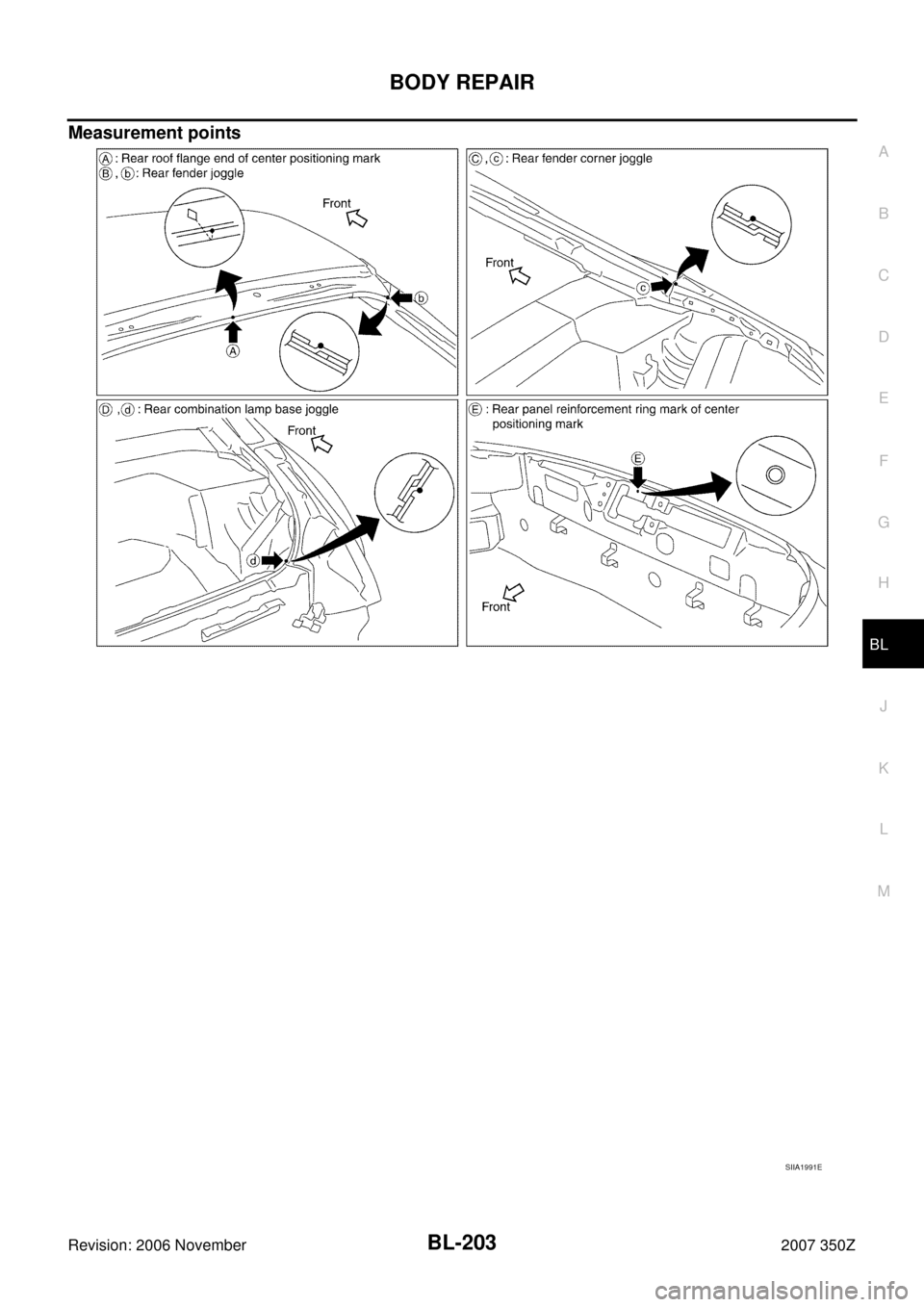

Measurement points
SIIA1991E

BL-204
BODY REPAIR
Revision: 2006 November2007 350Z
Body Alignment (Roadster)NIS00043

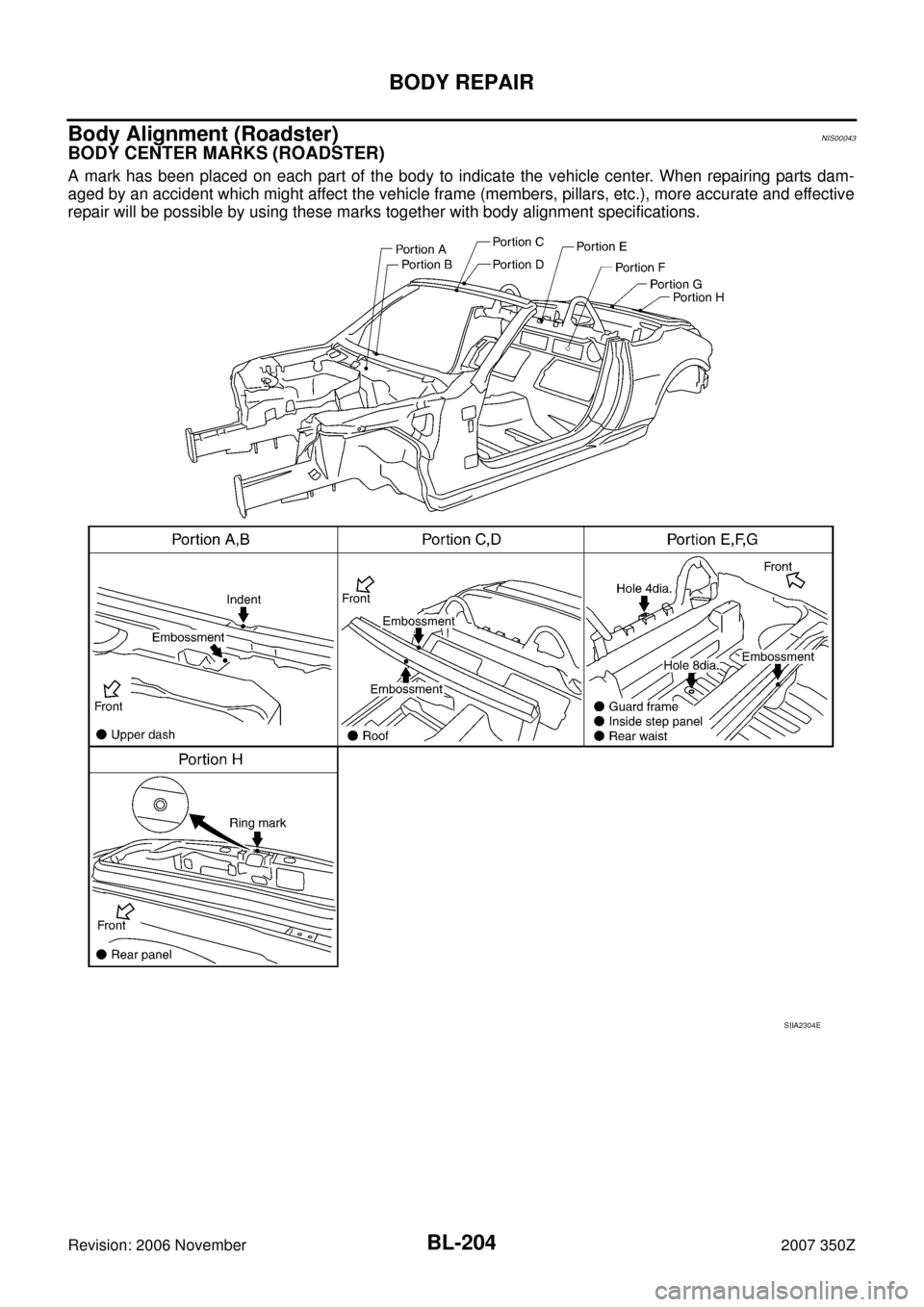

BODY CENTER MARKS (ROADSTER)
A mark has been placed on each part of the body to indicate the vehicle center. When repairing parts dam-
aged by an accident which might affect the vehicle frame (members, pillars, etc.), more accurate and effective
repair will be possible by using these marks together with body alignment specifications.
SIIA2304E

BODY REPAIR
BL-205
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 November2007 350Z

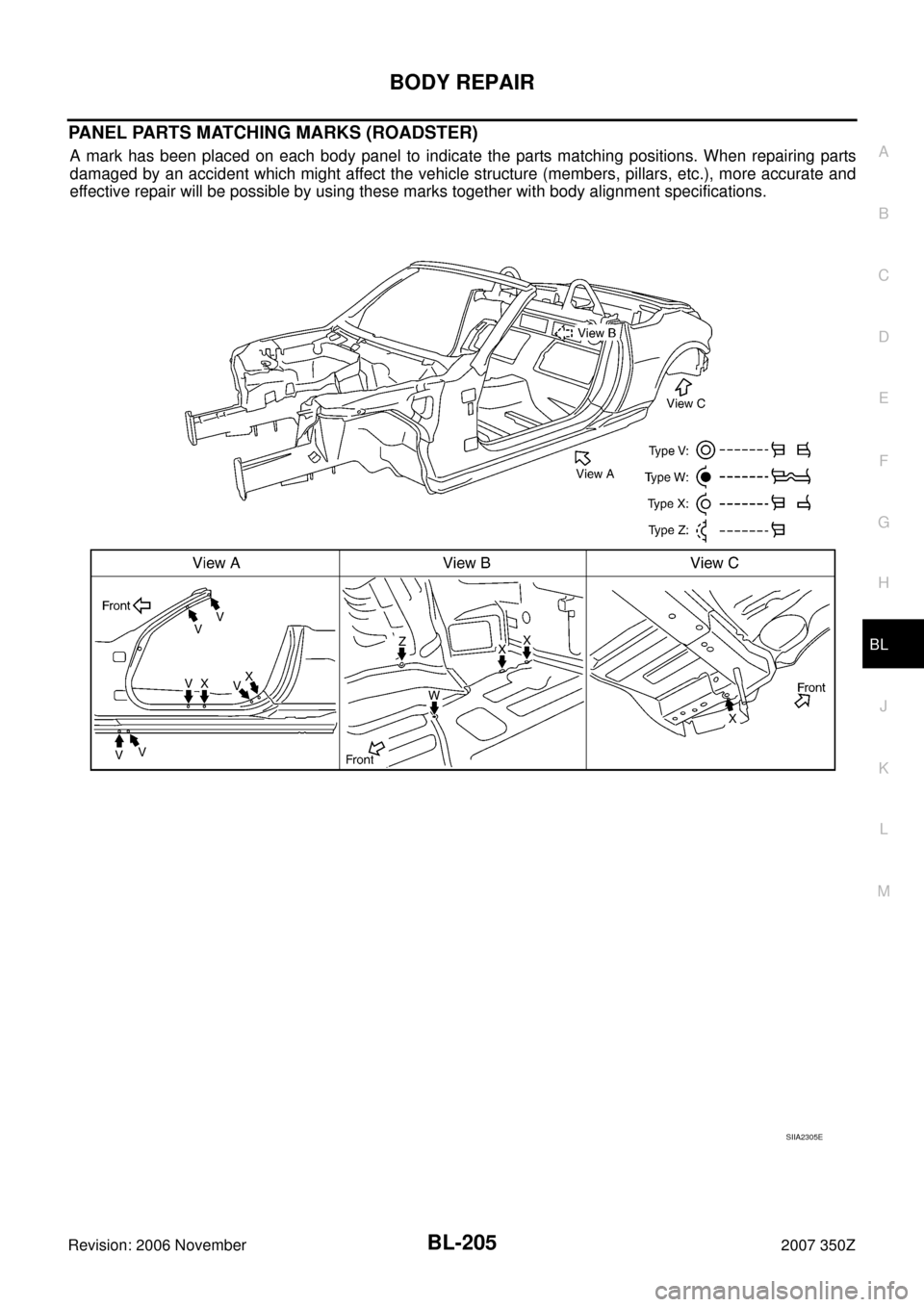

PANEL PARTS MATCHING MARKS (ROADSTER)
A mark has been placed on each body panel to indicate the parts matching positions. When repairing parts
damaged by an accident which might affect the vehicle structure (members, pillars, etc.), more accurate and
effective repair will be possible by using these marks together with body alignment specifications.
SIIA2305E

BL-206
BODY REPAIR
Revision: 2006 November2007 350Z
DESCRIPTION

All dimensions indicated in the figures are actual.

When using a tracking gauge, adjust both pointers to equal length. Then check the pointers and gauge
itself to make sure there is no free play.

When a measuring tape is used, check to be sure there is no elongation, twisting or bending.

Measurements should be taken at the center of the mounting holes.

An asterisk (*) following the value at the measuring point indicates that the measuring point on the other
side is symmetrically the same value.

The coordinates of the measurement points are the distances measured from the standard line of ″X″, ″Y″
and ″Z″.
PIIA0104E

BODY REPAIR
BL-207
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 November2007 350Z
ENGINE COMPARTMENT
Measurement
SIIA2306E

BL-208
BODY REPAIR
Revision: 2006 November2007 350Z

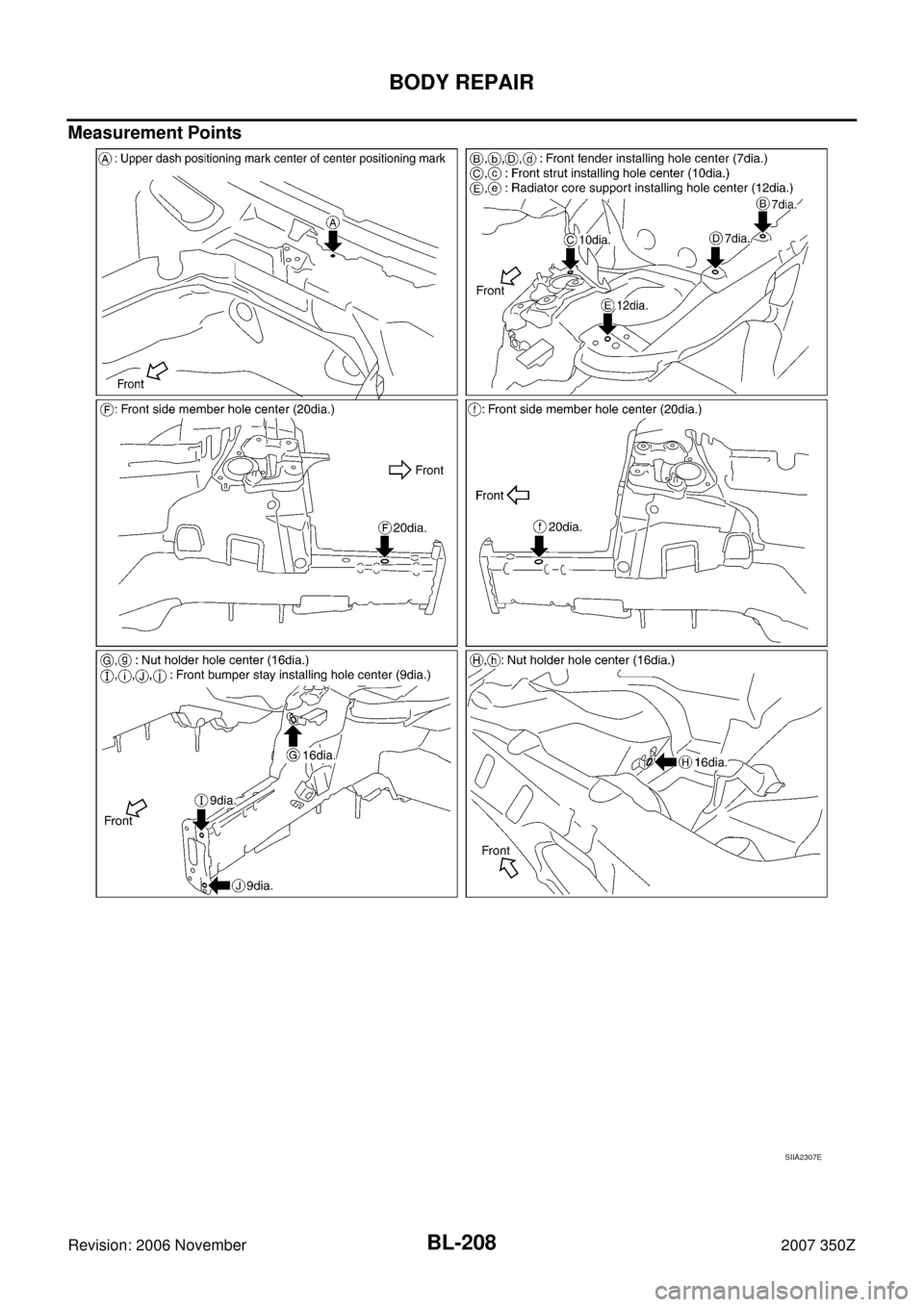

Measurement Points
SIIA2307E
