2007 NISSAN 350Z Body, Lock And Security System Workshop Manual

NVIS (NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS)
BL-161
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 November2007 350Z
5. CHECK NATS ANTENNA AMP. SIGNAL LINE- 1
Check voltage between NATS antenna amp. harness connector M28 terminal 2 and ground with analogue
tester.
OK or NG
OK >> GO TO 6.
NG >>

Check harness for open or short between NATS
antenna amp. and BCM.
NOTE:
If harness is OK, replace BCM, perform initialization
with CONSULT-III. For initialization, refer to “CONSULT-III Operation Manual NATS-IVIS/NVIS”.
6. CHECK NATS ANTENNA AMP. SIGNAL LINE- 2
Check voltage between NATS antenna amp. harness connector M28 terminal 3 and ground with analogue
tester.
OK or NG
OK >> GO TO 7.
NG >>

Check harness for open or short between NATS
antenna amp. and BCM.
NOTE:
If harness is OK, replace BCM, perform initialization
with CONSULT-III. For initialization, refer to “CONSULT-III Operation Manual NATS-IVIS/NVIS”.
7. CHECK NATS ANTENNA AMP. GROUND LINE CIRCUIT
1. Turn ignition switch “OFF”.
2. Check continuity between NATS antenna amp. connector harness M28 terminal 4 and ground.
OK or NG
OK >> NATS antenna amp. is malfunctioning. Ref. part No. E6
NG >> Replace NATS antenna amp.

Check harness for open or short between NATS
antenna amp. and BCM.
NOTE:
If harness is OK, replace BCM, perform initialization
with CONSULT-III. For initialization, refer to “CON-
SULT-III Operation Manual NATS-IVIS/NVIS”.
Diagnostic Procedure 4NIS0003N
Self-diagnostic results:
“ID DISCORD, IMM-ECM” displayed on CONSULT-III screenBefore turning ignition switch “ON”
Voltage: 0V
Just after turning ignition switch “ON”
: Pointer of tester should move.
PIIB7399E
Before turning ignition switch “ON”
Voltage: 0V
Just after turning ignition switch “ON”
: Pointer of tester should move.
PIIB7340E
4 (BR) – Ground : Continuity should exist.
PIIB7341E

BL-162
NVIS (NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS)
Revision: 2006 November2007 350Z
1. CONFIRM SELF-DIAGNOSTIC RESULTS
Confirm SELF-DIAGNOSTIC RESULTS “ID DISCORD, IMM-ECM” displayed on CONSULT-III screen.
NOTE:
“ID DISCORD IMM-ECM”:
Registered ID of BCM is in discord with that of ECM.
Is CONSULT-III screen displayed as above?
Yes >> GO TO 2.
No >> GO TO BL-156, "
SYMPTOM MATRIX CHART 1" .
2. PERFORM INITIALIZATION WITH CONSULT-III
Perform initialization with CONSULT-III. Re-register all NATS ignition key IDs.
For initialization, refer to “CONSULT-III Operation Manual NATS-IVIS/NVIS”.
NOTE:
If the initialization is not completed or malfunctions, CONSULT-III shows message on the screen.
Can the system be initialized?
Yes >> Start engine. (END)

(System initialization had not been completed. Ref. part No. F )
No >> ECM is malfunctioning.

Replace ECM. Ref. part No. B

Perform initialization with CONSULT-III.
For initialization, refer to “CONSULT-III Operation Manual NATS-IVIS/NVIS”.

NVIS (NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS)
BL-163
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 November2007 350Z
Diagnostic Procedure 5NIS0003O
“SECURITY INDICATOR LAMP DOES NOT LIGHT UP”
1. CHECK FUSE

Check 10A fuse [No.19, located in the fuse block (J/B)]
NOTE:
Refer to BL-150, "
Component Parts and Harness Connector Location" .
OK or NG
OK >> GO TO 2.
NG >> Replace fuse.
2. CHECK SECURITY INDICATOR LAMP
1. Install 10A fuse.
2. Start engine and turn ignition switch OFF.
3. Check the security indicator lamp lights up.
OK or NG
OK >> Inspection END.
NG >> GO TO 3.
3. CHECK SECURITY INDICATOR LAMP POWER SUPPLY CIRCUIT
1. Disconnect security indicator lamp connector.
2. Check voltage between security indicator lamp harness connec-
tor M34 terminal 1 and ground.
OK or NG
OK >> GO TO 4.
NG >> Check harness for open or short between fuse and
security indicator lamp.
4. CHECK BCM FUNCTION
1. Connect security indicator lamp connector.
2. Disconnect BCM (NATS connector.
3. Check voltage between BCM harness connector M90 terminal
23 and ground.
OK or NG
OK >> BCM is malfunctioning.

Replace BCM.
Ref. part No. A

Perform initialization with CONSULT-III.

For initialization, refer to “CONSULT-III Operation
Manual NATS-IVIS/NVIS”.
NG >> GO TO 5. Security indicator lamp should light up.
1 (R/W) – Ground : Battery voltage should exist.
PIIA2491E
23 (G/OR) – Ground : Battery voltage
PIIA9850E

BL-164
NVIS (NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS)
Revision: 2006 November2007 350Z
5. CHECK SECURITY INDICATOR LAMP CIRCUIT
1. Check continuity between BCM harness connector M90 terminal
23 and security indicator lamp harness connector M34 terminal
2.
OK or NG
OK >> Check indicator lamp condition.
NG >> Repair harness or connector.23 (G/OR) - 2 (G/OR) : Continuity should exist.
PIIB1274E

NVIS (NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS)
BL-165
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 November2007 350Z
Diagnostic Procedure 6NIS0003P
Self-diagnostic results:
“LOCK MODE” displayed on CONSULT-III screen
1. CONFIRM SELF-DIAGNOSTIC RESULTS
Confirm SELF-DIAGNOSTIC RESULTS “LOCK MODE” is displayed on CONSULT-III screen.
Is CONSULT-III screen displayed as above?
Ye s > > G O T O 2 .
No >> GO TO BL-156, "
SYMPTOM MATRIX CHART 1" .
2. ESCAPE FROM LOCK MODE
1. Turn ignition switch OFF.
2. Turn ignition switch ON with registered key. (Do not start engine.) Wait 5 seconds.
3. Return the key to OFF position. Wait 5 seconds.
4. Repeat steps 2 and 3 twice (total of three cycles).
5. Start the engine.
Does engine start?
Yes >> System is OK (Now system is escaped from “LOCK MODE”).
No >> GO TO 3.
3. PERFORM INITIALIZATION WITH CONSULT-III
Perform initialization with CONSULT-III.
For initialization, refer to “CONSULT-III Operation Manual NATS-IVIS/NVIS”.
NOTE:
If the initialization is not completed or malfunctions, CONSULT-III shows the message on the screen.
Can the system be initialized?
Yes >> System is OK.
No >> GO TO 4.
4. PERFORM INITIALIZATION WITH CONSULT-III AGAIN
1. Replace BCM.
2. Perform initialization with CONSULT-III.
For initialization, refer to “CONSULT-III Operation Manual NATS-IVIS/NVIS”.
NOTE:
If the initialization is not completed or malfunctions, CONSULT-III shows the message on the screen.
Can the system be initialized?
Yes >> System is OK. (BCM is malfunctioning. Ref. part No. A )
No >> ECM is malfunctioning.

Replace ECM. Ref. part No. B

Perform initialization with CONSULT-III.
For initialization, refer to “CONSULT-III Operation Manual NATS-IVIS/NVIS”.

BL-166
NVIS (NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS)
Revision: 2006 November2007 350Z
How to Replace NATS Antenna Amp.NIS0003Q
NOTE:

If NATS antenna amp. is not installed correctly, NVIS (NATS)
system will not operate properly and SELF-DIAG RESULTS
on CONSULT-III screen will show “LOCK MODE” or “CHAIN
OF IMMU-KEY”.

Initialization is not necessary only when NATS antenna
amp. is replaced with a new one.
SIIA1683E

INTEGRATED HOMELINK TRANSMITTER
BL-167
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 November2007 350Z
INTEGRATED HOMELINK TRANSMITTERPFP:96401

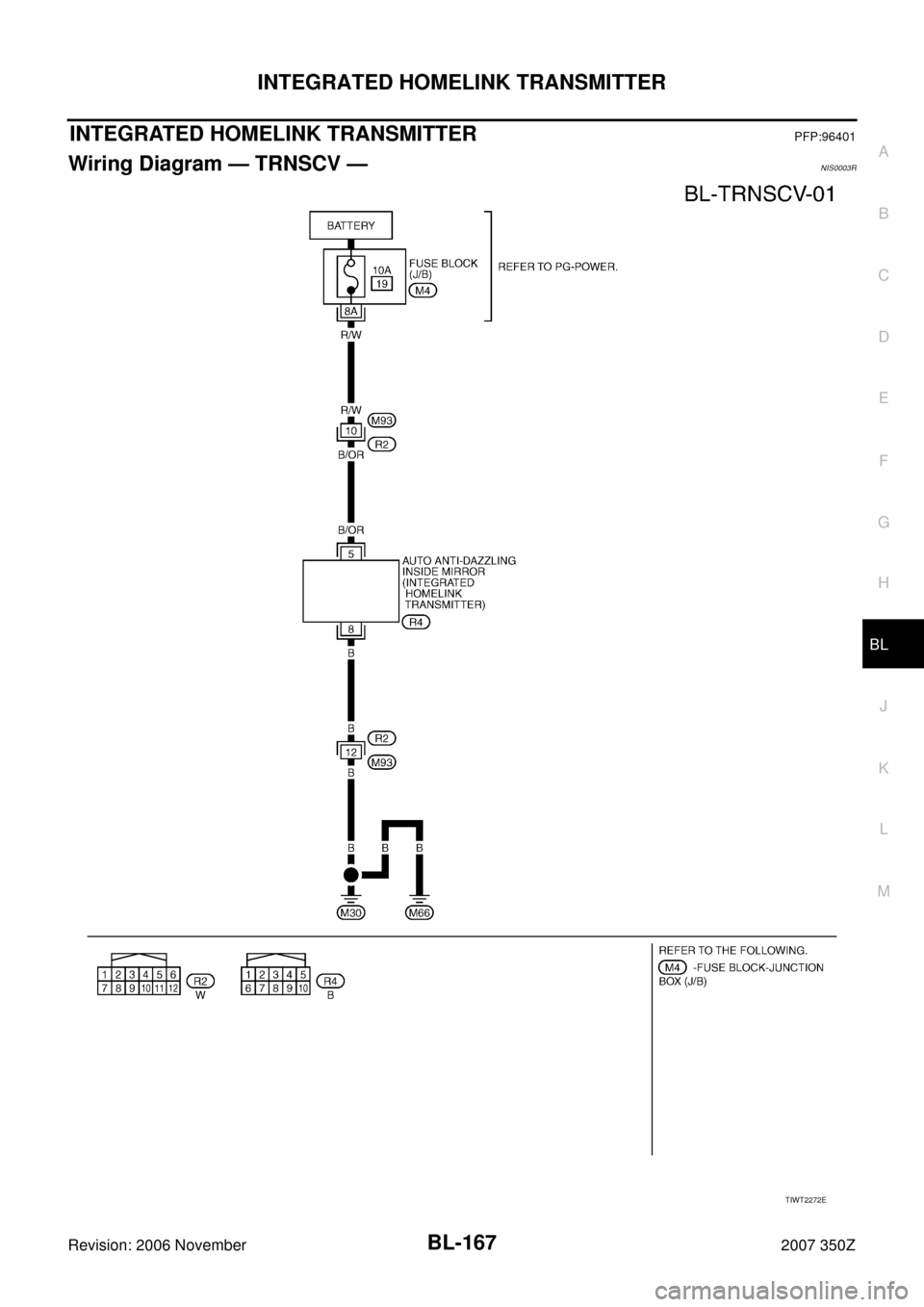

Wiring Diagram — TRNSCV —NIS0003R
TIWT2272E

BL-168
INTEGRATED HOMELINK TRANSMITTER
Revision: 2006 November2007 350Z
Trouble DiagnosesNIS0003S
DIAGNOSTIC PROCEDURE
SYMPTOM: Transmitter does not activate receiver.
Before conducting the procedure given below, make sure that system receiver (garage door opener, etc.)
operates with original, hand-held transmitter. If NG, receiver or hand-held transmitter is malfunctioning, not
vehicle related.
1. CHECK ILLUMINATION
1. Turn ignition switch “OFF”.
2. Does red light (LED) of transmitter illuminate when any transmit-
ter button is pressed?
YES or NO
YES >> GO TO 2.
NO >> GO TO 3.
2. CHECK TRANSMITTER
Check transmitter with Tool*.
*:For details, refer to Technical Service Bulletin.
OK or NG
OK >> Receiver or hand-held transmitter malfunction, not vehicle related.
NG >> Replace inside mirror assembly.
3. CHECK POWER SUPPLY
1. Disconnect transmitter connector.
2. Turn ignition switch “OFF”.
3. Check voltage between auto anti-dazzling inside mirror (integrated homelink transmitter) connector R4
terminal 5 and ground.
OK or NG
OK >> GO TO 4.
NG >>

Check 10A fuse. [No. 19 located in the fuse block (J/
B)]

Harness for open or short between fuse and anti-daz-
zling inside mirror (integrated homelink transmitter).
PIIA2371E
5 (B/OR) – Ground : Battery voltage
PIIA2370E
