2007 NISSAN 350Z Body, Lock And Security System Workshop Manual

BL-1
BODY, LOCK & SECURITY SYSTEM
I BODY
CONTENTS
C
D
E
F
G
H
J
K
L
M
SECTION BL
A
B
BL
Revision: 2006 November2007 350Z
BODY, LOCK & SECURITY SYSTEM
PRECAUTIONS .......................................................... 5
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 5
Precautions for Battery Service ................................ 5
Precautions for Work ................................................ 5
PREPARATION ........................................................... 6
Special Service Tools ............................................... 6
Commercial Service Tools ........................................ 6
SQUEAK AND RATTLE TROUBLE DIAGNOSES ..... 7

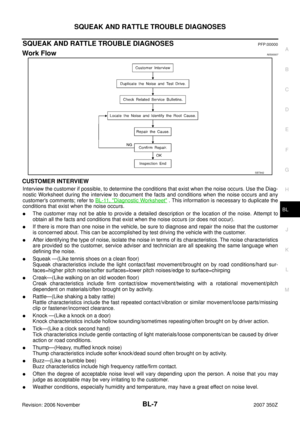

Work Flow ................................................................ 7
CUSTOMER INTERVIEW ..................................... 7
DUPLICATE THE NOISE AND TEST DRIVE ....... 8
CHECK RELATED SERVICE BULLETINS ........... 8
LOCATE THE NOISE AND IDENTIFY THE
ROOT CAUSE ...................................................... 8
REPAIR THE CAUSE ........................................... 8
CONFIRM THE REPAIR ....................................... 9
Generic Squeak and Rattle Troubleshooting ........... 9
INSTRUMENT PANEL .......................................... 9
CENTER CONSOLE ............................................. 9
DOORS ................................................................. 9
TRUNK ................................................................ 10
SUNROOF/HEADLINING ................................... 10
SEATS ................................................................. 10
UNDERHOOD ..................................................... 10

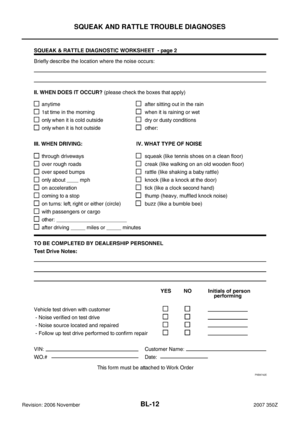

Diagnostic Worksheet ............................................. 11
HOOD ....................................................................... 13
Fitting Adjustment .................................................. 13
LONGITUDINAL AND LATERAL CLEARANCE
ADJUSTMENT .................................................... 13
FRONT END HEIGHT ADJUSTMENT ............... 13
SURFACE HEIGHT ADJUSTMENT ................... 14

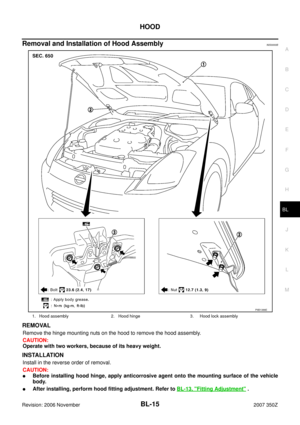

Removal and Installation of Hood Assembly .......... 15
REMOVAL ........................................................... 15
INSTALLATION ................................................... 15

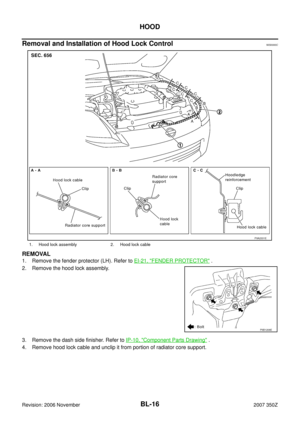

Removal and Installation of Hood Lock Control ..... 16
REMOVAL ........................................................... 16
INSTALLATION ................................................... 17
Hood Lock Control Inspection ................................ 17RADIATOR CORE SUPPORT .................................. 19

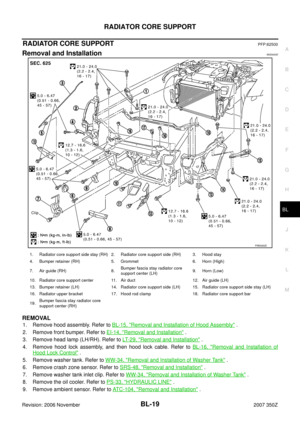

Removal and Installation ........................................ 19
REMOVAL ........................................................... 19
INSTALLATION ................................................... 20
POWER DOOR LOCK SYSTEM .............................. 21

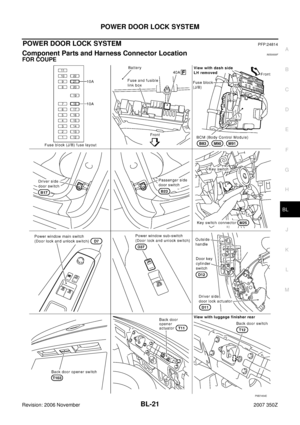

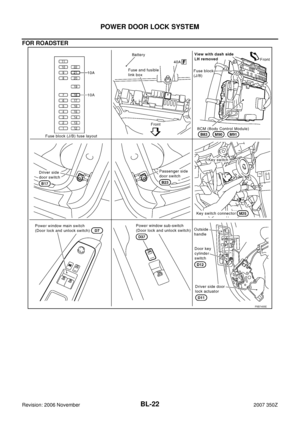

Component Parts and Harness Connector Location ... 21
FOR COUPE ....................................................... 21
FOR ROADSTER ................................................ 22
System Description ................................................. 23
POWER WINDOW SERIAL LINK ....................... 24
OUTLINE ............................................................. 24
Schematic ............................................................... 25

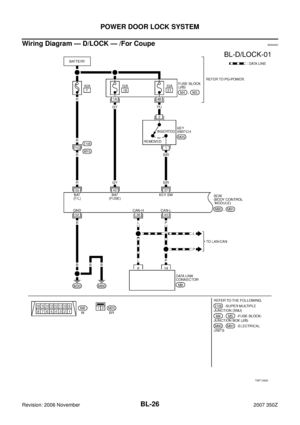

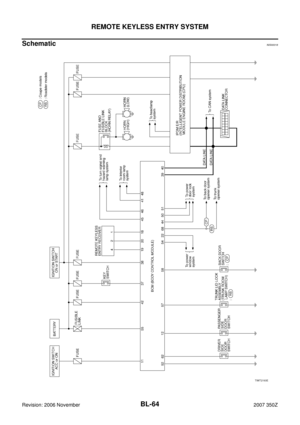

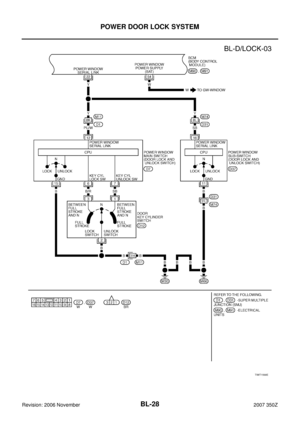

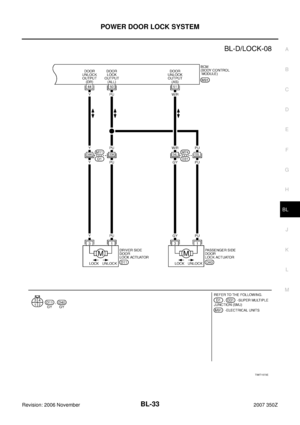

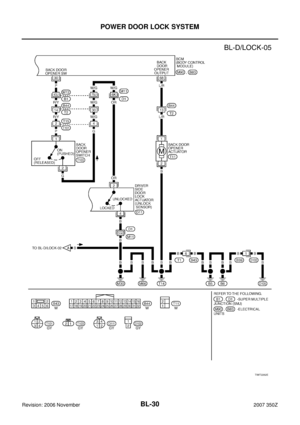

Wiring Diagram — D/LOCK — /For Coupe ............ 26

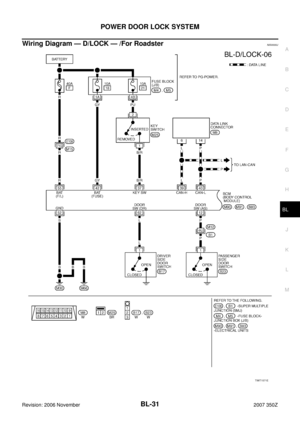

Wiring Diagram — D/LOCK — /For Roadster ........ 31
Terminals and Reference Value for BCM ............... 34

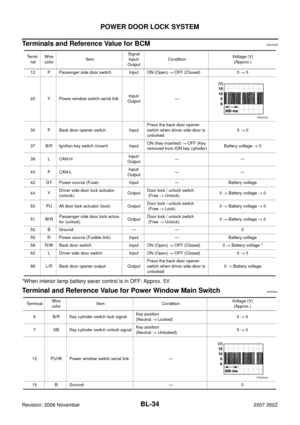

Terminal and Reference Value for Power Window
Main Switch ............................................................ 34
Work Flow ............................................................... 35
CONSULT-III Function (BCM) ................................ 35
WORK SUPPORT ............................................... 35
DATA MONITOR ................................................. 35
ACTIVE TEST ..................................................... 35
Trouble Diagnoses Symptom Chart ....................... 36

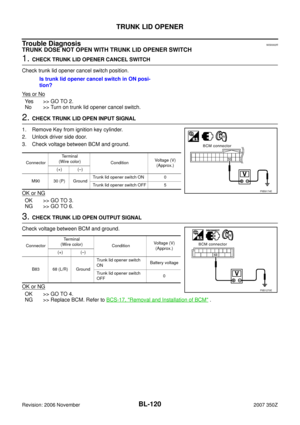

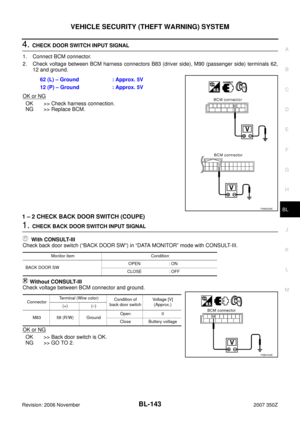

Check Power Supply and Ground Circuit of BCM ... 37
CHECK FUSE ..................................................... 37

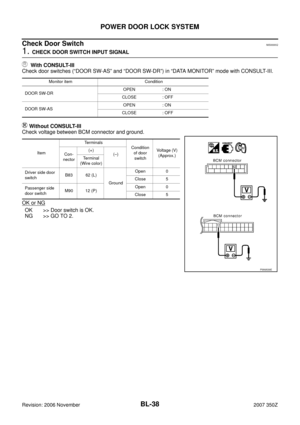

Check Door Switch ................................................. 38

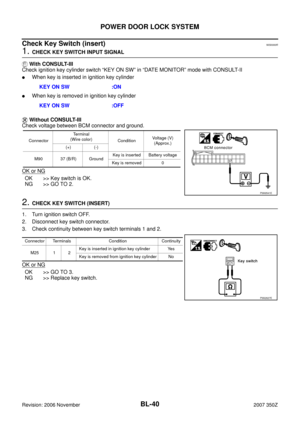

Check Key Switch (insert) ...................................... 40
Check Door Lock and Unlock Switch ..................... 42
Check Driver Side Door Lock Actuator ................... 45
Check Passenger Side Door Lock Actuator ........... 46
Check Door Key Cylinder Switch ............................ 47
Check Back Door Opener Switch ........................... 48
Check Back Door Opener Actuator ........................ 50
FUEL FILLER LID OPENER ..................................... 52
System Description/For RoadSter .......................... 52
FUEL LID OPEN OPERATION ............................ 52
FUEL LID OPENER CANCEL OPERATION ....... 52
Wiring Diagram — F/LID — /For Coupe ................. 53

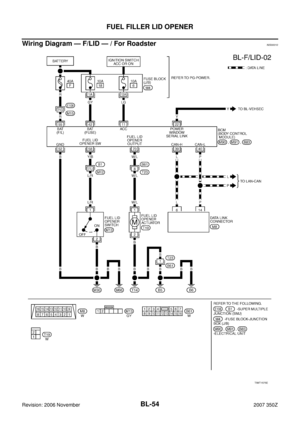

Wiring Diagram — F/LID — / For Roadster ............ 54
CONSULT-III Function (BCM)/For Roadster .......... 55

BL-2Revision: 2006 November2007 350Z DATA MONITOR .................................................. 55
ACTIVE TEST ..................................................... 55
Terminals and Reference Value for BCM/For Road-
ster .......................................................................... 56

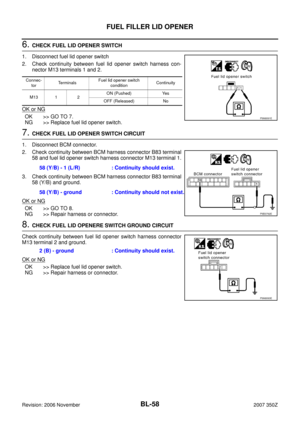

Trouble Diagnosis/For Roadster ............................. 56
FUEL LID DOSE NOT OPEN WITH FUEL LID
OPENER SWITCH .............................................. 56
REMOTE KEYLESS ENTRY SYSTEM ..................... 59

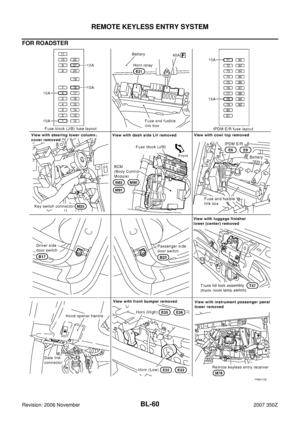

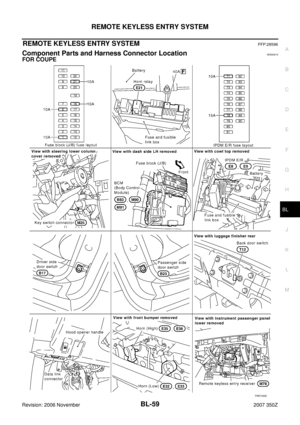

Component Parts and Harness Connector Location ... 59
FOR COUPE ....................................................... 59
FOR ROADSTER ................................................ 60
System Description ................................................. 61
INPUTS ............................................................... 61

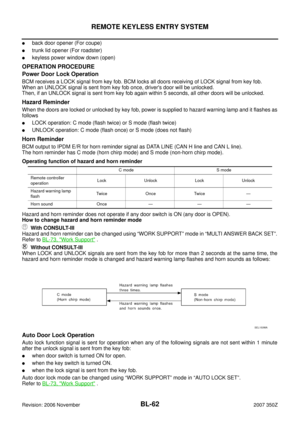

OPERATION PROCEDURE ................................ 62
CAN Communication System Description .............. 63
CAN Communication Unit ....................................... 63
Schematic ............................................................... 64

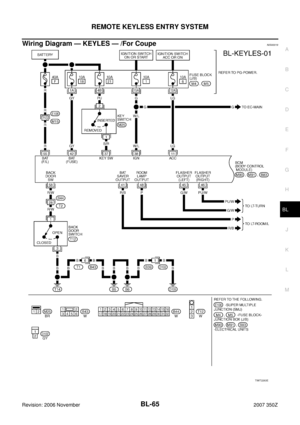

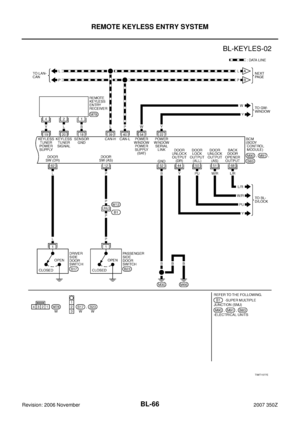

Wiring Diagram — KEYLES — /For Coupe ............ 65

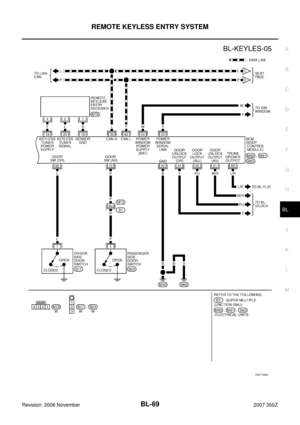

Wiring Diagram — KEYLES — /For Roadster ........ 68
Terminals and Reference Value for BCM ................ 71
Terminals and Reference Value for IPDM E/R ........ 72
CONSULT-III Function (BCM) ................................. 72
CONSULT-III Application Items for BCM ................ 73
“MULTI REMOTE CONTENT” ............................. 73
CONSULT-III Application Items for IPDM E/R ........ 74
DATA MONITOR .................................................. 74
ACTIVE TEST ..................................................... 74

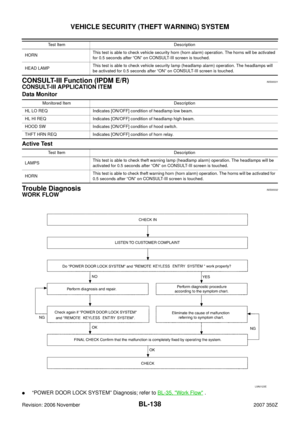

Work Flow ............................................................... 75
Trouble Diagnosis Chart by Symptom .................... 75

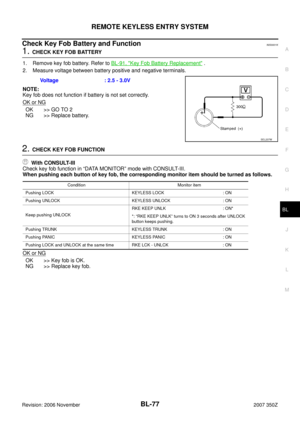

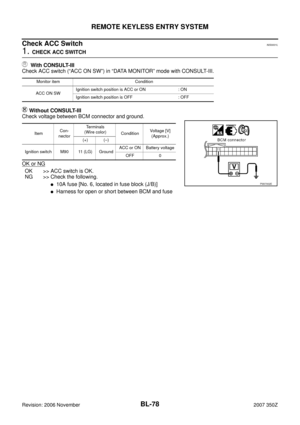

Check Key Fob Battery and Function ..................... 77
Check ACC Switch ................................................. 78

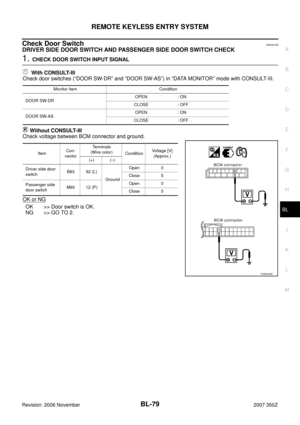

Check Door Switch ................................................. 79
DRIVER SIDE DOOR SWITCH AND PASSEN-
GER SIDE DOOR SWITCH CHECK ................... 79
CHECK BACK DOOR SWITCH /FOR COUPE ... 81

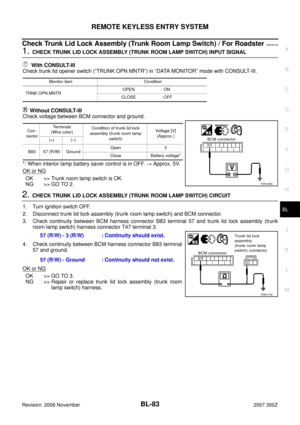

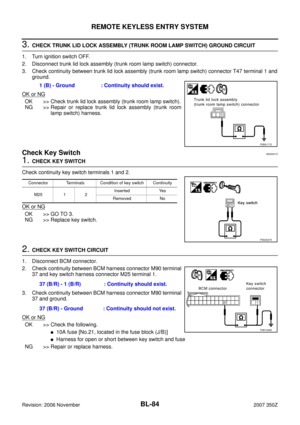

Check Trunk Lid Lock Assembly (Trunk Room Lamp
Switch) / For Roadster ............................................ 83
Check Key Switch ................................................... 84

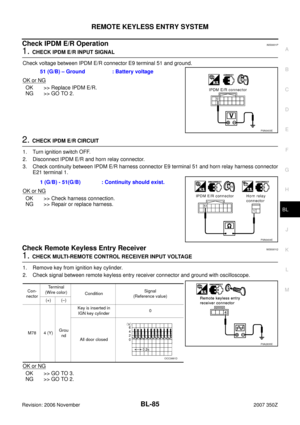

Check IPDM E/R Operation .................................... 85
Check Remote Keyless Entry Receiver .................. 85

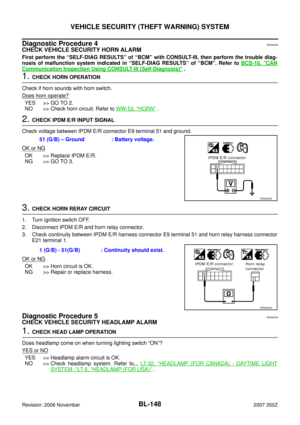

Check Horn Function .............................................. 88
Check Headlamp Alarm .......................................... 88
Check Interior Lamp Operation .............................. 88
ID Code Entry Procedure ....................................... 89
KEY FOB ID SETUP WITH CONSULT-III ........... 89
KEY FOB ID SETUP WITHOUT CONSULT-III .... 90

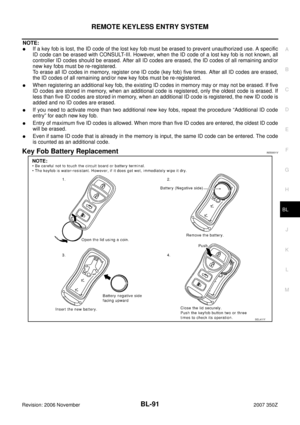

Key Fob Battery Replacement ................................ 91
Removal and Installation of Remote Keyless Entry
Receiver ................................................................. 92
REMOVAL ........................................................... 92
INSTALLATION .................................................... 92
DOOR ........................................................................ 93
Fitting Adjustment ................................................... 93
COUPE ................................................................ 93
DOOR .................................................................. 93
STRIKER ADJUSTMENT .................................... 93

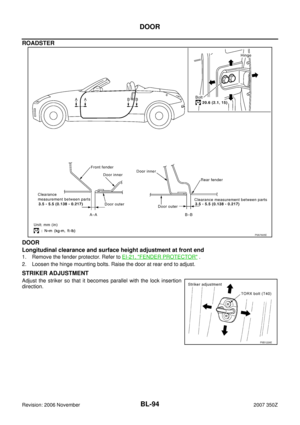

ROADSTER ......................................................... 94
DOOR .................................................................. 94
STRIKER ADJUSTMENT .................................... 94DOVE TAIL FEMALE ADJUSTMENT (ROAD-
STER) .................................................................. 95
Removal and Installation ......................................... 95
REMOVAL ............................................................ 95
INSTALLATION .................................................... 96

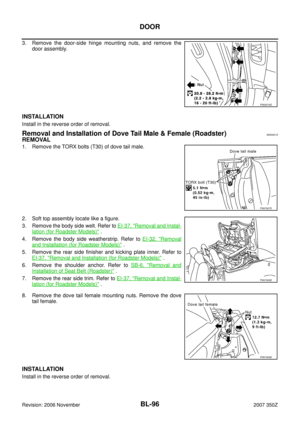

Removal and Installation of Dove Tail Male &
Female (Roadster) .................................................. 96
REMOVAL ............................................................ 96
INSTALLATION .................................................... 96

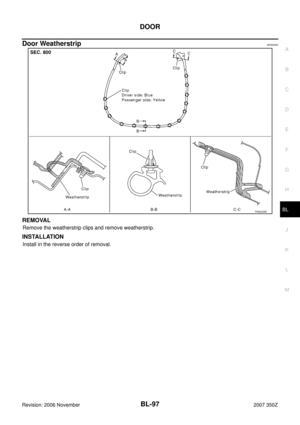

Door Weatherstrip ................................................... 97
REMOVAL ............................................................ 97
INSTALLATION .................................................... 97
DOOR LOCK ............................................................. 98

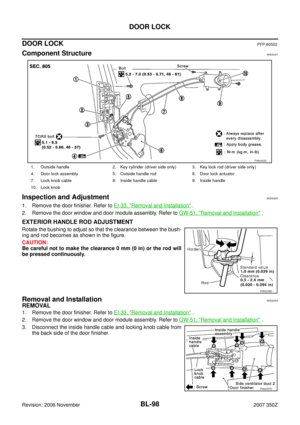

Component Structure .............................................. 98
Inspection and Adjustment ...................................... 98
EXTERIOR HANDLE ROD ADJUSTMENT ......... 98
Removal and Installation ......................................... 98
REMOVAL ............................................................ 98
INSTALLATION .................................................... 99
Disassembly and Assembly .................................... 99
DISASSEMBLY .................................................... 99
ASSEMBLY .......................................................... 99
BACK DOOR ...........................................................100

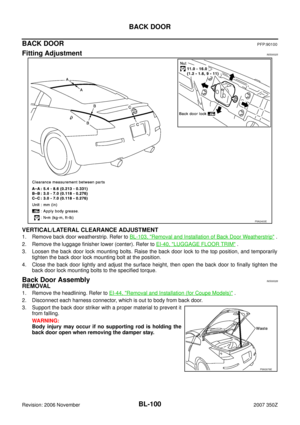

Fitting Adjustment .................................................100
VERTICAL/LATERAL CLEARANCE ADJUST-
MENT .................................................................100

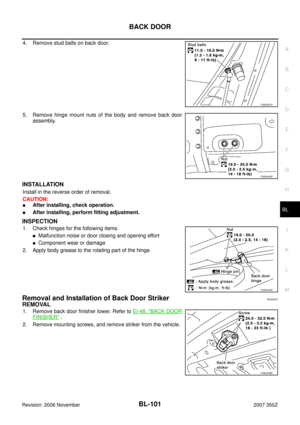

Back Door Assembly .............................................100
REMOVAL ..........................................................100
INSTALLATION ..................................................101
INSPECTION .....................................................101
Removal and Installation of Back Door Striker ......101
REMOVAL ..........................................................101
INSTALLATION ..................................................102
Removal and Installation of Back Door Stay .........102
REMOVAL ..........................................................102
INSTALLATION ..................................................102

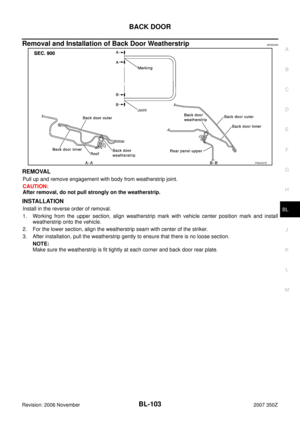

Removal and Installation of Back Door Weatherstrip .103
REMOVAL ..........................................................103
INSTALLATION ..................................................103
BACK DOOR LOCK ................................................104
Removal and Installation of Back Door Lock & Back
Door Opener Actuator ...........................................104
REMOVAL ..........................................................104
INSTALLATION ..................................................104
INSPECTION .....................................................104

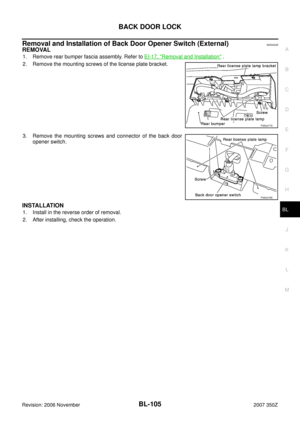

Removal and Installation of Back Door Opener
Switch (External) ...................................................105
REMOVAL ..........................................................105
INSTALLATION ..................................................105

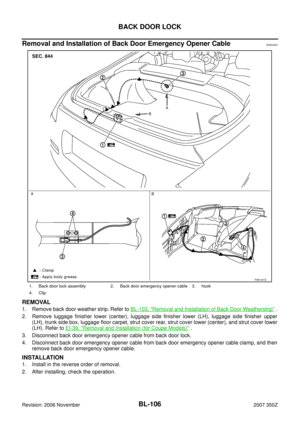

Removal and Installation of Back Door Emergency
Opener Cable ........................................................106
REMOVAL ..........................................................106
INSTALLATION ..................................................106
TRUNK LID ..............................................................107

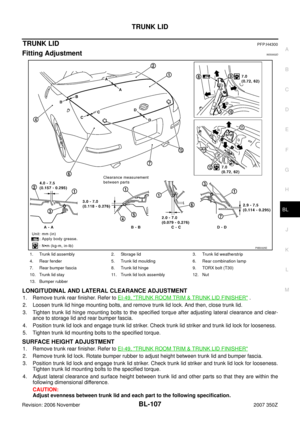

Fitting Adjustment .................................................107
LONGITUDINAL AND LATERAL CLEARANCE
ADJUSTMENT ...................................................107
SURFACE HEIGHT ADJUSTMENT ..................107

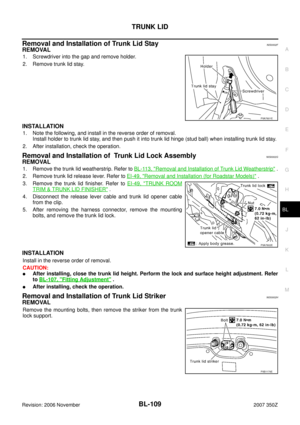

Removal and Installation of Trunk Lid Assembly ..108

BL-3
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 November2007 350Z REMOVAL ......................................................... 108
INSTALLATION ................................................. 108

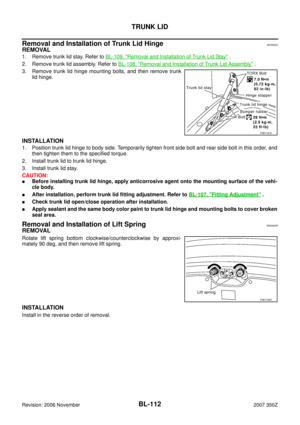

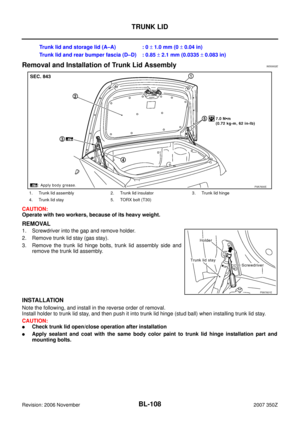

Removal and Installation of Trunk Lid Stay .......... 109
REMOVAL ......................................................... 109
INSTALLATION ................................................. 109
Removal and Installation of Trunk Lid Lock Assem-
bly ......................................................................... 109
REMOVAL ......................................................... 109
INSTALLATION ................................................. 109
Removal and Installation of Trunk Lid Striker ....... 109
REMOVAL ......................................................... 109
INSTALLATION .................................................. 110

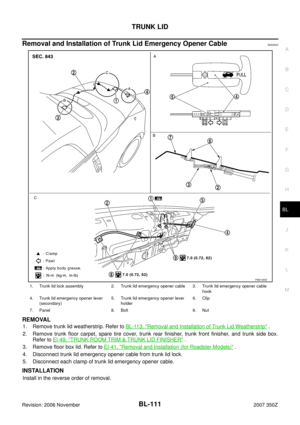

Removal and Installation of Trunk Lid Emergency
Opener Cable ....................................................... . 111
REMOVAL ......................................................... . 111
INSTALLATION ................................................. . 111
Removal and Installation of Trunk Lid Hinge ......... 112
REMOVAL .......................................................... 112
INSTALLATION .................................................. 112
Removal and Installation of Lift Spring .................. 112
REMOVAL .......................................................... 112
INSTALLATION .................................................. 112
Removal and Installation of Trunk Lid Weatherstrip .. 113
REMOVAL .......................................................... 113
INSTALLATION .................................................. 113
TRUNK LID OPENER ..............................................114
Component Parts and Harness Connector Location .. 114
System Description ............................................... 114
TRUNK LID OPENER CANCEL OPERATION .. 115
TRUNK OPENER OPERATION WITH KEY FOB .. 115

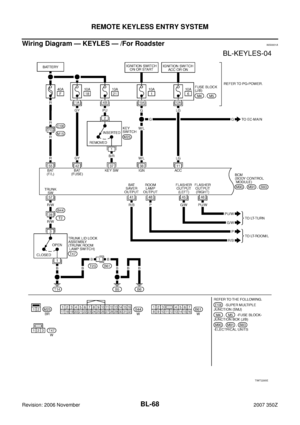

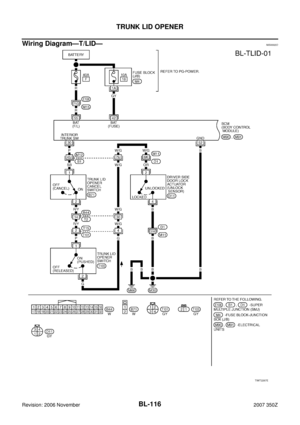

Wiring Diagram—T/LID— ..................................... 116
Terminals and Reference Value for BCM .............. 118
CONSULT-III Function (BCM) ............................... 119
ACTIVE TEST .................................................... 119

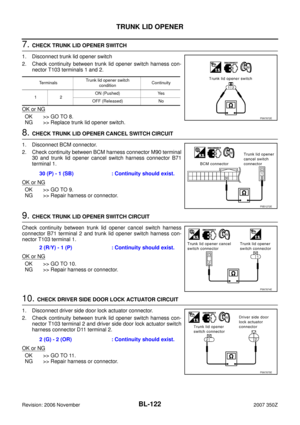

Trouble Diagnosis ................................................ 120

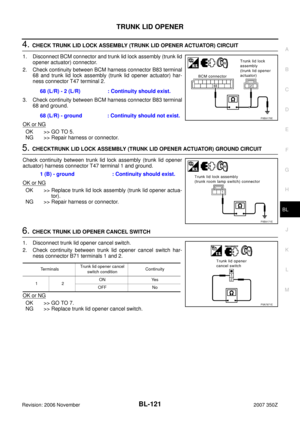

TRUNK DOSE NOT OPEN WITH TRUNK LID
OPENER SWITCH ............................................ 120

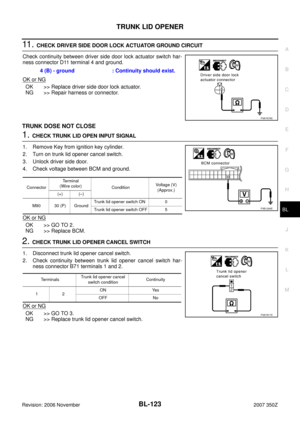

TRUNK DOSE NOT CLOSE ............................. 123
VEHICLE SECURITY (THEFT WARNING) SYSTEM . 125

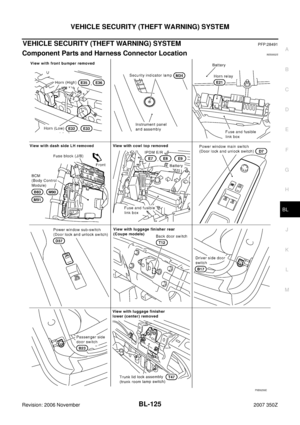

Component Parts and Harness Connector Location . 125

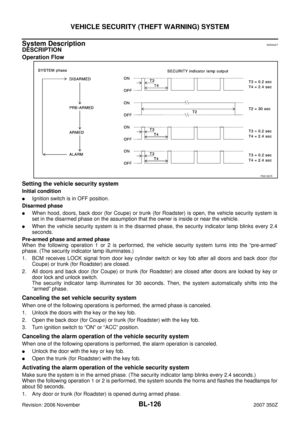

System Description .............................................. 126
DESCRIPTION .................................................. 126
POWER SUPPLY AND GROUND .................... 127
INITIAL CONDITION TO ACTIVATE THE SYS-
TEM ................................................................... 127
VEHICLE SECURITY SYSTEM ALARM OPER-
ATION ............................................................... 127
VEHICLE SECURITY SYSTEM DEACTIVATION . 127
PANIC ALARM OPERATION ............................ 128
CAN Communication System Description ............ 128
CAN Communication Unit .................................... 128

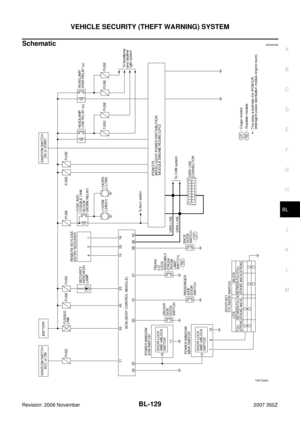

Schematic ............................................................ 129

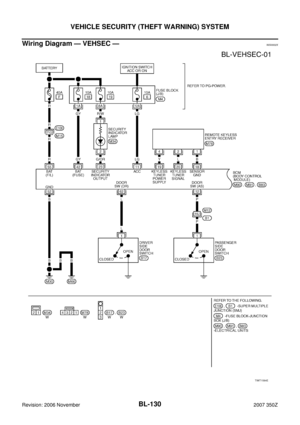

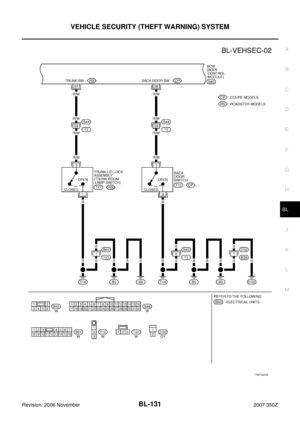

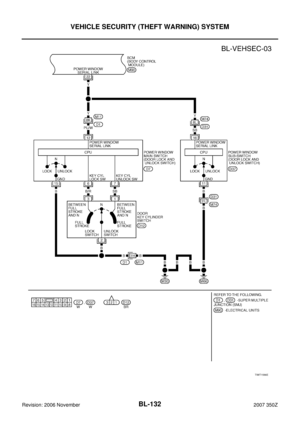

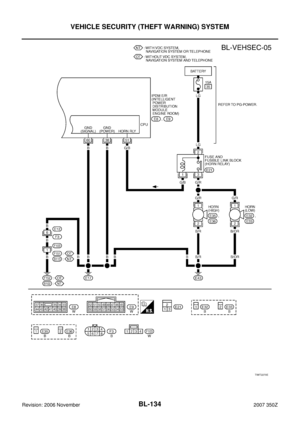

Wiring Diagram — VEHSEC — ........................... 130

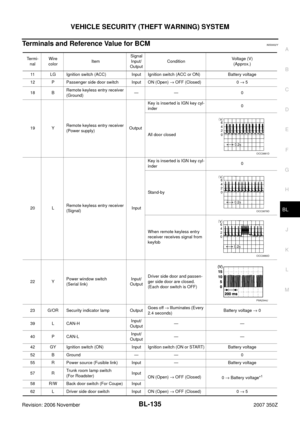

Terminals and Reference Value for BCM ............. 135
Terminals and Reference Value for IPDM E/R ..... 137
CONSULT-III Function (BCM) .............................. 137
CONSULT-III APPLICATION ITEM ................... 137
CONSULT-III Function (IPDM E/R) ...................... 138
CONSULT-III APPLICATION ITEM ................... 138Trouble Diagnosis .................................................138
WORK FLOW ....................................................138
Preliminary Check ................................................139
Symptom Chart .....................................................140
Diagnostic Procedure 1 ........................................141

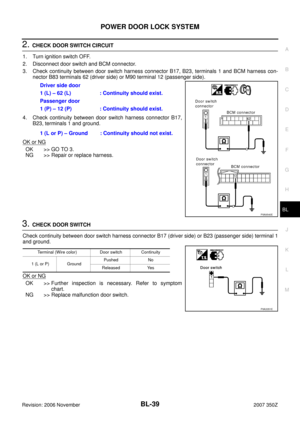

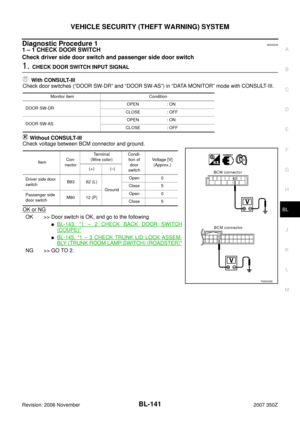

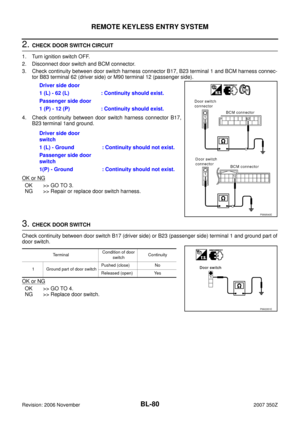

1 – 1 CHECK DOOR SWITCH ..........................141
1 – 2 CHECK BACK DOOR SWITCH (COUPE) .143

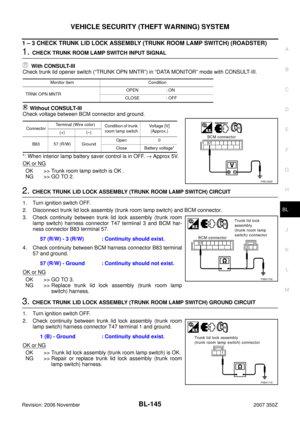

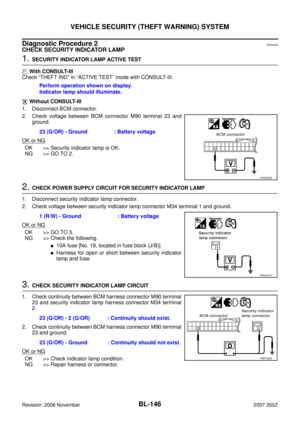

1 – 3 CHECK TRUNK LID LOCK ASSEMBLY
(TRUNK ROOM LAMP SWITCH) (ROADSTER) .145
Diagnostic Procedure 2 ........................................146

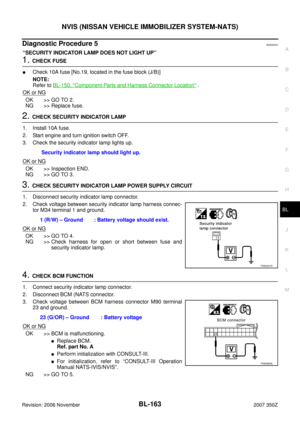

CHECK SECURITY INDICATOR LAMP ...........146
Diagnostic Procedure 3 ........................................147

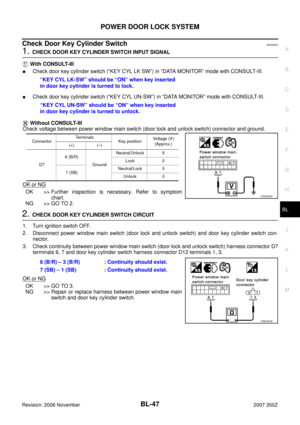

CHECK DOOR KEY CYLINDER SWITCH ........147
Diagnostic Procedure 4 ........................................148
CHECK VEHICLE SECURITY HORN ALARM . 148
Diagnostic Procedure 5 ........................................148
CHECK VEHICLE SECURITY HEADLAMP
ALARM ..............................................................148
Diagnostic Procedure 6 ........................................149
CHECK DOOR LOCK AND UNLOCK SWITCH .149
NVIS (NISSAN VEHICLE IMMOBILIZER SYSTEM-
NATS) ......................................................................150

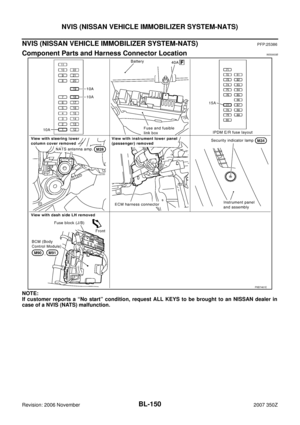

Component Parts and Harness Connector Location .150
System Description ...............................................151

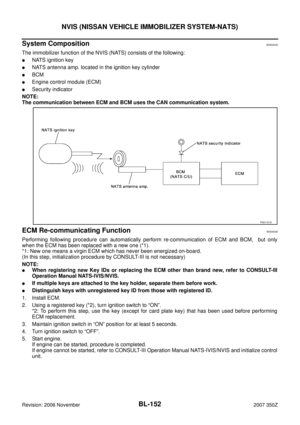

System Composition .............................................152
ECM Re-communicating Function ........................152

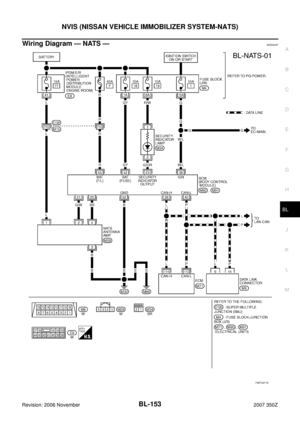

Wiring Diagram — NATS — .................................153
Terminals and Reference Value for BCM .............154
CONSULT-III .........................................................154
CONSULT-III INSPECTION PROCEDURE .......154
CONSULT-III DIAGNOSTIC TEST MODE
FUNCTION ........................................................154
NVIS (NATS) SELF-DIAGNOSTIC RESULTS
ITEM CHART .....................................................154
Work Flow .............................................................155
Trouble Diagnoses ...............................................156
SYMPTOM MATRIX CHART 1 ..........................156
SYMPTOM MATRIX CHART 2 ..........................157
DIAGNOSTIC SYSTEM DIAGRAM ...................157

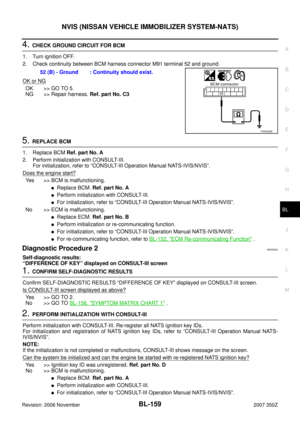

Diagnostic Procedure 1 ........................................158
Diagnostic Procedure 2 ........................................159
Diagnostic Procedure 3 ........................................160
Diagnostic Procedure 4 ........................................161
Diagnostic Procedure 5 ........................................163
Diagnostic Procedure 6 ........................................165
How to Replace NATS Antenna Amp. ..................166
INTEGRATED HOMELINK TRANSMITTER ...........167

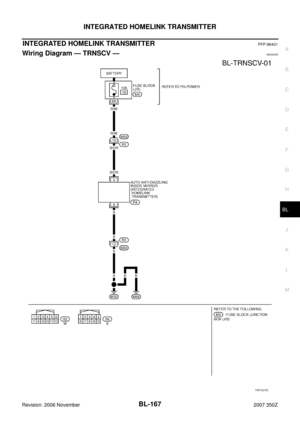

Wiring Diagram — TRNSCV — ............................167
Trouble Diagnoses ...............................................168
DIAGNOSTIC PROCEDURE ............................168
BODY REPAIR ........................................................170
Body Exterior Paint Color (Coupe) .......................170
Body Exterior Paint Color (Roadster) ...................171

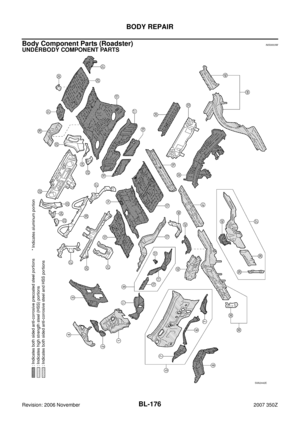

Body Component Parts (Coupe) ..........................172
UNDERBODY COMPONENT PARTS ..............172
BODY COMPONENT PARTS ...........................174

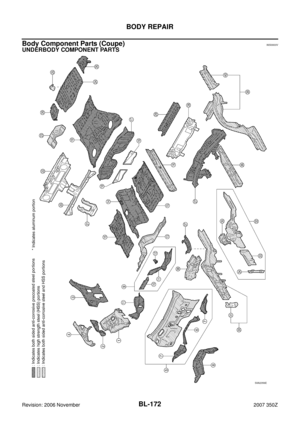

Body Component Parts (Roadster) ......................176
UNDERBODY COMPONENT PARTS ..............176
BODY COMPONENT PARTS ...........................178

BL-4Revision: 2006 November2007 350Z Corrosion Protection .............................................180
DESCRIPTION ..................................................180
ANTI-CORROSIVE WAX ...................................181
UNDERCOATING ..............................................182
STONE GUARD COAT ......................................183
Body Sealing (Coupe) ..........................................184
DESCRIPTION ..................................................184

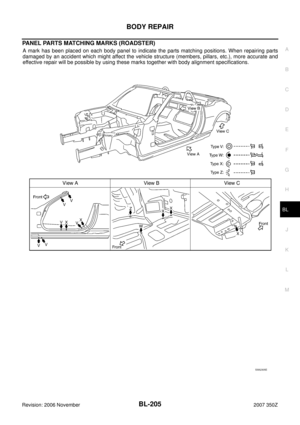

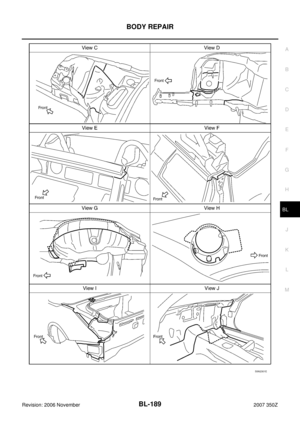

Body Sealing (Roadster) ......................................188
DESCRIPTION ..................................................188
Body Construction (Coupe) ..................................191
BODY CONSTRUCTION ..................................191

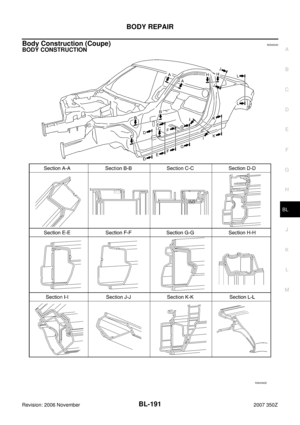

Body Construction (Roadster) ..............................192
BODY CONSTRUCTION ..................................192
Body Alignment (Coupe) ......................................193

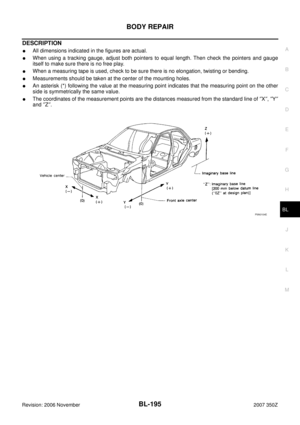

BODY CENTER MARKS (COUPE) ...................193

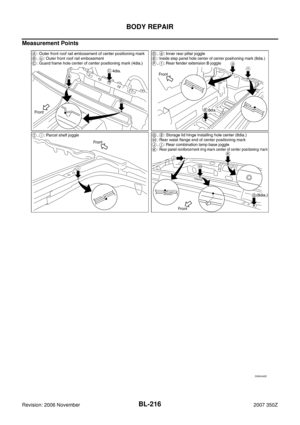

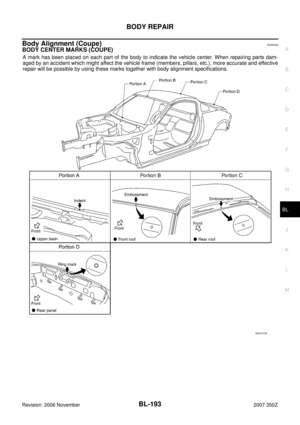

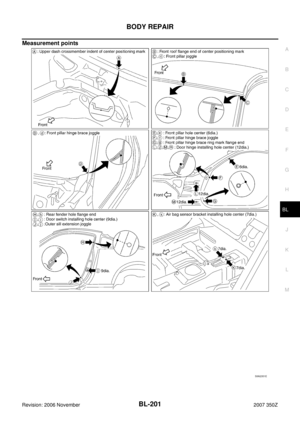

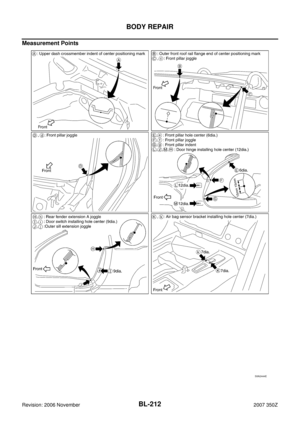

PANEL PARTS MATCHING MARKS (COUPE) .194
DESCRIPTION ..................................................195

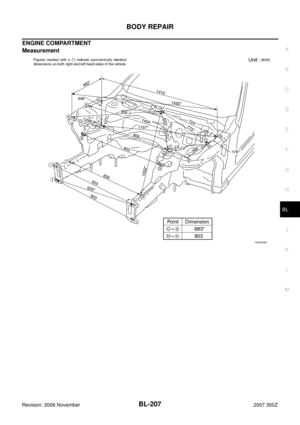

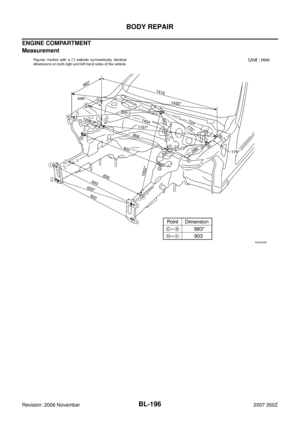

ENGINE COMPARTMENT ................................196

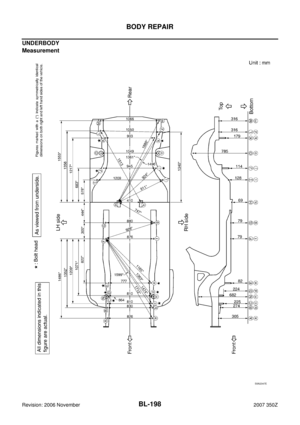

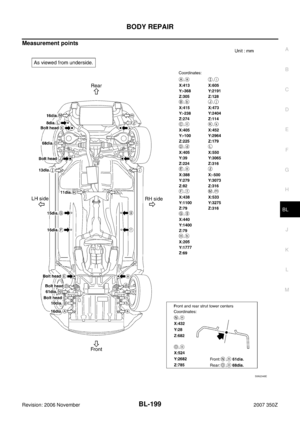

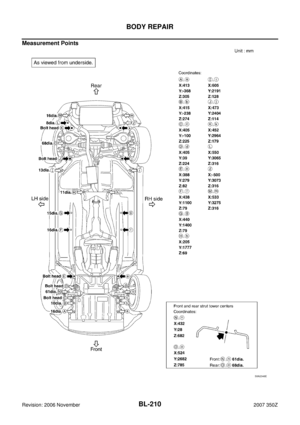

UNDERBODY ....................................................198

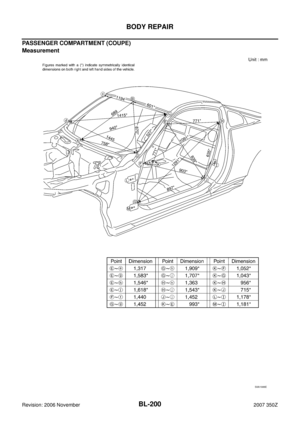

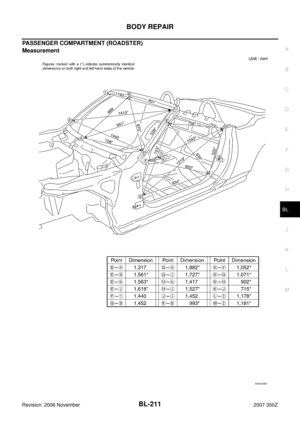

PASSENGER COMPARTMENT (COUPE) .......200

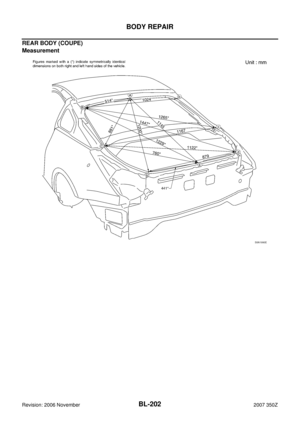

REAR BODY (COUPE) .....................................202

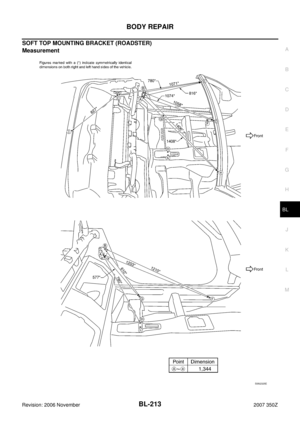

Body Alignment (Roadster) ..................................204

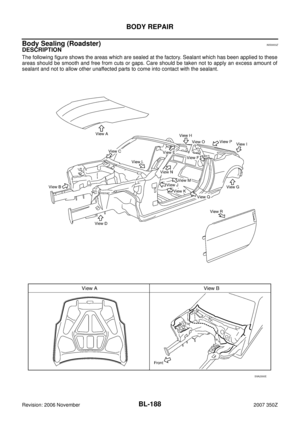

BODY CENTER MARKS (ROADSTER) ...........204

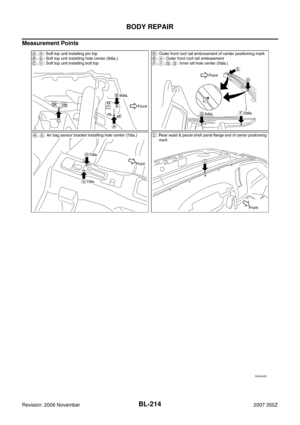

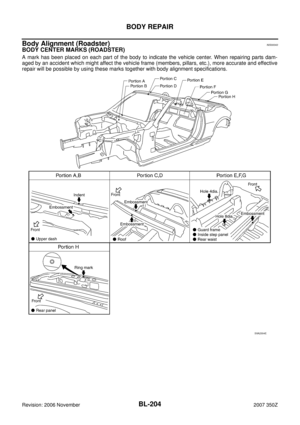

PANEL PARTS MATCHING MARKS (ROAD-
STER) ................................................................205
DESCRIPTION ..................................................206

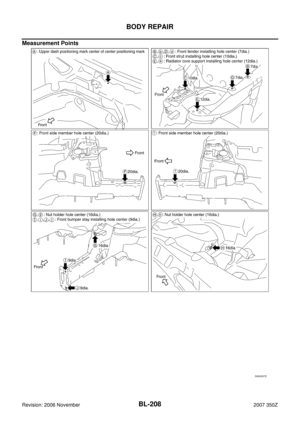

ENGINE COMPARTMENT ................................207
UNDERBODY ....................................................209
PASSENGER COMPARTMENT (ROADSTER) .211
SOFT TOP MOUNTING BRACKET (ROAD-
STER) ................................................................213

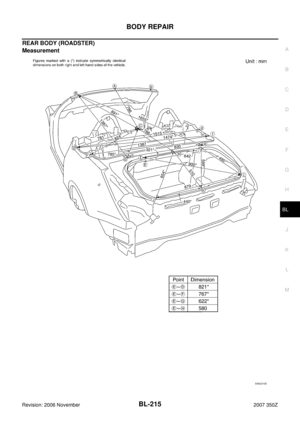

REAR BODY (ROADSTER) ..............................215
Handling Precautions For Plastics (Coupe) ..........217

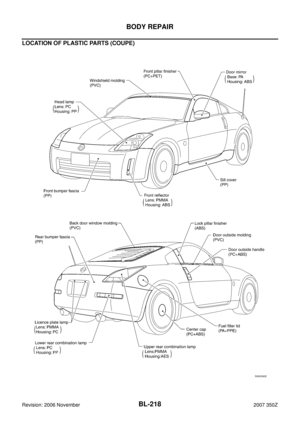

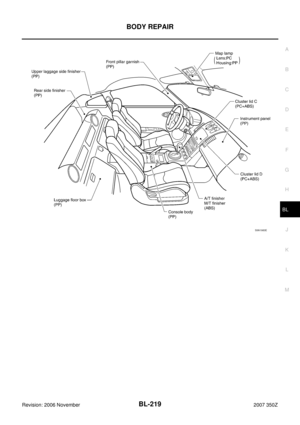

HANDLING PRECAUTIONS FOR PLASTICS ..217LOCATION OF PLASTIC PARTS (COUPE) ......218
Handling Precautions For Plastics (Roadster) ......220
HANDLING PRECAUTIONS FOR PLASTICS ..220

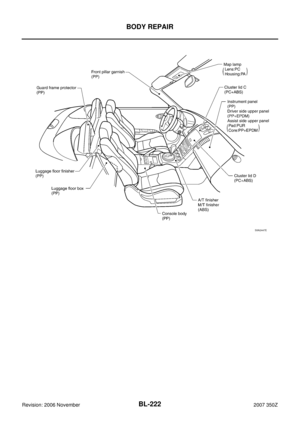

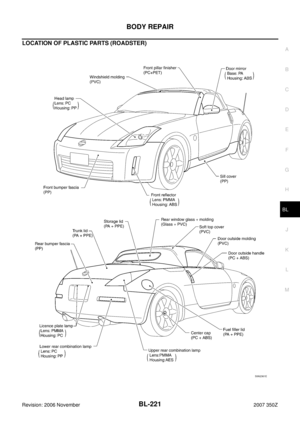

LOCATION OF PLASTIC PARTS (ROADSTER) .221

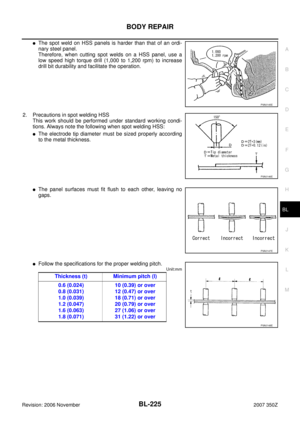

Precautions In Repairing High Strength Steel .......223
HIGH STRENGTH STEEL (HSS) USED IN NIS-
SAN VEHICLES .................................................223

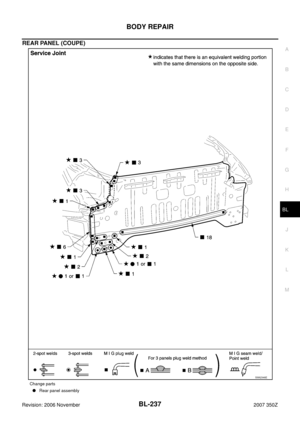

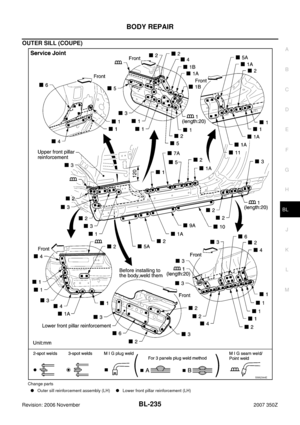

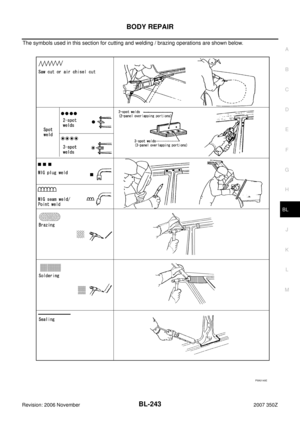

Replacement Operations (Coupe) ........................226
DESCRIPTION ..................................................226
HOODLEDGE (COUPE) ....................................229
FRONT SIDE MEMBER (COUPE) ....................230

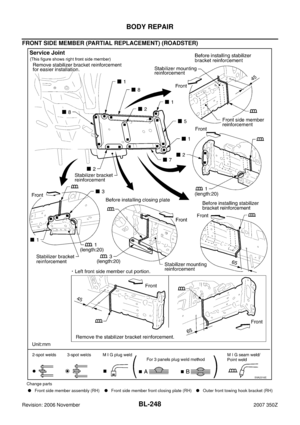

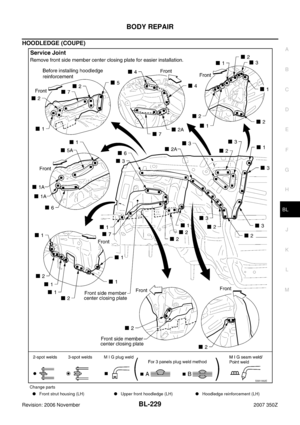

FRONT SIDE MEMBER (PARTIAL REPLACE-
MENT) (COUPE) ...............................................232

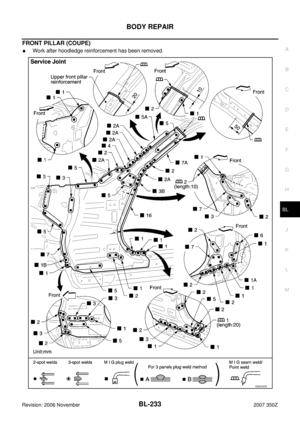

FRONT PILLAR (COUPE) .................................233

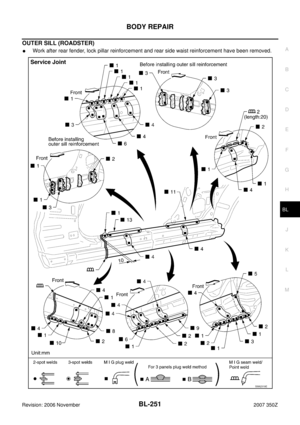

OUTER SILL (COUPE) ......................................235

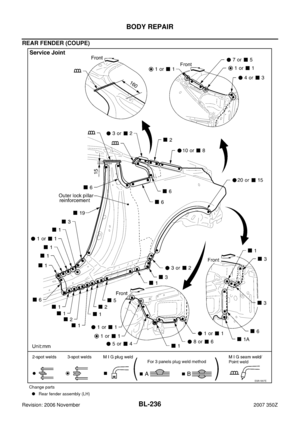

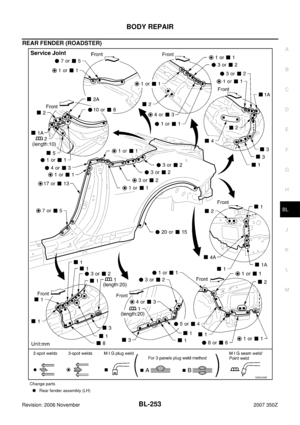

REAR FENDER (COUPE) .................................236

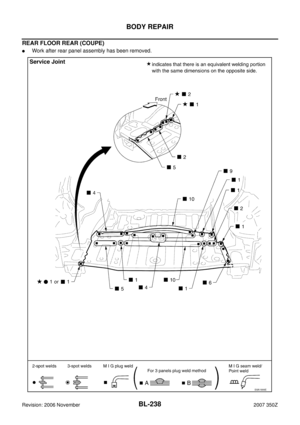

REAR PANEL (COUPE) ....................................237
REAR FLOOR REAR (COUPE) ........................238

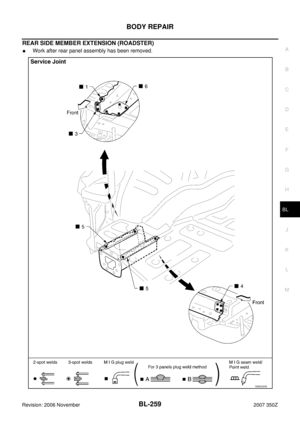

REAR SIDE MEMBER EXTENSION (COUPE) .240
Replacement Operations (Roadster) ....................242
DESCRIPTION ..................................................242
HOODLEDGE (ROADSTER) .............................245

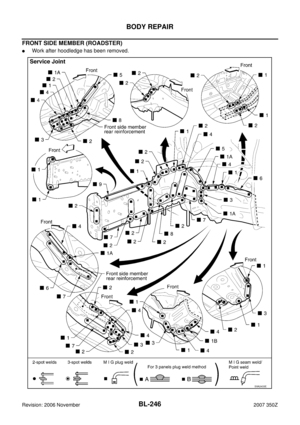

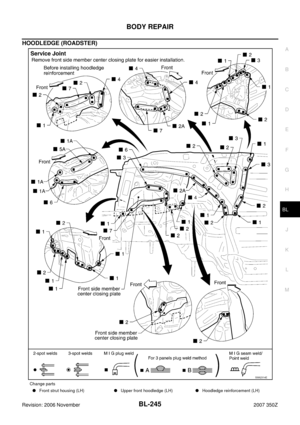

FRONT SIDE MEMBER (ROADSTER) .............246
FRONT SIDE MEMBER (PARTIAL REPLACE-
MENT) (ROADSTER) ........................................248

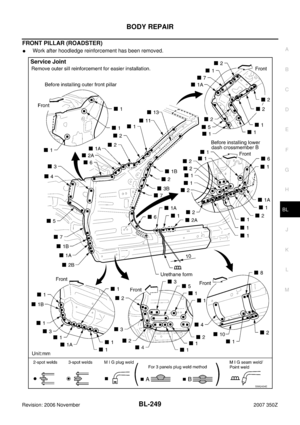

FRONT PILLAR (ROADSTER) ..........................249
OUTER SILL (ROADSTER) ...............................251
REAR FENDER (ROADSTER) ..........................253

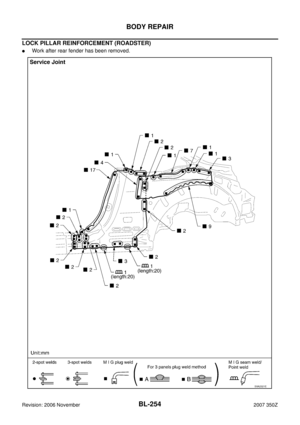

LOCK PILLAR REINFORCEMENT (ROAD-
STER) ................................................................254

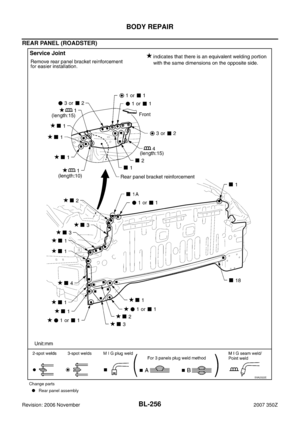

REAR PANEL (ROADSTER) .............................256
REAR FLOOR REAR (ROADSTER) .................257
REAR SIDE MEMBER EXTENSION (ROAD-
STER) ................................................................259

PRECAUTIONS
BL-5
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 November2007 350Z
PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
NIS00001
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.
WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
Precautions for Battery ServiceNIS00002
Before disconnecting the battery, lower both the driver and passenger windows. This will prevent any interfer-
ence between the window edge and the vehicle when the door is opened/closed. During normal operation, the
window slightly raises and lowers automatically to prevent any window to vehicle interference. The automatic
window function will not work with the battery disconnected.
Precautions for WorkNIS00003

After removing and installing the opening/closing parts, be sure to carry out fitting adjustments to check
their operation.

Check the lubrication level, damage, and wear of each part. If necessary, grease or replace it.

BL-6
PREPARATION
Revision: 2006 November2007 350Z
PREPARATIONPFP:00002
Special Service ToolsNIS00005
The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.
Commercial Service ToolsNIS00006
Tool number
(Kent-Moore No.)
Tool nameDescription
(J-39570)
Chassis earLocating the noise
(J-43980)
NISSAN Squeak and
Rattle KitRepairing the cause of noise
SIIA0993E
SIIA0994E
Tool name Description
Engine ear Locating the noise
SIIA0995E

SQUEAK AND RATTLE TROUBLE DIAGNOSES
BL-7
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 November2007 350Z
SQUEAK AND RATTLE TROUBLE DIAGNOSESPFP:00000
Work FlowNIS00007
CUSTOMER INTERVIEW

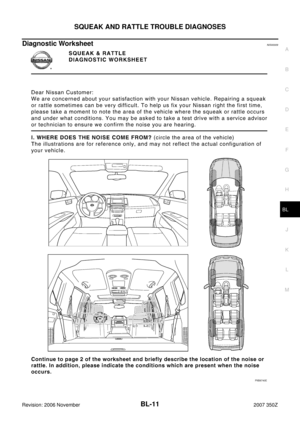

Interview the customer if possible, to determine the conditions that exist when the noise occurs. Use the Diag-
nostic Worksheet during the interview to document the facts and conditions when the noise occurs and any
customer's comments; refer to BL-11, "
Diagnostic Worksheet" . This information is necessary to duplicate the
conditions that exist when the noise occurs.

The customer may not be able to provide a detailed description or the location of the noise. Attempt to
obtain all the facts and conditions that exist when the noise occurs (or does not occur).

If there is more than one noise in the vehicle, be sure to diagnose and repair the noise that the customer
is concerned about. This can be accomplished by test driving the vehicle with the customer.

After identifying the type of noise, isolate the noise in terms of its characteristics. The noise characteristics
are provided so the customer, service adviser and technician are all speaking the same language when
defining the noise.

Squeak —(Like tennis shoes on a clean floor)
Squeak characteristics include the light contact/fast movement/brought on by road conditions/hard sur-
faces=higher pitch noise/softer surfaces=lower pitch noises/edge to surface=chirping

Creak—(Like walking on an old wooden floor)
Creak characteristics include firm contact/slow movement/twisting with a rotational movement/pitch
dependent on materials/often brought on by activity.

Rattle—(Like shaking a baby rattle)
Rattle characteristics include the fast repeated contact/vibration or similar movement/loose parts/missing
clip or fastener/incorrect clearance.

Knock —(Like a knock on a door)
Knock characteristics include hollow sounding/sometimes repeating/often brought on by driver action.

Tick—(Like a clock second hand)
Tick characteristics include gentle contacting of light materials/loose components/can be caused by driver
action or road conditions.

Thump—(Heavy, muffled knock noise)
Thump characteristics include softer knock/dead sound often brought on by activity.

Buzz—(Like a bumble bee)
Buzz characteristics include high frequency rattle/firm contact.

Often the degree of acceptable noise level will vary depending upon the person. A noise that you may
judge as acceptable may be very irritating to the customer.

Weather conditions, especially humidity and temperature, may have a great effect on noise level.
SBT842

BL-8
SQUEAK AND RATTLE TROUBLE DIAGNOSES
Revision: 2006 November2007 350Z
DUPLICATE THE NOISE AND TEST DRIVE
If possible, drive the vehicle with the customer until the noise is duplicated. Note any additional information on
the Diagnostic Worksheet regarding the conditions or location of the noise. This information can be used to
duplicate the same conditions when you confirm the repair.
If the noise can be duplicated easily during the test drive, to help identify the source of the noise, try to dupli-
cate the noise with the vehicle stopped by doing one or all of the following:
1) Close a door.
2) Tap or push/pull around the area where the noise appears to be coming from.
3) Rev the engine.
4) Use a floor jack to recreate vehicle “twist”.
5) At idle, apply engine load (electrical load, half-clutch on M/T models, drive position on A/T models).
6) Raise the vehicle on a hoist and hit a tire with a rubber hammer.

Drive the vehicle and attempt to duplicate the conditions the customer states exist when the noise occurs.

If it is difficult to duplicate the noise, drive the vehicle slowly on an undulating or rough road to stress the
vehicle body.
CHECK RELATED SERVICE BULLETINS
After verifying the customer concern or symptom, check ASIST for Technical Service Bulletins (TSBs) related
to that concern or symptom.
If a TSB relates to the symptom, follow the procedure to repair the noise.
LOCATE THE NOISE AND IDENTIFY THE ROOT CAUSE
1. Narrow down the noise to a general area. To help pinpoint the source of the noise, use a listening tool
(Chassis Ear: J-39570, Engine Ear and mechanics stethoscope).
2. Narrow down the noise to a more specific area and identify the cause of the noise by:

removing the components in the area that you suspect the noise is coming from.
Do not use too much force when removing clips and fasteners, otherwise clips and fastener can be broken
or lost during the repair, resulting in the creation of new noise.

tapping or pushing/pulling the component that you suspect is causing the noise.
Do not tap or push/pull the component with excessive force, otherwise the noise will be eliminated only
temporarily.

feeling for a vibration with your hand by touching the component(s) that you suspect is (are) causing the
noise.

placing a piece of paper between components that you suspect are causing the noise.

looking for loose components and contact marks.
Refer to BL-9, "
Generic Squeak and Rattle Troubleshooting" .
REPAIR THE CAUSE

If the cause is a loose component, tighten the component securely.

If the cause is insufficient clearance between components:
–separate components by repositioning or loosening and retightening the component, if possible.
–insulate components with a suitable insulator such as urethane pads, foam blocks, felt cloth tape or ure-
thane tape. A Nissan Squeak and Rattle Kit (J-43980) is available through your authorized Nissan Parts
Department.
CAUTION:
Do not use excessive force as many components are constructed of plastic and may be damaged.
NOTE:
Always check with the Parts Department for the latest parts information.
The following materials are contained in the Nissan Squeak and Rattle Kit (J-43980). Each item can be
ordered separately as needed.
URETHANE PADS [1.5 mm (0.059 in) thick]
Insulates connectors, harness, etc.
76268-9E005: 100×135 mm (3.94×5.31 in)/76884-71L01: 60×85 mm (2.36×3.35 in)/76884-
71L02: 15×25 mm (0.59×0.98 in)
INSULATOR (Foam blocks)
Insulates components from contact. Can be used to fill space behind a panel.
73982-9E000: 45 mm (1.77 in) thick, 50×50 mm (1.97×1.97 in)/73982-50Y00:
10 mm (0.39 in) thick, 50×50 mm (1.97×1.97 in)
