REMOTE KEYLESS ENTRY SYSTEM
BL-61
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 November2007 350Z
System DescriptionNIS00015
INPUTS
Power is supplied at all times

through 40A fusible link (letter F , located in the fuse and fusible link box)

to BCM terminal 55,

through 10A fuse [No.18, located in the fuse block (J/B)]

to BCM terminal 42,

through 10A fuse [No. 21, located in the fuse block (J/B)]

to key switch terminal 2.
When the ignition switch is ON or START position, power is supplied

through 10A fuse [No.1, located in the fuse block (J/B)]

to BCM terminal 38.
When the ignition switch is ACC or ON position, power is supplied

through 10A fuse [No. 6, located in the fuse block (J/B)]

to BCM terminal 11.
Ground is supplied

to BCM terminal 52

through body grounds M30 and M66.
When the driver side door switch is ON (door is OPEN), ground is supplied

to BCM terminal 62

through driver side door switch terminal 1 and

through driver door switch case ground.
When the passenger side door switch is ON (door is OPEN), ground is supplied

to BCM terminal 12

through passenger side door switch terminal 1 and

through passenger side door switch case ground.
When the back door switch (For coupe models) is ON (door is OPEN), ground is supplied

to BCM terminal 58

through the back door switch terminals 1 and 3 and

through body grounds B5, B6, D105 and T14.
When the trunk lid lock assembly (trunk room lamp switch) (For roadster models) is ON (trunk is OPEN),
ground is supplied

to BCM terminal 57

through the trunk room lamp switch terminals 3 and 1 and

through body grounds B5,B6 and T14.
When the key switch is ON (key is inserted in ignition key cylinder), power is supplied

through key switch terminals 2 and 1

to BCM terminal 37.
Key fob signal is inputted to remote keyless entry receiver (the antenna of the system is built in remote keyless
entry receiver).
Remote keyless entry receiver sends keyfob signal

to BCM terminal 20

from remote keyless entry receiver terminal 2.
The remote keyless entry system controls operation of the

power door lock

hazard and horn reminder

auto door lock

interior lamp and step lamp

panic alarm

REMOTE KEYLESS ENTRY SYSTEM
BL-71
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 November2007 350Z
Terminals and Reference Value for BCMNIS0001B
*1: When interior lamp battery saver control is in OFF: Approx 5V.
*2: For roadster.Te r -
minal Wire
colorItemSignal
input/
outputConditionVoltage (V)
(Approx.)
11 LG Ignition switch (ACC) Input Ignition switch (ACC or ON position) Battery voltage
12 P Passenger side door switch Input ON (Open) → OFF (Closed) 0 → 5
18 BRemote keyless entry
receiver (Ground)—— 0
19 YRemote keyless entry
receiver (Power supply)OutputKey is inserted in IGN key cylinder 0
All door closed
20 LRemote keyless entry
receiver (Signal)InputKey is inserted in IGN key cylinder 0
Waiting
(All door closed)
When signal is received
(All door closed)
37 B/R Key switch (Insert) InputON (Key inserted) → OFF (Key
removed from IGN key cylinder)Battery voltage → 0
38 W/L Ignition switch (ON) Input Ignition switch (ON or START position) Battery voltage
39 L CAN – HInput/
Output——
40 P CAN – LInput/
Output——
42 GY Power source (Fuse) Input — Battery voltage
52 B Ground — — 0
55 R Power source (Fusible link) Input — Battery voltage
57 R/WTrunk lid lock assembly
(trunk room lamp switch)*
2Input
ON (Open) → OFF (Closed)
0 → Battery voltage*1
58 R/W Back door switch Input
62 L Driver side door switch Input ON (Open) → OFF (Closed) 0 → 5
OCC3881D
OCC3879D
OCC3880D

REMOTE KEYLESS ENTRY SYSTEM
BL-75
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 November2007 350Z
Work FlowNIS0001I
1. Check the trouble symptom and customer's requests.
2. Understand outline of system. Refer to BL-61, "
System Description" .
3. Confirm that power door lock system operates normally. Refer to BL-21, "
POWER DOOR LOCK SYS-
TEM" .
4. Refer to trouble diagnosis chart by symptom, repair or replace any malfunctioning parts. Refer to BL-75,
"Trouble Diagnosis Chart by Symptom" .
5. Inspection end.
Trouble Diagnosis Chart by SymptomNIS0001J
NOTE:

Always check the “Work Flow” before troubleshooting. Refer to BL-75, "Work Flow" .

Always check key fob battery before replacing key fob.

The panic alarm operation, back door or trunk lid (Roadster models) opener operation and keyless power
window down operation of remote keyless entry system do not activate with the ignition key inserted in the
ignition key cylinder.
Symptom Diagnoses/service procedureReference
page
All functions of remote keyless entry system do not
operate.1. Check key fob battery and function BL-77
2. Replace key fob. Refer to ID Code Entry Procedure.
NOTE:
If the result of key fob function check with CONSULT-III is OK, key
fob is not malfunctioning.BL-89
3. Check remote keyless entry receiver BL-85
4. Replace BCMBCS-17
The new ID of key fob cannot be entered without
CONSULT-III.1. Check key fob battery and function BL-77
2. Check key switch BL-84
3. Check door switch BL-79
4. Check ACC switch BL-78
5. Check door lock and unlock switch BL-42
6. Replace key fob. Refer to ID Code Entry Procedure.
NOTE:
If the result of key fob function check with CONSULT-III is OK, key
fob is not malfunctioning.BL-89
7. Replace BCMBCS-17
Door lock or unlock does not work.1. Check door lock operation BL-23
2. Check key fob battery and function BL-77
3. Replace key fob. Refer to ID Code Entry Procedure.
NOTE:
If the result of key fob function check with CONSULT-III is OK, key
fob is not malfunctioning.BL-89
4. Replace BCMBCS-17
Back door does not open when back door opener
button is continuously pressed.1. Check back door opener operation BL-23
2. Check back door open operation mode BL-73
3. Check key fob battery and function BL-77
4. Check key switch BL-84
5. Replace BCMBCS-17

REMOTE KEYLESS ENTRY SYSTEM
BL-85
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 November2007 350Z
Check IPDM E/R Operation NIS0001P

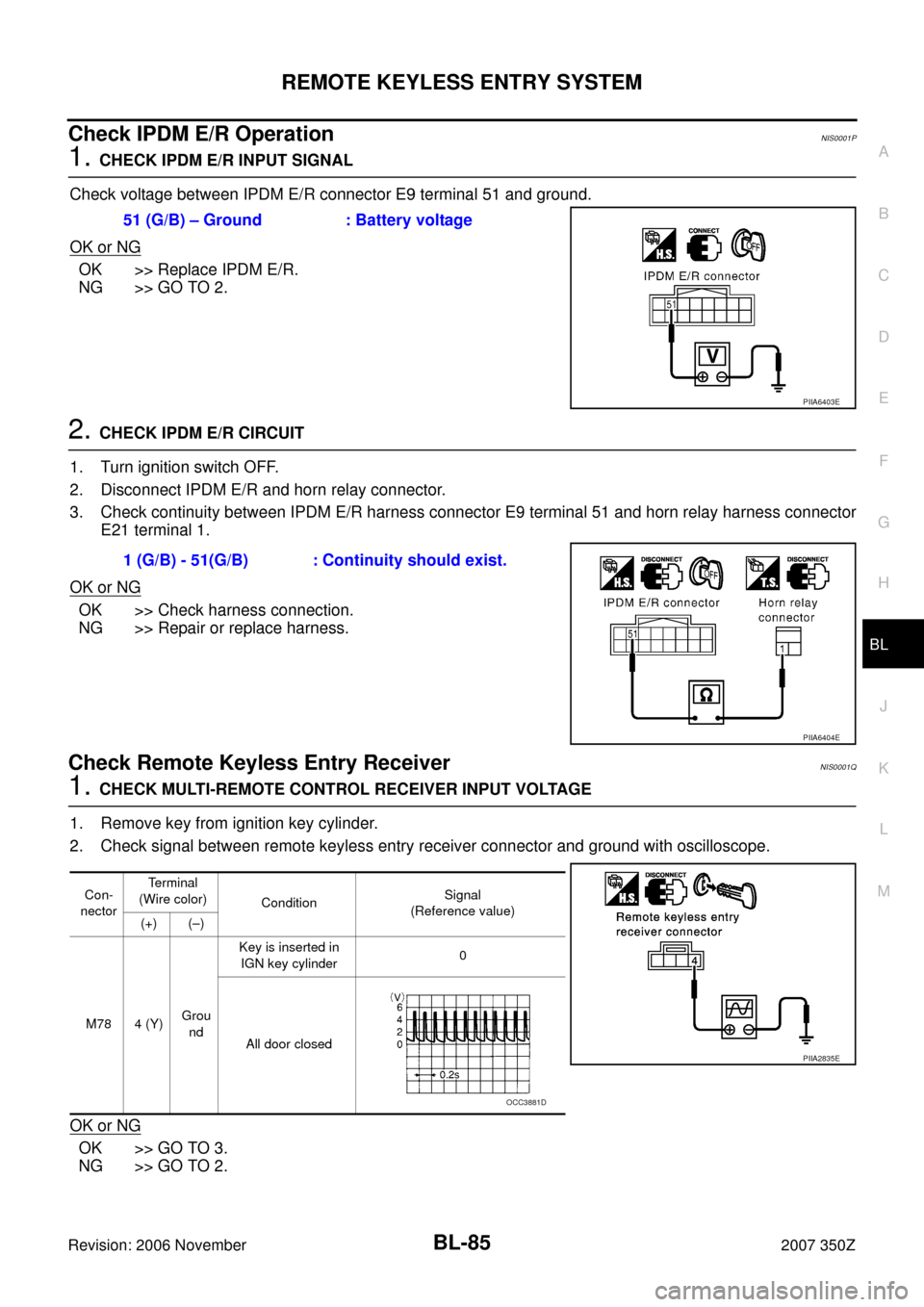

1. CHECK IPDM E/R INPUT SIGNAL
Check voltage between IPDM E/R connector E9 terminal 51 and ground.
OK or NG
OK >> Replace IPDM E/R.
NG >> GO TO 2.
2. CHECK IPDM E/R CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R and horn relay connector.
3. Check continuity between IPDM E/R harness connector E9 terminal 51 and horn relay harness connector
E21 terminal 1.
OK or NG
OK >> Check harness connection.
NG >> Repair or replace harness.
Check Remote Keyless Entry Receiver NIS0001Q
1. CHECK MULTI-REMOTE CONTROL RECEIVER INPUT VOLTAGE
1. Remove key from ignition key cylinder.
2. Check signal between remote keyless entry receiver connector and ground with oscilloscope.
OK or NG
OK >> GO TO 3.
NG >> GO TO 2.51 (G/B) – Ground : Battery voltage
PIIA6403E
1 (G/B) - 51(G/B) : Continuity should exist.
PIIA6404E
Con-
nectorTerminal
(Wire color)
Condition Signal
(Reference value)
(+) (–)
M78 4 (Y)Grou
ndKey is inserted in
IGN key cylinder 0
All door closed
PIIA2835E
OCC3881D

BL-86
REMOTE KEYLESS ENTRY SYSTEM
Revision: 2006 November2007 350Z
2. CHECK REMOTE KEYLESS ENTRY RECEIVER HARNESS
1. Turn ignition switch OFF.
2. Disconnect remote keyless entry receiver and BCM connector.
3. Check continuity between remote keyless entry receiver connector M78 terminal 4 and BCM connector
M90 terminal 19.
4. Check continuity between remote keyless entry receiver connector M78 terminal 4 and ground.
OK or NG
OK >> Check harness connection.
NG >> Repair or replace the harness.
3. CHECK REMOTE KEYLESS ENTRY RECEIVER
1. Turn ignition switch OFF.
2. Check continuity between remote keyless entry receiver connector M78 terminal 1 and BCM connector
M90 terminal 18.
3. Check continuity between remote keyless entry receiver connector M78 terminal 1 and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace the harness.4 (Y) - 19 (Y) : Continuity should exist.
4 (Y) - Ground : Continuity should not exist.
PIIA9630E
1 (B) - 18 (B) : Continuity should exist.
1 (B) - Ground : Continuity should not exist.
PIIA9631E

REMOTE KEYLESS ENTRY SYSTEM
BL-87
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 November2007 350Z
4. CHECK REMOTE KEYLESS ENTRY RECEIVER OUTPUT SIGNAL
1. Connect remote keyless entry receiver connector.
2. Check signal BCM connector and ground with oscilloscope.
OK or NG
OK >> Replace BCM.
NG >> GO TO 5.
5. CHECK REMOTE KEYLESS ENTRY RECEIVER HARNESS
1. Disconnect remote keyless receiver and BCM connector.
2. Check continuity between remote keyless entry receiver connector M78 terminal 2 and BCM connector
M90 terminal 20.
3. Check continuity between remote keyless entry receiver connector M78 terminal 2 and ground.
OK or NG
OK >> Replace remote keyless entry receiver.
NG >> Repair or replace the harness.
Con-
nectorTerminal (Wire
color)
Condition Signal
(Reference value)
(+) (–)
M90 20 (L) GroundKey is inserted
in IGN key cylin-
der0
Waiting
(All door closed)
When signal is
received
(All door closed)
PIIA9632E
OCC3879D
OCC3880D
2 (L) - 20 (L) : Continuity should exist.
2 (L) - Ground : Continuity should not exist.
PIIA9633E

BL-92
REMOTE KEYLESS ENTRY SYSTEM
Revision: 2006 November2007 350Z
Removal and Installation of Remote Keyless Entry ReceiverNIS0001W
REMOVAL
1. Remove the instrument passenger panel lower. Refer to IP-13, "(L) Instrument Passenger Panel Lower" .
2. Remove the screw and remote keyless entry receiver connector.
3. Remove the remote keyless entry receiver.
INSTALLATION
Install in the reverse order of removal.
PIIB3798E
