2007 NISSAN 350Z Body, Lock And Security System Workshop Manual

POWER DOOR LOCK SYSTEM
BL-41
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 November2007 350Z
3. CHECK KEY SWITCH CIRCUIT
1. Disconnect BCM connector.
2. Check continuity between BCM harness connector M90 terminal
37 and key switch harness connector M25 terminal 1.
3. Check continuity between BCM harness connector M90 terminal
37 and ground.
OK or NG
OK >> Check the following.

10A fuse [No.21, located in the fuse block (J/B)]

Harness for open or short between key switch and fuse
NG >> Repair harness or connector.37 (B/R) - 1 (B/R) : Continuity should exist.
37 (B/R) - Ground : Continuity should not exist.
PIIB1258E

BL-42
POWER DOOR LOCK SYSTEM
Revision: 2006 November2007 350Z
Check Door Lock and Unlock Switch NIS0000S
1. CHECK POWER WINDOW OPERATION
Does power window system operate normally?
YES or NO?
YES >> GO TO 2
NO >> Refer to GW-30, "
Trouble Diagnoses Symptom Chart" .
2. CHECK DOOR LOCK AND UNLOCK SWITCH OUTPUT SIGNAL
With CONSULT-III
Check door lock and unlock switch (“LOCK SW DR/AS”, “UNLK SW DR/AS”) in DATA MONITOR mode with
CONSULT-II. Refer to BL-35, "
DATA MONITOR" .

When door lock and unlock switch is turned to LOCK

When door lock and unlock switch is turned to UNLOCK
Without CONSULT-III
1. Remove key from ignition switch, and close the doors of driver side and passenger side.
2. Check the signal between BCM connector and ground with oscilloscope when door lock and unlock
switch (driver side and passenger side) is turned “LOCK” or “UNLOCK”.
3. Make sure signals which are shown in the figure below can be detected during 10 second just after door
lock and unlock switch (driver side or passenger side) is turned “LOCK” or “UNLOCK”.
OK or NG
OK >> GO TO 3.
NG >> GO TO 4.
3. CHECK BCM OUTPUT SIGNAL
Check power window serial link (“POWER WINDOW DOWN”) in “ACTIVE TEST” mode with CONSULT-III.
Refer to BL-74, "
Active Test" .
When “ACTIVE TEST” is executed, the window of driver side and passenger side are go down.
OK or NG
OK >> Further inspection is necessary. Refer to symptom chart.
NG >> Replace BCM.CDL LOCK SW :ON
CDL UNLOCK SW :ON
ConnectorTerminal
(Wire color)Signal
(Reference value)
(+) (–)
M90 22 (Y) Ground
PIIA6379EPIIA1297E

POWER DOOR LOCK SYSTEM
BL-43
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 November2007 350Z

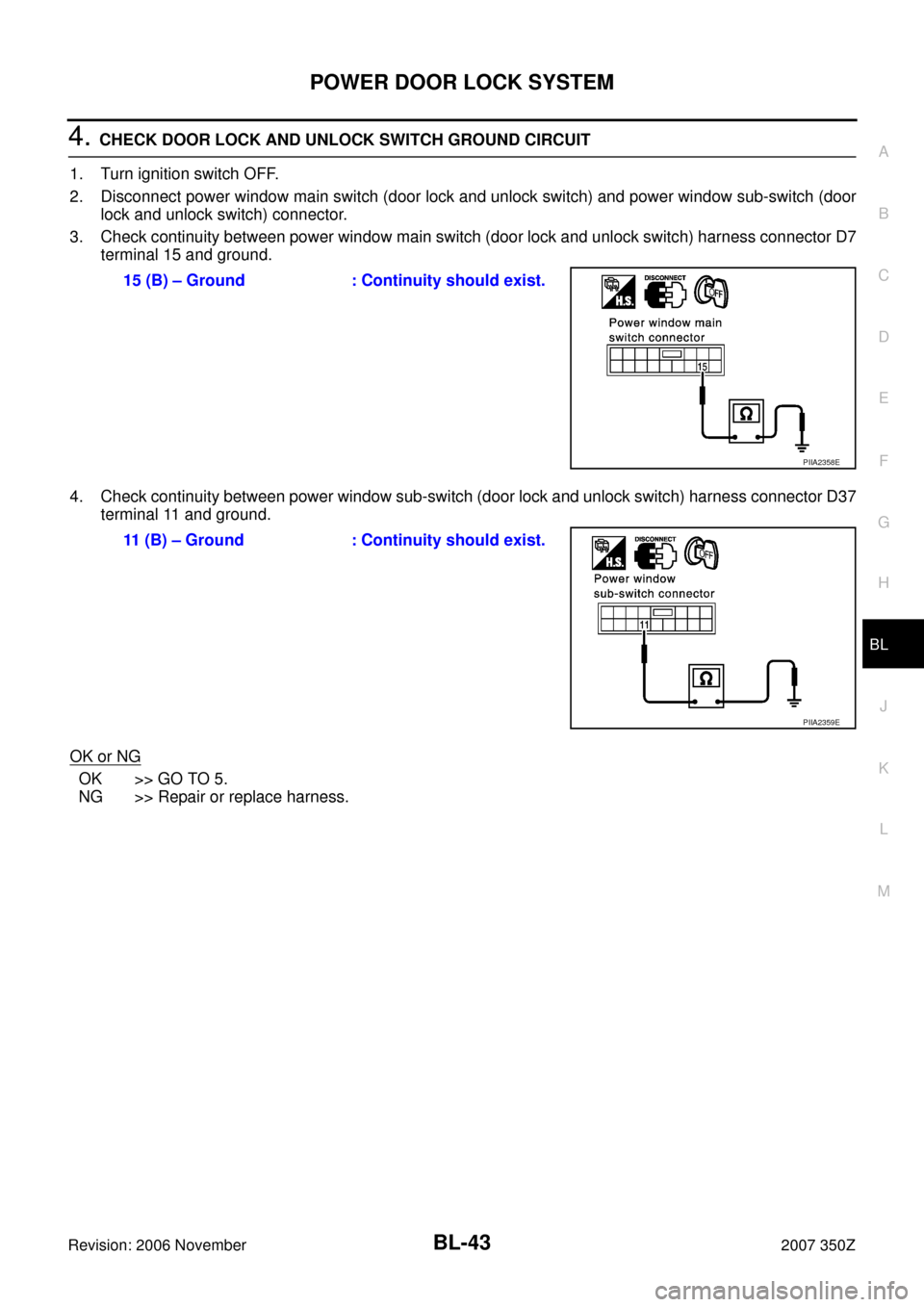

4. CHECK DOOR LOCK AND UNLOCK SWITCH GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect power window main switch (door lock and unlock switch) and power window sub-switch (door
lock and unlock switch) connector.
3. Check continuity between power window main switch (door lock and unlock switch) harness connector D7
terminal 15 and ground.
4. Check continuity between power window sub-switch (door lock and unlock switch) harness connector D37
terminal 11 and ground.
OK or NG
OK >> GO TO 5.
NG >> Repair or replace harness.15 (B) – Ground : Continuity should exist.
PIIA2358E
11 (B) – Ground : Continuity should exist.
PIIA2359E

BL-44
POWER DOOR LOCK SYSTEM
Revision: 2006 November2007 350Z

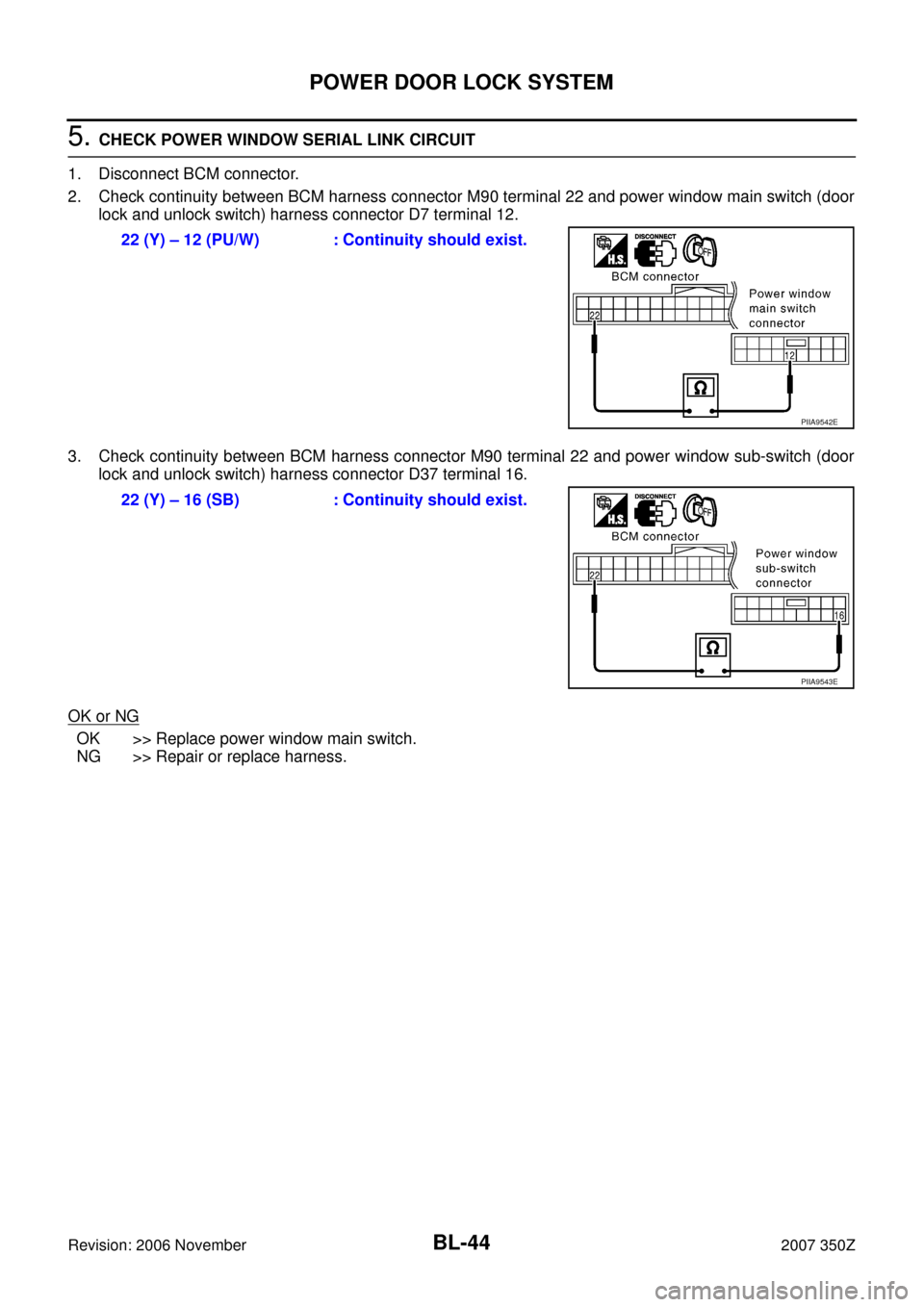

5. CHECK POWER WINDOW SERIAL LINK CIRCUIT
1. Disconnect BCM connector.
2. Check continuity between BCM harness connector M90 terminal 22 and power window main switch (door
lock and unlock switch) harness connector D7 terminal 12.
3. Check continuity between BCM harness connector M90 terminal 22 and power window sub-switch (door
lock and unlock switch) harness connector D37 terminal 16.
OK or NG
OK >> Replace power window main switch.
NG >> Repair or replace harness.22 (Y) – 12 (PU/W) : Continuity should exist.
PIIA9542E
22 (Y) – 16 (SB) : Continuity should exist.
PIIA9543E

POWER DOOR LOCK SYSTEM
BL-45
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 November2007 350Z

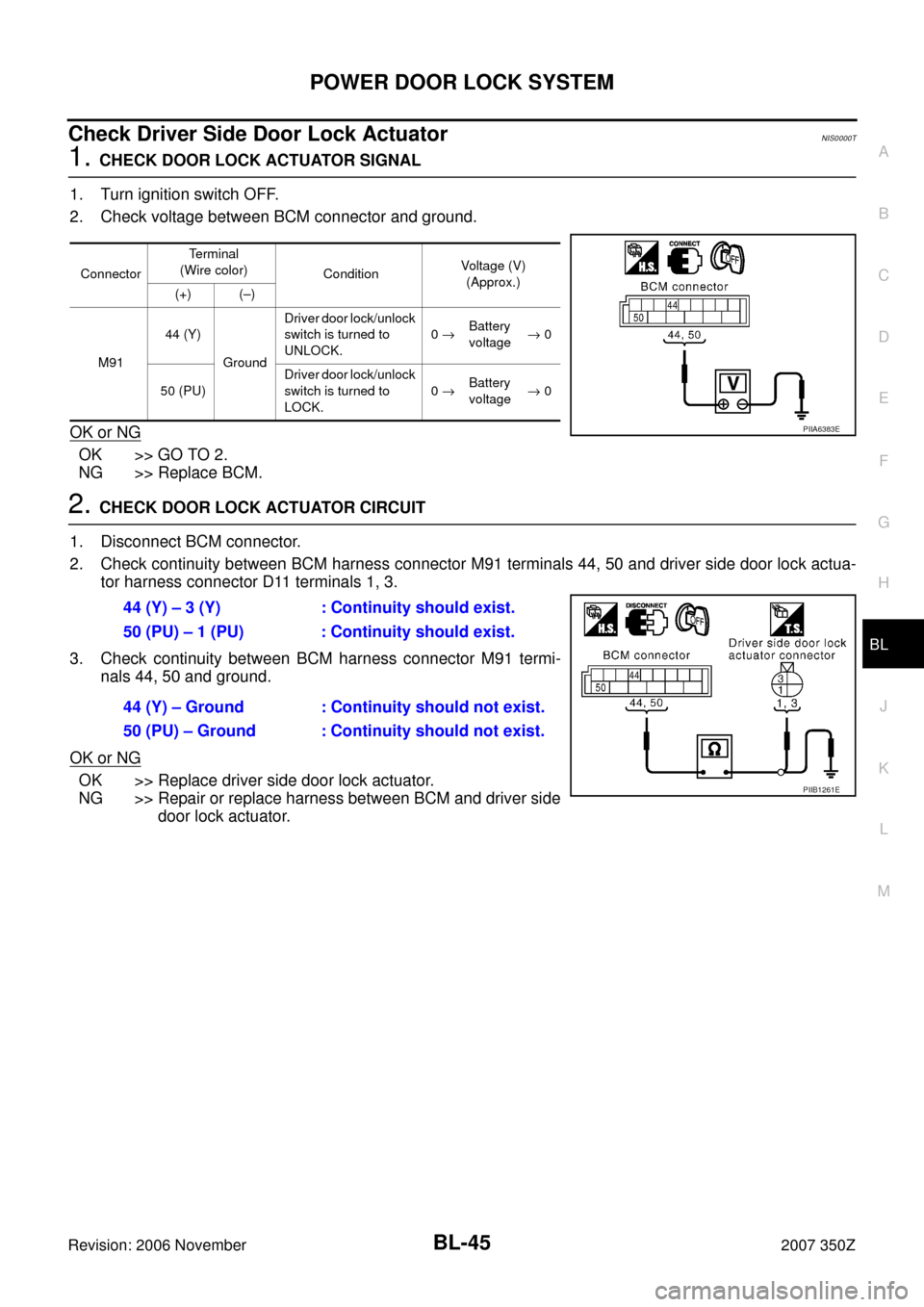

Check Driver Side Door Lock Actuator NIS0000T
1. CHECK DOOR LOCK ACTUATOR SIGNAL
1. Turn ignition switch OFF.
2. Check voltage between BCM connector and ground.
OK or NG
OK >> GO TO 2.
NG >> Replace BCM.
2. CHECK DOOR LOCK ACTUATOR CIRCUIT
1. Disconnect BCM connector.
2. Check continuity between BCM harness connector M91 terminals 44, 50 and driver side door lock actua-
tor harness connector D11 terminals 1, 3.
3. Check continuity between BCM harness connector M91 termi-
nals 44, 50 and ground.
OK or NG
OK >> Replace driver side door lock actuator.
NG >> Repair or replace harness between BCM and driver side
door lock actuator.
ConnectorTerminal
(Wire color)
ConditionVoltage (V)
(Approx.)
(+) (–)
M9144 (Y)
GroundDriver door lock/unlock
switch is turned to
UNLOCK.0 →Battery
voltage→ 0
50 (PU)Driver door lock/unlock
switch is turned to
LOCK.0 →Battery
voltage→ 0
PIIA6383E
44 (Y) – 3 (Y) : Continuity should exist.
50 (PU) – 1 (PU) : Continuity should exist.
44 (Y) – Ground : Continuity should not exist.
50 (PU) – Ground : Continuity should not exist.
PIIB1261E

BL-46
POWER DOOR LOCK SYSTEM
Revision: 2006 November2007 350Z

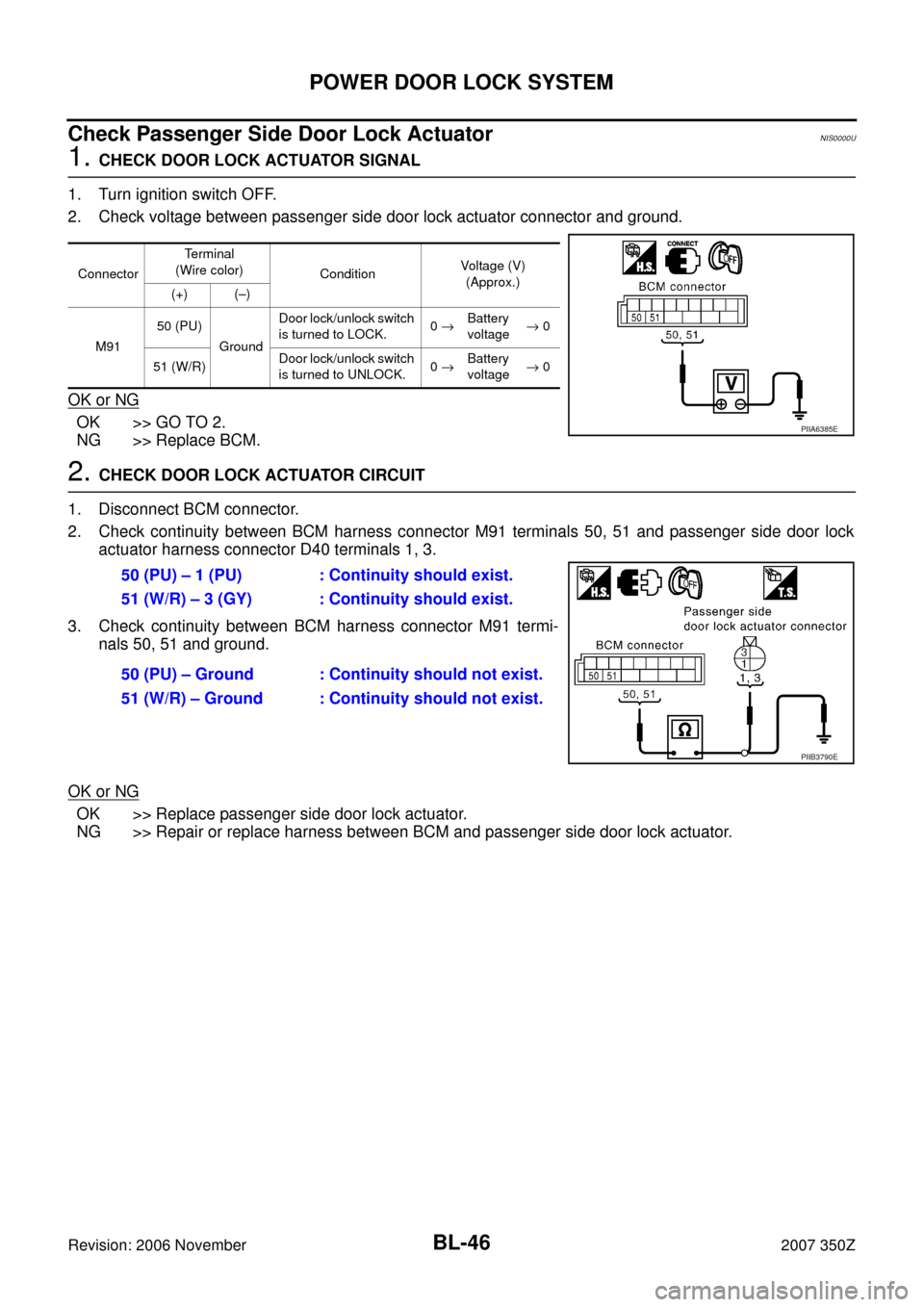

Check Passenger Side Door Lock Actuator NIS0000U
1. CHECK DOOR LOCK ACTUATOR SIGNAL
1. Turn ignition switch OFF.
2. Check voltage between passenger side door lock actuator connector and ground.
OK or NG
OK >> GO TO 2.
NG >> Replace BCM.
2. CHECK DOOR LOCK ACTUATOR CIRCUIT
1. Disconnect BCM connector.
2. Check continuity between BCM harness connector M91 terminals 50, 51 and passenger side door lock
actuator harness connector D40 terminals 1, 3.
3. Check continuity between BCM harness connector M91 termi-
nals 50, 51 and ground.
OK or NG
OK >> Replace passenger side door lock actuator.
NG >> Repair or replace harness between BCM and passenger side door lock actuator.
ConnectorTerminal
(Wire color)
ConditionVoltage (V)
(Approx.)
(+) (–)
M9150 (PU)
GroundDoor lock/unlock switch
is turned to LOCK.0 →Battery
voltage→ 0
51 (W/R)Door lock/unlock switch
is turned to UNLOCK.0 →Battery
voltage→ 0
PIIA6385E
50 (PU) – 1 (PU) : Continuity should exist.
51 (W/R) – 3 (GY) : Continuity should exist.
50 (PU) – Ground : Continuity should not exist.
51 (W/R) – Ground : Continuity should not exist.
PIIB3790E

POWER DOOR LOCK SYSTEM
BL-47
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 November2007 350Z
Check Door Key Cylinder Switch NIS0000V
1. CHECK DOOR KEY CYLINDER SWITCH INPUT SIGNAL
With CONSULT-III

Check door key cylinder switch (“KEY CYL LK SW”) in “DATA MONITOR” mode with CONSULT-III.

Check door key cylinder switch (“KEY CYL UN-SW”) in “DATA MONITOR” mode with CONSULT-III.
Without CONSULT-III
Check voltage between power window main switch (door lock and unlock switch) connector and ground.
OK or NG
OK >> Further inspection is necessary. Refer to symptom
chart.
NG >> GO TO 2.
2. CHECK DOOR KEY CYLINDER SWITCH CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect power window main switch (door lock and unlock switch) and door key cylinder switch con-
nector.
3. Check continuity between power window main switch (door lock and unlock switch) harness connector D7
terminals 6, 7 and door key cylinder switch harness connector D12 terminals 1, 3.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness between power window main
switch and door key cylinder switch. “KEY CYL LK-SW” should be “ON” when key inserted
in door key cylinder is turned to lock.
“KEY CYL UN-SW” should be “ON” when key inserted
in door key cylinder is turned to unlock.
ConnectorTe r m i n a l s
Key position Voltage (V)
(Approx.)
(+) (–)
D76 (B/R)
GroundNeutral/Unlock 5
Lock 0
7 (SB)Neutral/Lock 5
Unlock 0
PIIA3352E
6 (B/R) – 3 (B/R) : Continuity should exist.
7 (SB) – 1 (SB) : Continuity should exist.
PIIA3353E

BL-48
POWER DOOR LOCK SYSTEM
Revision: 2006 November2007 350Z
3. CHECK DOOR KEY CYLINDER SWITCH GROUND CIRCUIT
Check continuity between door key cylinder switch harness connector D12 terminal 2 and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness.
4. CHECK DOOR KEY CYLINDER SWITCH
Check continuity between door key cylinder switch terminals 1, 3 and 2.
OK or NG
OK >> Further inspection is necessary. Refer to symptom
chart.
NG >> Replace door key cylinder switch.
Check Back Door Opener Switch NIS0000W
1. CHECK BACK DOOR OPENER SIGNAL
Check voltage between BCM connector and ground.
Press back door opener switch when driver side door is unlocked.
*: When interior lamp battery saver control is in OFF position. →Approx.5V
OK or NG
OK >> GO TO 2.
NG >> Replace BCM.2 (B) – Ground : Continuity should exist.
PIIA3354E
Connector Terminals Key position Continuity
D121
2Neutral/Lock No
Unlock Yes
3Neutral/Unlock No
Lock Yes
PIIA3355E
ConnectorTerminals
(Wire color)
Condition Voltage (V)
(Approx.)
(+) (–)
M90 30 (P) GroundBack door
opener switch
ON0
Back door
opener switch
OFFBattery voltage*
PIIA9334E
