2007 NISSAN 350Z Body, Lock And Security System Workshop Manual

VEHICLE SECURITY (THEFT WARNING) SYSTEM
BL-137
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 November2007 350Z
Terminals and Reference Value for IPDM E/RNIS0002Z
CONSULT-III Function (BCM)NIS00030
CONSULT-III APPLICATION ITEM
Work Support
Data Monitor
Active Test
Terminal Wire
colorItemSignal
Input/
OutputConditionVoltage [V]
(Approx.)
38 B Ground — — 0
48 L CAN-HInput/
Output——
49 P CAN-LInput/
Output——
51 G/B Horn relay Output ON → OFF 0 → Battery voltage
60 B Ground — — 0
Test Item Description
SECURITY ALARM SET This mode is able to confirm and change security alarm ON-OFF setting.
THEFT ALM TRGThe switch which triggered vehicle security alarm is recorded. This mode is able to confirm and
erase the record of vehicle security alarm. The trigger data can be erased by touching “CLEAR”
on CONSULT-III screen.
Monitored Item Description
IGN ON SW Indicates [ON/OFF] condition of ignition switch.
ACC ON SW Indicates [ON/OFF] condition of ignition switch in ACC position.
KEY CYL LK SW Indicates [ON/OFF] condition of lock signal from key cylinder switch.
KEY CYL UN SW Indicates [ON/OFF] condition of unlock signal from key cylinder switch.
DOOR SW-DR Indicates [ON/OFF] condition of driver side door switch.
DOOR SW-AS Indicates [ON/OFF] condition of passenger side door switch.
BACK DOOR SW Indicates [ON/OFF] condition of back door switch.
TRUNK OPNR SW Indicates [ON/OFF] condition of trunk room lamp switch. (Roadster models)
TRUNK OPN MNTRThis is displayed even when it is not equipped.
Indicates [ON/OFF] condition of trunk lid opener switch. (Roadster models)
TRUNK KEY SW This is displayed even when it is not equipped.
DOOR SW-RR This is displayed even when it is not equipped.
HOOD SW Indicates [ON/OFF] condition of hood switch.
LOCK SW DR/ASIndicates [ON/OFF] condition of lock signal from driver and passenger side door lock/unlock
switch.
UNLK SW DR/ASIndicates [ON/OFF] condition of unlock signal from driver and passenger side door lock/unlock
switch.
LK BUTTON/SIG Indicates [ON/OFF] condition of lock signal from key fob.
UN BUTTON/SIG Indicates [ON/OFF] condition of unlock signal from key fob.
TRUNK BTN/SIGIndicate [ON/OFF] condition of back door open signal from key fob (for Coupe).
Indicates [ON/OFF] condition of trunk open signal from key fob (for Roadster).
Test Item Description
THEFT INDThis test is able to check security indicator lamp operation. The lamp will be turned on when “ON”
on CONSULT-III screen is touched.

BL-138
VEHICLE SECURITY (THEFT WARNING) SYSTEM
Revision: 2006 November2007 350Z
CONSULT-III Function (IPDM E/R)NIS00031
CONSULT-III APPLICATION ITEM
Data Monitor
Active Test
Trouble DiagnosisNIS00032
WORK FLOW

“POWER DOOR LOCK SYSTEM” Diagnosis; refer to BL-35, "Work Flow" .
HORNThis test is able to check vehicle security horn (horn alarm) operation. The horns will be activated
for 0.5 seconds after “ON” on CONSULT-III screen is touched.
HEAD LAMPThis test is able to check vehicle security lamp (headlamp alarm) operation. The headlamps will
be activated for 0.5 seconds after “ON” on CONSULT-III screen is touched. Test Item Description
Monitored Item Description
HL LO REQ Indicates [ON/OFF] condition of headlamp low beam.
HL HI REQ Indicates [ON/OFF] condition of headlamp high beam.
HOOD SW Indicates [ON/OFF] condition of hood switch.
THFT HRN REQ Indicates [ON/OFF] condition of horn relay.
Test Item Description
LAMPSThis test is able to check theft warning lamp (headlamp alarm) operation. The headlamps will be
activated for 0.5 seconds after “ON” on CONSULT-III screen is touched.
HORNThis test is able to check theft warning horn (horn alarm) operation. The horns will be activated for
0.5 seconds after “ON” on CONSULT-III screen is touched.
LIIA0123E

VEHICLE SECURITY (THEFT WARNING) SYSTEM
BL-139
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 November2007 350Z

“REMOTE KEYLESS ENTRY” Diagnosis; refer to BL-75, "Work Flow" .
Preliminary CheckNIS00033
The system operation is canceled by turning ignition switch to “ACC” at any step between START and ARMED
in the following flow chart.
After performing preliminary check, go to symptom chart. Refer to BL-140, "
Symptom Chart" .
PIIA8954E

BL-140
VEHICLE SECURITY (THEFT WARNING) SYSTEM
Revision: 2006 November2007 350Z
Symptom ChartNIS00034
*1: Make sure the system is in the armed phase.PROCEDURE
Diagnostic procedure Reference page
SYMPTOM
1Vehicle secu-
rity system
cannot be set
by ····Door switchDiagnostic Procedure 1 (Check door, hood, back door switch or
trunk room lamp switch)BL-141
Lock/unlock switch Diagnostic Procedure 6 (Check door lock/unlock switch)BL-149
Door outside key Diagnostic Procedure 3 (Check door key cylinder switch)BL-147
Key fob Check remote keyless entry system function.BL-61
BCM If the above systems are “OK”, replace BCM.BCS-17
Security indicator does not turn “ON”.Diagnostic Procedure 2 (Check security indicator lamp)BL-146If the above systems are “OK”, replace BCM.BCS-17
2*1 Vehicle
security sys-
tem does not
alarm when
····Any door is opened.Diagnostic Procedure 1 (Check door, hood and trunk room lamp
switch)BL-141
If the above systems are “OK”, replace BCM.BCS-17
3Vehicle secu-
rity alarm
does not acti-
vate.Horn alarmDiagnostic Procedure 4 (Check vehicle security horn alarm)BL-148If the above systems are “OK”, replace BCM.BCS-17
Headlamp alarmDiagnostic Procedure 5 (Check vehicle security headlamp alarm)BL-148If the above systems are “OK”, replace BCM.BCS-17
4Vehicle secu-
rity system
cannot be
canceled by
····Door outside key Diagnostic Procedure 3 (Check door key cylinder switch)BL-147Key fobCheck remote keyless entry system function.BL-61If the above systems are “OK”, replace BCM.BCS-17

VEHICLE SECURITY (THEFT WARNING) SYSTEM
BL-141
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 November2007 350Z

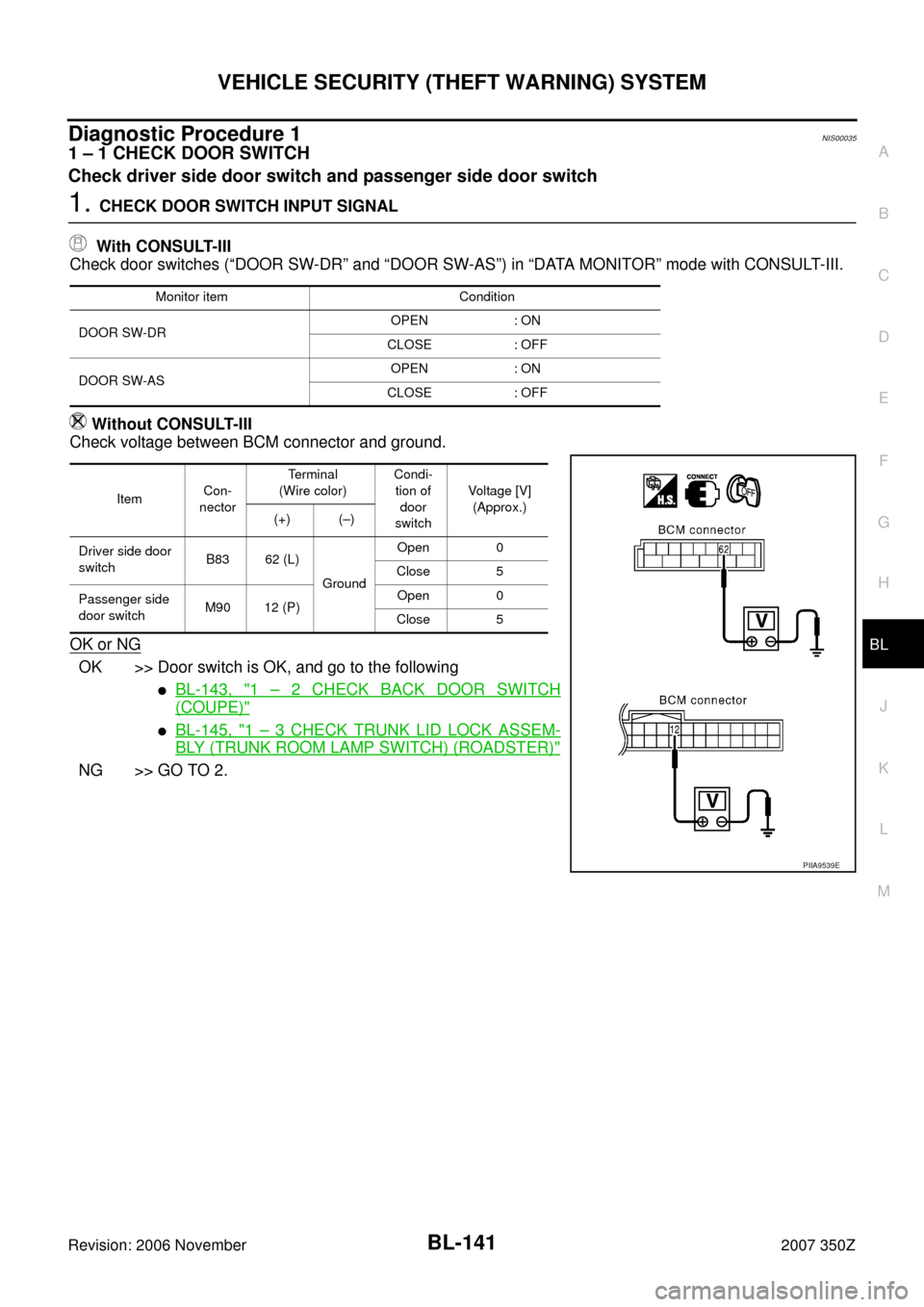

Diagnostic Procedure 1NIS00035
1 – 1 CHECK DOOR SWITCH
Check driver side door switch and passenger side door switch
1. CHECK DOOR SWITCH INPUT SIGNAL
With CONSULT-III
Check door switches (“DOOR SW-DR” and “DOOR SW-AS”) in “DATA MONITOR” mode with CONSULT-III.
Without CONSULT-III
Check voltage between BCM connector and ground.
OK or NG
OK >> Door switch is OK, and go to the following

BL-143, "1 – 2 CHECK BACK DOOR SWITCH
(COUPE)"

BL-145, "1 – 3 CHECK TRUNK LID LOCK ASSEM-
BLY (TRUNK ROOM LAMP SWITCH) (ROADSTER)"
NG >> GO TO 2.
Monitor item Condition
DOOR SW-DROPEN : ON
CLOSE : OFF
DOOR SW-ASOPEN : ON
CLOSE : OFF
ItemCon-
nectorTe r m i n a l
(Wire color)Condi-
tion of
door
switchVoltage [V]
(Approx.)
(+) (–)
Driver side door
switchB83 62 (L)
GroundOpen 0
Close 5
Passenger side
door switchM90 12 (P)Open 0
Close 5
PIIA9539E

BL-142
VEHICLE SECURITY (THEFT WARNING) SYSTEM
Revision: 2006 November2007 350Z
2. CHECK DOOR SWITCH CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect door switch and BCM connector.
3. Check continuity between door switch harness connector B17, B23 terminal 1 and BCM harness connec-
tor B83 terminal 62 (driver side) or M90 terminal 12 (passenger side).
4. Check continuity between door switch harness connector B17,
B23 terminal 1 and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace door switch harness.
3. CHECK DOOR SWITCH
Check continuity between door switch B17 (driver side) or B23 (passenger side) terminal 1 and ground part of
door switch.
OK or NG
OK >> GO TO 4.
NG >> Replace door switch.Driver side door
1 (L) - 62 (L) : Continuity should exist.
Passenger side door
1 (P) - 12 (P) : Continuity should exist.
Each door switch
1 (W or P) - Ground : Continuity should not exist.
PIIA9540E
TerminalCondition of door
switchContinuity
1 Ground part of door switchPushed No
Released Yes
PIIA3351E

VEHICLE SECURITY (THEFT WARNING) SYSTEM
BL-143
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 November2007 350Z

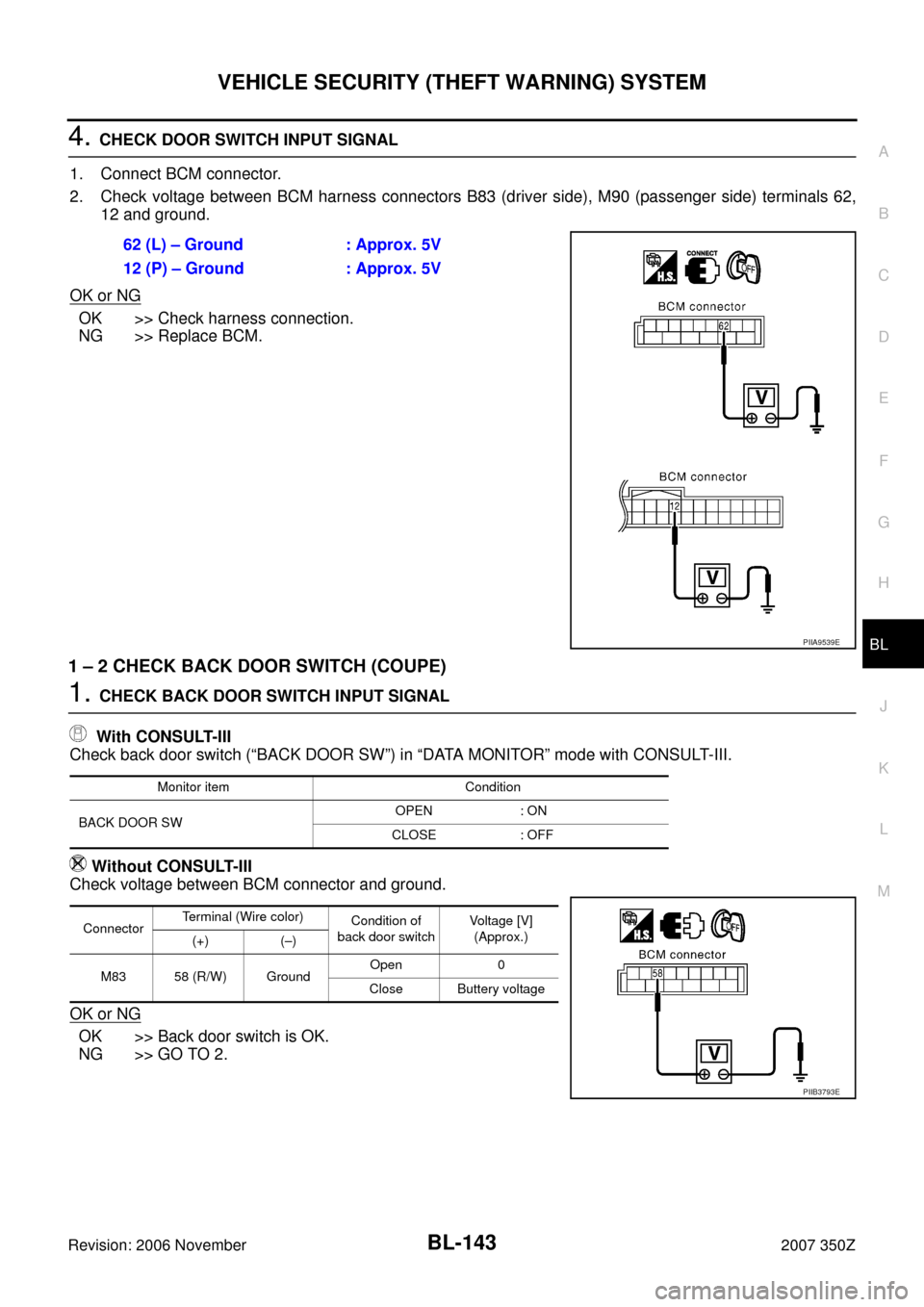

4. CHECK DOOR SWITCH INPUT SIGNAL
1. Connect BCM connector.
2. Check voltage between BCM harness connectors B83 (driver side), M90 (passenger side) terminals 62,
12 and ground.
OK or NG
OK >> Check harness connection.
NG >> Replace BCM.
1 – 2 CHECK BACK DOOR SWITCH (COUPE)
1. CHECK BACK DOOR SWITCH INPUT SIGNAL
With CONSULT-III
Check back door switch (“BACK DOOR SW”) in “DATA MONITOR” mode with CONSULT-III.
Without CONSULT-III
Check voltage between BCM connector and ground.
OK or NG
OK >> Back door switch is OK.
NG >> GO TO 2.62 (L) – Ground : Approx. 5V
12 (P) – Ground : Approx. 5V
PIIA9539E
Monitor item Condition
BACK DOOR SWOPEN : ON
CLOSE : OFF
ConnectorTerminal (Wire color)
Condition of
back door switchVoltage [V]
(Approx.)
(+) (–)
M83 58 (R/W) GroundOpen 0
Close Buttery voltage
PIIB3793E

BL-144
VEHICLE SECURITY (THEFT WARNING) SYSTEM
Revision: 2006 November2007 350Z

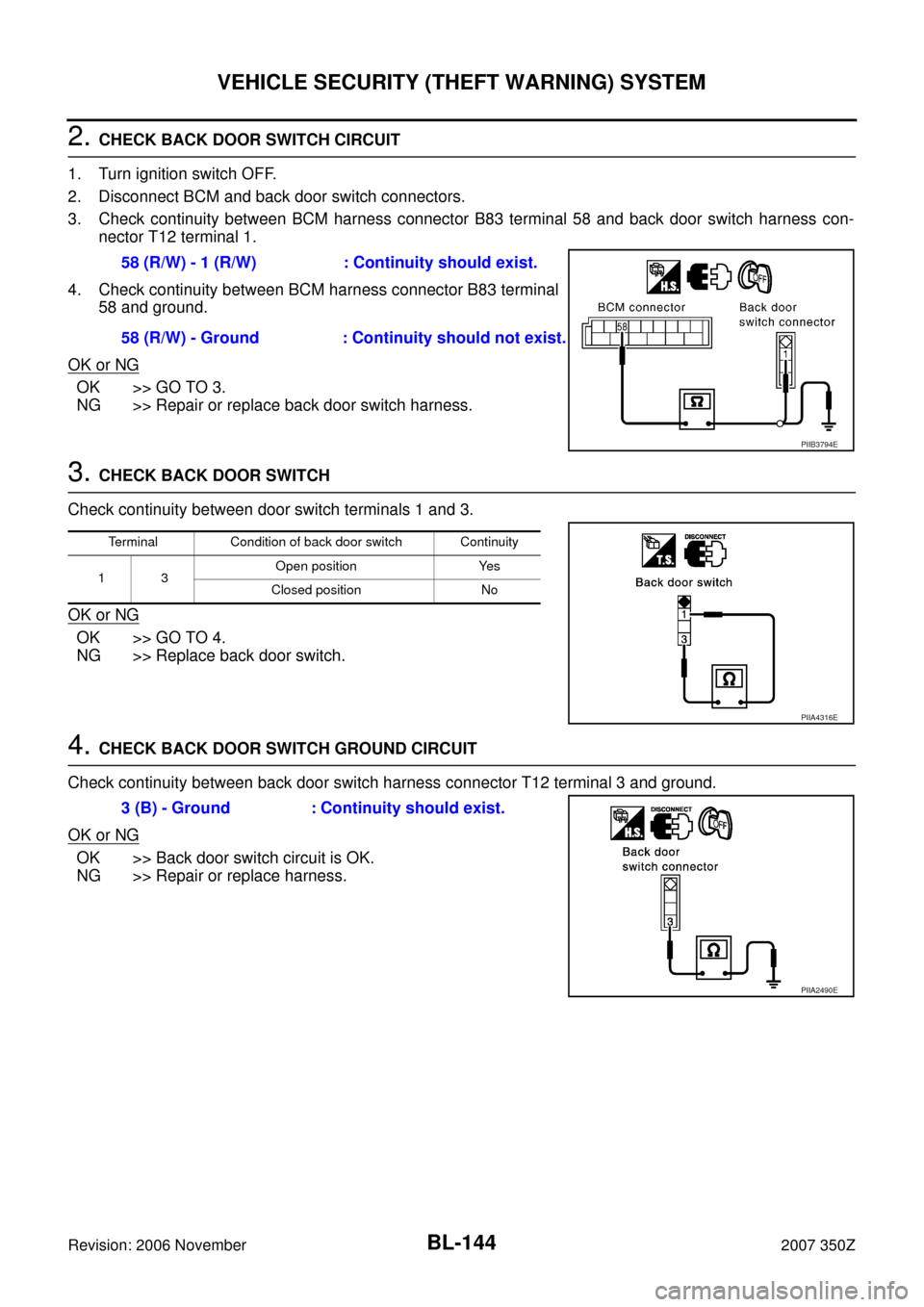

2. CHECK BACK DOOR SWITCH CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM and back door switch connectors.
3. Check continuity between BCM harness connector B83 terminal 58 and back door switch harness con-
nector T12 terminal 1.
4. Check continuity between BCM harness connector B83 terminal
58 and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace back door switch harness.
3. CHECK BACK DOOR SWITCH
Check continuity between door switch terminals 1 and 3.
OK or NG
OK >> GO TO 4.
NG >> Replace back door switch.
4. CHECK BACK DOOR SWITCH GROUND CIRCUIT
Check continuity between back door switch harness connector T12 terminal 3 and ground.
OK or NG
OK >> Back door switch circuit is OK.
NG >> Repair or replace harness.58 (R/W) - 1 (R/W) : Continuity should exist.
58 (R/W) - Ground : Continuity should not exist.
PIIB3794E
Terminal Condition of back door switch Continuity
13Open position Yes
Closed position No
PIIA4316E
3 (B) - Ground : Continuity should exist.
PIIA2490E
