2007 NISSAN 350Z Body, Lock And Security System Workshop Manual

POWER DOOR LOCK SYSTEM
BL-49
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 November2007 350Z

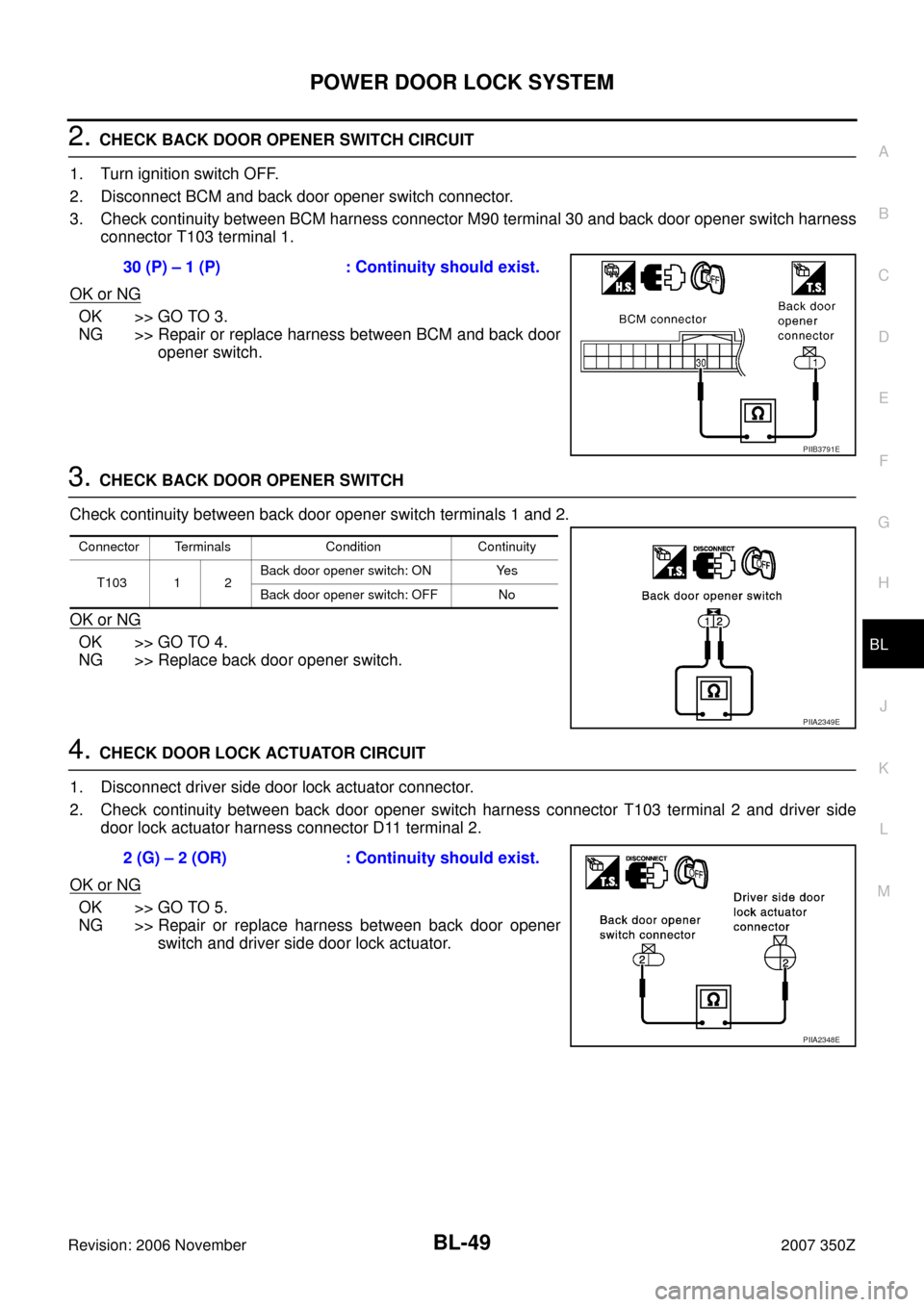

2. CHECK BACK DOOR OPENER SWITCH CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM and back door opener switch connector.
3. Check continuity between BCM harness connector M90 terminal 30 and back door opener switch harness
connector T103 terminal 1.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness between BCM and back door
opener switch.
3. CHECK BACK DOOR OPENER SWITCH
Check continuity between back door opener switch terminals 1 and 2.
OK or NG
OK >> GO TO 4.
NG >> Replace back door opener switch.
4. CHECK DOOR LOCK ACTUATOR CIRCUIT
1. Disconnect driver side door lock actuator connector.
2. Check continuity between back door opener switch harness connector T103 terminal 2 and driver side
door lock actuator harness connector D11 terminal 2.
OK or NG
OK >> GO TO 5.
NG >> Repair or replace harness between back door opener
switch and driver side door lock actuator. 30 (P) – 1 (P) : Continuity should exist.
PIIB3791E
Connector Terminals Condition Continuity
T103 1 2Back door opener switch: ON Yes
Back door opener switch: OFF No
PIIA2349E
2 (G) – 2 (OR) : Continuity should exist.
PIIA2348E

BL-50
POWER DOOR LOCK SYSTEM
Revision: 2006 November2007 350Z

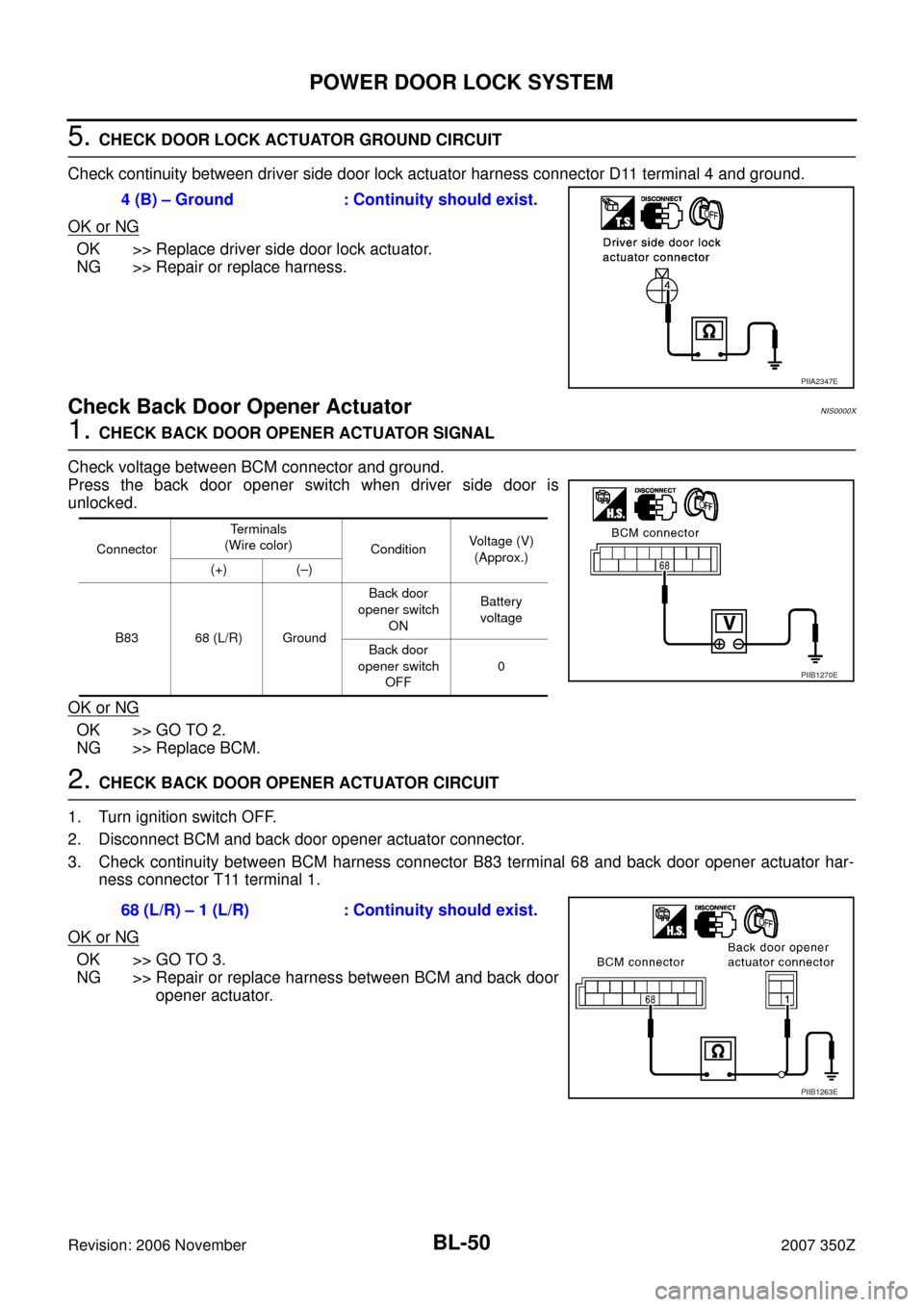

5. CHECK DOOR LOCK ACTUATOR GROUND CIRCUIT
Check continuity between driver side door lock actuator harness connector D11 terminal 4 and ground.
OK or NG
OK >> Replace driver side door lock actuator.
NG >> Repair or replace harness.
Check Back Door Opener Actuator NIS0000X
1. CHECK BACK DOOR OPENER ACTUATOR SIGNAL
Check voltage between BCM connector and ground.
Press the back door opener switch when driver side door is
unlocked.
OK or NG
OK >> GO TO 2.
NG >> Replace BCM.
2. CHECK BACK DOOR OPENER ACTUATOR CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM and back door opener actuator connector.
3. Check continuity between BCM harness connector B83 terminal 68 and back door opener actuator har-
ness connector T11 terminal 1.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness between BCM and back door
opener actuator. 4 (B) – Ground : Continuity should exist.
PIIA2347E
ConnectorTerminals
(Wire color)
Condition Voltage (V)
(Approx.)
(+) (–)
B83 68 (L/R) GroundBack door
opener switch
ONBattery
voltage
Back door
opener switch
OFF0
PIIB1270E
68 (L/R) – 1 (L/R) : Continuity should exist.
PIIB1263E

POWER DOOR LOCK SYSTEM
BL-51
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 November2007 350Z
3. CHECK BACK DOOR OPENER ACTUATOR GROUND CIRCUIT
Check continuity between back door opener actuator harness connector T11 terminal 2 and ground.
OK or NG
OK >> Replace back door opener actuator.
NG >> Repair or replace.2 (B) – Ground : Continuity should exist.
PIIA2354E

BL-52
FUEL FILLER LID OPENER
Revision: 2006 November2007 350Z
FUEL FILLER LID OPENERPFP:78820
System Description/For RoadSterNIS0000Y
Power is supplied at all times

through 40A fusible link (letter F , located in the fuse and fusible link box)

to BCM terminal 55,

through 10A fuse [No.18, located in the fuse block (J/B)]

to BCM terminal 42.
When ignition switch ACC or ON position, power is supplied

through 10A fuse [No. 6, located in the fuse block (J/B)]

to BCM terminal 11.
Ground is supplied

to BCM terminal 52

through body grounds M30 and M66.
FUEL LID OPEN OPERATION
When fuel lid opener switch is ON (pushed), ground is supplied

to BCM terminal 58

through fuel lid opener switch terminals 1 and 2, and

through body grounds M30 and M66.
And power is supplied

to BCM terminal 70

through fuel lid opener actuator terminals 1 and 2, and

through body grounds B5, B6, and T14.
Then fuel lid opener actuator opens fuel lid.
FUEL LID OPENER CANCEL OPERATION
Fuel lid cannot open when vehicle condition is in arm or alarm phase.

FUEL FILLER LID OPENER
BL-53
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 November2007 350Z

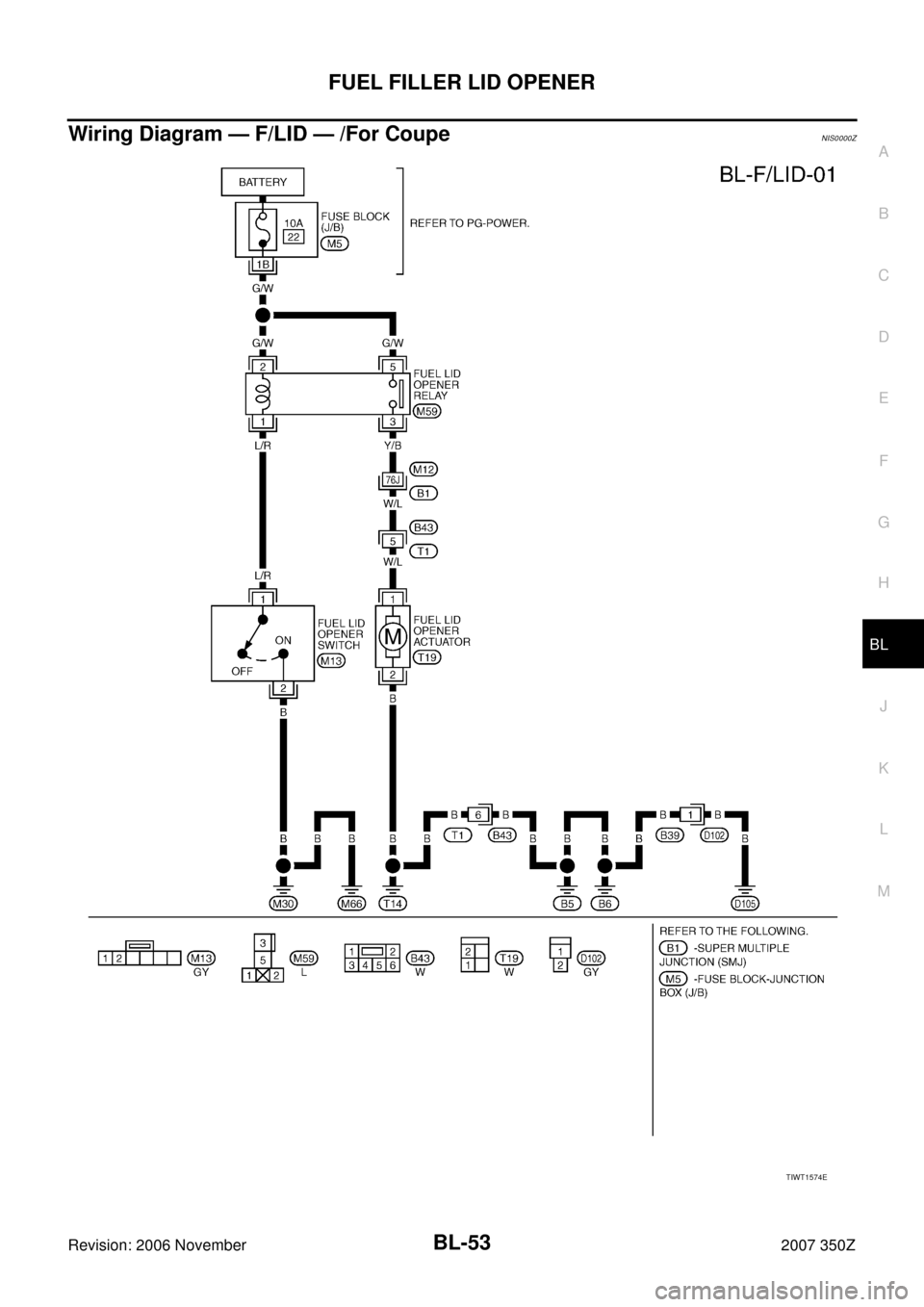

Wiring Diagram — F/LID — /For CoupeNIS0000Z
TIWT1574E

BL-54
FUEL FILLER LID OPENER
Revision: 2006 November2007 350Z

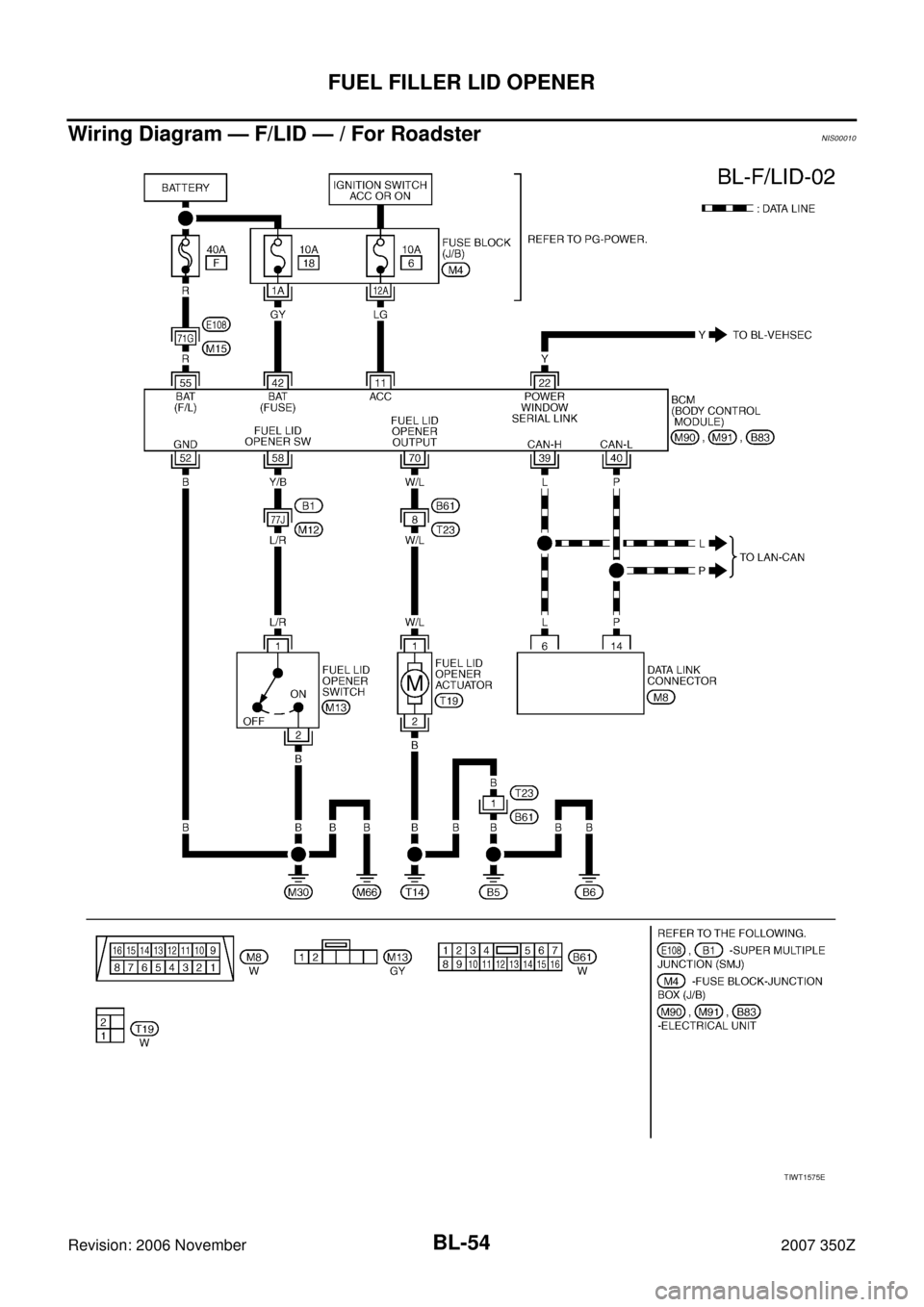

Wiring Diagram — F/LID — / For RoadsterNIS00010
TIWT1575E

FUEL FILLER LID OPENER
BL-55
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 November2007 350Z
CONSULT-III Function (BCM)/For RoadsterNIS00011
CONSULT-III can display each diagnostic item using the diagnostic test modes shown following.
DATA MONITOR
ACTIVE TEST
BCM diagnosis
partInspection item, self-diagnosis
modeContent
Fuel lidData monitor Displays BCM input data on real-time basis.
Active test Sends drive signals to fuel lid opener actuator to perform operation check.
Monitor item “operation” Content
F/LID OPN SW Indicates [ON/OFF] condition of fuel lid opener switch.
Test item Content
FUEL LID OPENThis test is able to check fuel lid opener actuator unlock operation. This actuator unlocks when “ON” on
CONSULT-III screen is touched.

BL-56
FUEL FILLER LID OPENER
Revision: 2006 November2007 350Z
Terminals and Reference Value for BCM/For RoadsterNIS00012
Trouble Diagnosis/For RoadsterNIS00013
FUEL LID DOSE NOT OPEN WITH FUEL LID OPENER SWITCH
1. VEHICLE CONDITION
Check vehicle security system.
Ye s o r N o
Yes >> Cancel arm phase or alarm phase condition.
No >> GO TO 2.
2. CHECK FUEL LID OPEN INPUT SIGNAL
With CONSULT-III
Check door switches (“F/LID OPN SW”) in “DATA MONITOR” mode with CONSULT-III.
Without CONSULT-III
1. Turn ignition switch OFF.
2. Check voltage between BCM and ground.
OK or NG
OK >> GO TO 3.
NG >> GO TO 6.
Termi-
nalWire
colorItemSignal
Input/
OutputConditionVoltage [V]
(Approx.)
11 LG Ignition switch (ACC) Input Ignition switch (ACC or ON) Battery voltage
39 L CAN-H Input — —
40 P CAN-L Input — —
42 GY Power source (Fuse) Input — Battery voltage
52 B Ground — — 0
55 R Power source (Fusible link) Input — Battery voltage
58 Y/B Fuel lid opener switch InputFuel lid opener switch is ON 0
Fuel lid opener switch is OFF Battery voltage
70 W/LFuel lid opener release
output signalOutputFuel lid opener switch is ON 0
Fuel lid opener switch is OFFBattery voltage
(For 0.5s)
Arm phase or alarm phase?
Monitor item Condition
F/LID OPN SWOPEN : ON
CLOSE : OFF
ConnectorTerminal
(Wire color)
ConditionVoltage [V]
(Approx.)
(+) (–)
B83 58 (Y/B) GroundFuel lid opener switch ON 0
Fuel lid opener switch OFF Battery voltage
PIIB1259E
