648 Practical hintsFusesFuse box in the rear passenger
compartment

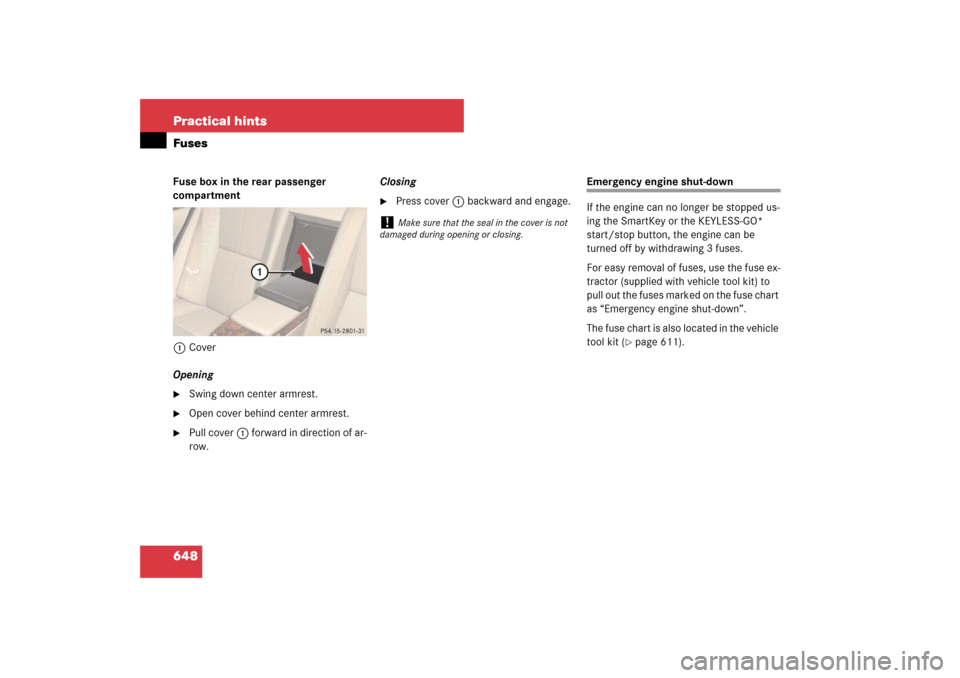

1Cover
Opening
Swing down center armrest.
Open cover behind center armrest.
Pull cover1 forward in direction of ar-
row.Closing
Press cover1 backward and engage.
Emergency engine shut-down
If the engine can no longer be stopped us-
ing the SmartKey or the KEYLESS-GO*
start/stop button, the engine can be
turned off by withdrawing 3 fuses.
For easy removal of fuses, use the fuse ex-
tractor (supplied with vehicle tool kit) to
pull out the fuses marked on the fuse chart
as “Emergency engine shut-down”.
The fuse chart is also located in the vehicle
tool kit (
page 611).
!
Make sure that the seal in the cover is not
damaged during opening or closing.
Page 650 of 705
649 Technical data
Parts service
Warranty coverage
Identification labels
Layout of poly-V-belt drive
Engine
Rims and tires
Electrical system
Main dimensions and weights
Fuels, coolants, lubricants, etc.
Page 651 of 705
650 Technical dataThe “Technical data” section provides the
necessary technical data for your vehicle.Parts service
All authorized Mercedes-Benz Centers
maintain a stock of Genuine
Mercedes-Benz parts required for mainte-
nance and repair work. In addition, strate-
gically located parts distribution centers
provide quick and reliable parts service.
More than 300 000 different parts for
Mercedes-Benz models are available.
Genuine Mercedes-Benz parts are subject-
ed to stringent quality inspections. Each
part has been specifically developed, man-
ufactured or selected for and adapted to
Mercedes-Benz vehicles.
Therefore, Genuine Mercedes-Benz parts
should be installed.
!
The use of non-genuine Mercedes-Benz
parts and accessories not authorized by
Mercedes-Benz could damage the vehicle, which
is not covered by the Mercedes-Benz Limited
Warranty, or could compromise the vehicle’s du-
rability or safety.
Page 652 of 705
651 Technical data
Warranty coverage
Warranty coverage
Your vehicle is covered under the terms of
the warranties printed in the Service and
Warranty Information booklet. Your autho-
rized Mercedes-Benz Center will exchange
or repair any defective parts originally in-
stalled on the vehicle in accordance with
the terms of the following warranties:
New Vehicle Limited Warranty
Emission System Warranty
Emission Performance Warranty
California, Maine, Massachusetts, and
Vermont Emission Control Systems
WarrantyReplacement parts and accessories are
covered by the Mercedes-Benz Parts and
Accessories warranties, copies of which
are available at any authorized
Mercedes-Benz Center.Loss of Service and Warranty
Information Booklet
Should you lose your Service and Warranty
Information booklet, have an authorized
Mercedes-Benz Center arrange for a re-
placement. It will be mailed to you.
Page 653 of 705

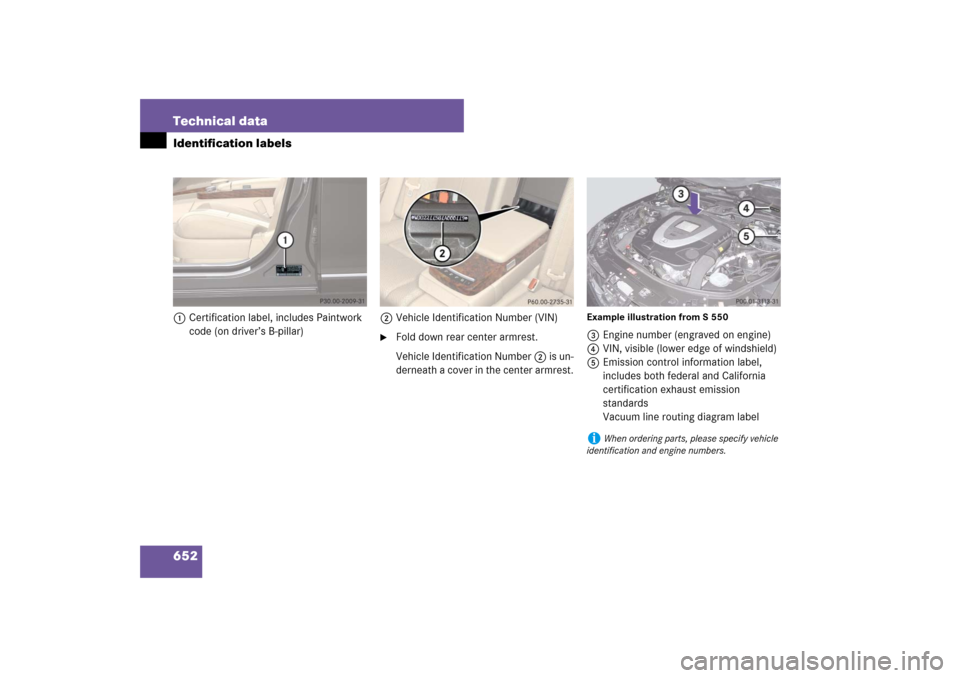

652 Technical dataIdentification labels1Certification label, includes Paintwork
code (on driver’s B-pillar) 2Vehicle Identification Number (VIN)
Fold down rear center armrest.
Vehicle Identification Number 2 is un-
derneath a cover in the center armrest.
Example illustration from S 5503Engine number (engraved on engine)
4VIN, visible (lower edge of windshield)
5Emission control information label,
includes both federal and California
certification exhaust emission
standards
Vacuum line routing diagram labeli
When ordering parts, please specify vehicle
identification and engine numbers.
Page 654 of 705
653 Technical data
Layout of poly-V-belt drive
Layout of poly-V-belt drive

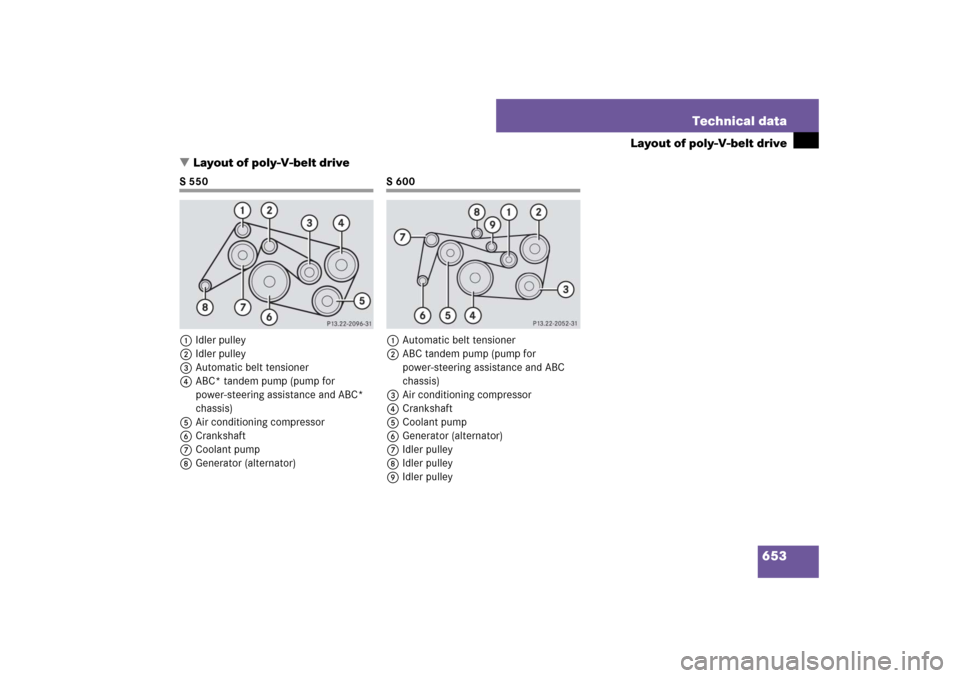

S 550
1Idler pulley
2Idler pulley
3Automatic belt tensioner
4ABC* tandem pump (pump for
power-steering assistance and ABC*
chassis)
5Air conditioning compressor
6Crankshaft
7Coolant pump
8Generator (alternator)
S 600
1Automatic belt tensioner
2ABC tandem pump (pump for
power-steering assistance and ABC
chassis)
3Air conditioning compressor
4Crankshaft
5Coolant pump
6Generator (alternator)
7Idler pulley
8Idler pulley
9Idler pulley
Page 655 of 705

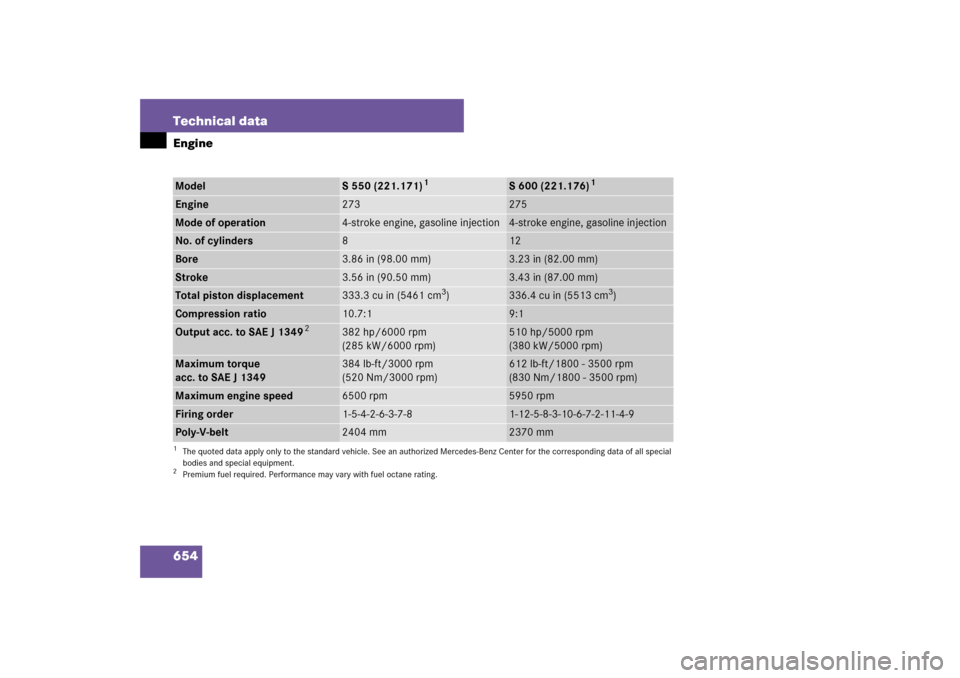

654 Technical dataEngineModel
S 550 (221.171)
1
1The quoted data apply only to the standard vehicle. See an authorized Mercedes-Benz Center for the corresponding data of all special
bodies and special equipment.
S 600 (221.176)
1
Engine
273
275
Mode of operation
4-stroke engine, gasoline injection
4-stroke engine, gasoline injection
No. of cylinders
8
12
Bore
3.86 in (98.00 mm)
3.23 in (82.00 mm)
Stroke
3.56 in (90.50 mm)
3.43 in (87.00 mm)
Total piston displacement
333.3 cu in (5461 cm
3)
336.4 cu in (5513 cm
3)
Compression ratio
10.7:1
9:1
Output acc. to SAE J 1349
2
2Premium fuel required. Performance may vary with fuel octane rating.
382 hp/6000 rpm
(285 kW/6000 rpm)
510 hp/5000 rpm
(380 kW/5000 rpm)
Maximum torque
acc. to SAE J 1349
384 lb-ft/3000 rpm
(520 Nm/3000 rpm)
612 lb-ft/1800 - 3500 rpm
(830 Nm/1800 - 3500 rpm)
Maximum engine speed
6500 rpm
5950 rpm
Firing order
1-5-4-2-6-3-7-8
1-12-5-8-3-10-6-7-2-11-4-9
Poly-V-belt
2404 mm
2370 mm
Page 656 of 705

655 Technical data
Rims and tires
Rims and tires
!
Only use tires which have been tested and
approved for your vehicle by Mercedes-Benz.
Tires approved by Mercedes-Benz are developed
to provide best possible performance in conjunc-
tion with the driving safety systems on your vehi-
cle such as ABS or ESP
®. Tires specially
developed for your vehicle and tested and ap-
proved by Mercedes-Benz can be identified by
finding the following on the tire’s sidewall:
MO = M
ercedes-Benz O
riginal equipment
tires
Using tires other than those approved by
Mercedes-Benz may result in damage that is not
covered by the Mercedes-Benz Limited
Warranty.
!
Using tires other than those approved by
Mercedes-Benz can have detrimental effects,
such as
poor handling characteristics
increased noise
increased fuel consumption
Moreover, tires and rims not approved by
Mercedes-Benz may, under load, exhibit dimen-
sional variations and different tire deformation
characteristics that could cause them to come
into contact with the vehicle body or axle parts. Damage to the tires or the vehicle may be the re-
sult.
i
Further information on tires and rims is
available at any authorized Mercedes-Benz
Center. A placard with the recommended tire in-
flation pressures is located on the driver’s door
B-pillar (
page 503). Some vehicles may have
supplemental tire inflation pressure information
for driving at high speeds (
page 510) or for ve-
hicle loads less than the maximum loaded
vehicle condition (
page 518). If such informa-
tion is provided, it can be found on the placard lo-
cated on the inside of the fuel filler flap.
The tire inflation pressure should be checked
regularly and should only be adjusted on cold
tires. Follow tire manufacturer’s maintenance
recommendation included with vehicle.
i
The following pages also list the approved
wheel rim and tire sizes for equipping your vehi-
cles with winter tires. Winter tires are not avail-
able as standard or optional factory equipment,
but can be purchased from an authorized
Mercedes-Benz Center.
Depending on vehicle model and the standard or
optional factory-equipped wheel rim/tire config-
uration on your vehicle (Appearance Package,
Sport Package etc.), equipping your vehicle with
winter tires approved for your vehicle model may
also require the purchase of two or four wheel
rims of the recommended size for use with these
winter tires. See an authorized Mercedes-Benz
Center for more information.
