56 Safety and SecurityOccupant safetyIn addition, applicable motor vehicle safety
laws require you to wear seat belts. Even
where this is not the case, we strongly
recommend that all vehicle occupants
have their seat belts fastened and wear
them properly.
For more information, see “Fastening the
seat belts” (
page 339).
i
For information on infants and children trav-
eling with you in the vehicle and restraint sys-
tems for infants and children, see “Children in
the vehicle” (
page 61).
Warning!
G
Always fasten your seat belt before driving
off. Always make sure all of your passengers
are properly restrained, even those sitting in
the rear and pregnant women.
Failure to wear and properly fasten and po-
sition your seat belt greatly increases your
risk of injuries and their likely severity in an
accident. You and your passengers should
always wear seat belts.
If you are ever in an accident, your injuries
can be considerably more severe without
your seat belt properly buckled. Without
your seat belt buckled, you are much more
likely to hit the interior of the vehicle or be
ejected from it. You can be seriously injured
or killed.
In the same crash, the possibility of injury or
death is lessened if you are properly wearing
your seat belt. Air bags can only protect as
they are designed if the occupants are prop-
erly wearing their seat belts.Warning!
G
Never ride in a moving vehicle with the seat
backrest in an excessively reclined position
as this can be dangerous. You could slide
under the seat belt in a collision. If you slide
under it, the belt would apply force at the ab-
domen or neck. That could cause serious or
even fatal injuries. The seat backrest and
seat belt provide the best restraint when the
wearer is in a nearly upright position and the
belt is properly positioned on the body.Warning!
G
Never let more people ride in the vehicle
than there are seat belts available. Make
sure everyone riding in the vehicle is cor-
rectly restrained with a separate seat belt.
Never use a seat belt for more than one per-
son at a time.Warning!
G
Damaged seat belts or belts that were highly
stressed in an accident must be replaced
and their anchoring points must also be
checked.
Only use seat belts which have been
approved by Mercedes-Benz.
Do not make any modifications to the seat
belts. This can lead to unintended activation
of the ETDs or to failure.

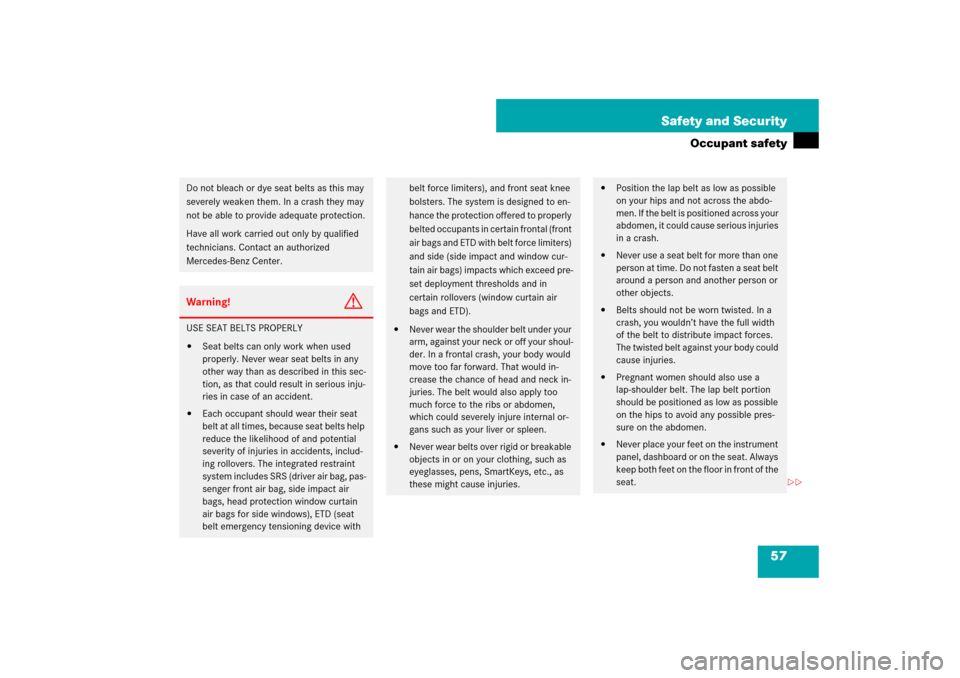

57 Safety and Security
Occupant safety
Do not bleach or dye seat belts as this may
severely weaken them. In a crash they may
not be able to provide adequate protection.
Have all work carried out only by qualified
technicians. Contact an authorized
Mercedes-Benz Center.Warning!
G
USE SEAT BELTS PROPERLY

Seat belts can only work when used
properly. Never wear seat belts in any
other way than as described in this sec-
tion, as that could result in serious inju-
ries in case of an accident.


Each occupant should wear their seat
belt at all times, because seat belts help
reduce the likelihood of and potential
severity of injuries in accidents, includ-
ing rollovers. The integrated restraint
system includes SRS (driver air bag, pas-
senger front air bag, side impact air
bags, head protection window curtain
air bags for side windows), ETD (seat
belt emergency tensioning device with
belt force limiters), and front seat knee
bolsters. The system is designed to en-
hance the protection offered to properly
belted occupants in certain frontal (front
air bags and ETD with belt force limiters)
and side (side impact and window cur-
tain air bags) impacts which exceed pre-
set deployment thresholds and in
certain rollovers (window curtain air
bags and ETD).


Never wear the shoulder belt under your
arm, against your neck or off your shoul-
der. In a frontal crash, your body would
move too far forward. That would in-
crease the chance of head and neck in-
juries. The belt would also apply too
much force to the ribs or abdomen,
which could severely injure internal or-
gans such as your liver or spleen.


Never wear belts over rigid or breakable
objects in or on your clothing, such as
eyeglasses, pens, SmartKeys, etc., as
these might cause injuries.


Position the lap belt as low as possible
on your hips and not across the abdo-
men. If the belt is positioned across your
abdomen, it could cause serious injuries
in a crash.


Never use a seat belt for more than one
person at time. Do not fasten a seat belt
around a person and another person or
other objects.


Belts should not be worn twisted. In a
crash, you wouldn’t have the full width
of the belt to distribute impact forces.
The twisted belt against your body could
cause injuries.


Pregnant women should also use a
lap-shoulder belt. The lap belt portion
should be positioned as low as possible
on the hips to avoid any possible pres-
sure on the abdomen.


Never place your feet on the instrument
panel, dashboard or on the seat. Always
keep both feet on the floor in front of the
seat.


58 Safety and SecurityOccupant safetyEmergency tensioning device (ETD),
seat belt force limiter
The seat belts for the front and rear outer
seats are equipped with emergency ten-
sioning devices and belt force limiters.
The ETD is designed to activate in the
following cases:

in frontal or rear-end impacts exceed-
ing the system deployment threshold


in certain vehicle rollovers


if the restraint systems are operational
and functioning correctly,
see=indicator lamp (
page 552)In an impact, emergency tensioning
devices remove slack from the belts in
such a way that the seat belts fit more
snugly against the body. Belt force limiters,
when activated, are employed to help
reduce the peak force exerted by the seat
belts on occupants during a crash.


When using a seat belt to secure infant
or toddler restraints or children in
booster seats, always follow the child
seat manufacturer's instructions.
i
The ETDs for the front seats will only acti-
vate if the front seat belt is fastened (latch plate
properly inserted into buckle).
The ETDs for the rear outer seats will activate
with or without the respective seat belt fastened.
Warning!
G
A pyrotechnic emergency tensioning device
(ETD) that was activated must be replaced.
When disposing of the pyrotechnic emer-
gency tensioning device, our safety instruc-
tions must be followed. These are available
at your authorized Mercedes-Benz Center.
PRE-SAFE
® has electrically operated
reversible pre-tensioners that do not require
replacement after activation.


59 Safety and Security
Occupant safety
Luxury active head restraints (S 600 only)
The active head restraints are intended to
offer the driver and front passenger in-
creased protection from head and neck in-
jury. In the event of a rear-end collision,
the active head restraints on the driver’s
and front passenger’s seats are designed
to move forward in the direction of travel,
providing the head with increased support
earlier on in the collision sequence. The ac-
tive head restraints move forward whether
the seat is occupied or not.
If the luxury active head restraints have
been triggered in an accident, the luxury
active head restraints must be reset. Oth-erwise, the luxury active head restraints
cannot offer any additional protection in
the event of another rear-end collision.
For information on resetting the activated
active head restraints, see “Resetting acti-
vated head restraints (S 600 only)”
(
page 618).
You cannot remove the active head re-
straint on the driver’s and passenger’s
seats.
For removal contact an authorized
Mercedes-Benz Center.
For information on head restraint adjust-
ment, see “Head restraints” (
page 324).
Warning!
G
Only use seat or head restraint covers which
have been tested and approved by
Mercedes-Benz for your vehicle model.
Using other seat or head restraint covers
may interfere with or prevent the activation
of the active head restraints. Contact an
authorized Mercedes-Benz Center for avail-
ability.
Do not attach any objects (e.g. hangers) to
the head restraint posts. Otherwise, the ac-
tive head restraints may not be able to func-
tion properly or offer the intended degree of
protection in the event of an accident.Warning!
G
For your protection, drive only with properly
positioned head restraints.
Adjust head restraint so that it is as close to
the head as possible and the center of the
head restraint supports the back of the head
at eye level. This will reduce the potential for
injury to the head and neck in the event of
an accident or similar situation.
Do not drive the vehicle without the seat
head restraints. Head restraints are intend-
ed to help reduce injuries during an acci-
dent.

60 Safety and SecurityOccupant safetyPreventive occupant safety (PRE-SAFE
®)
Your vehicle automatically takes preven-
tive measures to better protect the occu-
pants in the following hazardous
situations.PRE-SAFE
® takes action in the following in-
stances:


Emergency braking situations, e.g.
when BAS (
page 71) is activated or
when
BAS Plus* (page 71) is strongly inter-
vening.


Critical dynamic driving situations, e.g.
when the vehicle is understeering or
oversteering because it has exceeded
its physical limitations.


Evasive steering maneuvers at speeds
above 19 mph (30 km/h).
When you are driving faster than 19 mph
(30 km/h), PRE-SAFE
® takes the following
measures in such situations:


The front seat belts are pre-tensioned
electrically.


If the OCS senses that the front pas-
senger seat is occupied and the seat is
in an unfavorable position, it will be
adjusted to a better position.


If the vehicle is equipped with power
adjustable rear seats* and the passen-
ger outer seats are in an unfavorable
position, they will be adjusted to a bet-
ter position.


It increases the air pressure in the air
pockets (on the sides of the seat cush-
ion and backrest) of the multicontour*
and/or drive-dynamic front seats*.


If the vehicle is understeering or over-
steering, the tilt/sliding sunroof and
the side windows also close until only a
small gap remains.
Once the hazardous situation is over with-
out an accident occurring, PRE-SAFE
®
loosens the belt pre-tension and decreas-
es the air pressure in the air pockets of the
multicontour and drive-dynamic seats*.
You can readjust all of the settings made
by PRE-SAFE
®.
Warning!
G
The PRE-SAFE
® system is intended to re-
duce the effects of an accident on properly
seat-belted vehicle occupants. Despite
having the PRE-SAFE
® system in your vehi-
cle, the possibility of injuries occurring as a
result of an accident cannot be eliminated.
Therefore, you should always drive carefully
and adjust your driving to the prevailing
road, weather, and traffic conditions.
i
If the closing procedure of the tilt/sliding
sunroof or door windows is blocked, the tilt/slid-
ing sunroof or door windows will stop and open
slightly.

61 Safety and Security
Occupant safety
If the seat belts do not release:
Adjust the backrest or seat slightly to
the rear until the seat belt tension is di-
minished.
The locking mechanism releases.
Children in the vehicle
If an infant or child is traveling with you in
the vehicle:

Secure the child using an infant or child
restraint appropriate to the age and
size of the child.


Make sure the infant or child is
properly secured at all times while the
vehicle is in motion.
!
When moving the seat, make sure there are
no items in the footwell or behind the seats. Oth-
erwise you could damage the seats.
Warning!
G
Do not leave children unattended in the ve-
hicle, even if they are secured in a child re-
straint system. The children could

injure themselves on parts of the vehicle


be seriously or fatally injured through
excessive exposure to extreme heat or
cold
Do not expose the child restraint system to
direct sunlight. The child restraint system’s
metal parts, for example, could become very
hot, and the child could be burned on these
parts.
If children open a door, they could

injure other persons


get out of the car and injure themselves
or be injured by following traffic
Do not carry heavy or hard objects in the
passenger compartment or trunk unless
they are firmly secured in place. For more in-
formation, see “Loading and storing”
(
page 447) section of the “Controls in de-
tail” chapter.
Unsecured or improperly positioned cargo
increases a child’s risk of injury in the event
of


strong braking maneuvers


sudden changes of direction


an accident

62 Safety and SecurityOccupant safetyInfant and child restraint systems
We recommend all infants and children be
properly restrained at all times while the
vehicle is in motion.
All lap-shoulder belts except the driver’s
seat belt have special seat belt retractors
for secure fastening of child restraints.
To fasten a child restraint, follow child
restraint instructions for mounting. Then
pull the shoulder belt out completely and
let it retract. During seat belt retraction, a
ratcheting sound can be heard to indicate
that the special seat belt retractor is acti-
vated. The belt is now locked. Push down
on child restraint to take up any slack.
To deactivate, release seat belt buckle and
let seat belt retract completely. To deacti-
vate the special seat belt retractor for the
front passenger seat, the front passenger
seat must be in the most backward posi-
tion. The seat belt can again be used in the
usual manner.
Warning!
G
Never release the seat belt buckle while the
vehicle is in motion, since the special seat
belt retractor will be deactivated.i
Information on child seats with mounting fit-
tings for tether anchorages (
page 64).
For information on LATCH-type child seat
mounts (
page 65).
!
The use of infant or child restraints is re-
quired by law in all 50 states, the District of Co-
lumbia, the U.S. territories and all Canadian
provinces.
Infants and small children should be seated in an
appropriate infant or child restraint system prop-
erly secured by a lap/shoulder belt or, if so
equipped, a top tether anchorage point and a
child restraint lower anchorage system that
complies with U.S. Federal Motor Vehicle Safety
Standards 213 and 225 and Canadian Motor Ve-
hicle Safety Standard 213 and 210.2.
A statement by the child restraint manufacturer
of compliance with this standard can be found
on the instruction label on the restraint and in
the instruction manual provided with the re-
straint.
When using any infant or child restraint system,
make sure to carefully read and follow all manu-
facturer’s instructions for installation and use.
Please read and observe warning labels affixed
to the inside of the vehicle and to infant or child
restraints.Warning!
G
According to accident statistics, children
are safer when properly restrained in the
rear seating positions than in the front seat-
ing position. Thus, we strongly recommend
that children be placed in the rear seats
whenever possible. Regardless of seating
position, children 12 years old and under
must be seated and properly secured in an
appropriate infant, or toddler restraint, or
booster seat recommended for the size and
weight of the child.

63 Safety and Security
Occupant safety

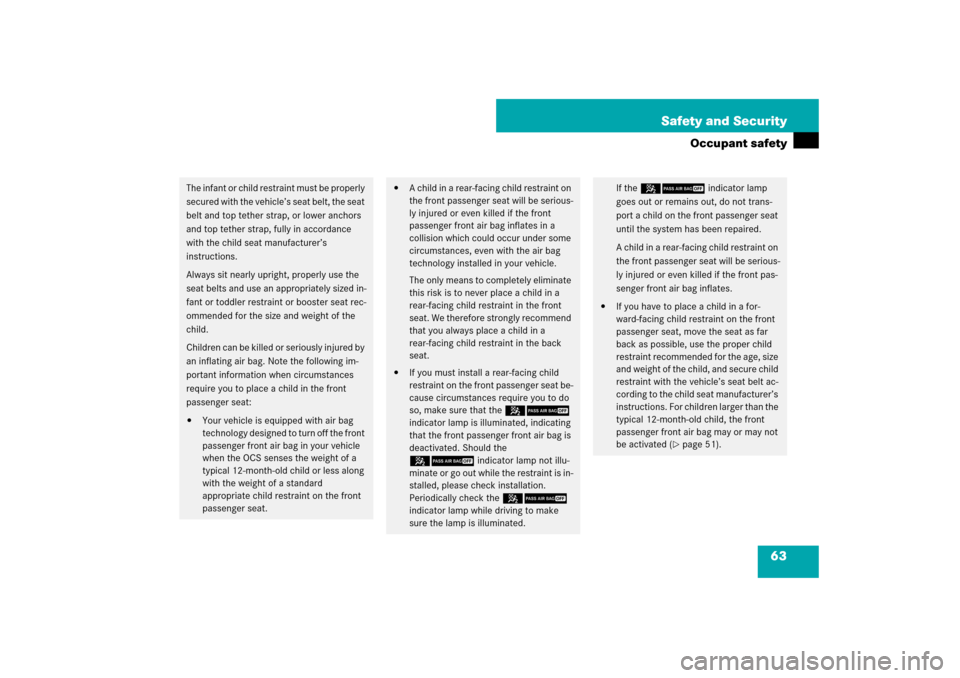

The infant or child restraint must be properly
secured with the vehicle’s seat belt, the seat
belt and top tether strap, or lower anchors
and top tether strap, fully in accordance
with the child seat manufacturer’s
instructions.
Always sit nearly upright, properly use the
seat belts and use an appropriately sized in-
fant or toddler restraint or booster seat rec-
ommended for the size and weight of the
child.
Children can be killed or seriously injured by
an inflating air bag. Note the following im-
portant information when circumstances
require you to place a child in the front
passenger seat:

Your vehicle is equipped with air bag
technology designed to turn off the front
passenger front air bag in your vehicle
when the OCS senses the weight of a
typical 12-month-old child or less along
with the weight of a standard
appropriate child restraint on the front
passenger seat.


A child in a rear-facing child restraint on
the front passenger seat will be serious-
ly injured or even killed if the front
passenger front air bag inflates in a
collision which could occur under some
circumstances, even with the air bag
technology installed in your vehicle.
The only means to completely eliminate
this risk is to never place a child in a
rear-facing child restraint in the front
seat. We therefore strongly recommend
that you always place a child in a
rear-facing child restraint in the back
seat.


If you must install a rear-facing child
restraint on the front passenger seat be-
cause circumstances require you to do
so, make sure that the 59
indicator lamp is illuminated, indicating
that the front passenger front air bag is
deactivated. Should the
59indicator lamp not illu-
minate or go out while the restraint is in-
stalled, please check installation.
Periodically check the 59
indicator lamp while driving to make
sure the lamp is illuminated.
If the 59indicator lamp
goes out or remains out, do not trans-
port a child on the front passenger seat
until the system has been repaired.
A child in a rear-facing child restraint on
the front passenger seat will be serious-
ly injured or even killed if the front pas-
senger front air bag inflates.


If you have to place a child in a for-
ward-facing child restraint on the front
passenger seat, move the seat as far
back as possible, use the proper child
restraint recommended for the age, size
and weight of the child, and secure child
restraint with the vehicle’s seat belt ac-
cording to the child seat manufacturer’s
instructions. For children larger than the
typical 12-month-old child, the front
passenger front air bag may or may not
be activated (
page 51).
