2007 MERCEDES-BENZ S600 Owner's Manual

424 Controls in detailAutomatic climate control

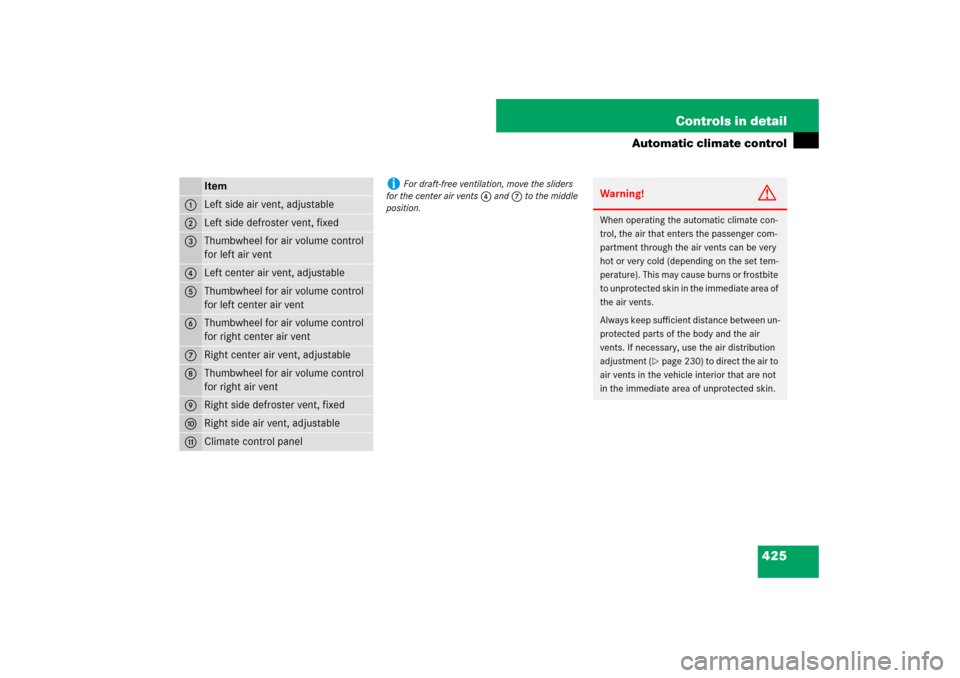

425 Controls in detail
Automatic climate control

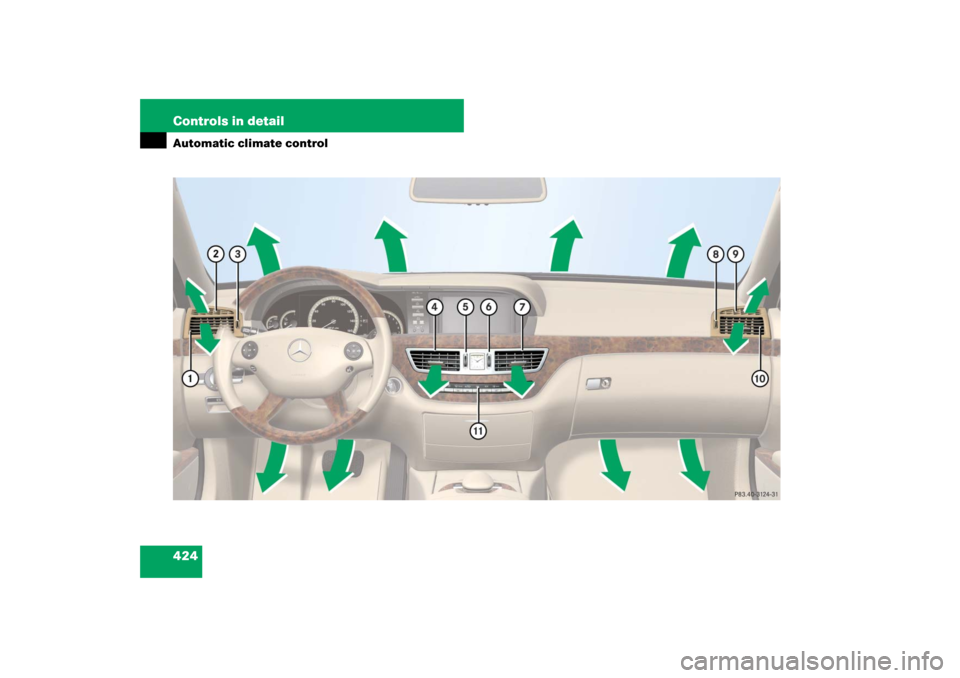

Item
1
Left side air vent, adjustable
2
Left side defroster vent, fixed
3
Thumbwheel for air volume control
for left air vent
4
Left center air vent, adjustable
5
Thumbwheel for air volume control
for left center air vent
6
Thumbwheel for air volume control
for right center air vent
7
Right center air vent, adjustable
8
Thumbwheel for air volume control
for right air vent
9
Right side defroster vent, fixed
a
Right side air vent, adjustable
b
Climate control panel
i
For draft-free ventilation, move the sliders
for the center air vents 4 and 7 to the middle
position.
Warning!
G
When operating the automatic climate con-
trol, the air that enters the passenger com-
partment through the air vents can be very
hot or very cold (depending on the set tem-
perature). This may cause burns or frostbite
to unprotected skin in the immediate area of
the air vents.
Always keep sufficient distance between un-
protected parts of the body and the air
vents. If necessary, use the air distribution
adjustment (
page 230) to direct the air to
air vents in the vehicle interior that are not
in the immediate area of unprotected skin.

426 Controls in detailAutomatic climate controlAutomatic climate control panel, front

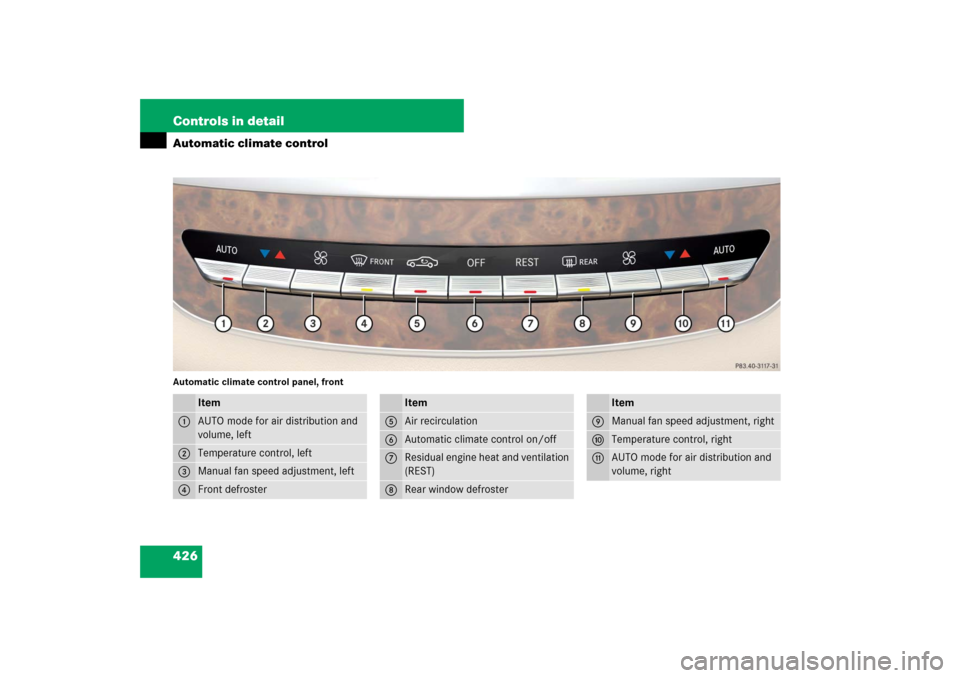

Item
1
AUTO mode for air distribution and
volume, left
2
Temperature control, left
3
Manual fan speed adjustment, left
4
Front defroster
Item
5
Air recirculation
6
Automatic climate control on/off
7
Residual engine heat and ventilation
(REST)
8
Rear window defroster
Item
9
Manual fan speed adjustment, right
a
Temperature control, right
b
AUTO mode for air distribution and
volume, right

427 Controls in detail
Automatic climate control
The automatic climate control is operation-
al whenever the engine is running. You can
operate the climate control system in ei-
ther the automatic or manual mode. The
system cools or heats the interior depend-
ing on the selected interior temperature
and the current outside temperature.
It can only function optimally when you are
driving with the windows and the tilt/slid-
ing sunroof/panorama sunroof* closed.
It is possible to completely deactivate the
climate control system (
page 428). Nearly all dust particles, pollutants and
odors are filtered out before outside air en-
ters the passenger compartment through
the air distribution system.The following automatic climate control
functions can be operated via COMAND:
i
If you have the air distribution and air vol-
ume automatically controlled, you can adjust the
temperature, footwell temperature and air flow.
The following basic settings are recommended:


Automatic air distribution control
(page 428)


Temperature: 72°F (22°C) (
page 429)


Footwell temperature: 0 (
page 232)


Air flow: focused (
page 233)
Warning!
G
Follow the recommended settings for heat-
ing and cooling given on the following pages
and in the “COMAND automatic climate
control” section (
page 229). Otherwise
the windows could fog up, impairing visibili-
ty and endangering you and others.
i
Severe conditions (e.g. strong air pollution)
may require replacement of the filter before its
scheduled interval. A clogged filter will reduce
the air volume to the interior.
If the vehicle interior is hot, ventilate the interior
before driving off, see “Summer opening fea-
ture” (page 355). The automatic climate con-
trol will then adjust the interior temperature to
the set value much faster.
Keep the air intake grille in front of the wind-
shield free of snow, leaves, sticks, and any other
debris.
Do not obstruct air volume by placing objects on
the air volume-through exhaust slots below the
rear window.Function
Page
Temperature
230
Air distribution
230
Air volume
230
Switching off cooling (“AC
OFF”)
231
Central climate control (“Mono”)
232
Footwell temperature
232
Air flow from air vents
233
Rear climate control*
234

428 Controls in detailAutomatic climate controlDeactivating climate control system
Deactivating: Press button´
(page 426) up or down.
The indicator lamp on the button
comes on.

Reactivating: Press button´
(page 426) up or down.
The indicator lamp on the button goes
out.Operating climate control system in au-
tomatic mode
Activating
Press buttonU (
page 426) up or
down.
The indicator lamp on the button
comes on.Deactivating

Press buttonU (
page 426) up or
down.
or

Adjust air distribution (
page 230).
or

Adjust air volume (
page 429).
The indicator lamp on buttonU
goes out. The automatic function is
switched off.
You can adjust the air distribution
(
page 230) or air volume
(page 429) manually.
Warning!
G
When the automatic climate control is
switched off, the outside air supply and cir-
culation are also switched off. Only choose
this setting for a short time. Otherwise the
windows could fog up, impairing visibility
and endangering you and others.
i
When operating the climate control system
in automatic mode, you will only rarely need to
adjust the temperature, air volume and air distri-
bution.

429 Controls in detail
Automatic climate control
Setting temperature
Use temperature controls %$
2anda (
page 426) in the center con-
sole or COMAND (
page 230) to sepa-
rately adjust the air temperature on each
side of the passenger compartment. You
should raise or lower the temperature set-
ting in small increments, preferably start-
ing at 72°F (22°C). The automatic climate
control will adjust to the set temperature
as fast as possible.

Press temperature control %$
2and/ora (
page 426) upward or
downward.
The climate control system will corre-
spondingly adjust the interior air tem-
perature.
Adjusting air volume
Use buttonsQ (
page 426) in the cen-
ter console or COMAND to separately ad-
just the air volume on each side of the
passenger compartment.

Press buttonQ up to increase or
down to decrease air volume.
The indicator lamps on buttonsU
(page 426) goes out.
Front defroster
You can use this setting to defrost the
windshield, for example if it is iced up. You
can also defog the windshield and the side
windows.Activating

Press button; (
page 426) up or
down.
The indicator lamp on the button
comes on.
The air conditioning switches to the follow-
ing functions automatically:


increased blowing and heating power


air flows onto the windshield and the
front side windows


the air conditioning compressor
switches on at outside temperatures
above approximately 41°F (5°C) for
dehumidifying the air


the air recirculation mode is switched
off
i
When you change the air volume, the auto-
matic function of the climate control system is
switched off.
i
Keep this setting selected only until the
windshield is clear again.

430 Controls in detailAutomatic climate controlDeactivating
Press button; (
page 426) up or
down.
The indicator lamp on the button goes
out.
The previous settings are once again in
effect, except air recirculation mode
stays off.
Windshield fogged on the outside

Switch the windshield wipers on
(page 351).

Press buttonU (
page 426) up or
down.
The indicator lamp on the button
comes on.
Rear window defroster
Activating
Switch on the ignition (
page 315).

Press button< (
page 426) up or
down.
The indicator lamp on the button
comes on.
Deactivating

Press button< (
page 426) up or
down.
The indicator lamp on the button goes
out.
Maximum cooling MAXCOOL (USA only)
If U is selected on both the left and
right side and there is a high demand for
cooling, the display “MAXCOOL” appears
in the COMAND display.
This provides the fastest possible cooling
of the vehicle interior (when windows and
tilt/sliding sunroof or tilt/sliding panel*
are closed).
!
The rear window defroster uses a large
amount of power. To keep battery drain to a min-
imum, switch off the defroster as soon as the
rear window is clear.
i
The defroster is automatically deactivated
after some time of operation depending on the
outside temperature.Warning!
G
Any accumulation of snow and ice should be
removed from the rear window before driv-
ing. Visibility could otherwise be impaired,
endangering you and others.
i
If the rear window defroster switches off too
soon and the indicator lamp goes out, this indi-
cates that too many electrical consumers are op-
erating simultaneously and the load on the
battery is reducing available voltage. The system
responds automatically by deactivating the rear
window defroster.
i
Maximum cooling MAXCOOL is only avail-
able when the engine is running.

431 Controls in detail
Automatic climate control
Air recirculation mode
Switch to air recirculation mode to prevent
unpleasant odors from entering the vehicle
from the outside (e.g. before driving in a
tunnel). This setting cuts off the intake of
outside air and recirculates the air in the
passenger compartment.
Activating: Press button,
(page 426) up or down.
The indicator lamp on the button
comes on.

Deactivating: Press button,
(page 426) up or down.
The indicator lamp on the button goes
out.Air recirculation mode with conve-
nience closing or opening feature
Warning!
G
Fogged windows impair visibility, endanger-
ing you and others. If the windows begin to
fog on the inside, switching off the air
recirculation mode immediately should clear
interior window fogging. If interior window
fogging persists, make sure the air
conditioning (
page 231) is activated, or
press button;.
i
The air recirculation mode is activated auto-
matically at high outside temperatures.
The indicator lamp on button, is not lit when
the air recirculation mode is automatically acti-
vated.
A quantity of outside air is added when the cool-
ing demand is not at maximum.
If the air conditioning has been turned off
(
page 231) or the outside temperature is be-
low 41°F (5°C), the air recirculation mode will
not switch on automatically.
i
The manually selected air recirculation
mode is deactivated automatically:


after 5 minutes if the outside temperature is
below approximately 41°F (5°C)


after 5 minutes if the air conditioning is
turned off


after 30 minutes if the outside temperature
is above approximately 41°F (5°C)
Warning!
G
Never operate the side windows and the
tilt/sliding sunroof or tilt/sliding panel* if
there is the possibility of anyone being
harmed by the closing procedure.
Vehicles with tilt/sliding sunroof:
In the event that the procedure causes po-
tential danger, the closing of the side win-
dows can be immediately halted by pressing
the respective window switch. The closing of
the tilt/sliding sunroof can be immediately
halted by moving the tilt/sliding sunroof
switch in the overhead control panel in any
direction.
Vehicles with panorama roof*:
In the event that the procedure causes po-
tential danger, the closing of the side win-
dows or the tilt/sliding panel can be
immediately halted by releasing
button,.
