336 Controls in detailMemory functionPrior to operating the vehicle, the driver
should check and adjust the seat height,
seat position fore and aft, and seat back-
rest angle if necessary, to ensure adequate
control, reach, and comfort. The head re-
straint should also be adjusted for proper
height. See also the section on air bags
(page 45) for proper seat positioning.
In addition, adjust the steering wheel to
ensure adequate control, reach, operation
and comfort. Both the inside and outside
rear view mirrors should be adjusted for
adequate rear vision.
Fasten seat belts. Infants and small chil-
dren should be seated in a properly se-
cured restraint system that complies with
U.S. Federal Motor Vehicle Safety Stan-
dards 213 and 225 and Canadian Motor
Vehicle Safety Standards 213 and 210.2.With the memory function you can store up
to 3 different settings.
The following settings are saved for each
stored position the driver’s door:


Seat position and lumbar support


Multicontour seat*: previously select-
ed setting


Drive-dynamic multicontour seat*: ac-
tivation/deactivation


Steering wheel position


Exterior rear view mirrors position
The following settings are stored when us-
ing the buttons on the front passenger
door:


Seat position and lumbar support


Multicontour seat*: previously select-
ed setting


Drive-dynamic multicontour seat*: ac-
tivation/deactivationThe following settings are stored when us-
ing the buttons* on the rear passenger
doors (Canada only):


Seat position


Multicontour seat*: previously select-
ed settingWarning!
G
Do not activate the memory function while
driving. Activating the memory function
while driving could cause the driver to lose
control of the vehicle.

337 Controls in detail
Memory function
The memory button and stored position
buttons are located on the door control
panel.
MMemory button
1 2 3Memory position buttons
Switch on the ignition (
page 315).
or

Open the respective door.
Storing positions into memory
Adjust the seat (
page 318) to the de-
sired position.

On the driver’s side: adjust the steering
wheel (
page 330) and the exterior
rear view mirrors (
page 332) to the
desired position.

Press memory buttonM.

Release memory buttonM and push
one of the position buttons within
3 seconds.
All the settings are stored with the se-
lected position.
Recalling positions from memory
Press and hold one of the position
buttons until the seat, steering wheel
and exterior rear view mirrors have fully
moved to the stored positions.
!
Do not operate the power seats using the
memory button if the seat backrest is in an ex-
cessively reclined position. Doing so could cause
damage to front or rear seats.
First move seat backrest to an upright position.
i
Releasing the button immediately stops
movement to the stored positions.
The multicontour seat* and/or lumbar support
will continue to be adjusted.

338 Controls in detailMemory functionStoring exterior rear view mirror park-ing position
For easier parking, you can adjust the pas-
senger-side exterior rear view mirror so
that you can see the right rear wheel as
soon as you engage reverse gearR.
For information on activating the parking
position, see “Activating exterior rear view
mirror parking position” (
page 335).
1Memory button M
2Adjustment button
3Selector switch for right or left exterior
mirror

Stop the vehicle.

Make sure the ignition is switched on
(page 315).

Press switch3 until the exterior mir-
ror on the front passenger side is se-
lected.

Adjust the passenger-side exterior rear
view mirror with button2 so that you
see the rear wheel and the road curb.

Press memory button M.

Within 3 seconds, press one of adjust-
ment buttons2.
The parking position is stored if the
mirror does not move.
i
If the mirror does move, repeat the above
steps. After the setting is stored, you can move
the mirror again.

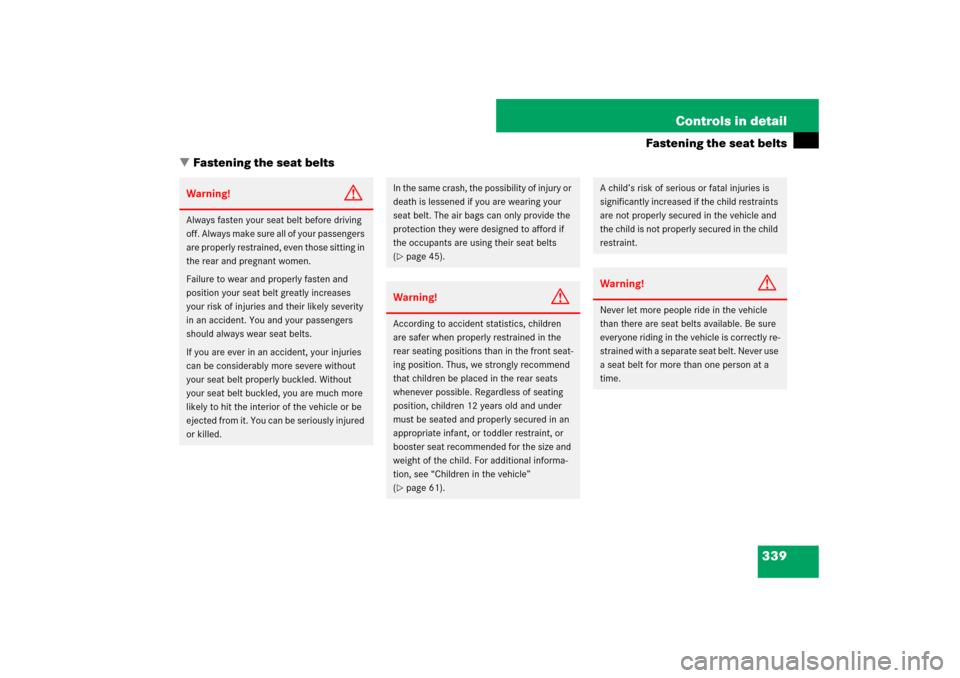

339 Controls in detail
Fastening the seat belts
Fastening the seat belts
Warning!
G
Always fasten your seat belt before driving
off. Always make sure all of your passengers
are properly restrained, even those sitting in
the rear and pregnant women.
Failure to wear and properly fasten and
position your seat belt greatly increases
your risk of injuries and their likely severity
in an accident. You and your passengers
should always wear seat belts.
If you are ever in an accident, your injuries
can be considerably more severe without
your seat belt properly buckled. Without
your seat belt buckled, you are much more
likely to hit the interior of the vehicle or be
ejected from it. You can be seriously injured
or killed.
In the same crash, the possibility of injury or
death is lessened if you are wearing your
seat belt. The air bags can only provide the
protection they were designed to afford if
the occupants are using their seat belts
(page 45).
Warning!
G
According to accident statistics, children
are safer when properly restrained in the
rear seating positions than in the front seat-
ing position. Thus, we strongly recommend
that children be placed in the rear seats
whenever possible. Regardless of seating
position, children 12 years old and under
must be seated and properly secured in an
appropriate infant, or toddler restraint, or
booster seat recommended for the size and
weight of the child. For additional informa-
tion, see “Children in the vehicle”
(page 61).
A child’s risk of serious or fatal injuries is
significantly increased if the child restraints
are not properly secured in the vehicle and
the child is not properly secured in the child
restraint.Warning!
G
Never let more people ride in the vehicle
than there are seat belts available. Be sure
everyone riding in the vehicle is correctly re-
strained with a separate seat belt. Never use
a seat belt for more than one person at a
time.

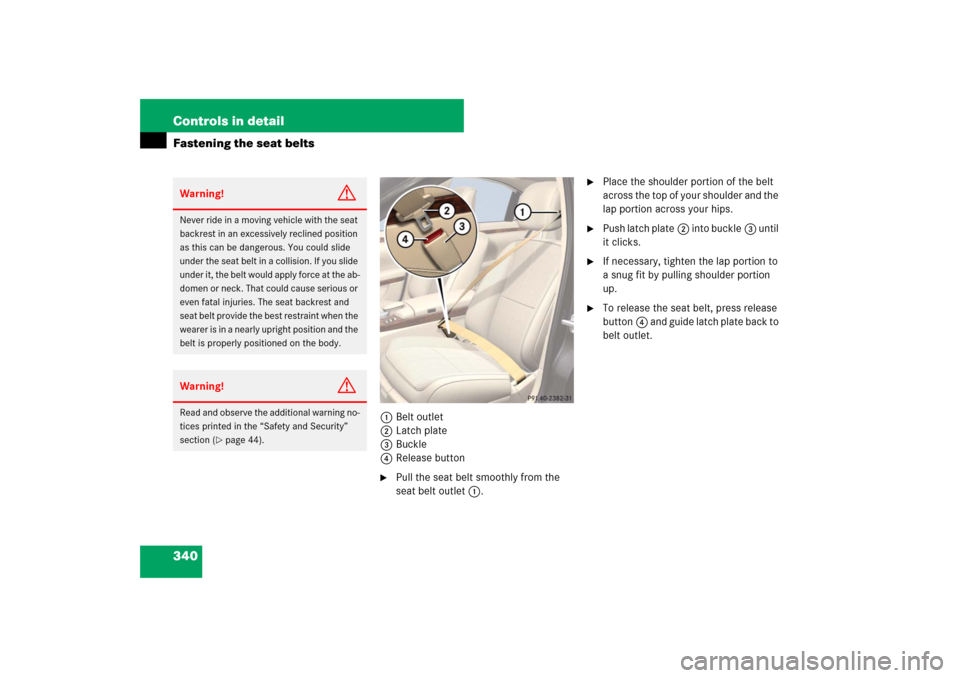

340 Controls in detailFastening the seat belts
1Belt outlet
2Latch plate
3Buckle
4Release button
Pull the seat belt smoothly from the
seat belt outlet 1.

Place the shoulder portion of the belt
across the top of your shoulder and the
lap portion across your hips.

Push latch plate2 into buckle3 until
it clicks.

If necessary, tighten the lap portion to
a snug fit by pulling shoulder portion
up.

To release the seat belt, press release
button4 and guide latch plate back to
belt outlet.
Warning!
G
Never ride in a moving vehicle with the seat
backrest in an excessively reclined position
as this can be dangerous. You could slide
under the seat belt in a collision. If you slide
under it, the belt would apply force at the ab-
domen or neck. That could cause serious or
even fatal injuries. The seat backrest and
seat belt provide the best restraint when the
wearer is in a nearly upright position and the
belt is properly positioned on the body.Warning!
G
Read and observe the additional warning no-
tices printed in the “Safety and Security”
section (
page 44).

341 Controls in detail
Fastening the seat belts
Proper use of seat belts

Do not twist the belt when fastening.


Adjust seat belt so that the shoulder
portion is located as close as possible
to the middle of the shoulder (it should
not touch the neck). Never pass the
shoulder portion of the belt under your
arm.


Position the lap belt as low as possible
on your hips (over hip joint) and not
across the abdomen.


Place the seat backrest in a nearly up-
right position.


Never use a seat belt for more than one
person at a time.


Do not fasten a seat belt around a per-
son and another object at the same
time. When using a seat belt to secure
infant or toddler restraints or children
in booster seats, always follow the
child seat manufacturer’s instructions.


Check your seat belt during travel to
make sure that it is properly posi-
tioned.


Make sure the seat belt is always fitted
snugly. Take special care of this when
wearing loose clothing.For more information, see “Seat belts”
(
page 55).
Seat belt height adjustment
The vehicle automatically adjusts the seat
belt height for the driver’s and front pas-
senger’s seats as well as for the rear outer
seats. Comply with the instructions on how
to properly fasten a seat belt
(page 339).
Warning!
G
Do not pass belts over sharp edges. They
could tear.
Do not allow the belt to get caught in the
door or in the seat adjustment mechanism.
This could damage the belt.
Never attempt to make modifications to
seat belts. This could impair the effective-
ness of the belts.
Do not bleach or dye seat belts as this may
severely weaken them. In a crash, they may
not be able to provide adequate protection.
Damaged seat belts or belts that were highly
stressed in an accident must be replaced.
Contact an authorized Mercedes-Benz Cen-
ter.

342 Controls in detailLighting
Exterior lamp switch
The exterior lamp switch is located on the
dashboard to the left of the steering wheel.
M
Off
Daytime running lamp mode
(page 344)
*
Automatic headlamp mode
Daytime running lamp mode
(page 344)
C
Parking lamps (also side marker
lamps, tail lamps, license plate
lamps, instrument panel lamps)
B
Low beam headlamps (or high
beam headlamps when the combi-
nation switch is pushed forward)
and parking lamps
ˆ
Standing lamps, right (turn left one
stop)
‚
Standing lamps, left (turn left two
stops)
C
Indicator lamp for parking lamps
‡
Indicator lamp for front fog lamps
†
Indicator lamp for rear fog lamp
i
If you drive in countries where vehicles drive
on the other side of the road than the country in
which the vehicle is registered, you must have
the headlamps modified for symmetrical low
beams. Relevant information can be obtained at
your authorized Mercedes-Benz Center.
i
The active Bi-Xenon headlamps monitor the
vehicles steering angle, then automatically shift
their beams to either side to better follow the
curvature of the road ahead, increasing usable
illumination over conventional headlamps.

343 Controls in detail
Lighting
Low beam headlamps
The exterior lamp switch is located on the
dashboard to the left of the steering wheel.
Turn the switch toB.
The green indicator lampC in the
exterior lamp switch comes on.Manual headlamp mode
The low beam headlamps and parking
lamps can be switched on and off with the
exterior lamp switch. For exterior lamp
switch (
page 342).
Automatic headlamp mode
The following lamps switch on and off au-
tomatically depending on the brightness of
the ambient light:


Low beam headlamps


Tail and parking lamps


License plate lamps


Side marker lamps
i
With the SmartKey removed from the starter
switch or the engine turned off with
KEYLESS-GO* and the driver’s door open, a
warning sounds if the parking lamps or low beam
headlamps are switched on.
The message: “Please switch off lights” appears
in the multifunction display.
i
With the daytime running lamp mode activat-
ed and the engine running, the low beam head-
lamps cannot be switched off manually.
For information on how to activate the daytime
running lamp mode, see “Daytime running lamp
mode” (
page 344).
Warning!
G
If the exterior lamp switch is set to*,

the headlamps may switch off unexpect-
edly when the system senses bright am-
bient light, for example light from
oncoming traffic.
If the exterior lamp switch is set to*,

the headlamps may switch off unexpect-
edly when the system senses bright am-
bient light, for example light from
oncoming traffic.


the headlamps will not be automatically
switched on under foggy conditions.
To minimize risk to you and to others, acti-
vate headlamps by turning exterior lamp
switch to B when driving or when traffic
and/or ambient lighting conditions require
you to do so.
In low ambient lighting conditions, only
switch from position * to B with the
vehicle at a standstill in a safe location.
Switching from * to B will briefly
switch off the headlamps. Doing so while
driving in low ambient lighting conditions
may result in an accident.
The automatic headlamp feature is only an
aid to the driver. The driver is responsible for
the operation of the vehicle’s lights at all
times.
