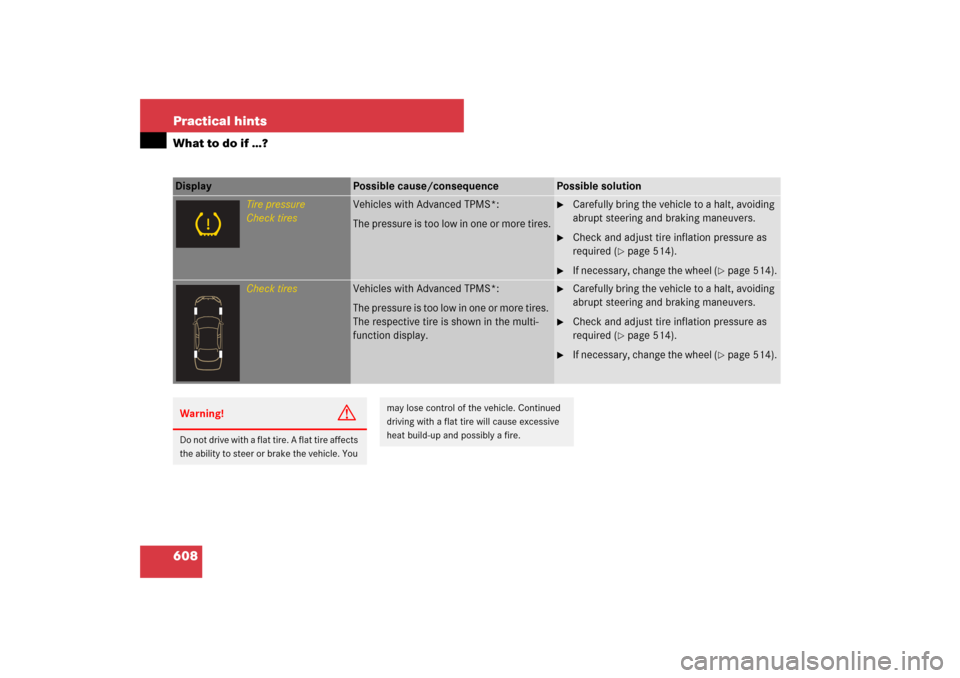

Page 609 of 705
608 Practical hintsWhat to do if …?Display
Possible cause/consequence
Possible solution
Tire pressure
Check tires
Vehicles with Advanced TPMS*:
The pressure is too low in one or more tires.
Carefully bring the vehicle to a halt, avoiding
abrupt steering and braking maneuvers.
Check and adjust tire inflation pressure as
required (
page 514).
If necessary, change the wheel (
page 514).
Check tires
Vehicles with Advanced TPMS*:
The pressure is too low in one or more tires.
The respective tire is shown in the multi-
function display.
Carefully bring the vehicle to a halt, avoiding
abrupt steering and braking maneuvers.
Check and adjust tire inflation pressure as
required (
page 514).
If necessary, change the wheel (
page 514).
Warning!
G
Do not drive with a flat tire. A flat tire affects
the ability to steer or brake the vehicle. You
may lose control of the vehicle. Continued
driving with a flat tire will cause excessive
heat build-up and possibly a fire.

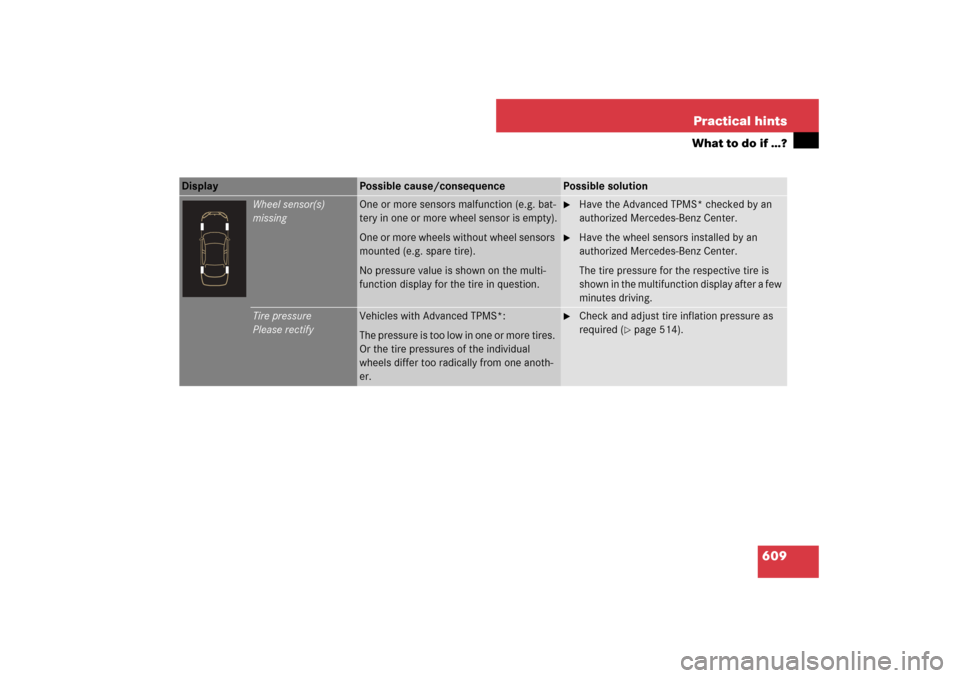

Page 610 of 705
609 Practical hints
What to do if …?
Display
Possible cause/consequence
Possible solution
Wheel sensor(s)
missing
One or more sensors malfunction (e.g. bat-
tery in one or more wheel sensor is empty).
One or more wheels without wheel sensors
mounted (e.g. spare tire).
No pressure value is shown on the multi-
function display for the tire in question.
Have the Advanced TPMS* checked by an
authorized Mercedes-Benz Center.
Have the wheel sensors installed by an
authorized Mercedes-Benz Center.
The tire pressure for the respective tire is
shown in the multifunction display after a few
minutes driving.
Tire pressure
Please rectify
Vehicles with Advanced TPMS*:
The pressure is too low in one or more tires.
Or the tire pressures of the individual
wheels differ too radically from one anoth-
er.
Check and adjust tire inflation pressure as
required (
page 514).

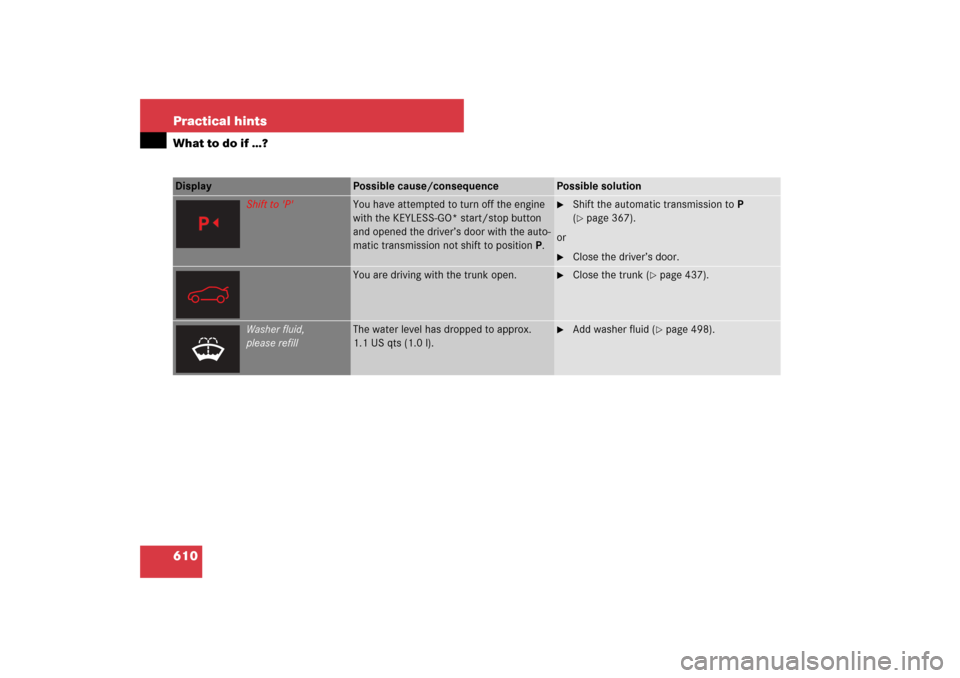

Page 611 of 705
610 Practical hintsWhat to do if …?Display
Possible cause/consequence
Possible solution
Shift to 'P'
You have attempted to turn off the engine
with the KEYLESS-GO* start/stop button
and opened the driver’s door with the auto-
matic transmission not shift to positionP.
Shift the automatic transmission toP
(page 367).
or
Close the driver’s door.
You are driving with the trunk open.
Close the trunk (
page 437).
Washer fluid,
please refill
The water level has dropped to approx.
1.1 US qts (1.0 l).
Add washer fluid (
page 498).
Page 612 of 705

611 Practical hints
Where will I find ...?
Where will I find ...?
First aid kit
The first aid kit is located in the storage
compartment under the front passenger
seat.
1Tab
2Cover
Pull tab1 upward.
Fold the covering forward in the direc-
tion of arrow.
Remove the first aid kit.
Vehicle jack, vehicle tool kit, luggage
bowl, Minispare wheel
The vehicle jack, Minispare wheel, the ve-
hicle tools, and the luggage bowl are
stored in the compartment underneath the
trunk floor.
Lift up trunk floor cover and engage
trunk floor handle in upper edge of
trunk.
You can now remove the tools and ac-
cessories.The vehicle tool kit includes:
One towing eye bolt
One wheel bolt wrench with socket
wrench
One alignment bolt
One pair of gloves
One fuse extractor
One fuse chart for the main fuse box
Spare fuses
Collapsible wheel chock
Wheel bolts for Minispare wheel
!
Always keep the storage compartment un-
der the front passenger seat closed while the ve-
hicle is in motion.
i
Check expiration dates and contents for
completeness at least once a year and replace
missing/expired items.
!
To prevent damage, always disengage trunk
floor handle from trunk lid and lower trunk floor
before closing the trunk.
Page 613 of 705

612 Practical hintsWhere will I find ...?Vehicle jack
Storage position
Remove vehicle jack from its
compartment.
Turn crank handle in direction of arrow
as far as it will go.
Operational position
Turn crank handle clockwise.
Before storing the vehicle jack in its
compartment:
It should be fully collapsed.
The handle must be folded in (storage
position).
Warning!
G
The jack is designed exclusively for jacking
up the vehicle at the jack take-up brackets
built into both sides of the vehicle. To help
avoid personal injury, use the jack only to lift
the vehicle during a wheel change. Never
get beneath the vehicle while it is supported
by the jack. Keep hands and feet away from
the area under the lifted vehicle. Always
firmly set parking brake and block wheels
before raising vehicle with jack.
Do not disengage parking brake while the
vehicle is raised. Be certain that the jack is
always vertical (plumb line) when in use,
especially on hills. Always try to use the jack
on level surface. Make sure the jack arm is
fully seated in the jack take-up bracket.
Always lower the vehicle onto sufficient
capacity jackstands before working under
the vehicle.
Page 614 of 705
613 Practical hints
Where will I find ...?
Minispare wheel
The Minispare wheel is stored in the com-
partment underneath the trunk floor.
1Minispare wheel with spare wheel bolts
in container on wheel rim
2Luggage bowl
3Vehicle tool kit, jack and collapsible
wheel chock
Removing the Minispare wheel
Turn luggage bowl2 counterclock-
wise.
Remove Minispare wheel1.Setting up the collapsible wheel chock
The collapsible wheel chock serves to
additionally secure the vehicle, e.g. while
changing the wheel.
1Tilt the plates upward
2Fold the lower plate outward
3Insert the plate
Tilt both plates upward1.
Fold the lower plate outward2.
Guide the tabs of the lower plate all the
way into the openings of the base
plate3.
Page 615 of 705
614 Practical hintsUnlocking/locking in an emergencyUnlocking the vehicle
If you are unable to unlock the vehicle with
the SmartKey or KEYLESS-GO*, open the
driver’s door and the trunk using the me-
chanical key. Removing the mechanical key
1Mechanical key locking tab
2Mechanical key
Move locking tab1 in the direction of
arrow.
Slide mechanical key2 out of the
housing.Unlocking the driver’s door
1Unlocking
2Mechanical key
Insert mechanical key2 into the driv-
er’s door lock until it stops.
Turn mechanical key2 counterclock-
wise to position1.
The driver’s door is unlocked.
Pull door handle quickly.
The locking knob moves up.
Turn back mechanical key2 and re-
move.
Pull door handle again.
i
Unlocking the driver’s door and/or the trunk
with the mechanical key will trigger the anti-theft
alarm system (
page 75).
To cancel the alarm, insert the SmartKey or
SmartKey with KEYLESS-GO* in the starter
switch.
Page 616 of 705

615 Practical hints
Unlocking/locking in an emergency
Unlocking the trunk
A minimum height clearance of 5.9 ft.
(1.80 m) is required to open the trunk lid.
1Trunk lid lock
Insert the mechanical key into the
trunk lid lock1 until it stops.
Turn mechanical key all the way to the
left.
The trunk opens.
Turn the mechanical key back and re-
move it from the trunk lid lock.
Locking the vehicle
If you cannot lock the vehicle with the
SmartKey or KEYLESS-GO*, do the follow-
ing:
Close the front passenger door, the
rear right door and the trunk.
Open the driver’s door and the rear left
door.
Press the central locking switch on the
driver’s door (
page 314).
The locking knobs of the front passen-
ger door and the rear doors move
down.
If the vehicle battery is disconnected or
drained:
Press down the locking knobs of
the front passenger door and the
rear doors manually.
Exit the vehicle.
Close the driver’s door.
Enter the vehicle through the rear left
door.
Press down the locking knob of the
driver’s door.
Exit the vehicle.
Close the rear left door.
The vehicle is locked.
!
The trunk lid swings open upwards automat-
ically. Always make sure that there is sufficient
overhead clearance.
!
To prevent inadvertent lockout, make sure
to have the SmartKey or SmartKey with KEY-
LESS-GO* with you before proceeding with the
next step. The next step will lock the vehicle.
