Page 545 of 705

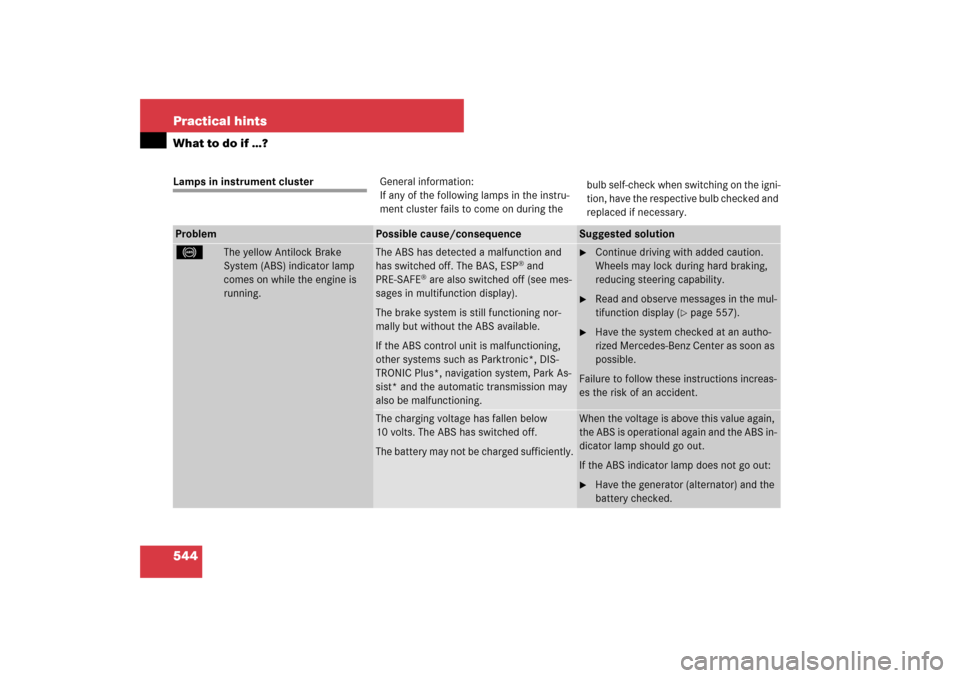

544 Practical hintsWhat to do if …?Lamps in instrument clusterGeneral information:
If any of the following lamps in the instru-
ment cluster fails to come on during the bulb self-check when switching on the igni-
tion, have the respective bulb checked and
replaced if necessary.Problem
Possible cause/consequence
Suggested solution
-
The yellow Antilock Brake
System (ABS) indicator lamp
comes on while the engine is
running.
The ABS has detected a malfunction and
has switched off. The BAS, ESP
® and
PRE-SAFE
® are also switched off (see mes-
sages in multifunction display).
The brake system is still functioning nor-
mally but without the ABS available.
If the ABS control unit is malfunctioning,
other systems such as Parktronic*, DIS-
TRONIC Plus*, navigation system, Park As-
sist* and the automatic transmission may
also be malfunctioning.
Continue driving with added caution.
Wheels may lock during hard braking,
reducing steering capability.
Read and observe messages in the mul-
tifunction display (
page 557).
Have the system checked at an autho-
rized Mercedes-Benz Center as soon as
possible.
Failure to follow these instructions increas-
es the risk of an accident.
The charging voltage has fallen below
10 volts. The ABS has switched off.
The battery may not be charged sufficiently.
When the voltage is above this value again,
the ABS is operational again and the ABS in-
dicator lamp should go out.
If the ABS indicator lamp does not go out:
Have the generator (alternator) and the
battery checked.
Page 546 of 705

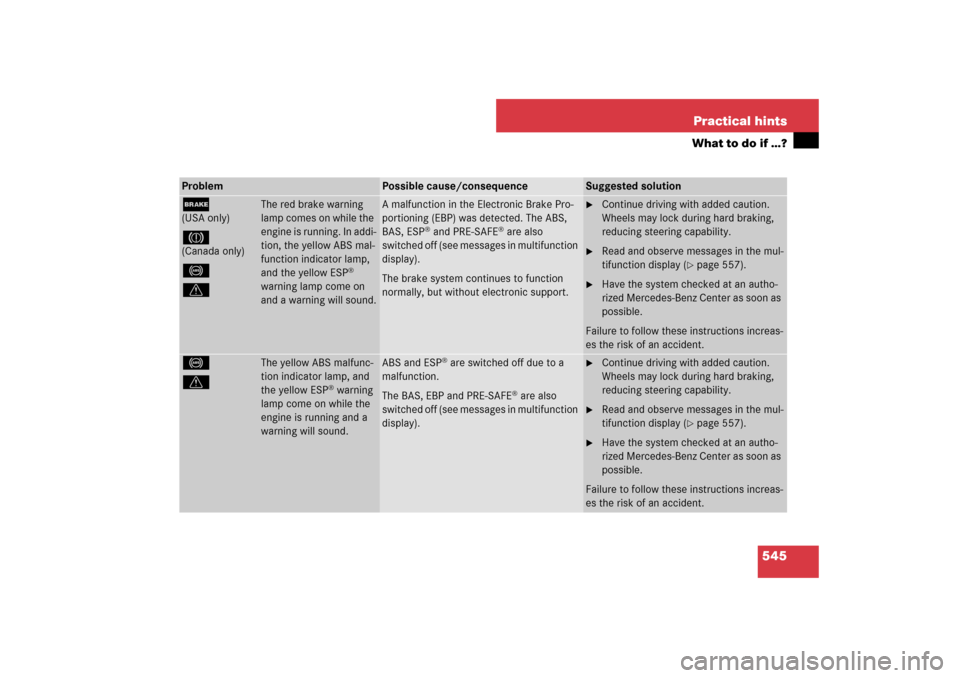

545 Practical hints
What to do if …?
Problem
Possible cause/consequence
Suggested solution
;(USA only)3(Canada only)-
v
The red brake warning
lamp comes on while the
engine is running. In addi-
tion, the yellow ABS mal-
function indicator lamp,
and the yellow ESP
®
warning lamp come on
and a warning will sound.
A malfunction in the Electronic Brake Pro-
portioning (EBP) was detected. The ABS,
BAS, ESP
® and PRE-SAFE
® are also
switched off (see messages in multifunction
display).
The brake system continues to function
normally, but without electronic support.
Continue driving with added caution.
Wheels may lock during hard braking,
reducing steering capability.
Read and observe messages in the mul-
tifunction display (
page 557).
Have the system checked at an autho-
rized Mercedes-Benz Center as soon as
possible.
Failure to follow these instructions increas-
es the risk of an accident.
-
v
The yellow ABS malfunc-
tion indicator lamp, and
the yellow ESP
® warning
lamp come on while the
engine is running and a
warning will sound.
ABS and ESP
® are switched off due to a
malfunction.
The BAS, EBP and PRE-SAFE
® are also
switched off (see messages in multifunction
display).
Continue driving with added caution.
Wheels may lock during hard braking,
reducing steering capability.
Read and observe messages in the mul-
tifunction display (
page 557).
Have the system checked at an autho-
rized Mercedes-Benz Center as soon as
possible.
Failure to follow these instructions increas-
es the risk of an accident.
Page 547 of 705

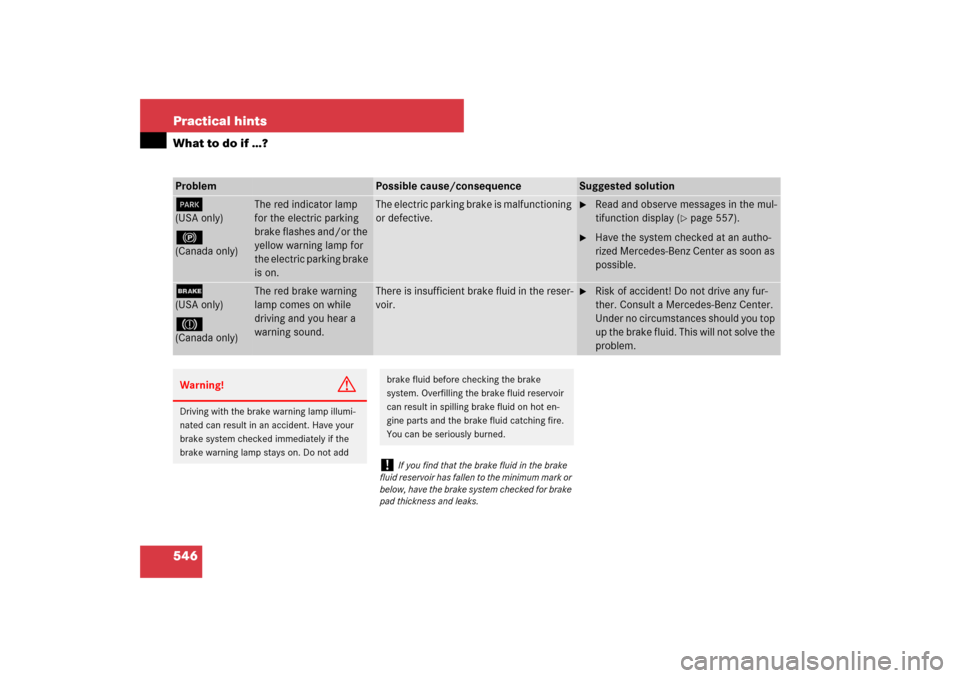

546 Practical hintsWhat to do if …?Problem
Possible cause/consequence
Suggested solution
0(USA only)!(Canada only)
The red indicator lamp
for the electric parking
brake flashes and/or the
yellow warning lamp for
the electric parking brake
is on.
The electric parking brake is malfunctioning
or defective.
Read and observe messages in the mul-
tifunction display (
page 557).
Have the system checked at an autho-
rized Mercedes-Benz Center as soon as
possible.
;(USA only)3(Canada only)
The red brake warning
lamp comes on while
driving and you hear a
warning sound.
There is insufficient brake fluid in the reser-
voir.
Risk of accident! Do not drive any fur-
ther. Consult a Mercedes-Benz Center.
Under no circumstances should you top
up the brake fluid. This will not solve the
problem.
Warning!
G
Driving with the brake warning lamp illumi-
nated can result in an accident. Have your
brake system checked immediately if the
brake warning lamp stays on. Do not add
brake fluid before checking the brake
system. Overfilling the brake fluid reservoir
can result in spilling brake fluid on hot en-
gine parts and the brake fluid catching fire.
You can be seriously burned.!
If you find that the brake fluid in the brake
fluid reservoir has fallen to the minimum mark or
below, have the brake system checked for brake
pad thickness and leaks.
Page 548 of 705

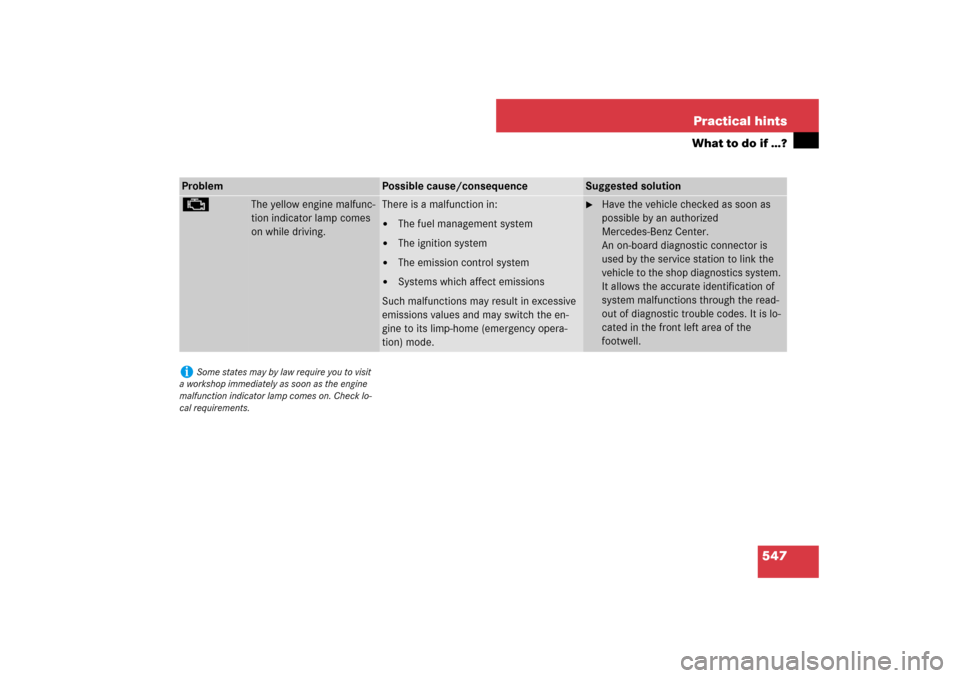

547 Practical hints
What to do if …?
Problem
Possible cause/consequence
Suggested solution
±
The yellow engine malfunc-
tion indicator lamp comes
on while driving.
There is a malfunction in:
The fuel management system
The ignition system
The emission control system
Systems which affect emissions
Such malfunctions may result in excessive
emissions values and may switch the en-
gine to its limp-home (emergency opera-
tion) mode.
Have the vehicle checked as soon as
possible by an authorized
Mercedes-Benz Center.
An on-board diagnostic connector is
used by the service station to link the
vehicle to the shop diagnostics system.
It allows the accurate identification of
system malfunctions through the read-
out of diagnostic trouble codes. It is lo-
cated in the front left area of the
footwell.
i
Some states may by law require you to visit
a workshop immediately as soon as the engine
malfunction indicator lamp comes on. Check lo-
cal requirements.
Page 549 of 705

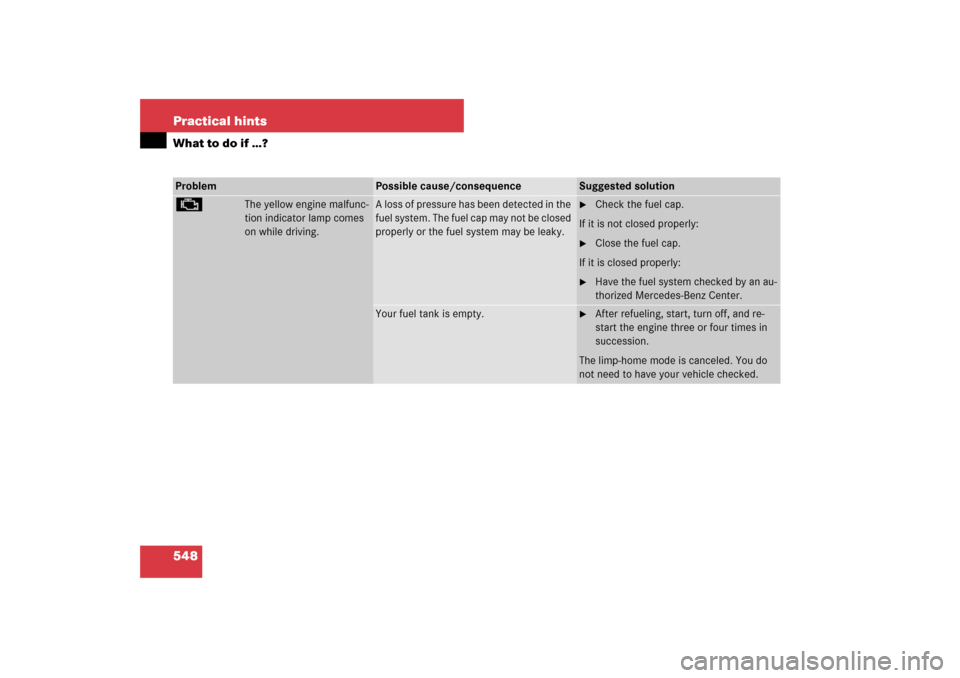

548 Practical hintsWhat to do if …?Problem
Possible cause/consequence
Suggested solution
±
The yellow engine malfunc-
tion indicator lamp comes
on while driving.
A loss of pressure has been detected in the
fuel system. The fuel cap may not be closed
properly or the fuel system may be leaky.
Check the fuel cap.
If it is not closed properly:
Close the fuel cap.
If it is closed properly:
Have the fuel system checked by an au-
thorized Mercedes-Benz Center.
Your fuel tank is empty.
After refueling, start, turn off, and re-
start the engine three or four times in
succession.
The limp-home mode is canceled. You do
not need to have your vehicle checked.
Page 550 of 705

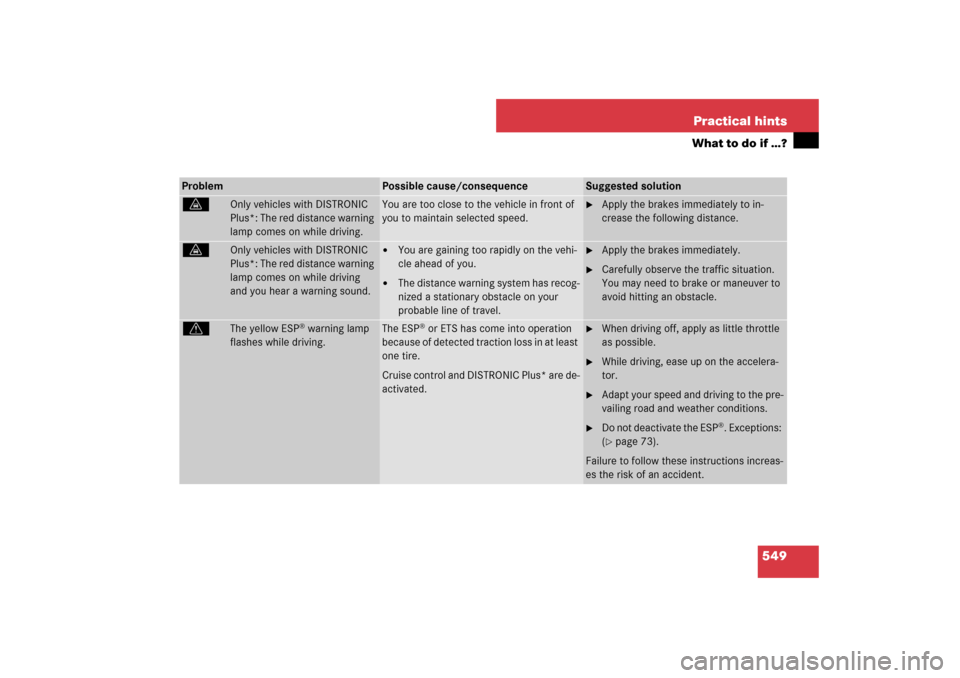

549 Practical hints
What to do if …?
Problem
Possible cause/consequence
Suggested solution
l
Only vehicles with DISTRONIC
Plus*: The red distance warning
lamp comes on while driving.
You are too close to the vehicle in front of
you to maintain selected speed.
Apply the brakes immediately to in-
crease the following distance.
l
Only vehicles with DISTRONIC
Plus*: The red distance warning
lamp comes on while driving
and you hear a warning sound.
You are gaining too rapidly on the vehi-
cle ahead of you.
The distance warning system has recog-
nized a stationary obstacle on your
probable line of travel.
Apply the brakes immediately.
Carefully observe the traffic situation.
You may need to brake or maneuver to
avoid hitting an obstacle.
v
The yellow ESP
® warning lamp
flashes while driving.
The ESP
® or ETS has come into operation
because of detected traction loss in at least
one tire.
Cruise control and DISTRONIC Plus* are de-
activated.
When driving off, apply as little throttle
as possible.
While driving, ease up on the accelera-
tor.
Adapt your speed and driving to the pre-
vailing road and weather conditions.
Do not deactivate the ESP
®. Exceptions:
(
page 73).
Failure to follow these instructions increas-
es the risk of an accident.
Page 551 of 705

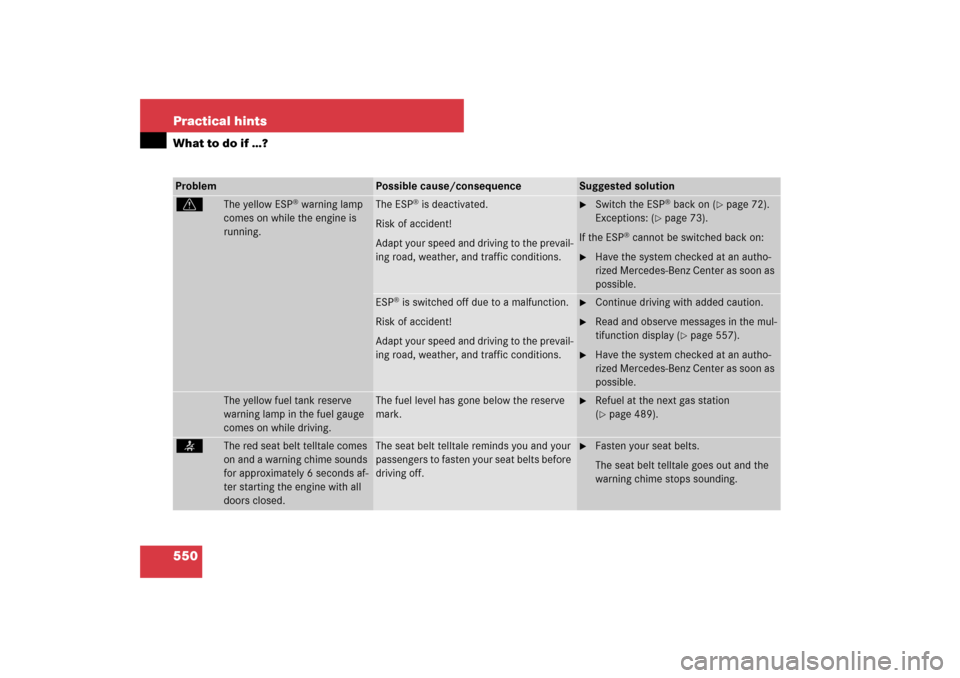

550 Practical hintsWhat to do if …?Problem
Possible cause/consequence
Suggested solution
v
The yellow ESP
® warning lamp
comes on while the engine is
running.
The ESP
® is deactivated.
Risk of accident!
Adapt your speed and driving to the prevail-
ing road, weather, and traffic conditions.
Switch the ESP
® back on (
page 72).
Exceptions: (
page 73).
If the ESP
® cannot be switched back on:
Have the system checked at an autho-
rized Mercedes-Benz Center as soon as
possible.
ESP
® is switched off due to a malfunction.
Risk of accident!
Adapt your speed and driving to the prevail-
ing road, weather, and traffic conditions.
Continue driving with added caution.
Read and observe messages in the mul-
tifunction display (
page 557).
Have the system checked at an autho-
rized Mercedes-Benz Center as soon as
possible.
The yellow fuel tank reserve
warning lamp in the fuel gauge
comes on while driving.
The fuel level has gone below the reserve
mark.
Refuel at the next gas station
(page 489).
<
The red seat belt telltale comes
on and a warning chime sounds
for approximately 6 seconds af-
ter starting the engine with all
doors closed.
The seat belt telltale reminds you and your
passengers to fasten your seat belts before
driving off.
Fasten your seat belts.
The seat belt telltale goes out and the
warning chime stops sounding.
Page 552 of 705

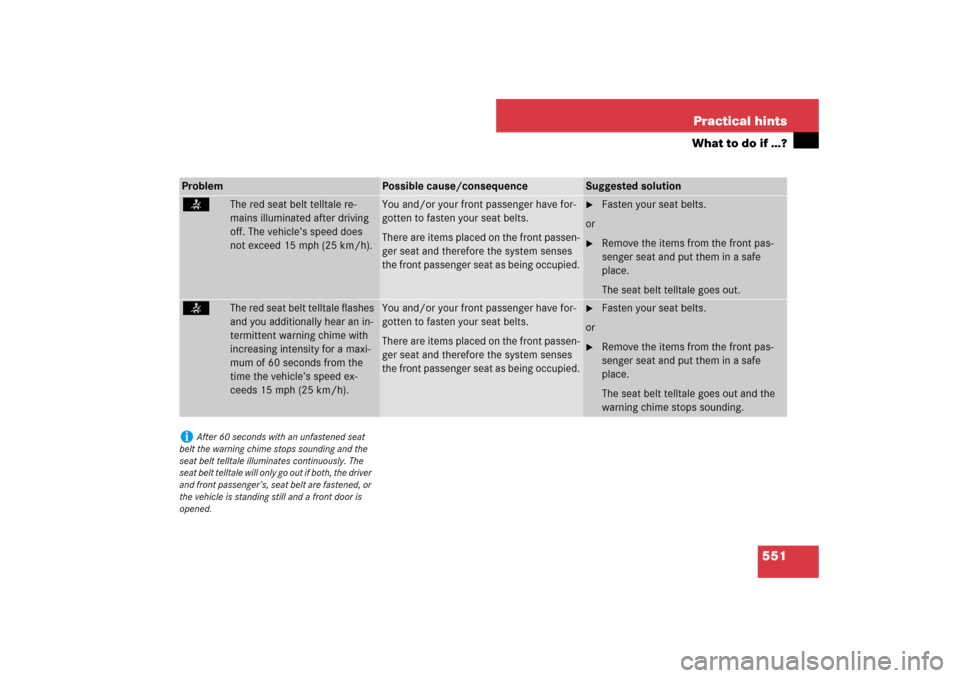

551 Practical hints
What to do if …?
Problem
Possible cause/consequence
Suggested solution
<
The red seat belt telltale re-
mains illuminated after driving
off. The vehicle’s speed does
not exceed 15 mph (25 km/h).
You and/or your front passenger have for-
gotten to fasten your seat belts.
There are items placed on the front passen-
ger seat and therefore the system senses
the front passenger seat as being occupied.
Fasten your seat belts.
or
Remove the items from the front pas-
senger seat and put them in a safe
place.
The seat belt telltale goes out.
<
The red seat belt telltale flashes
and you additionally hear an in-
termittent warning chime with
increasing intensity for a maxi-
mum of 60 seconds from the
time the vehicle’s speed ex-
ceeds 15 mph (25 km/h).
You and/or your front passenger have for-
gotten to fasten your seat belts.
There are items placed on the front passen-
ger seat and therefore the system senses
the front passenger seat as being occupied.
Fasten your seat belts.
or
Remove the items from the front pas-
senger seat and put them in a safe
place.
The seat belt telltale goes out and the
warning chime stops sounding.
i
After 60 seconds with an unfastened seat
belt the warning chime stops sounding and the
seat belt telltale illuminates continuously. The
seat belt telltale will only go out if both, the driver
and front passenger’s, seat belt are fastened, or
the vehicle is standing still and a front door is
opened.
