Page 617 of 705

616 Practical hintsUnlocking/locking in an emergencyMechanically releasing the electric parking brake
The mechanical release device for the
electric parking brake is underneath the
fuel filler flap next to the fuel cap.
1Fuel filler flap
2Release tool
3Protective cap
Shift the automatic transmission to P
(page 367).
Place chock from vehicle tool kit
(page 611) under a rear wheel.
Open fuel filler flap1.
Remove protective cap3.
Screw release tool2 from vehicle tool
kit clockwise 2 to 3 rotations onto re-
lease lever.
Pull release tool2 in direction of ar-
row.
The electric parking brake is released.
The red indicator lamp 0 (USA only)
or ! (Canada only) in the instru-
ment cluster for the electric parking
brake flashes. The message “Parking
brake See Oper. Manual” appears on
the driver’s display.
After it has been unlocked, you can engage
the electric parking brake again from the
driver’s seat.
Press the electric parking brake handle
(page 364).
Warning!
G
If you mechanically release the electric
parking brake, the vehicle may start to move
on its own. Make sure that no one is in front
of or behind the vehicle. Otherwise, an acci-
dent could occur resulting in injury or fatali-
ty. Shift the automatic transmission to P and
secure your vehicle in place using the chock
from the vehicle tool kit.
i
You must pull the release tool with more
force if the electric parking brake cannot be re-
leased.
!
Reattach protective cap
3
after you have
mechanically released the electric parking
brake.
Page 618 of 705
617 Practical hints
Opening/closing in an emergency
Opening/closing in an emergency
Power tilt/sliding sunroof or panorama roof with power tilt/sliding panel*
You can open or close the tilt/sliding sun-
roof or tilt/sliding panel manually should
an electrical malfunction occur.
The drive mechanism is behind the left sun
visor.
1Cover
Remove cover1.2Crank
Take crank2 from the Operator’s
Manual pouch.
Switch on the ignition (
page 315).
Insert crank2 through the hole.
Turn crank2 clockwise to:
slide roof panel/sunroof closed
raise roof panel/sunroof at the rear
Turn crank3 counterclockwise to:
slide roof panel/sunroof open
lower roof panel/sunroof at the
rear
i
Turn crank2 slowly and smoothly.
The tilt/sliding sunroof (
page 442) or tilt/slid-
ing panel (
page 446) must be synchronized af-
ter being operated manually.
Page 619 of 705

618 Practical hintsResetting activated head restraints (S 600 only)If the luxury active head restraints
(front seats) have been triggered in an ac-
cident, the active head restraints must be
reset. Otherwise, the active head re-
straints cannot offer any additional protec-
tion in the event of another rear-end
collision.
Take reset tool1 out of the
Mercedes-Benz vehicle literature
pouch.
Guide reset tool1 into center of head
restraint between head restraint cush-
ion and rear head restraint cover.
Press reset tool1 forward in direction
of arrow.
Press reset tool downward until you
hear the head restraint release
mechanism audibly engage.
Pull out reset tool1.
Firmly press head restraint cushion
backward towards the rear of the vehi-
cle until it engages.
Repeat this procedure on the active
head restraints for second head re-
straint.
For information on active head restraints,
see “Luxury active head restraints
(S 600 only)” (
page 59).
For information on head restraint adjust-
ment, see “Head restraints” (
page 324).
i
For your convenience, we recommend that
you have this work carried out by an authorized
Mercedes-Benz Center.
You will find the reset tool for manually operating
the head restraints in the Mercedes-Benz vehicle
literature pouch.
!
Be careful not to damage upholstery.
Warning!
G
When pushing back the head restraint cush-
ion, take care that your fingers do not be-
come caught between the head restraint
cushion and the cover. Failing to do so may
lead to injury.
Page 620 of 705

619 Practical hints
Replacing SmartKey batteries
Replacing SmartKey batteries
If the batteries in the SmartKey or the
SmartKey with KEYLESS-GO* are dis-
charged, the vehicle can no longer be
locked or unlocked. It is recommended to
have the batteries replaced at an autho-
rized Mercedes-Benz Center.Batteries contain materials that can harm
the environment if disposed of improperly.
Recycling of batteries is the preferred
method of disposal. Many states require
sellers of batteries to accept old batteries
for recycling.SmartKey/SmartKey with
KEYLESS-GO*
Replacement batteries: Lithium, type
CR 2025 or equivalent.
Remove the mechanical key out of the
SmartKey or the SmartKey with
KEYLESS-GO* (
page 614).
1Mechanical key
2Battery compartment
Insert mechanical key 1 into opening.
Press mechanical key 1 in direction of
arrow.
The battery compartment is unlatched.
Warning!
G
Batteries contain poisonous and corrosive
substances. Therefore keep the batteries
out of reach of children.
If a battery is swallowed, seek medical help
immediately.
i
When inserting the batteries, make sure
they are clean and free of lint.
i
When changing batteries, always replace
both batteries.
The required replacement batteries are available
at any authorized Mercedes-Benz Center.
Page 621 of 705
620 Practical hintsReplacing SmartKey batteries
Pull battery compartment 2 out of the
housing.
3Batteries
4Contact springs
Pull out batteries3.
Using a line-free cloth, insert new bat-
teries 3 under contact springs 4 with
the positive terminal (+) side facing up.
Return battery compartment 2
(page 619) into housing until it locks
into place.
Slide the mechanical key back into the
SmartKey/SmartKey with
KEYLESS-GO*.
Check the operation of the SmartKey/
KEYLESS-GO*.
Page 622 of 705
621 Practical hints
Replacing bulbs
Replacing bulbs
Safe vehicle operation depends on proper
exterior lighting and signaling. It is there-
fore essential that all bulbs and lamp as-
semblies are in good working order at all
times.
Correct headlamp adjustment is extremely
important. Have headlamps checked and
readjusted at regular intervals and when a
bulb has been replaced. See an authorized
Mercedes-Benz Center for headlamp ad-
justment.
i
If the headlamps or front fog lamps are
fogged up on the inside as a result of high humid-
ity, driving the vehicle a distance with the lights
on should clear up the fogging.
i
Substitute bulbs will be brought into use
when the following lamps malfunction:
Brake lamps
Rear fog lamps
Front parking lamps
Tail lamps
Turn signal lamps
Observe the messages in the multifunction dis-
play (page 557).
Page 623 of 705

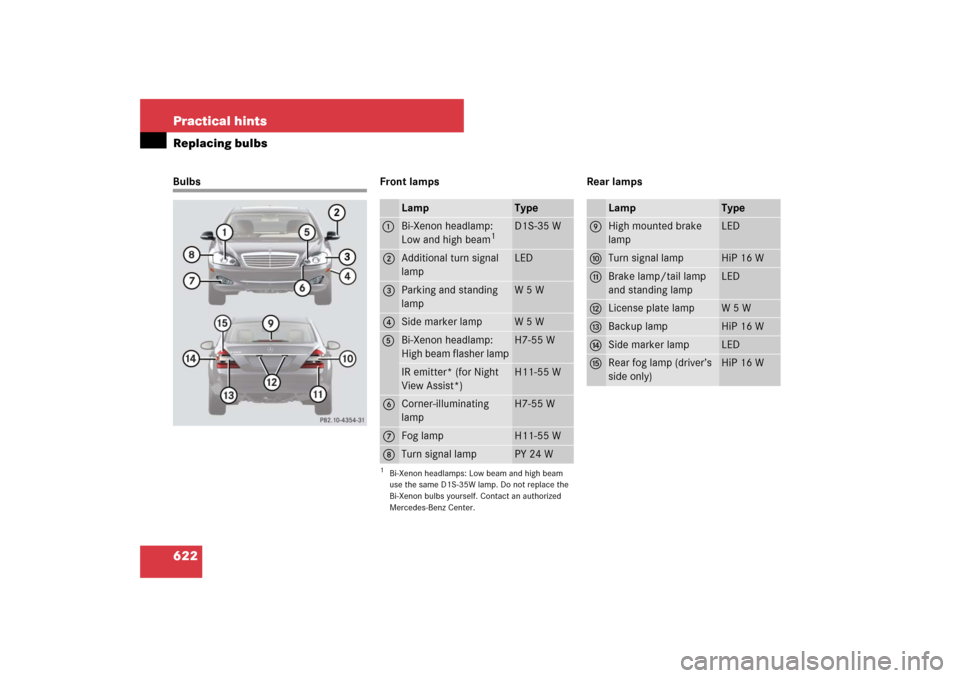

622 Practical hintsReplacing bulbsBulbs Front lamps Rear lamps
Lamp
Type
1
Bi-Xenon headlamp:
Low and high beam
1
1Bi-Xenon headlamps: Low beam and high beam
use the same D1S-35W lamp. Do not replace the
Bi-Xenon bulbs yourself. Contact an authorized
Mercedes-Benz Center.
D1S-35 W
2
Additional turn signal
lamp
LED
3
Parking and standing
lamp
W5W
4
Side marker lamp
W5W
5
Bi-Xenon headlamp:
High beam flasher lamp
H7-55 W
IR emitter* (for Night
View Assist*)
H11-55 W
6
Corner-illuminating
lamp
H7-55 W
7
Fog lamp
H11-55 W
8
Turn signal lamp
PY 24 W
Lamp
Type
9
High mounted brake
lamp
LED
a
Turn signal lamp
HiP 16 W
b
Brake lamp/tail lamp
and standing lamp
LED
c
License plate lamp
W5W
d
Backup lamp
HiP 16 W
e
Side marker lamp
LED
f
Rear fog lamp (driver’s
side only)
HiP 16 W
Page 624 of 705

623 Practical hints
Replacing bulbs
Notes on bulb replacement
Only use 12-volt-bulbs of the same
type and with the specified watt rating.
Switch lights off before changing a bulb
to prevent short circuits.
Always use a clean lint-free cloth when
handling bulbs.
Your hands should be dry and free of oil
and grease.
If the newly installed bulb does not
come on, visit an authorized
Mercedes-Benz Center.
Have the LEDs and bulbs for the following
lamps replaced by an authorized
Mercedes-Benz Center.
the Bi-Xenon lamps
the front turn signal lamps
the front fog lamps
the additional turn signal lamps in the
exterior rear view mirrors
the parking and standing lamps
the front side marker lamps
the high mounted brake lamps
the brake, tail and rear standing lamps
the rear side marker lamps
the rear fog lamp
the rear turn signal lamps
the rear side marker lamps
the license plate lamps
Replacing bulbs for front lamps
Before you start to replace a bulb for a
front lamp, do the following first:
Turn the exterior lamp switch to M
(page 342).
Open the hood (
page 492) (except
for side marker lamps).
Warning!
G
Keep bulbs out of reach of children.
Bulbs and bulb sockets can be very hot. Al-
low the lamp to cool down before changing
a bulb.
Halogen lamps contain pressurized gas. A
bulb can explode if you:
touch or move it when hot
drop the bulb
scratch the bulb
Wear eye and hand protection.
Because of high voltage in Xenon lamps, it is
dangerous to replace the bulb or repair the
lamp and its components. We recommend
that you have such work done by a qualified
technician.
i
Have the headlamp adjustment checked
regularly.
