Page 625 of 705

624 Practical hintsReplacing bulbs1Cover 1
2Cover 2
3Cover 3
Removing and installing washer fluid
reservoir on left-hand side
Vehicles with Airmatic*
You must remove the washer fluid reser-
voir in order to change the bulbs of the
front headlamp on the left-hand side. The
washer fluid reservoir is on the front
left-hand side of the engine compartment.

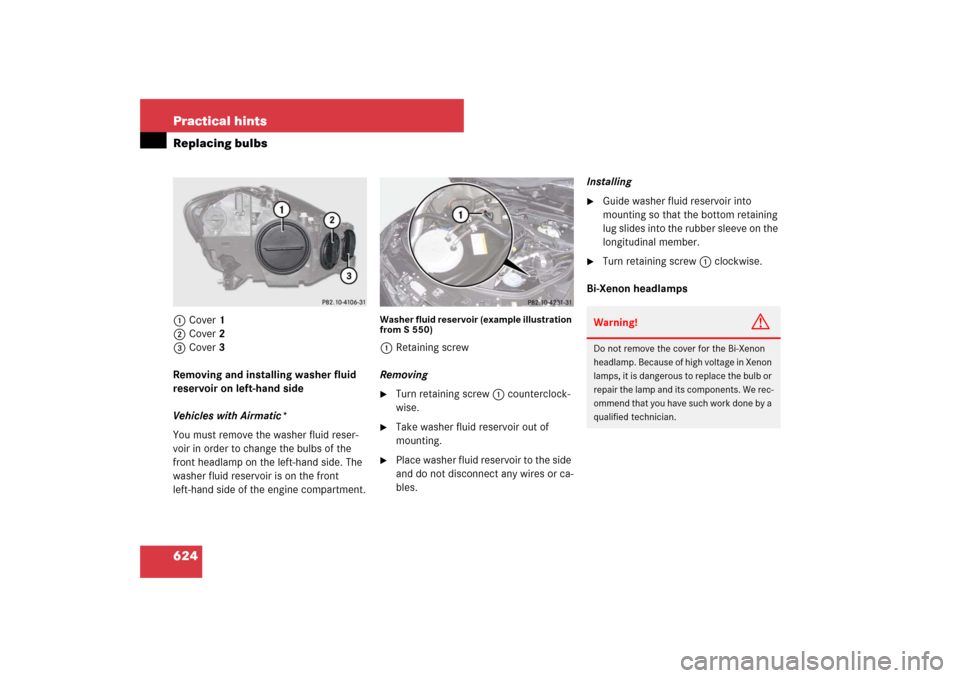

Washer fluid reservoir (example illustration
from S 550)1Retaining screw
Removing
Turn retaining screw1 counterclock-
wise.
Take washer fluid reservoir out of
mounting.
Place washer fluid reservoir to the side
and do not disconnect any wires or ca-
bles.Installing
Guide washer fluid reservoir into
mounting so that the bottom retaining
lug slides into the rubber sleeve on the
longitudinal member.
Turn retaining screw1 clockwise.
Bi-Xenon headlampsWarning!
G
Do not remove the cover for the Bi-Xenon
headlamp. Because of high voltage in Xenon
lamps, it is dangerous to replace the bulb or
repair the lamp and its components. We rec-
om me n d tha t yo u hav e su ch work don e by a
qualified technician.
Page 626 of 705

625 Practical hints
Replacing bulbs
High beam flasher lamp
In vehicles with Bi-Xenon headlamps, you
can only change the halogen bulb for the
high-beam flasher lamp.

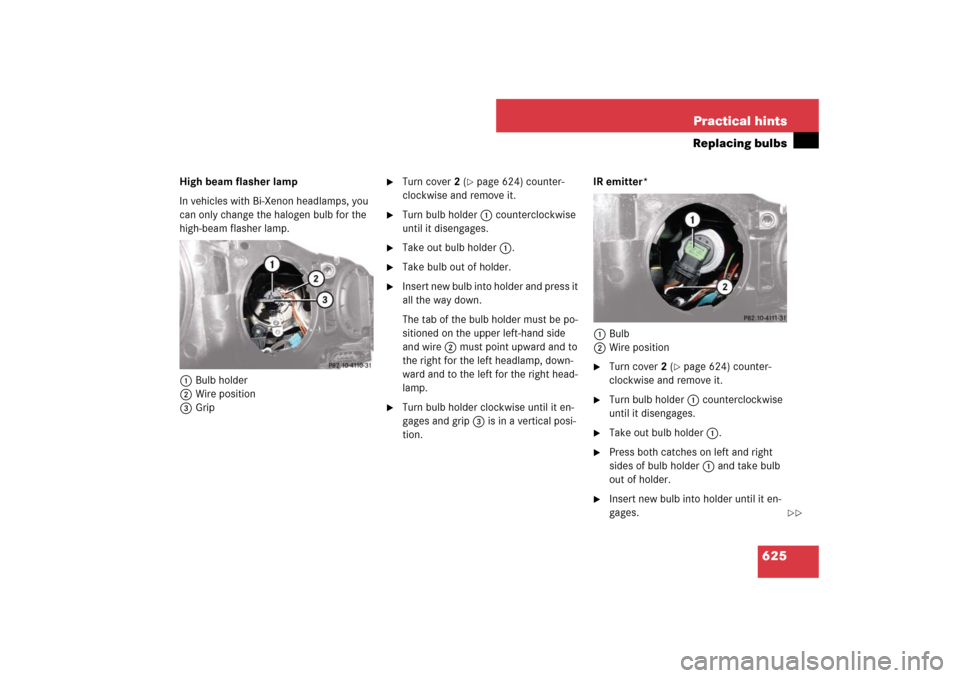

1Bulb holder
2Wire position
3Grip
Turn cover2 (
page 624) counter-
clockwise and remove it.
Turn bulb holder1 counterclockwise
until it disengages.
Take out bulb holder1.
Take bulb out of holder.
Insert new bulb into holder and press it
all the way down.
The tab of the bulb holder must be po-
sitioned on the upper left-hand side
and wire2 must point upward and to
the right for the left headlamp, down-
ward and to the left for the right head-
lamp.
Turn bulb holder clockwise until it en-
gages and grip3 is in a vertical posi-
tion.IR emitter*
1Bulb
2Wire position
Turn cover2 (
page 624) counter-
clockwise and remove it.
Turn bulb holder1 counterclockwise
until it disengages.
Take out bulb holder1.
Press both catches on left and right
sides of bulb holder1 and take bulb
out of holder.
Insert new bulb into holder until it en-
gages.
Page 627 of 705

626 Practical hintsReplacing bulbs
Insert bulb holder1 into guide in
headlamp. Wire2 must point down-
ward and to the right.
Turn bulb holder1 clockwise until it
engages and wire2 points downward
and to the left.
Corner-illuminating lamp

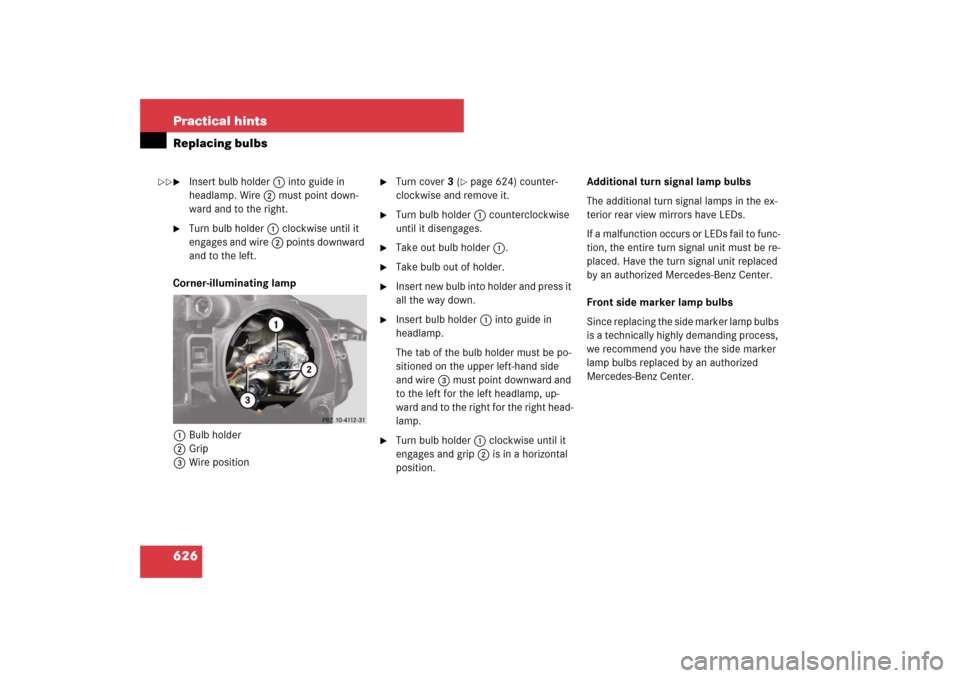

1Bulb holder
2Grip
3Wire position
Turn cover3 (
page 624) counter-
clockwise and remove it.
Turn bulb holder1 counterclockwise
until it disengages.
Take out bulb holder1.
Take bulb out of holder.
Insert new bulb into holder and press it
all the way down.
Insert bulb holder1 into guide in
headlamp.
The tab of the bulb holder must be po-
sitioned on the upper left-hand side
and wire3 must point downward and
to the left for the left headlamp, up-
ward and to the right for the right head-
lamp.
Turn bulb holder1 clockwise until it
engages and grip2 is in a horizontal
position.Additional turn signal lamp bulbs
The additional turn signal lamps in the ex-
terior rear view mirrors have LEDs.
If a malfunction occurs or LEDs fail to func-
tion, the entire turn signal unit must be re-
placed. Have the turn signal unit replaced
by an authorized Mercedes-Benz Center.
Front side marker lamp bulbs
Since replacing the side marker lamp bulbs
is a technically highly demanding process,
we recommend you have the side marker
lamp bulbs replaced by an authorized
Mercedes-Benz Center.
Page 628 of 705

627 Practical hints
Replacing wiper blades
Replacing wiper blades

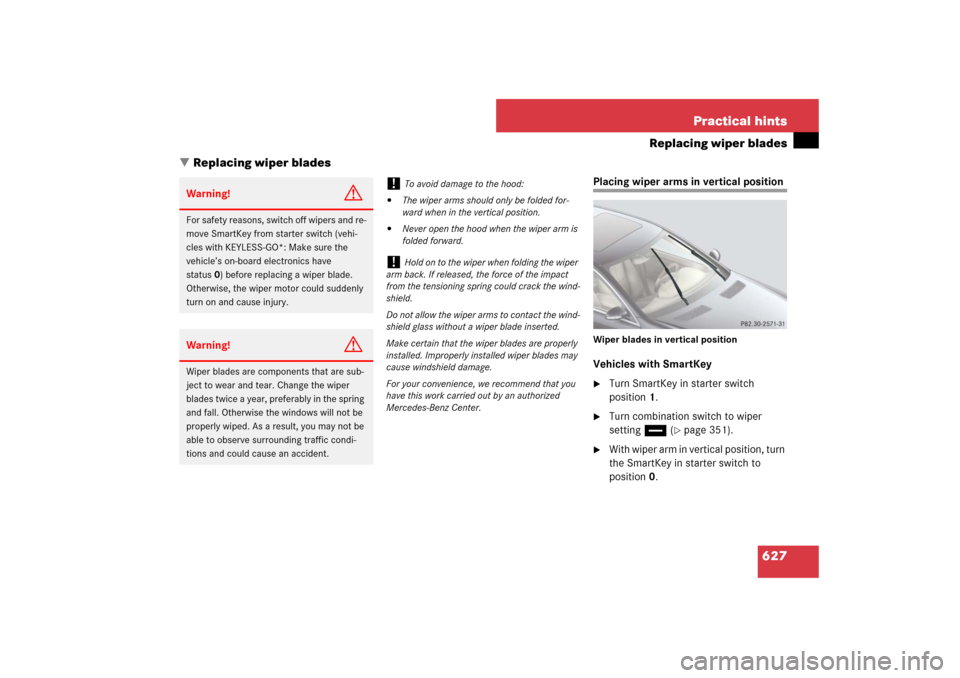

Placing wiper arms in vertical positionWiper blades in vertical positionVehicles with SmartKey
Turn SmartKey in starter switch
position1.
Turn combination switch to wiper
settingu (
page 351).
With wiper arm in vertical position, turn
the SmartKey in starter switch to
position0.
Warning!
G
For safety reasons, switch off wipers and re-
move SmartKey from starter switch (vehi-
cles with KEYLESS-GO*: Make sure the
vehicle’s on-board electronics have
status0) before replacing a wiper blade.
Otherwise, the wiper motor could suddenly
turn on and cause injury. Warning!
G
Wiper blades are components that are sub-
ject to wear and tear. Change the wiper
blades twice a year, preferably in the spring
and fall. Otherwise the windows will not be
properly wiped. As a result, you may not be
able to observe surrounding traffic condi-
tions and could cause an accident.
!
To avoid damage to the hood:
The wiper arms should only be folded for-
ward when in the vertical position.
Never open the hood when the wiper arm is
folded forward.
!
Hold on to the wiper when folding the wiper
arm back. If released, the force of the impact
from the tensioning spring could crack the wind-
shield.
Do not allow the wiper arms to contact the wind-
shield glass without a wiper blade inserted.
Make certain that the wiper blades are properly
installed. Improperly installed wiper blades may
cause windshield damage.
For your convenience, we recommend that you
have this work carried out by an authorized
Mercedes-Benz Center.
Page 629 of 705
628 Practical hintsReplacing wiper bladesVehicles with KEYLESS-GO*
Turn off the engine (
page 366).
Take foot off brake pedal.
Turn combination switch to wiper
settingu (
page 351).
Press KEYLESS-GO start/stop button
(page 317) repeatedly until wind-
shield wipers start.
Press KEYLESS-GO start/stop button
(page 317) when the wiper arms are
in a vertical position.
Removing wiper blades
Fold the wiper arm forward until it
snaps into place.

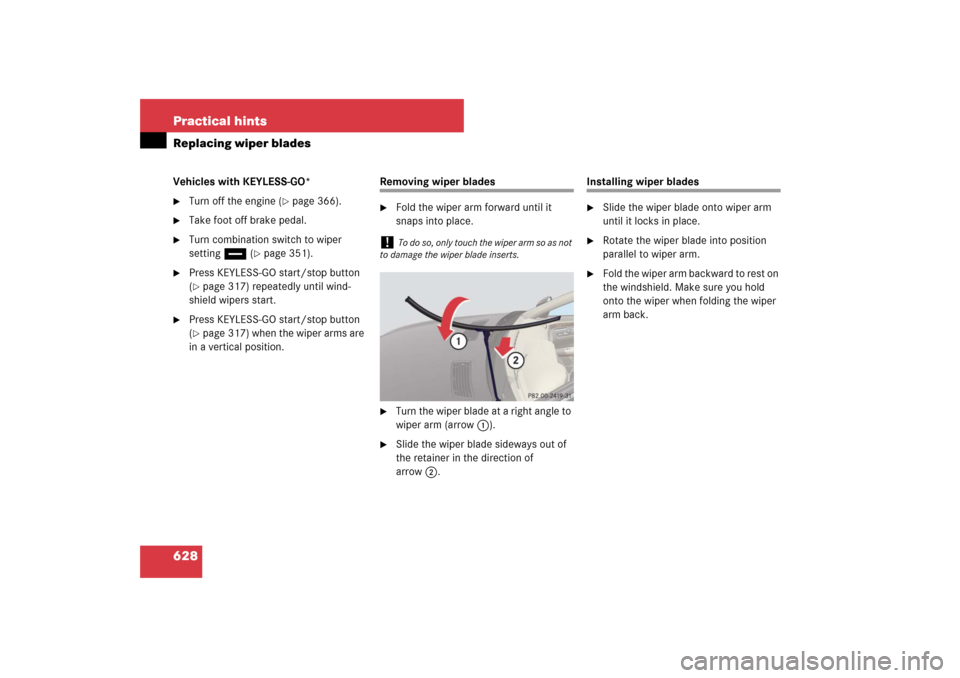

Turn the wiper blade at a right angle to
wiper arm (arrow 1).
Slide the wiper blade sideways out of
the retainer in the direction of
arrow2.
Installing wiper blades
Slide the wiper blade onto wiper arm
until it locks in place.
Rotate the wiper blade into position
parallel to wiper arm.
Fold the wiper arm backward to rest on
the windshield. Make sure you hold
onto the wiper when folding the wiper
arm back.
!
To do so, only touch the wiper arm so as not
to damage the wiper blade inserts.
Page 630 of 705

629 Practical hints
Flat tire
Flat tire
Preparing the vehicle
Park the vehicle in a safe distance from
moving traffic on a hard, flat surface
when possible.
Turn on the hazard warning flashers.
Turn the steering wheel so that the
front wheels are in a straight ahead
position.
Shift the automatic transmission toP.
Turn off the engine (
page 365).
Remove the SmartKey from the starter
switch.
Vehicles with SmartKey with
KEYLESS-GO*:
Turn off the engine by pressing the
KEYLESS-GO* button once
(page 366).
Open the driver’s door (this puts
the starter switch in position0,
same as with the SmartKey re-
moved from the starter switch). The
driver’s door then can be closed
again.
Have any passenger exit the vehicle at
a safe distance from the roadway.
Mounting the Minispare wheel
i
Open the door only when conditions are safe
to do so.
Warning!
G
The dimensions of the Minispare wheel are
different from those of the road wheels. As
a result, the vehicle handling characteristics
change when driving with a Minispare wheel
mounted. Adapt your driving style accord-
ingly.
The Minispare wheel is for temporary use
only. When driving with Minispare wheel
mounted, ensure proper tire inflation
pressure and do not exceed a vehicle speed
of 50 mph (80 km/h).
Drive to the nearest Mercedes-Benz Center
as soon as possible to have the Minispare
wheel replaced with a regular road wheel.
Never operate the vehicle with more than
one Minispare wheel mounted.
Do not switch off the ESP
® when a Minis-
pare wheel is mounted.
Page 631 of 705

630 Practical hintsFlat tirePreparing the vehicle
Prepare the vehicle as described
(page 629).
Take vehicle tool kit tray and vehicle
jack out of trunk (
page 611).
Take the Minispare wheel from the
wheel well under the trunk floor
(page 613).
Lifting the vehicle
Prevent the vehicle from rolling away
by blocking wheels with wheel chocks
or other sizeable objects.
One wheel chock is included with the
vehicle tool kit (
page 613).
When changing wheel on a level surface:
Place the wheel chock in front of and
another sizeable suitable object behind
the wheel that is diagonally opposite to
the wheel being changed.Always try lifting the vehicle using the jack
on a level surface. However, should cir-
cumstances require you to do so on a hill,
place the wheel chock and another size-
able suitable object as follows:
Place the wheel chock and another
sizeable suitable object on the downhill
side blocking both wheels of the axle
not being worked on.
Take two-piece wheel wrench 1 out of
the vehicle tool kit tray.
The jack take-up brackets are located di-
rectly behind the front wheel housings and
in front of the rear wheel housings.
Warning!
G
The jack is designed exclusively for jacking
up the vehicle at the jack take-up brackets
built into both sides of the vehicle. To help
avoid personal injury, use the jack only to lift
the vehicle during a wheel change. Never
get beneath the vehicle while it is supported
by the jack. Keep hands and feet away from
the area under the lifted vehicle. Always
firmly set parking brake and block wheels
before raising vehicle with jack.
Do not disengage parking brake while the
vehicle is raised. Be certain that the jack is
always vertical (plumb line) when in use, es-
pecially on hills. Always try to use the jack
on level surface. Make sure the jack arm is
fully seated in the jack take-up bracket.
Always lower the vehicle onto sufficient ca-
pacity jackstands before working under the
vehicle.
Page 632 of 705
631 Practical hints
Flat tire

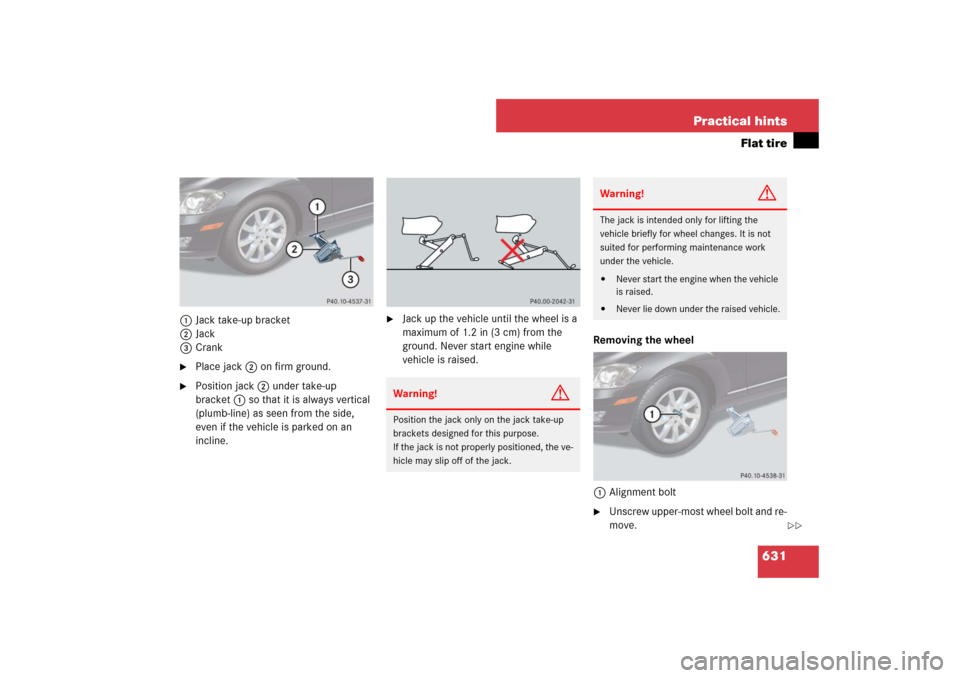

1Jack take-up bracket
2Jack
3Crank
Place jack2 on firm ground.
Position jack2 under take-up
bracket1 so that it is always vertical
(plumb-line) as seen from the side,
even if the vehicle is parked on an
incline.
Jack up the vehicle until the wheel is a
maximum of 1.2 in (3 cm) from the
ground. Never start engine while
vehicle is raised.Removing the wheel
1Alignment bolt
Unscrew upper-most wheel bolt and re-
move.
Warning!
G
Position the jack only on the jack take-up
brackets designed for this purpose.
If the jack is not properly positioned, the ve-
hicle may slip off of the jack.
Warning!
G
The jack is intended only for lifting the
vehicle briefly for wheel changes. It is not
suited for performing maintenance work
under the vehicle.
Never start the engine when the vehicle
is raised.
Never lie down under the raised vehicle.
