2007 MERCEDES-BENZ GL450 Owner's Manual

48 Getting started
Adjusting
Head restraint height
Vehicles with memory function*:
Press switch1 (page 46) up or
down in direction of arrow.
Vehicles without memory function*:
1Head restraint
2Release buttonRaising:
Manually adjust the height of head
restraint1 by pulling it upward.
If head restraint1 is fully retracted,
push release button2 in direction of
arrow and pull head restraint1 up-
ward.
Lowering:
To lower head restraint1, push
release button2 in direction of arrow
and press down on head restraint1.
Warning!G
Do not drive the vehicle without the seat
head restraints. Head restraints are intend-
ed to help reduce injuries during an
accident.
With a rear seat occupied, make sure to
move the respective head restraint up from
the lowest non-use position and have the
occupant adjust the head restraint properly.
For your protection, drive only with properly
positioned and engaged head restraints.
Adjust the head restraint so that it is as
close to the head as possible and the center
of the head restraint supports the back of
the head at eye level. This will reduce the po-
tential for injury to the head and neck in the
event of an accident or similar situation.
!Do not attempt to remove front seat head
restraints. They can only be removed by qualified
technicians. We recommend that you have this
work carried out by an authorized
Mercedes-Benz Light Truck Center.

49 Getting started
Adjusting
Head restraint fore and aft adjustment
Manually adjust the angle of the head
restraint.
While seated, reach behind you with
both hands and find lower edge of the
head restraint.
Adjust the head restraint to the desired
position by pushing or pulling on the
lower edge of the head restraint cush-
ion.
For more information, see “Seats”
(
page 132).
Steering wheel
Easy-entry/exit feature*
This feature allows for easier entry into and
exit from the vehicle. When entering and
exiting the vehicle, the steering wheel is in
its uppermost position.
The easy-entry/exit feature can be
activated or deactivated in the
Comfort
submenu of the control system
(
page 184).With the easy-entry/exit feature activated,
the steering wheel will return to its last set
position when you:

close the driver’s door with the ignition
switched on
or

insert the SmartKey into the starter
switch or press the KEYLESS-GO*
start/stop button (
page 43) once
with the driver’s door closed
Warning!G
You must make sure no one can become
trapped or injured by the moving steering
wheel when the easy-entry/exit feature is
activated.
To stop steering wheel movement, do one of
the following:

Move steering wheel adjustment stalk*
(
page 52).

Press one of the memory position
buttons or memory buttonM*
(
page 144).
Do not leave children unattended in the ve-
hicle, or with access to an unlocked vehicle.
Children could open the driver’s door and
unintentionally activate the easy-entry/exit
feature, which could result in an accident
and/or serious personal injury.

50 Getting started
Adjusting
With the easy-entry/exit feature activated,
the steering wheel tilts upwards when you:

remove the SmartKey from the starter
switch
or

open the driver’s door with the
SmartKey in starter switch position0
or1 (
page 41) or the KEYLESS-GO*
start/stop button in position1
(
page 43)Steering wheel adjustment, manualMake sure that

you can reach the steering wheel with
your arms slightly bent at the elbows

you can move your legs freely

all displays (including malfunction and
indicator lamps) on the instrument
cluster are clearly visible
The steering wheel adjustment release
handle is located on the lower left of the
steering column.
iThe last set steering wheel position is stored
when

the ignition is switched off (page 41)

the position is stored in memory
(
page 144)
iIf the current position for the steering wheel
is in the uppermost tilt position, the steering
wheel will no longer be able to move upward
when the easy-entry/exit feature is activated.
The adjustment procedure is briefly interrupted,
when the engine is started.
Warning!G
Let the system complete the adjustment
procedure before setting the vehicle in mo-
tion. All steering wheel adjustment must be
completed before setting the vehicle in mo-
tion. Driving off with the steering wheel still
adjusting could cause the driver to lose con-
trol of the vehicle.
Warning!G
Only adjust the steering wheel with the vehi-
cle at a standstill and make sure the steer-
ing wheel is securely locked in place before
driving off.
Driving without the steering wheel adjust-
ment locked may cause an unexpected
steering wheel movement which could
cause the driver to lose control of the vehi-
cle. Make sure the steering wheel is secure-
ly locked by trying to move it up and down,
and in and out before driving off.

51 Getting started
Adjusting
1Release handle
To unlock the steering column, pull
release handle1 out to its stop limit.
Move steering wheel to the desired
position.
Push release handle1 back to its
original position to relock the steering
column.
The steering column is locked into po-
sition again.
Make sure the steering column is
securely locked by trying to move the
steering wheel up and down as well as
in and out before driving off.Steering wheel adjustment, electrical*
Make sure that

you can reach the steering wheel with
your arms slightly bent at the elbows

you can move your legs freely

all displays (including malfunction and
indicator lamps) on the instrument
cluster are clearly visible
The steering wheel adjustment stalk is
located on the lower left of the steering
column.
Warning!G
Do not adjust the steering wheel while driv-
ing. Adjusting the steering wheel while driv-
ing could cause the driver to lose control of
the vehicle.
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you, and
lock the vehicle.
Even with the SmartKey or SmartKey with
KEYLESS-GO* removed from the starter
switch or the SmartKey with KEYLESS-GO*
removed from the vehicle, the steering
wheel adjustment feature can be operated
when the driver’s door is open. Therefore,
do not leave children unattended in the vehi-
cle, or with access to an unlocked vehicle. A
child’s unsupervised access to a vehicle
could result in an accident and/or serious
personal injury.
iThe memory function* (page 143) lets
you store the settings for the steering wheel col-
umn together with the settings for seat positions
and the exterior rear view mirrors.

52 Getting started
Adjusting
1Adjusting steering column, in or out
2Adjusting steering column, up or down
Switch on the ignition (page 42).
or
Open the driver’s door.
Adjusting steering column in or out
Move stalk forward or back in direction
of arrow1.
Adjusting steering column up or down
Move stalk up or down in direction of
arrow2.
Mirrors
Adjust the interior and exterior rear view
mirrors before driving so that you have a
good view of the road and traffic condi-
tions.
Interior rear view mirror
Manually adjust the interior rear view
mirror.
For more information, see “Rear view mir-
rors” (
page 210).
Exterior rear view mirrorsThe buttons are located on the driver’s
door.
1Driver’s side exterior rear view mirror
button
2Adjustment button
3Passenger-side exterior rear view mir-
ror button
Switch on the ignition (page 42).
Press button1 for the driver’s side ex-
terior rear view mirror or button3 for
the passenger-side exterior rear view
mirror.
The indicator lamp on the respective
button comes on for
approximately 15 seconds.
Warning!G
Exercise care when using the
passenger-side exterior rear view mirror.
The mirror surface is convex (outwardly
curved surface for a wider field of view). Ob-
jects in mirror are closer than they appear.
Check your interior rear view mirror or
glance over your shoulder before changing
lanes.

53 Getting started
Adjusting
Push adjustment button2 up, down,
left, or right according to the desired
setting.
For more information, see “Rear view mir-
rors” (
page 210).
iIf you do not make adjustments to the
selected exterior rear view mirror within
15 seconds, the indicator lamp goes out. You will
then have to select the desired exterior rear view
mirror again before any adjustments can be
made. Adjustments can only be made with the
indicator lamp for the respective exterior rear
view mirror button illuminated.
!If an exterior rear view mirror was forcibly
pushed forward (hit from the rear) or forcibly
pushed rearward (hit from the front), reposition
it by applying firm pressure until it snaps into
place. The mirror housing is then properly posi-
tioned and you can adjust the mirror in the usual
manner.
!Vehicle with power folding exterior rear view
mirrors*:
If an exterior rear view mirror housing is forcibly
pushed forward (hit from the rear) or forcibly
pushed rearward (hit from the front), press fold
button1 (
page 212) to fold mirrors in, then
press fold button1 (
page 212) again to fold
mirrors out. Do not force mirrors by hand as this
may damage the adjustment mechanism.
The mirror housing is then properly positioned
and you can adjust the mirror in the usual man-
ner.
iThe memory function* (page 143) lets
you store the settings for the exterior rear view
mirrors together with the setting for the steering
wheel column and the seat positions.
At low ambient temperatures, the exterior rear
view mirrors will be heated automatically.
iAt low ambient temperatures, the exterior
rear view mirrors will be heated automatically.

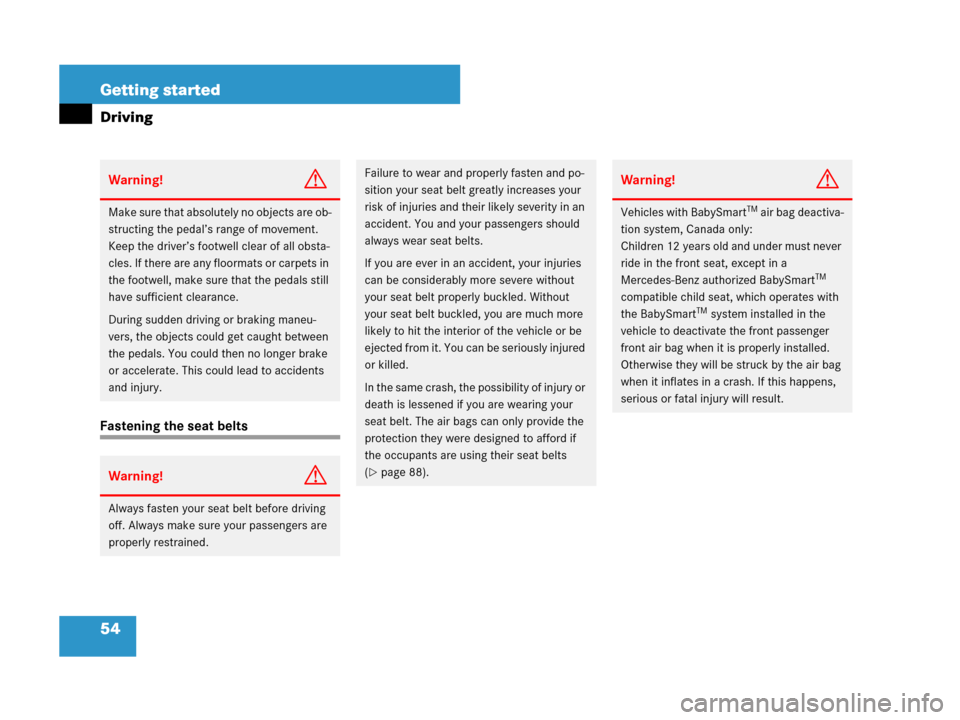

54 Getting started
Driving
Fastening the seat belts
Warning!G
Make sure that absolutely no objects are ob-
structing the pedal’s range of movement.
Keep the driver’s footwell clear of all obsta-
cles. If there are any floormats or carpets in
the footwell, make sure that the pedals still
have sufficient clearance.
During sudden driving or braking maneu-
vers, the objects could get caught between
the pedals. You could then no longer brake
or accelerate. This could lead to accidents
and injury.
Warning!G
Always fasten your seat belt before driving
off. Always make sure your passengers are
properly restrained.
Failure to wear and properly fasten and po-
sition your seat belt greatly increases your
risk of injuries and their likely severity in an
accident. You and your passengers should
always wear seat belts.
If you are ever in an accident, your injuries
can be considerably more severe without
your seat belt properly buckled. Without
your seat belt buckled, you are much more
likely to hit the interior of the vehicle or be
ejected from it. You can be seriously injured
or killed.
In the same crash, the possibility of injury or
death is lessened if you are wearing your
seat belt. The air bags can only provide the
protection they were designed to afford if
the occupants are using their seat belts
(
page 88).
Warning!G
Vehicles with BabySmartTM air bag deactiva-
tion system, Canada only:
Children 12 years old and under must never
ride in the front seat, except in a
Mercedes-Benz authorized BabySmart
TM
compatible child seat, which operates with
the BabySmart
TM system installed in the
vehicle to deactivate the front passenger
front air bag when it is properly installed.
Otherwise they will be struck by the air bag
when it inflates in a crash. If this happens,
serious or fatal injury will result.

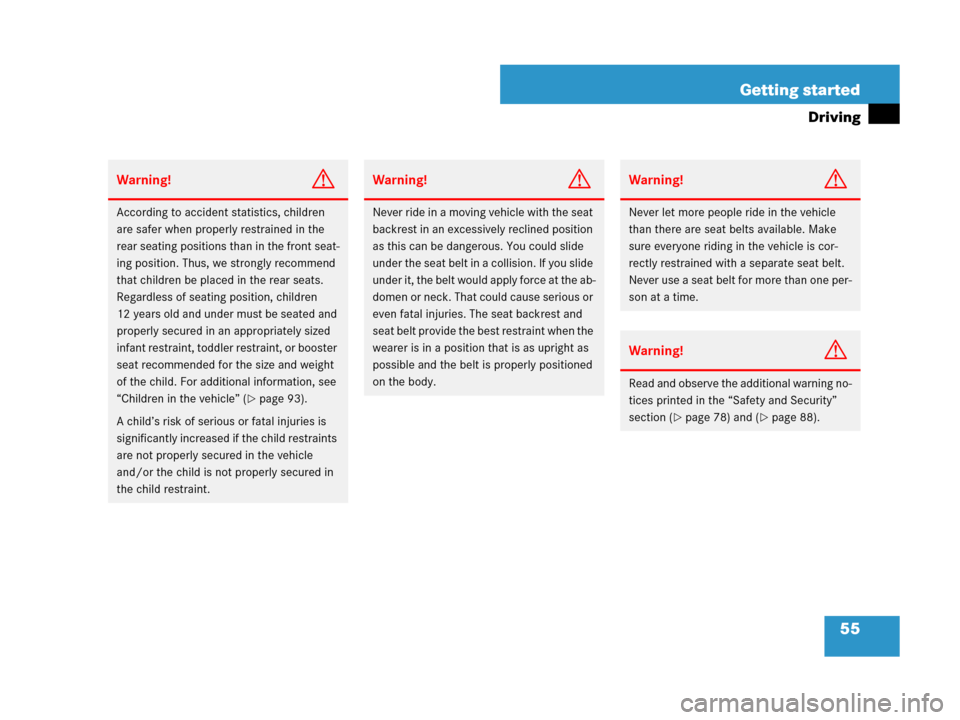

55 Getting started
Driving
Warning!G
According to accident statistics, children
are safer when properly restrained in the
rear seating positions than in the front seat-
ing position. Thus, we strongly recommend
that children be placed in the rear seats.
Regardless of seating position, children
12 years old and under must be seated and
properly secured in an appropriately sized
infant restraint, toddler restraint, or booster
seat recommended for the size and weight
of the child. For additional information, see
“Children in the vehicle” (
page 93).
A child’s risk of serious or fatal injuries is
significantly increased if the child restraints
are not properly secured in the vehicle
and/or the child is not properly secured in
the child restraint.
Warning!G
Never ride in a moving vehicle with the seat
backrest in an excessively reclined position
as this can be dangerous. You could slide
under the seat belt in a collision. If you slide
under it, the belt would apply force at the ab-
domen or neck. That could cause serious or
even fatal injuries. The seat backrest and
seat belt provide the best restraint when the
wearer is in a position that is as upright as
possible and the belt is properly positioned
on the body.
Warning!G
Never let more people ride in the vehicle
than there are seat belts available. Make
sure everyone riding in the vehicle is cor-
rectly restrained with a separate seat belt.
Never use a seat belt for more than one per-
son at a time.
Warning!G
Read and observe the additional warning no-
tices printed in the “Safety and Security”
section (
page 78) and (page 88).
