2007 MERCEDES-BENZ GL450 Owner's Manual

376 Operation
At the gas station
Briefly push on fuel filler flap at the po-
sition indicated by the arrow.
The fuel filler flap opens slightly.
Open the fuel filler flap completely.
Turn the fuel cap to the left and hold on
to it until possible pressure is released.
Take off the fuel cap.
To prevent fuel vapors from escaping
into open air, fully insert filler nozzle
unit.
Only fill your tank until the filler nozzle
unit cuts out – do not top off or over-
fill.
Replace the fuel cap by turning it
clockwise until it audibly engages.
Close the fuel filler flap.
You should hear the latch close shut.
!The fuel filler cap is tethered to the fuel filler
neck. Do not drop the cap. It could damage the
vehicle paint finish.
Warning!G
Overfilling of the fuel tank may create pres-
sure in the system which could cause a gas
discharge. This could cause the gas to spray
back out when removing the fuel pump noz-
zle, which could cause personal injury.
iMake sure to close the fuel filler flap before
locking your vehicle as the flap locking pin
prevents closing after you have locked the
vehicle.
iLeaving the engine running and the fuel cap
open can cause the yellow fuel tank reserve
warning lamp to flash and the ?malfunction
indicator lamp (USA only) or the± malfunc-
tion indicator lamp (Canada only) comes on.
For more information, see “Practical hints”
(
page 439).
iGasoline engine:
Only use premium unleaded gasoline with a min-
imum Posted Octane Rating of 91 (average of
96 RON/86 MON). Information on gasoline
quality can normally be found on the fuel pump.
Please contact gas station personnel in case
labels on the pump cannot be found.
For more information on gasoline, see “Premium
unleaded gasoline (gasoline engine)”
(
page 563), see “Fuel requirements”
(
page 563), and the Factory Approved Service
Products pamphlet (USA only) or contact an
authorized Mercedes-Benz Light Truck Center.
iDiesel engine:
Only use commercially available vehicular
ULTRA-LOW SULFUR DIESEL FUEL
(15 ppm SULFUR MAXIMUM). Information on
diesel quality can normally be found on the fuel
pump. Please contact gas station personnel in
case labels on the pump cannot be found.
For more information on diesel fuels, refer to the
Factory Approved Service Products pamphlet
(USA only) or contact an authorized
Mercedes-Benz Light Truck Center.


377 Operation
At the gas station
Low outside temperatures
(diesel engine)
To prevent malfunctions, diesel fuel with
improved cold flow characteristics is of-
fered in the winter months. Check with
your fuel retailer.Check regularly and before a long trip
Open the hood (page 379).
Example GL 450 (GL 320 CDI similar)
1Brake fluid
2Coolant level
3Windshield washer system and
headlamp cleaning system*
Engine oil level
For more information on engine oil, see
“Engine oil” (
page 381).
iDiesel engine:
If you have driven the vehicle until the tank is
empty, the fuel system needs to be bled
(
page 529).
!Diesel engine:
The engine is more susceptible to wear and
damage if you use

marine diesel fuel

heating oil

additives
The exhaust aftertreatment device will be
seriously damaged if you use

LOW SULFUR DIESEL FUEL
(500 ppm SULFUR MAXIMUM)

any other diesel fuel with a sulfur content of
above 15 ppm
The use of such non-approved fuels and/or
special additives is not covered by the
Mercedes-Benz Limited Warranty.
!Do not fill the tank with gasoline. Do not
blend diesel fuel with gasoline or kerosine. The
fuel system and engine will otherwise be dam-
aged, which is not covered by the
Mercedes-Benz Limited Warranty.

378 Operation
At the gas station
Brake fluid
Coolant
For normal replenishing, use water (pota-
ble water quality).
For more information, see “Coolant level”
(
page 382) and see “Fuels, coolants, lu-
bricants” (
page 560).Windshield/rear window washer
system and headlamp cleaning
system*
For more information on refilling the wash-
er reservoir, see “Windshield/rear window
washer system and headlamp cleaning
system*” (
page 384).
Vehicle lighting
Check function and cleanliness. For infor-
mation on replacing light bulbs, see “Re-
placing bulbs” (
page 508).
For more information, see “Exterior lamp
switch” (
page 145).
Tire inflation pressure
For more information, see “Checking tire
inflation pressure” (
page 396).
!If you find that the brake fluid in the brake
fluid reservoir has fallen to the minimum mark or
below, have the brake system checked for brake
pad thickness and leaks immediately. Notify an
authorized Mercedes-Benz Light Truck Center
immediately. Do not add brake fluid as this will
not solve the problem. For more information, see
“Brake fluid” (
page 562).

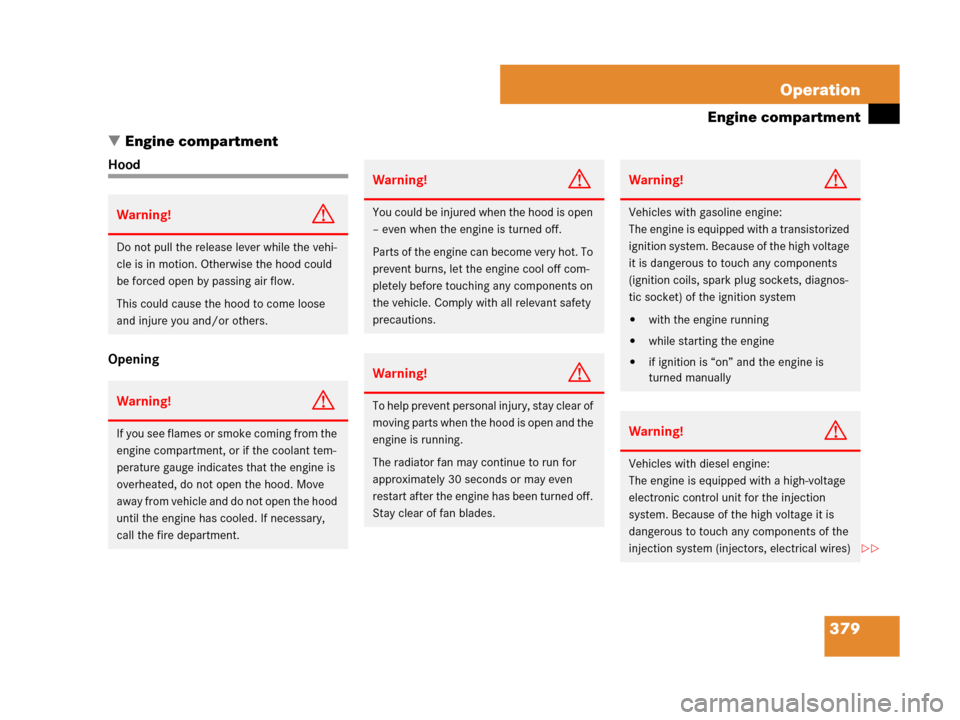

379 Operation
Engine compartment
Engine compartment
Hood
Opening
Warning!G
Do not pull the release lever while the vehi-
cle is in motion. Otherwise the hood could
be forced open by passing air flow.
This could cause the hood to come loose
and injure you and/or others.
Warning!G
If you see flames or smoke coming from the
engine compartment, or if the coolant tem-
perature gauge indicates that the engine is
overheated, do not open the hood. Move
away from vehicle and do not open the hood
until the engine has cooled. If necessary,
call the fire department.
Warning!G
You could be injured when the hood is open
– even when the engine is turned off.
Parts of the engine can become very hot. To
prevent burns, let the engine cool off com-
pletely before touching any components on
the vehicle. Comply with all relevant safety
precautions.
Warning!G
To help prevent personal injury, stay clear of
moving parts when the hood is open and the
engine is running.
The radiator fan may continue to run for
approximately 30 seconds or may even
restart after the engine has been turned off.
Stay clear of fan blades.
Warning!G
Vehicles with gasoline engine:
The engine is equipped with a transistorized
ignition system. Because of the high voltage
it is dangerous to touch any components
(ignition coils, spark plug sockets, diagnos-
tic socket) of the ignition system

with the engine running

while starting the engine

if ignition is “on” and the engine is
turned manually
Warning!G
Vehicles with diesel engine:
The engine is equipped with a high-voltage
electronic control unit for the injection
system. Because of the high voltage it is
dangerous to touch any components of the
injection system (injectors, electrical wires)


380 Operation
Engine compartment

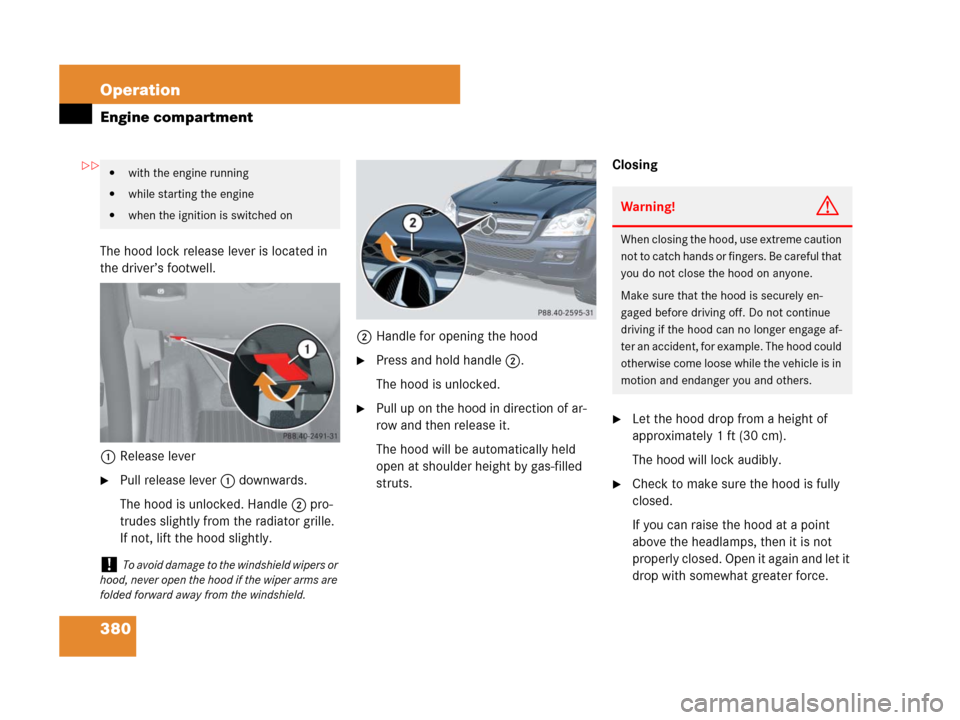

The hood lock release lever is located in
the driver’s footwell.
1Release lever
Pull release lever1 downwards.
The hood is unlocked. Handle2 pro-
trudes slightly from the radiator grille.
If not, lift the hood slightly.2Handle for opening the hood
Press and hold handle2.
The hood is unlocked.
Pull up on the hood in direction of ar-
row and then release it.
The hood will be automatically held
open at shoulder height by gas-filled
struts.ClosingLet the hood drop from a height of
approximately 1 ft (30 cm).
The hood will lock audibly.
Check to make sure the hood is fully
closed.
If you can raise the hood at a point
above the headlamps, then it is not
properly closed. Open it again and let it
drop with somewhat greater force.

with the engine running

while starting the engine

when the ignition is switched on
!To avoid damage to the windshield wipers or
hood, never open the hood if the wiper arms are
folded forward away from the windshield.
Warning!G
When closing the hood, use extreme caution
not to catch hands or fingers. Be careful that
you do not close the hood on anyone.
Make sure that the hood is securely en-
gaged before driving off. Do not continue
driving if the hood can no longer engage af-
ter an accident, for example. The hood could
otherwise come loose while the vehicle is in
motion and endanger you and others.


381 Operation
Engine compartment
Engine oil
The amount of oil your engine needs will
depend on a number of factors, including
driving style. Increased oil consumption
can occur when

the vehicle is new

the vehicle is driven frequently at
higher engine speeds
Engine oil consumption checks should only
be made after the vehicle break-in period.Checking engine oil level with the oil
dipstick
When checking the oil level

the vehicle must be parked on level
ground

the vehicle must have been stationary
for at least 5 minutes with the engine
turned off
Example GL 450 (GL 320 CDI similar)
1Oil dipstick
2Upper mark
3Lower mark
Open the hood (page 379).
Pull out oil dipstick1.
Wipe oil dipstick1 clean.
Fully insert oil dipstick1 into the
dipstick guide tube.
Pull out oil dipstick1 again after
approximately 3 seconds to obtain
accurate reading.
The oil level is correct when it is be-
tween lower mark3 (min.) and upper
mark2 (max.) of the oil dipstick.
If necessary, add engine oil
(
page 382).
For more information on engine oil, see
“Technical data” section (
page 560) and
(
page 562).
iDo not use any special lubricant additives,
as these may damage the drive assemblies.
Using special additives not approved by
Mercedes-Benz may cause damage not covered
by the Mercedes-Benz Limited Warranty.
More information on this subject is available at
any Mercedes-Benz Light Truck Center.
iThe filling quantity between the upper and
lower marks on the oil dipstick is approximately
2.1 US qt. (2.0 l).

382 Operation
Engine compartment
Adding engine oil
Example GL 450 (GL 320 CDI similar)
1Filler cap
Unscrew filler cap1 from filler neck.
Add engine oil as required. Never over-
fill with oil.
Be careful not to spill any oil when adding.
Avoid environmental damage caused by oil
entering the ground or water.
Screw filler cap1 back on filler neck.
For more information on engine oil, see
“Technical data” section (
page 560) and
(
page 562).
Transmission fluid level
The transmission fluid level does not need
to be checked. If you notice transmission
fluid loss or gear shifting malfunctions,
have an authorized Mercedes-Benz Light
Truck Center check the automatic trans-
mission.

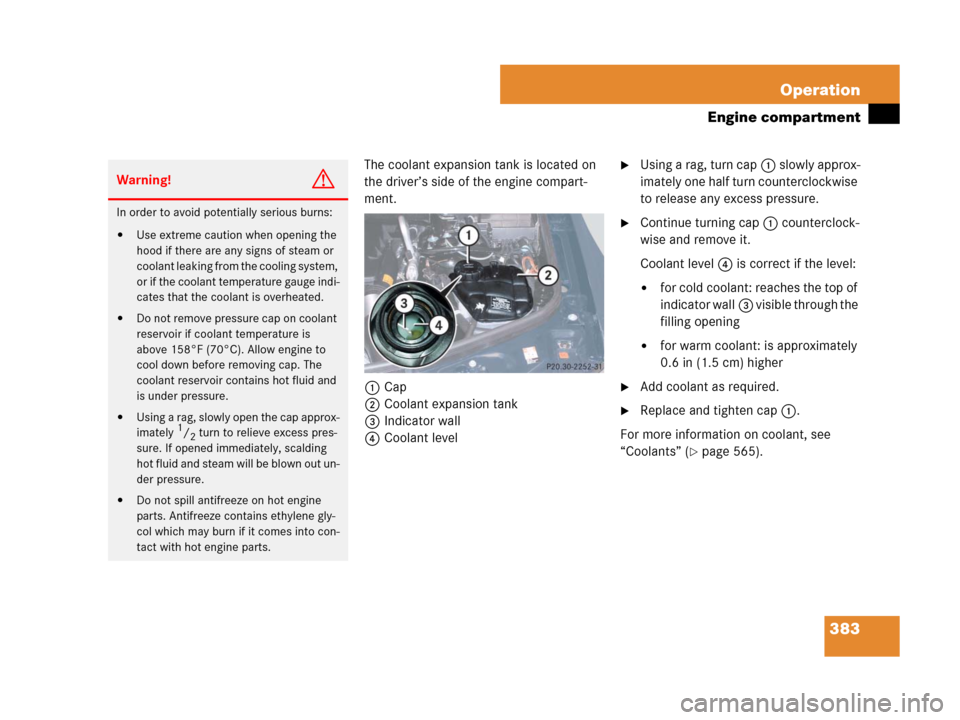

Coolant level
The engine coolant is a mixture of water
and anticorrosion/antifreeze. To check the
coolant level, the vehicle must be parked
on level ground.
!Only use approved engine oils and oil filters
required for vehicles with Maintenance System.
For a listing of approved engine oils and oil
filters, refer to the Factory Approved Service
Products pamphlet (USA only) in your vehicle
literature portfolio, or contact an authorized
Mercedes-Benz Light Truck Center.
Using engine oils and oil filters of specification
other than those expressly required for the
Maintenance System, or changing of oil and oil
filter at change intervals longer than those called
for by the Maintenance System will result in
engine or emission control system damage not
covered by the Mercedes-Benz Limited
Warranty.
!Excess oil must be siphoned or drained off.
It could cause damage to the engine and/or
catalytic converter (gasoline engine) or the oxi-
dation catalyst (diesel engine) not covered by
the Mercedes-Benz Limited Warranty.

383 Operation
Engine compartment
The coolant expansion tank is located on
the driver’s side of the engine compart-
ment.
1Cap
2Coolant expansion tank
3Indicator wall
4Coolant levelUsing a rag, turn cap1 slowly approx-
imately one half turn counterclockwise
to release any excess pressure.
Continue turning cap1 counterclock-
wise and remove it.
Coolant level4 is correct if the level:

for cold coolant: reaches the top of
indicator wall3 visible through the
filling opening

for warm coolant: is approximately
0.6 in (1.5 cm) higher
Add coolant as required.
Replace and tighten cap1.
For more information on coolant, see
“Coolants” (
page 565).
Warning!G
In order to avoid potentially serious burns:

Use extreme caution when opening the
hood if there are any signs of steam or
coolant leaking from the cooling system,
or if the coolant temperature gauge indi-
cates that the coolant is overheated.

Do not remove pressure cap on coolant
reservoir if coolant temperature is
above 158°F (70°C). Allow engine to
cool down before removing cap. The
coolant reservoir contains hot fluid and
is under pressure.

Using a rag, slowly open the cap approx-
imately 1/2 turn to relieve excess pres-
sure. If opened immediately, scalding
hot fluid and steam will be blown out un-
der pressure.

Do not spill antifreeze on hot engine
parts. Antifreeze contains ethylene gly-
col which may burn if it comes into con-
tact with hot engine parts.
