464 Practical hints
What to do if …
Display messagePossible
cause/conse-
quencePossible solution
Monitor the 59indicator lamp on the center console (page 85) and
the multifunction display in the instrument cluster (
page 26) for the following:
With the seat unoccupied and the ignition turned on,

the 59indicator lamp on the center console should illuminate and
remain illuminated, indicating that the OCS (
page 81) has deactivated the air
bag.

the message Front passenger airbag enabled See Operator’s Manual or the
message
Front passenger airbag disabled See Operator’s Manual should not
appear in the multifunction display at any time the seat is unoccupied. Wait at
least 60 seconds for the system to complete the necessary check cycles and to
make sure neither message appears in the multifunction display.
If above conditions are met, you can occupy the front passenger seat again.
Depending on the front passenger classification sensed by the OCS (
page 81),
the59indicator lamp will remain illuminated or go out.
If above conditions are not met, the system is not working properly. Have the system
checked as soon as possible by an authorized Mercedes-Benz Light Truck Center.
Warning!G
If the 59indicator lamp
remains out even after performing the above
corrective steps, do not have any children
12 years old and under and other smallindividuals use the front passenger seat
until the system has been repaired.

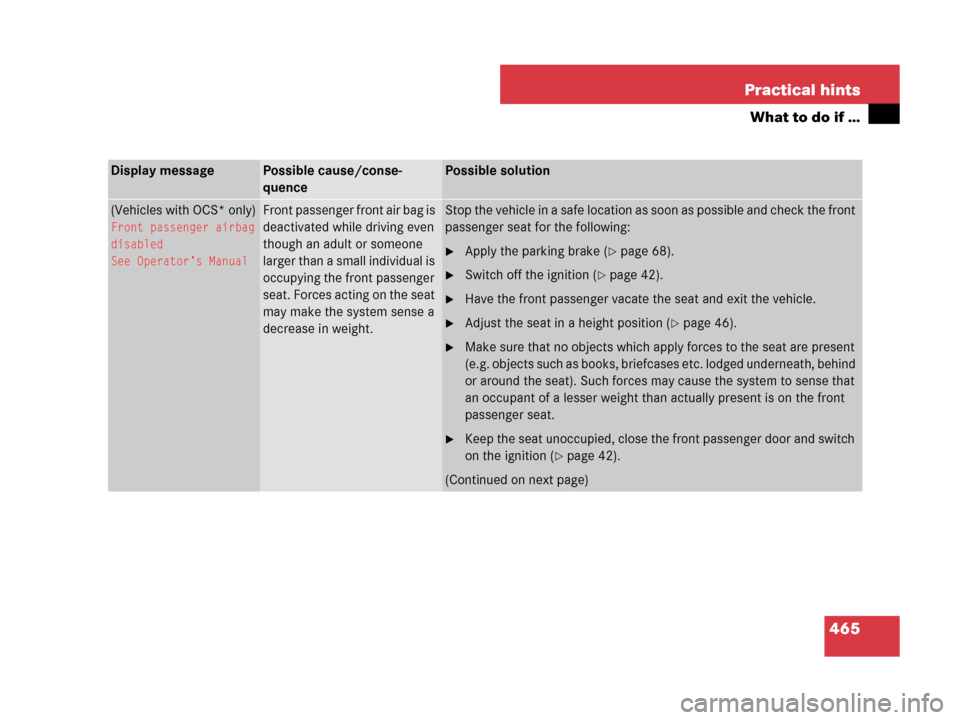

465 Practical hints
What to do if …
Display messagePossible cause/conse-
quencePossible solution
(Vehicles with OCS* only)
Front passenger airbag
disabled
See Operator’s Manual
Front passenger front air bag is
deactivated while driving even
though an adult or someone
larger than a small individual is
occupying the front passenger
seat. Forces acting on the seat
may make the system sense a
decrease in weight.Stop the vehicle in a safe location as soon as possible and check the front
passenger seat for the following:
Apply the parking brake (page 68).
Switch off the ignition (page 42).
Have the front passenger vacate the seat and exit the vehicle.
Adjust the seat in a height position (page 46).
Make sure that no objects which apply forces to the seat are present
(e.g. objects such as books, briefcases etc. lodged underneath, behind
or around the seat). Such forces may cause the system to sense that
an occupant of a lesser weight than actually present is on the front
passenger seat.
Keep the seat unoccupied, close the front passenger door and switch
on the ignition (
page 42).
(Continued on next page)

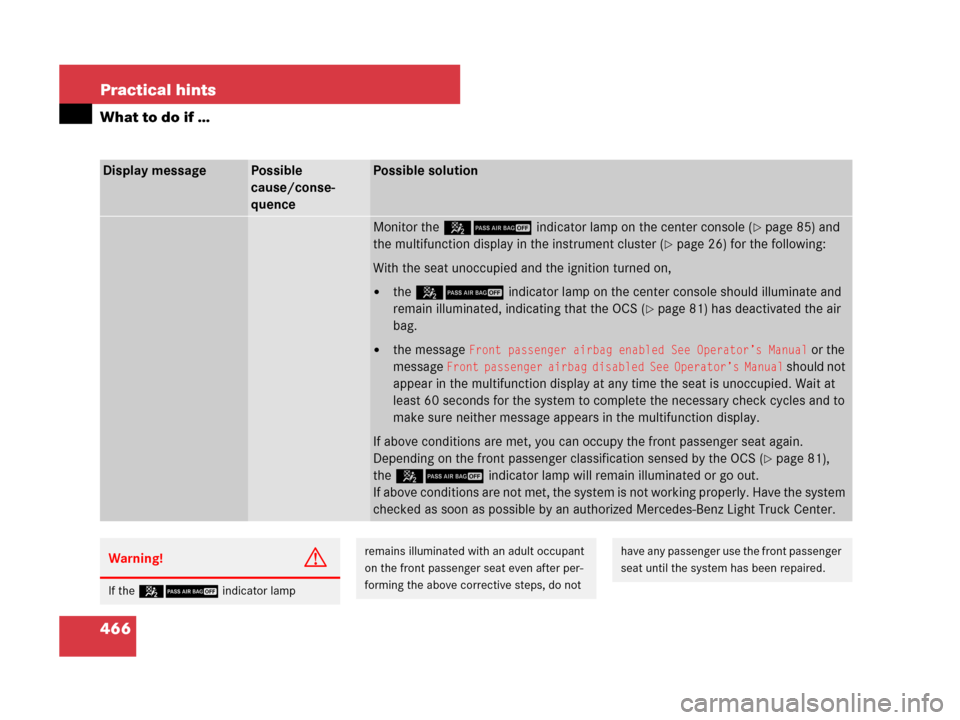

466 Practical hints
What to do if …
Display messagePossible
cause/conse-
quencePossible solution
Monitor the 59indicator lamp on the center console (page 85) and
the multifunction display in the instrument cluster (
page 26) for the following:
With the seat unoccupied and the ignition turned on,

the 59indicator lamp on the center console should illuminate and
remain illuminated, indicating that the OCS (
page 81) has deactivated the air
bag.

the message Front passenger airbag enabled See Operator’s Manual or the
message
Front passenger airbag disabled See Operator’s Manual should not
appear in the multifunction display at any time the seat is unoccupied. Wait at
least 60 seconds for the system to complete the necessary check cycles and to
make sure neither message appears in the multifunction display.
If above conditions are met, you can occupy the front passenger seat again.
Depending on the front passenger classification sensed by the OCS (
page 81),
the59indicator lamp will remain illuminated or go out.
If above conditions are not met, the system is not working properly. Have the system
checked as soon as possible by an authorized Mercedes-Benz Light Truck Center.
Warning!G
If the 59indicator lamp
remains illuminated with an adult occupant
on the front passenger seat even after per-
forming the above corrective steps, do nothave any passenger use the front passenger
seat until the system has been repaired.

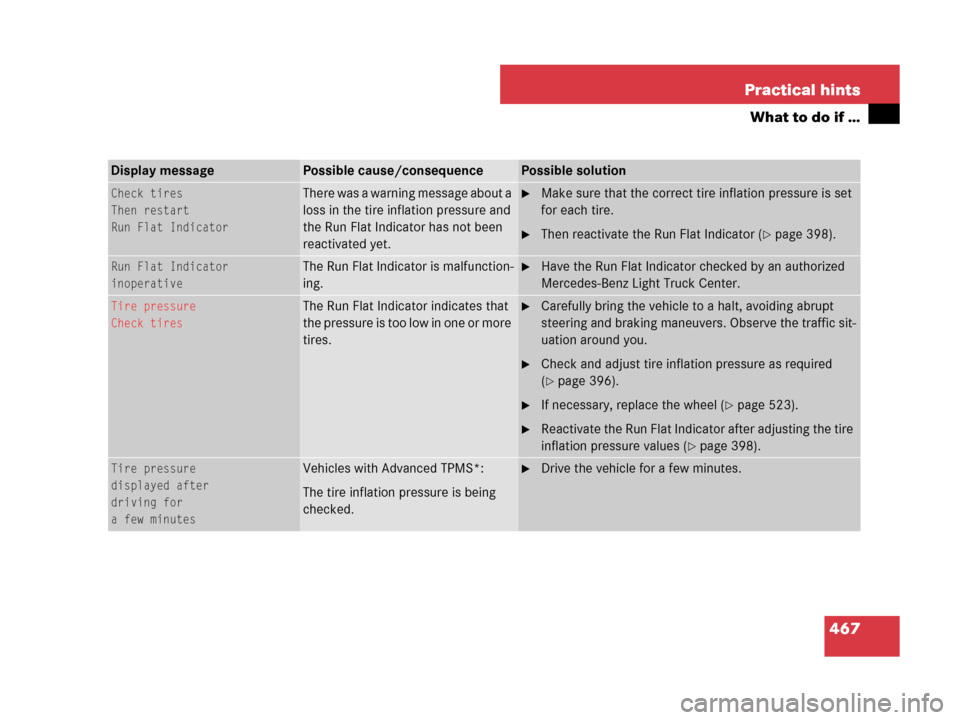

467 Practical hints
What to do if …
Display messagePossible cause/consequencePossible solution
Check tires
Then restart
Run Flat IndicatorThere was a warning message about a
loss in the tire inflation pressure and
the Run Flat Indicator has not been
reactivated yet.Make sure that the correct tire inflation pressure is set
for each tire.
Then reactivate the Run Flat Indicator (page 398).
Run Flat Indicator
inoperativeThe Run Flat Indicator is malfunction-
ing.Have the Run Flat Indicator checked by an authorized
Mercedes-Benz Light Truck Center.
Tire pressure
Check tiresThe Run Flat Indicator indicates that
the pressure is too low in one or more
tires.Carefully bring the vehicle to a halt, avoiding abrupt
steering and braking maneuvers. Observe the traffic sit-
uation around you.
Check and adjust tire inflation pressure as required
(
page 396).
If necessary, replace the wheel (page 523).
Reactivate the Run Flat Indicator after adjusting the tire
inflation pressure values (
page 398).
Tire pressure
displayed after
driving for
a few minutesVehicles with Advanced TPMS*:
The tire inflation pressure is being
checked.Drive the vehicle for a few minutes.

468 Practical hints
What to do if …
Display messagePossible cause/consequencePossible solution
Tire pressure monitor
inoperativeThe TPMS or Advanced TPMS* is
malfunctioning.Have the TPMS or Advanced TPMS* checked by an
authorized Mercedes-Benz Light Truck Center.
Tire pressure monitor
inoperative
No wheel sensorsThere are wheels without appropriate wheel
sensors mounted (e.g. winter tires).Have the TPMS or Advanced TPMS* checked by an
authorized Mercedes-Benz Light Truck Center.
Have the wheel sensors installed by an authorized
Mercedes-Benz Light Truck Center.
Tire pressure monitor
Wheel sensor missingOne or more sensors defect (e.g. battery is
empty).
One or more wheels without appropriate
wheel sensors mounted (e.g. spare tire).Have the TPMS or Advanced TPMS* checked by an
authorized Mercedes-Benz Light Truck Center.
Have the wheel sensors installed by an authorized
Mercedes-Benz Light Truck Center.
Vehicles with Advanced TPMS*:
The tire pressure for the respective tire is shown in
the multifunction display.
Tire pressure monitor
currently
unavailableThe TPMS or Advanced TPMS* is unable to
monitor the tire pressure due to

a nearby radio interference source.

excessive wheel sensor temperatures.
As soon as the causes of the malfunction have been
removed, the TPMS or Advanced TPMS* automati-
cally becomes active again after a few minutes driv-
ing.

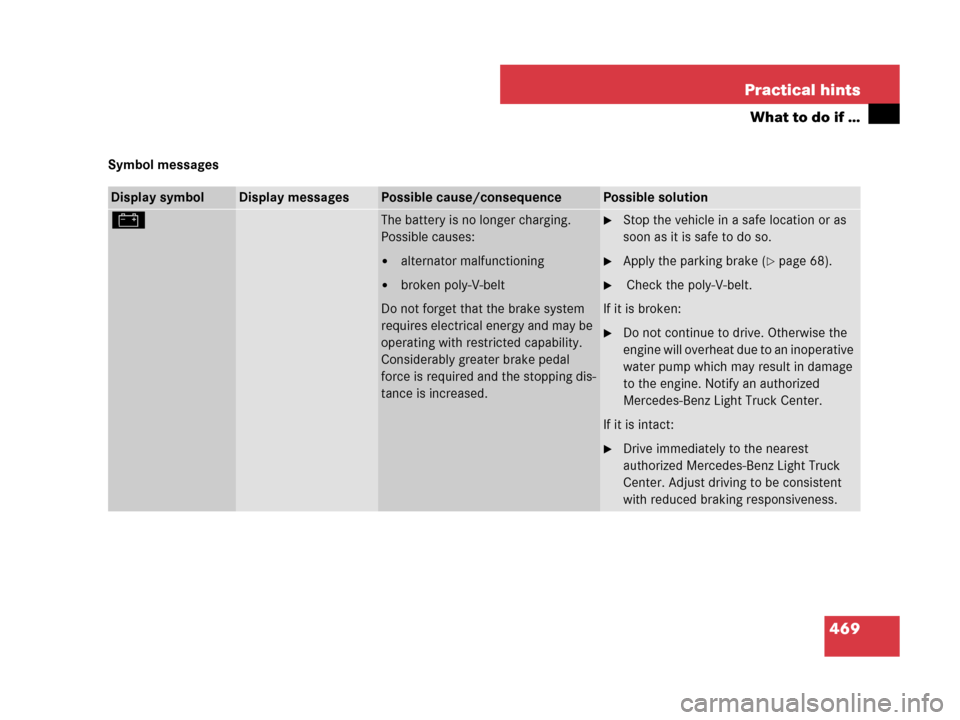

469 Practical hints
What to do if …
Symbol messages
Display symbolDisplay messagesPossible cause/consequencePossible solution
#The battery is no longer charging.
Possible causes:

alternator malfunctioning

broken poly-V-belt
Do not forget that the brake system
requires electrical energy and may be
operating with restricted capability.
Considerably greater brake pedal
force is required and the stopping dis-
tance is increased.
Stop the vehicle in a safe location or as
soon as it is safe to do so.
Apply the parking brake (page 68).
 Check the poly-V-belt.
If it is broken:
Do not continue to drive. Otherwise the
engine will overheat due to an inoperative
water pump which may result in damage
to the engine. Notify an authorized
Mercedes-Benz Light Truck Center.
If it is intact:
Drive immediately to the nearest
authorized Mercedes-Benz Light Truck
Center. Adjust driving to be consistent
with reduced braking responsiveness.

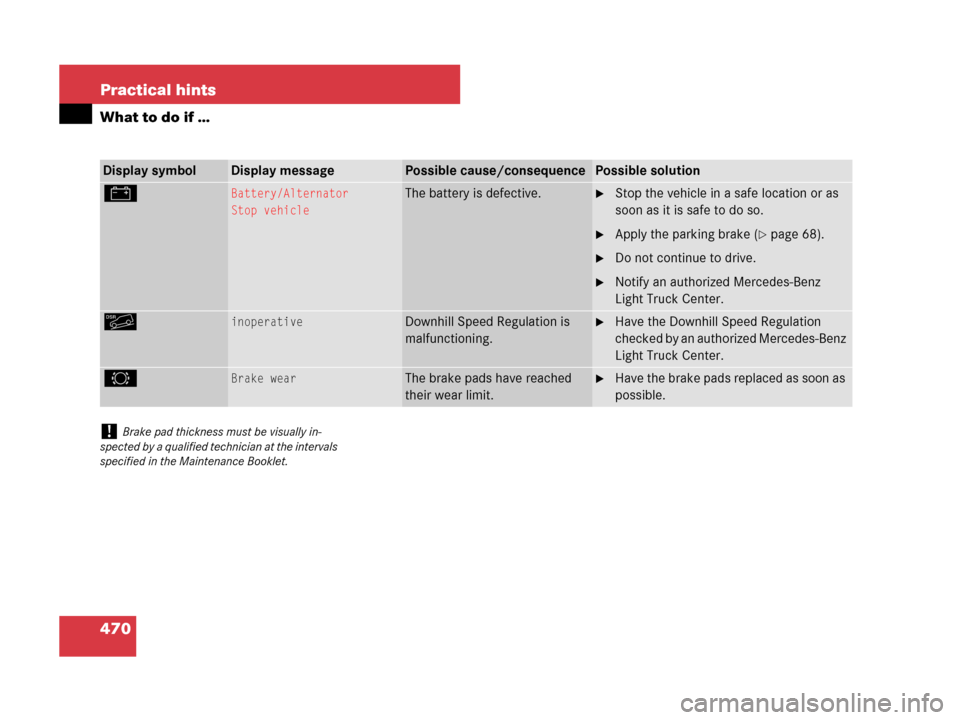

470 Practical hints
What to do if …
Display symbolDisplay messagePossible cause/consequencePossible solution
#Battery/Alternator
Stop vehicleThe battery is defective.Stop the vehicle in a safe location or as
soon as it is safe to do so.
Apply the parking brake (page 68).
Do not continue to drive.
Notify an authorized Mercedes-Benz
Light Truck Center.
{inoperativeDownhill Speed Regulation is
malfunctioning.Have the Downhill Speed Regulation
checked by an authorized Mercedes-Benz
Light Truck Center.
2Brake wearThe brake pads have reached
their wear limit.Have the brake pads replaced as soon as
possible.
!Brake pad thickness must be visually in-
spected by a qualified technician at the intervals
specified in the Maintenance Booklet.

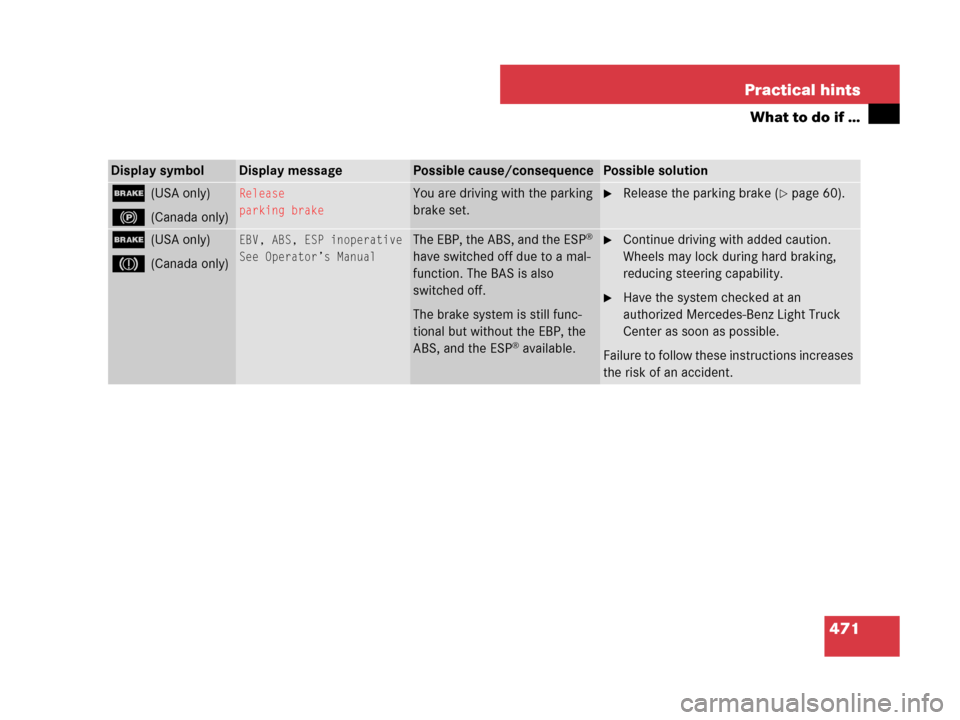

471 Practical hints
What to do if …
Display symbolDisplay messagePossible cause/consequencePossible solution
;(USA only)
!(Canada only)
Release
parking brakeYou are driving with the parking
brake set.Release the parking brake (page 60).
;(USA only)
3(Canada only)
EBV, ABS, ESP inoperative
See Operator’s ManualThe EBP, the ABS, and the ESP®
have switched off due to a mal-
function. The BAS is also
switched off.
The brake system is still func-
tional but without the EBP, the
ABS, and the ESP
® available.
Continue driving with added caution.
Wheels may lock during hard braking,
reducing steering capability.
Have the system checked at an
authorized Mercedes-Benz Light Truck
Center as soon as possible.
Failure to follow these instructions increases
the risk of an accident.
