544 Practical hints
Fuses
The electrical fuses in your vehicle serve to
switch off malfunctioning power circuits.
If a fuse is blown, the components and sys-
tems secured by that fuse will stop operat-
ing.If a newly inserted fuse blows again, have
the cause determined and rectified by an
authorized Mercedes-Benz Light Truck
Center.
The following aids are available to help you
replace fuses. They are included with the
vehicle tool kit (
page 495):

Fuse chart
The fuse chart explains the fuse alloca-
tion and fuse amperages.

Spare fuses

Fuse extractor
The electrical fuses are located in different
fuse boxes:

Fuse box in engine compartment
(
page 545)

Fuse box in cargo compartment
(
page 545)

Fuse box in passenger compartment
(
page 546)Before replacing fuses:
Apply parking brake (page 68).
Make sure the automatic transmission
is set toP (
page 194).
The gear position indicator in the multi-
function display should be on
P.
Turn off all electrical consumers.
Turn off the engine (page 41).
Remove the SmartKey from the starter
switch.
Vehicles with KEYLESS-GO*:
Open the driver’s door (this puts
the starter switch in position0,
same as with the SmartKey re-
moved from the starter switch). The
driver’s door then can be closed
again.
Warning!G
Only use fuses approved by Mercedes-Benz
with the specified amperage for the system
in question and do not attempt to repair or
bridge a blown fuse. Using other than ap-
proved fuses or using repaired or bridged
fuses may cause an overload leading to a
fire, and/or cause damage to electrical
components and/or systems. Have the
cause determined and remedied by an au-
thorized Mercedes-Benz Light Truck Center.
iA blown fuse must be replaced by an appro-
priate spare fuse (recognizable by its color or the
fuse rating given on the fuse) of the amperage
recommended in the fuse chart. Any
Mercedes-Benz Light Truck Center will be glad to
advise you on this subject.

545 Practical hints
Fuses
Fuse box in engine compartment
The fuse box is located on the passenger
side of the engine compartment.
Open the hood (page 379).

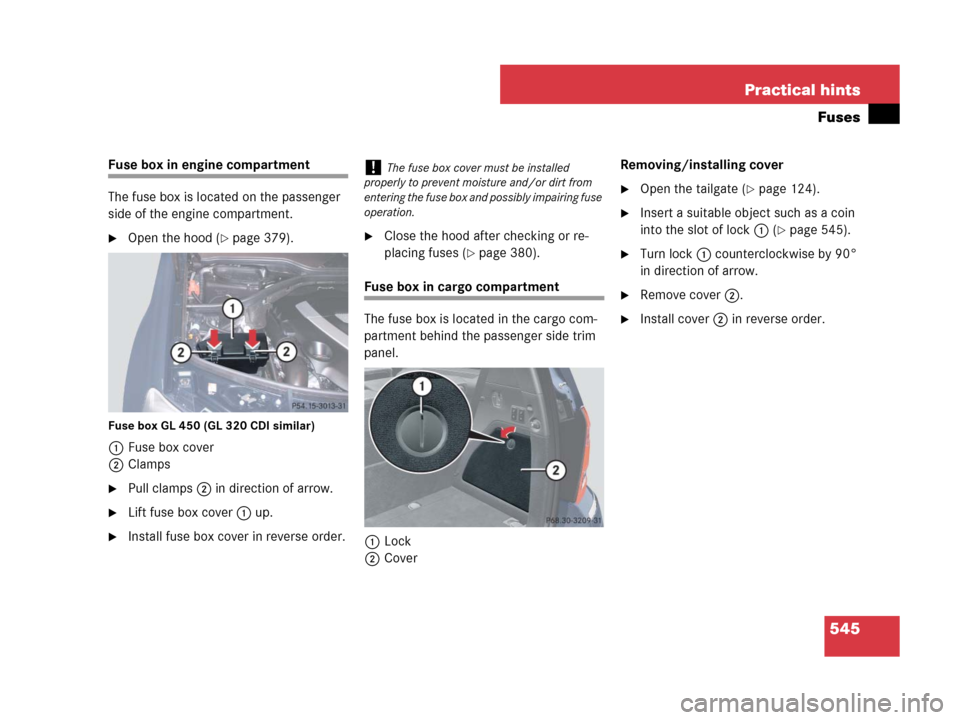

Fuse box GL 450 (GL 320 CDI similar)
1Fuse box cover
2Clamps
Pull clamps2 in direction of arrow.
Lift fuse box cover1 up.
Install fuse box cover in reverse order.
Close the hood after checking or re-
placing fuses (
page 380).
Fuse box in cargo compartment
The fuse box is located in the cargo com-
partment behind the passenger side trim
panel.
1Lock
2CoverRemoving/installing cover
Open the tailgate (page 124).
Insert a suitable object such as a coin
into the slot of lock1 (
page 545).
Turn lock1 counterclockwise by 90°
in direction of arrow.
Remove cover2.
Install cover2 in reverse order.
!The fuse box cover must be installed
properly to prevent moisture and/or dirt from
entering the fuse box and possibly impairing fuse
operation.

546 Practical hints
Fuses
Fuse box in passenger compartment
The fuse box is located behind a cover in
the dashboard on the front passenger side.
1CoverOpening
Open the front passenger door.
Open the glove box (page 316).
Insert flat, blunt object as a lever into
the edge of the cover1 at the position
indicated by the arrow.
Loosen cover1 from dashboard using
lever.
Using your hands, pull cover1 out
and remove.
Closing
Hook cover1 into the opening at the
front.
Press cover1 back on until it engag-
es.
Emergency engine shut-down
If the engine cannot be turned off as de-
scribed in the “Getting started” section
(
page 69), you may use the following
emergency procedure.
Take the fuse chart from the vehicle
tool kit (
page 496).
Open the fuse box in engine compart-
ment (
page 545).
Use the fuse extractor to remove
fuse 120. Find its location in the fuse
chart.
!Do not use sharp objects such as a screw-
driver to open the fuse box cover1 in the dash-
board, as this could damage the fuse box cover
or the dashboard.

547 Technical data
Parts service
Warranty coverage
Identification labels
Layout of poly-V-belt drive
Engine
Rims and tires
Electrical system
Main Dimensions
Weights
Fuels, coolants, lubricants

548 Technical data
The “Technical data” section provides the
necessary technical data for your vehicle.
Parts service
All authorized Mercedes-Benz Light Truck
Centers maintain a stock of Genuine
Mercedes-Benz Parts required for mainte-
nance and repair work. In addition, strate-
gically located parts distribution centers
provide quick and reliable parts service.
More than 300 000 different parts for
Mercedes-Benz models are available.
Genuine Mercedes-Benz Parts are subject-
ed to stringent quality inspections. Each
part has been specifically developed, man-
ufactured or selected for and adapted to
Mercedes-Benz vehicles.
Therefore, Genuine Mercedes-Benz parts
should be installed.!The use of non-genuine Mercedes-Benz
parts and accessories not authorized by
Mercedes-Benz could damage the vehicle, which
is not covered by the Mercedes-Benz Limited
Warranty, or could compromise the vehicle’s
durability or safety.

549 Technical data
Warranty coverage
Warranty coverage
Your vehicle is covered under the terms of
the warranties printed in the Service and
Warranty Information booklet. Your
authorized Mercedes-Benz Light Truck
Center will exchange or repair any defec-
tive parts originally installed on the vehicle
in accordance with the terms of the follow-
ing warranties:

New Vehicle Limited Warranty

Emission System Warranty

Emission Performance Warranty

California, Maine, Massachusetts, and
Vermont Emission Control Systems
WarrantyReplacement parts and accessories are
covered by the Mercedes-Benz Parts and
Accessories warranties, copies of which
are available at any authorized
Mercedes-Benz Light Truck Center.Loss of Service and Warranty
Information Booklet
Should you lose your Service and Warranty
Information booklet, have an authorized
Mercedes-Benz Light Truck Center arrange
for a replacement. It will be mailed to you.

550 Technical data
Identification labels
1Certification label (on driver’s B-pillar)
The V
ehicle Identification Number (VIN)
can be found in the following locations:

on the certification label

embossed underneath the
passenger-side second-row rear seat
(
page 551)

on the lower edge of the windshield
(
page 551)
Example certification label (U.S. vehicles)
2Paintwork code
3VIN
Example certification label
(Canada vehicles)
2Paintwork code
3VIN
iData shown on certification label are for
illustration purpose only. These data are specific
to each vehicle and may vary from data shown in
the illustration. Refer to certification label on
vehicle for actual data specific to your vehicle.

551 Technical data
Identification labels
Second-row seat
4VIN
Fold the carpet forwards.
The VIN4 is now visible.5Emission control information label,
includes both federal and California
certification exhaust emission
standards
6Engine number (engraved on engine)
7Vacuum line routing diagram label
8VIN, visible (lower edge of windshield)
iWhen ordering parts, please specify vehicle
identification and engine numbers.
