2007 MERCEDES-BENZ GL450 Owner's Manual

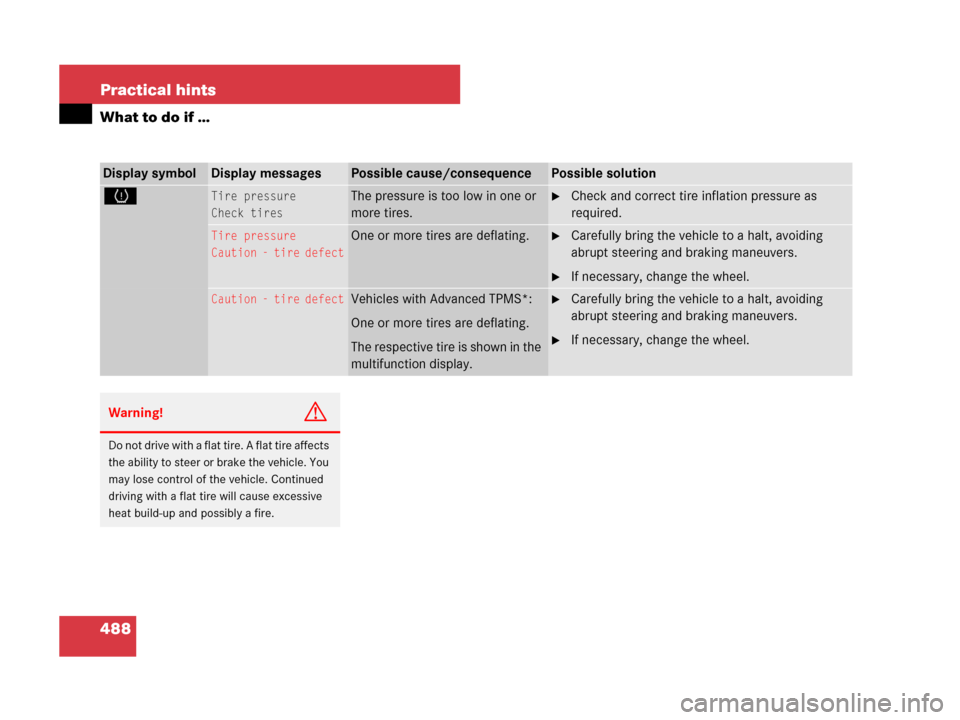

488 Practical hints
What to do if …
Display symbolDisplay messagesPossible cause/consequencePossible solution
HTire pressure
Check tiresThe pressure is too low in one or
more tires.Check and correct tire inflation pressure as
required.
Tire pressure
Caution - tire defectOne or more tires are deflating.Carefully bring the vehicle to a halt, avoiding
abrupt steering and braking maneuvers.
If necessary, change the wheel.
Caution - tire defectVehicles with Advanced TPMS*:
One or more tires are deflating.
The respective tire is shown in the
multifunction display.Carefully bring the vehicle to a halt, avoiding
abrupt steering and braking maneuvers.
If necessary, change the wheel.
Warning!G
Do not drive with a flat tire. A flat tire affects
the ability to steer or brake the vehicle. You
may lose control of the vehicle. Continued
driving with a flat tire will cause excessive
heat build-up and possibly a fire.

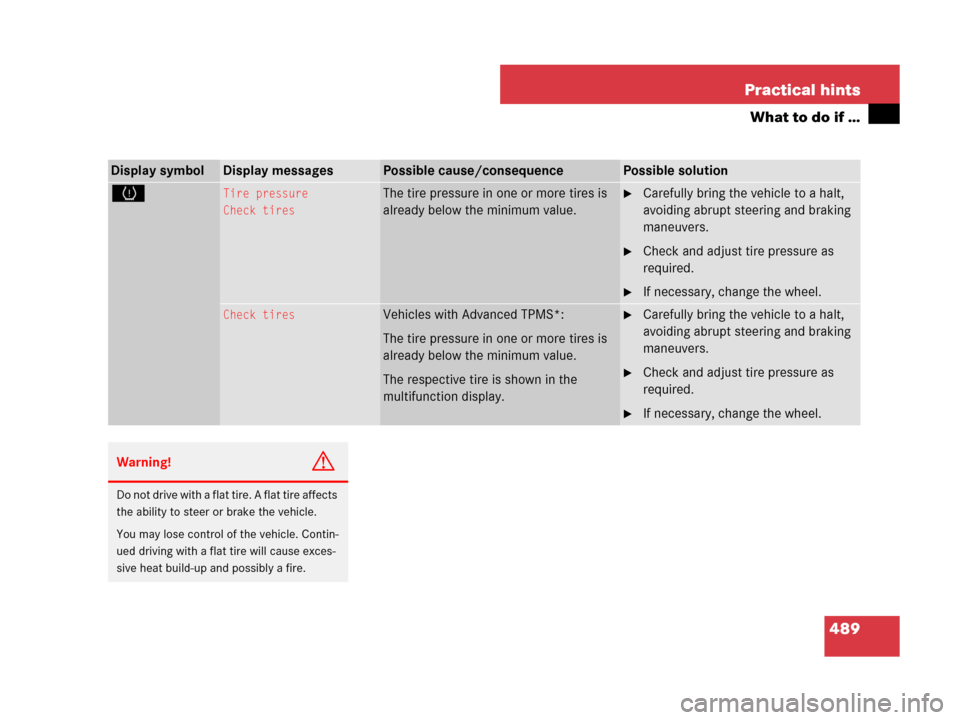

489 Practical hints
What to do if …
Display symbolDisplay messagesPossible cause/consequencePossible solution
HTire pressure
Check tiresThe tire pressure in one or more tires is
already below the minimum value.Carefully bring the vehicle to a halt,
avoiding abrupt steering and braking
maneuvers.
Check and adjust tire pressure as
required.
If necessary, change the wheel.
Check tiresVehicles with Advanced TPMS*:
The tire pressure in one or more tires is
already below the minimum value.
The respective tire is shown in the
multifunction display.Carefully bring the vehicle to a halt,
avoiding abrupt steering and braking
maneuvers.
Check and adjust tire pressure as
required.
If necessary, change the wheel.
Warning!G
Do not drive with a flat tire. A flat tire affects
the ability to steer or brake the vehicle.
You may lose control of the vehicle. Contin-
ued driving with a flat tire will cause exces-
sive heat build-up and possibly a fire.

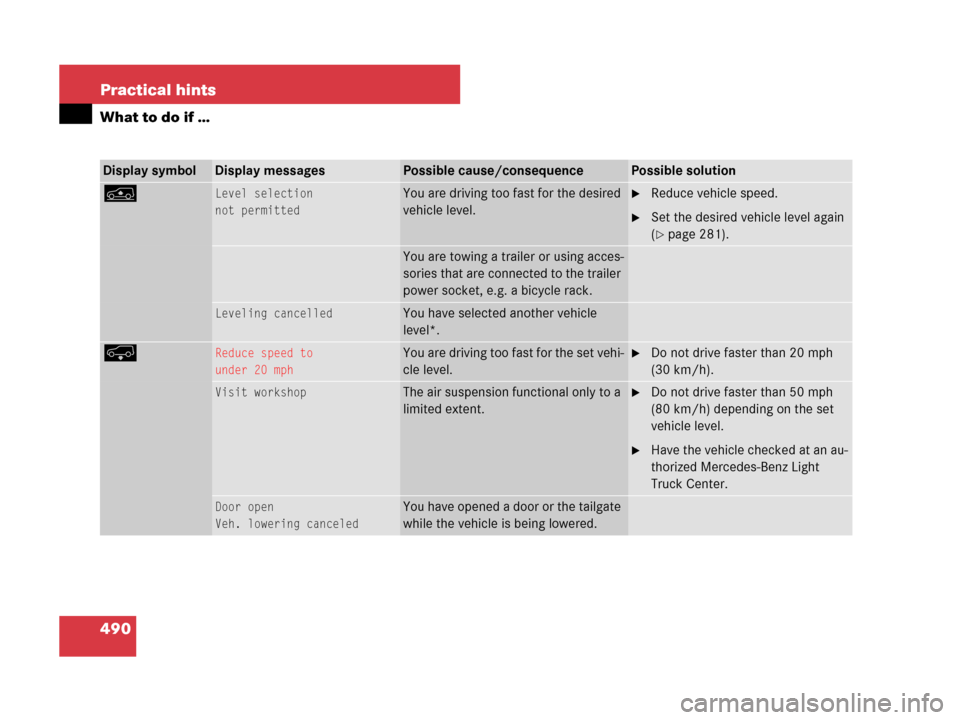

490 Practical hints
What to do if …
Display symbolDisplay messagesPossible cause/consequencePossible solution
nLevel selection
not permittedYou are driving too fast for the desired
vehicle level.Reduce vehicle speed.
Set the desired vehicle level again
(
page 281).
You are towing a trailer or using acces-
sories that are connected to the trailer
power socket, e.g. a bicycle rack.
Leveling cancelledYou have selected another vehicle
level*.
pReduce speed to
under 20 mphYou are driving too fast for the set vehi-
cle level.Do not drive faster than 20 mph
(30 km/h).
Visit workshopThe air suspension functional only to a
limited extent.Do not drive faster than 50 mph
(80 km/h) depending on the set
vehicle level.
Have the vehicle checked at an au-
thorized Mercedes-Benz Light
Truck Center.
Door open
Veh. lowering canceledYou have opened a door or the tailgate
while the vehicle is being lowered.

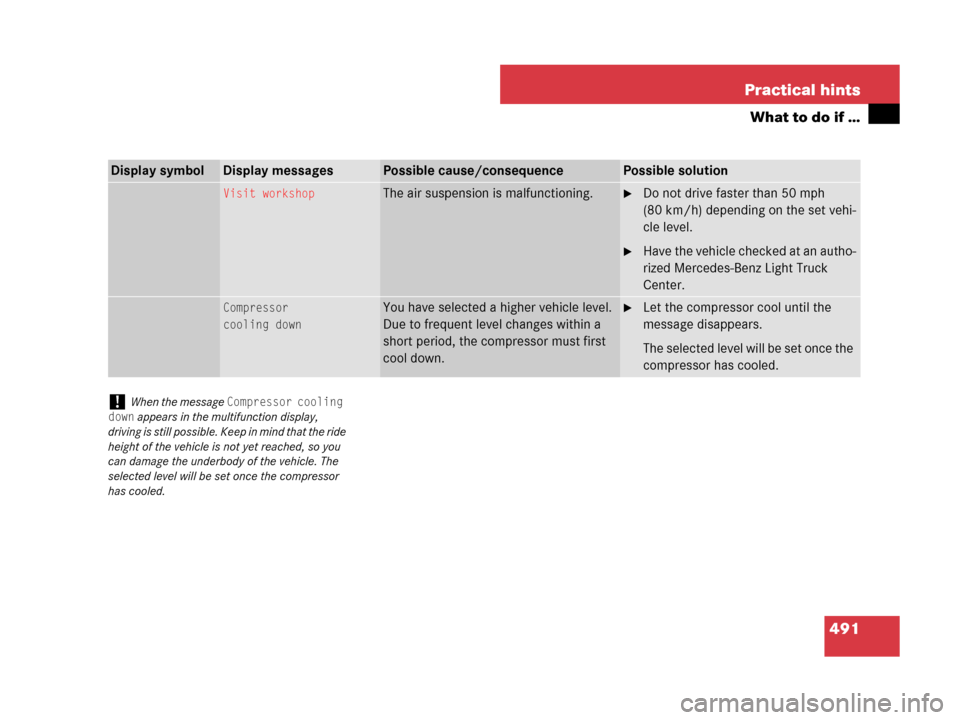

491 Practical hints
What to do if …
Display symbolDisplay messagesPossible cause/consequencePossible solution
Visit workshopThe air suspension is malfunctioning.Do not drive faster than 50 mph
(80 km/h) depending on the set vehi-
cle level.
Have the vehicle checked at an autho-
rized Mercedes-Benz Light Truck
Center.
Compressor
cooling downYou have selected a higher vehicle level.
Due to frequent level changes within a
short period, the compressor must first
cool down.Let the compressor cool until the
message disappears.
The selected level will be set once the
compressor has cooled.
!When the message Compressor cooling
down
appears in the multifunction display,
driving is still possible. Keep in mind that the ride
height of the vehicle is not yet reached, so you
can damage the underbody of the vehicle. The
selected level will be set once the compressor
has cooled.

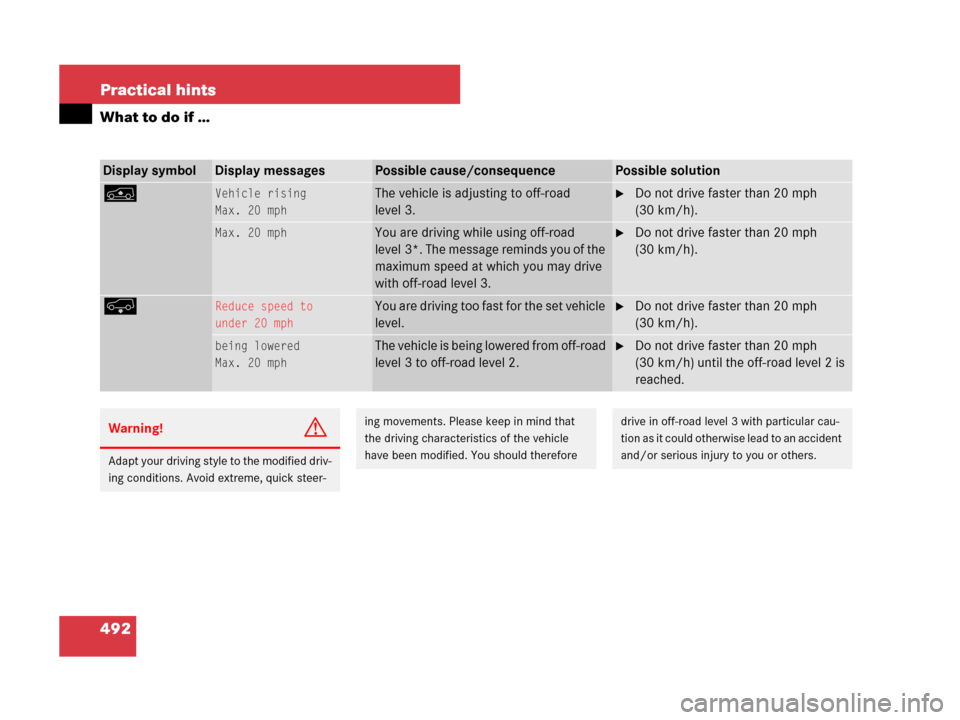

492 Practical hints
What to do if …
Display symbolDisplay messagesPossible cause/consequencePossible solution
nVehicle rising
Max. 20 mphThe vehicle is adjusting to off-road
level 3.Do not drive faster than 20 mph
(30 km/h).
Max. 20 mphYou are driving while using off-road
level 3*. The message reminds you of the
maximum speed at which you may drive
with off-road level 3.Do not drive faster than 20 mph
(30 km/h).
pReduce speed to
under 20 mphYou are driving too fast for the set vehicle
level.Do not drive faster than 20 mph
(30 km/h).
being lowered
Max. 20 mphThe vehicle is being lowered from off-road
level 3 to off-road level 2.Do not drive faster than 20 mph
(30 km/h) until the off-road level 2 is
reached.
Warning!G
Adapt your driving style to the modified driv-
ing conditions. Avoid extreme, quick steer-
ing movements. Please keep in mind that
the driving characteristics of the vehicle
have been modified. You should thereforedrive in off-road level 3 with particular cau-
tion as it could otherwise lead to an accident
and/or serious injury to you or others.

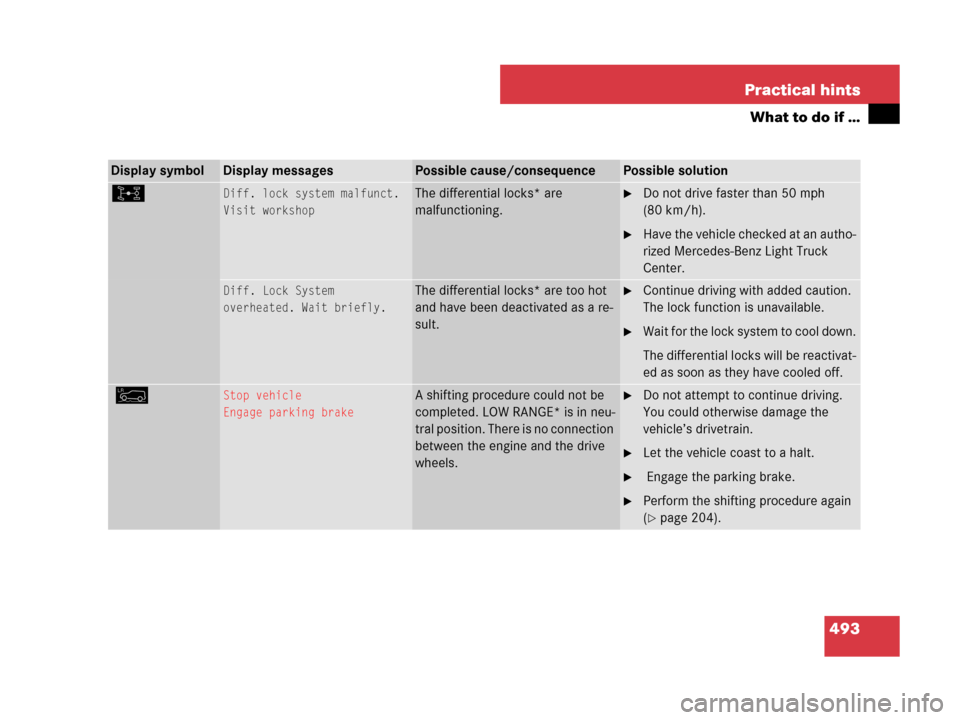

493 Practical hints
What to do if …
Display symbolDisplay messagesPossible cause/consequencePossible solution
kDiff. lock system malfunct.
Visit workshopThe differential locks* are
malfunctioning.Do not drive faster than 50 mph
(80 km/h).
Have the vehicle checked at an autho-
rized Mercedes-Benz Light Truck
Center.
Diff. Lock System
overheated. Wait briefly.The differential locks* are too hot
and have been deactivated as a re-
sult.Continue driving with added caution.
The lock function is unavailable.
Wait for the lock system to cool down.
The differential locks will be reactivat-
ed as soon as they have cooled off.
mStop vehicle
Engage parking brakeA shifting procedure could not be
completed. LOW RANGE* is in neu-
tral position. There is no connection
between the engine and the drive
wheels.Do not attempt to continue driving.
You could otherwise damage the
vehicle’s drivetrain.
Let the vehicle coast to a halt.
 Engage the parking brake.
Perform the shifting procedure again
(
page 204).

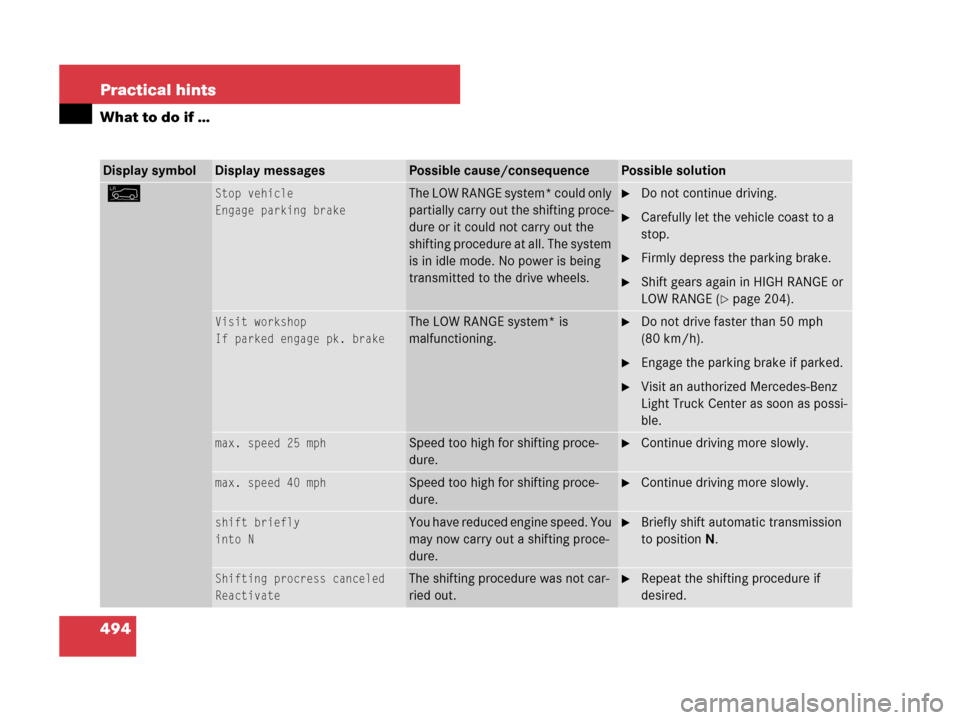

494 Practical hints
What to do if …
Display symbolDisplay messagesPossible cause/consequencePossible solution
mStop vehicle
Engage parking brakeThe LOW RANGE system* could only
partially carry out the shifting proce-
dure or it could not carry out the
shifting procedure at all. The system
is in idle mode. No power is being
transmitted to the drive wheels.Do not continue driving.
Carefully let the vehicle coast to a
stop.
Firmly depress the parking brake.
Shift gears again in HIGH RANGE or
LOW RANGE (
page 204).
Visit workshop
If parked engage pk. brakeThe LOW RANGE system* is
malfunctioning.Do not drive faster than 50 mph
(80 km/h).
Engage the parking brake if parked.
Visit an authorized Mercedes-Benz
Light Truck Center as soon as possi-
ble.
max. speed 25 mphSpeed too high for shifting proce-
dure.Continue driving more slowly.
max. speed 40 mphSpeed too high for shifting proce-
dure.Continue driving more slowly.
shift briefly
into NYou have reduced engine speed. You
may now carry out a shifting proce-
dure.Briefly shift automatic transmission
to positionN.
Shifting procress canceled
ReactivateThe shifting procedure was not car-
ried out.Repeat the shifting procedure if
desired.

495 Practical hints
Where will I find ...?
Where will I find ...?
First aid kit
The first aid kit is located on the driver’s
side in the cargo compartment behind the
cover.
1Lock
2Cover in left side trim panel
Turn lock1 90° in direction of arrow.
Fold down cover2.
The first aid kit can be removed.
Vehicle tool kit
The vehicle tool kit is stored under the
cargo compartment floor.
The vehicle tool kit includes:

Towing eye bolt

Wheel wrench

Alignment bolt

Vehicle jack

Fuse chart

Spare fuses

Fuse extractor

Collapsible wheel chock

Wheel bolts for spare wheel1Cargo compartment floor, lowered
2Handle cover
Open the tailgate (page 124).
Push in handle cover2 as indicated
by arrow and pull handle.
Lift cargo compartment floor1.
iCheck expiration dates and contents for
completeness at least once a year and replace
missing/expired items.
