2007 MERCEDES-BENZ GL450 Owner's Manual

240 Controls in detail
3-zone automatic climate control*
Deactivating
Press button: (page 232).
The indicator lamp on the button
comes on.
At outside temperatures above 79°F
(26°C) the system will not automatically
switch back to outside air. A quantity of
outside air is added after approximately
30 minutes.Air recirculation mode with conve-
nience closing and opening feature
Convenience closing
Press button: for approximately
2 seconds.
The windows and/or tilt/sliding sun-
roof* will close. You can release
button: once the closing proce-
dure has begun. The windows and
tilt/sliding sunroof* continue closing
until they are fully closed. The indicator
lamp on the button comes on. The air
recirculation mode is activated.iThe air recirculation mode is deactivated
automatically

after 5 minutes if the outside temperature is
below approximately 41°F (5°C)

after 5 minutes if the air conditioning and
air-drying is turned off

after 30 minutes if the outside temperature
is above approximately 41°F (5°C)
Warning!G
Never operate the side windows and
tilt/sliding sunroof* if there is the possibility
of anyone being harmed by the opening or
closing procedure.
When using the air recirculation mode with
convenience closing feature, should the up-
ward movement of a window be blocked by
some obstruction including but not limited
to arms, hands, fingers, etc., the automatic
reversal feature will not operate.
In case the procedure causes potential
danger:
Vehicles with or without tilt/sliding sun-
roof*: The closing of the windows can be im-
mediately halted by pressing or pulling the
respective window switch. The closing of the
tilt/sliding sunroof* can be immediately
halted by moving the switch for the tilt/slid-
ing sunroof* in any direction.
The closing of the side windows and the
tilt/sliding sunroof* can be reversed by
again pressing and holding the :button.

241 Controls in detail
3-zone automatic climate control*
Convenience opening
Press button: for approximately
2 seconds.
The windows and/or tilt/sliding sun-
roof* will return to their previous posi-
tions. You can release button:
once the opening procedure has be-
gun. The windows and tilt/sliding sun-
roof* continue opening until they have
reached their previous positions. The
indicator lamp on the button goes out.
The air recirculation mode is deactivat-
ed.
Air conditioning
The cooling function, only operational
when the engine is running, cools the vehi-
cle down to the selected interior tempera-
ture. The cooling function also
dehumidifies the air in the vehicle interior,
thereby preventing the windows from fog-
ging up.Deactivating
It is possible to deactivate the air condi-
tioning (cooling) function of the automatic
climate control system. The air in the vehi-
cle will then no longer be cooled or dehu-
midified.
Press button9 (page 232).
The indicator lamp on the button goes
out. The cooling function switches off
after a short delay.
Activating
Moist air can fog up the windows. You can
dehumidify the air with the air condition-
ing.
Press button9 again.
The indicator lamp on the button
comes on.
The air conditioning uses the refrigerant
R-134a. This refrigerant is free of CFCs
which are harmful to the ozone layer.
iA window or the tilt/sliding sunroof* will
only return to its previous position if it has not
been moved to another position using the re-
spective window switch or tilt/sliding sunroof*
switch after it was closed with button:.
iCondensation may drip out from underneath
the vehicle. This is normal and not an indication
of a malfunction.
Warning!G
If you turn off the cooling function, the
interior air is not dried. The windows can fog
up more quickly. Window fogging may
impair visibility and endanger you and
others.

242 Controls in detail
3-zone automatic climate control*
Using driver-side settings for all tem-
perature zones
You can use the settings of the driver’s
side, such as temperature, air volume and
air distribution, for all temperature zones.
These settings only need to be made once
and the automatic climate control system
will automatically regulate the settings for
all temperature zones quickly and comfort-
ably.Activating
Adjust the temperature, air volume and
air distribution (
page 232).
Press button; (page 232).
The indicator lamp on the button
comes on.
The driver-side settings are used for all
temperature zones.
Deactivating
Press button; (page 232) again.
The indicator lamp on the button goes
out.
Residual heat and ventilation
With the engine switched off, it is possible
to continue to heat or ventilate the interior
for up to 30 minutes. This feature makes
use of the residual heat produced by the
engine.!If the air conditioning cannot be turned on
again, this indicates that the air conditioning is
losing refrigerant. The compressor has turned
off.
Have the air conditioning checked at the nearest
authorized Mercedes-Benz Light Truck Center.
iIf you manually set the temperature, air vol-
ume or air distribution for the passenger side or
the rear passenger compartment when the
MONO setting is active, the MONO setting will
be switched off.
iHow long the system will provide heating
depends on

the coolant temperature

the battery voltage
Regardless of the temperature and air volume
set on the automatic climate control panel, an
interior temperature is aimed at by 72°F (22°C)
and the blower runs on low speed to protect the
vehicle battery.

243 Controls in detail
3-zone automatic climate control*
Activating
Switch off the ignition (page 41).
Press button9 (page 232).
The indicator lamp on the button
comes on.
Deactivating
Press button9.
The indicator lamp on the button goes
out.

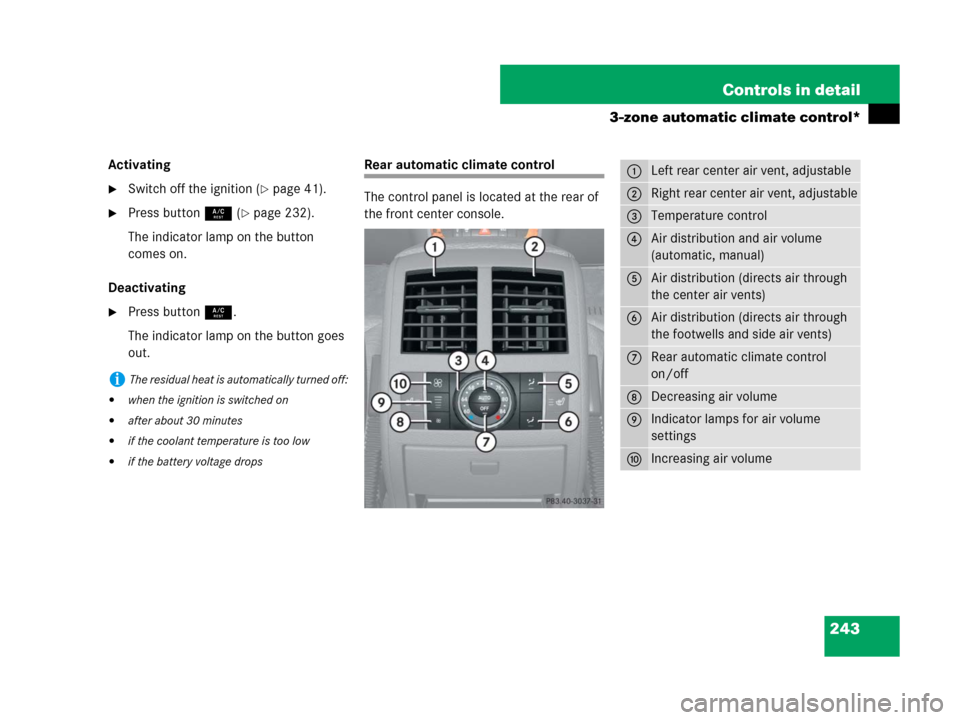

Rear automatic climate control
The control panel is located at the rear of
the front center console.
iThe residual heat is automatically turned off:

when the ignition is switched on

after about 30 minutes

if the coolant temperature is too low

if the battery voltage drops
1Left rear center air vent, adjustable
2Right rear center air vent, adjustable
3Temperature control
4Air distribution and air volume
(automatic, manual)
5Air distribution (directs air through
the center air vents)
6Air distribution (directs air through
the footwells and side air vents)
7Rear automatic climate control
on/off
8Decreasing air volume
9Indicator lamps for air volume
settings
aIncreasing air volume

244 Controls in detail
3-zone automatic climate control*
Activating rear automatic climate
control
Press buttonU.
The indicator lamp on the button
comes on. The temperature, air vol-
ume, and air distribution are adjusted
automatically.
Deactivating rear automatic climate
control
Press button´.
The indicator lamp on the button goes
out.
The cooling function switches off after
a short delay.Operating from the front
Deactivating
Press button> (page 232).
The indicator lamp on the button goes
out.
In displaye (
page 232), you will see
the> symbol followed by
MODE for
approximately 3 seconds.
Press button´ (page 232).
In displaye (
page 232), you will see
the> symbol followed by
OFF.
The rear automatic climate control is
switched off.Reactivating
Press button> (page 232).
The indicator lamp on the button
comes on.
In displaye (
page 232), you will see
the> symbol followed by
ON and
MODE. The MODE display is cleared and
the indicator lamp on button>
goes out after approximately
3 seconds.
The rear automatic climate control
switches on.
iThe automatic climate control must be
switched on (
page 234).
iSwitch off the rear automatic climate con-
trol for improved cooling or heating output in the
front passenger compartment.
You can also switch off the rear automatic
climate control from the front passenger com-
partment (
page 232).

245 Controls in detail
3-zone automatic climate control*
Setting the temperature
Press button> (page 232).
The indicator lamp on the button
comes on.
In displaye (
page 232), you will see
the> symbol followed by
MODE.
Set the desired temperature for the
rear passenger compartment using
temperature control3 (
page 243).
After approximately 3 seconds after
the last adjustment, the display switch-
es back to its standard display and the
indicator lamp on button> goes
out.Adjusting air distribution
Use the air distribution controls5 or6
to adjust the air distribution for the rear
passenger compartment.
The symbols on the controls represent the
following functions:
Adjusting manually
Press the desired air distribution con-
trol.
The indicator lamp on buttonU
goes out.Adjusting automatically
Press buttonU while the engine is
running.
The indicator lamp on the button
comes on. The air distribution is adjust-
ed automatically.
Setting the temperature
Use temperature control3 (
page 243)
to separately adjust the air temperature of
the rear passenger compartment.
You should raise or lower the temperature
setting in small increments, preferably
starting at 72°F (22°C). The automatic cli-
mate control will adjust to the set temper-
ature as fast as possible.
iYou can also press the>button once
more to switch back to the standard display.

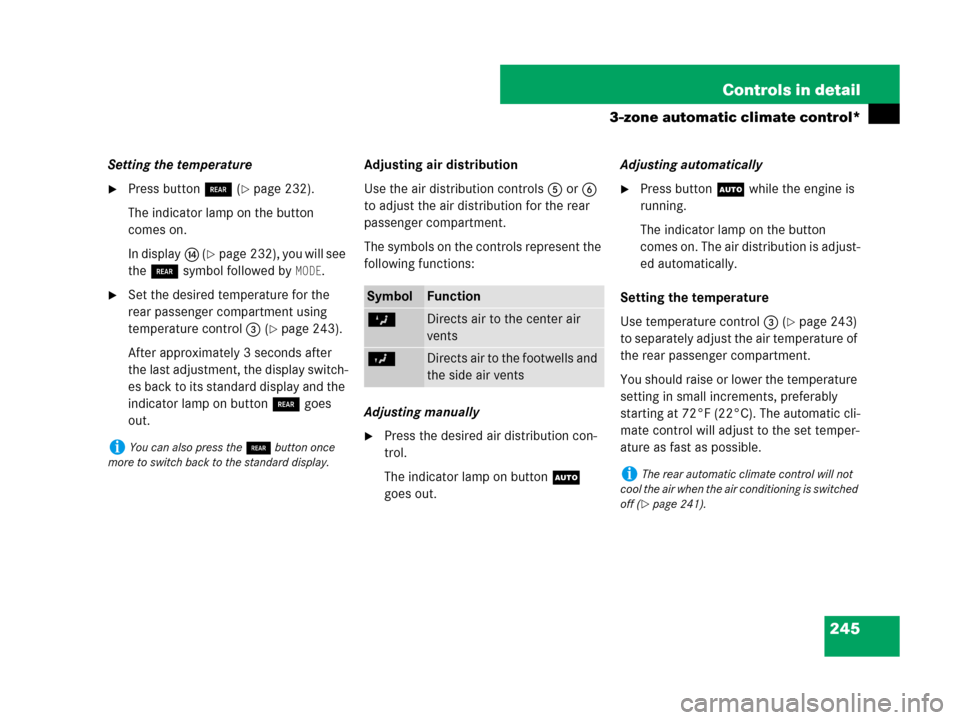

SymbolFunction
ZDirects air to the center air
vents
YDirects air to the footwells and
the side air vents
iThe rear automatic climate control will not
cool the air when the air conditioning is switched
off (
page 241).

246 Controls in detail
3-zone automatic climate control*
Increasing the temperature
Turn temperature control3
(
page 243) slightly clockwise.
The rear automatic climate control will
correspondingly adjust the interior air
temperature for the rear passenger
compartment.
Decreasing the temperature
Turn temperature control3
(
page 243) slightly counterclock-
wise.
The rear automatic climate control will
correspondingly adjust the interior air
temperature for the rear passenger
compartment.Adjusting air volume
Adjusting manually
Five blower speeds are available.
Press button
to decrease or
buttonQ to increase air volume to
the desired level.
The indicator lamp on the buttonU
goes out. The selected blower speed is
shown by the indicator lamps for air
volume settings9 (
page 243).
Adjusting automatically
Press buttonU.
The indicator lamp on the button
comes on. The air volume is adjusted
automatically.Air vents in the roof liner over the
second-row seats*
1Thumbwheel for air volume control
2Air vent, adjustable
Adjusting air volume
Turn thumbwheel1 d o w n t o d e c r e a s e
the air volume.
or
Turn thumbwheel1 u p t o i n c r e a s e t h e
air volume.

247 Controls in detail
3-zone automatic climate control*
Adjusting air distribution
Move air vent slider2 to the left, right,
up, or down to direct the air in the de-
sired direction.

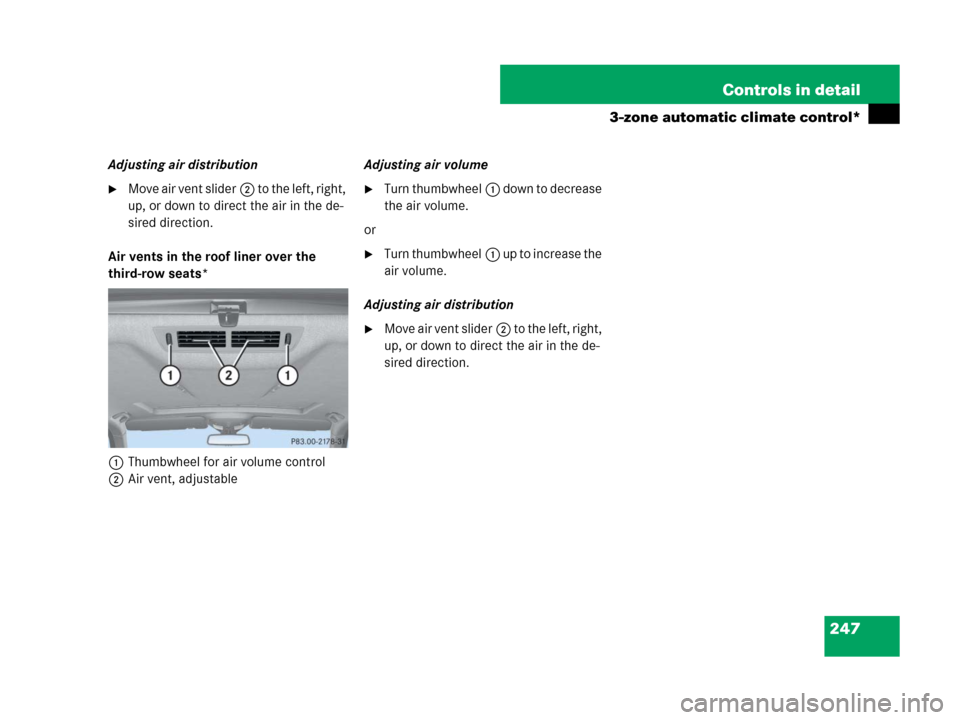

Air vents in the roof liner over the
third-row seats*
1Thumbwheel for air volume control
2Air vent, adjustableAdjusting air volumeTurn thumbwheel1 d o w n t o d e c r e a s e
the air volume.
or
Turn thumbwheel1 up to increase the
air volume.
Adjusting air distribution
Move air vent slider2 to the left, right,
up, or down to direct the air in the de-
sired direction.
