2007 MERCEDES-BENZ GL450 Owner's Manual

496 Practical hints
Where will I find ...?
3Securing hook
Release securing hook3 (located be-
low the floor handle) from holder.3Securing hook
4Cargo compartment floor, raised
5Upper cargo compartment lip
Engage securing hook3 on upper
cargo compartment lip5.
You can now access the vehicle tool kit. To
remove the vehicle tool kit storage well
casing, proceed as described on
(
page 499).6Alignment bolt
7Towing eye bolt
8Wheel wrench
9Velcro strap
aVehicle jack
bWheel bolts for 18" light alloy rims or
Minispare wheel
cCollapsible wheel chock
dSpare fuses, fuse chart, fuse extractor
eVehicle tool kit storage well casing
To remove vehicle jacka, loosen vel-
cro strap9.
!With the cargo compartment cover blind
installed behind the third-row seats
(
page 312), disengage cargo compartment
cover blind and flip it forward. Otherwise the
strap of the securing hook could damage the
cargo compartment cover blind.


497 Practical hints
Where will I find ...?

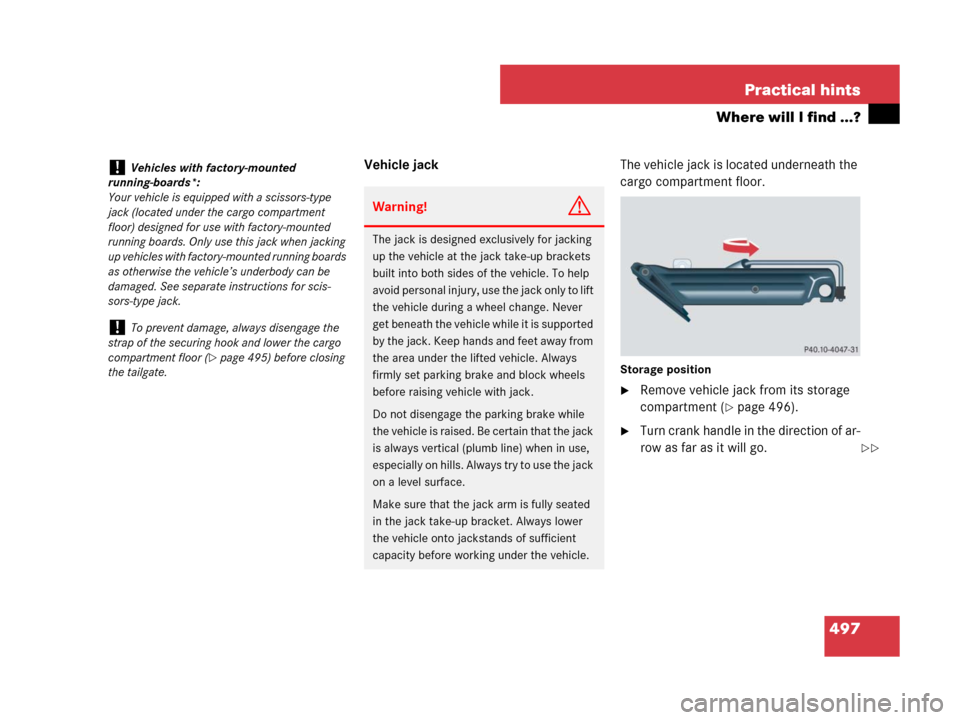

Vehicle jackThe vehicle jack is located underneath the
cargo compartment floor.
Storage position
Remove vehicle jack from its storage
compartment (
page 496).
Turn crank handle in the direction of ar-
row as far as it will go.
!Vehicles with factory-mounted
running-boards*:
Your vehicle is equipped with a scissors-type
jack (located under the cargo compartment
floor) designed for use with factory-mounted
running boards. Only use this jack when jacking
up vehicles with factory-mounted running boards
as otherwise the vehicle’s underbody can be
damaged. See separate instructions for scis-
sors-type jack.
!To prevent damage, always disengage the
strap of the securing hook and lower the cargo
compartment floor (
page 495) before closing
the tailgate.
Warning!G
The jack is designed exclusively for jacking
up the vehicle at the jack take-up brackets
built into both sides of the vehicle. To help
avoid personal injury, use the jack only to lift
the vehicle during a wheel change. Never
get beneath the vehicle while it is supported
by the jack. Keep hands and feet away from
the area under the lifted vehicle. Always
firmly set parking brake and block wheels
before raising vehicle with jack.
Do not disengage the parking brake while
the vehicle is raised. Be certain that the jack
is always vertical (plumb line) when in use,
especially on hills. Always try to use the jack
on a level surface.
Make sure that the jack arm is fully seated
in the jack take-up bracket. Always lower
the vehicle onto jackstands of sufficient
capacity before working under the vehicle.


498 Practical hints
Where will I find ...?
Operational position
Turn crank handle clockwise.
Before storing the vehicle jack in its stor-
age compartment:

The vehicle jack should be fully col-
lapsed.

The handle must be folded in (storage
position).Setting up the collapsible wheel chock
The collapsible wheel chock serves to ad-
ditionally secure the vehicle, e.g. while
changing the wheel.
1Tilt the plate upward
2Fold the lower plate outward
3Insert the plate
Tilt both plates upward1.
Fold the lower plate outward2.
Guide the tabs of the lower plate all the
way into the openings of base plate3.
For information on where to place wheel
chocks when changing a wheel, see “Lift-
ing the vehicle” (
page 524).


499 Practical hints
Where will I find ...?
Spare wheelThe Minispare wheel is located underneath
the cargo compartment floor
(
page 495).
Removing Minispare wheel
Remove the jack from the vehicle tool
kit (
page 496).
1Minispare wheel
2Retaining screw
3Vehicle tool kit storage well casing
Loosen retaining screw2 by turning it
counterclockwise.
Remove vehicle tool kit storage well
casing3.
You can now access the Minispare wheel.
Remove Minispare wheel1.
Warning!G
The dimensions of the Minispare wheel are
different from those of the road wheels. As
a result, the vehicle handling characteristics
change when driving with a Minispare wheel
mounted. Adapt your driving style accord-
ingly.
The Minispare wheel is for temporary use
only. When driving with a Minispare wheel
mounted, ensure proper tire inflation
pressure and do not exceed a vehicle speed
of 50 mph (80 km/h).
Drive to the nearest Mercedes-Benz Light
Truck Center as soon as possible to have the
Minispare wheel replaced with a regular
road wheel.
Never operate the vehicle with more than
one spare wheel mounted.
Do not switch off the ESP
® when a
Minispare wheel is mounted.
iFor information on how to mount the
Minispare wheel, see “Mounting the spare
wheel” (
page 524).
iIf retaining screw2 does not come loose,
turn vehicle tool kit storage well casing3
slightly counterclockwise. Retaining screw2
should then come loose easily.

500 Practical hints
Unlocking/locking in an emergency
Unlocking the vehicle
If you cannot unlock the vehicle with the
SmartKey or KEYLESS-GO*, open the
driver’s door using the mechanical key.Removing the mechanical key
1Mechanical key locking tab
2Mechanical key
Move locking tab1 in direction of
arrow.
The mechanical key2 comes out.
Slide mechanical key2 out of the
housing.Unlocking the driver’s door
Insert mechanical key2 into the
driver’s door lock until it stops.
Turn mechanical key2 counterclock-
wise to position1 and hold it there.
Pull the door handle until the locking
knob moves up (
page 122).
The driver’s door is unlocked.
Pull the door handle once more to open
the driver’s door.
iUnlocking the driver’s door with the
mechanical key will trigger the anti-theft alarm
system.
To cancel the alarm, insert the SmartKey or
SmartKey with KEYLESS-GO* in the starter
switch.
1Unlocking
2Mechanical key

501 Practical hints
Unlocking/locking in an emergency
Locking the vehicle
If you cannot lock the vehicle with the
SmartKey or KEYLESS-GO*, lock the vehi-
cle carrying out the following steps.
Close the front passenger door, the
rear right door and the tailgate.
Open the driver’s door and the rear left
door.
Press the central locking switch on the
driver’s door (
page 130).
The locking knobs of the front passen-
ger door and the rear doors move
down.
If the vehicle battery is disconnected or
drained:
Press down the locking knobs of
the front passenger door and the
rear doors manually.
Exit the vehicle.
Close the driver’s door.
Enter the vehicle through the rear left
door.
Press down the locking knob of the
driver’s door.
Exit the vehicle.
Close the rear left door.
The vehicle is locked.
Fuel filler flap
Open the tailgate (page 124).
The fuel filler flap release is located behind
a cover in the right side trim panel of the
cargo compartment.
1Lock
2Cover
!To prevent inadvertent lockout, make sure
to have the SmartKey or SmartKey with
KEYLESS-GO* with you before proceeding with
the next step. The next step will lock the vehicle.
iThis procedure does not arm the anti-theft
alarm system, nor does it lock the fuel filler flap.


502 Practical hints
Unlocking/locking in an emergency
Insert a suitable object such as a coin
into the slot of lock1 (
page 501).
Turn lock1 counterclockwise by 90°
in direction of arrow.
Remove cover2 (page 501).
3Fuel filler flap release
Pull red fuel filler flap release3 in
direction of arrow.
The fuel filler flap is unlocked.
Open the fuel filler flap (page 375).


503 Practical hints
Opening/closing in an emergency
Opening/closing in an emergency
Power tilt/sliding sunroof*
You can open or close the tilt/sliding
sunroof manually should an electrical
malfunction occur.
The tilt/sliding sunroof drive is located
behind a cover on the overhead control
panel.
1Cover
Remove the SmartKey from the starter
switch.Vehicles with KEYLESS-GO*:
Turn off the engine by pressing the
KEYLESS-GO* start/stop button
(
page 70).
Open the driver’s door (this puts
the starter switch in position 0, same
as with the SmartKey removed from
the starter switch). The driver’s door
can then be closed again.
Press on cover1 at the position indi-
cated by the arrow.
Take off cover1.
2Crank
Take crank2 out of the Operator’s
Manual pouch.
Insert crank2 into hole.
Turn crank2 clockwise to

slide sunroof closed

raise sunroof at the rear
Turn crank2 counterclockwise to

slide sunroof open

lower sunroof at the rear
iThe hole may be covered by a noise
reduction padding. You will then have to push the
crank through the padding at the perforated
mark.
iTurn crank2 slowly and smoothly.
The tilt/sliding sunroof must be synchronized if
it has been operated manually (
page 255).
