2007 MERCEDES-BENZ GL450 Owner's Manual

328 Controls in detail
Useful features
Heated steering wheel*
The steering wheel heating warms up the
leather area of the steering wheel.
The stalk is on the lower left-hand side of
the steering wheel.
1Switching on
2Indicator lamp
3Switching offSwitching on
Switch on the ignition (page 42).
Turn switch at the tip of stalk in the
direction of arrow1.
The steering wheel is heated. Indicator
lamp2 comes on.Switching off
Turn switch at the tip of stalk in the
direction of arrow3.
The heated steering wheel is switched
off. Indicator lamp2 goes out.
For information on the steering wheel, see
“Multifunction steering wheel”
(
page 30).
iThe steering wheel heating is turned off tem-
porarily and the indicator lamp2 remains on
when

the temperature of the vehicle interior is
above 86°F (30°C)

the temperature of the steering wheel is
above 95°F (35°C)
When these conditions do not apply anymore,
steering wheel heating continues.
iIndicator lamp2 flashes or goes out

in case of power surge or undervoltage

in case of a steering wheel heating malfunc-
tion
iThe steering wheel heating switches off
automatically when you remove the SmartKey
from the starter switch or, on vehicles with
KEYLESS-GO*, when you switch off the ignition
(
page 41) and open the driver’s door.

329 Controls in detail
Useful features
Telephone*
Radio transmitters, such as a portable tele-
phone or a citizens band unit, should only
be used inside the vehicle if they are con-
nected to an antenna that is installed on
the outside of the vehicle.
The external antenna must be approved by
Mercedes-Benz. Please contact an autho-
rized Mercedes-Benz Light Truck Center
for information on the installation of an ap-
proved external antenna. Refer to the radio
transmitter operation instructions regard-
ing use of an external antenna.When the mobile phone is inserted in the
cradle, you can operate the telephone us-
ing the following devices:

mobile phone keypad

COMAND system (see separate operat-
ing instructions)

buttonss andt on the multi-
function steering wheel (
page 158)

Voice Control System* (see separate
operating instructions)
Please note that these functions are only
available with Mercedes-Benz approved
mobile phones.

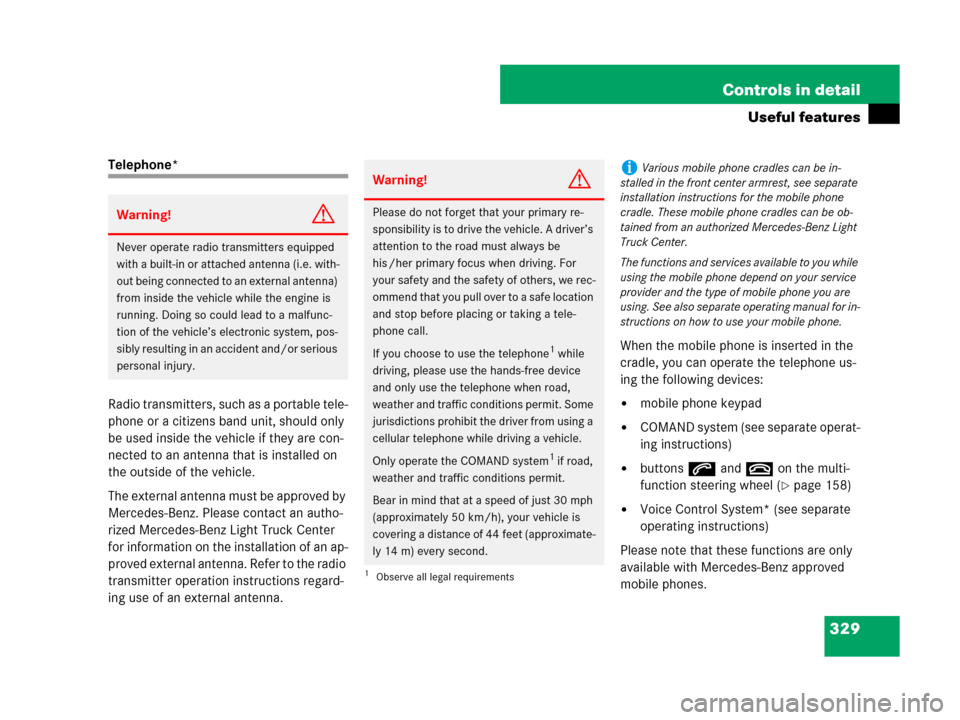

Warning!G
Never operate radio transmitters equipped
with a built-in or attached antenna (i.e. with-
out being connected to an external antenna)
from inside the vehicle while the engine is
running. Doing so could lead to a malfunc-
tion of the vehicle’s electronic system, pos-
sibly resulting in an accident and/or serious
personal injury.
Warning!G
Please do not forget that your primary re-
sponsibility is to drive the vehicle. A driver’s
attention to the road must always be
his /her primary focus when driving. For
your safety and the safety of others, we rec-
ommend that you pull over to a safe location
and stop before placing or taking a tele-
phone call.
If you choose to use the telephone
1 while
driving, please use the hands-free device
and only use the telephone when road,
weather and traffic conditions permit. Some
jurisdictions prohibit the driver from using a
cellular telephone while driving a vehicle.
Only operate the COMAND system
1 if road,
weather and traffic conditions permit.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your vehicle is
covering a distance of 44 feet (approximate-
ly 14 m) every second.
1Observe all legal requirements
iVarious mobile phone cradles can be in-
stalled in the front center armrest, see separate
installation instructions for the mobile phone
cradle. These mobile phone cradles can be ob-
tained from an authorized Mercedes-Benz Light
Truck Center.
The functions and services available to you while
using the mobile phone depend on your service
provider and the type of mobile phone you are
using. See also separate operating manual for in-
structions on how to use your mobile phone.

330 Controls in detail
Useful features
Please contact an authorized
Mercedes-Benz Light Truck Center for
information on features available for your
mobile phone of choice.
The cradle is located in the front center
armrest.
Open telephone tray (page 318).
Inserting mobile phone in mobile phone
cradle
Once the mobile phone has been inserted
in the mobile phone cradle, you have to
use the hands-free device to respond dur-
ing phone calls.
If applicable, remove the cover for the
external antenna connection from the
back of the mobile phone and store it in
a s a f e p l a c e . B e s u r e t o c o m p l y w i t h t h e
mobile phone’s operating instructions
as well.
Example illustration
1Insert the mobile phone
2Connector contact
3Mobile phone cradle
Slide the lower end of the mobile phone
into connector contact2 on
cradle3.
Push the top of the mobile phone in di-
rection of arrow1, until the lug on the
mobile phone release button engages.
The mobile phone is connected to the
network via the external antenna.The mobile phone is linked to the
hands-free device and the multifunc-
tion steering wheel.
The battery is charged depending on its
charge status and the position of the
SmartKey in the starter switch. The
charge procedure will be indicated in
the mobile phone’s display.
You can place or receive phone calls. You
can control other functions of the mobile
phone via the control system
(
page 189), the Voice Control System*
(see separate operating instructions), or
the COMAND system (see separate oper-
ating instructions).
!Do not try to remove the mobile phone along
with the cradle. You could otherwise damage the
mobile phone cradle.iWhen you take the SmartKey or SmartKey
with KEYLESS-GO* out of the starter switch, the
mobile phone remains switched on for approxi-
mately 10 minutes. If you place or receive a call
during this time, the mobile phone switches off
10 minutes after the call has been completed.

331 Controls in detail
Useful features
Removing mobile phone from mobile
phone cradle

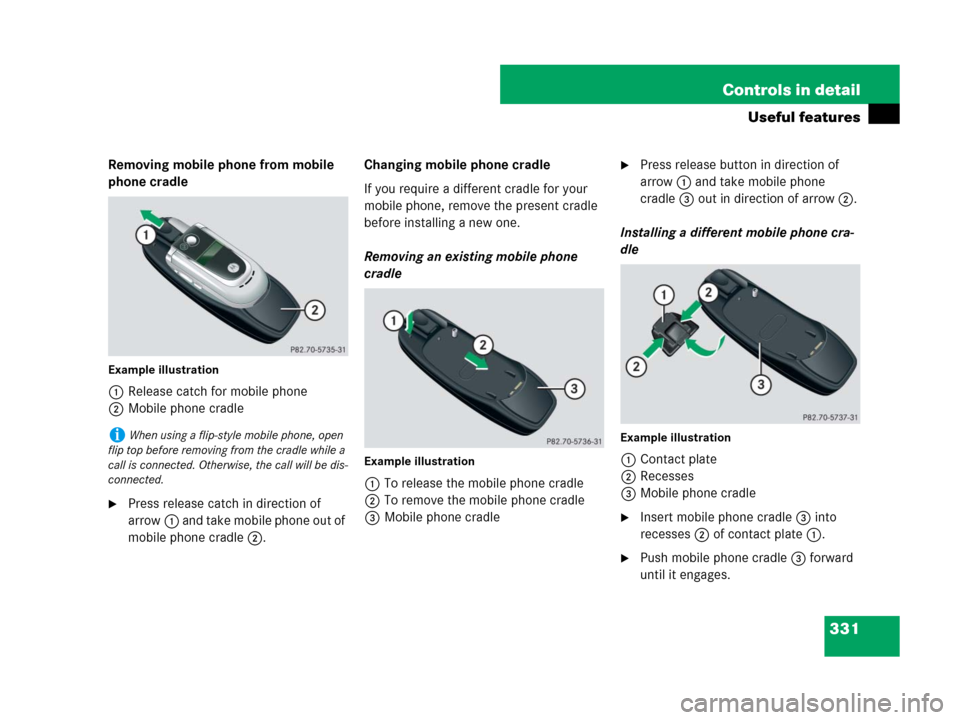

Example illustration
1Release catch for mobile phone
2Mobile phone cradle
Press release catch in direction of
arrow1 and take mobile phone out of
mobile phone cradle2.Changing mobile phone cradle
If you require a different cradle for your
mobile phone, remove the present cradle
before installing a new one.
Removing an existing mobile phone
cradle
Example illustration
1To release the mobile phone cradle
2To remove the mobile phone cradle
3Mobile phone cradle
Press release button in direction of
arrow1 and take mobile phone
cradle3 out in direction of arrow2.
Installing a different mobile phone cra-
dle
Example illustration
1Contact plate
2Recesses
3Mobile phone cradle
Insert mobile phone cradle3 into
recesses2 of contact plate1.
Push mobile phone cradle3 forward
until it engages.
iWhen using a flip-style mobile phone, open
flip top before removing from the cradle while a
call is connected. Otherwise, the call will be dis-
connected.

332 Controls in detail
Useful features
Tele Aid
Shortly after the completion of your
Tele Aid acquaintance call, you will receive
a user ID and password. By visiting
www.mbusa.com and selecting “Tele Aid”
(USA only), you will have access to account
information, remote door unlock and
more.The Tele Aid system
(Tele
matic Alarm Identification on
D
emand)
The Tele Aid system consists of three
types of response:

automatic and manual emergency

roadside assistance

information
The Tele Aid system is operational provid-
ing that the vehicle’s battery is charged,
properly connected, not damaged and cel-
lular and GPS coverage is available.
The speaker volume of a Tele Aid call can
be adjusted by using the volume control on
the COMAND system or on the multifunc-
tion steering wheel. To raise, turn the rota-
ry volume control on COMAND system
clockwise or press buttonæ on the
multifunction steering wheel. To lower,
turn the rotary volume control on
COMAND system control counterclock-
wise or press buttonç on the multi-
function steering wheel.
To activate, press the SOS button, the
Roadside Assistance button• or
the Information button¡, depend-
ing on the type of response required.
!The initial activation of the Tele Aid system
may only be performed by completing the sub-
scriber agreement and placing an acquaintance
call using the ¡button. Failure to complete
either of these steps will result in a system that
is not activated.
If you have any questions regarding activation,
please call the Response Center at
1-800-756-9018 (in the USA) or
1-888-923-8367 (in Canada).
iThe SOS button is located in the overhead
control panel (
page 34).
The Roadside Assistance button•
(
page 336) and the Information button¡
(
page 337) are located below the center arm-
rest cover.
!The Tele Aid system utilizes the cellular
network for communication and the GPS (G
lobal
P
ositioning System) satellites for vehicle loca-
tion. If either of these signals are unavailable, the
Tele Aid system may not function and if this
occurs, assistance must be summoned by other
means.

333 Controls in detail
Useful features
System self-check
Initially, after switching on the ignition,
malfunctions are detected and indicated
(the indicator lamps in the SOS button, the
Roadside Assistance button• and the
Information button¡ stay on longer
than 10 seconds or do not come on).
The message
Tele Aid – inoperative
appears in the multifunction display.
iWhen a Tele Aid call has been initiated, the
COMAND system audio is muted and the select-
ed mode (radio, CD etc.) pauses. The optional
cellular phone (if installed) inserted in cradle
switches off. If you must use this phone, we rec-
ommend that you use it only with the vehicle at a
standstill in a safe location. Remove the phone
from the cradle and place the call. The naviga-
tion* system (if engaged) will continue to run.
The display in the instrument cluster is available
for use, and spoken commands are only avail-
able by pressing the RPT button on the COMAND
system. A pop-up window will appear in the
COMAND system display to indicate that a Tele
Aid call is in progress. After the TeleAid call has
ended, the optional cellular phone inserted in the
cradle switches on again. A PIN entry might be
necessary.Warning!G
If the indicator lamps on the SOS button, on
the Roadside Assistance button, and/or on
the Information button remain illuminated
continuously in red and/or the message
Tele Aid – inoperative is displayed in
the multifunction display after the system
self-check, a malfunction in the system has
been detected.
If a malfunction is indicated as outlined
above, the system may not operate as
expected. Have the system checked at the
nearest Mercedes-Benz Light Truck Center
as soon as possible.

334 Controls in detail
Useful features
Emergency calls
An emergency call is initiated automatical-
ly following an accident in which the emer-
gency tensioning devices (ETDs) or
air bags deploy.
An emergency call can also be initiated
manually by opening the cover next to the
interior rear view mirror labeled SOS, then
briefly pressing the button located under
the cover. See (
page 335) for
instructions on initiating an emergency call
manually.Once the emergency call is in progress, the
indicator lamp on the SOS button will
begin to flash. The message
Connecting call appears in the multifunc-
tion display. When the connection is estab-
lished, the message
Call connected
appears in the multifunction display. All in-
formation relevant to the emergency, such
as the location of the vehicle (determined
by the GPS satellite location system), vehi-
cle model, identification number and color
are generated.
A voice connection between the Response
Center and the occupants of the vehicle
will be established automatically soon af-
ter the emergency call has been initiated.
The Response Center will attempt to
determine more precisely the nature of the
accident provided they can speak to an
occupant of the vehicle.The Tele Aid system is available if

it has been activated and is operation-
al. Activation requires a subscription
for monitoring services, connection
and cellular air time

vehicle battery power is available

the relevant cellular phone network
and GPS signals are available and pass
the information on to the Response
Center
iLocation of the vehicle on a map is only pos-
sible if the vehicle is able to receive signals from
the GPS satellite network and pass the informa-
tion on to the Response Center.

335 Controls in detail
Useful features

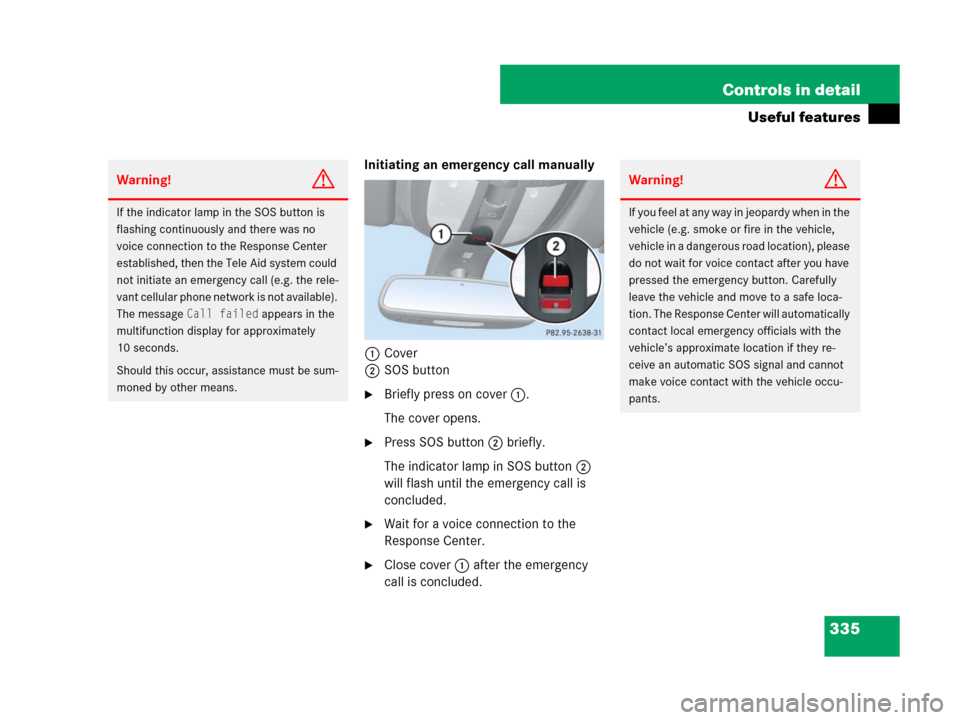

Initiating an emergency call manually
1Cover
2SOS button
Briefly press on cover1.
The cover opens.
Press SOS button2 briefly.
The indicator lamp in SOS button2
will flash until the emergency call is
concluded.
Wait for a voice connection to the
Response Center.
Close cover1 after the emergency
call is concluded.
Warning!G
If the indicator lamp in the SOS button is
flashing continuously and there was no
voice connection to the Response Center
established, then the Tele Aid system could
not initiate an emergency call (e.g. the rele-
vant cellular phone network is not available).
The message
Call failed appears in the
multifunction display for approximately
10 seconds.
Should this occur, assistance must be sum-
moned by other means.
Warning!G
If you feel at any way in jeopardy when in the
vehicle (e.g. smoke or fire in the vehicle,
vehicle in a dangerous road location), please
do not wait for voice contact after you have
pressed the emergency button. Carefully
leave the vehicle and move to a safe loca-
tion. The Response Center will automatically
contact local emergency officials with the
vehicle’s approximate location if they re-
ceive an automatic SOS signal and cannot
make voice contact with the vehicle occu-
pants.
