184 Controls in detail
Control system
Limiting opening height of tailgate*
Use this function to activate or deactivate
the limiting opening height of the tailgate.
Move the selection marker with
buttonæ orç to the
Vehicle
submenu.
Press buttonj ork repeatedly
until the message
Opening limiter
Tailgate
appears in the multifunction
display.
The selection marker is on the current
setting.
Press buttonæ orç to switch
the limiting opening height of the
tailgate
On or Off.Comfort submenu*
Access the
Comfort submenu via the
Settings menu. Use the Comfort submenu
to change the settings for a number of con-
venience features.
The following functions are available:Activating easy-entry/exit feature*
Use this function to activate and
deactivate the easy-entry/exit feature
(
page 49).
FunctionPage
Activating easy-entry/exit
feature*184
Setting fold-in function* for
exterior rear view mirrors185
Warning!G
You must make sure no one can become
trapped or injured by the moving steering
wheel when the easy-entry/exit feature is
activated.
To stop steering wheel movement, do one of
the following:

Move steering wheel adjustment stalk*
(
page 51).

Press one of the memory position
buttons or the memory buttonM*
(
page 144).
Do not leave children unattended in the ve-
hicle, or with access to an unlocked vehicle.
Children could open the driver’s door and
unintentionally activate the easy-entry/exit
feature, which could result in an accident
and/or serious personal injury.

185 Controls in detail
Control system
Move the selection marker with
buttonæ orç to the
Comfort
submenu.
Press buttonj ork repeatedly
until the message
Easy-entry feature
appears in the multifunction display.
The selection marker is on the current
setting.
Press buttonæ orç to switch
the easy-entry/exit feature
On or Off.Setting fold-in function* for exterior
rear view mirrors
Using this function, you can set the
exterior rear view mirrors to be automati-
cally folded in when you lock your vehicle.
Move the selection marker with
buttonæ orç to the
Comfort
submenu.
Press buttonj ork repeatedly
until the message
Fold in mirrors
when locking
appears in the multi-
function display.
The selection marker is on the current
setting.
Press buttonæ orç to switch
function
On or Off.
Vehicle configuration
The following functions are available:
iWith this function set to On and the exterior
rear view mirrors folded in using the button on
the door control panel (
page 211), the exterior
rear view mirrors will not fold out when you
switch on the ignition. You will then have to fold
out the exterior rear view mirrors using the
button on the door control panel (
page 211).
Make sure both exterior rear view mirrors are
folded out completely before driving off.
FunctionPage
Distance warning function*
on/off186
DSR set speed186

186 Controls in detail
Control system
Distance warning function*
In vehicles equipped with Distronic*, you
can determine whether the distance warn-
ing function is to be enabled or disabled.
With this function set to
On, the system will
alert you when recognizing a stationary ob-
stacle or a slower vehicle moving in your
vehicle’s path and the danger of a collision
exists, even when the Distronic* is
switched off.
Switch on the ignition (page 42).
Press buttonè orÿ repeatedly
until the
Vehicle configuration menu
appears in the multifunction display.
Press buttonj ork repeatedly
until the message
Distance warning
appears in the multifunction display.
The selection marker is on the current
setting.
Press buttonæ orç to switch
the distance warning function
OnorOff.
1Symbol for activated distance warning
function
If the distance warning function is
activated you will see the :symbol in
the Standard display. When the distance
warning function is deactivated the
:symbol will not appear.DSR (Downhill Speed Regulation)
programmed default speed
In the
Downhill Speed Regulation menu,
you can program the default speed the
DSR is set to when it is activated.
You can program the default speed be-
tween 4 - 10 mph (Canada: 6 - 18 km/h).
The set value is increased in 1 mph
(Canada: 2 km/h) increments.
Press buttonè orÿ repeatedly
until the
Vehicle configuration menu
appears in the multifunction display.
Press buttonj ork repeatedly
until the message
DSR Speed appears
in the multifunction display.
The selection marker is on the current
setting.

187 Controls in detail
Control system
Press buttonæ orç repeatedly
until the desired speed is shown in the
multifunction display.
When DSR is switched on, DSR will use
the programmed default speed to regu-
late the vehicle’s speed.Trip computer menu
Use the trip computer menu to call up
statistical data on your vehicle.
The following information is available:Fuel consumption statistics since start
Press buttonÿ orè repeatedly
until the message
From start appears
in the multifunction display.
1Distance driven since start
2Time elapsed since start
3Average speed since start
4Average fuel consumption since start
iOnce DSR is switched on, you can adjust the
set speed using the cruise control lever
(
page 278).
FunctionPage
Fuel consumption statistics
since start187
Fuel consumption statistics
since the last reset188
Resetting fuel consumption sta-
tistics188
Distance to empty188
iWhen you enter the trip computer menu, you
will always see the fuel consumption statistics
since start first.
iAll statistics stored since the last engine
start will be reset approximately 4 hours after
the SmartKey in the starter switch is turned to
position0 or removed from the starter switch.
Resetting will not occur if you turn the SmartKey
back to position1 or2 within this time period.

188 Controls in detail
Control system
Fuel consumption statistics since the
last reset
Press buttonÿ orè repeatedly
until the message
From start appears
in the multifunction display.
Press buttonj ork repeatedly
until the message
After reset appears
in the multifunction display.
1Distance driven since last reset
2Time elapsed since last reset
3Average speed since last reset
4Average fuel consumption since last
resetResetting fuel consumption statistics
Press buttonÿ orè repeatedly
until the message
From start appears
in the multifunction display.
Press buttonj ork repeatedly
until the message
After reset appears
in the multifunction display.
Press and hold the reset button in the
instrument cluster (
page 155) until
the value is reset to
0.Distance to empty
Press buttonÿ orè repeatedly
until the message
From start appears
in the multifunction display.
Press buttonj ork repeatedly
until the message
Range: appears in
the multifunction display.
The calculated remaining driving range
based on the current fuel tank level
appears in the multifunction display.
iThe fuel consumption statistics reset auto-
matically to 0 when either of the following values
is exceeded:

distance covered: 100 000 miles

time elapsed: 10 000 hours

189 Controls in detail
Control system

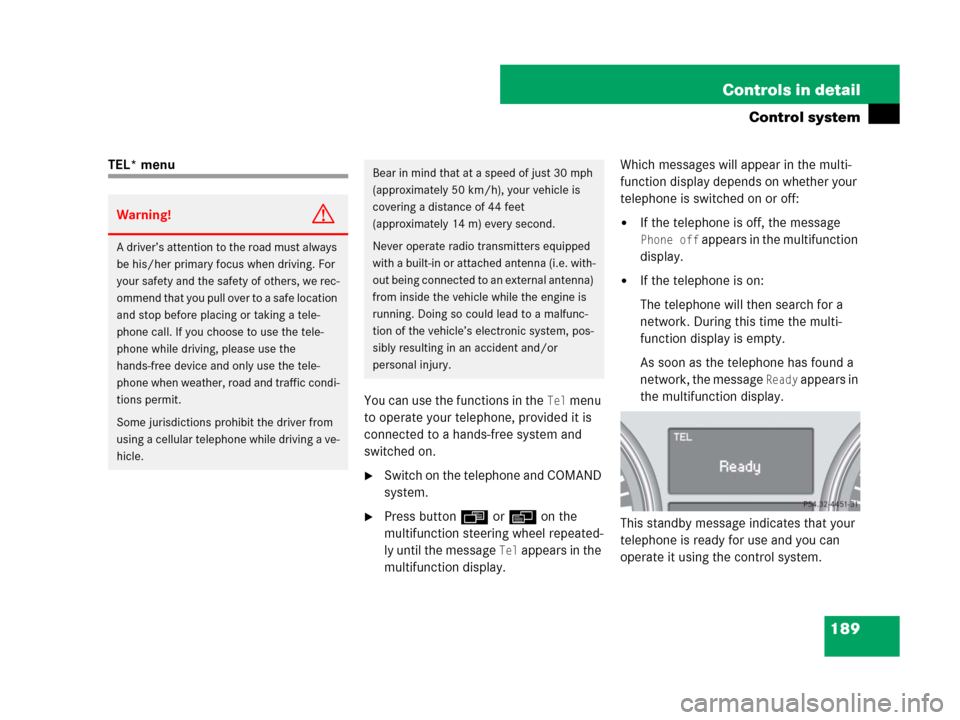

TEL* menu
You can use the functions in the
Tel menu
to operate your telephone, provided it is
connected to a hands-free system and
switched on.
Switch on the telephone and COMAND
system.
Press buttonÿ orè on the
multifunction steering wheel repeated-
ly until the message
Tel appears in the
multifunction display.Which messages will appear in the multi-
function display depends on whether your
telephone is switched on or off:

If the telephone is off, the message
Phone off appears in the multifunction
display.

If the telephone is on:
The telephone will then search for a
network. During this time the multi-
function display is empty.
As soon as the telephone has found a
network, the message
Ready appears in
the multifunction display.
This standby message indicates that your
telephone is ready for use and you can
operate it using the control system.
Warning!G
A driver’s attention to the road must always
be his/her primary focus when driving. For
your safety and the safety of others, we rec-
ommend that you pull over to a safe location
and stop before placing or taking a tele-
phone call. If you choose to use the tele-
phone while driving, please use the
hands-free device and only use the tele-
phone when weather, road and traffic condi-
tions permit.
Some jurisdictions prohibit the driver from
using a cellular telephone while driving a ve-
hicle.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your vehicle is
covering a distance of 44 feet
(approximately 14 m) every second.
Never operate radio transmitters equipped
with a built-in or attached antenna (i.e. with-
out being connected to an external antenna)
from inside the vehicle while the engine is
running. Doing so could lead to a malfunc-
tion of the vehicle’s electronic system, pos-
sibly resulting in an accident and/or
personal injury.

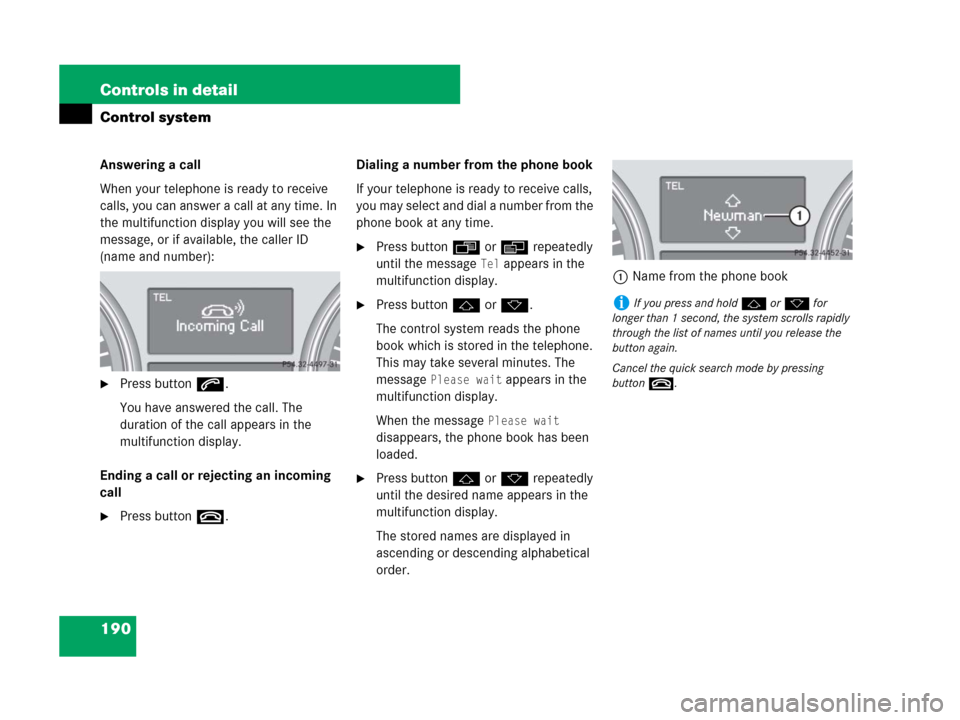

190 Controls in detail
Control system
Answering a call
When your telephone is ready to receive
calls, you can answer a call at any time. In
the multifunction display you will see the
message, or if available, the caller ID
(name and number):
Press buttons.
You have answered the call. The
duration of the call appears in the
multifunction display.
Ending a call or rejecting an incoming
call
Press buttont.Dialing a number from the phone book
If your telephone is ready to receive calls,
you may select and dial a number from the
phone book at any time.
Press buttonÿ orè repeatedly
until the message
Tel appears in the
multifunction display.
Press buttonj ork.
The control system reads the phone
book which is stored in the telephone.
This may take several minutes. The
message
Please wait appears in the
multifunction display.
When the message
Please wait
disappears, the phone book has been
loaded.
Press buttonj ork repeatedly
until the desired name appears in the
multifunction display.
The stored names are displayed in
ascending or descending alphabetical
order.1Name from the phone book
iIf you press and holdj ork for
longer than 1 second, the system scrolls rapidly
through the list of names until you release the
button again.
Cancel the quick search mode by pressing
buttont.

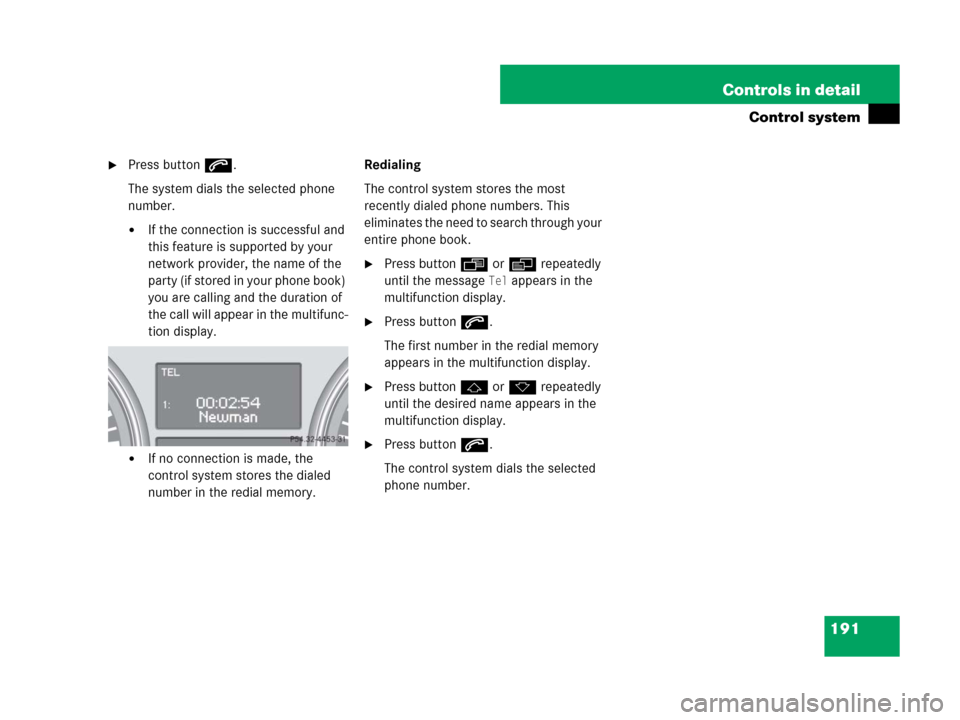

191 Controls in detail
Control system
Press buttons.
The system dials the selected phone
number.

If the connection is successful and
this feature is supported by your
network provider, the name of the
party (if stored in your phone book)
you are calling and the duration of
the call will appear in the multifunc-
tion display.

If no connection is made, the
control system stores the dialed
number in the redial memory.Redialing
The control system stores the most
recently dialed phone numbers. This
eliminates the need to search through your
entire phone book.
Press buttonÿ orè repeatedly
until the message
Tel appears in the
multifunction display.
Press buttons.
The first number in the redial memory
appears in the multifunction display.
Press buttonj ork repeatedly
until the desired name appears in the
multifunction display.
Press buttons.
The control system dials the selected
phone number.
