2007 MERCEDES-BENZ GL450 Owner's Manual

80 Safety and Security
Occupant safety
The air bags will not deploy in impacts
which do not exceed the system’s deploy-
ment thresholds. You will then be protec-
ted by the fastened seat belts.
The front passenger front air bag will only
be deployed if:

the system senses that the front
passenger seat is occupied

the 59indicator lamp in
the center console is not lit
(
page 85)

the impact exceeds a preset deploy-
ment thresholdSide impact air bags, window curtain
air bags
1Front side impact air bag
2Window curtain air bag
3Rear side impact air bag*
The side impact air bags and window
curtain air bags are deployed:

on the impacted side of the vehicle

in impacts exceeding a preset deploy-
ment threshold

independently of the front air bags
In addition, the window curtain air bags2
are deployed in certain vehicle rollovers.
!Vehicles with BabySmartTM air bag
deactivation system, Canada only:
Do not place objects heavier than 20 lb (9 kg) on
the front passenger seat. This could cause the
front or side impact air bag on the front passen-
ger side to deploy in a crash which exceeds the
system’s deployment threshold.
Warning!G
The pressure sensors for side impact air bag
control are located in the doors. Do not
modify any components of the doors or door
trim panels including, for example, the addi-
tion of door speakers.
Improper repair work on the doors or the
modification or addition of components to
the doors create a risk of rendering the
side impact air bags inoperative or causing
unintended air bag deployment. Work on the
doors must therefore only be performed by
qualified technicians. Contact an authorized
Mercedes-Benz Light Truck Center.

81 Safety and Security
Occupant safety
The side impact air bags and window cur-
tain air bags are not deployed in impacts
which do not exceed the system’s deploy-
ment threshold.
Vehicles with OCS* only:
The front passenger side impact air bag
will not deploy if the OCS senses that the
front passenger seat is empty and the front
passenger seat belt is not fastened (latch
plate is not inserted into the buckle). With
an empty front passenger seat and the
seat belt fastened (latch plate properly in-
serted into buckle) the front passenger
side impact air bag will deploy indepen-
dently of the empty seat.Occupant Classification System*
The Occupant Classification System (OCS)
automatically turns the front passenger
front air bag on or off based on the classi-
fied occupant weight category determined
by weight sensor readings from the front
passenger seat.
Occupants must sit properly belted in a
position that is as upright as possible with
their back against the seat backrest and
feet on the floor to be correctly classified.
If the occupant’s weight is transferred to
another object in the vehicle (e.g. by lean-
ing on armrests), the OCS may not be able
to properly approximate the occupant’s
weight category.
Warning!G
Only use seat covers which have been test-
ed and approved by Mercedes-Benz for your
vehicle model. Using other seat covers may
interfere with or prevent the deployment of
the front side impact air bags or the rear
side impact air bags*. Contact your autho-
rized Mercedes-Benz Light Truck Center for
availability.
iThe system does not deactivate the front
passenger side impact air bag, the window
curtain air bag, and the emergency tensioning
device.

82 Safety and Security
Occupant safety
Furthermore, the occupant weight may ap-
pear to increase or decrease due to
objects hanging on the seat, other passen-
gers pushing on the seat, objects lodged
underneath the seat or stuffed between
seat and middle console or between seat
and door or due to objects applying pres-
sure on the back of the seat. Always make
sure that the seat has clearance in all
directions at all times.
Both, driver and the front passenger
should always use the
59indicator lamp as an indi-
cation of whether or not the front passen-
ger is properly positioned.
iIf your seat, including your trim cover and
cushion needs to be serviced in any way, take
the vehicle to an authorized Mercedes-Benz
Light Truck Center.
Only seat accessories approved by
Mercedes-Benz may be used.
Warning!G
If the 59indicator lamp illumi-
nates when an adult or someone larger than
a small individual is in the front passenger
seat, have the front passenger re-position
himself or herself in the seat until the
59indicator lamp goes out, or
check whether objects are caught under or
around the seat.
More information about air bag display mes-
sages (
page 463).
In the event of a collision, the air bag control
unit will not allow front passenger front air
bag deployment when the OCS classified
the front passenger seat occupant as being
up to or less than the weight of a typical
12-month-old child in a standard child re-
straint or if the front passenger seat is
sensed as being empty.
When the OCS senses that the front passen-
ger seat occupant is classified as being up
to or less than the weight of a typical
12-month-old child in a standard child
restraint, the 59indicator
lamp will illuminate when the engine is start-
ed and remain illuminated, indicating that
the front passenger front air bag is deacti-
vated.
When the OCS senses that the front passen-
ger seat is classified as being empty, the
59indicator lamp will illumi-
nate when the engine is started and remain
illuminated, indicating that the front
passenger front air bag is deactivated.

83 Safety and Security
Occupant safety
When the OCS senses that the front passen-
ger seat occupant is classified as being
heavier than the weight of a typical
12-month-old child seated in a standard
child restraint or as being a small individual
(such as a young teenager or a small adult),
the 59indicator lamp will illu-
minate for approximately 6 seconds when
the engine is started and then, depending on
occupant weight sensor readings from the
seat, remain illuminated or go out. With the
59indicator lamp illuminated,
the front passenger front air bag is deacti-
vated. With the 59indicator
lamp out, the front passenger front air bag is
activated.
When the OCS senses that the front passen-
g e r s e a t o c c u p a n t i s c l a s s i f i e d a s a n a d u l t o r
someone larger than a small individual, the
59indicator lamp will illumi-
nate for approximately 6 seconds when the
engine is started and then go out, indicating
that the front passenger front air bag is
activated.If the 59indicator lamp is illu-
minated, the front passenger front air bag is
deactivated and will not be deployed.
If the 59indicator lamp is not
illuminated, the front passenger front air
bag is activated and will be deployed:

in the event of certain frontal impacts

if impact exceeds a preset deployment
threshold

independently of the side impact air
bags.
If the front passenger front air bag is de-
ployed, the rate of inflation will be influ-
enced by:

the rate of vehicle deceleration as
assessed by the air bag control unit

the front passenger’s weight category
as identified by the Occupant Classifica-
tion System (OCS)
Warning!G
According to accident statistics, children
are safer when properly restrained in the
rear seating positions than in the front seat-
ing position. Thus, we strongly recommend
that children be placed in the rear seats
whenever possible. Regardless of seating
position, children 12 years old and under
must be seated and properly secured in an
appropriate infant or child restraint
recommended for the size and weight of the
child.
The infant or child restraint must be properly
secured with the vehicle’s seat belt, the seat
belt and top tether strap, or lower anchors
and top tether strap, fully in accordance
with the child seat manufacturer’s
instructions.


84 Safety and Security
Occupant safety

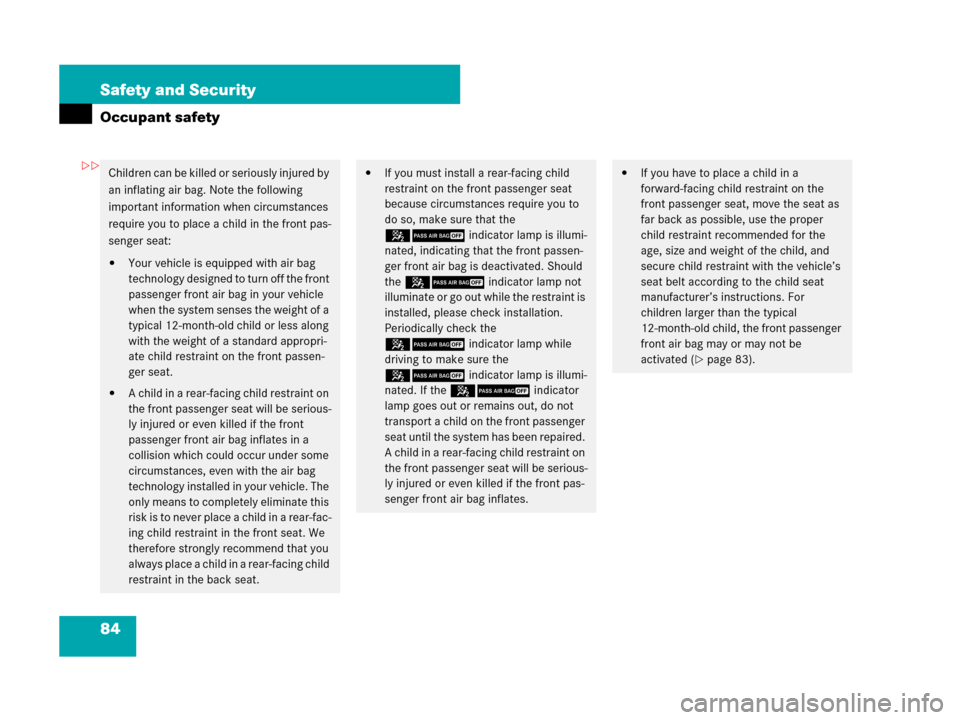

Children can be killed or seriously injured by
an inflating air bag. Note the following
important information when circumstances
require you to place a child in the front pas-
senger seat:

Your vehicle is equipped with air bag
technology designed to turn off the front
passenger front air bag in your vehicle
when the system senses the weight of a
typical 12-month-old child or less along
with the weight of a standard appropri-
ate child restraint on the front passen-
ger seat.

A child in a rear-facing child restraint on
the front passenger seat will be serious-
ly injured or even killed if the front
passenger front air bag inflates in a
collision which could occur under some
circumstances, even with the air bag
technology installed in your vehicle. The
only means to completely eliminate this
risk is to never place a child in a rear-fac-
ing child restraint in the front seat. We
therefore strongly recommend that you
always place a child in a rear-facing child
restraint in the back seat.

If you must install a rear-facing child
restraint on the front passenger seat
because circumstances require you to
do so, make sure that the
59indicator lamp is illumi-
nated, indicating that the front passen-
ger front air bag is deactivated. Should
the 59indicator lamp not
illuminate or go out while the restraint is
installed, please check installation.
Periodically check the
59indicator lamp while
driving to make sure the
59indicator lamp is illumi-
nated. If the 59indicator
lamp goes out or remains out, do not
transport a child on the front passenger
seat until the system has been repaired.
A child in a rear-facing child restraint on
the front passenger seat will be serious-
ly injured or even killed if the front pas-
senger front air bag inflates.
If you have to place a child in a
forward-facing child restraint on the
front passenger seat, move the seat as
far back as possible, use the proper
child restraint recommended for the
age, size and weight of the child, and
secure child restraint with the vehicle’s
seat belt according to the child seat
manufacturer’s instructions. For
children larger than the typical
12-month-old child, the front passenger
front air bag may or may not be
activated (
page 83).


85 Safety and Security
Occupant safety

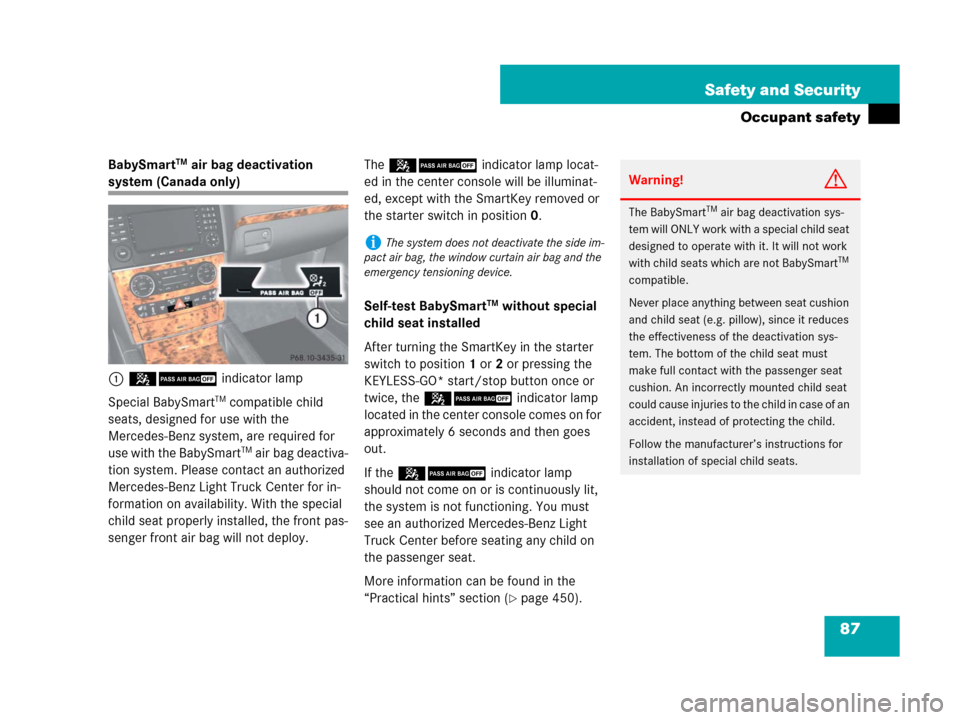

The 59indicator lamp is
located in the center console.
159indicator lamp
The 59indicator lamp1 will
be illuminated, except with the SmartKey
removed from the starter switch or with
the starter switch in position0
(
page 41).
iDeployment of the driver front air bag does
not mean that the front passenger front air bag
also should have deployed.
The Occupant Classification System (
page 81)
may have determined:

that the seat was empty or occupied by the
weight up to or less than that of a typical
12-month-old child seated in a standard
child restraint – both instances where the
system suppresses deployment of the front
passenger front air bag even though the im-
pact met the criteria and was of sufficient
severity to deploy the driver front air bag.

that the seat was occupied by a small individ-
ual (such as a young teenager or a small
adult) or a child weighing more than the
weight of a typical 12-month-old child in a
standard child restraint – instances where
the system may suppress deployment of the
front passenger front air bag even though
the impact met the criteria and was of suffi-
cient severity to deploy the driver front air
bag.
Warning!G
If the 1indicator lamp and the
59indicator lamp are lit at the
same time, there is a malfunction in the
Occupant Classification System. The front
passenger front air bag will be deactivated
in this case. Have the system checked as
soon as possible by qualified technicians.
Contact an authorized Mercedes-Benz Light
Truck Center.
In order to ensure proper operation of the
air bag system and OCS:

Do not place more than 4.4 lb (2 kg) into
the parcel net on the back of the front
passenger seat. Otherwise, the OCS
may not be able to properly approximate
the occupant weight category.

Do not place objects under and/or
around the front passenger seat.


86 Safety and Security
Occupant safety
Self-test Occupant Classification
System
After turning the SmartKey in the starter
switch to position1 or2 or pressing the
KEYLESS-GO* start/stop button once or
twice, the 59indicator lamp
(
page 85) located in the center console
illuminates. If an adult occupant is properly
sitting on the front passenger seat and the
system senses the occupant as being an
adult, the 59indicator lamp
will illuminate and go out after approxi-
mately 6 seconds.
If the seat is not occupied and the system
senses the front passenger seat as being
empty, the 59indicator lamp
will illuminate and not go out.For more information, see the “Practical
hints” section (
page 448).

Do not hang anything from or attach any
items to the seats.

Do not stuff objects such as books be-
tween the middle console and the front
passenger seat.

Do not move the front passenger seat
backwards against stiff objects.

Sit properly belted in a position that is as
upright as possible with your back
against the seat backrest.

Do not lean on the armrests or lift your-
self from the seat by using the handle
over the door as this may cause the OCS
to be unable to correctly approximate
the occupant weight category.

Only have the seat repaired or replaced
by an authorized Mercedes-Benz Light
Truck Center.

Read and observe all warnings in this
chapter.
Warning!G
If the 59indicator lamp should
not illuminate, the system is not functioning.
You must see an authorized Mercedes-Benz
Light Truck Center before seating any child
on the front passenger seat.
Warning!G
Never place anything between seat cushion
and child seat (e.g. pillow), since it reduces
the effectiveness of the Occupant Classifi-
cation System. The bottom of the child seat
must make full contact with the passenger
seat cushion. An incorrectly mounted child
seat could cause injuries to the child in case
of an accident, instead of increasing protec-
tion for the child.
Follow the manufacturer’s instructions for
installation of child seats.


87 Safety and Security
Occupant safety
BabySmartTM air bag deactivation
system (Canada only)
159indicator lamp
Special BabySmart
TM compatible child
seats, designed for use with the
Mercedes-Benz system, are required for
use with the BabySmart
TM air bag deactiva-
tion system. Please contact an authorized
Mercedes-Benz Light Truck Center for in-
formation on availability. With the special
child seat properly installed, the front pas-
senger front air bag will not deploy.The 59indicator lamp locat-
ed in the center console will be illuminat-
ed, except with the SmartKey removed or
the starter switch in position0.
Self-test BabySmart
TM without special
child seat installed
After turning the SmartKey in the starter
switch to position1 or2 or pressing the
KEYLESS-GO* start/stop button once or
twice, the 59indicator lamp
located in the center console comes on for
approximately 6 seconds and then goes
out.
If the 59indicator lamp
should not come on or is continuously lit,
the system is not functioning. You must
see an authorized Mercedes-Benz Light
Truck Center before seating any child on
the passenger seat.
More information can be found in the
“Practical hints” section (
page 450).
iThe system does not deactivate the side im-
pact air bag, the window curtain air bag and the
emergency tensioning device.
Warning!G
The BabySmartTM air bag deactivation sys-
tem will ONLY work with a special child seat
designed to operate with it. It will not work
with child seats which are not BabySmart
TM
compatible.
Never place anything between seat cushion
and child seat (e.g. pillow), since it reduces
the effectiveness of the deactivation sys-
tem. The bottom of the child seat must
make full contact with the passenger seat
cushion. An incorrectly mounted child seat
could cause injuries to the child in case of an
accident, instead of protecting the child.
Follow the manufacturer’s instructions for
installation of special child seats.
